ZOMBIE COMPONENTS

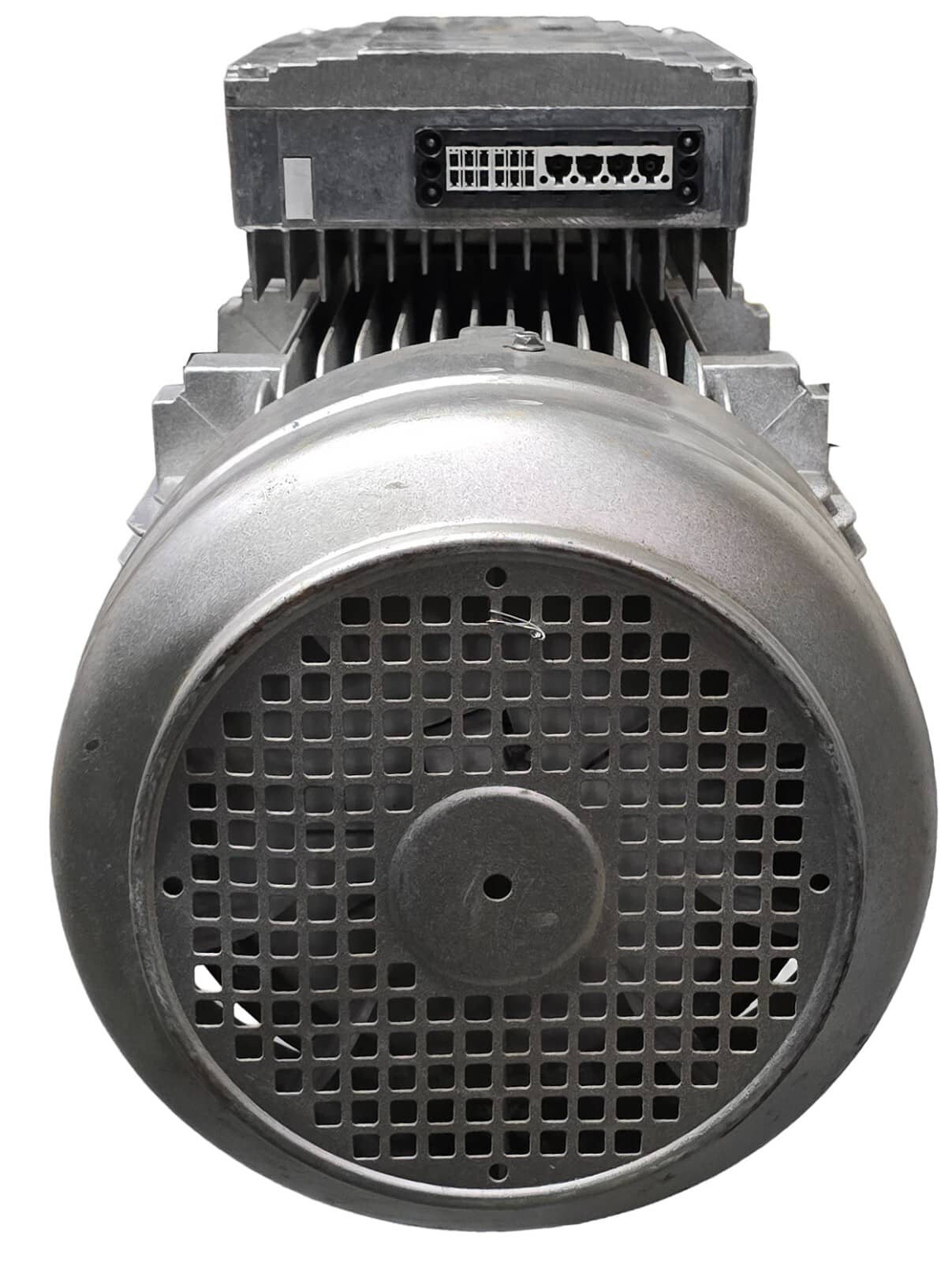

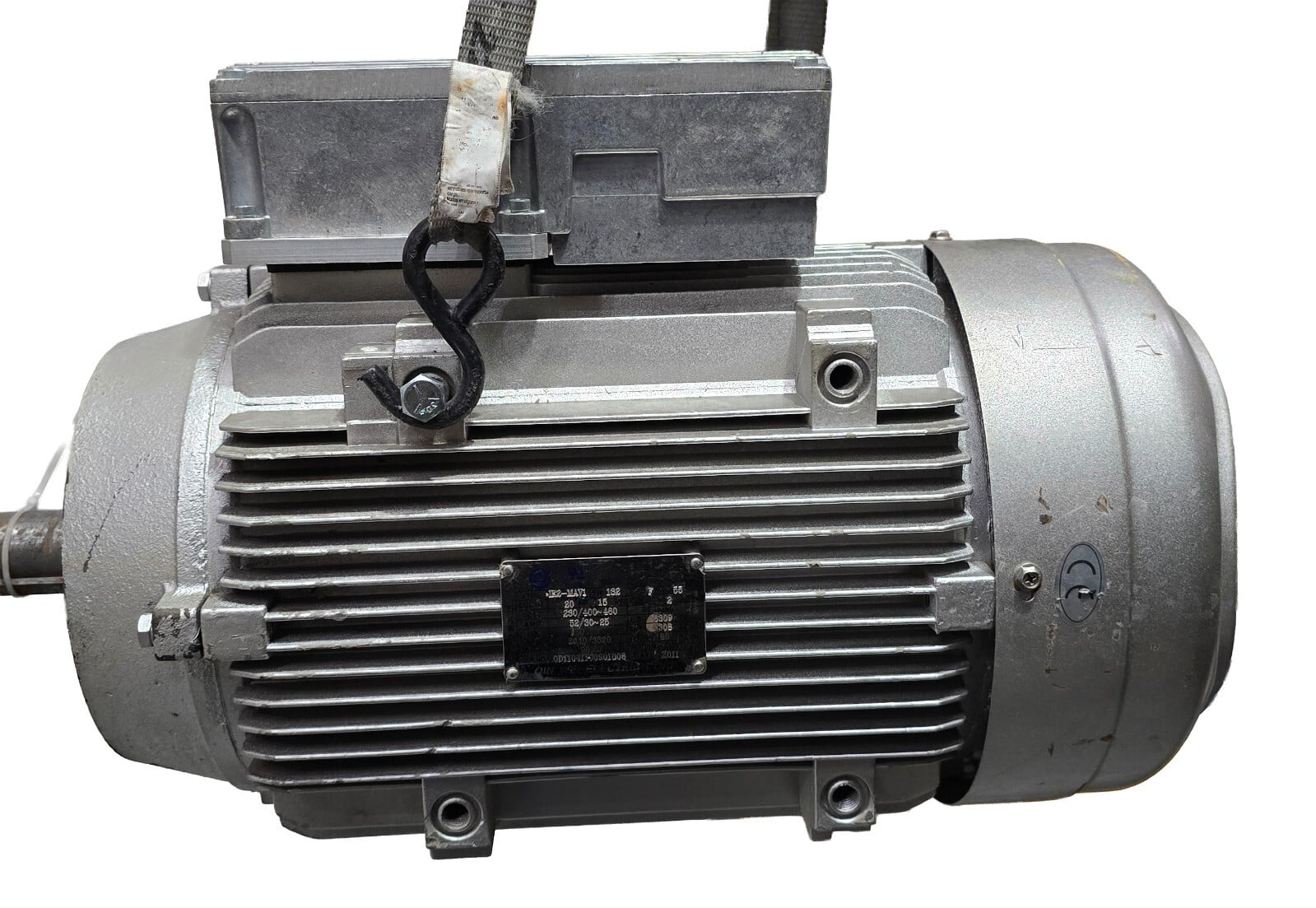

Qin Wei Electric IE2-MAVI FR.132S 20HP Electric Motor 230/400-460V 3PH 3520RPM
Qin Wei Electric IE2-MAVI FR.132S 20HP 3PH Electric Motor 230/400-460V 3520RPM
This listing is for a Qin Wei Electric 20HP 3-phase induction motor, high-speed (3520 RPM) model, built with high-efficiency IE2 standards. Designed for industrial applications requiring compact size, continuous duty, and international voltage flexibility.
The motor features a 132S IEC frame, making it compatible with a wide range of pumps, fans, conveyors, and machinery. It is inverter-duty rated and ready for VFD (variable frequency drive) applications.
This unit is new-old-stock, please see photos for exact condition.
INCLUDES:

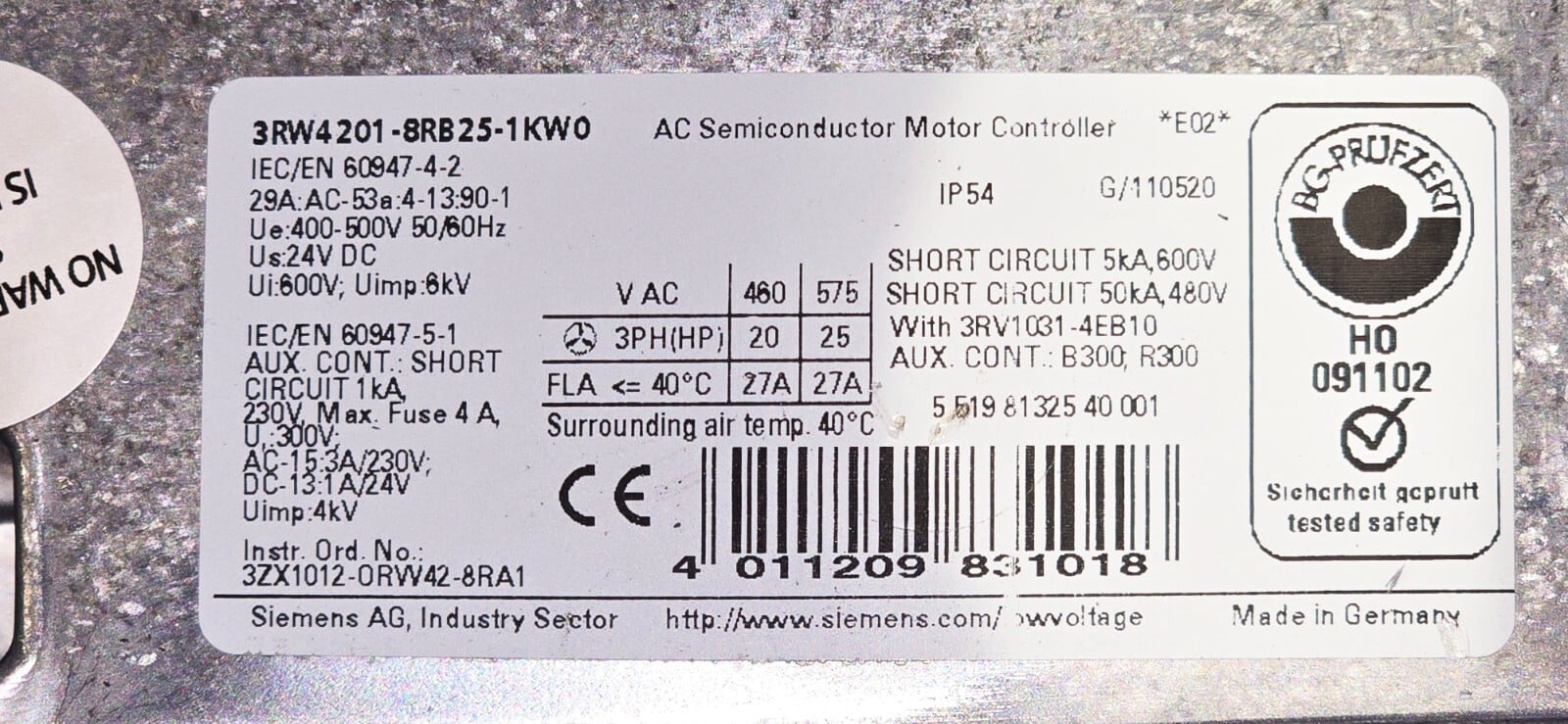

Siemens 3RW4201-8RB25-1KW0 Soft Starter

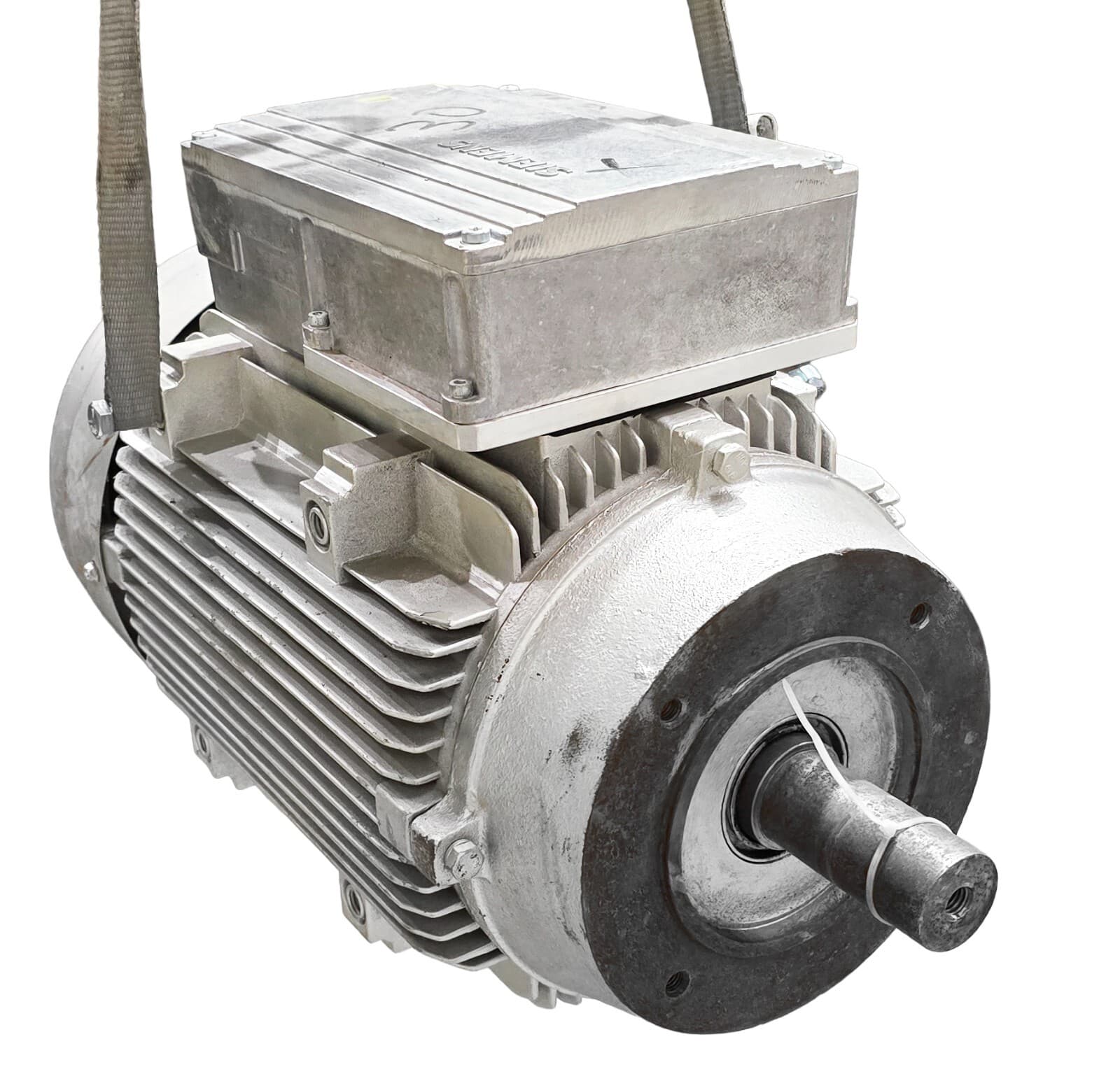

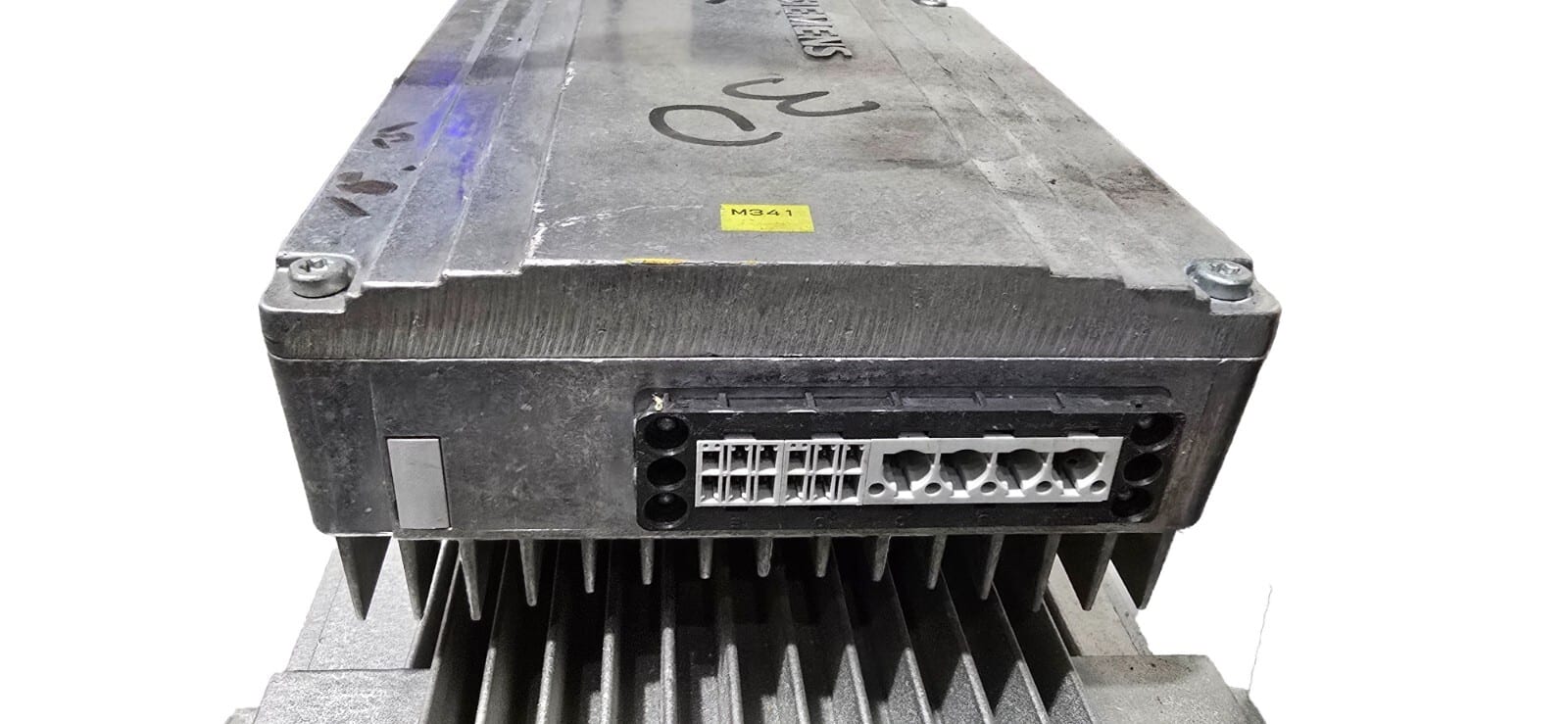

This motor is equipped with a Siemens SIRIUS 3RW42 soft starter (model 3RW4201-8RB25-1KW0) mounted to the top.
20HP rated at 460V
24V DC control voltage
IP54 rated enclosure
Made in Germany
Provides soft start/stop for the motor, reducing mechanical stress and extending service life.

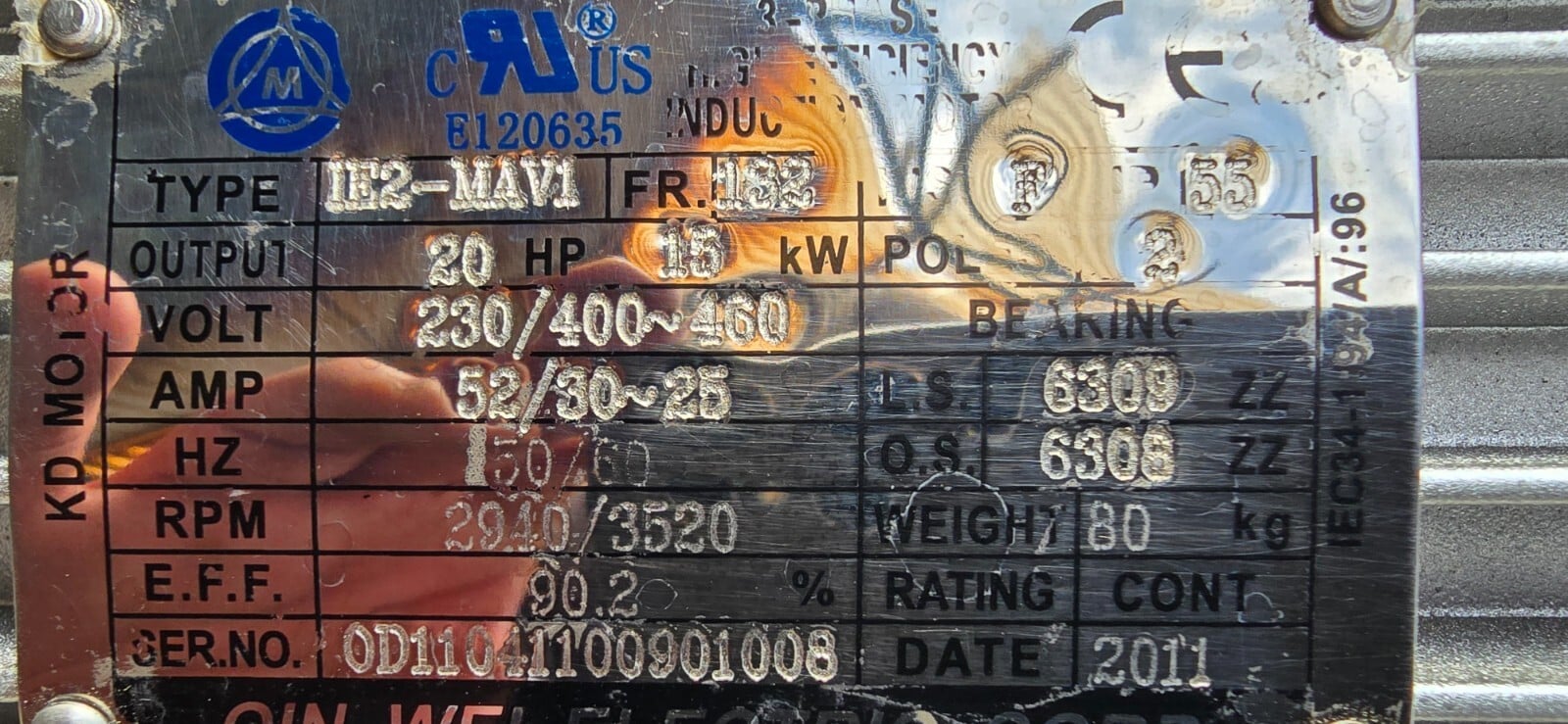

🔧 Specifications:
ParameterDetails
Manufacturer
Qin Wei Electric
Model Type
IE2-MAVI
Frame Size
FR.132S (IEC Standard)
Rated Power
20 HP / 15 kW
Rated Voltage
230V / 400V / 460V
Frequency
50 Hz / 60 Hz
Full Load Amps
52 A (230V) / 30 A (400V) / 25 A (460V)
Speed
2940 RPM (50 Hz) / 3520 RPM (60 Hz)
Enclosure Type
TEFC (assumed based on construction)
Efficiency
90.2% (IE2 Efficiency Class)
Service Factor
Continuous Duty (S1)
Bearings
DE: 6308ZZ / ODE: 6308ZZ
Weight
80 kg (176 lbs)
Build Date
2011
✅ Features:
High-speed 2-pole motor (3520 RPM @ 60Hz)
Compact 132S frame for space-saving installations
Premium IE2 Efficiency reduces operational costs
Dual-frequency 50/60 Hz capability for global applications
Sealed bearings (ZZ) for extended service life
Compatible with VFD drives for flexible speed control
Industrial-grade build quality for reliable continuous duty
LOCAL PICKUP OR FREIGHT – BUYERS CHOICE. WE WILL PACKAGE ON PALLET FOR CARRIER OF YOUR CHOOSING
WE SHIP WORLD WIDE!
Additional information
| ACTUAL RATED INPUT VOLTAGE | 230/400–460 V |
|---|---|
| RATED/FULL-LOAD TORQUE | 30 lb-ft |
| FULL LOAD AMPS | 52/30/25 A |
| INVERTER/VECTOR DUTY RATING | Inverter Duty Capable |
| RATED LOAD (HP) | 20 |
| IEC FRAME SIZE | 132S |
| NEMA DESIGN LETTER | Not Applicable (IEC motor, not NEMA rated) |
| AC FREQUENCY RATING | 50/60 Hz |
| SPECIAL MOTOR CONSTRUCTION | High Efficiency IE2 |
| ENCLOSURE TYPE | TEFC (Totally Enclosed Fan Cooled) |
| BASE RPM | 3520 RPM (at 60 Hz) |
| SHAFT TYPE | Keyed |
| AC MOTOR TYPE | Induction/Asynchronous |
| SHAFT DIAMETER | 38 mm (IEC 132S standard shaft = 38 mm, or 1.5 inches) |
| MPN | |
| INSULATION CLASS | F (Max 311°F) |
| MOUNTING TYPE | Foot-Mounted |
| Brand | |
| REVERSIBLE/NON-REVERSIBLE | Reversible |
| PROTECTION AGAINST LIQUIDS | Splashing Water |
| AC PHASE | Three Phase |
| NEMA FRAME SUFFIX | Not Applicable (use IEC 132S frame instead) |
| COUNTRY/REGION OF MANUFACTURE | China |
| PROTECTION AGAINST SOLIDS | Dust Protected |
| Condition | |
| Condition Description |
