Siemens 1PH8 184-1DF102BA1Z Motor, 51–68 kW, 1500–2200 RPM, 355–500V, + Encoder

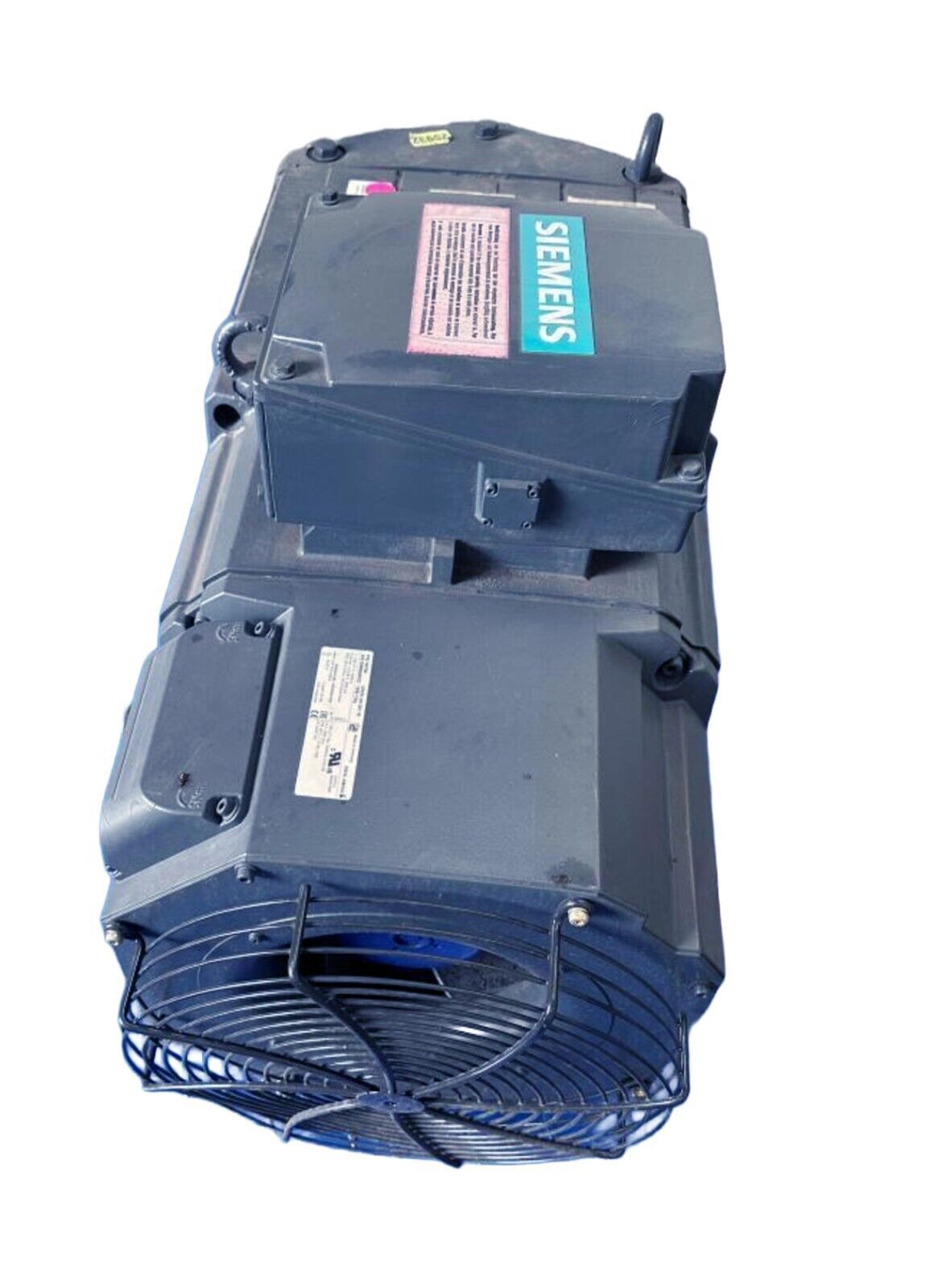

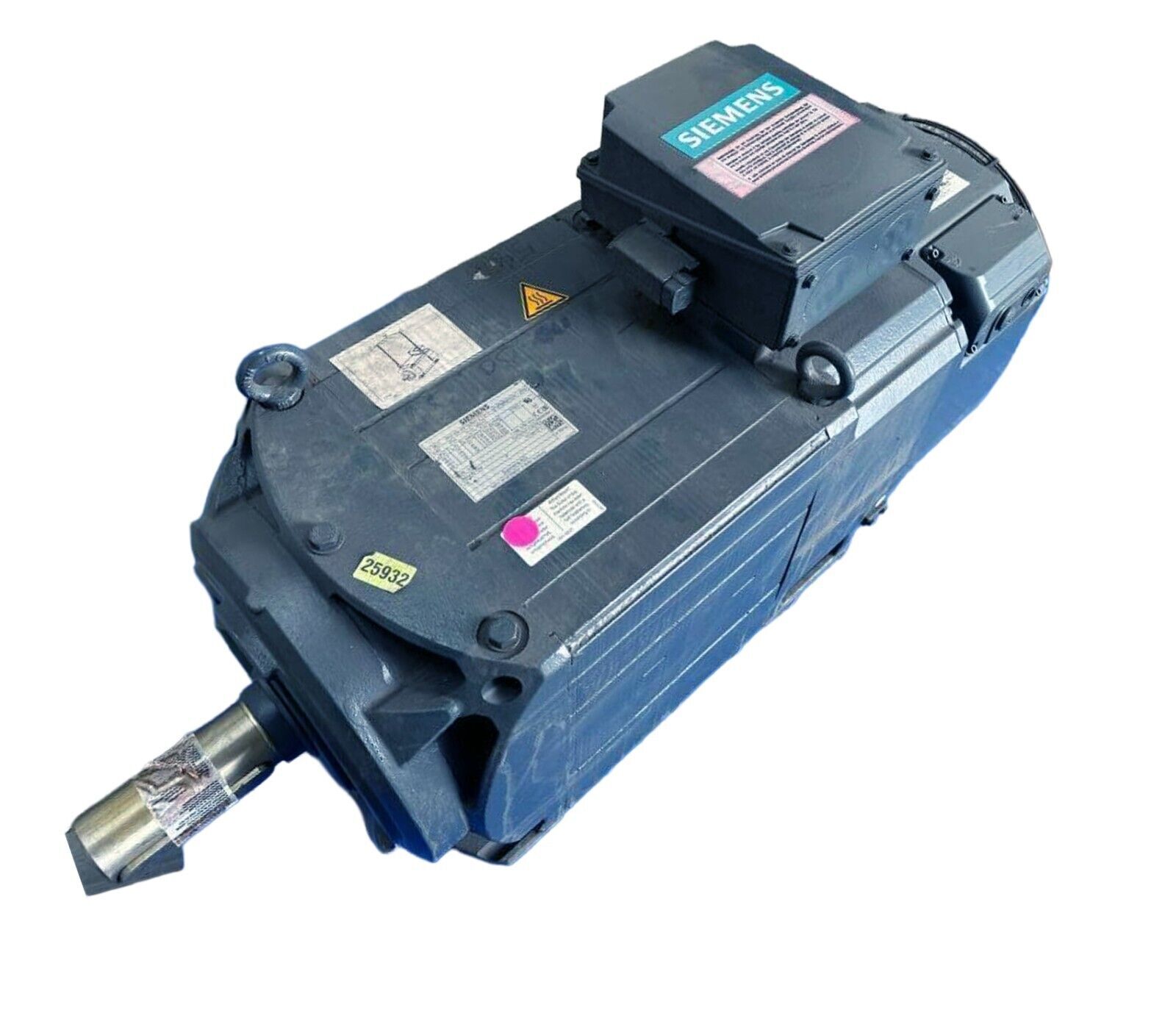

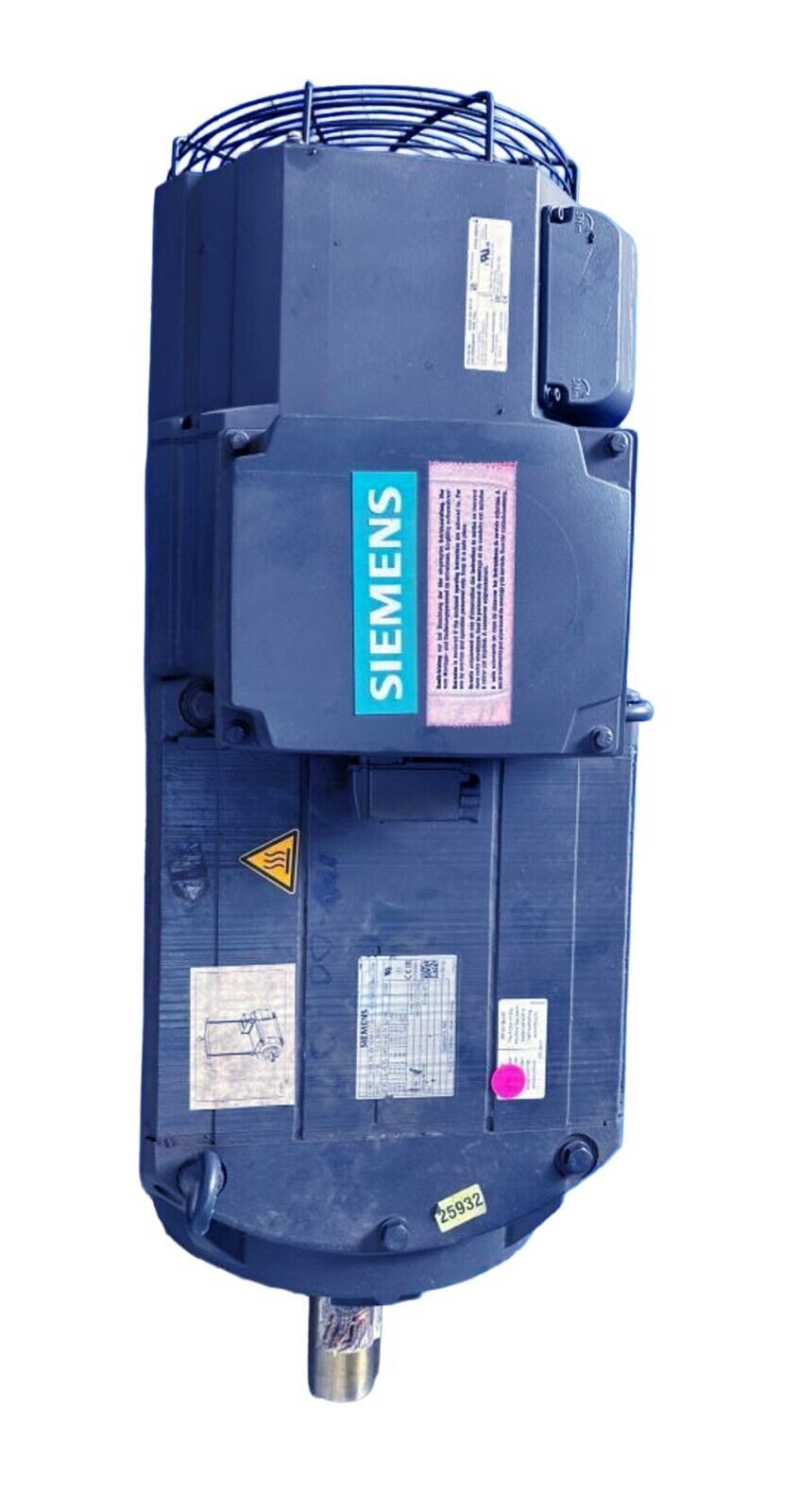

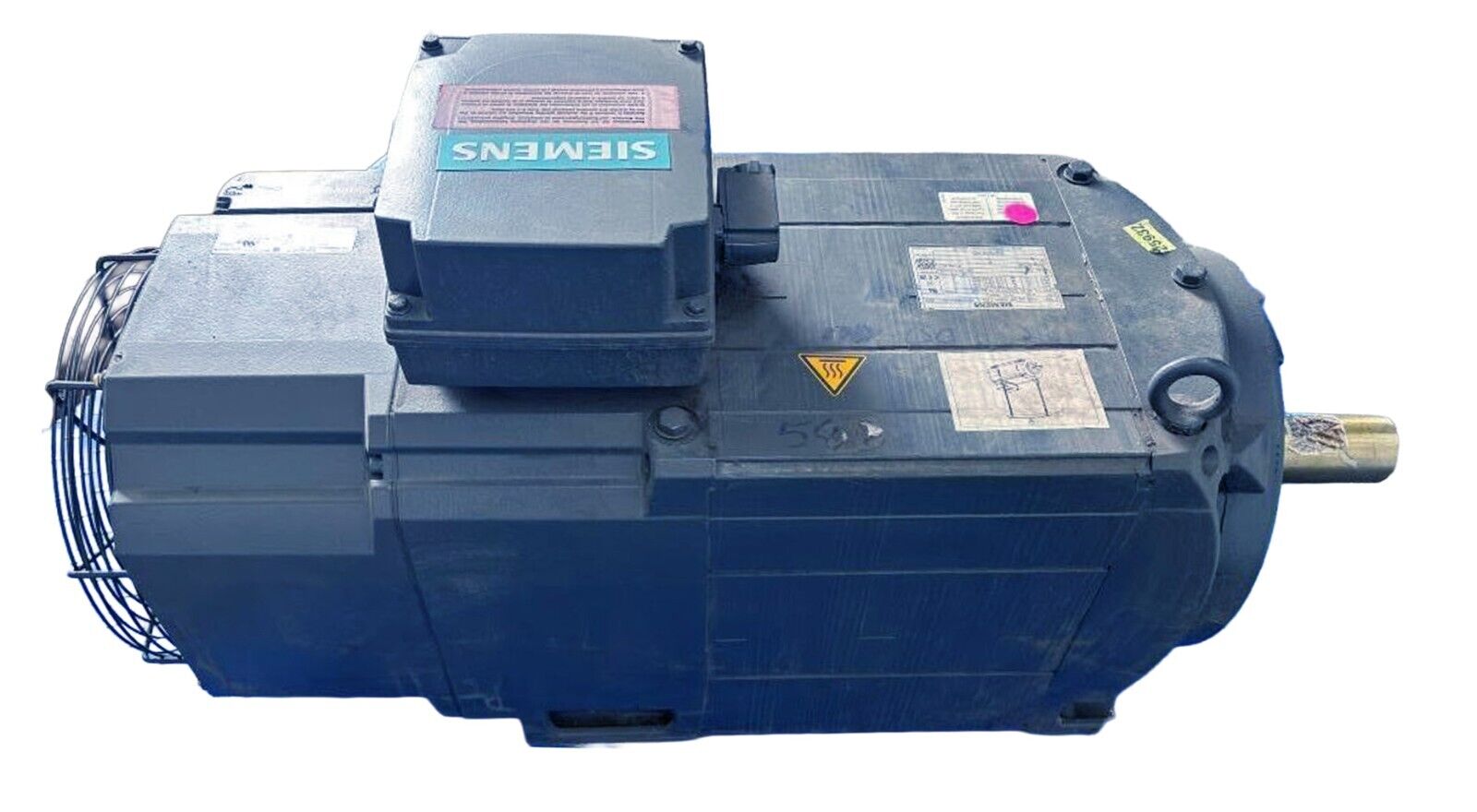

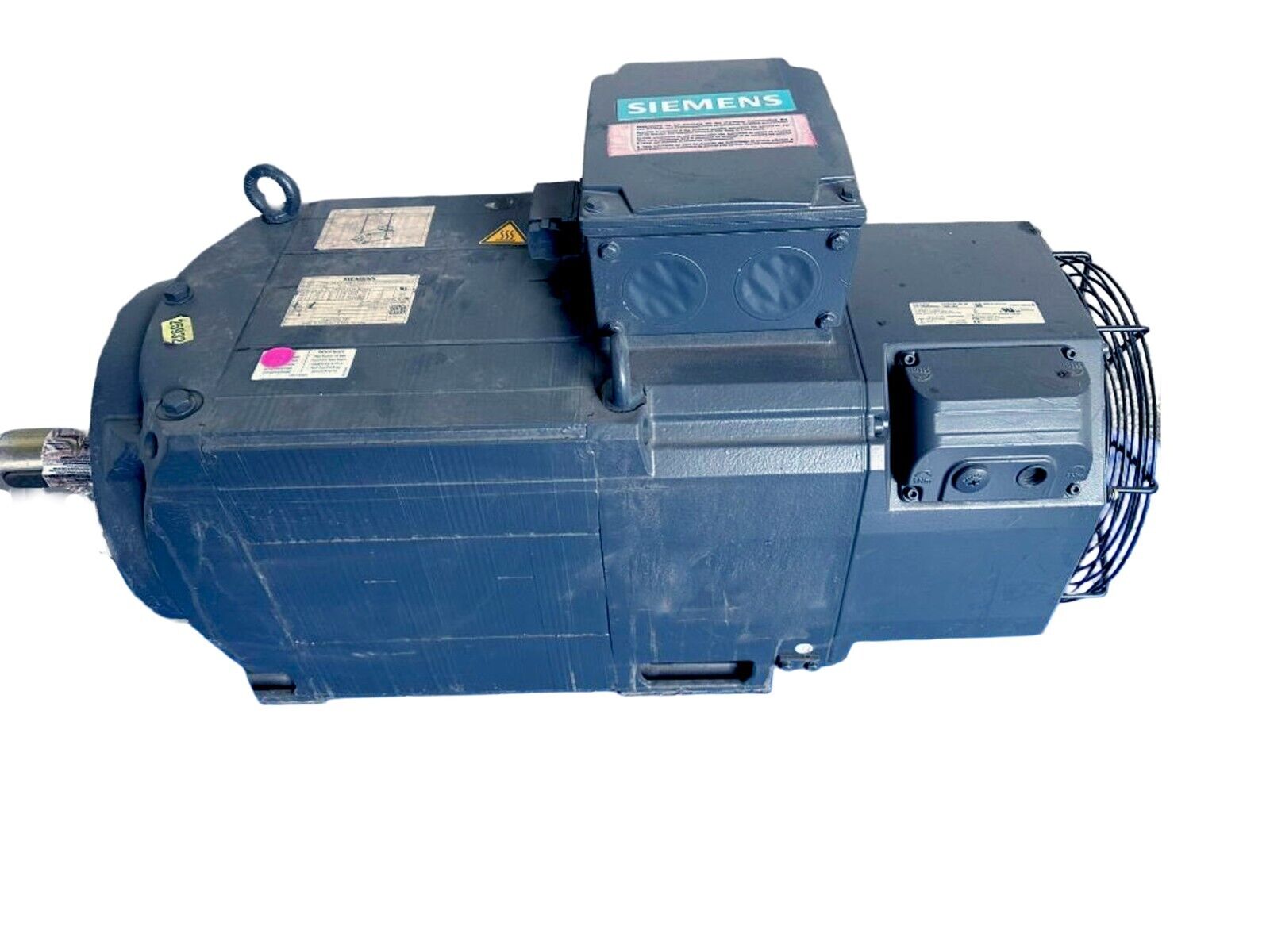

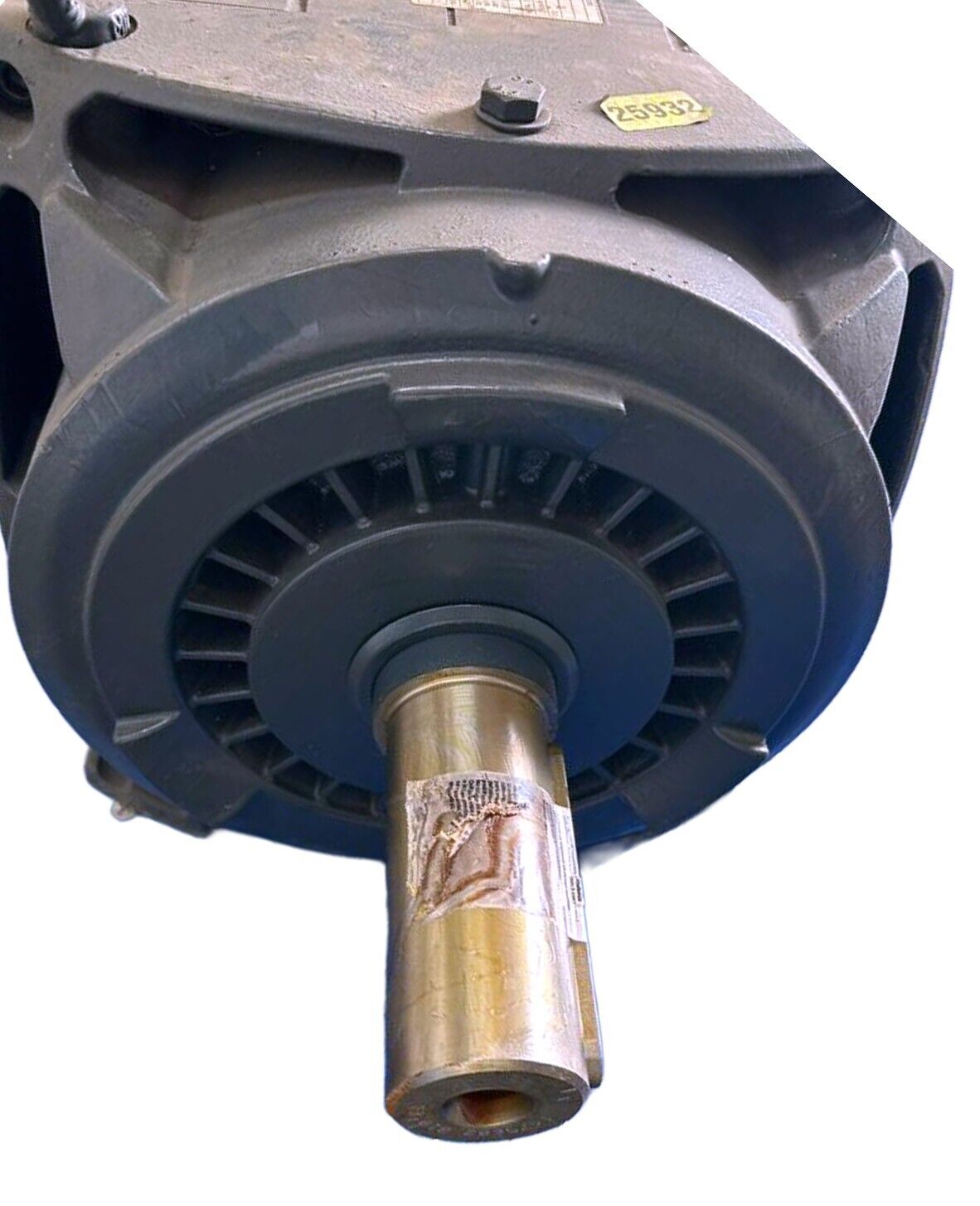

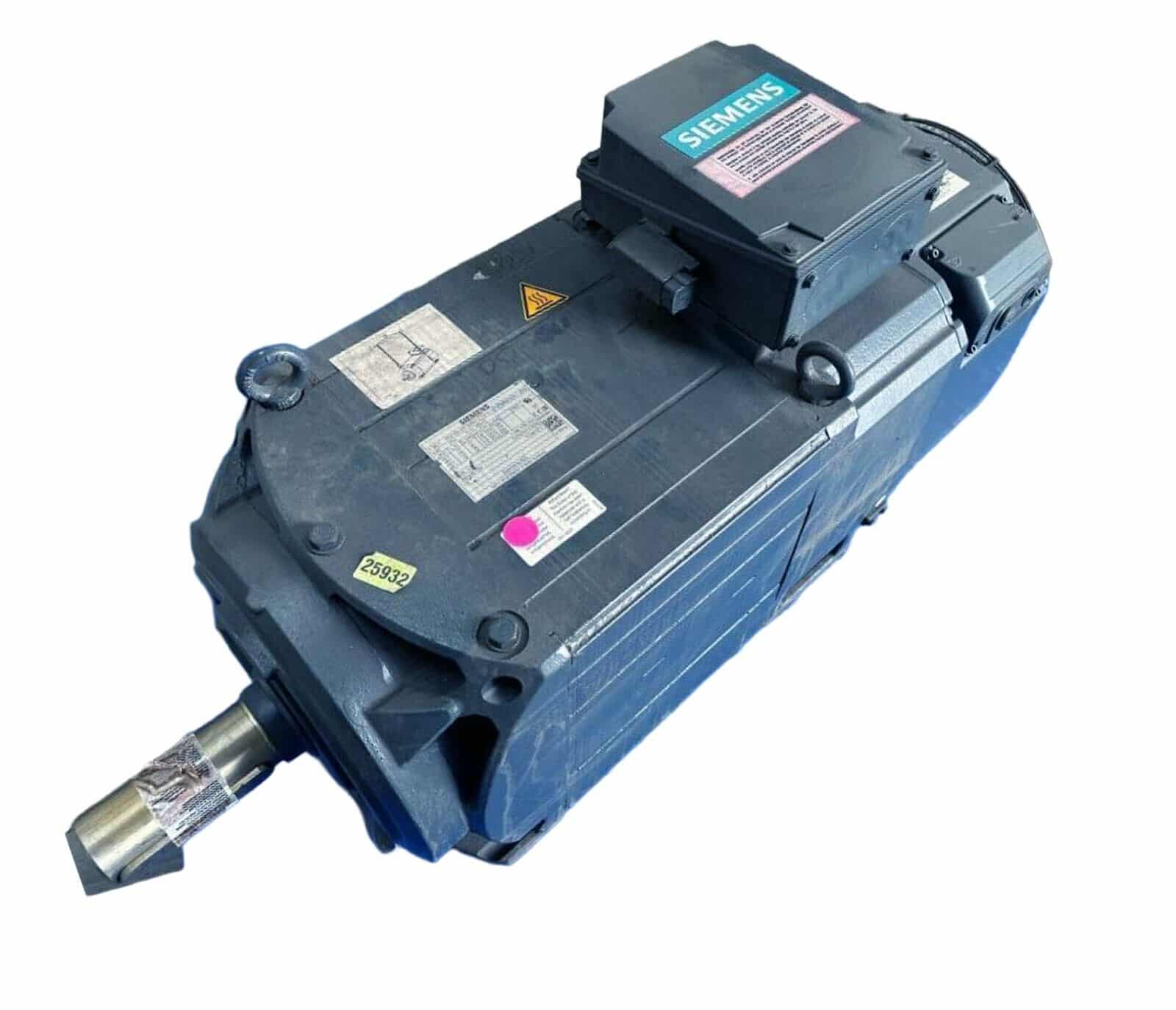

The Siemens 1PH8 184-1DF102BA1Z is a high-performance SIMOTICS M series main spindle motor designed for precision machine tools and production systems. Rated for 51 kW at 1500 RPM and capable of delivering up to 68 kW in the 2000–2200 RPM range, this 3-phase asynchronous motor operates across 355–500V using a variable-frequency drive. It features an integrated 22-bit incremental encoder with commutation (IC22DQ) and DRIVE-CLiQ interface for accurate speed and position feedback. With IP55 protection, forced-air cooling, and a rugged cast-iron frame, the motor is ideal for continuous duty applications demanding reliability, dynamic response, and efficient performance in demanding industrial environments.
buyer to arrange freight pick up… we will load on pallet with forklift

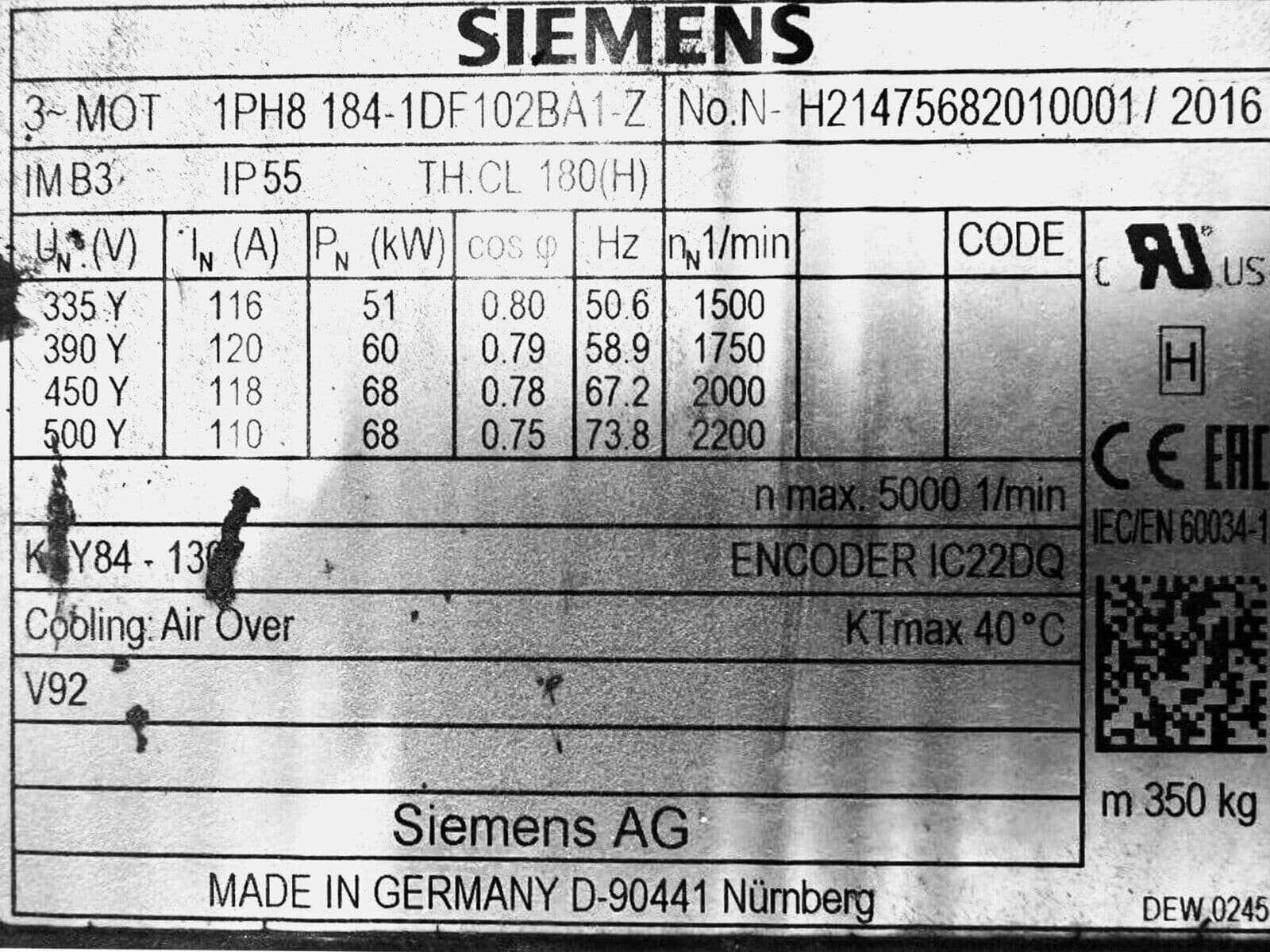

Specifications:
Model: Siemens 1PH8 184-1DF102BA1Z

Series: SIMOTICS M (Main Spindle Motor)

Motor Type: 3-phase asynchronous (induction)

Rated Power: 51 kW at 1500 RPM

Peak Power: Up to 68 kW (2000–2200 RPM)

Voltage Range: 355–500 V AC

Speed Range: 0–2200 RPM (VFD-controlled)

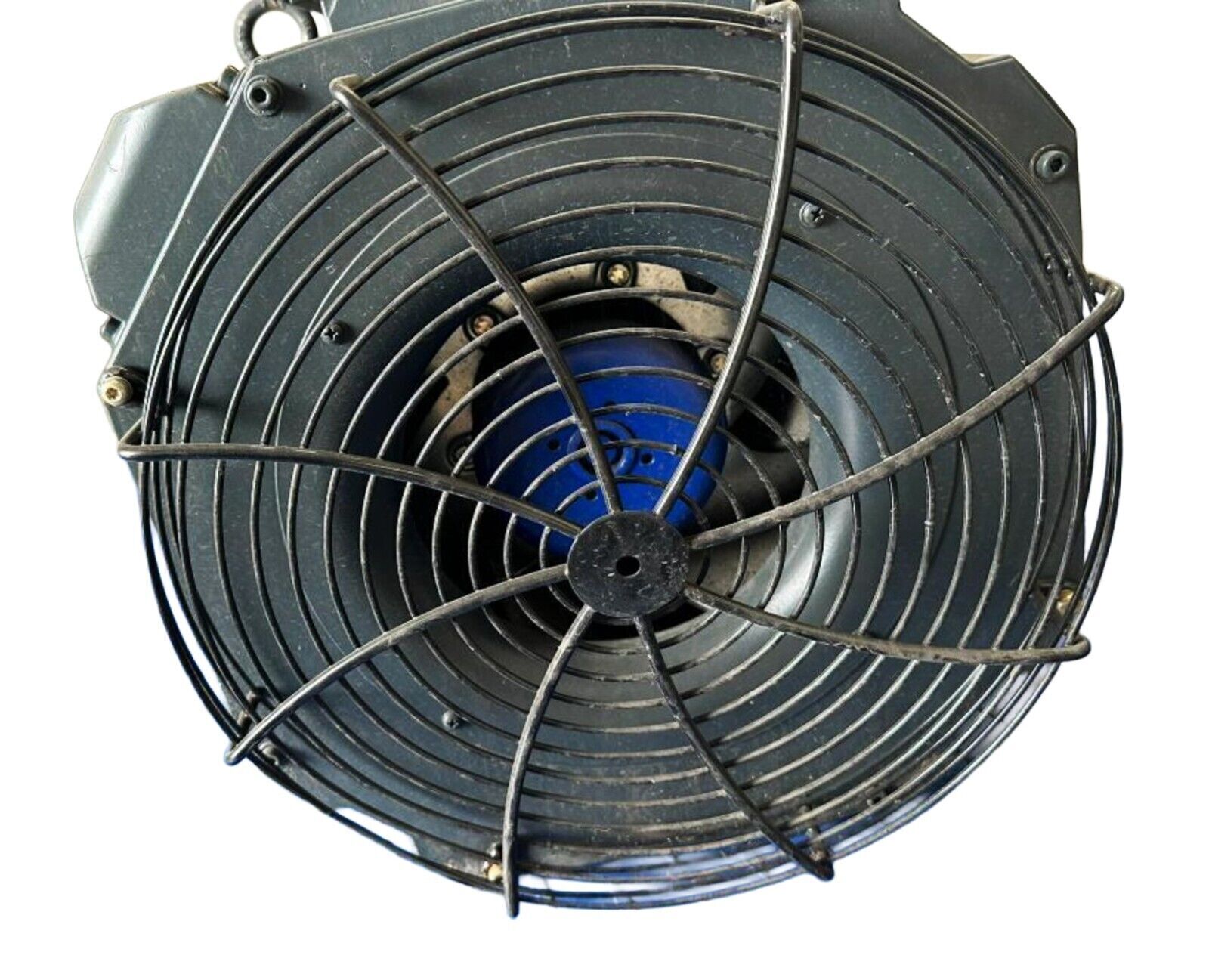

Cooling: Forced-air cooled (IC 416)

Enclosure: Cast-iron housing, IP55 protection

Feedback System: 22-bit incremental encoder with commutation (IC22DQ)

Interface: Siemens DRIVE-CLiQ

Mounting: Horizontal, B3 foot-mount

Duty: Continuous (S1)

Application: CNC machines, spindles, precision automation

Condition: New, surplus
