GE 25HP Severe Duty Motor 5KS284XAA118D4 460V 3PH 3550RPM 284TS TEFC IEEE841

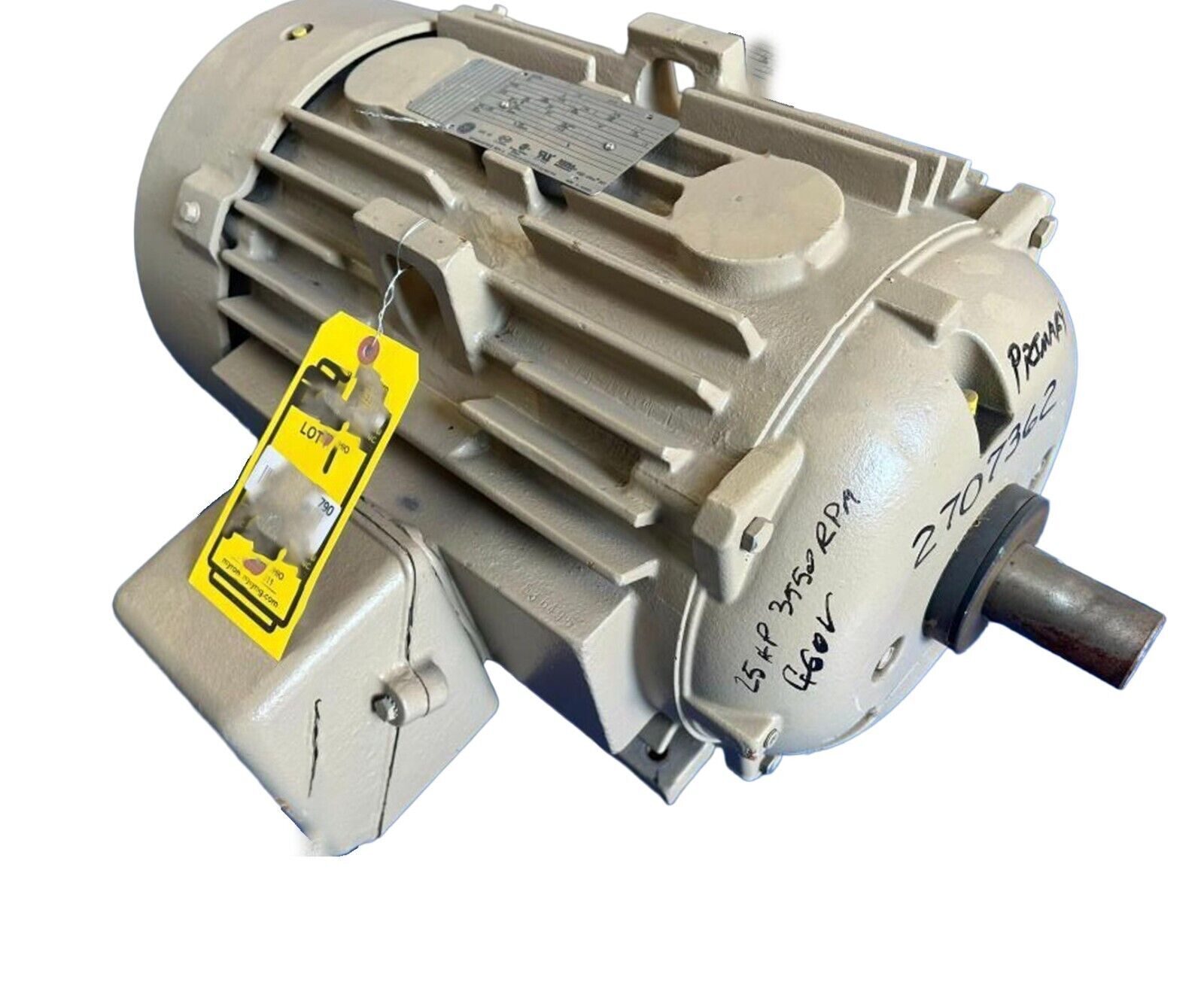

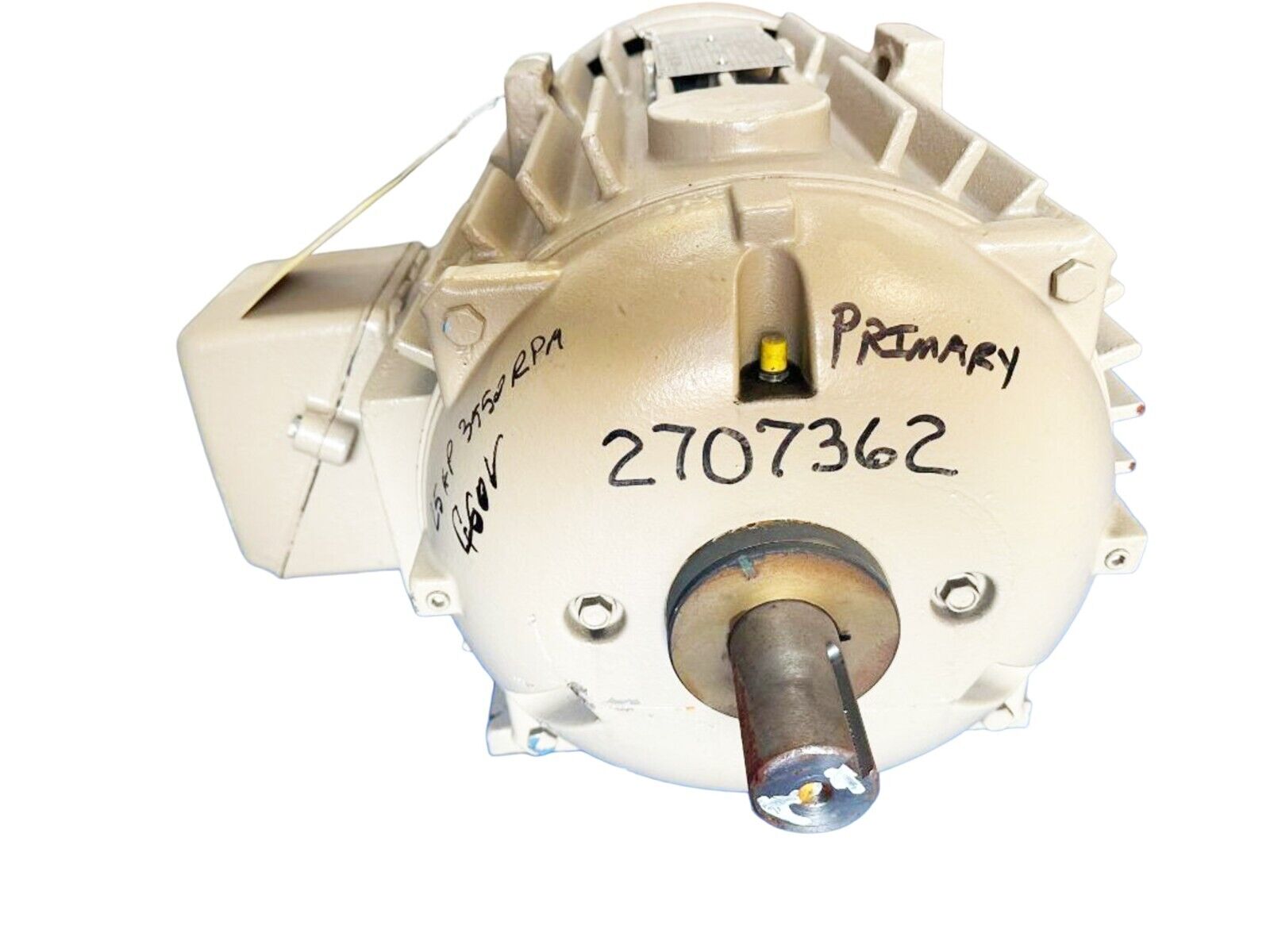

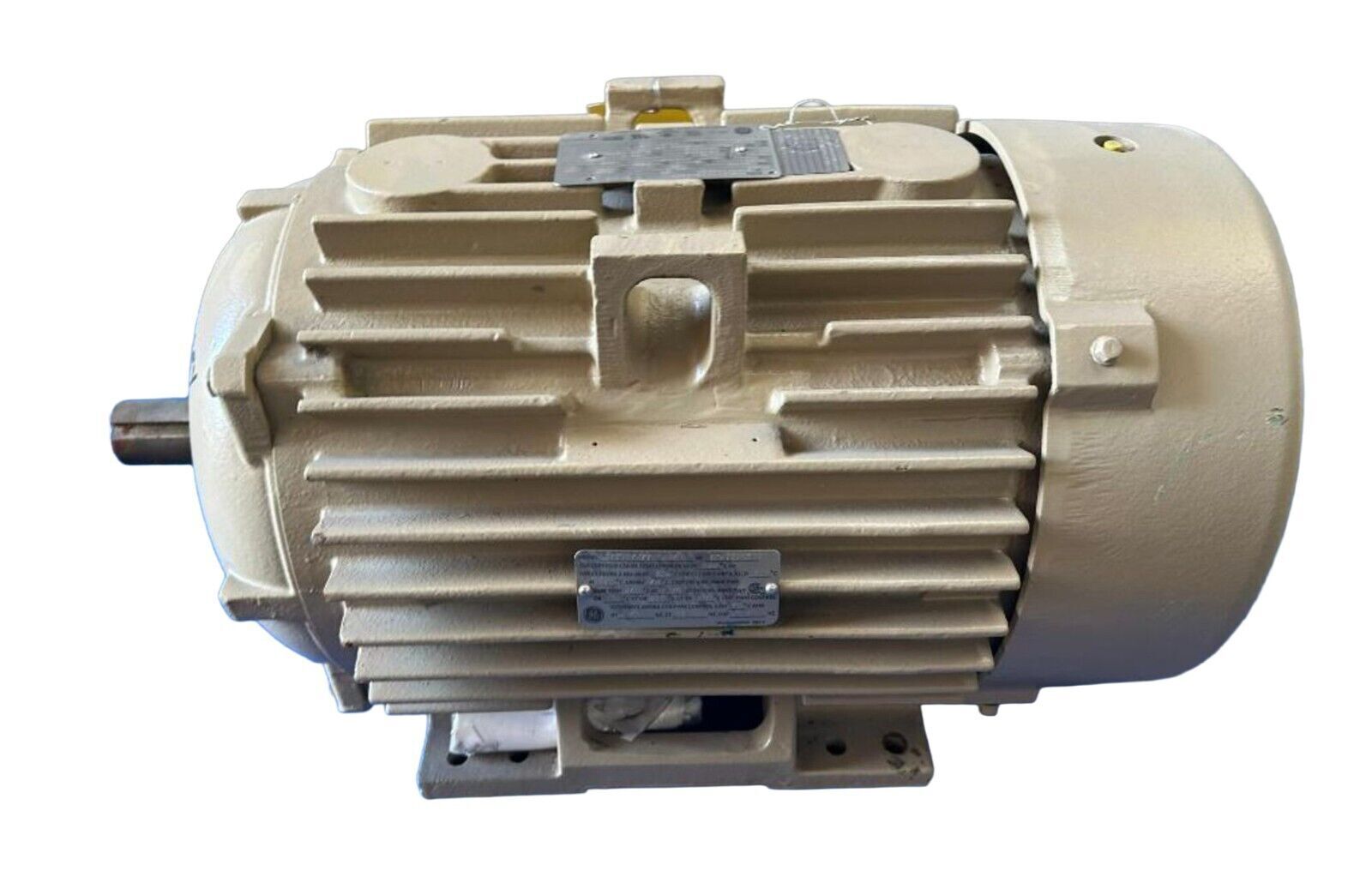

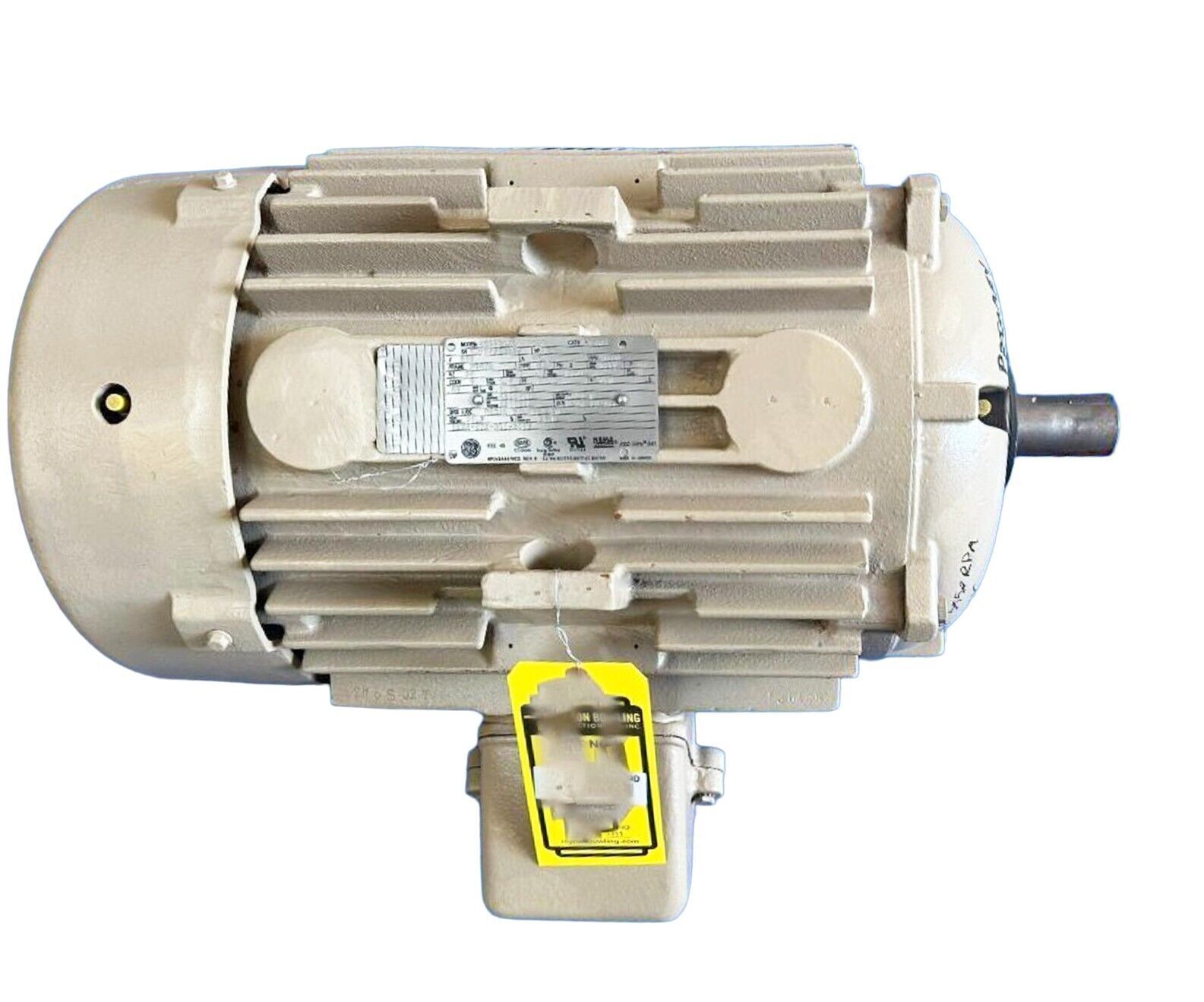

This is a GE Severe Duty AC Motor, model 5KS284XAA118D4, built to IEEE Std 841-2009 standards. Rated at 25 HP, this high-efficiency motor operates at 3550 RPM, 460V, and 60 Hz with a 1.15 service factor. The 284TS frame features a Totally Enclosed Fan-Cooled (TEFC) enclosure with an IP56 rating for robust performance in harsh industrial environments. Bearings are factory-sealed 6310ZC3 on both ends and lubricated with Mobil Polyrex EM. Premium features include NEMA B design, 91.7% efficiency, and low vibration (0.04 in/sec). Certified to NEMA Premium, IEEE 45, and CSA standards.
Ideal for pumps, fans, compressors, and other severe-duty industrial applications requiring high reliability and extended service life.
buyer to arrange freight pick up… we will load on pallet with forklift
GE Motor Specifications – Model 5KS284XAA118D4

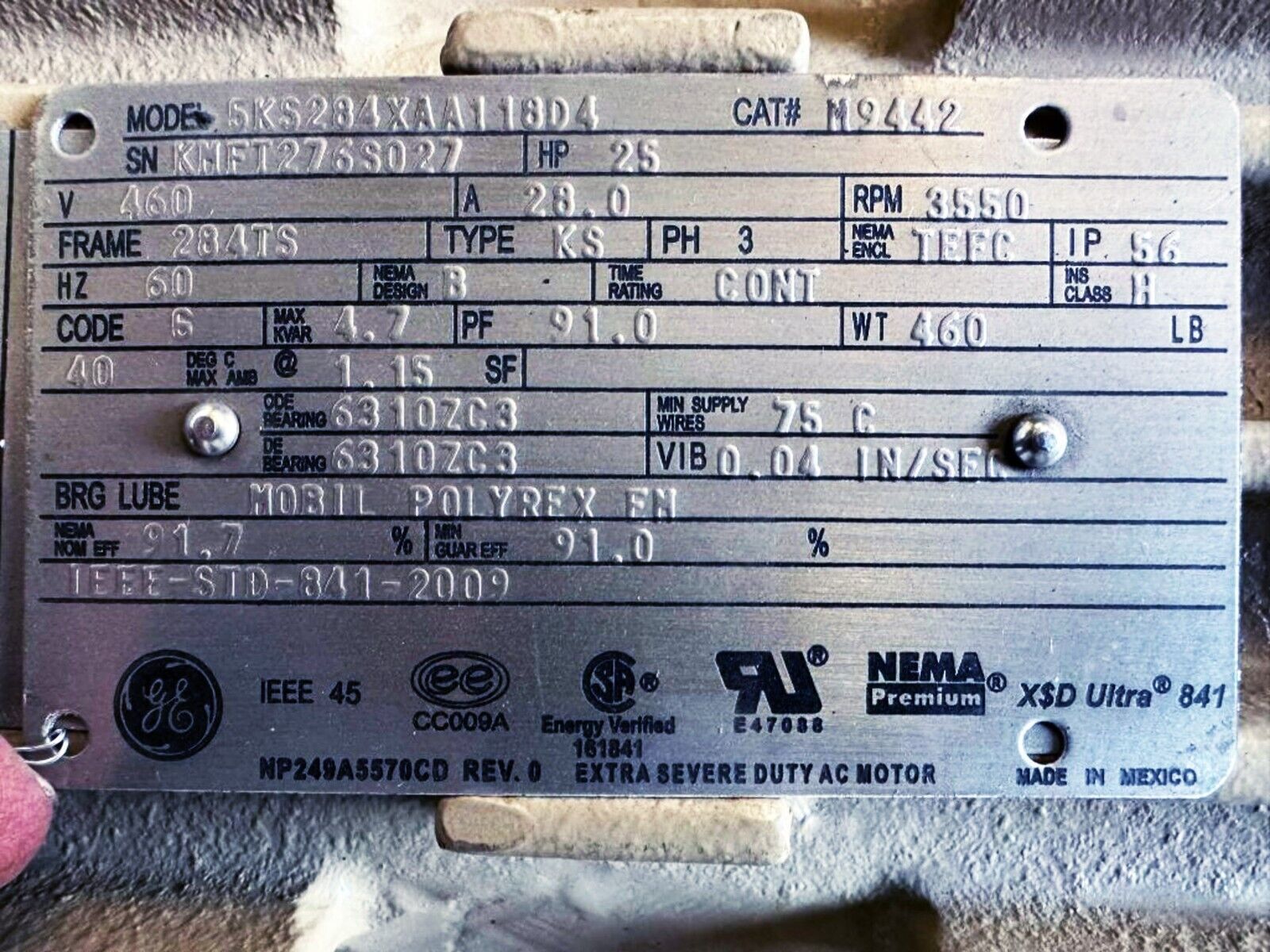

Model Number: 5KS284XAA118D4

Catalog Number: M9442

Serial Number: KMET276S027

Horsepower: 25 HP

Voltage: 460 V (Three-phase)

Full Load Amps: 28.0 A

Frequency: 60 Hz

RPM: 3550 RPM (2-pole)

Frame Size: 284TS

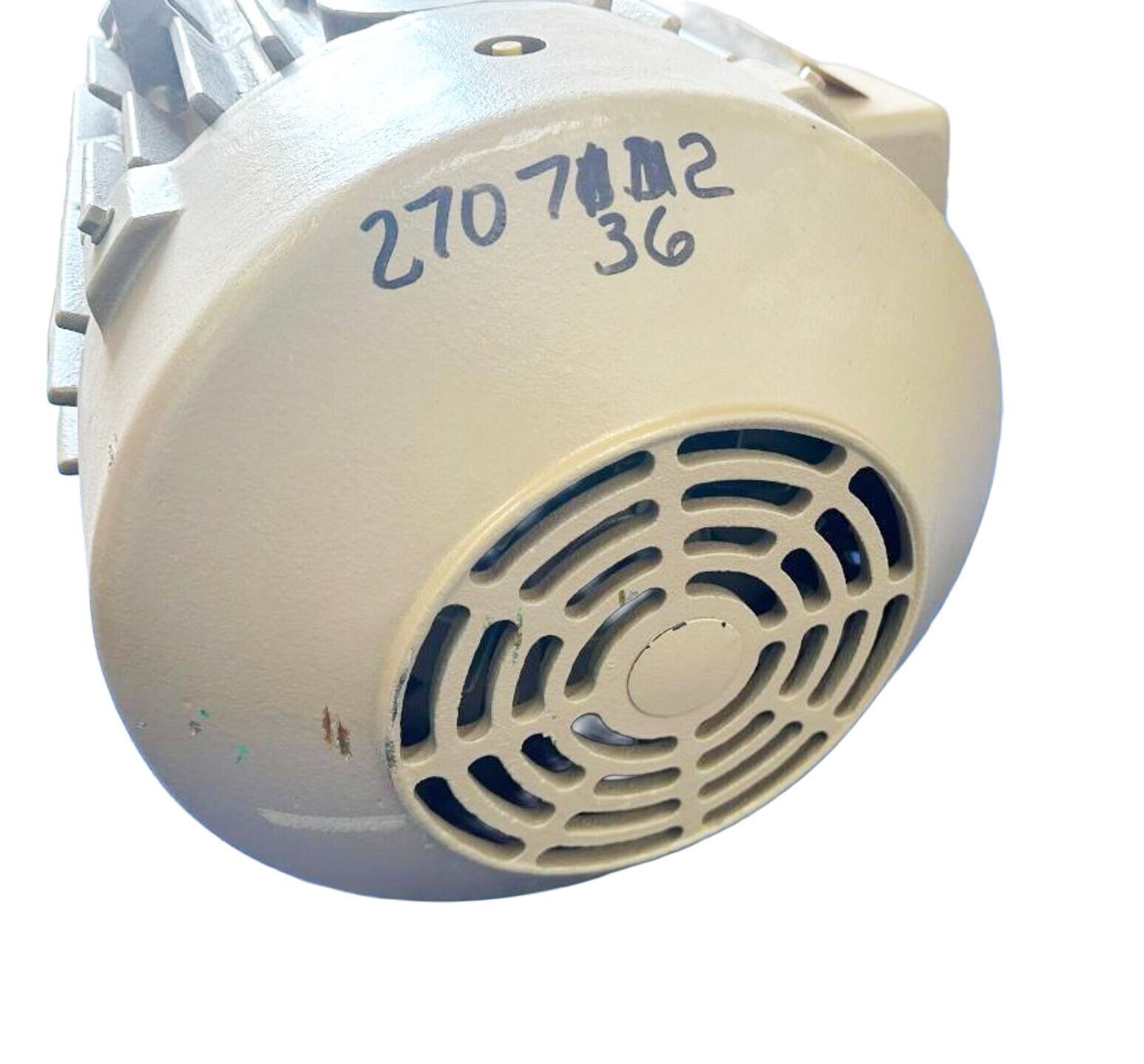

Enclosure: TEFC (Totally Enclosed Fan-Cooled)

NEMA Enclosure Code: TEFC

Ingress Protection: IP56

NEMA Design: B

Service Factor: 1.15

Duty Rating: Continuous (CONT)

Insulation Class: H

KVA Code: G

Power Factor (PF): 91.0%

Maximum kVAR: 4.7

Max Ambient Temperature: 40°C

Efficiency (NEMA Nominal): 91.7%

Efficiency (Minimum Guaranteed): 91.0%

Vibration Limit: 0.04 in/sec

Min. Supply Wire Temp Rating: 75°C

Bearing Type:
DE Bearing: 6310ZC3

ODE Bearing: 6310ZC3

Bearing Lubricant: Mobil Polyrex EM

Construction Compliance:
IEEE Std 841-2009

IEEE 45

CSA Certified

UL Recognized (E47088)

NEMA Premium® Efficiency

Weight: 460 lbs

Country of Origin: Made in Mexico

WE SHIP WORLD WIDE!

Weight	550 lbs
Dimensions	48.00 × 42.00 × 30.00 in
ACTUAL RATED INPUT VOLTAGE	460 V
RATED/FULL-LOAD TORQUE	37 ft/lb
FULL LOAD AMPS	28
RATED LOAD (HP)	91
NEMA DESIGN LETTER	Design B (General Purpose)
IEC FRAME SIZE	180M
AC FREQUENCY RATING	60 Hz
SPECIAL MOTOR CONSTRUCTION	Severe Duty Motor
ENCLOSURE TYPE	TEFC (Totally Enclosed Fan Cooled)
AC MOTOR TYPE	Induction/Asynchronous
SHAFT DIAMETER	1 5/8 in
MPN	5KS284XAA118D4
INSULATION CLASS	H (Max 356°F)
MOUNTING TYPE	Foot-Mounted
Brand	GE
REVERSIBLE/NON-REVERSIBLE	Reversible
CURRENT TYPE	AC
SERVICE FACTOR	1.15
MODEL	5KS284XAA118D4
NOMINAL RATED INPUT VOLTAGE	460 V
AC PHASE	Three Phase
NEMA FRAME SUFFIX	T
Condition	New
