Ixia Load Module Test and Diagnosis: What We Measure and Why It Pays
An untested load module is priced by what a buyer is willing to risk. A documented module is priced by what it demonstrably does. The difference shows up three times: in the price you realize, in the returns you do not process, and in the support you can offer after the sale.
Zombie Components performs comprehensive functional testing of Ixia load modules across four chassis platforms: Optixia X16, XM, XG12, and XGS, with IxOS releases from 5.6 through 9.15. Testing runs on a fully automated proprietary test and data-acquisition system built in-house.
What we measure
Our methodology is built on these data-capture elements:
- The module’s EEPROM identity record: serial, assembly, revision, port count, read from the hardware rather than copied from paperwork.
- The chassis bring-up and enumeration log, compared against a known-good module of the same type.
- A multi-hour live-traffic soak at line rate on every active port.
- The full per-port statistics log, sampled every 5 seconds for the whole window.
- The chassis event log for the test window.
- The on-card thermal sensors, reported against the manufacturer warning threshold.
The method is the same at every port speed. Each module family gets the complete field set its hardware exposes, from 10/100/1000M classic line cards through 400GE.
How a module moves through the bench
Boot log analysis comes first. A module that enumerates cleanly goes on to a traffic stress test long enough to expose thermal and error behaviour that a short power-on check will never find. Anything that fails at either gate routes into diagnostics rather than being written off: chassis-log forensics against a known-good reference, hardware diagnostics review, and troubleshooting to the board level.
Two outcomes, both documented
A module that passes receives a signed validation report. The verdict is stated on page one, above the customer and order block, with the methodology and stated limitations set out before any measurement appears.
Inside, every logged field gets its own row, per port, for the entire window. Error counters that read zero are printed explicitly rather than summarized away, so “no errors” is a measurement you can check line by line instead of a claim you have to accept. Throughput and frame rate are plotted against the physical line-rate ceiling for the port, alongside every thermal sensor across the whole soak. A module that behaves only for the first few minutes has nowhere to hide in a full-window plot.
A module that fails receives an engineering failure analysis instead, at the same price. The bring-up sequence is compared step by step against a known-good module of the same type to establish the exact divergence point, with register-level evidence, board-level fault localization, ranked probable causes, repair recommendations, and a straight disposition call: repair it, run it as a reduced-port card, harvest it as donor stock, or scrap it.

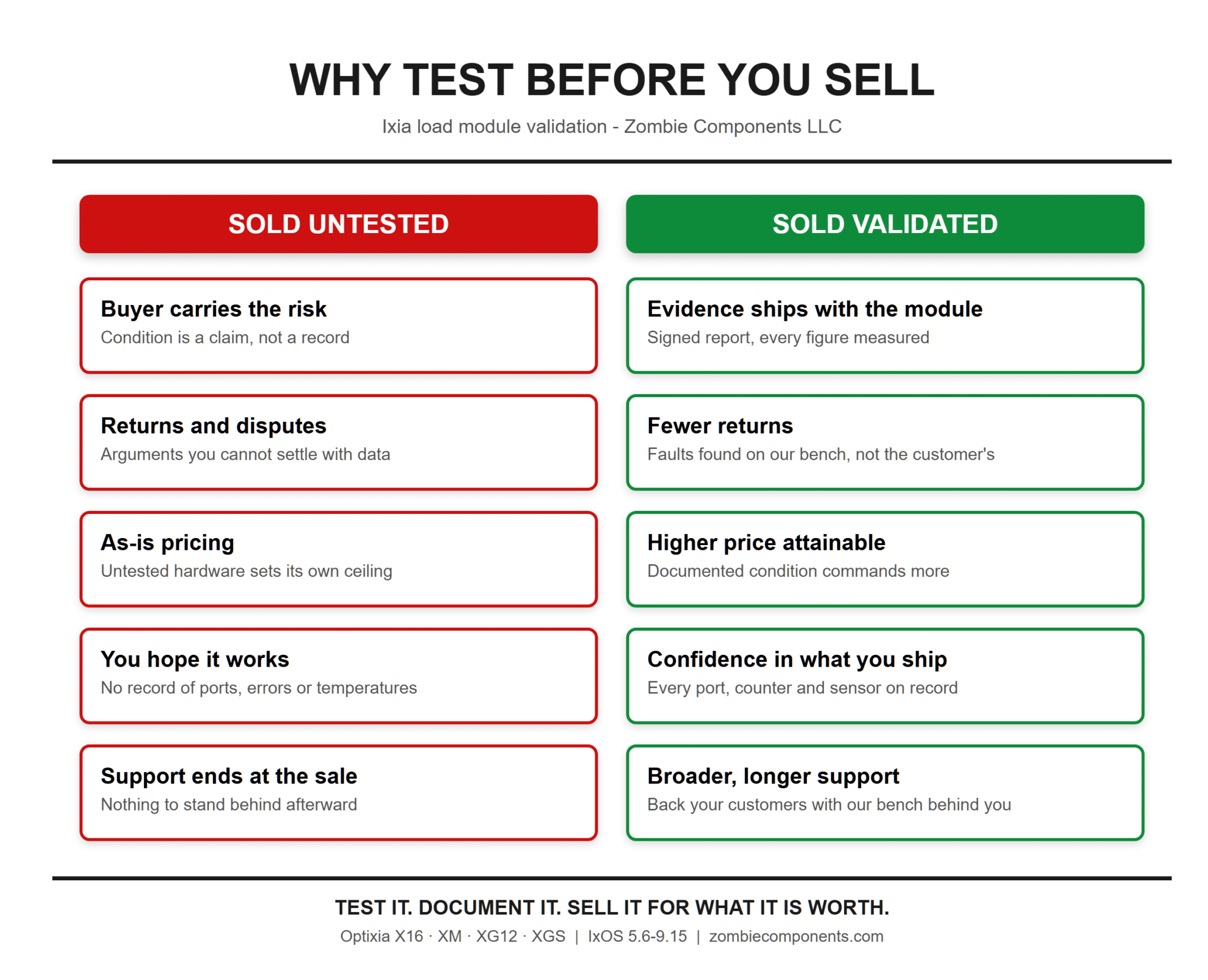

What this is worth to a reseller
Documented condition commands a higher price than as-is hardware. Faults get found on our bench instead of your customer’s, which is the difference between a bench note and a return. And a signed report gives you something to stand behind after the sale, so you can offer your own customers broader and longer support with our bench behind you.
Pricing
Price is set by the chassis platform your module requires on the bench, not by port speed. A failed module receives the engineering failure analysis at the same price.
| Group 1 | Optixia X16 class: LM100, LM1000, GBIC, LMOC SONET, ALM, CPM | $150 |
| Group 2 | Optixia XM and XG12 class: LSM XM-series, HSE, Xcellon-Flex, -Ultra, -Lava, -Multis, Xdensity | $300 |
| Group 3 | XGS class: NOVUS, CloudStorm, PerfectStorm, K400 400GE | $500 |
Covered models
All 227 covered models, with the bench group and testing price for each:
| Group | Part Number | Model / Description | Testing | Lifecycle Note |
|---|---|---|---|---|
| 1 | 944-0006 | AFM1000SP-01 | $150 | EOL 11/5/2017 |
| 1 | 944-0020 | ALM1000T8 | $150 | EOL 11/05/2017 |
| 1 | 944-0011 | CPM1000T8 | $150 | EOL 10/19/2014 |
| 1 | LM1000GBIC | $150 | EOL 12/01/2011 | |
| 1 | LM1000GBIC-1 | $150 | EOL 03/31/2010 | |
| 1 | LM1000GBIC-2 | $150 | EOL 03/31/2010 | |
| 1 | LM1000GBIC-3 | $150 | EOL 03/31/2010 | |
| 1 | LM1000GBIC-P1 | $150 | EOL 03/31/2010 | |
| 1 | LM1000SFP4 | $150 | EOL 07/01/2010 | |
| 1 | LM1000SFPS4 | $150 | EOL 12/01/2011 | |
| 1 | LM1000SFPS4-256 | $150 | EOL 07/01/2010 | |
| 1 | 944-0065 | LM1000STX2 | $150 | EOL 11/05/2017 |
| 1 | 944-0046 | LM1000STX4 | $150 | EOL 11/05/2017 |
| 1 | 944-0016 | LM1000STXR4, Gigabit Ethernet, 4 Port Dual-PHY | $150 | EOL 11/05/2017 |
| 1 | 944-0017 | LM1000STXS2 | $150 | EOL 11/05/2017 |
| 1 | 944-0018 | LM1000STXS4 | $150 | EOL 05/25/2015 |
| 1 | 944-0019 | LM1000STXS4-256 | $150 | EOL 02/25/2022 |
| 1 | LM1000SX | $150 | EOL 03/31/2010 | |
| 1 | LM1000SX3 | $150 | EOL 03/31/2010 | |
| 1 | LM1000T-5 | $150 | EOL 12/01/2011 | |
| 1 | LM1000TX4 | $150 | EOL 07/01/2010 | |
| 1 | LM1000TXS4 | $150 | EOL 12/01/2011 | |
| 1 | LM1000TXS4-256 | $150 | EOL 07/01/2010 | |
| 1 | LM1000TXS4-L | $150 | EOL 09/30/2010 | |
| 1 | LM100FX | $150 | EOL 12/01/2011 | |
| 1 | LM100FXSM | $150 | EOL 12/01/2011 | |
| 1 | LM100TX | $150 | EOL 12/01/2011 | |
| 1 | LM100TX2 | $150 | EOL 12/31/2009 | |
| 1 | LM100TX3 | $150 | EOL 12/31/2009 | |
| 1 | 944-0045 | LM100TX8 | $150 | EOL 11/05/2017 |
| 1 | 944-0014 | LM100TXS2 | $150 | EOL 01/01/2018 |
| 1 | 944-0015 | LM100TXS8 | $150 | EOL 03/31/2019 |
| 1 | LM10GE221F | $150 | EOL 07/01/2010 | |
| 1 | LM10GE223F | $150 | EOL 07/01/2010 | |
| 1 | LM10GE223M | $150 | EOL 07/01/2010 | |
| 1 | LM10GE224F | $150 | EOL 06/01/2011 | |
| 1 | LM10GE224M | $150 | EOL 07/01/2010 | |
| 1 | LM10GE500F1 | $150 | EOL 07/01/2010 | |
| 1 | LM10GE500F1B | $150 | EOL 07/01/2010 | |
| 1 | LM10GE500M1B | $150 | EOL 07/01/2010 | |
| 1 | LM10GE700F1 | $150 | EOL 12/01/2011 | |
| 1 | LM10GE700F1B | $150 | EOL 06/01/2011 | |
| 1 | LM10GE700F1B-P | $150 | EOL 06/01/2011 | |
| 1 | LM10GE700F1-P | $150 | EOL 12/01/2011 | |
| 1 | LM10GE700M1 | $150 | EOL 06/01/2011 | |
| 1 | LM10GE700M1B | $150 | EOL 06/01/2011 | |
| 1 | LM10GE700M1BGP | $150 | EOL 07/01/2010 | |
| 1 | LM10GE700M2B | $150 | EOL 06/01/2011 | |
| 1 | LM10GE700P3F1B | $150 | EOL 07/01/2010 | |
| 1 | LM10GE700R1B | $150 | EOL 07/01/2010 | |
| 1 | LM10GUEF | $150 | EOL 07/01/2010 | |
| 1 | LM10GUEF-FEC | $150 | EOL 12/01/2011 | |
| 1 | LM10GUEF-P | $150 | EOL 07/01/2010 | |
| 1 | LM10GULF | $150 | EOL 07/01/2010 | |
| 1 | LM10GULF-P | $150 | EOL 12/01/2011 | |
| 1 | LM10GUPF-XFP | $150 | EOL 12/01/2011 | |
| 1 | 945-0004 | LM622MR | $150 | EOL 11/05/2017 |
| 1 | 946-0001 | LM622MR-512 | $150 | EOL 06/30/2020 |
| 1 | LMOC12130 | $150 | EOL 07/01/2010 | |
| 1 | LMOC12131 | $150 | EOL 07/01/2010 | |
| 1 | LMOC12c | $150 | EOL 07/01/2010 | |
| 1 | LMOC12cSM | $150 | EOL 07/01/2010 | |
| 1 | LMOC192101 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192111 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192111R | $150 | EOL 07/01/2010 | |
| 1 | LMOC192112 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192141 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192142 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192168 | $150 | EOL 06/01/2011 | |
| 1 | LMOC192311 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192312 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192368 | $150 | EOL 06/01/2011 | |
| 1 | LMOC192411 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192412 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192468 | $150 | EOL 06/01/2011 | |
| 1 | LMOC192611 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192711 | $150 | EOL 07/01/2010 | |
| 1 | LMOC48112 | $150 | EOL 07/01/2010 | |
| 1 | LMOC48311 | $150 | EOL 06/01/2011 | |
| 1 | LMOC48312 | $150 | EOL 07/01/2010 | |
| 1 | LMOC48312F | $150 | EOL 07/01/2010 | |
| 1 | LMOC48411 | $150 | EOL 06/01/2011 | |
| 1 | LMOC48411M | $150 | EOL 07/01/2010 | |
| 1 | LMOC48C | $150 | EOL 12/01/2011 | |
| 1 | LMOC48C3 | $150 | EOL 12/01/2011 | |
| 1 | LMOC48VAR | $150 | EOL 07/01/2010 | |
| 1 | 944-0022 | LSM10G1-01 | $150 | EOL 02/25/2022 |
| 1 | 944-0024 | LSM10GL1-01 | $150 | EOL 05/14/2015 |
| 1 | 944-0034 | LSM10GMS1-01 | $150 | EOL 03/31/2019 |
| 1 | 944-1038 | LSM10GR1-01 | $150 | EOL 1/1/2018)(CHINAPL |
| 1 | LSM10GXL6-01 | $150 | EOL 08/06/2012 | |
| 1 | 944-0003 | LSM10GXL6-02 | $150 | EOL 07/20/2014 |
| 1 | MSM10G1-01 | $150 | EOL 02/25/2022 | |
| 1 | 944-0012 | MSM10G1-02 | $150 | EOL 02/25/2022 |
| 1 | 945-0003 | MSM2.5G1-01 | $150 | EOL 06/30/2020 |
| 1 | 944-0026 | PLM1000T4-PD | $150 | EOL 06/30/2017 |
| 2 | 944-0013 | ASM1000XMV12X-01 | $300 | EOL 02/10/2015 |
| 2 | 944-0058 | ASM1000XMV12XRTP-01 | $300 | EOL 01/01/2018 |
| 2 | 944-1082 | EIM10G4S | $300 | EOL 02/15/2022 |
| 2 | 944-1081 | EIM1G4S | $300 | EOL 02/15/2022 |
| 2 | 944-1083 | EIM40G2Q | $300 | EOL 02/15/2022 |
| 2 | 944-0021 | ELM1000ST2 | $300 | EOL 11/17/2017 |
| 2 | 950-0001 | FCMGXM4S-01 | $300 | EOL 12/27/2019 |
| 2 | 950-0002 | FCMGXM8S-01 | $300 | EOL 05/04/2022 |
| 2 | 944-0070 | HSE100GETSP1-01 | $300 | EOL 11/05/2017 |
| 2 | 944-0091 | HSE40/100GETSP1-01 | $300 | EOL 12/20/2019 |
| 2 | 944-0092 | HSE40GEQSFP1-01 | $300 | EOL 12/20/2019 |
| 2 | 944-0069 | HSE40GETSP1-01 | $300 | EOL 11/05/2017 |
| 2 | 944-0090 | Ixia NGY-NP2-01, 2-port SFP+ Interface, 1GB RAM | $300 | EOL 03/31/23 |
| 2 | 944-0025 | LSM1000POE4-02 | $300 | EOL 06/30/2017 |
| 2 | 944-0001 | LSM1000XMS12-01 | $300 | EOL 08/25/2015 |
| 2 | 944-1050 | LSM1000XMSP12 | $300 | EOL 11/06/2020 |
| 2 | 944-0002 | LSM1000XMSR12-01 | $300 | EOL 08/25/2015 |
| 2 | 944-0032 | LSM1000XMV12-01 | $300 | EOL 04/05/2015 |
| 2 | 944-0008 | LSM1000XMV16-01 | $300 | EOL 04/15/2015 |
| 2 | 944-0028 | LSM1000XMV4-01 | $300 | EOL 04/15/2015 |
| 2 | 944-0030 | LSM1000XMV8-01 | $300 | EOL 04/05/2015 |
| 2 | 944-1131 | LSM1000XMVAE16 GbE Load Module, 16-Port Dual-PHY (RJ45 and SFP) 10/100/1000 Mbps | $300 | EOL 03/31/23 |
| 2 | 944-1130 | LSM1000XMVAE8 GbE LOAD MODULE, 8-Port Dual-PHY (RJ45 and SFP) 10/100/1000 Mbps | $300 | EOL 03/31/23 |
| 2 | 944-0097 | LSM1000XMVDC12 | $300 | EOL 03/31/23 |
| 2 | 944-0098 | LSM1000XMVDC16 | $300 | EOL 04/30/24 |
| 2 | 944-1072 | LSM1000XMVDC16NG – Fusion Enabled | $300 | EOL 04/30/2024 |
| 2 | 944-1072 | LSM1000XMVDC16NG-02 Fusion 1GbE, 16-port LM – Fusion Enabled | $300 | EOL 03/31/23 |
| 2 | 944-0095 | LSM1000XMVDC4 | $300 | EOL 03/31/23 |
| 2 | 944-1095 | LSM1000XMVDC4NG – Fusion Enabled | $300 | EOL 03/31/23 |
| 2 | 944-0096 | LSM1000XMVDC8 | $300 | EOL 03/31/23 |
| 2 | 944-0033 | LSM1000XMVR12-01 | $300 | EOL 12/30/2019 |
| 2 | 944-0010 | LSM1000XMVR16-01 | $300 | EOL 03/31/2023 |
| 2 | 944-0029 | LSM1000XMVR4-01 | $300 | EOL 12/30/2019 |
| 2 | 944-0031 | LSM1000XMVR8-01 | $300 | EOL 12/30/2019 |
| 2 | 944-0074 | LSM10GXM2GBT-02 | $300 | EOL 12/27/2019 |
| 2 | 944-1096 | LSM10GXM2NG-01 NGY – Fusion Enabled | $300 | EOL 12/27/2019 |
| 2 | 944-0054 | LSM10GXM2S-01 | $300 | EOL 03/31/2023 |
| 2 | 944-1077 | LSM10GXM2SNG,2-PORT FUSION 10GE SFP+ MODULE | $300 | EOL 01/31/2021 |
| 2 | 944-0048 | LSM10GXM2XP-01 | $300 | EOL 12/27/2019 |
| 2 | 944-0004 | LSM10GXM3-01 | $300 | EOL 01/12/2015 |
| 2 | 944-0039 | LSM10GXM4-01 | $300 | EOL 02/01/2015 |
| 2 | 944-0076 | LSM10GXM4GBT-02 | $300 | EOL 12/27/2019 |
| 2 | 944-1071 | LSM10GXM4NG-01 NGY Fusion Enabled | $300 | EOL 12/27/2019 |
| 2 | 944-0050 | LSM10GXM4S-01 | $300 | EOL 03/31/2023 |
| 2 | 944-1076 | LSM10GXM4SNG,4-PORT FUSION 10GE SFP+ MODULE | $300 | EOL 03/31/23 |
| 2 | 944-0059 | LSM10GXM4XP-01 | $300 | EOL 12/27/2019 |
| 2 | 944-0040 | LSM10GXM8-01 | $300 | EOL 02/01/2015 |
| 2 | 944-0078 | LSM10GXM8GBT-02 | $300 | EOL 03/31/2023 |
| 2 | 944-1070 | LSM10GXM8NG-01 NGY Fusion Enabled | $300 | EOL 12/27/2019 |
| 2 | 944-0051 | LSM10GXM8S-01 | $300 | EOL 04/30/2024 |
| 2 | 944-1075 | LSM10GXM8SNG,8-PORT FUSION 10GE SFP+ MODULE | $300 | EOL 03/31/2023 |
| 2 | 944-0060 | LSM10GXM8XP-01 | $300 | EOL 12/27/2019 |
| 2 | 944-0049 | LSM10GXMR2-01 | $300 | EOL 12/27/2019 |
| 2 | 944-0075 | LSM10GXMR2GBT-02 | $300 | EOL 12/27/2019 |
| 2 | 944-0055 | LSM10GXMR2S-01 | $300 | EOL 11/10/2021 |
| 2 | 944-0005 | LSM10GXMR3-01 | $300 | EOL 01/12/2015 |
| 2 | 944-0043 | LSM10GXMR4-01 | $300 | EOL 12/27/2019 |
| 2 | 944-0077 | LSM10GXMR4GBT-02 | $300 | EOL 12/27/2019 |
| 2 | 944-0052 | LSM10GXMR4S-01 | $300 | EOL 11/10/2021 |
| 2 | 944-0044 | LSM10GXMR8-01 | $300 | EOL 12/27/2019 |
| 2 | 944-0079 | LSM10GXMR8GBT-02 | $300 | EOL 03/03/2019 |
| 2 | 944-0053 | LSM10GXMR8S-01 | $300 | EOL 11/10/2021 |
| 2 | 944-0089 | NGY-NP4-01 | $300 | EOL 03/31/23 |
| 2 | 944-0084 | NGY-NP8-01 | $300 | EOL 03/31/2023 |
| 2 | 960-0518 | XAir2 XM Module. For XGS2-SD (940-0010) chassis | $300 | |
| 2 | 944-1062 | Xcellon-Flex AP10/4016SQ 10GbE SFP+/ 40GE QSFP+ | $300 | |
| 2 | 944-1060 | Xcellon-FlexAP10G16S 10GbE SFP+ | $300 | EOL 04/30/24 |
| 2 | 944-1061 | Xcellon-FlexFE10G16S 10GbE SFP+ | $300 | EOL 04/30/24 |
| 2 | 944-1065 | Xcellon-FlexFE40G4Q 40GE QSFP+ | $300 | EOL 10/09/2023 |
| 2 | 944-1067 | Xcellon-Lava AP40/100GE2P 40/100 Gigabit Ethernet CFP load module, 2-ports | $300 | |
| 2 | 944-1074 | Xcellon-Lava AP40/100GE2P-NG FUSION 40/100GE CFP 2-ports, load module | $300 | EOL 03/31/2023 |
| 2 | 944-1068 | Xcellon-LavaAP40/100GE2RP 40/100 Gigabit Ethernet, Reduced Performance load module | $300 | |
| 2 | 944-1073 | Xcellon-Ultra NG (FUSION) | $300 | EOL 09/30/2021 |
| 2 | 944-0083 | Xcellon-Ultra NP-01 | $300 | EOL 04/30/2024 |
| 2 | 944-0082 | Xcellon-Ultra XP-01 | $300 | EOL 10/20/2015 |
| 2 | 944-1080 | Xdensity XDM10G32S | $300 | EOL 12/16/2019 |
| 2 | 944-1098 | XDENSITY,XDM10G8S,10GBE,8-PORTS,SFP+,LOAD MODULE | $300 | EOL 12/16/2019 |
| 3 | 944-1236 | CloudStorm CS25GE8Q28, 25GE 8-port SFP28 Fanout Load Module | $500 | |
| 3 | 944-1252 | CloudStorm-XP CSXP100GE2Q28ALL,100GE 2-port, All speeds enabled, Load Module | $500 | |
| 3 | 944-1253 | CloudStorm-XP CSXP100GE2Q28NGALL,100GE 2-port, All speeds enabled, Fusion Load Module | $500 | |
| 3 | 944-1250 | CloudStorm-XP CSXP10GE8Q28, 10GE 8-port SFP+ Fanout Load Module | $500 | |
| 3 | 944-1251 | CloudStorm-XP CSXP10GE8Q28NG, 10GE 8-port SFP+ Fanout Load Module, Fusion Load Module | $500 | |
| 3 | 944-1232 | CS100GE2Q28 – CloudStorm 100GE 2-port QSFP28 Load Module | $500 | |
| 3 | 944-1234 | CS100GE2Q28ALL – CloudStorm 100 GigE 2-port QSFP28 with all speeds enabled | $500 | |
| 3 | 944-1231 | CS100GE2Q28NG – CloudStorm 100GE 2-port QSFP28 Fusion Load Module | $500 | |
| 3 | 944-1233 | CS100GE2Q28NGALL – CloudStorm 100 GigE 2-port QSFP28 Fusion with all speeds enabled | $500 | |
| 3 | 944-1240 | CS10GE8Q28 – CloudStorm 10 GigE 8-port SFP+ Fanout | $500 | |
| 3 | 944-1239 | CS10GE8Q28NG – CloudStorm 10 GigE 8-port SFP+ Fusion Load Module | $500 | |
| 3 | 944-1235 | CS25GE8Q28NG – CloudStorm 25 GigE 8-port SFP28 Fusion Load Module | $500 | |
| 3 | 944-1238 | CS40GE2Q28 – CloudStorm 40GigE 2-port QSFP+ | $500 | |
| 3 | 944-1237 | CS40GE2Q28NG – CloudStorm 40GigE 2-port QSFP+ Fusion Load Module | $500 | |
| 3 | 944-1242 | DCS100GE2Q28ALL,100GE 2-port, All speeds enabled, Load Module (944-1242) | $500 | |
| 3 | 944-1147 | IXIA NOVUS-R100GE8Q28+FAN, 8-port, QSFP28 100GE reduced load module | $500 | |
| 3 | 944-1203 | IXIA PerfectStorm 1GE 8-port Fusion (PS1GE8NG) | $500 | |
| 3 | 944-1157 | Ixia, NOVUS-W50GE8Q28, 8-port, QSFP28 1x50GE with KP4 FEC | $500 | |
| 3 | 944-1107 | Ixia, Xcellon-Multis XMR10GE32SFP+FAN 10-Gigabit Ethernet, Reduced load module | $500 | |
| 3 | 944-1142 | NOVUS10/1GE16DP, 16-port, SFP+/10GBASE-T Dual-PHY 10GE/1GE/100M load module | $500 | |
| 3 | 944-1141 | NOVUS10/1GE32S, 32-port, SFP+ 10GE/1GE/100M full feature and performance load module | $500 | |
| 3 | 944-1143 | NOVUS10/1GE8DP, 8-port enablement on the 16-port SFP+/10GBASE-T Dual-PHY 10GE/1GE/100M load module 944-1142 | $500 | |
| 3 | 944-1148 | NOVUS10/5/2.5/1/100M16DP, 5-speed,16-port, SFP+/10GBASE-T Dual-PHY full scale and performance load module | $500 | |
| 3 | 944-1154 | NOVUS10/5/2.5/1/100M16DP-R, 5-speed,16-port, SFP+/10GBASE-T Dual-PHY reduced scale and performance load module | $500 | |
| 3 | 944-1149 | NOVUS10/5/2.5/1/100M8DP, 5-speed, 8-port, SFP+/10GBASE-T Dual-PHY full scale and performance load module | $500 | |
| 3 | 944-1155 | NOVUS10/5/2.5/1/100M8DP-R, 5-speed,8-port, SFP+/10GBASE-T Dual-PHY reduced scale and performance load module | $500 | |
| 3 | 944-1165 | NOVUS100GE4Q28+FAN, 4-port enablement on the NOVUS100GE8Q28+FAN load module (944-1140), 1-slot with 4-ports, L2-3 load module with complete protocol coverage, and full scale and performance | $500 | |
| 3 | 944-1140 | NOVUS100GE8Q28+FAN, 8-port, QSFP28 100GE load module | $500 | |
| 3 | 944-1146 | NOVUS1GE16DP, 16-port 1GE/100M SFP+/1000BASE-T Dual-PHY load module | $500 | |
| 3 | 944-1156 | NOVUS-M100GE8Q28+FAN, 8-port, QSFP28 100GE mid-range scale and performance, L2-3 load module | $500 | |
| 3 | 944-1162 | NOVUS-NP10/1GE16DP, 16-port, SFP+/10GBASE-T Dual-PHY 10GE/1GE/100M load module | $500 | |
| 3 | 944-1163 | NOVUS-NP10/1GE8DP, 8-port enablement on the 16-port SFP+/10GBASE-T Dual-PHY 10GE/1GE/100M NP load module | $500 | |
| 3 | 944-1164 | NOVUS-S 10/25GE8SFP28, 8-port, SFP28 10GE/25GE load module, 1-slot with 8-ports adaptor based SFP28 physical interface. (944-1164) | $500 | |
| 3 | 944-1206 | PerfectStorm 100GE 1-port Load Module, CXP | $500 | |
| 3 | 944-1202 | PerfectStorm 100GE Fusion 1-port Load Module, CXP | $500 | |
| 3 | 944-1208 | PerfectStorm 10GE 2-port Load Module, SFP+ (PS10GE2) | $500 | |
| 3 | 944-1207 | PerfectStorm 10GE 4-port Load Module, SFP+ (PS10GE4) | $500 | |
| 3 | 944-1204 | PerfectStorm 10GE 8-port (PS10GE8) | $500 | |
| 3 | 944-1200 | PerfectStorm 10GE Fusion 8-port (PS10GE8NG) | $500 | |
| 3 | 944-1205 | PerfectStorm 40GE 2-port (PS40GE2) | $500 | |
| 3 | 944-1201 | PerfectStorm 40GE Fusion 2-port (PS40GE2NG) | $500 | |
| 3 | 944-1114 | Xcellon-Multis Reduced XMR40GE12QSFP+ 40-Gigabit Ethernet | $500 | |
| 3 | 944-1115 | Xcellon-Multis Reduced XMR40GE6QSFP+ 40-Gigabit Ethernet | $500 | |
| 3 | 944-1105 | Xcellon-Multis XM10/40GE12QSFP+FAN 40-Gigabit Ethernet, native QSFP | $500 | |
| 3 | 944-1109 | Xcellon-Multis XM10/40GE6QSFP+FAN 40-Gigabit Ethernet, native QSFP | $500 | |
| 3 | 944-1110 | Xcellon-Multis XM100GE4CFP4 100GE CFP4, 4-port, single rate (Phase 1 HW) | $500 | EOL 12/31/2015 |
| 3 | 944-1111 | Xcellon-Multis XM100GE4CFP4+ENH 100GE CFP4, 4-port enhanced load module with Ethernet FEC | $500 | |
| 3 | 944-1100 | Xcellon-Multis XM100GE4CXP 100-Gigabit Ethernet, 4-ports | $500 | EOL 04/30/2024 |
| 3 | 944-1101 | Xcellon-Multis XM100GE4CXP+FAN 100/40-Gigabit Ethernet, 4-ports 100GE, 12-ports 40GE | $500 | |
| 3 | 944-1116 | Xcellon-Multis XM100GE4QSFP28, 100GE QSFP28, 4-port, single rate (Phase 1 HW) | $500 | EOL 12/31/2015 |
| 3 | 944-1117 | Xcellon-Multis XM100GE4QSFP28+ENH 100GE QSFP28, 4-port Enhanced load module with Ethernet FEC | $500 | |
| 3 | 944-1102 | Xcellon-Multis XM40GE12QSFP+FAN 40-Gigabit Ethernet | $500 | EOL 03/01/2021 |
| 3 | 944-1108 | Xcellon-Multis XMR10GE16SFP+FAN 10-Gigabit Ethernet, Reduced load module | $500 | |
| 3 | 944-1132 | XMAVB10/40GE6QSFP+FAN 40-GIGABIT ETHERNET LOAD MODULE | $500 |
If your model is not on the list, send us the part number and we will confirm the group.
How to book a test
Send us the part number of the module you want tested and we will confirm the group and the current bench queue. Ship the module in ESD-safe packaging and insure it in transit. Testing is non-destructive and read-only, and no configurations or data are retained from your hardware. You receive the PDF report by email, and the report filename carries your module’s serial number.
Book directly through the listing: Ixia Load Module Test & Diagnosis Service – select your module’s pricing group and purchase.
Or contact us to schedule a module test.
Zombie Components LLC · 13177 Foothill Blvd, Sylmar, CA 91342
