| Parameter | Value |
| MPN | 10003653.7 |
| Brand | BENNING |

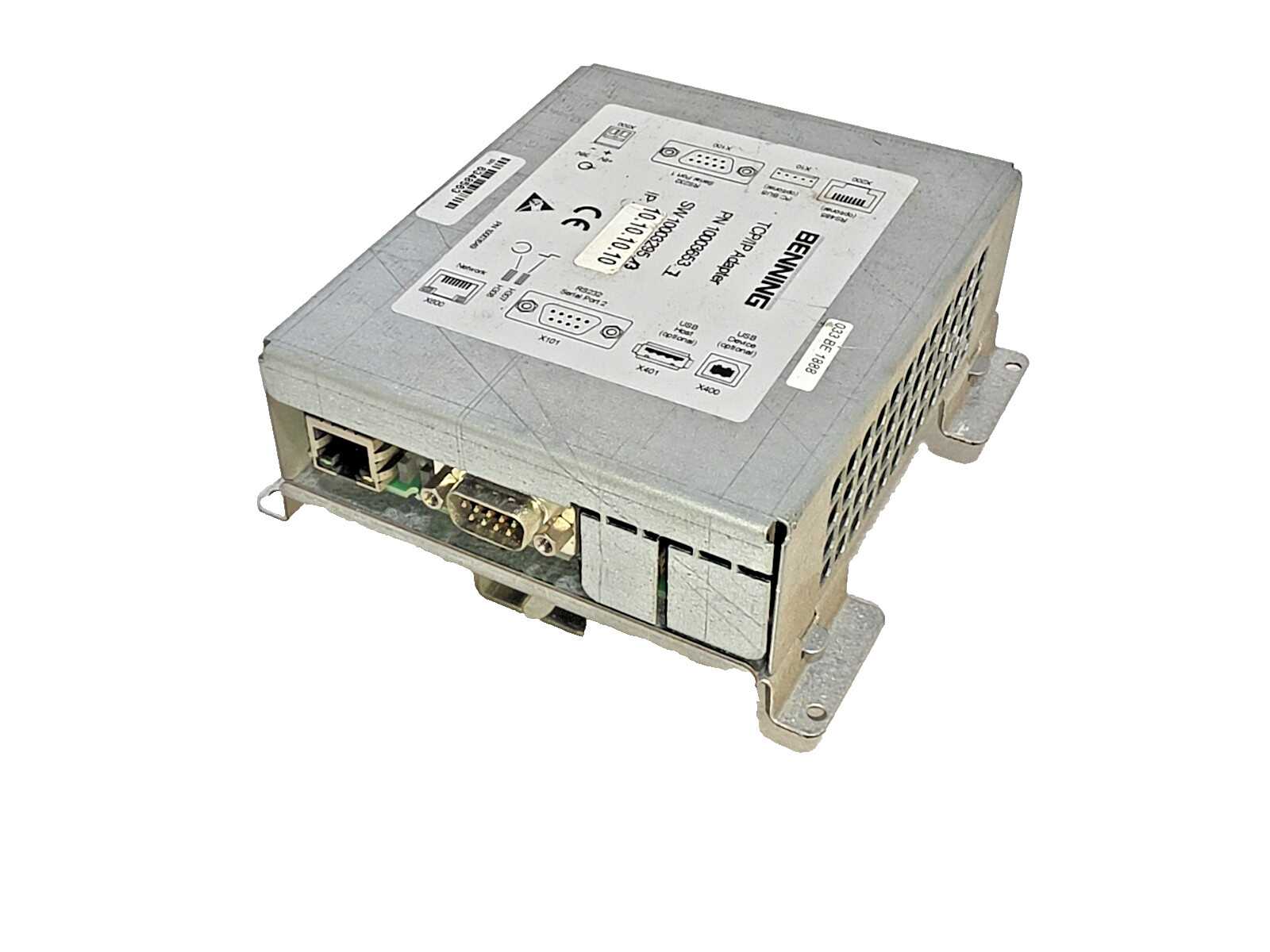

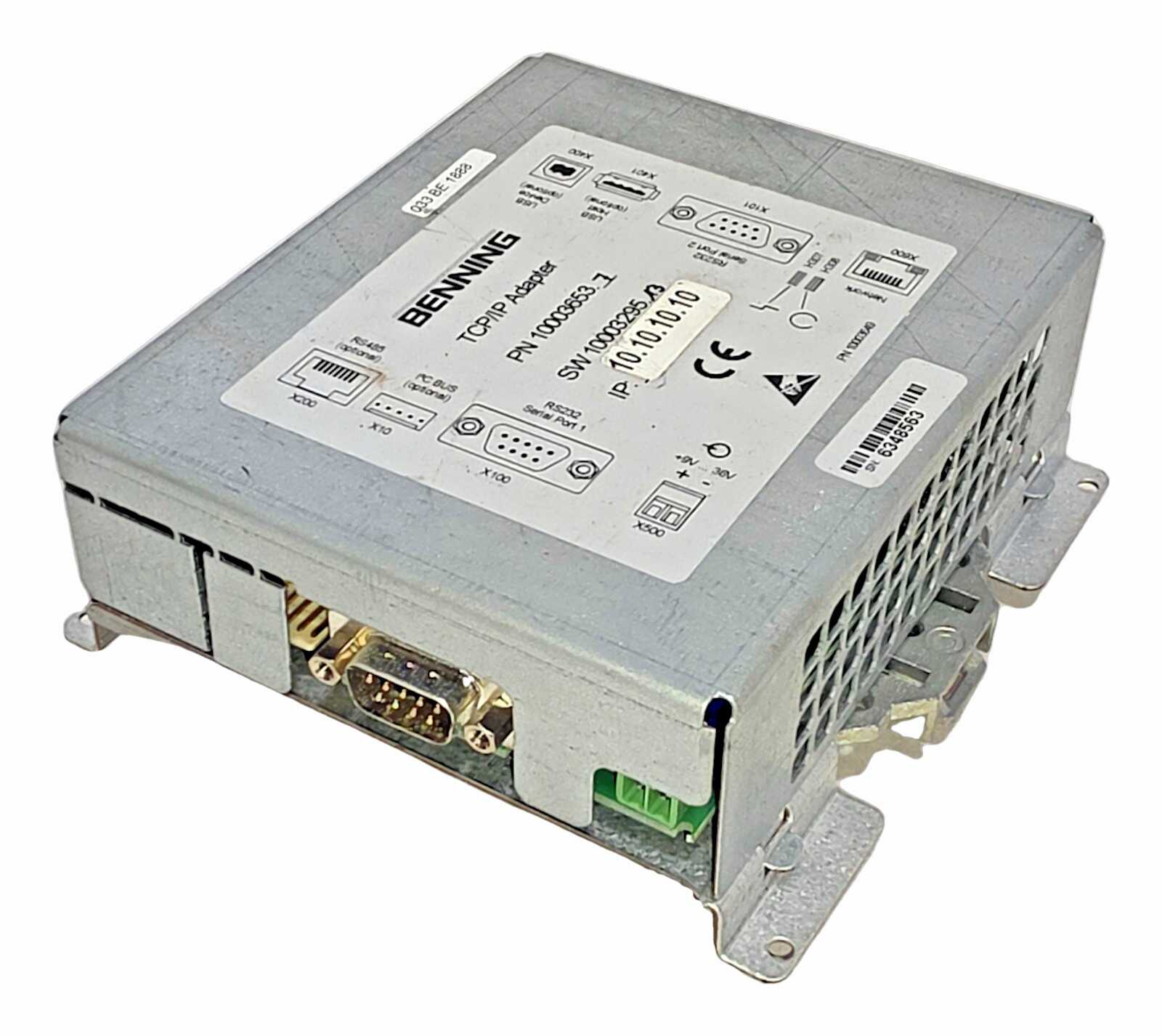

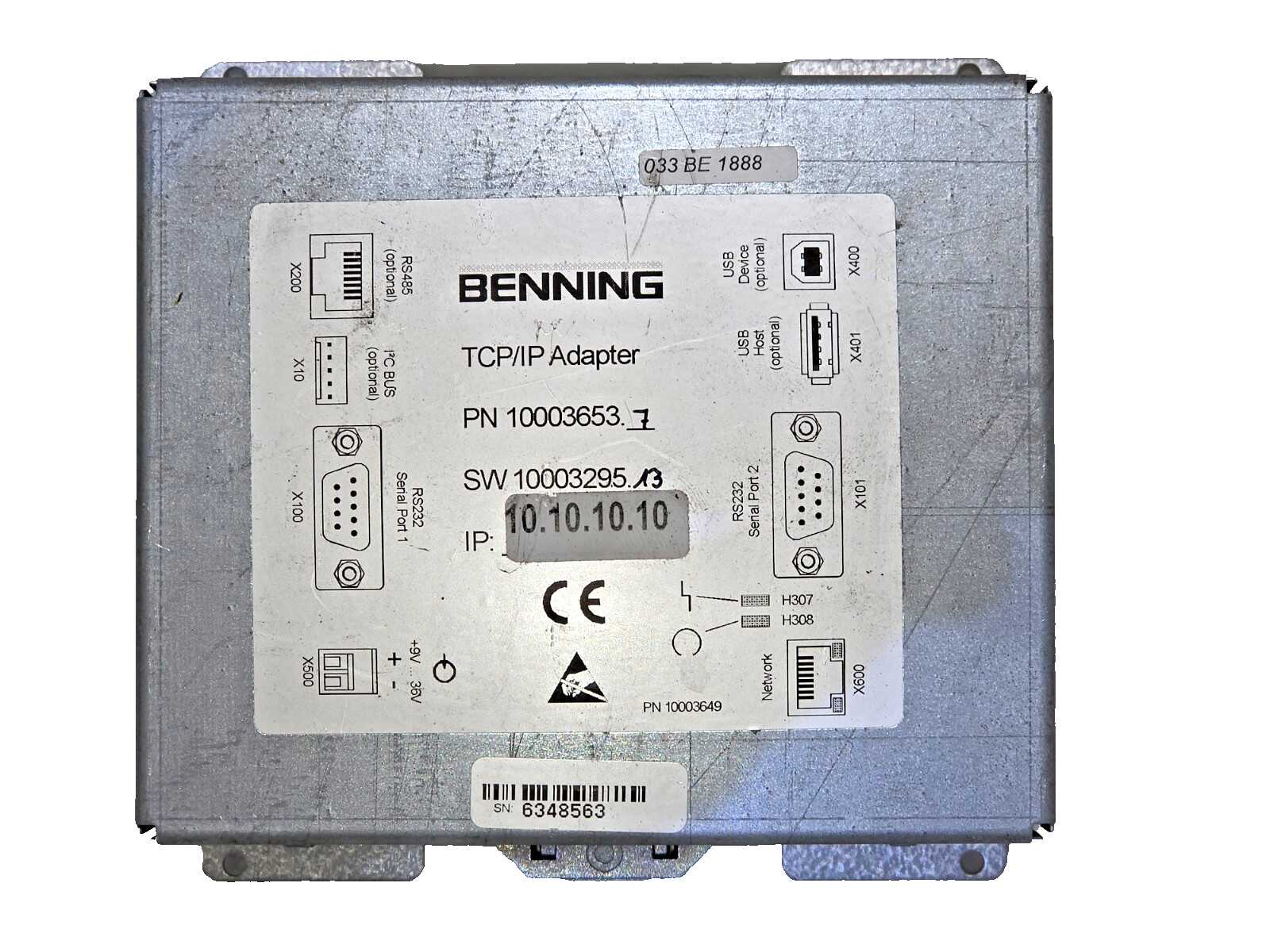

| Product name on label | TCP/IP Adapter PN 10003653.7 (label PN 10003649) SW 10003295.13 Serial number 6348563 Supply input X500, two pole screw terminal, marked +9V to 36V DC, polarity marked + and – X600 Network, RJ45 X100 RS232 Serial Port 1, DB9 X101 RS232 Serial Port 2, DB9 X200 RS485, RJ style jack, marked optional X10 I2C bus header, marked optional X400 USB Device, USB-B, marked optional X401 USB Host, USB-A, marked optional Status indicators H307 and H308 IP address label on the unit reads 10.10.10.10, the factory default address for this adapter family CE marked, ESD sensitive device symbol on label External mounting tabs on all four corners |
Not included:
Intended for BENNING MCU series Monitoring Control Units and the BENNING power systems they supervise. Requires an external DC supply in the 9 V to 36 V range at X500, an Ethernet drop at X600, and a serial cable from the host MCU to X100 or X101. Configuration is done over the network at the unit address; the label default is 10.10.10.10, so plan on a host PC set to the same subnet for first access. Interfaces marked optional on the label are build options and are not present on every unit; see the photos for which connectors are populated on this one.
Condition: 60 Day Money Back Guarantee.
Included: [to be filled in]
Shipping: [to be filled in]
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
