Description
| Zombie Components LLC | www.zombiecomponents.com |
60 Day Money Back Guarantee.
| Parameter | Value |
| MPN | 584318.4 |
| Manufacturer | Benning Elektrotechnik, Bocholt, Germany |

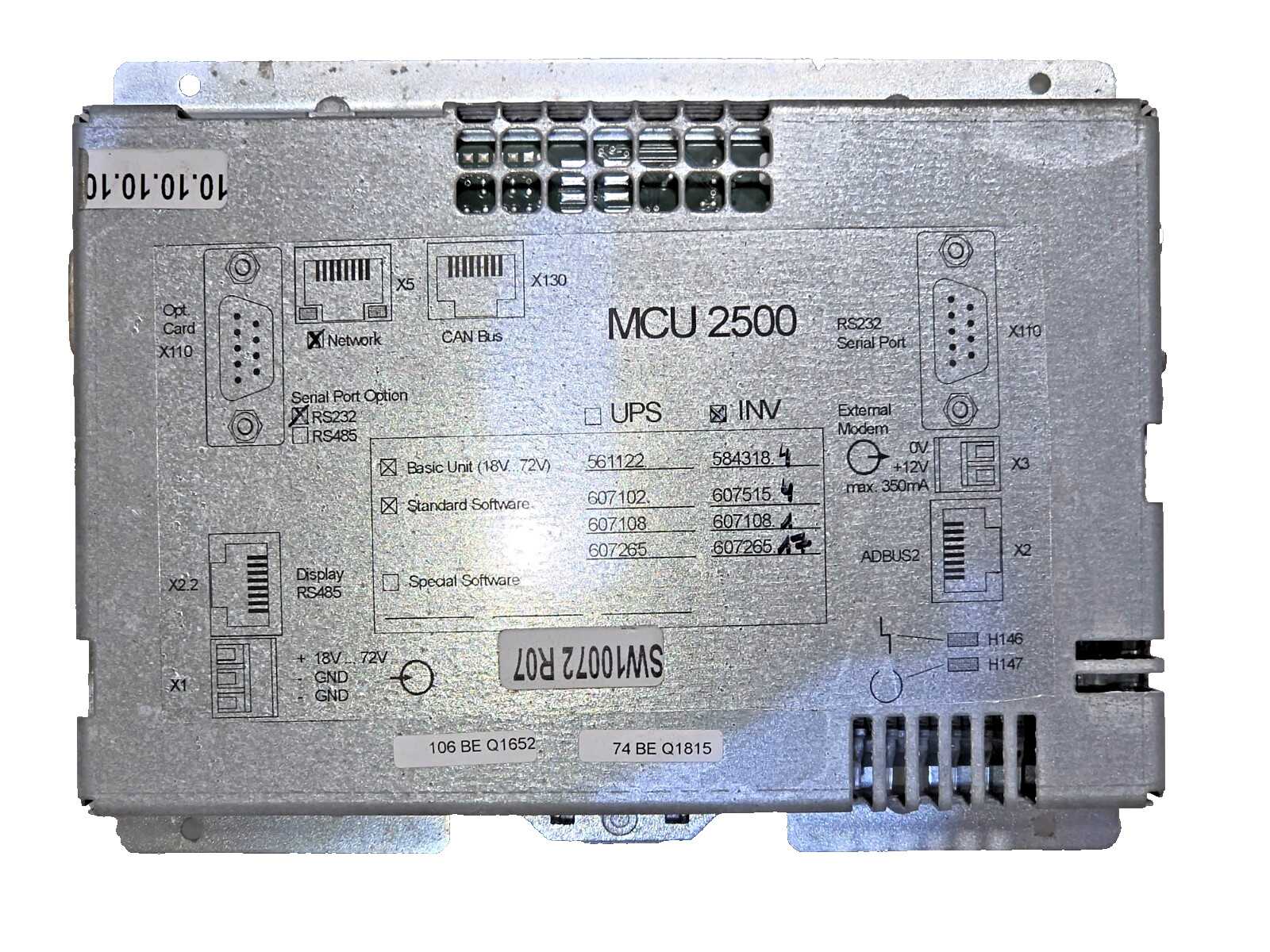

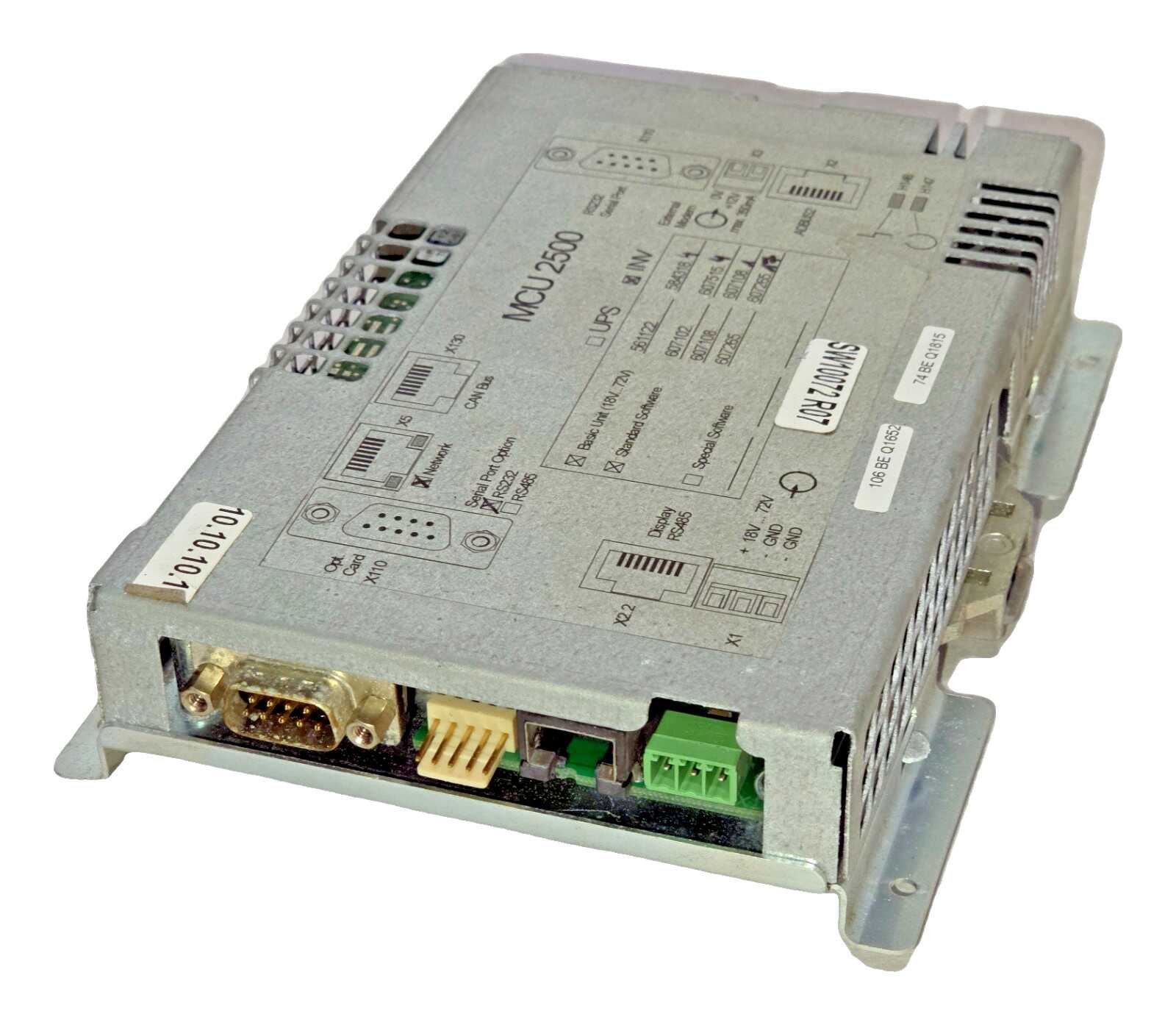

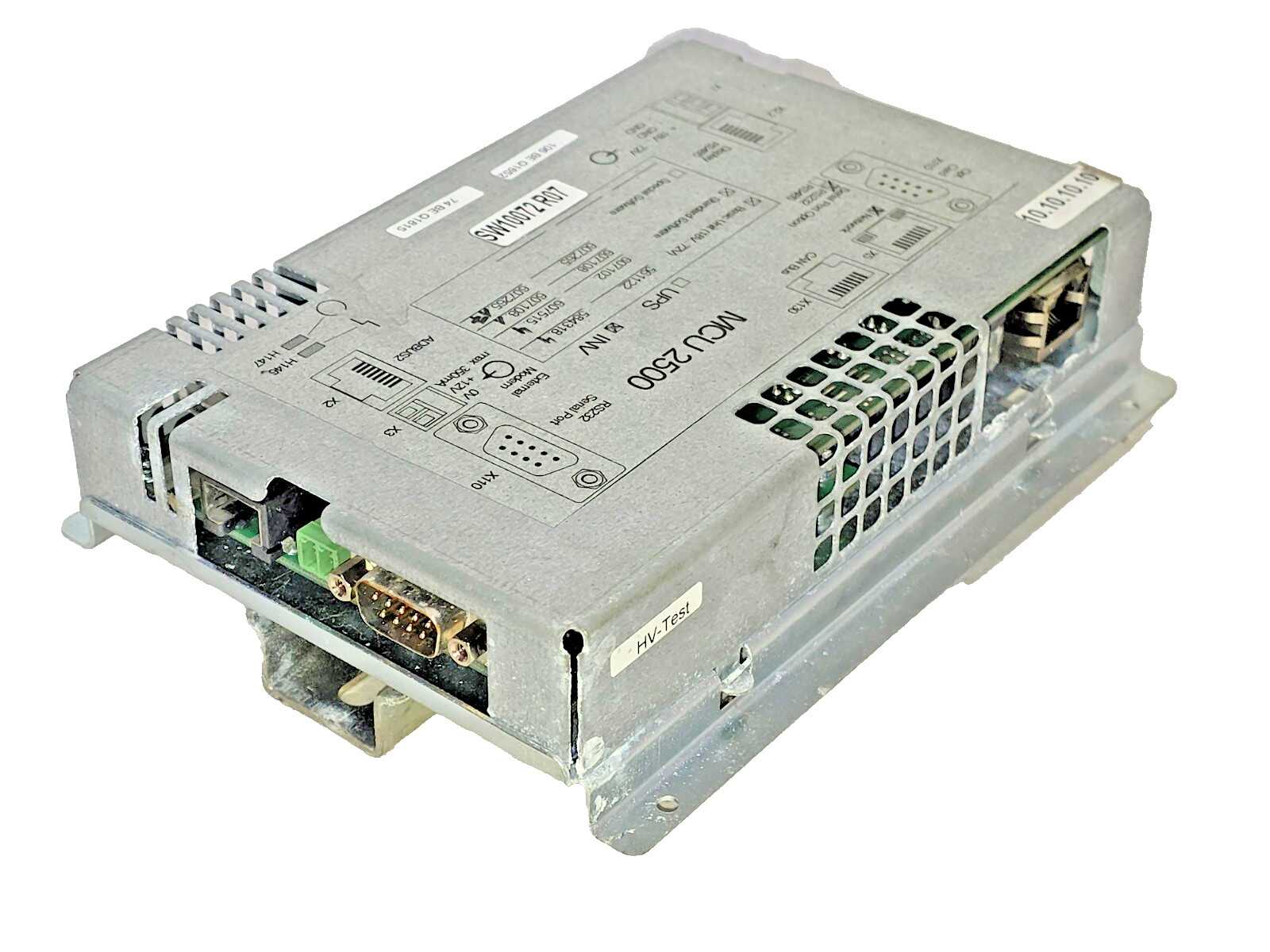

| Model | MCU 2500 Monitoring Control Unit |
| Configuration marked on cover | INV (inverter) selected, UPS not selected |
| Supply input X1 | +18V to 72V DC, two GND terminals |
| Basic Unit part number column (INV) | 584318.4 |
| Software label | SW10072 R07 |
| Serial Port Option | RS232 selected (RS485 not selected) |
| X110 (right) | RS232 serial port, 9 pin D-SUB |
| X110 (left) | Opt. Card position, 9 pin D-SUB |
| X5 | Network, RJ45, Network option box checked |
| X130 | CAN Bus, RJ45 |
| X2 | ADBUS2, RJ45 |
| X2.2 | Display RS485, RJ45 |
| X3 | External modem supply, 0V and +12V, max 350mA Status indicators H146 and H147 |
| Additional cover labels | 106 BE Q1652, 74 BE Q1815, and a 10.10.10 date sticker |
Not included:
Used as the monitoring and control unit in Benning industrial and telecom power supply systems, including local or remote operation of INVERTRONIC compact inverter systems
Requires a DC supply in the 18V to 72V range at X1
Local operation requires a Benning display and keypad unit on the Display RS485 port X2.2
Peripheral measuring boards and relay boxes connect over the Benning Net (ADBUS) at X2
This unit is the INV variant. Confirm your system is an inverter system and not a UPS system before ordering
Firmware and configuration are as shipped from the factory build (SW10072 R07). Site specific parameter setup is done by the installer
Condition: 60 Day Money Back Guarantee.
Included: [to be completed]
