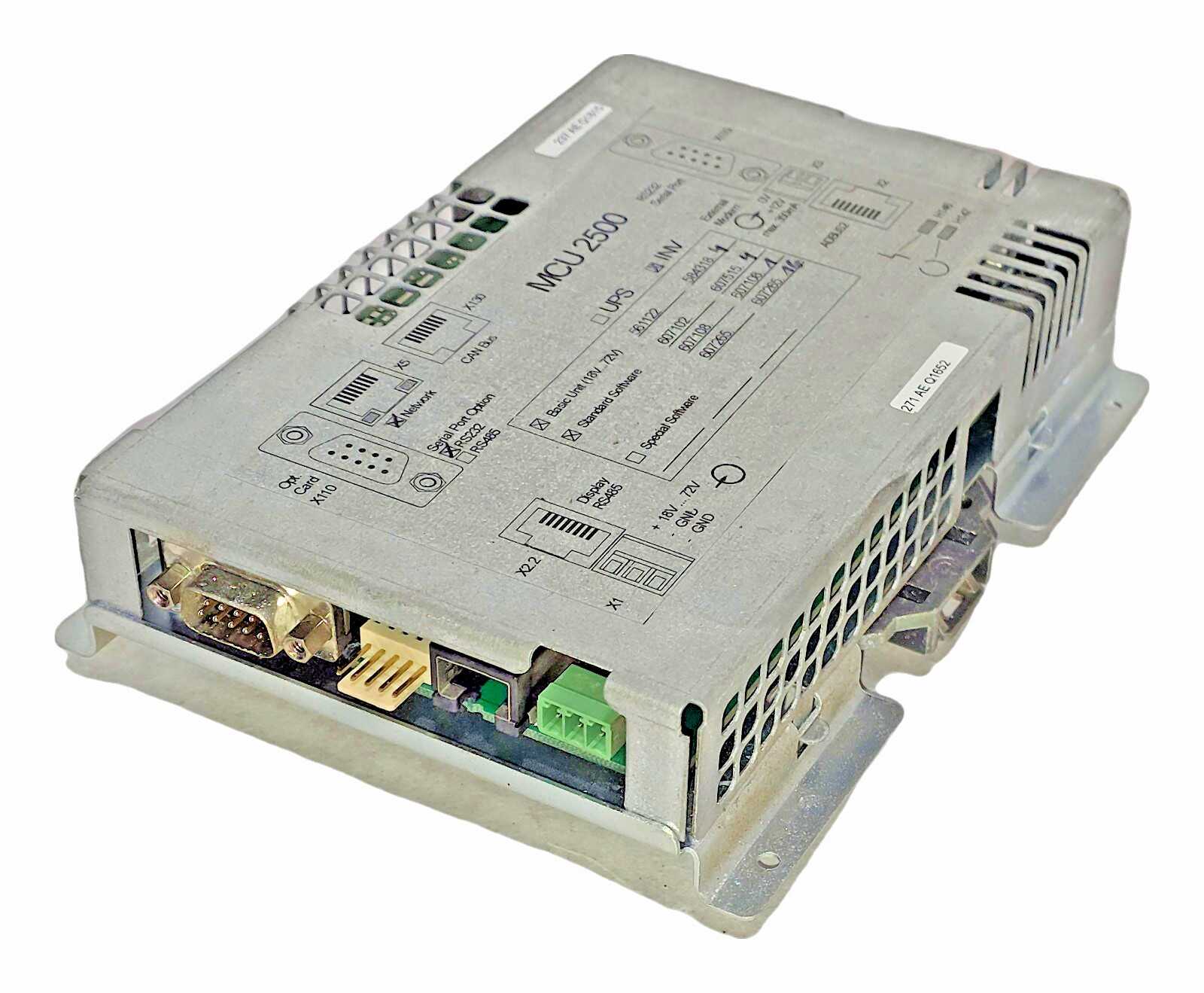

Benning MCU 2500 Monitoring Control Unit, base module, in the inverter (INV)
configuration. The MCU 2500 is Benning’s microprocessor based monitoring and control
module for AC and DC power systems, used with Benning inverter and rectifier plant
including the INVERTRONIC and INVERTRONIC compact lines. It reads system measurements,
battery data, temperature and alarms, and makes them available locally through a keypad
and LCD or remotely over modem, Ethernet, TCP/IP web adapter or SNMP. This unit is the
electronics module in its zinc plated steel housing, as pulled from Benning inverter
plant. Quantity available: 1.
60 Day Money Back Guarantee.
| Parameter | Value |
| MPN | 584318 |
| Brand | Benning |
| Model | MCU 2500 |

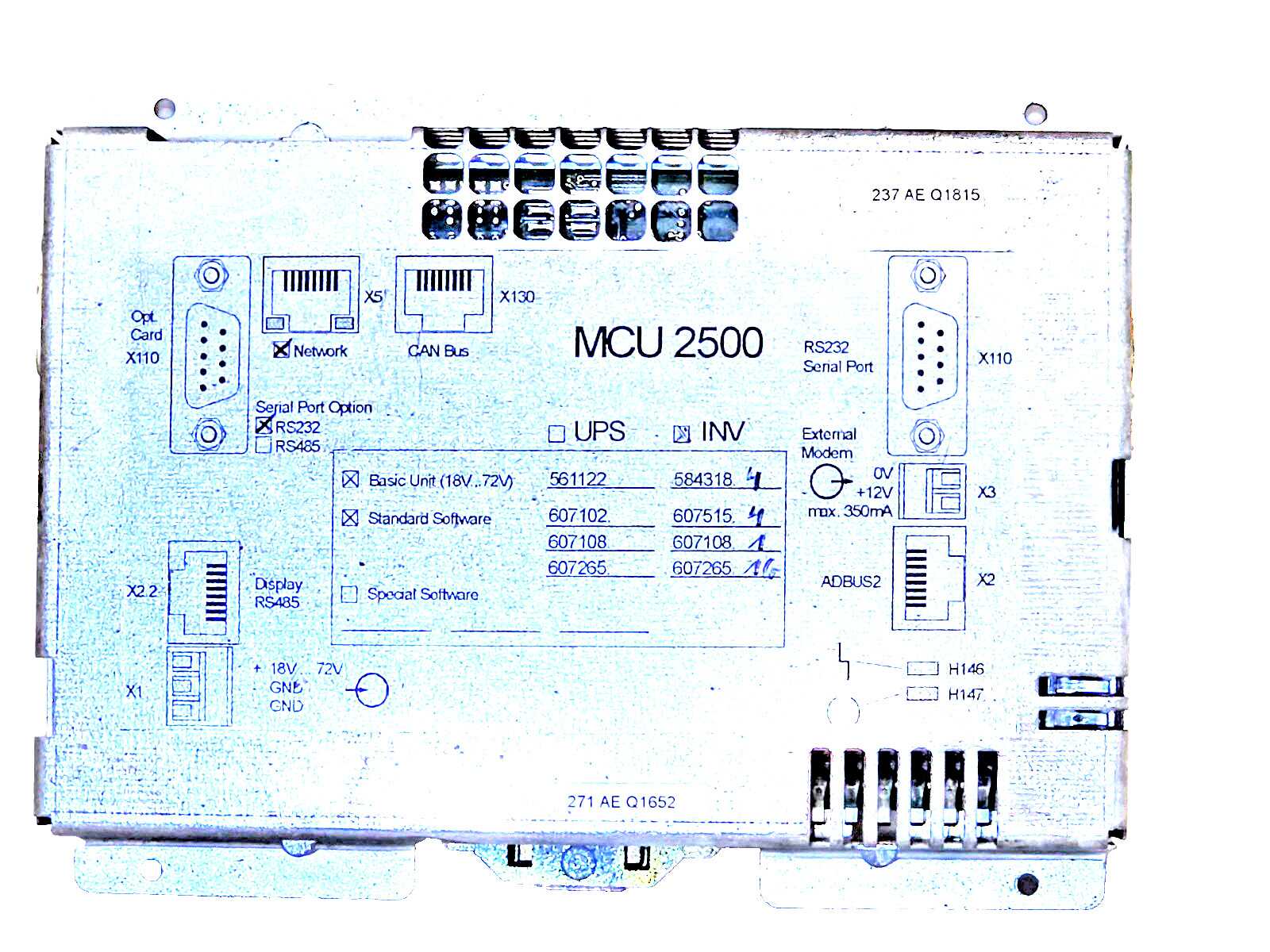

| Configuration marked on the housing | INV (inverter), Basic Unit 18V..72V, Standard Software |
| Printed configuration numbers, INV column | 584318, 607515, 607108, 607265 |
| Supply input | 18 V to 72 V DC at terminal X1, plus two GND |
| Serial port option fitted | RS232 (the RS485 option box is not checked) |
| Network option | checked |
| Interfaces present | RS232 DB9 serial port at X110, Opt. Card DB9 at X110, Network port at X5, CAN Bus port at X130, ADBUS2 at X2, Display RS485 at X2.2, external modem supply 0 V / +12 V at 350 mA maximum at X3 |
| Status indicators | H146, H147 |
| Data logger | up to 131,070 measurements or time and date stamped alarm and event records |
| Housing labels | 237 AE Q1815 and 271 AE Q1652 |
Benning MCU 2500 base module, quantity 1
Green pluggable screw terminal block fitted at X1
Original factory DVD manual
Not included:
Display or keypad front panel
Option card for the X110 Opt. Card slot
Power supply, DC cabling, network cable, serial cable
Mating connectors other than the terminal block already fitted
Mounting hardware
BATTS, SAT relay or digital input expansion modules
System frame or enclosure
Built for Benning AC and DC power systems. This unit carries the INV (inverter) part
number set 584318 / 607515; the UPS build of the same module carries 561122 / 607102, so
confirm your system calls for the inverter configuration before ordering. Requires an
18 V to 72 V DC supply at X1. Remote access uses the RS232 port or the network port.
Message us with your Benning system model and drawing number and we will check the
configuration block against it.
