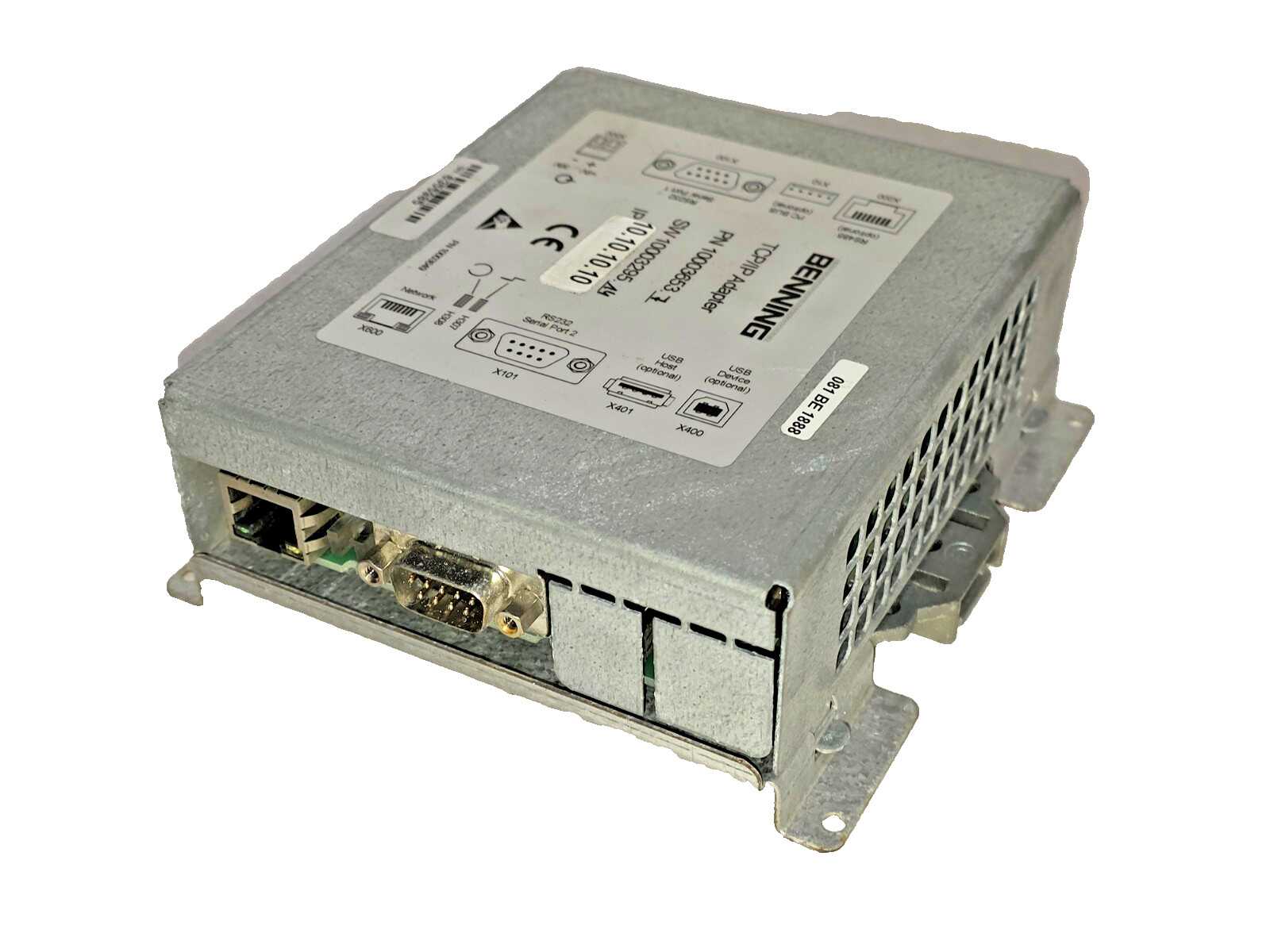

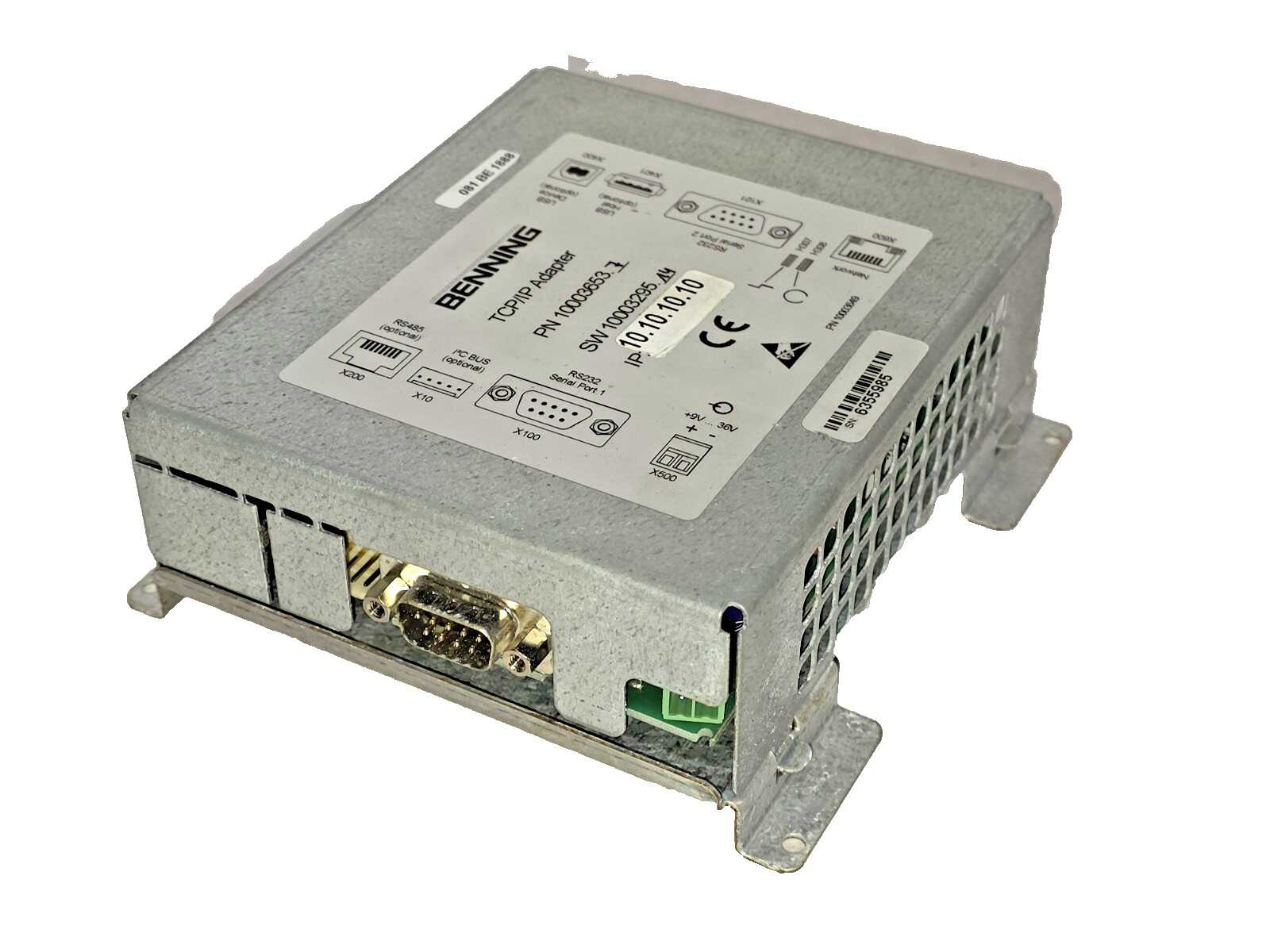

Benning TCP/IP Adapter, part number 10003653. This is the network communications adapter for Benning MCU family monitoring and control units used in Benning DC power, rectifier and inverter systems. It gives the MCU an Ethernet connection for remote monitoring and control in place of a local keypad and LCD or a dial up modem. Serial equipment connects on the RS232 D sub 9 ports and the network connects on the RJ45 port. The unit runs from a low voltage DC supply, 9 V to 36 V, on a pluggable 2 pin screw terminal. Zinc plated steel enclosure with four flange mounting tabs. Pulled from surplus Benning power system stock.
60 Day Money Back Guarantee.

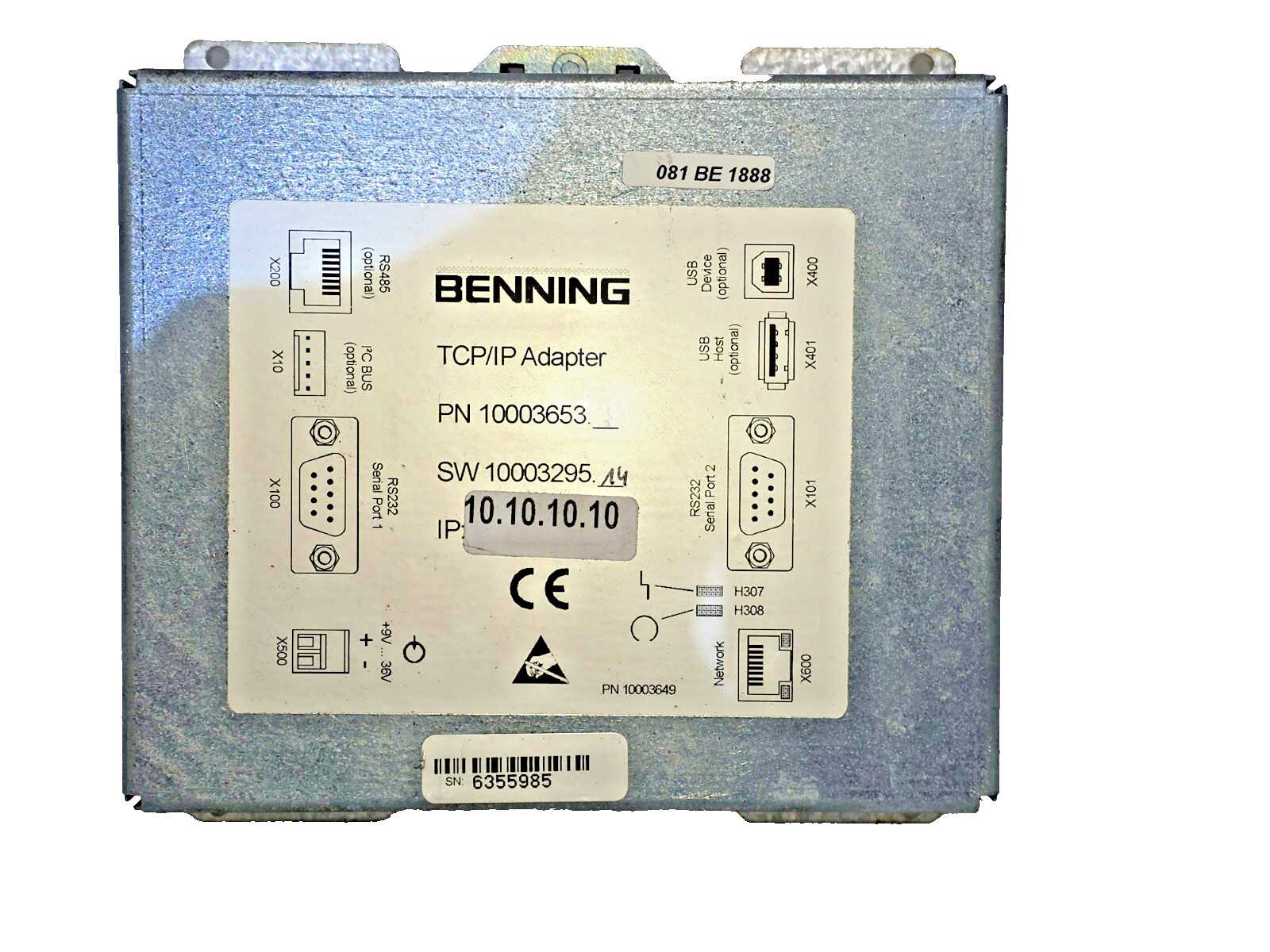

| Parameter | Value |
| MPN | 10003653 |
| Brand | Benning |
| Product name on plate | TCP/IP Adapter |
| Software number on plate | SW 10003295 |
| Secondary plate number | PN 10003649 |
| Serial | 6355985 |
| Supply | +9 V to 36 V DC, terminal X500, 2 pin pluggable screw terminal, polarity marked |
| Network | RJ45, terminal X600 |
| Serial | two RS232 ports, D sub 9, terminals X100 and X101, both populated on this unit RS485 (X200), I2C bus (X10), USB Device (X400) and USB Host (X401) are listed on the plate as optional and are not populated on this unit Status indicators H307 and H308 |
| IP address marked on the unit | 10.10.10.10 |
| Markings | CE, ESD sensitive |
| Enclosure | zinc plated sheet steel, ventilated, four flange mounting tabs |
| Approximate size | 1 x 4.1 x 2.0 in over the flanges |
Benning TCP/IP Adapter, PN 10003653
Green 2 pin mating power terminal plug fitted to the X500 supply terminal
Not included:
Power supply, DC cable or harness
Ethernet cable
RS232 cable
Mounting hardware
Documentation, software, media or license
Intended for Benning MCU family monitoring and control units in Benning power supply systems. Benning documents the MCU 2500 as operated locally by keypad and LCD or remotely by modem, Ethernet or TCP/IP adapter, which is the role of this part. Requires a 9 V to 36 V DC supply on X500, an Ethernet drop on X600 and an RS232 connection to the host MCU on X100. Confirm the adapter number against your system documentation before ordering.
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Ships from Sylmar, California. Packed in a 9 x 8 x 6 in box at approximately 4 lb gross, double boxed with the connector faces protected.
Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.
We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.
International shipments may be delayed or cancelled due to EAR and ITAR export compliance requirements. The vast majority of our items need no export license and ship under EAR99 and other exemptions; items that require a license are indicated in the listing.
This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.
All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.
If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
We do not keep or share your information anywhere. Your information resides only on eBay and is available to us only for a limited time while we interact with you on an inquiry, order, or return, per eBay usage policies.
Additional information
| Weight | 2.0000 lbs |
|---|---|
| Dimensions | 13 × 10 × 5 in |
| MPN | |
| Condition | |
| Condition Description | 60 Day Money Back Guarantee. Removed from unused Benning inverter systems. |
