Benning 576590.00 CAN Bus Distribution Board 4 Port Inverter System PCB

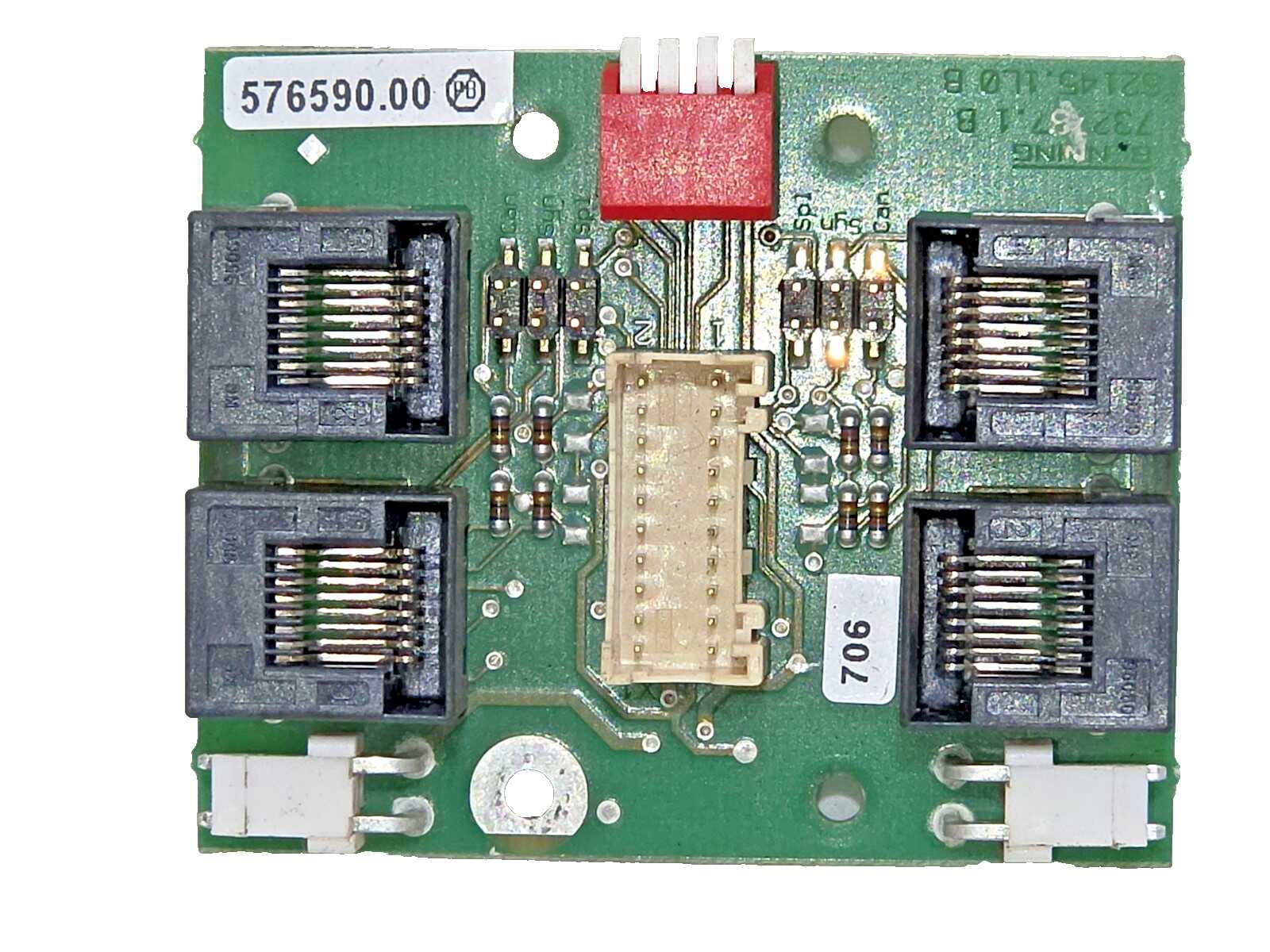

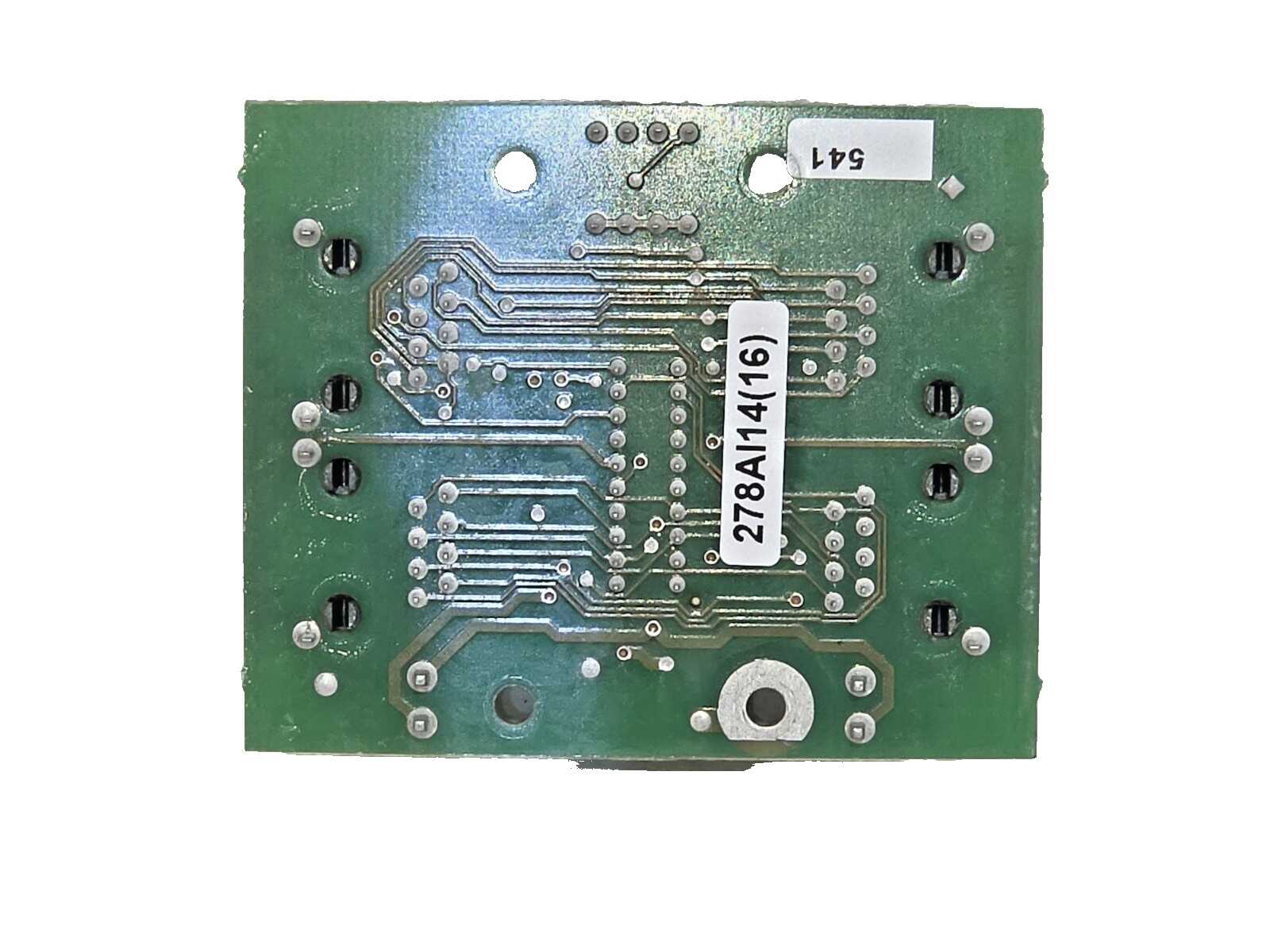

Benning printed circuit assembly, part number 576590.00. This is an interface and

distribution card from a Benning inverter power system. Four board mounted modular jacks

sit in two pairs, one per side of the board, with a four position pin header at the top

edge, a low profile two row board to board header down the centre of the board, and two

two position flat tab headers along the bottom edge. A large plated chassis ground pad

with a through hole sits at the bottom centre. Two mirrored banks of three chip jumper

sites are silkscreened Can, Shu and Sp1, with channel markers 1 and 2 between them, which

sets link selectable routing for two independent channels out to the four modular ports.

The board carries surface mount passives only. There are no integrated circuits, no

electrolytic capacitors, no relays and no heat sinks on it, so there is nothing on the

assembly with a shelf life. Board silkscreen drawing numbers are 62145.110 B and

732 87.1 B. Six identical boards are on hand. This listing is for one board.

One Benning 576590.00 printed circuit assembly.

Not included:
Mating patch cables or bus harness.
Mating ribbon or board to board cable for the centre connector.
Mating tab connector leads.
Housing, backplane, card guide, card cage, or mounting hardware.
Inverter, rectifier or UPS system, controller, or display unit.
Documentation, schematic, pinout, firmware, or software.

Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.

Packed in an antistatic bag and cushioned in a 7 x 7 x 5 in box at 1 lb. Ships from

Sylmar, California. Standard parcel, no freight.
