Benning 550703.03 I/O Input Output Card Power System Board 16 Pos Dual RJ45

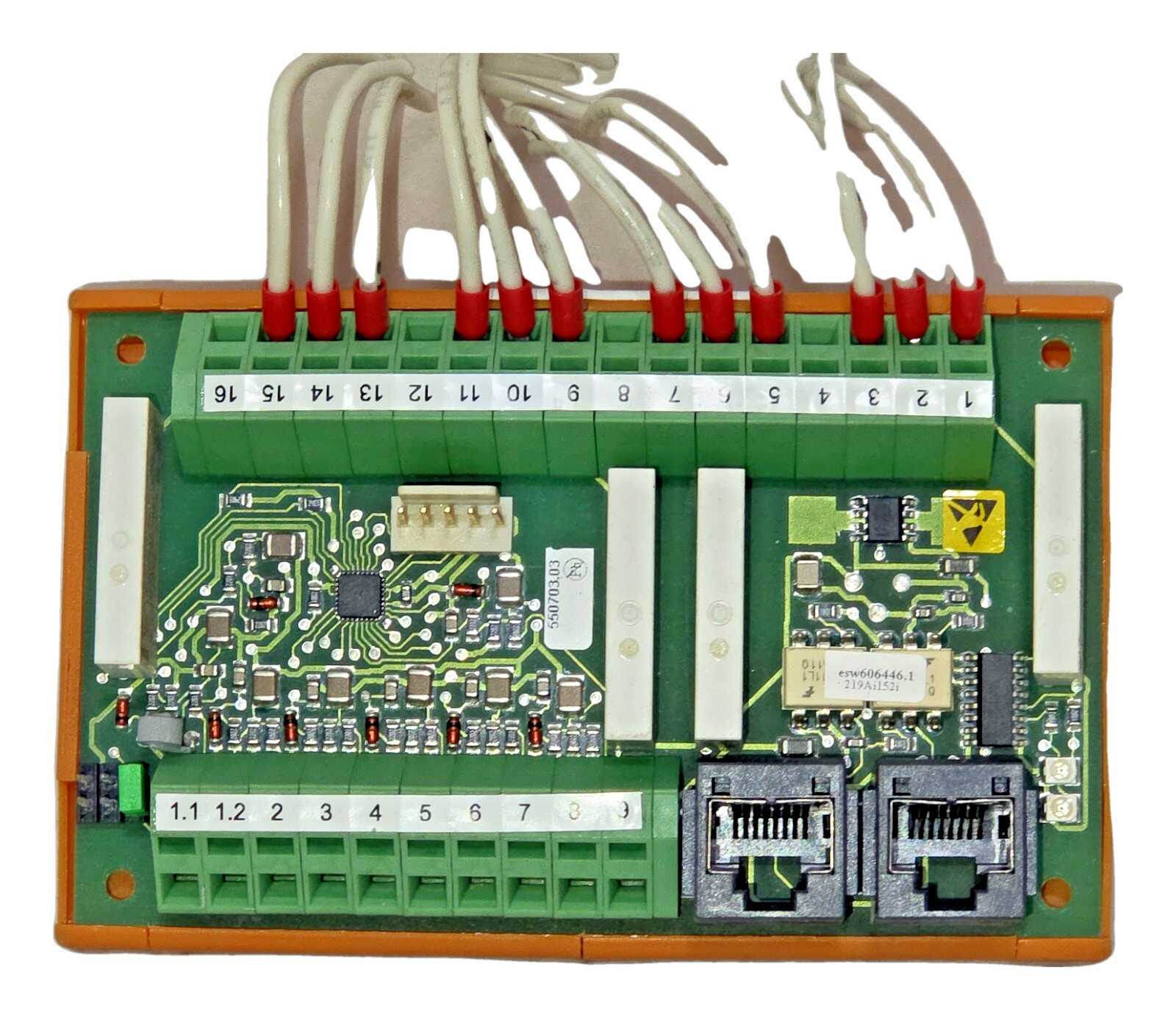

Benning 550703.03 input output card, removed from a Benning inverter system. Green printed circuit

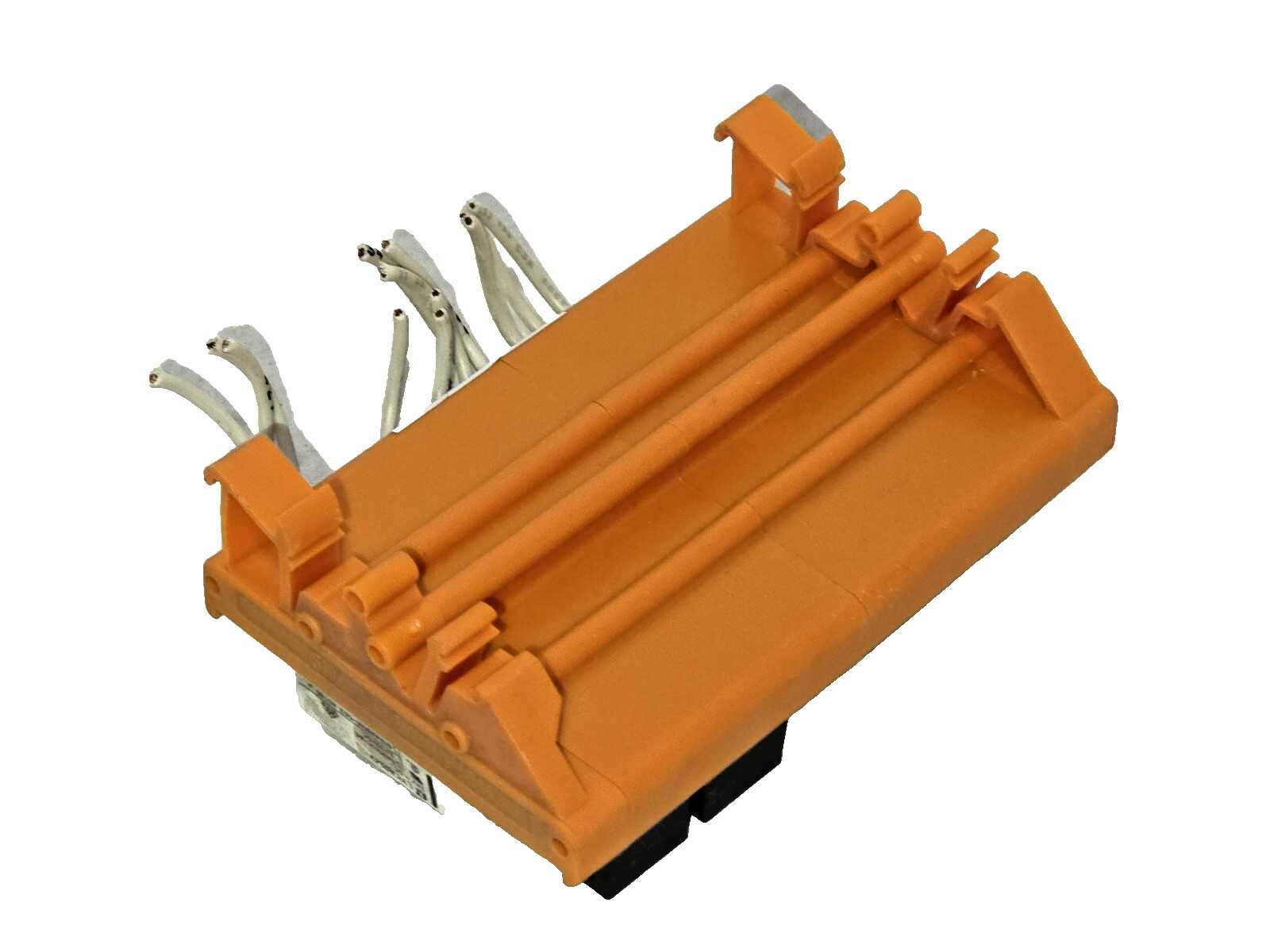

assembly mounted in an orange DIN rail carrier housing. Signal interface is a 16 position pluggable screw

terminal strip along one long edge, numbered 1 through 16, and a 10 position pluggable screw terminal strip

along the other, marked 1.1, 1.2, 2, 3, 4, 5, 6, 7, 8 and 9. Two shielded RJ45 jacks sit on the board edge

next to the 10 position strip. A 6 pin wire to board header and a small 2 pole connector are also fitted.

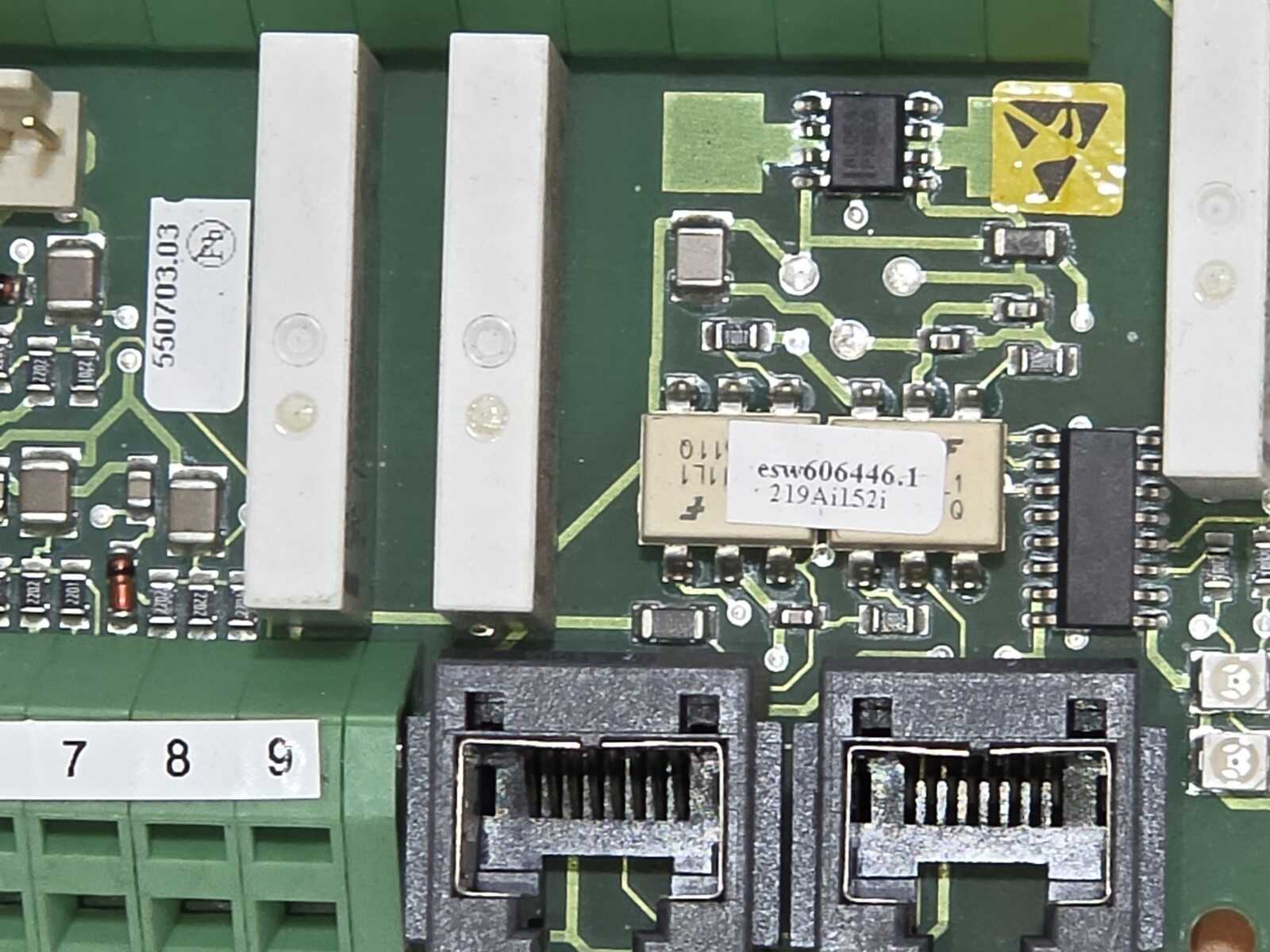

The PCB label reads 550703.03 and carries the lead free symbol. A label on the hybrid module pair reads

esw606446.1 219Ai152i. An ESD caution label is applied beside it. Every marking described here is shown in

the photos. Four units available, sold individually.

One Benning 550703.03 input output card in its orange DIN rail carrier housing.
Both pluggable screw terminal strips, the 16 position and the 10 position, fitted as pictured.
Wire pigtail: 12 white conductors with red crimp ferrules landed in 12 of the 16 upper terminal positions,
free ends cut and stripped. The ferrules pull out of the pluggable strip if you want bare terminals.

Not included:
RJ45 patch cables.
DIN rail.
Host controller, inverter, rectifier or any other system hardware.
Documentation, drawings, firmware or software.
Mounting hardware.

Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.

Boxed at 10 by 9.4 by 6 in, shipping weight 2 lb, item plus packing. Ships from Sylmar, California.
