BENNING 561125.00 UPS Master Slave Sync PCB 62184.0L0 B 732776.0 B DIN Module

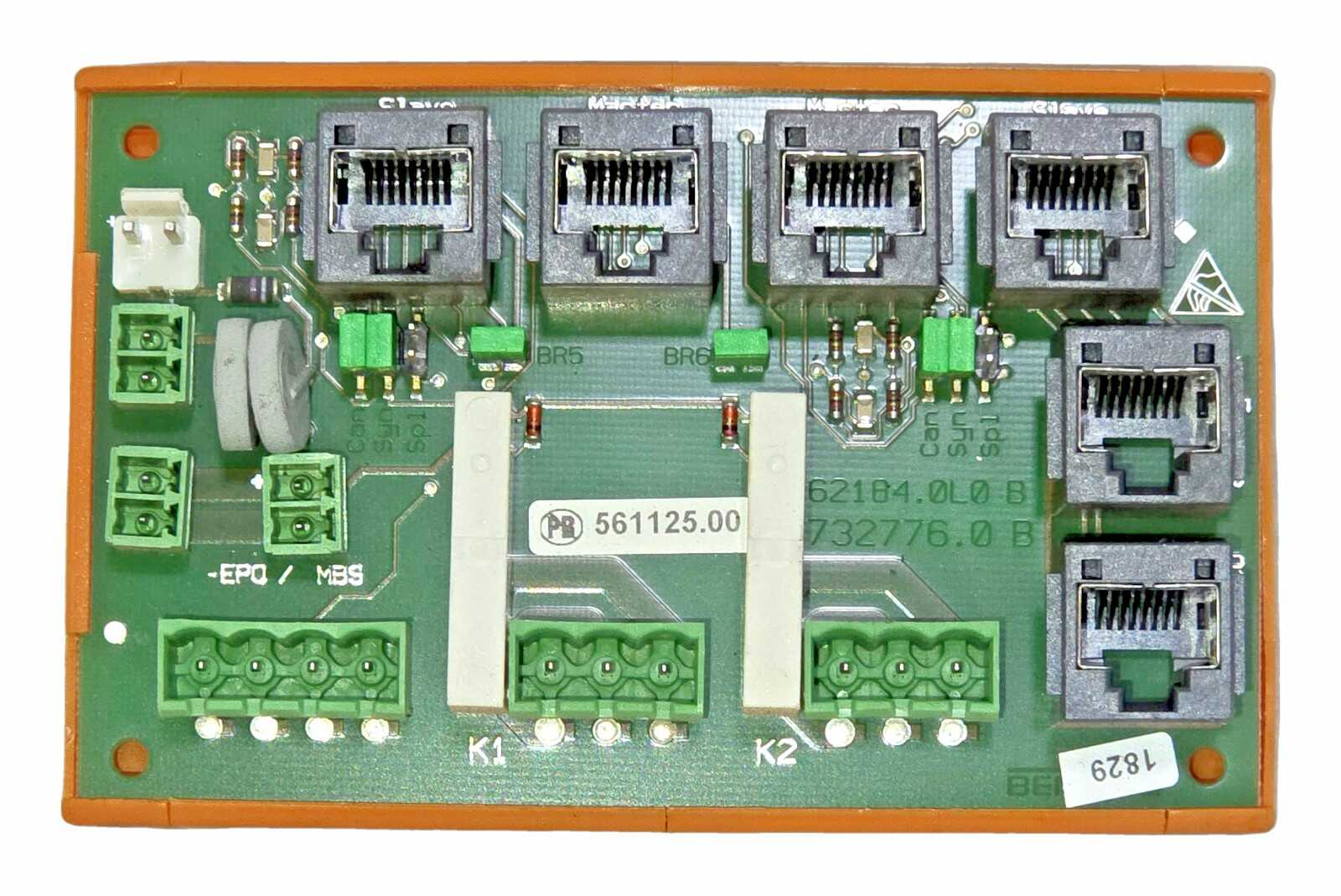

BENNING PCB card module, part label 561125.00, board silkscreen 62184.0L0 B and

0 B, supplied in a two-part orange WAGO DIN rail carrier. The card is a

master-slave synchronisation and signalling interface from a BENNING UPS / inverter

system. Six RJ45 ports handle the inter-unit links, four of them silkscreened

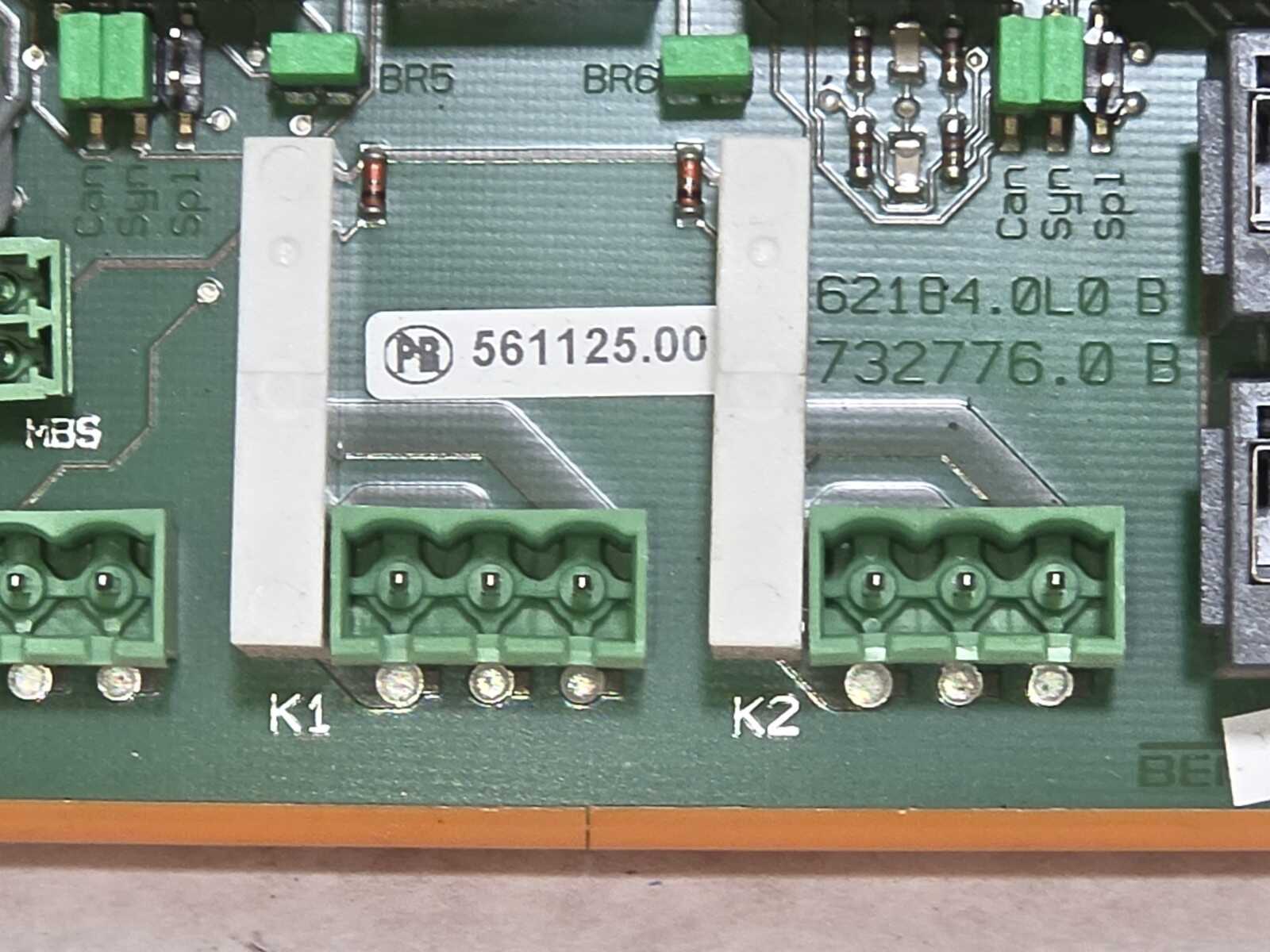

Slave / Master / Master / Slave across the top edge. Pluggable green screw-terminal

headers carry the Can / Syn / Spl signals, the -EPO / MBS emergency power off and

maintenance bypass switch inputs, and two relay groups K1 and K2. Link positions

BR5 and BR6 are on the board. A common-mode choke sits on the input side and milled

creepage slots with insulating barriers separate the relay terminal groups.

BENNING PCB card module 561125.00 / 62184.0L0 B / 732776.0 B
All six RJ45 jacks
All green pluggable screw-terminal headers: two 2-pole, one 2-pole centre, one 4-pole -EPO / MBS, K1 3-pole, K2 3-pole
White 2-pin connector and common-mode choke

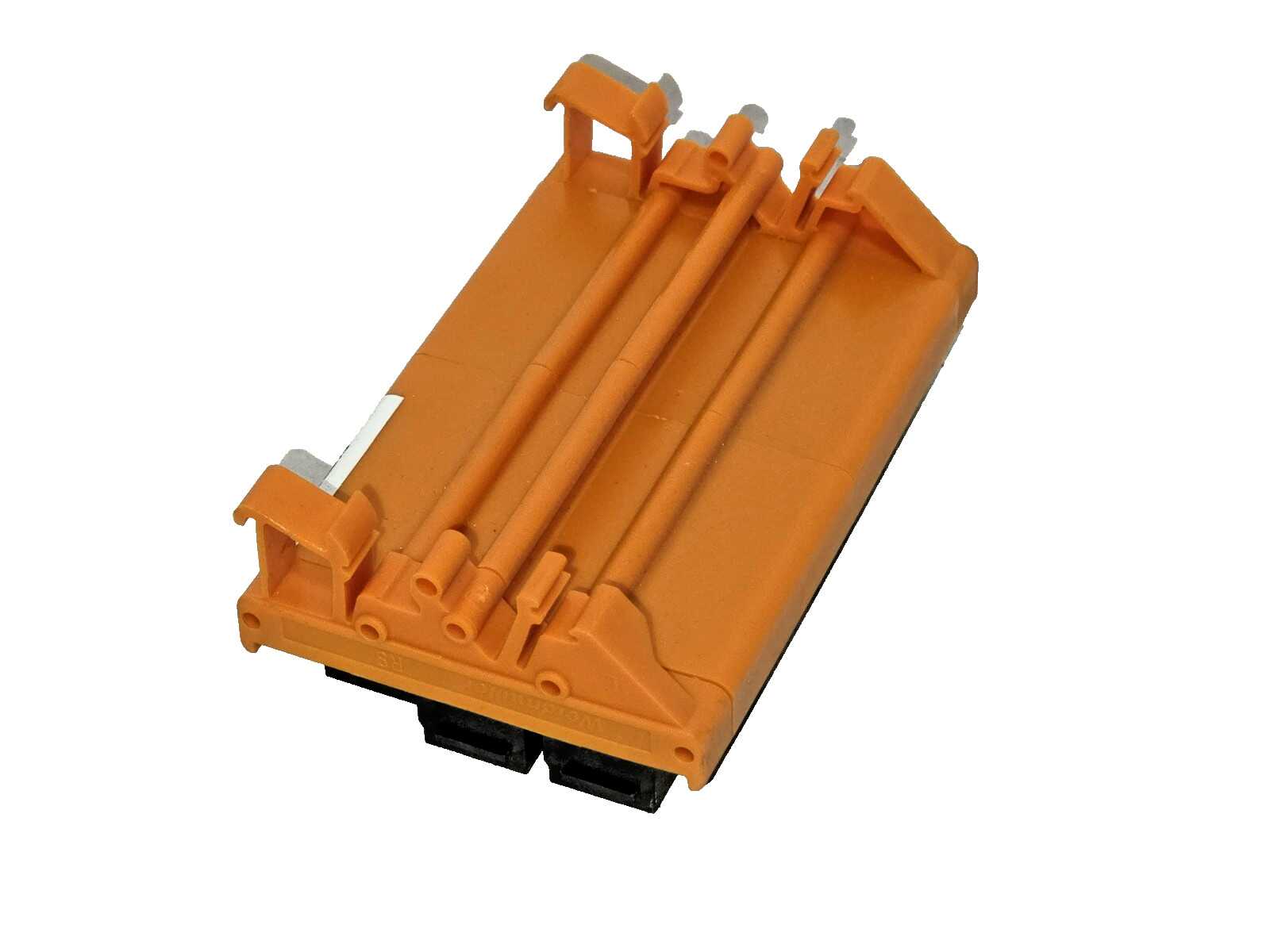

Two-part orange WAGO DIN rail carrier

Not included:
Mating field connectors, cables and patch leads
Enclosure beyond the DIN rail carrier
Documentation, software or firmware media
Host UPS or inverter hardware

Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.

Ships in a 11 x 8 x 5 in box at 2 lb, boxed with the DIN carrier and padding.

Ships from Sylmar, California.
