Description
|
Zombie Components LLC
|
www.zombiecomponents.com |

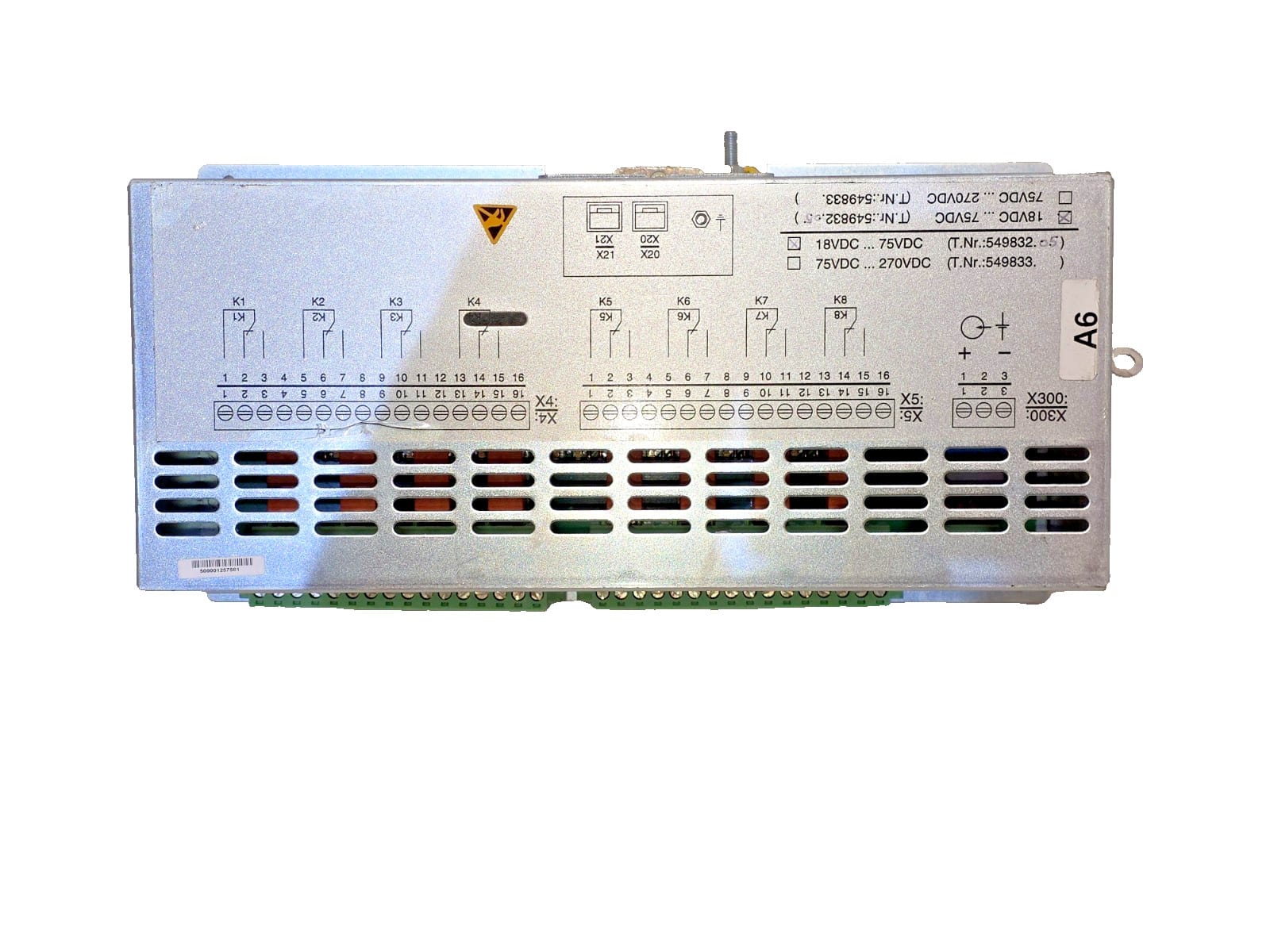

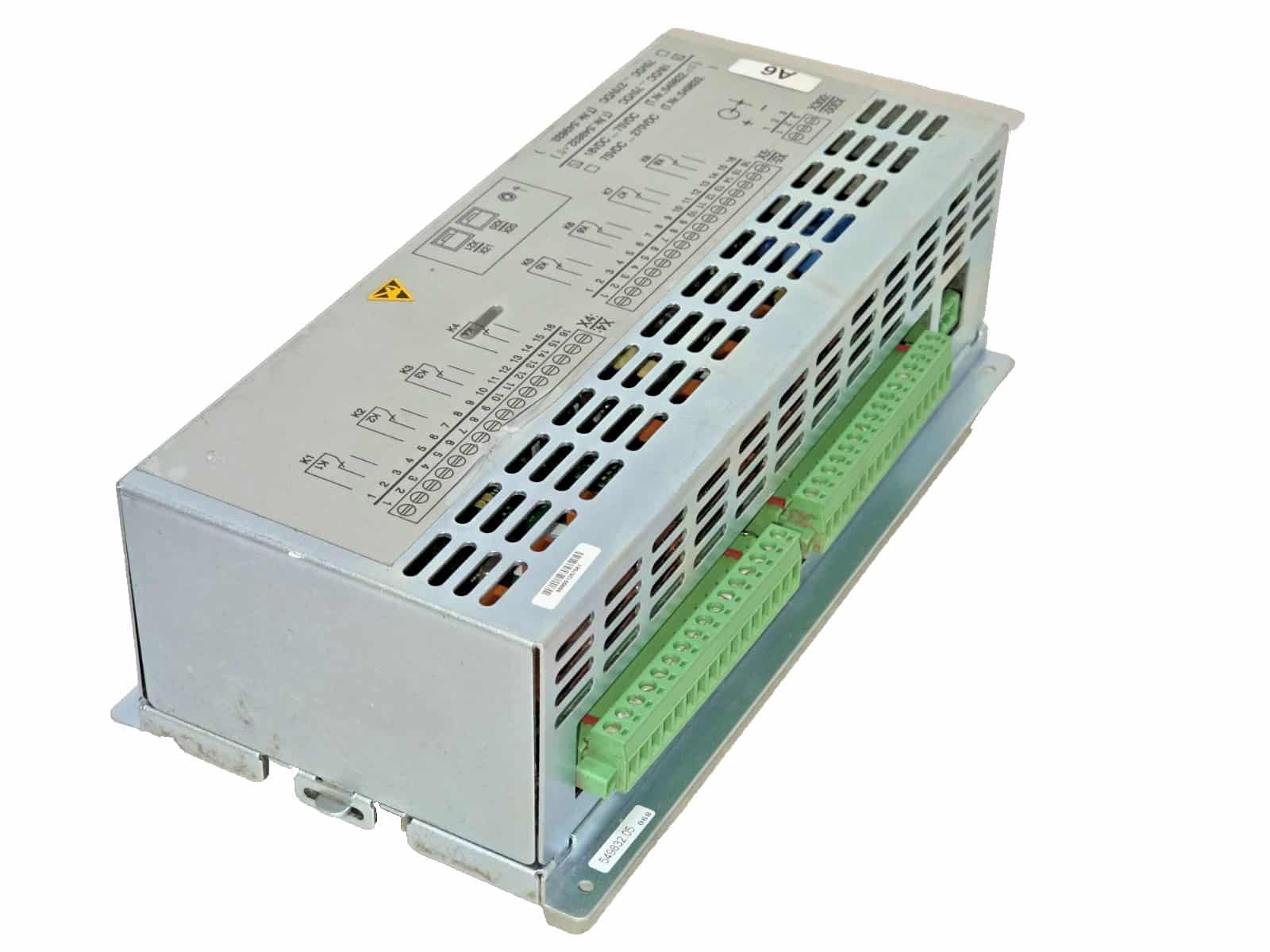

Eight channel relay signalling and alarm output module from a BENNING DC to AC
inverter system. Zinc plated sheet steel chassis, vented top cover and both long
sides, two hole mounting flange at each end. Eight relays, K1 through K8, are
drawn on the cover legend as changeover contacts and land on two 16 pole
pluggable screw terminal blocks, X4 and X5. X300 is the three pole supply input,

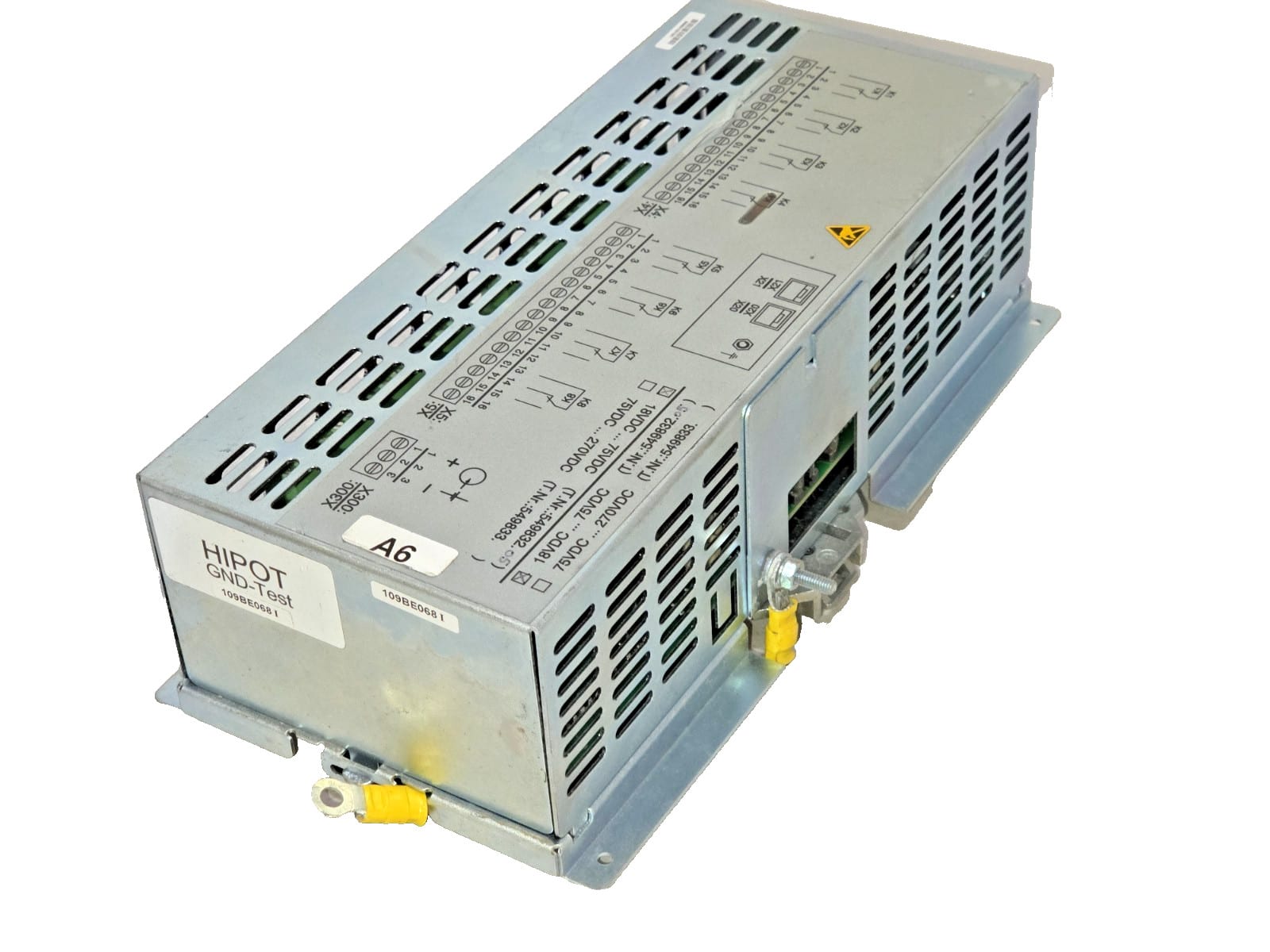

marked plus, minus and protective earth. A threaded protective earth stud with
clamp is fitted through the chassis. The cover legend is printed twice, the
second copy rotated 180 degrees, so the terminal numbering reads right way up in
either mounting orientation.
60 Day Money Back Guarantee.
| Parameter | Value |
| MPN | 549832.05 |
| Brand | Benning |
| Type | eight channel relay signalling and alarm output module |
| Relays | K1 through K8, drawn as changeover contacts on the cover legend |
| Output block X4 | 16 pole pluggable screw terminal block, terminals 1 to 16 |
| Output block X5 | 16 pole pluggable screw terminal block, terminals 1 to 16 |
| Supply input X300 | three pole, terminals 1 to 3, marked plus, minus and protective earth |
| Supply range of this variant | 18 VDC to 75 VDC, checkbox marked on the cover legend, T.Nr. 549832.05 |
| Alternate variant, not this unit | 75 VDC to 270 VDC, T.Nr. 549833 |
| Other legend designations | X20 and X21, each with a battery symbol, plus a protective earth symbol |
| Chassis | zinc plated sheet steel, vented top cover and both long sides |
| Mounting | two hole flange at each end, four holes total |
| Protective earth | threaded stud with clamp fitted through the chassis |
| Item dimensions | 14 x 6 x 6 in |
| Item weight | 5 lb |
One relay signalling and alarm module, part number 549832.05
X4, 16 pole pluggable screw terminal block, fitted
X5, 16 pole pluggable screw terminal block, fitted
Protective earth stud, clamp and hardware, fitted
Not included:
Manual, parts list, wiring diagram or datasheet
Rack, enclosure, inverter module or any other part of the source system
X300 three pole mating plug
Mating cable, wiring, mounting screws or any other hardware
This unit is the 18 VDC to 75 VDC supply variant, T.Nr. 549832.05. The
75 VDC to 270 VDC supply variant is a different part number, T.Nr. 549833, and
is not what is offered here. Relay contact ratings and coil data are not marked
on the unit; check them against your system documentation before wiring. One
end of the chassis is open, with the PCB edge and connector bodies exposed,
which is normal for a rack mounted module of this type. Match the part number
against your system parts list before ordering. Two matched units from the same
source system are available and are listed individually.
