Description
| Zombie Components LLC | www.zombiecomponents.com |
Long narrow single printed circuit board, LED indicator and I/O interface board out of a Benning

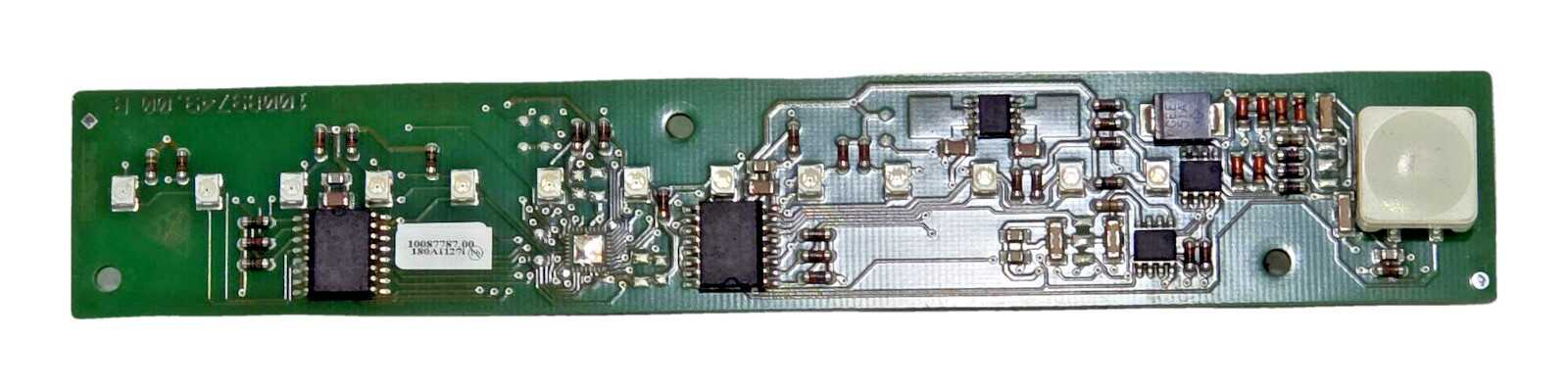

inverter system. The component side carries a row of surface mount indicator LEDs, two SOIC 16
devices, two SOIC 8 devices, chip passives, and one large square white component at one end. The

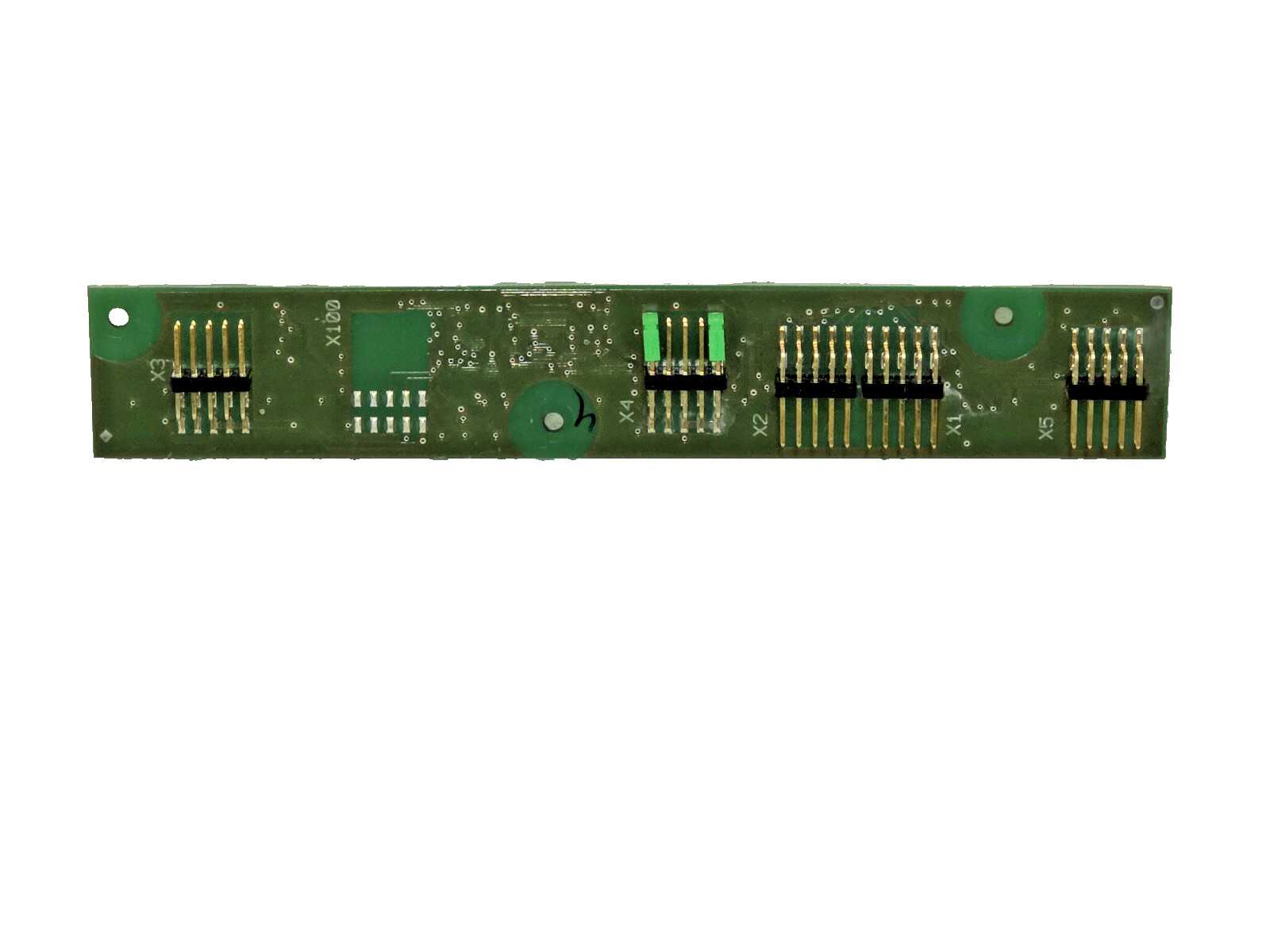

reverse carries five gold plated pin header blocks silkscreened X1 through X5, board reference
X100, and three plated mounting holes. One of the SOIC 16 devices is an NXP PCF8574T remote 8 bit
I/O expander for the I2C bus, the usual way an indicator panel is driven from a system controller
over two wires. Two units are on hand and they are sold individually.
60 Day Money Back Guarantee.
| Parameter | Value |
| MPN | 10087787.00 |
| Secondary label code | 180Ai127i |
| Board silkscreen | 00, revision letter partially legible as B |
| Brand | Benning, by provenance. No manufacturer name, logo or model is printed on the board. |

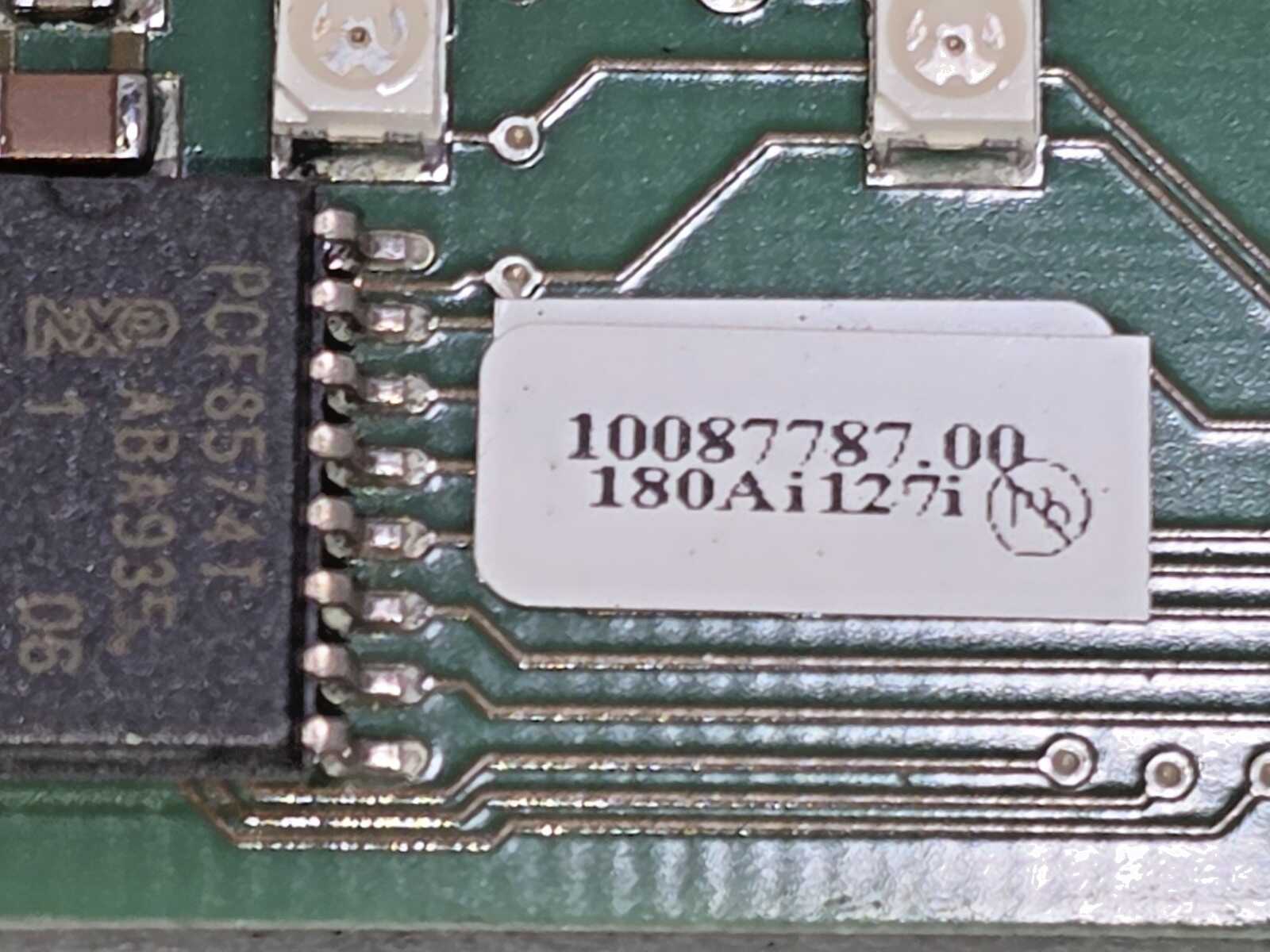

| Interface device | NXP PCF8574T, remote 8 bit I/O expander for the I2C bus, SOIC 16, marking ABA935 |
| Indicators | row of surface mount LEDs on the component side, plus one large square white component at one end |
| Connectors | five pin header blocks, gold plated, silkscreened X1 through X5; board reference designator X100 |
| Mounting | three plated through holes |
| Construction | single board, no enclosure, no lens, no light pipes |
One LED indicator board, part number 10087787.00.
Antistatic packaging.
Not included:
Mating connectors, sockets or crimps for X1 through X5.
Ribbon cables or wiring harness.
Front panel lens, light pipes or bezel.
Mounting hardware, standoffs, documentation.
Sold as a spare or repair part. The board is addressed over an I2C bus through the PCF8574T
expander and plugs into its host system through the headers X1 through X5. Match part number
00, the connector layout and the mounting hole pattern in the photographs against the
board being replaced before ordering. Benning builds the INVERTRONIC modular and INVERTRONIC
compact inverter systems, whose front door operating panel Benning documents as LED indicators
parts list showing 10087787.00 was located, so no specific inverter model is claimed here.
