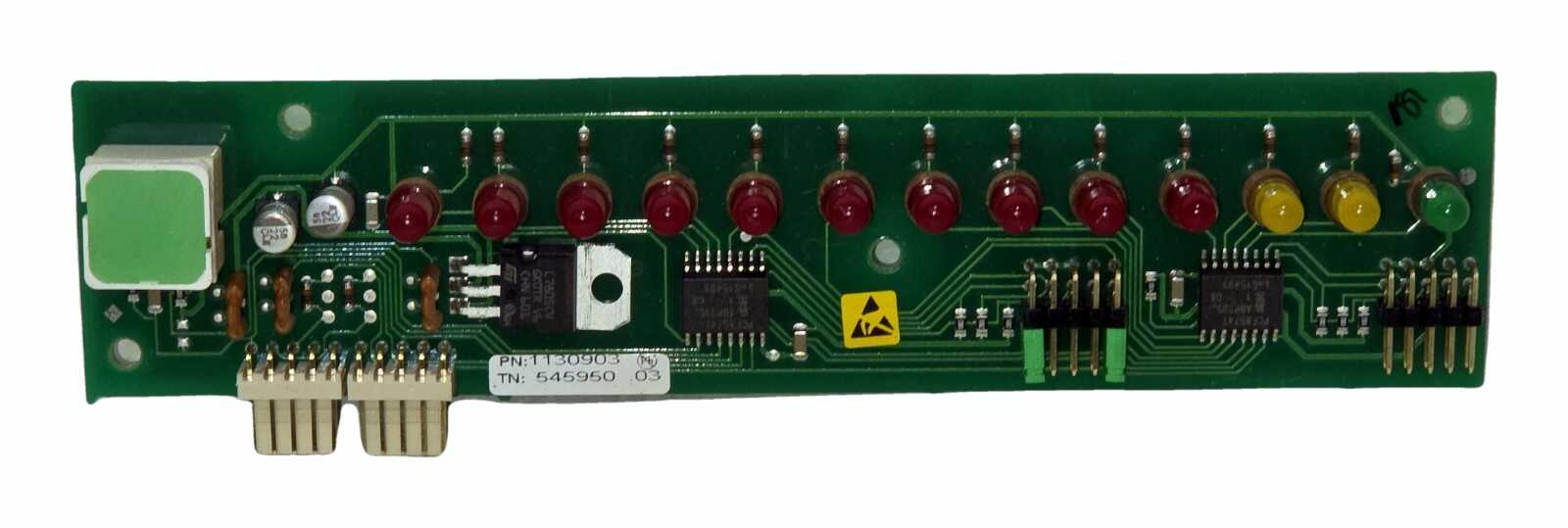

Front panel LED indicator board out of a Benning inverter system. A single row
of through hole status LEDs is driven over the I2C bus by two PCF8574T eight
bit I/O expanders, with an onboard 5 V regulator, a momentary pushbutton at one
end, and two five pin wire to board headers (X1 and X2) for the harness back to

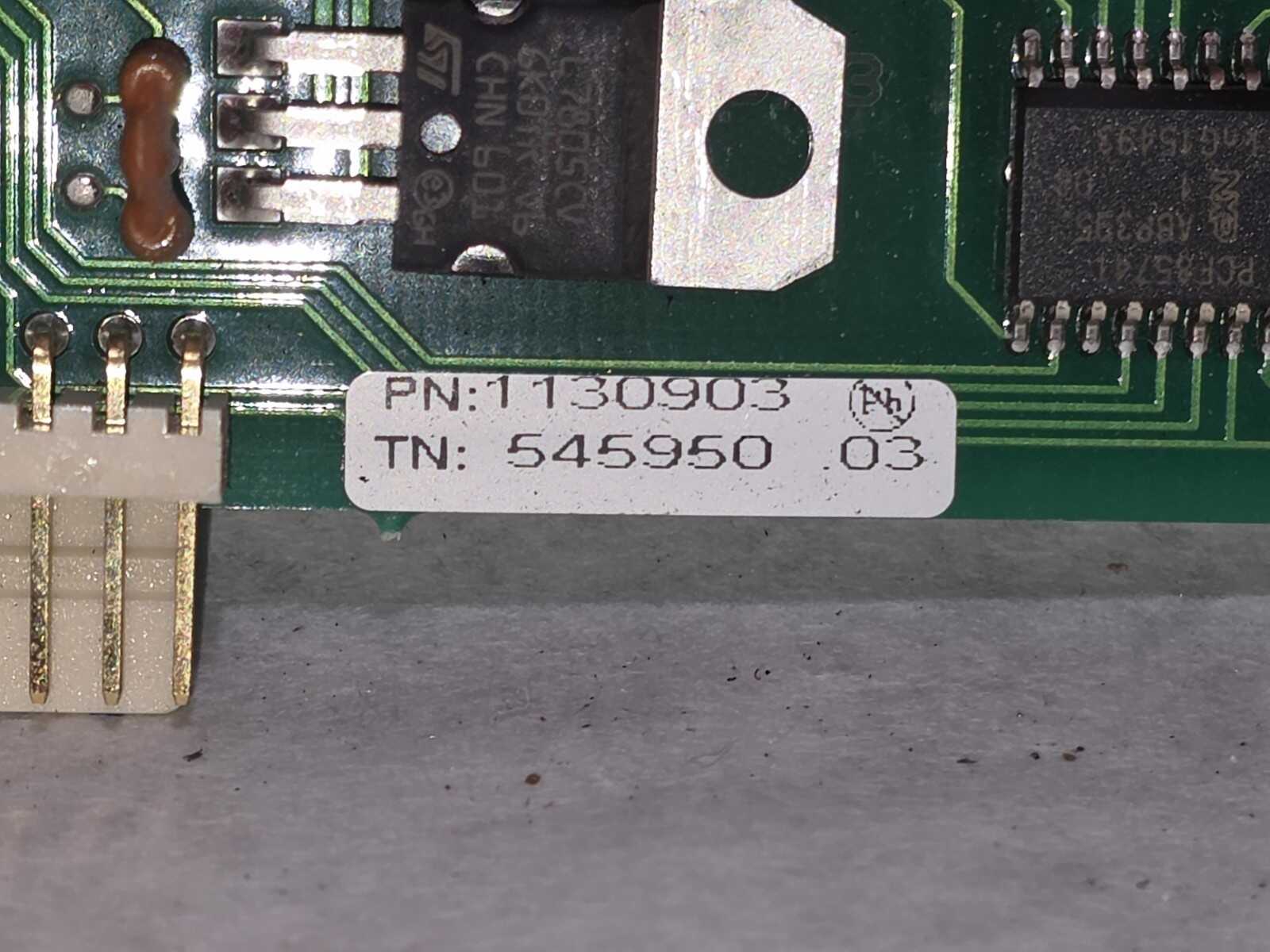

the system controller. Board is marked PN:1130903 and TN: 545950 .03 on the

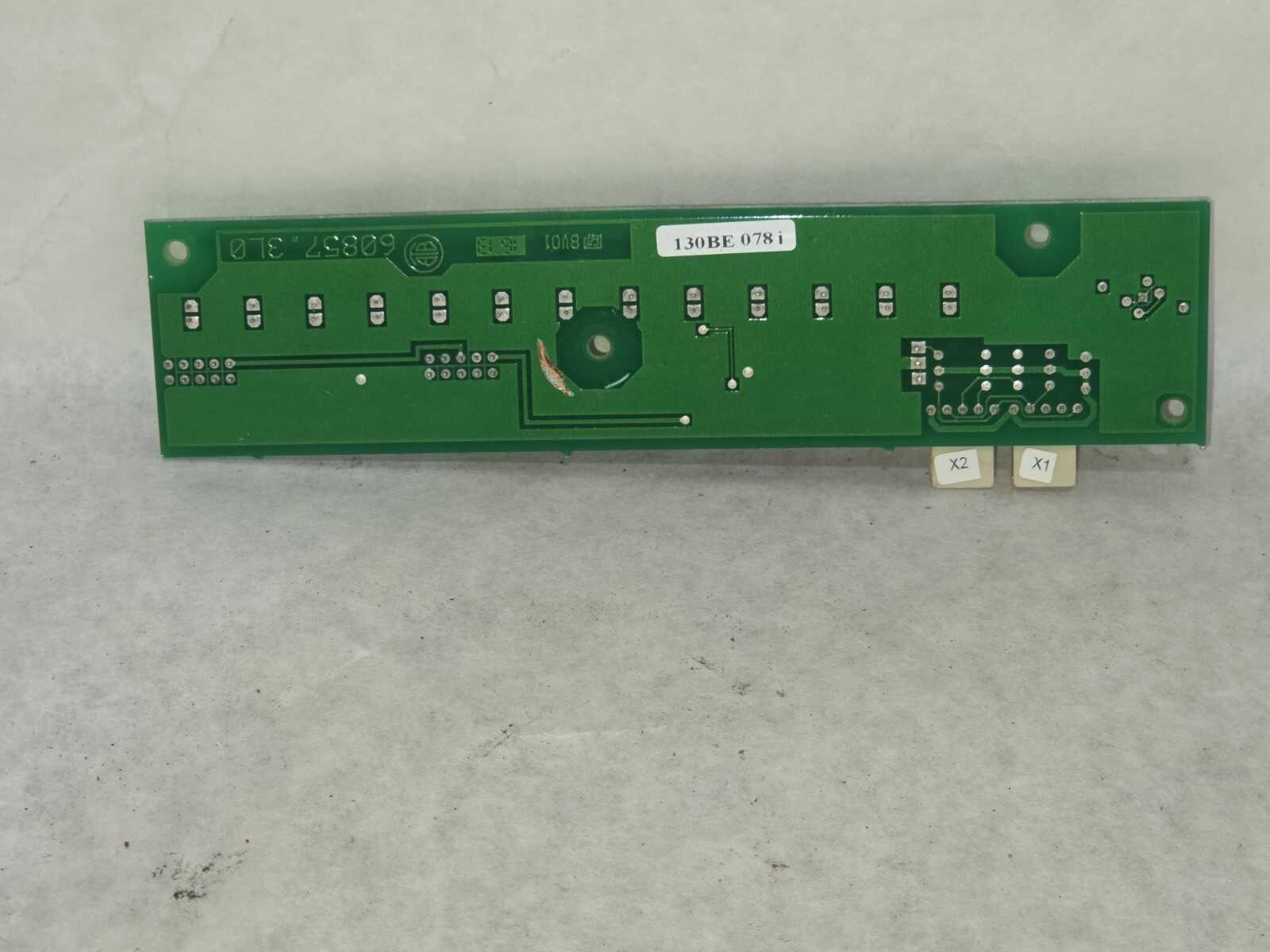

component side and 60857.3L0 on the solder side.
60 Day Money Back Guarantee.
| Parameter | Value |
| MPN | 1130903 |
| Benning type number | 545950.03 |
| Bare board marking | 60857.3L0 |
| Function | front panel LED status indicator board, I2C bus driven |
| Logic | two PCF8574T remote 8 bit I/O expanders for I2C bus, SO-16 |
| Power | ST L7805CV 5 V linear regulator, TO-220 with heatsink tab |
| Indicators | 13 through hole LEDs in one row, 10 red, 2 amber, 1 green |
| Controls | one momentary pushbutton, green cap |
| Interface | two 5 pin polarized wire to board headers, X1 and X2 |
| Additional headers | two 4 pin pin header fields |
| Mounting | five holes, four corners plus one center |
| Board dimensions | approximately 13 x 3 x 0.6 in |
| Weight | approximately 1 lb |
One Benning 1130903 LED indicator board, exactly as photographed.
Not included:
Mating harness or ribbon cable for X1 and X2. Front panel bezel, lens strip,
legend overlay or light pipes. Mounting hardware. Controller, inverter module or
cabinet. Documentation, schematic or pinout.
Intended as a front panel indicator board inside a Benning inverter system.
Confirm the part number 1130903 and type number 545950.03 against your own
system documentation before ordering, since Benning uses revision suffixes on
the type number. Installation requires the mating harness, the panel legend and
a host controller that drives the I2C bus.
fit and revision compatibility.
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Ships in a 17 x 7 x 5 in box at approximately 3 lb including packing. Board
ships in an anti static bag with rigid protection. Ships from Sylmar, California.
