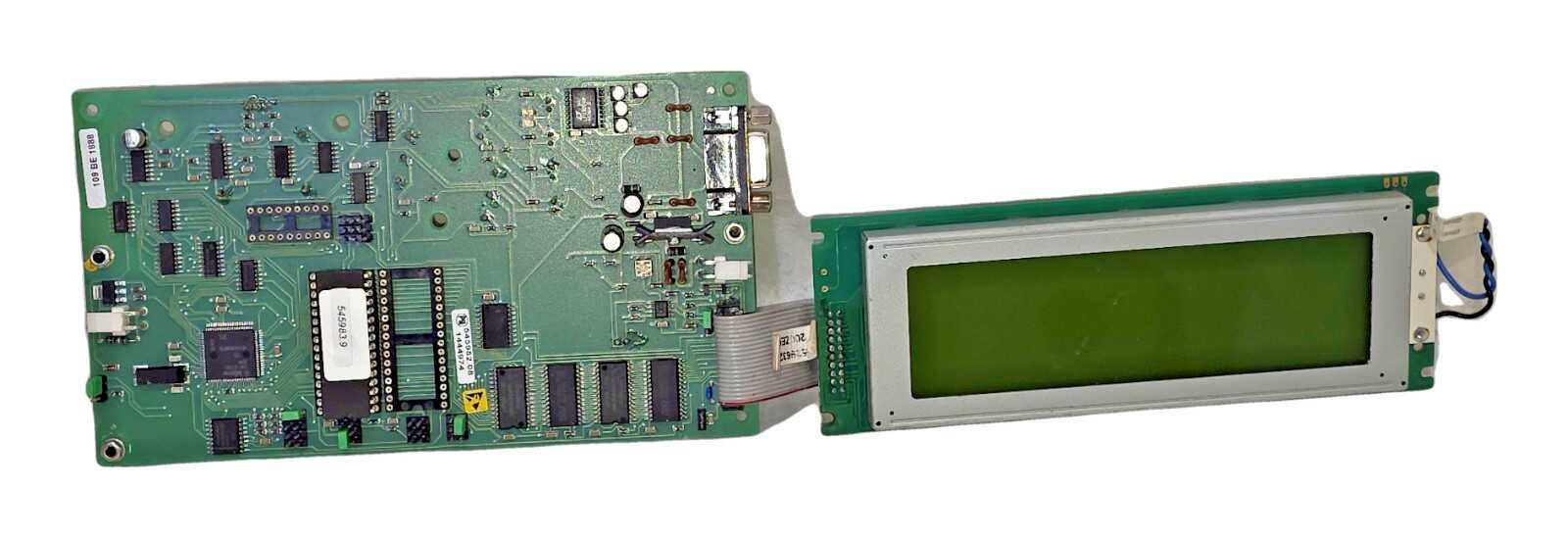

Operator display and control board assembly, Benning part number 545982.08, serial 1444974.

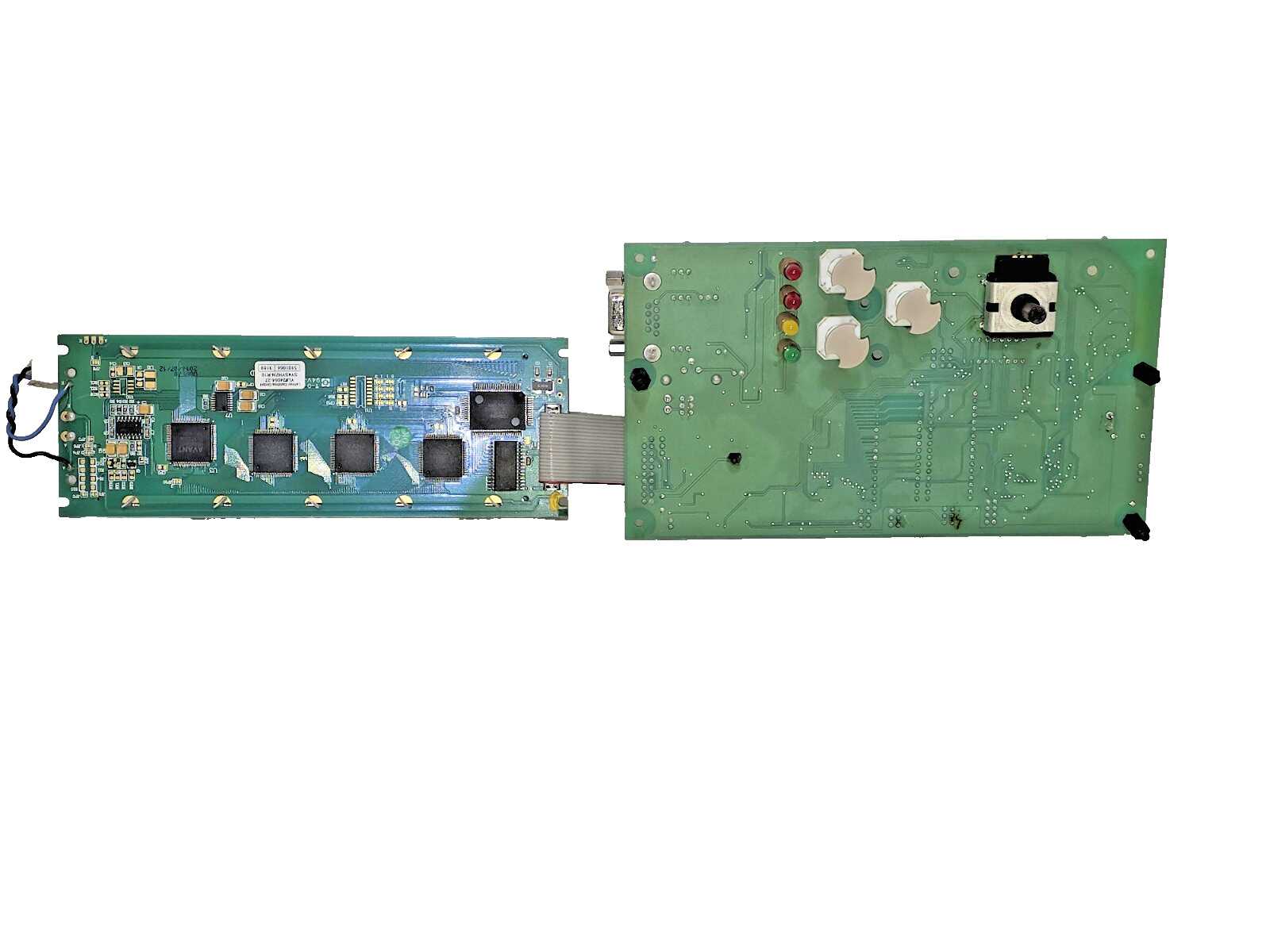

Two boards joined by a short ribbon cable. The control board carries a QFP microcontroller, a
socketed 28 pin DIP EPROM labelled 545983.9, a 9 pin D-sub female connector, four panel LEDs,
three momentary pushbuttons and a panel mount rotary encoder. The display board is a 240 x 64

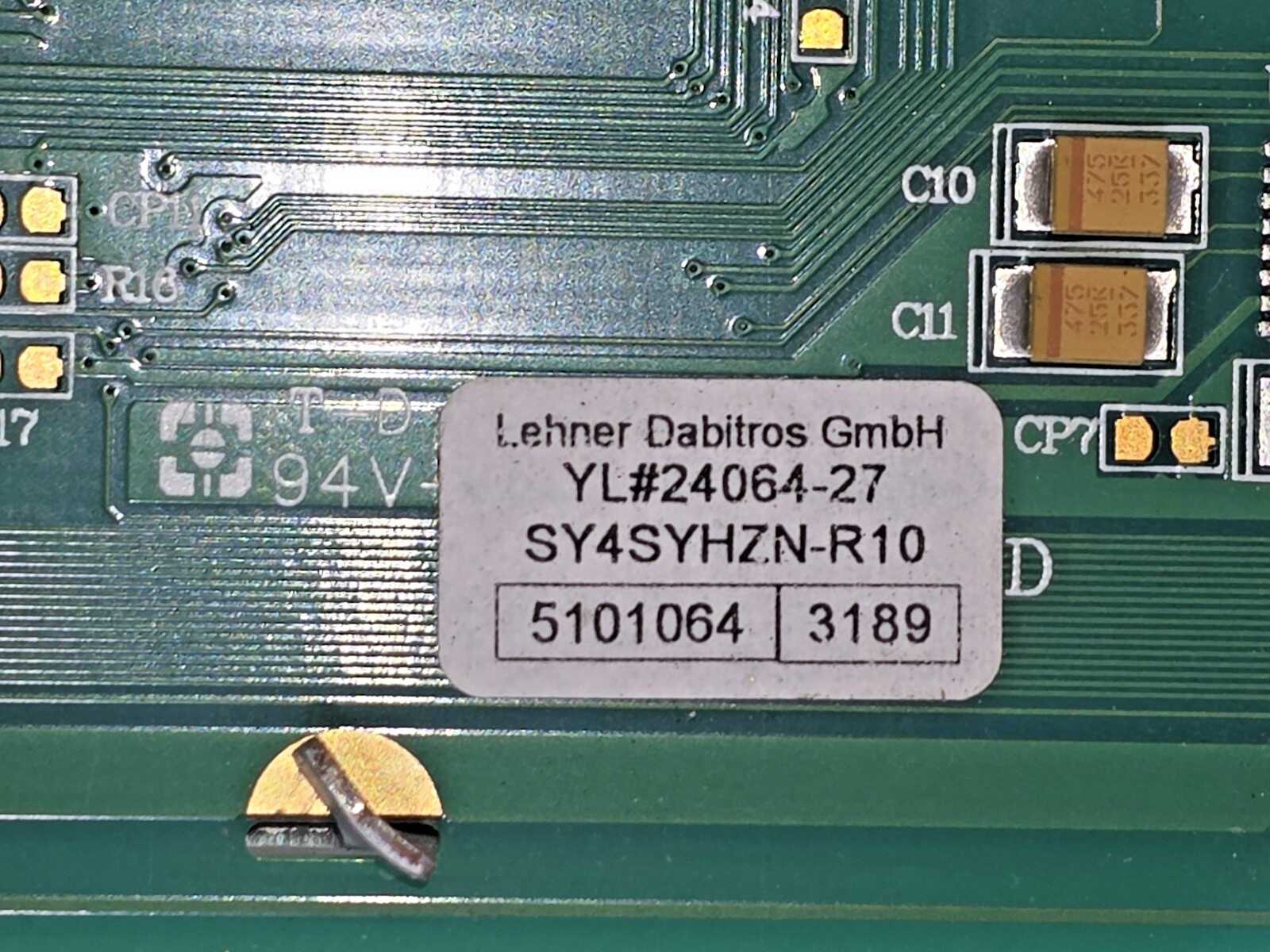

pixel graphic LCD module built by Lehner Dabitros GmbH, type SY4SYHZN-R10, part YL#24064-27.
Pulled from an industrial power system. Quantity of two is available, sold individually.
60 Day Money Back Guarantee.
| Parameter | Value |
| MPN | 545982.08 |
| Brand | Benning |
| Serial | 1444974 |
| Board edge label | 109 BE 1888 |
| Firmware device | socketed 28 pin DIP EPROM, label 545983.9 |
| Display | 240 x 64 pixel graphic LCD, yellow green STN glass in a metal bezel |
| Display module maker and type | Lehner Dabitros GmbH, YL#24064-27, SY4SYHZN-R10, UL 94V-0 |
| Operator hardware | four panel LEDs (two red, one yellow, one green), three momentary pushbuttons with white caps, one panel mount rotary encoder |
| Interface connector | 9 pin D-sub, female |
| Control board size | approximately 7.7 x 4.2 in |
| LCD module size | approximately 7.1 x 2.6 in |
| Construction | lead free process marking on the board label |

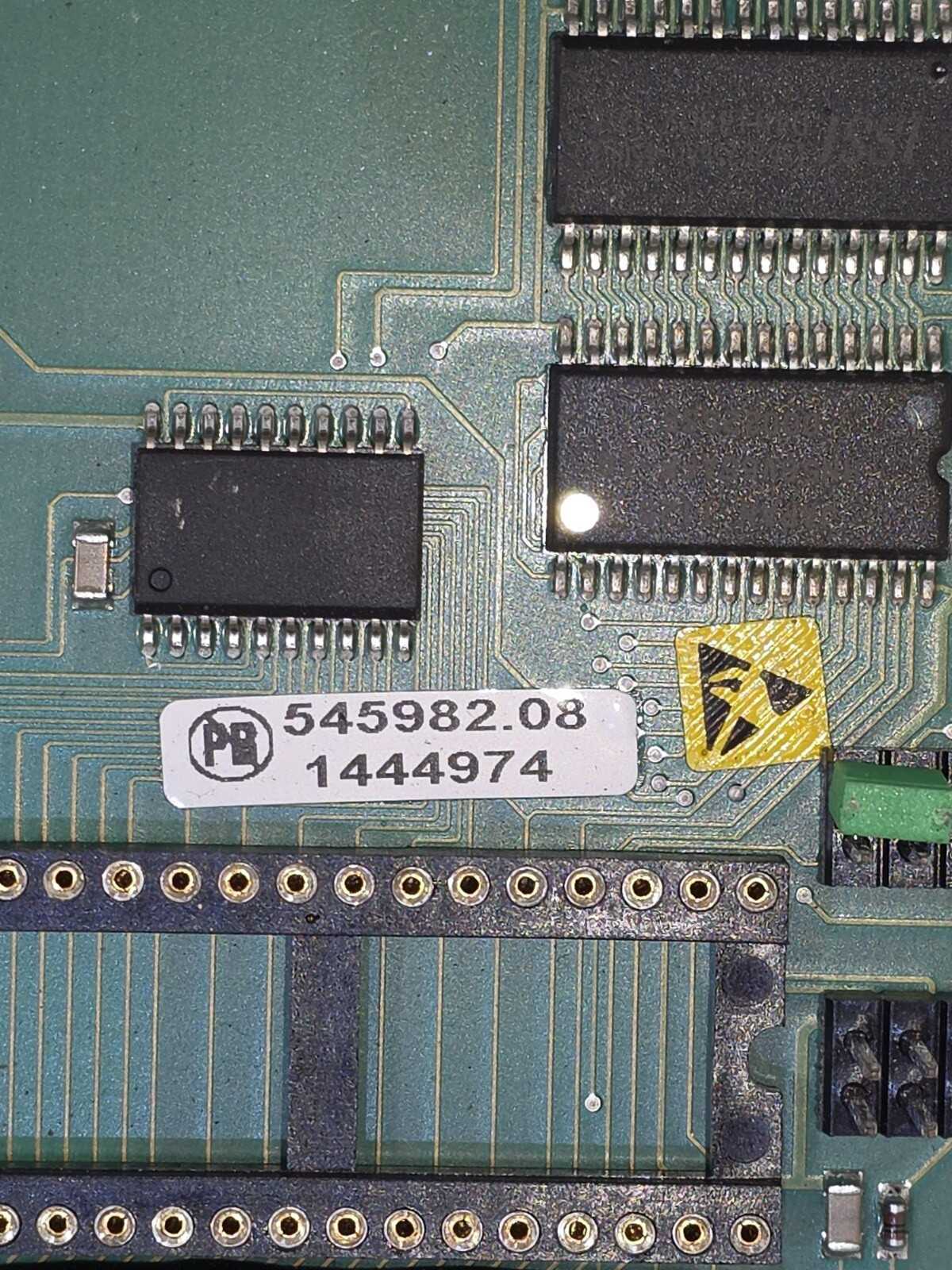

Control board 545982.08 serial 1444974
Socketed EPROM labelled 545983.9, fitted
240 x 64 graphic LCD module, Lehner Dabitros YL#24064-27
Interconnect ribbon cable between the two boards
LCD backlight two wire lead with white two pin housing
Two black plastic snap standoffs on the control board edge
Not included:
Enclosure, bezel, membrane overlay or cabinet door
Knob for the rotary encoder
Mating harness for the 9 pin D-sub connector
Cabinet wiring, power supply
Documentation, pinout, schematic or software
Sold as a Benning OEM spare. Match the part number 545982.08 on the control board label and the
EPROM number 545983.9 to your system before ordering, because OEM display firmware is tied to
the host equipment revision. Benning has not published a pinout for the 9 pin D-sub or for the
board to cabinet interface, so allow for obtaining that from the equipment documentation. The
LCD module is a standard 240 x 64 graphic format and is separately cross referenceable by the
Lehner Dabitros numbers above.
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Ships double boxed in antistatic packaging. Box approximately 12 x 9 x 6 in, shipping weight
approximately 3 lb. Ships from Sylmar, California.
Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.
We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.
International shipments may be delayed or cancelled due to EAR and ITAR export compliance requirements. The vast majority of our items need no export license and ship under EAR99 and other exemptions; items that require a license are indicated in the listing.
This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.
All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.
If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
We do not keep or share your information anywhere. Your information resides only on eBay and is available to us only for a limited time while we interact with you on an inquiry, order, or return, per eBay usage policies.
Additional information
| Weight | 2.0000 lbs |
|---|---|
| Dimensions | 12 × 6 × 6 in |
| Brand | |
| MODEL | TEBEVERT / INVERTRONIC |
| MPN | |
| Condition | |
| Condition Description | 60 Day Money Back Guarantee. Removed from unused Benning inverter systems. |
