Description
| Zombie Components LLC | www.zombiecomponents.com |
Schneider Electric Compact INV200 visible break switch-disconnector, commercial reference 31162,

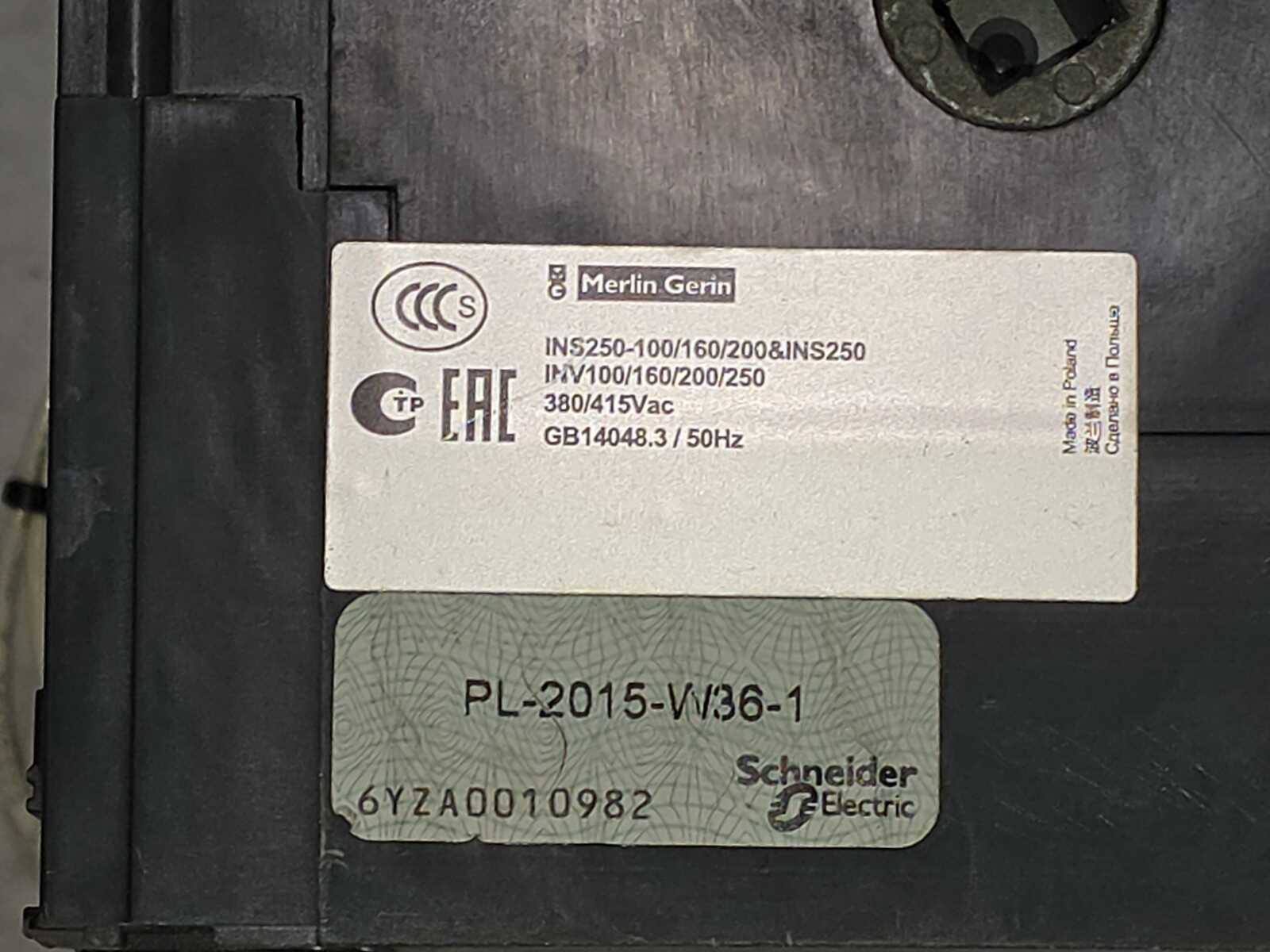

3 pole, 200 A. The device front face is marked Compact INV 200; the side certification label carries
the Merlin Gerin mark and the Compact INS250 / INV100 to 250 family listing. Made in Poland, week 36
of 2015, traceability label PL-2015-W36-1, serial 6YZA0010982. Removed from a Benning inverter system
device side base, square extension shaft, and a door mounted escutcheon with a black I/ON, O/OFF
60 Day Money Back Guarantee.

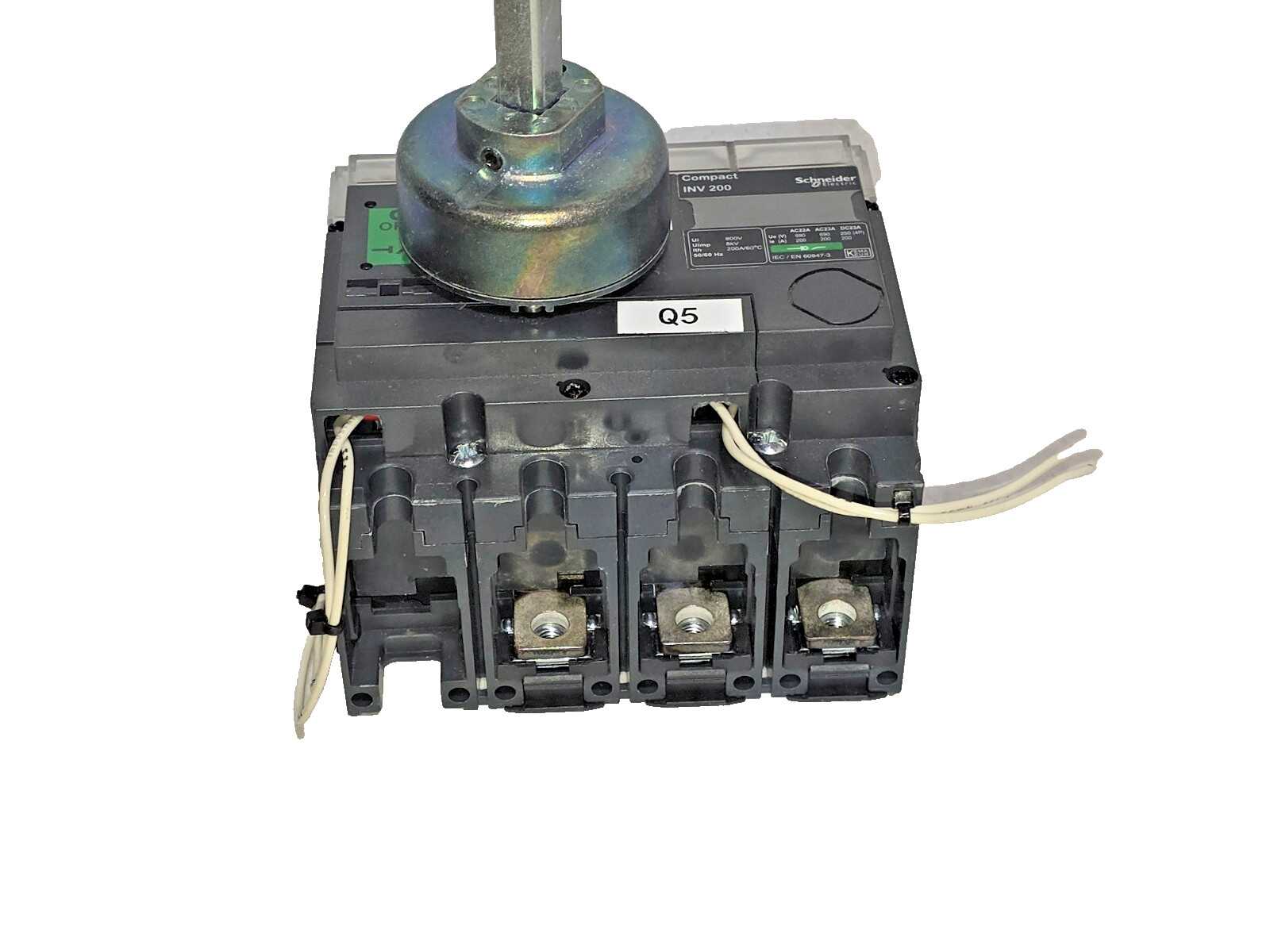

- Extended front rotary handle assembly fitted (base, shaft, door escutcheon, handle). This is a.
- Separately priced accessory in the Schneider catalog (LV431050 class) and is usually missing on.
- Visible break variant (INV) with the transparent cover intact, which is the higher specified.
- Version of the frame compared with a plain INS250.
- Auxiliary contact leads present at both side pockets, so auxiliary contacts appear to be fitted.
- All six terminal lugs present.

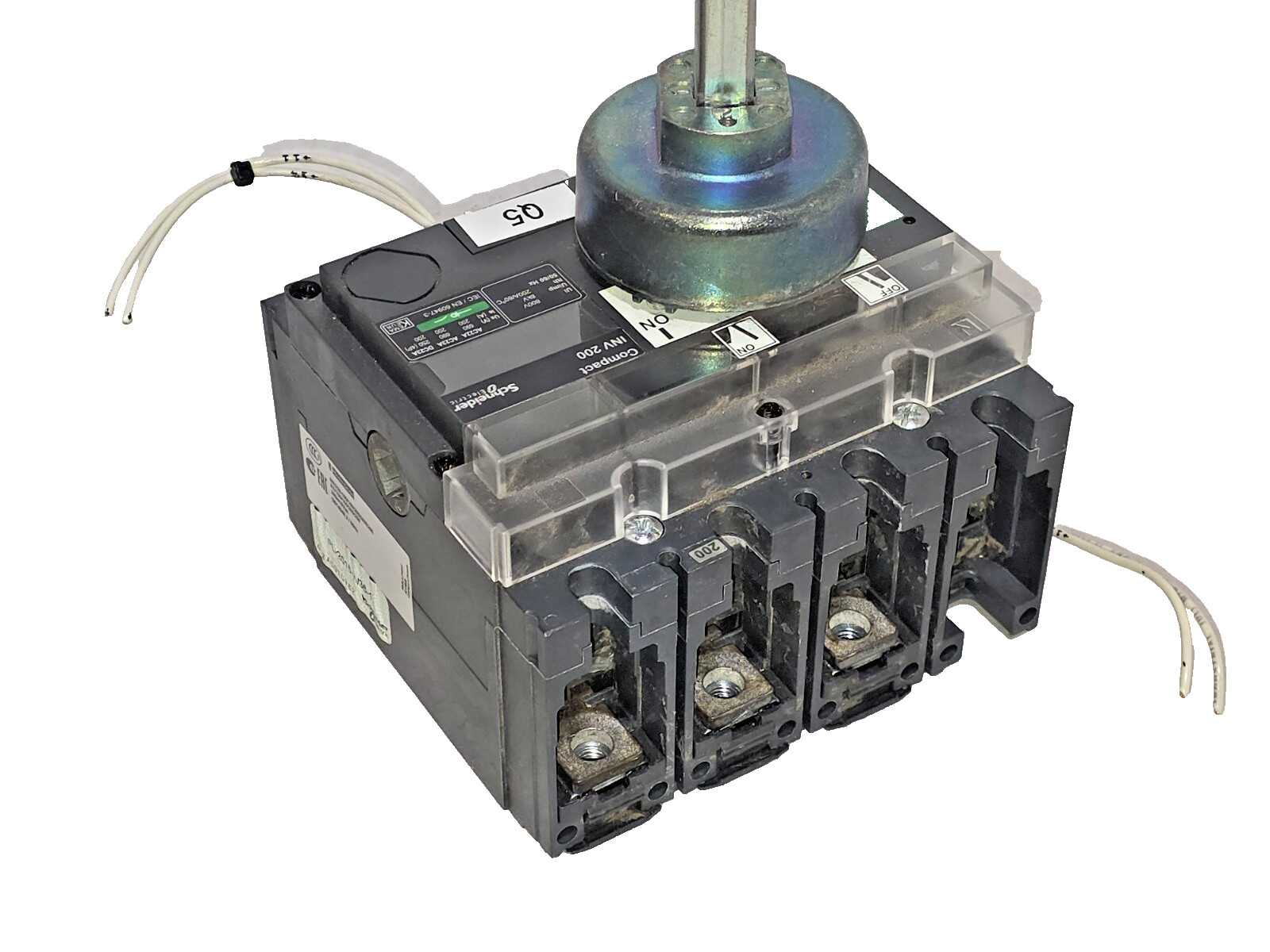

- Clear terminal shields present.
- Full traceability retained: certification label, green security label with serial 6YZA0010982 and.
- Date code PL-2015-W36-1, and the factory order label with the 31162 reference and order number.
- Never in service per the seller note (removed from an unused Benning inverter system).
- Quantity 2 available, sold individually.
| Parameter | Value |
| MPN | 31162 |
| Brand | Schneider Electric (Merlin Gerin mark on the certification label) |
| Product | Compact INV200, visible break switch-disconnector |
| Poles | 3 |
| Rated operational current Ie | 200 A, AC-22A and AC-23A |

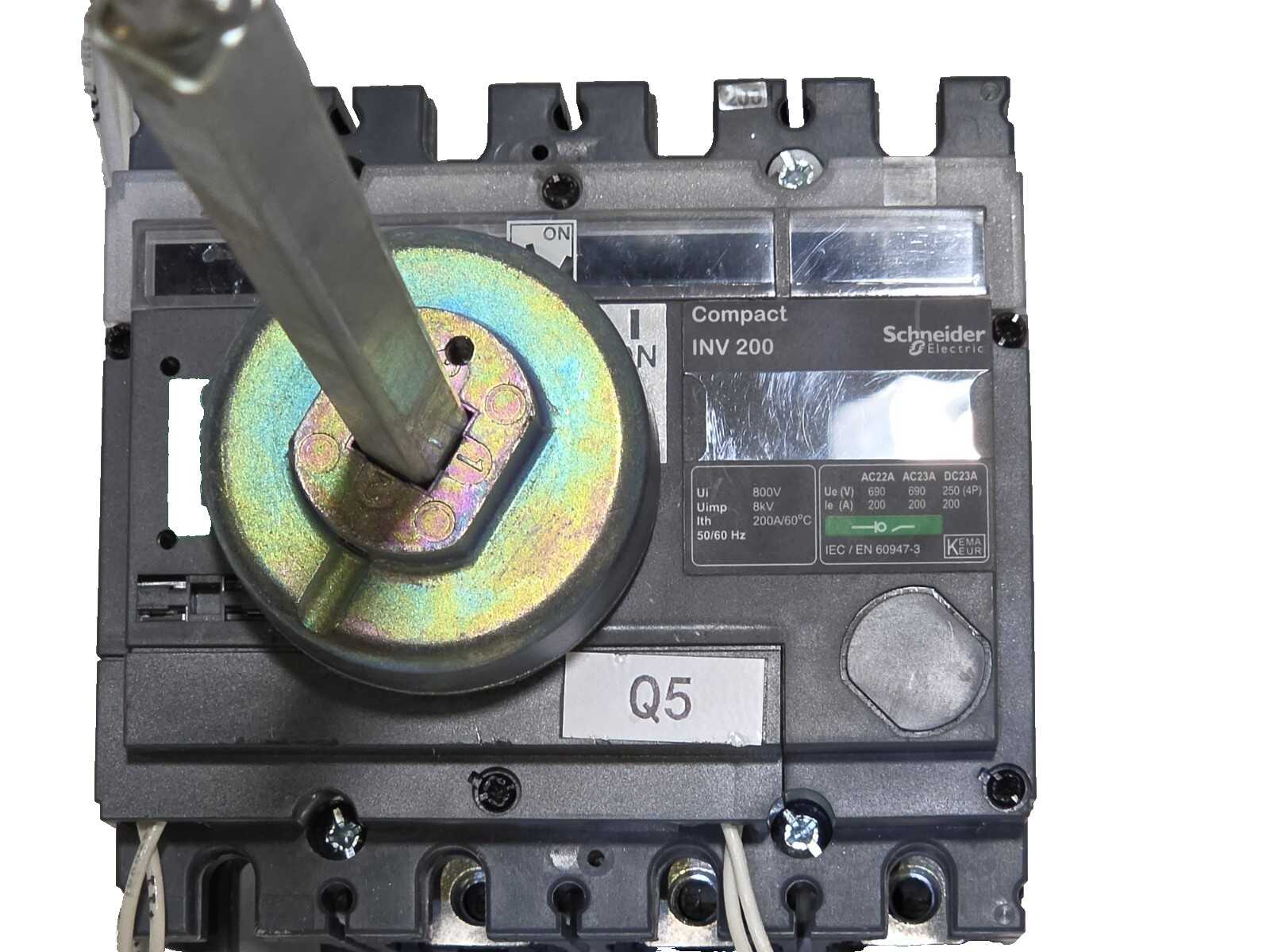

| Front label rating table | AC-22A 690 V 200 A, AC-23A 690 V 200 A, DC-23A 250 V (4 pole) 200 A |
| Rated insulation voltage Ui | 800 V |
| Rated impulse withstand voltage Uimp | 8 kV |
| Conventional thermal current Ith | 200 A at 60 C |
| Frequency | 50/60 Hz |
| Rated short time withstand current Icw | 8.5 kA |
| Rated operating power AC-23 at 400 V | 90 kW |
| Standards | IEC/EN 60947-3, IEC 60947-1, GB 14048.3 |
| Markings | KEMA-KEUR, CCC, EAC |
| Insulation | Class II front face per IEC 60664 |
| Degree of protection | IP40 at the device front |
| Terminals | screw connection, lugs fitted |
| Device dimensions | 140 mm wide, 136 mm high, 96 mm deep |
| Device net weight | 2.24 kg |
| Origin | Made in Poland |
| Serial | 6YZA0010982 |
| Date code | PL-2015-W36-1 |
One Compact INV200 switch-disconnector, reference 31162, 3 pole, 200 A

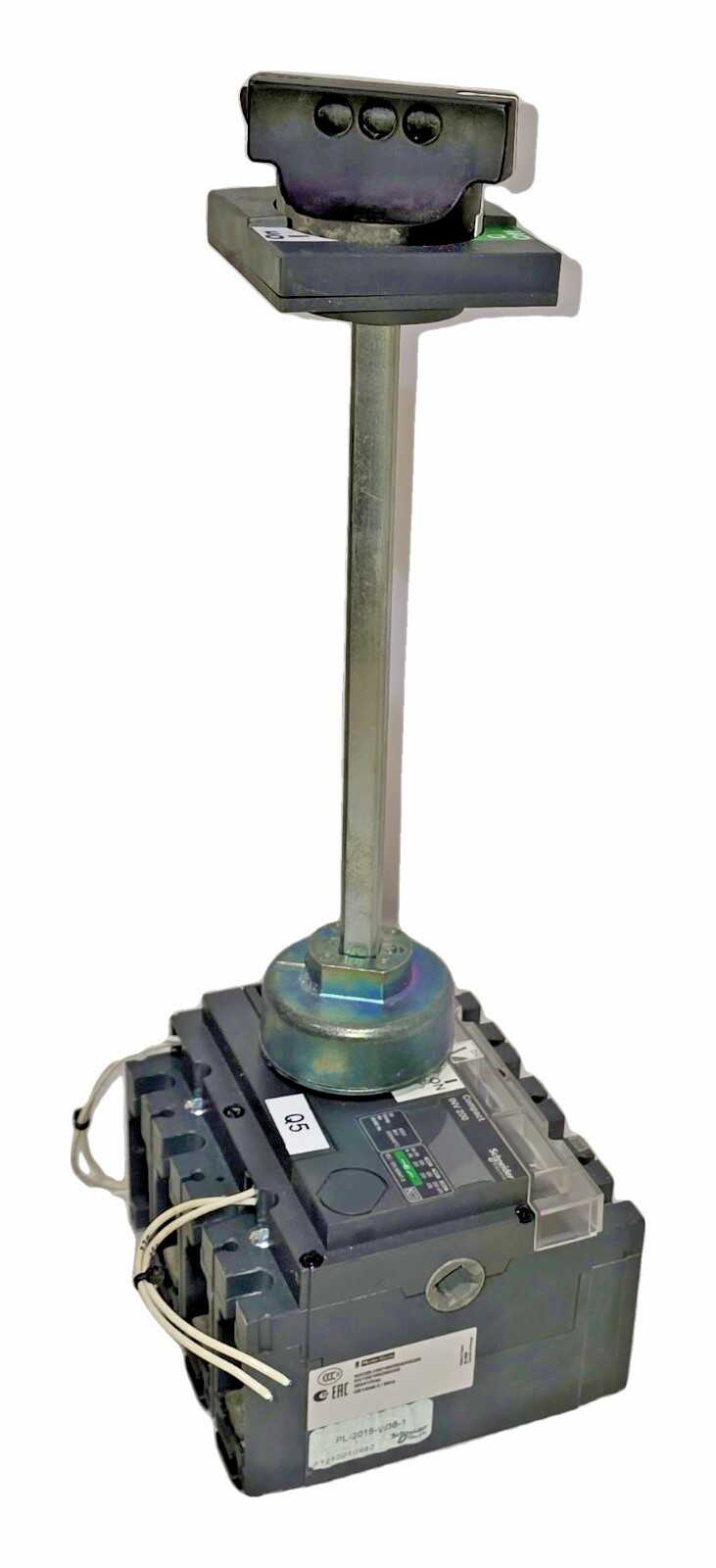

Extended front rotary handle assembly as pictured: device side base, square extension shaft, door
escutcheon plate and black handle
Screw terminal lugs on all three poles, both ends
Clear terminal shields
Auxiliary contact flying leads, both side pockets, as pictured
Not included:
The standard device mounted direct rotary handle
Mounting screws, mounting plate, DIN rail
Cables, additional lugs, busbar, enclosure
Documentation, original packaging
This is a switch-disconnector, not a circuit breaker. It provides isolation and load switching only,
with no overcurrent protection, so upstream overcurrent protection is required.
IEC device rated 690 V AC maximum, 50/60 Hz. No UL or CSA mark is present on the device.
Accessories for the Schneider Compact INS250 and INV100 to INV250 range fit this frame.
Schneider withdrew reference 31162 on 30 December 2024; the catalog replacement is 31166,
Panel or mounting plate installation. The extension shaft is as pictured and is not cut to a
