Travaini TRHB 50-420/C/RA Two-Stage Liquid Ring Vacuum Pump 20HP Baldor 460V 3PH

ZOMBIE COMPONENTS

Travaini TRHB 50-420/C/RA Two-Stage Liquid Ring Vacuum Pump 20HP
Baldor 460V 3PH

Item Specifics:

Brand: Travaini / Pompetravaini

MPN: TRHB 50-420/C/RA

Type: Liquid Ring Vacuum Pump

Number of Stages: 2

Power: 20 HP

Voltage: 230/460V

Phase: 3

Frequency: 60 Hz

Condition: Used

Country of Manufacture: Italy

Description:

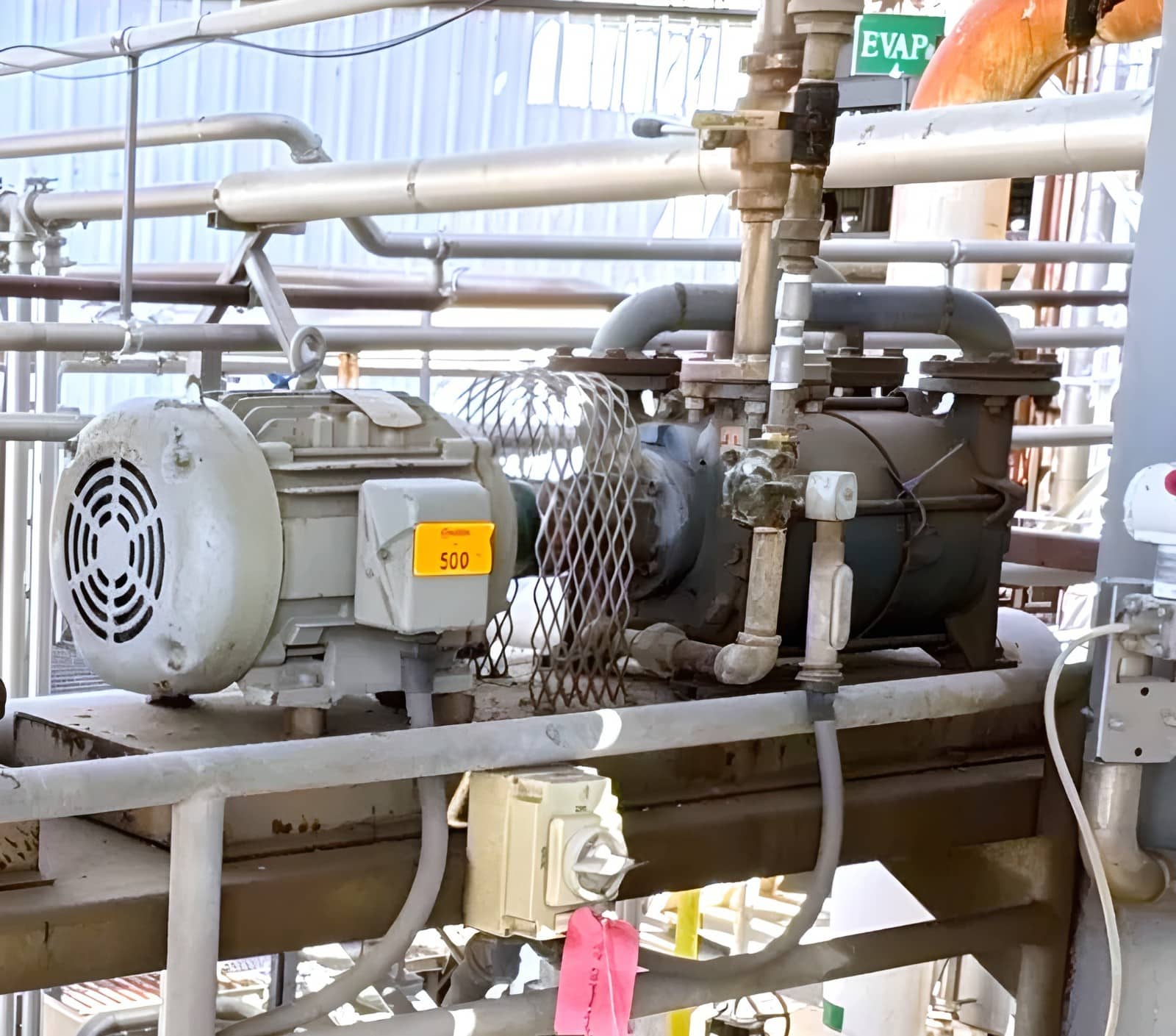

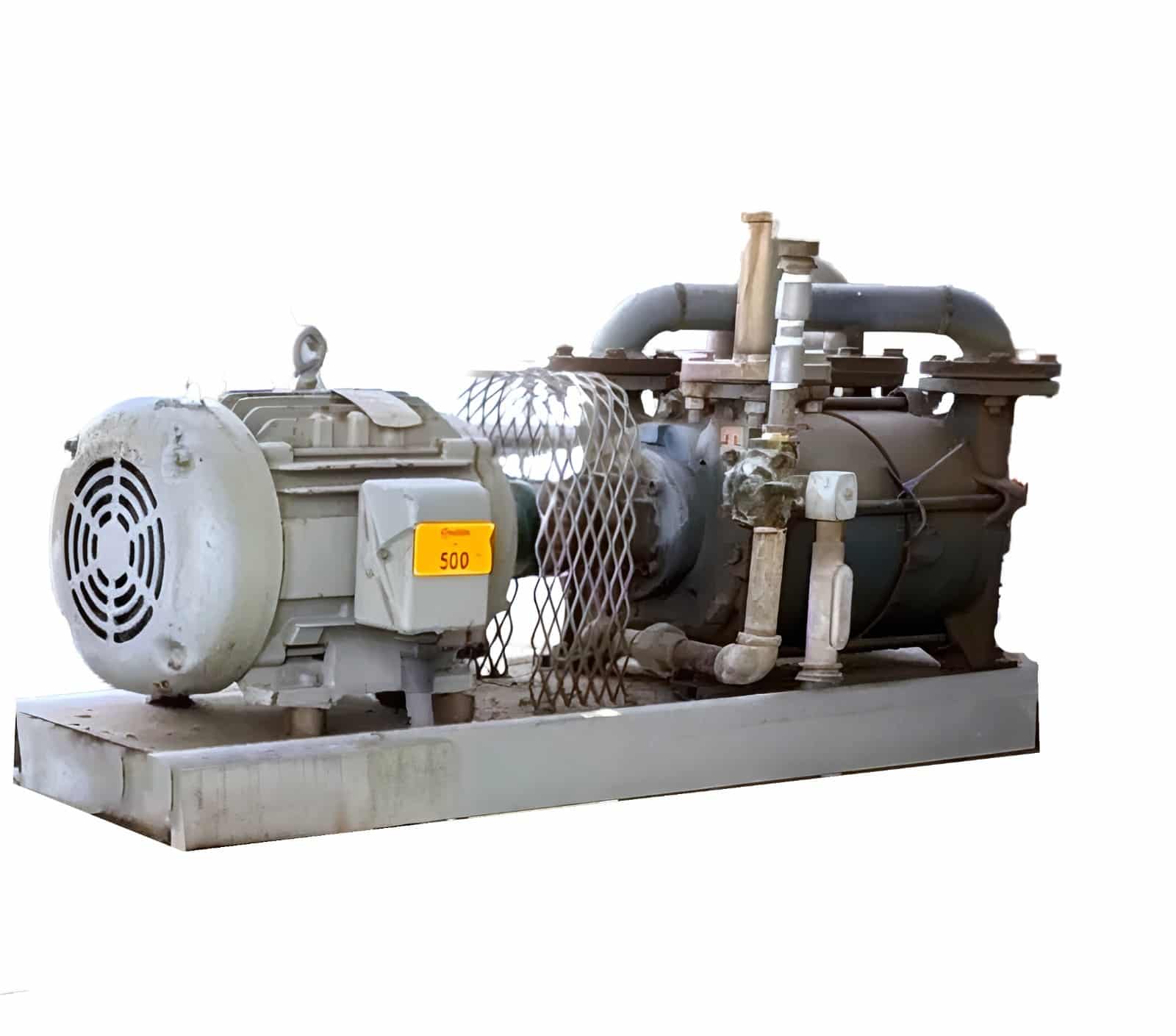

TRAVAINI TRHB 50-420/C/RA TWO-STAGE LIQUID RING VACUUM PUMP WITH 20HP BALDOR MOTOR ON BASE

Removed from working service. Pump was operational at time of removal.

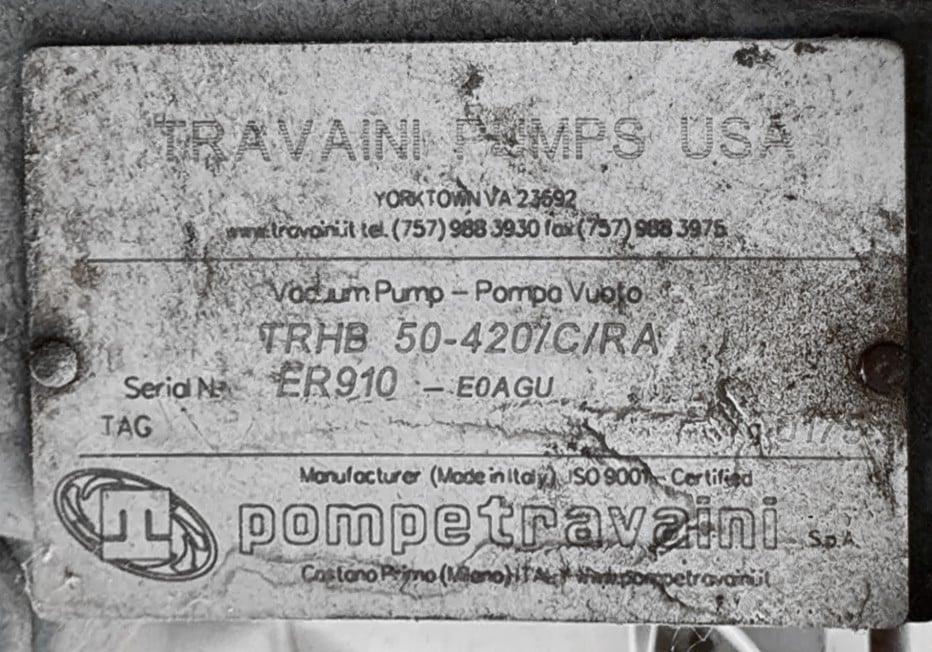

PUMP SPECIFICATIONS:

Manufacturer: Pompetravaini S.p.A., Castano Primo (Milano), Italy

Distributor: Travaini Pumps USA, Yorktown, VA

Model: TRHB 50-420/C/RA

Serial Number: ER910-E0AGU

Type: Two-stage liquid ring vacuum pump

Nominal Capacity: 420 m³/h (~247 CFM)

Capacity Range: 95–310 CFM (depending on vacuum level)

Vacuum Range: 25–150 Torr (up to 29″ Hg)

Shaft Seal: Mechanical seal (C designation)

Construction: Cast iron (RA)

Flange Size: 50mm (~2″)

Shaft Support: Bilateral, externally located grease-lubricated bearings

ISO 9001 Certified

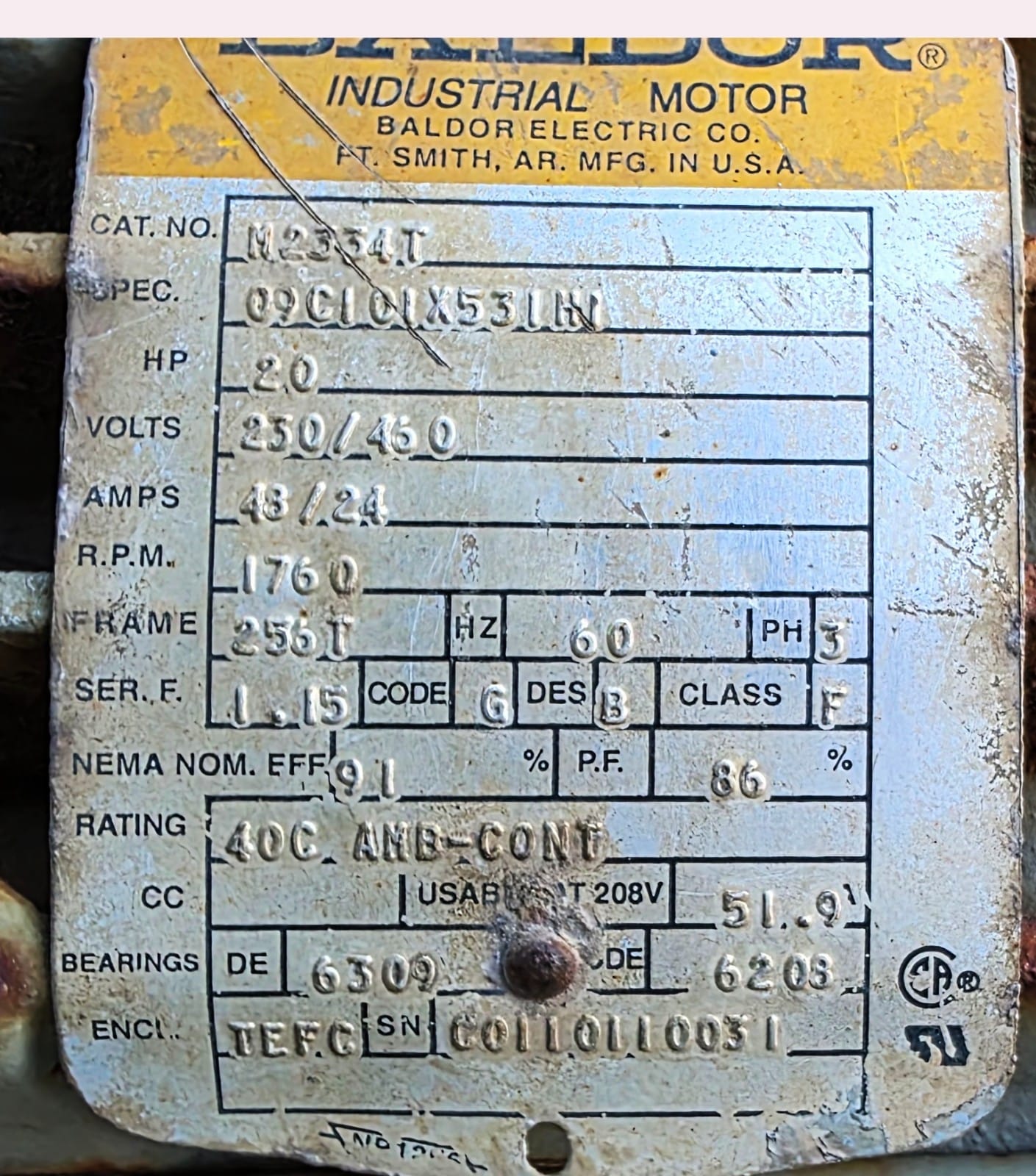

MOTOR SPECIFICATIONS:

Manufacturer: Baldor Electric Co., Ft. Smith, AR (Made in USA)

Catalog Number: M2334T

Spec: 09C101X531H1

Horsepower: 20 HP

Voltage: 230/460V (usable at 208V)

Amperage: 48/24A (51.9A at 208V)

RPM: 1760

Frame: 256T

Hz: 60

Phase: 3

Service Factor: 1.15

Insulation Class: F

NEMA Code: G

Design: B

NEMA Nominal Efficiency: 91%

Power Factor: 86%

Enclosure: TEFC

Bearings: DE 6309 / ODE 6203

Rating: 40°C Ambient, Continuous Duty

Motor Serial: C0110110031

CONDITION:

Removed from working service — pump was operational at time of removal

Cosmetic wear consistent with industrial use: surface oxidation, paint wear, minor surface rust on piping

Motor appears intact with legible nameplate

Pump body, flanges, and mechanical connections appear complete

60 day money back guarantee

Buyer should inspect or have inspected prior to use in critical applications

COMPARABLE NEW REPLACEMENT COST: $30,000+ for pump alone (not including motor or base)

APPLICATIONS:
Central vacuum systems, de-aeration, distillation, drying systems, filtration, solvent recovery, boiling processes, vacuum condensing, impregnation, sterilization

SHIPPING:
This is a heavy item — pump, motor, and base assembly. Freight shipping required. Local pickup available in Sylmar, CA (Los Angeles area). Buyer to arrange freight shipping.

:
