ZOMBIE COMPONENTS
Travaini TRHB 50-420/C/RA Two-Stage Liquid Ring Vacuum Pump 20HP
Baldor 460V 3PH
Item Specifics:
Brand: Travaini / Pompetravaini
MPN: TRHB 50-420/C/RA
Type: Liquid Ring Vacuum Pump
Number of Stages: 2
Power: 20 HP
Voltage: 230/460V
Phase: 3
Frequency: 60 Hz
Condition: Used
Country of Manufacture: Italy
Description:

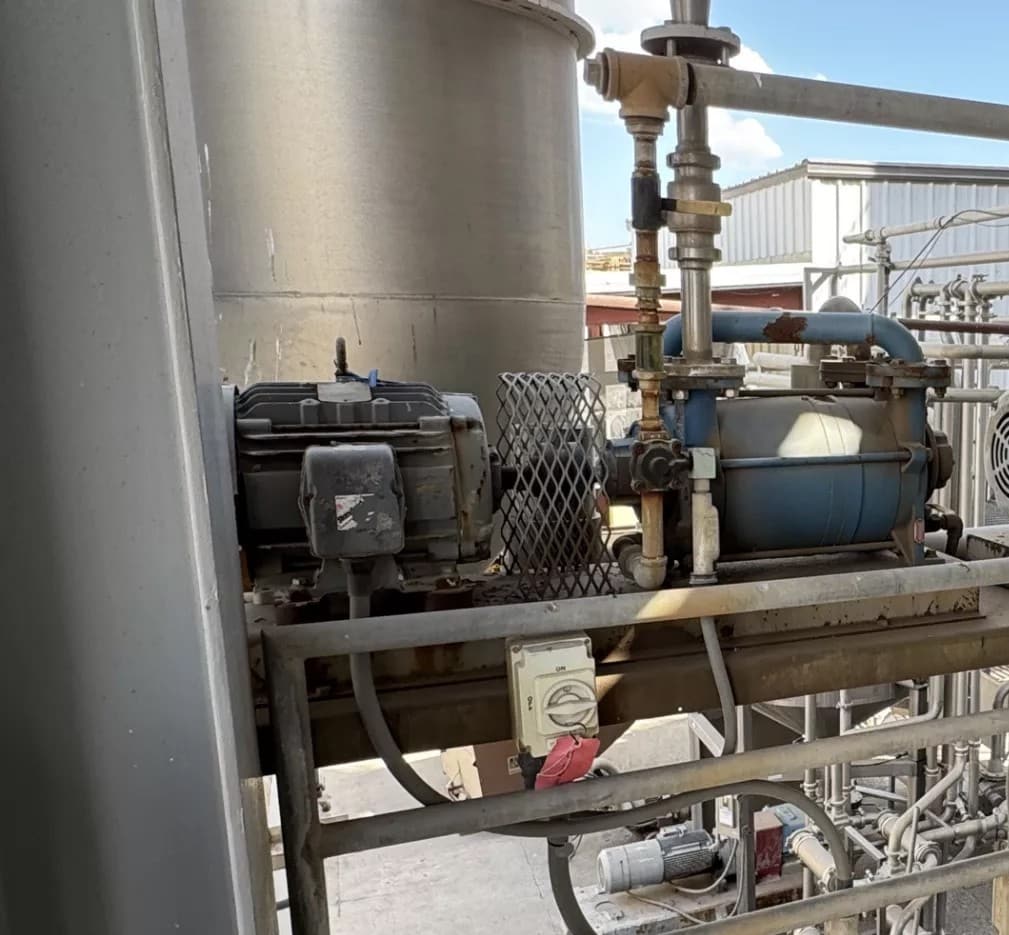

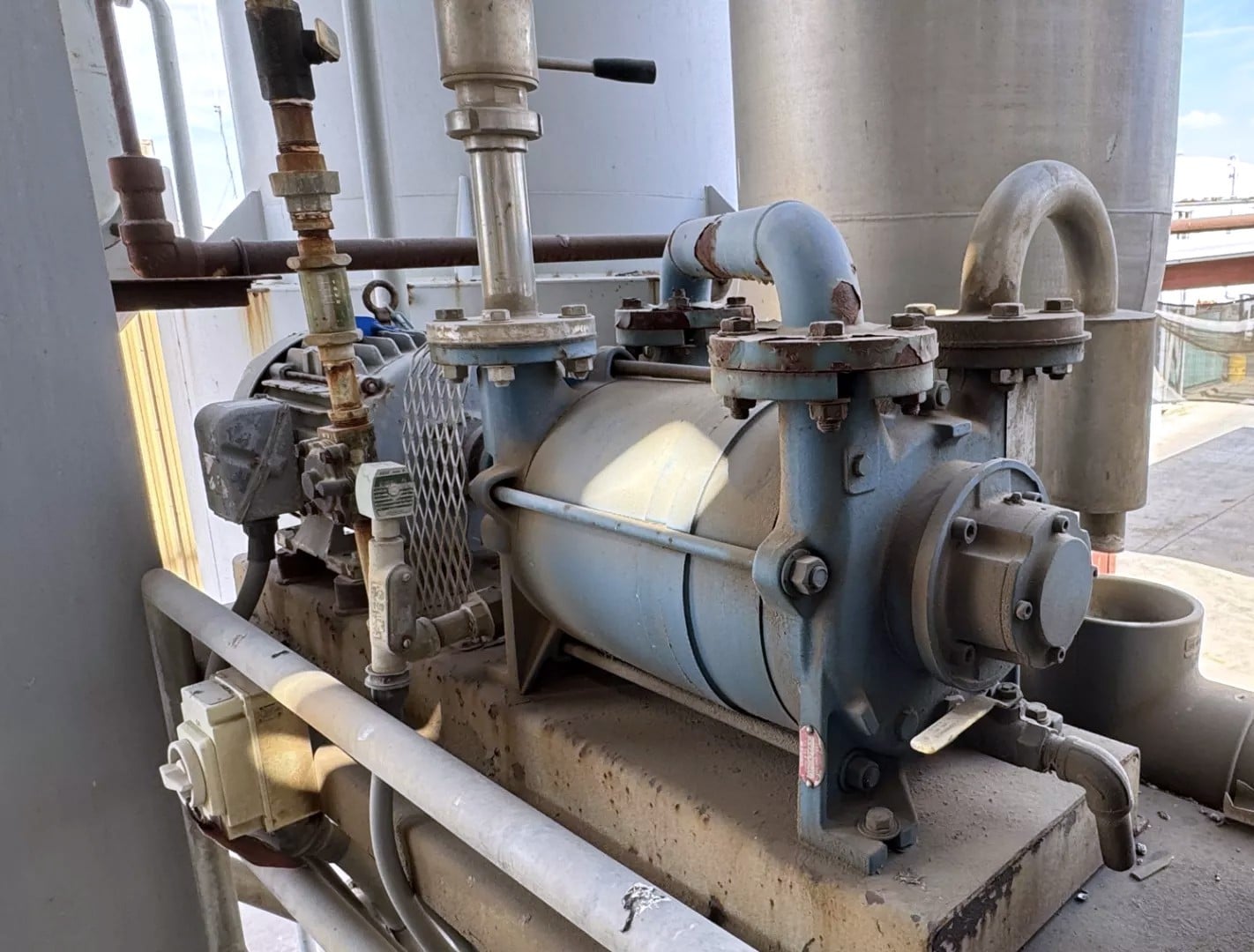

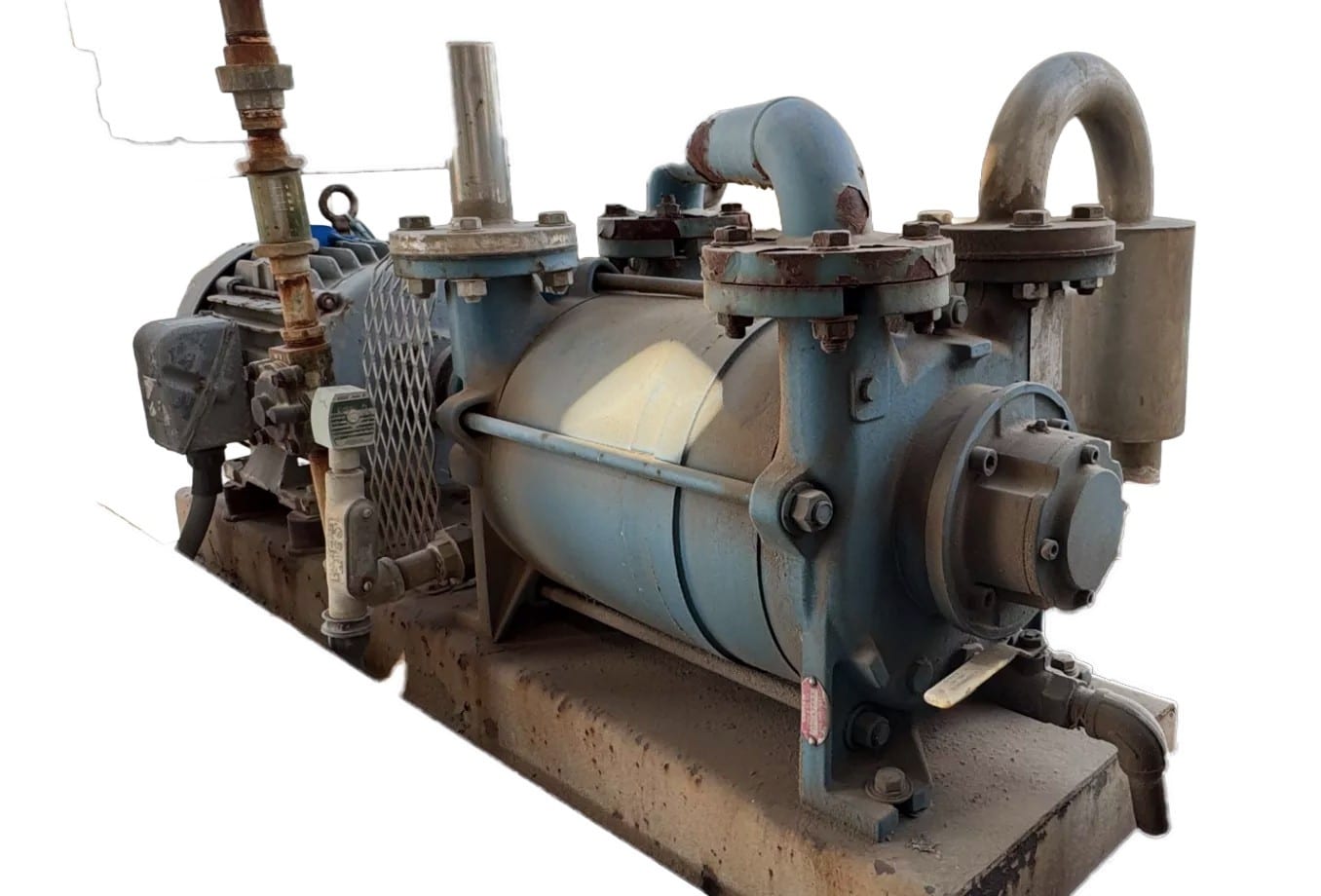

TRAVAINI TRHB 50-420/C/RA TWO-STAGE LIQUID RING VACUUM PUMP WITH 20HP BALDOR MOTOR ON BASE
Removed from working service. Pump was operational at time of removal.

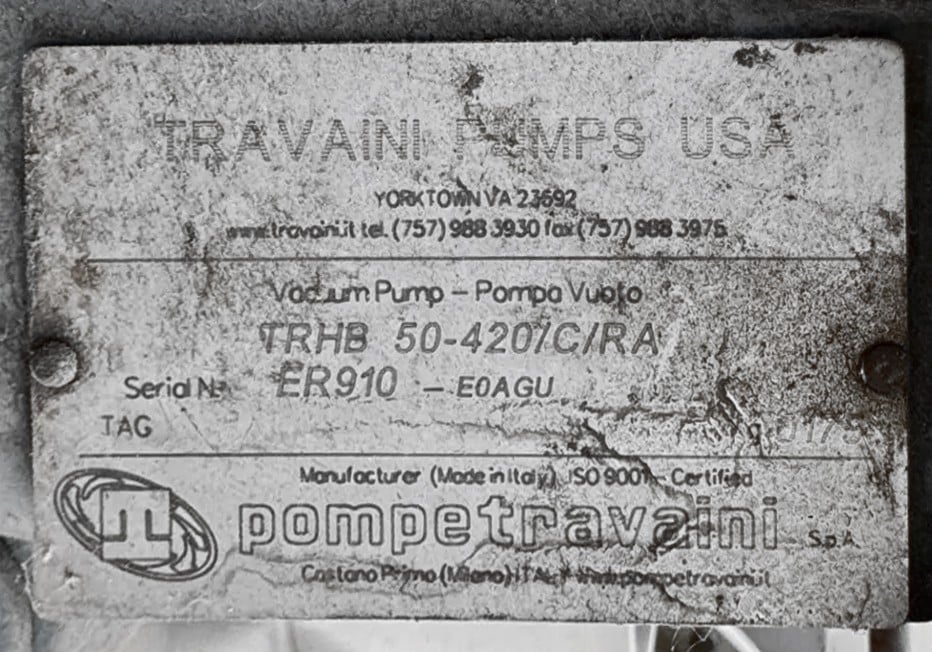

PUMP SPECIFICATIONS:
Manufacturer: Pompetravaini S.p.A., Castano Primo (Milano), Italy
Distributor: Travaini Pumps USA, Yorktown, VA
Model: TRHB 50-420/C/RA
Serial Number: ER910-E0AGU
Type: Two-stage liquid ring vacuum pump
Nominal Capacity: 420 m³/h (~247 CFM)
Capacity Range: 95–310 CFM (depending on vacuum level)
Vacuum Range: 25–150 Torr (up to 29″ Hg)
Shaft Seal: Mechanical seal (C designation)
Construction: Cast iron (RA)
Flange Size: 50mm (~2″)
Shaft Support: Bilateral, externally located grease-lubricated bearings
ISO 9001 Certified
MOTOR SPECIFICATIONS:
Manufacturer: Baldor Electric Co., Ft. Smith, AR 72901 (Made in USA)
Line: Super-E (Super-Efficient Industrial Motor)
Catalog Number: EM2334T
Spec: 09P26W772G1
Horsepower: 20 HP
Voltage: 230/460V
Amperage: 48/24A
RPM: 1765
Frame: 256T
Hz: 60
Phase: 3
Service Factor: 1.15
Insulation Class: F
NEMA Code: H
Design: B
NEMA Nominal Efficiency: 93%
Enclosure: TEFC
Bearings: DE 6309 / ODE 6208
Rating: 40°C Ambient, Continuous Duty
Motor Serial: 9930-119
CONDITION:
Removed from working service — pump was operational at time of removal
Cosmetic wear consistent with industrial use: surface oxidation, paint wear, minor surface rust on piping
Motor appears intact with legible nameplate
Pump body, flanges, and mechanical connections appear complete
60 day money back guarantee
Buyer should inspect or have inspected prior to use in critical applications
COMPARABLE NEW REPLACEMENT COST: $30,000+ for pump alone (not including motor or base)
APPLICATIONS:
Central vacuum systems, de-aeration, distillation, drying systems, filtration, solvent recovery, boiling processes, vacuum condensing, impregnation, sterilization
SHIPPING:
This is a heavy item — pump, motor, and base assembly. Freight shipping required. Local pickup available in Sylmar, CA (Los Angeles area). Buyer to arrange freight shipping.
:
Shipping
Also please note that we may take up to 3 business days to ship from the time you paid for your order. Also, please keep in mind that weekends are not counted. So, if you place an order Friday night, we may not get it out until the following Wednesday (worst case scenario) though we ship as soon as we can. We also reserve the right to change the method of shipping selected at the time of purchase to an equivalent or better delivery service that best fits the item being delivered.
If you need a faster service, please tell us so we can adjust our priorities but please don't expect expedited service unless you ask us to do so first as our commitment is 3 days if you have not specifically asked for faster shipping.
We ship worldwide .. Some items may take up to 5 days to palletize and ship
Please note that the us mail (USPS) may not be an acceptable choice for international shipping due to package size and weight restrictions and export documentation requirements. If you chose USPS for your international shipment, you may be told you have to select FedEx or UPS or even DHL at a higher price due to the restrictions when using USPS. If you have a question on this, please confirm your shipping choice with us before placing your order.
Export Compliance Notice:
Our products are subject to U.S. export regulations governed by the Export Administration Regulations (EAR), under the oversight of the Bureau of Industry and Security (BIS) and the U.S. Census Bureau. We do not ship to locations in Country Group E. Please note that it may take up to 30 days to determine the Export Control Classification Number (ECCN) for our products. If an export license is required, the licensing process may take an additional 30-90 days.
To comply with U.S. Department of Commerce and U.S. Department of State export control laws, we require a written statement detailing the ultimate end user, the intended end use of each product, and the buyer's agreement to adhere to the EAR. You will receive an email with the necessary documentation to complete your order. Please be aware that your order cannot be processed until all required information is provided.
Returns
Unless indicated as “Sold as is no returns”, you will have either 30 or 60 days to return your purchase, for any reason, if you are not 100% satisfied with your purchase. You can return the product for a full refund or exchange the product for another item, be it similar or not. The period of 30 or 60 days is listed for each item on the items listing page.
Any product you return must be in the same condition you received it and in the original packaging. All items are guaranteed to be “as described”. Any item you feel is not as described in the listing; you can return it at our expense for a full refund regardless if the item is listed “as is no returns”.
Warranty
Unless indicated as “Sold as is no returns”, you will have either 30 or 60 days to return your purchase for a warranty claim at our expense for a full refund, a repair or a replacement. Some higher value items we will warranty beyond ebays 60 day maximum limit for normal listing. If you are interested in extending your warranty, ask us at the time of your purchase.
Data Privacy
We do not keep or share your information anywhere. Your information resides only on ebay and is only available to us for a limited time while we are interacting with you on an inquiry, order or a return, per ebays usage policies.
QUALITY CONTROL
Electronics in general, where possible items are tested. The value of an item greatly contributes to the amount or effort put into testing. It just isn't possible to test many low value items due to the time required and the expenses associated with it. Items that are not specifically tested in detail are visually inspected and reviewed for their operational status. When purchasing recycled items, it is reasonable to have varying quality and occasional failures. Just remember you are covered with a money back guarantee on most items. We want you to be happy above all other considerations.
Appliance parts. Used items are cleaned, clear plastics are hand polished to reduce visible scuffs or scratches. Paint chips are sometimes but not always repaired. Lime and rust deposits are removed to the best of our ability. Some minor repairs may be performed. Any exceptional wear will be noted in our description. We do our best to restore any used item but the final condition of the restoration is subjective to one's opinion. If you take issue with the items' condition, we promise to work with you to resolve this. Note that stock photos are often used and are not the exact item being sold. If you would like to request a different or an actual photo of an item you are interested in, please submit a request before buying.
ATTENTION PLEASE!
WHAT YOU SEE IS WHAT YOU GET… What is included in this listing will be shown in the pictures. If you do not see an accessory in the pictures and it is not specifically listed as included in the condition description or the listing description, the accessory is not included. Please read the descriptions completely for exceptions on this.
GENERAL REFUND POLICY: You are covered with a full money back guarantee for at least 30 days or longer as specified in the listing, unless an item is indicated as “Sold as is – no returns”. We go beyond that by promising that if you are dissatisfied for any reason and if we cannot fix this with you, we will give you 100% of your purchase price back as a cash refund. This will include the original shipping costs if your dissatisfaction is due to an issue with the item you bought being “Not as described”.
ALL WE ASK IS THAT YOU CONTACT US FIRST AND GIVE US A CHANCE TO WORK THINGS OUT WITH YOU. PLEASE DO NOT LEAVE NEGATIVE FEEDBACK IF YOU HAVE NOT FIRST CONTACTED US TO FIX WHATEVER ISSUE YOU HAVE.
WE SHIP WORLD WIDE!
Item Specifics:
Brand: Travaini / Pompetravaini
MPN: TRHB 50-420/C/RA
Type: Liquid Ring Vacuum Pump
Number of Stages: 2
Power: 20 HP
Voltage: 230/460V
Phase: 3
Frequency: 60 Hz
Condition: Used
Country of Manufacture: Italy
Description:
TRAVAINI TRHB 50-420/C/RA TWO-STAGE LIQUID RING VACUUM PUMP WITH 20HP BALDOR MOTOR ON BASE
Removed from working service. Pump was operational at time of removal.
PUMP SPECIFICATIONS:
Manufacturer: Pompetravaini S.p.A., Castano Primo (Milano), Italy
Distributor: Travaini Pumps USA, Yorktown, VA
Model: TRHB 50-420/C/RA
Serial Number: ER910-E0AGU
Type: Two-stage liquid ring vacuum pump
Nominal Capacity: 420 m³/h (~247 CFM)
Capacity Range: 95–310 CFM (depending on vacuum level)
Vacuum Range: 25–150 Torr (up to 29″ Hg)
Shaft Seal: Mechanical seal (C designation)
Construction: Cast iron (RA)
Flange Size: 50mm (~2″)
Shaft Support: Bilateral, externally located grease-lubricated bearings
ISO 9001 Certified
MOTOR SPECIFICATIONS:
Manufacturer: Baldor Electric Co., Ft. Smith, AR 72901 (Made in USA)
Line: Super-E (Super-Efficient Industrial Motor)
Catalog Number: EM2334T
Spec: 09P26W772G1
Horsepower: 20 HP
Voltage: 230/460V
Amperage: 48/24A
RPM: 1765
Frame: 256T
Hz: 60
Phase: 3
Service Factor: 1.15
Insulation Class: F
NEMA Code: H
Design: B
NEMA Nominal Efficiency: 93%
Enclosure: TEFC
Bearings: DE 6309 / ODE 6208
Rating: 40°C Ambient, Continuous Duty
Motor Serial: 9930-119
CONDITION:
Removed from working service — pump was operational at time of removal
Cosmetic wear consistent with industrial use: surface oxidation, paint wear, minor surface rust on piping
Motor appears intact with legible nameplate
Pump body, flanges, and mechanical connections appear complete
60 day money back guarantee
Buyer should inspect or have inspected prior to use in critical applications
COMPARABLE NEW REPLACEMENT COST: $30,000+ for pump alone (not including motor or base)
APPLICATIONS:
Central vacuum systems, de-aeration, distillation, drying systems, filtration, solvent recovery, boiling processes, vacuum condensing, impregnation, sterilization
SHIPPING:
This is a heavy item — pump, motor, and base assembly. Freight shipping required. Local pickup available in Sylmar, CA (Los Angeles area). Buyer to arrange freight shipping.
Additional information
| Weight | 700.0000 lbs |
|---|---|
| Dimensions | 70 × 28 × 28 in |
| Brand | |
| INLET DIAMETER | 2 in |
| OUTLET DIAMETER | 2 in |
| MAXIMUM FLOW RATE | 310 CFM |
| MPN | |
| RATED POWER | 20 hp (15 kW) |
| NUMBER OF STAGES | Two Stage |
| COUNTRY OF ORIGIN | Italy |
| Condition | |
| Condition Description |
