ZOMBIE COMPONENTS

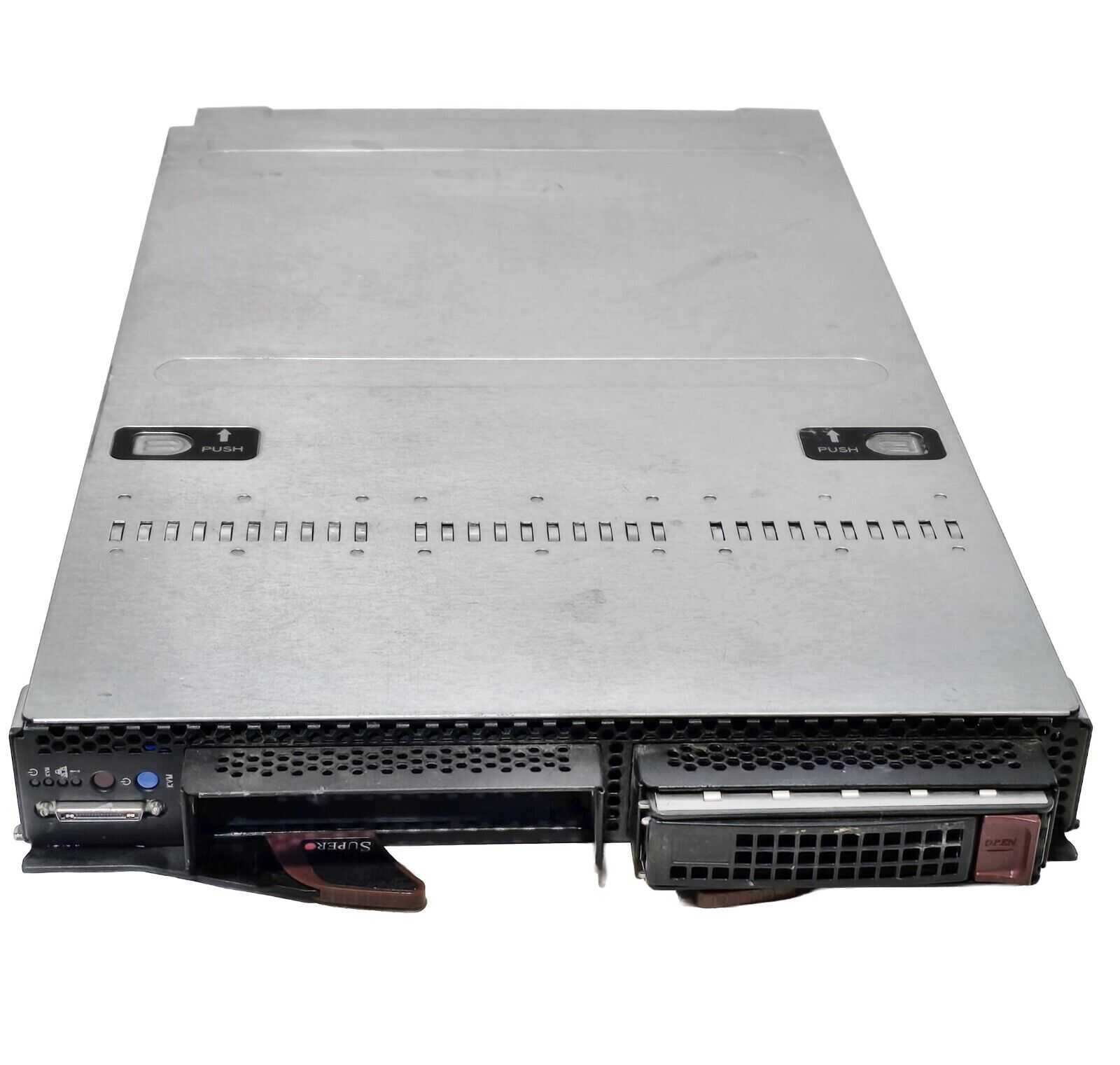

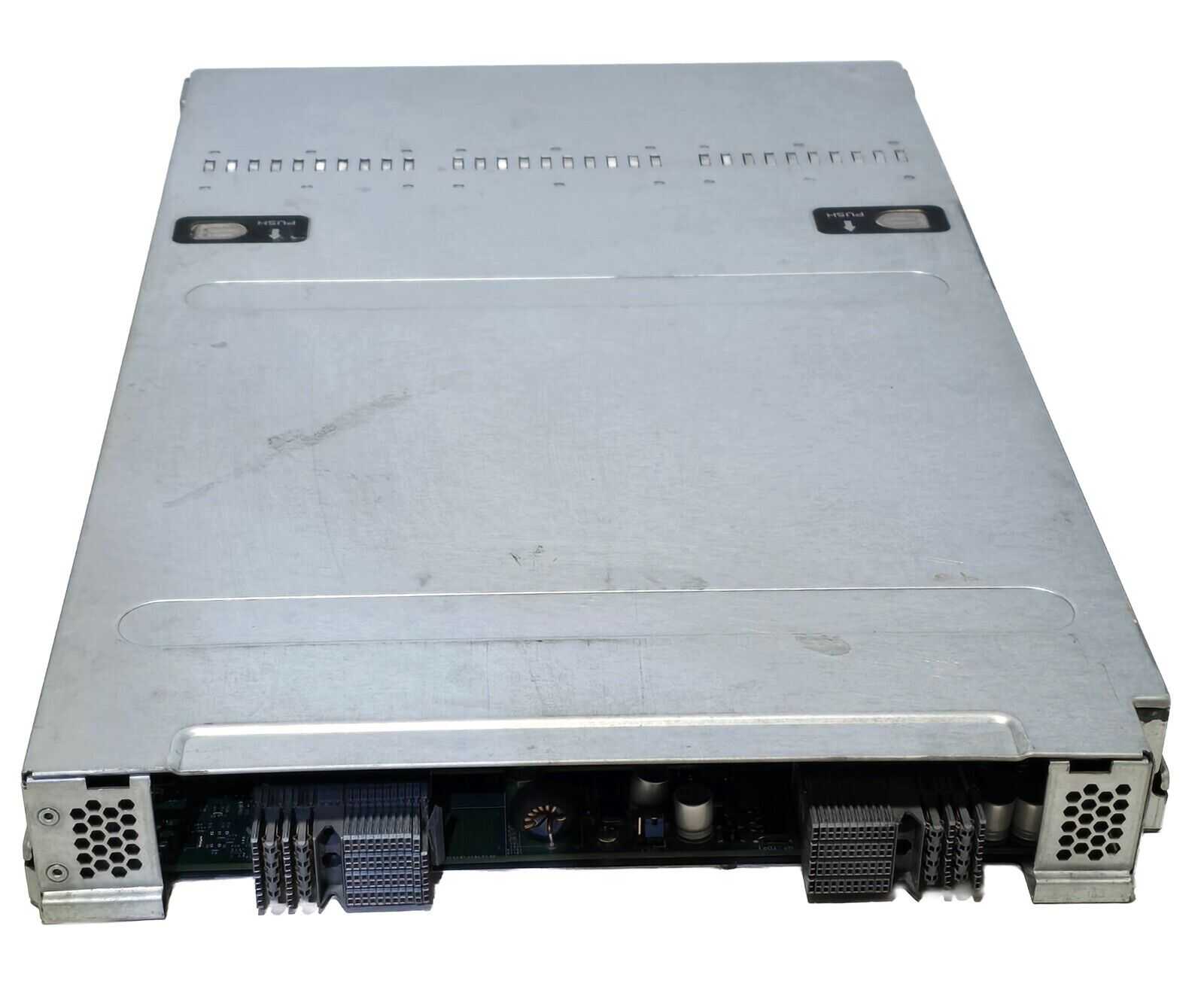

Supermicro SBI-7127R-S6 BLADE SERVER 1U DUAL XEON 2.7GHz E5-2680 64GB RAM
includes AOC-IBH-XQD InfiniBand Dual-Port 4x QDR 40Gbps Mezzanine HCA
(Mellanox ConnectX-2 chip)
Motherboard / Chassis CSE-710M-260B 10-Black Blade with six 2.5″ HDDHard Drive Tray
MCP-220-00047-0B
5
Black 2.5″ Hard Drive Tray
Front Panel Control
MCP-280-KVM1
1
Power & KVM buttons, LED, KVM connector
Product SKUs
SBI-7127R-S6
Processor Blade SBI-7127R-S6 (Black)

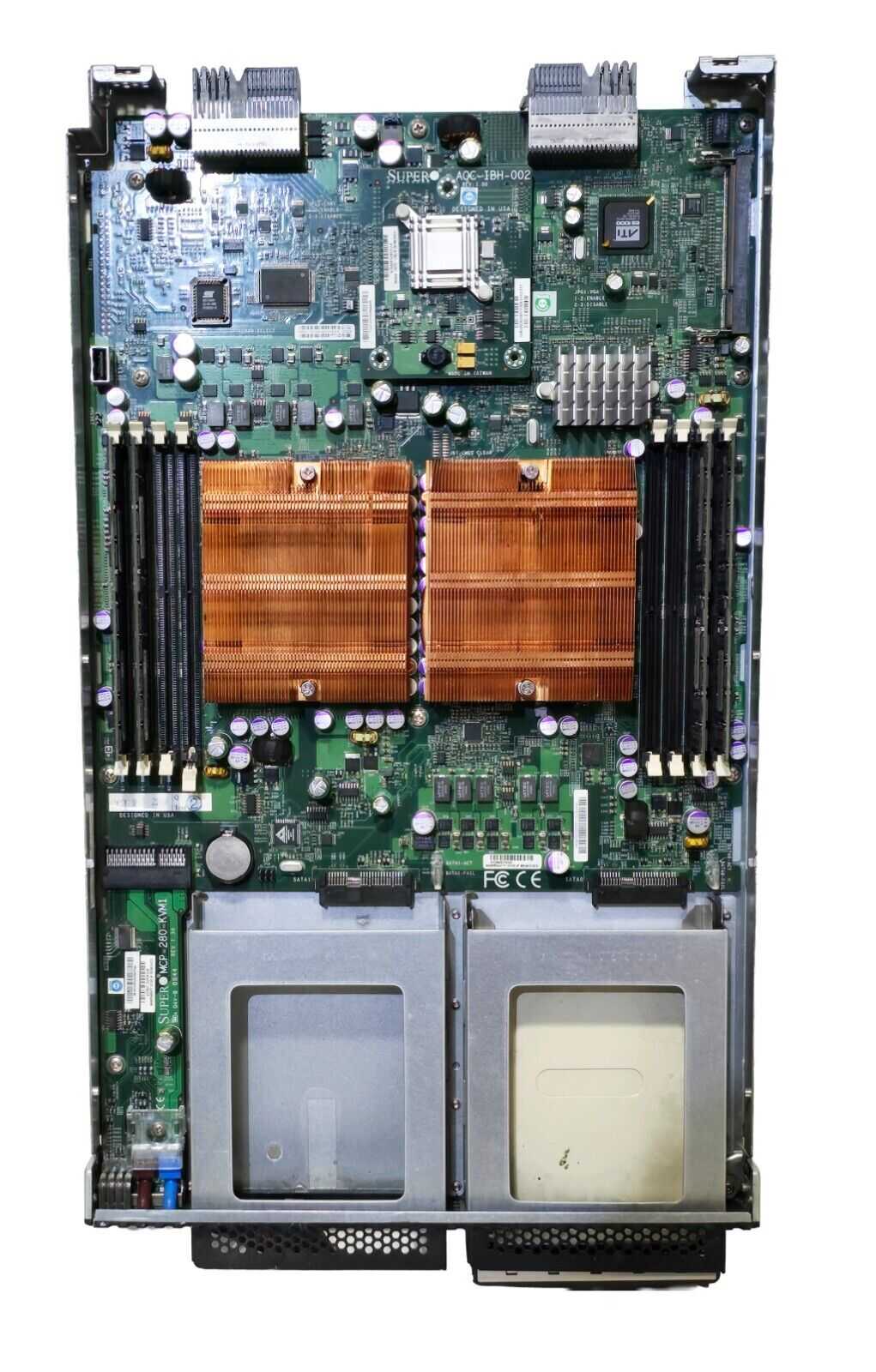

Motherboard
Super B9DR7
Processor/Cache
CPU
Dual Socket R (LGA 2011)
Intel® Xeon® processor E5-2600
and E5-2600 v2 family†
Note
† BIOS version 3.0 or above is required
Cache
Up to 30MB
System Bus
QPI up to 8 GT/s
System Memory
Memory Capacity
16x 240-pin DDR3 DIMM slots
Supports up to 512GB DDR3 ECC Registered memory (RDIMM)
Supports up to 128GB DDR3 ECC Unbuffered memory (UDIMM)
Memory Type
1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
1.5 V and 1.35 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset
Intel® C602 chipset
InfiniBand Support
4x QDR (40Gbps) InfiniBand or 10GbE mezzanine HCA (Optional)
SAS
SAS2 via Broadcom 2208
HW RAID 0, 1, 5, 6, 10, 50 support
IPMI
Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Network Controllers
Intel® I350 Dual port Gigabit Ethernet
Intel® I/OAT 3 support for fast, scaleable, and reliable networking
VMDq support for better performance of virtualization
Super I/O
Nuvoton W83527
System BIOS
BIOS Type
64Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support
Dimensions
Height
11.32″ (288 mm)
Width
1.67″ (42.4 mm)
Depth
18.9″ (480mm)
Weight
8.6 lbs (3.9 kg)
Available Colors
Black
Front Panel
Buttons
Power On/Off button
KVM button
LEDs
Power LED
UID / KVM LED
Network Activity LED
Fault LED
Connector
SUV (Serial/USB/Video) & KVM Connector
Drive Bays
Hot-swap
6x 2.5″ SAS/SATA Hot-swap drive bays
Input / Output
KVM
1 Front Connector for Supermicro KVM Card
Operating Environment / Compliance
Environmental Spec.
Operating Temperature: 10°to 35°C (50°to 95°F)
Non-operating Temperature: -40°to 70°C (-40°to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5 to 95% (non-condensing)
WE SHIP WORLD WIDE!
Additional information
| Weight | 13 lbs |
|---|---|
| Dimensions | 24.00 × 16.00 × 6.00 in |
| NUMBER OF PROCESSORS | 2 |
| RAM SIZE | 64 GB |
| MPN | |
| PROCESSOR TYPE | Xeon |
| MEMORY TYPE | 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-pl |
| PROCESSOR SPEED | 2.7 GHz |
| Brand | |
| FORM FACTOR | Blade |
| TYPE | Server |
| PROCESSOR MANUFACTURER | AMD |
| MAXIMUM RAM CAPACITY | 256GB |
| MODEL | SBI-7127R-S6 |
| UNIT QUANTITY | 1 |
| Condition | |
| Condition Description |
