Description
ZOMBIE COMPONENTS

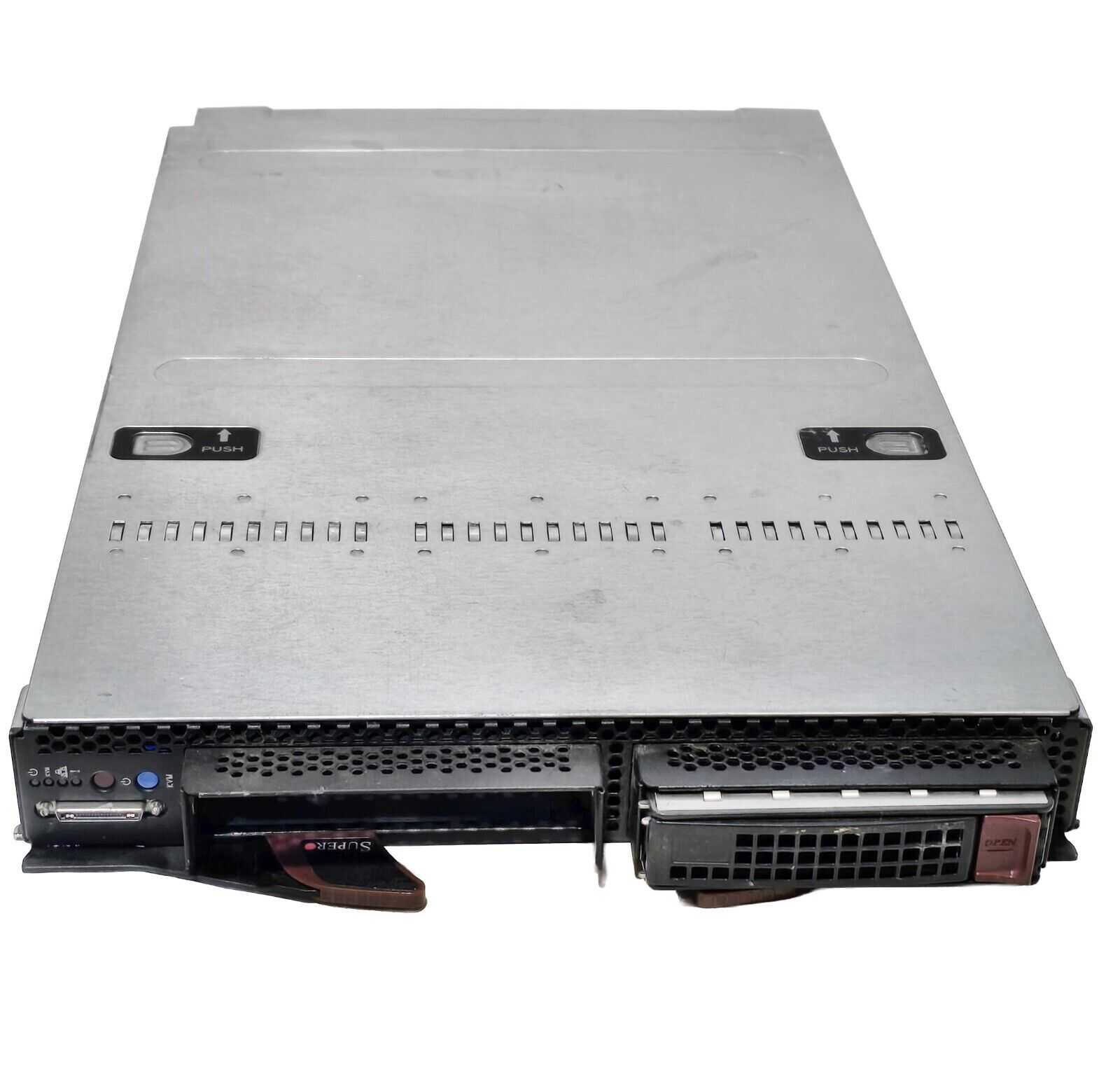

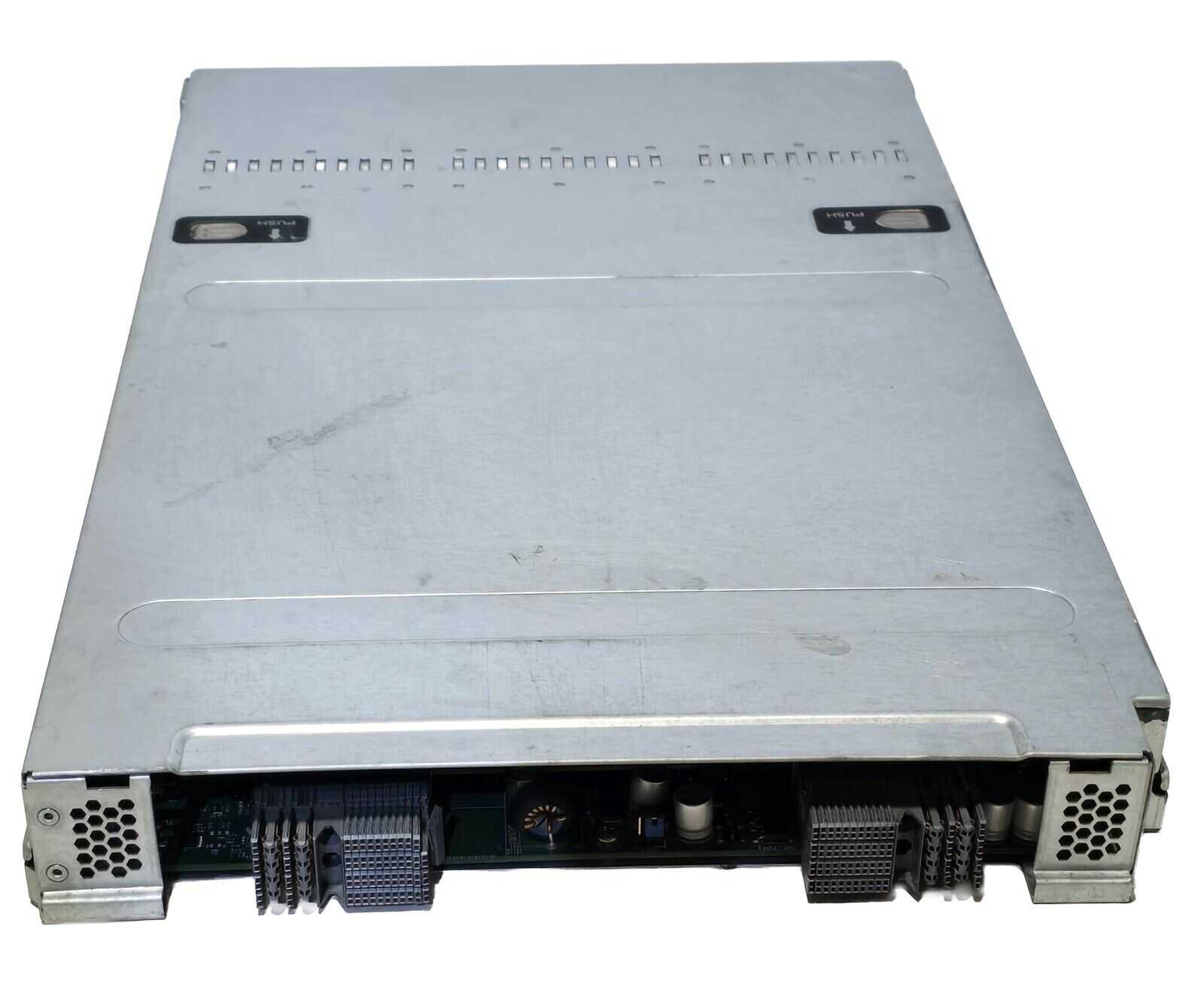

Supermicro SBA-7121M-T1 BLADE SERVER 1U DUAL AMD OPTERON 16GB RAM +AOC-IBH-002
SBA-7121M-T1
Processor Blade SBA-7121M-T1 (Black)
AOC-IBH-002 InfiniBand Single port 4x DDR 20Gbps Mezzanine HCA
(Mellanox InfiniHost III Lx chip)

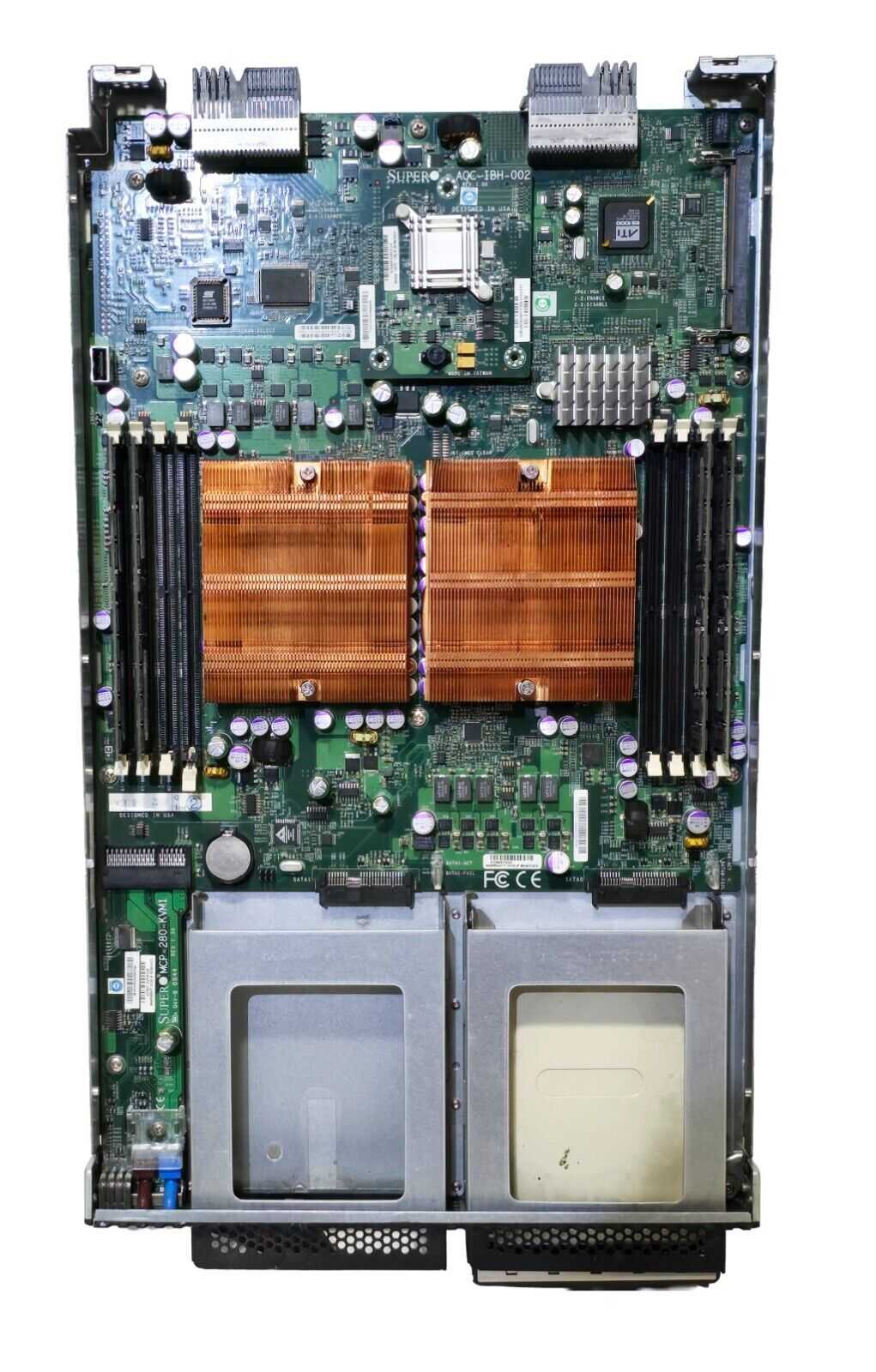

Motherboard
Super BHDME
Processor/Chipset
CPU
Dual 1207-pin Socket F

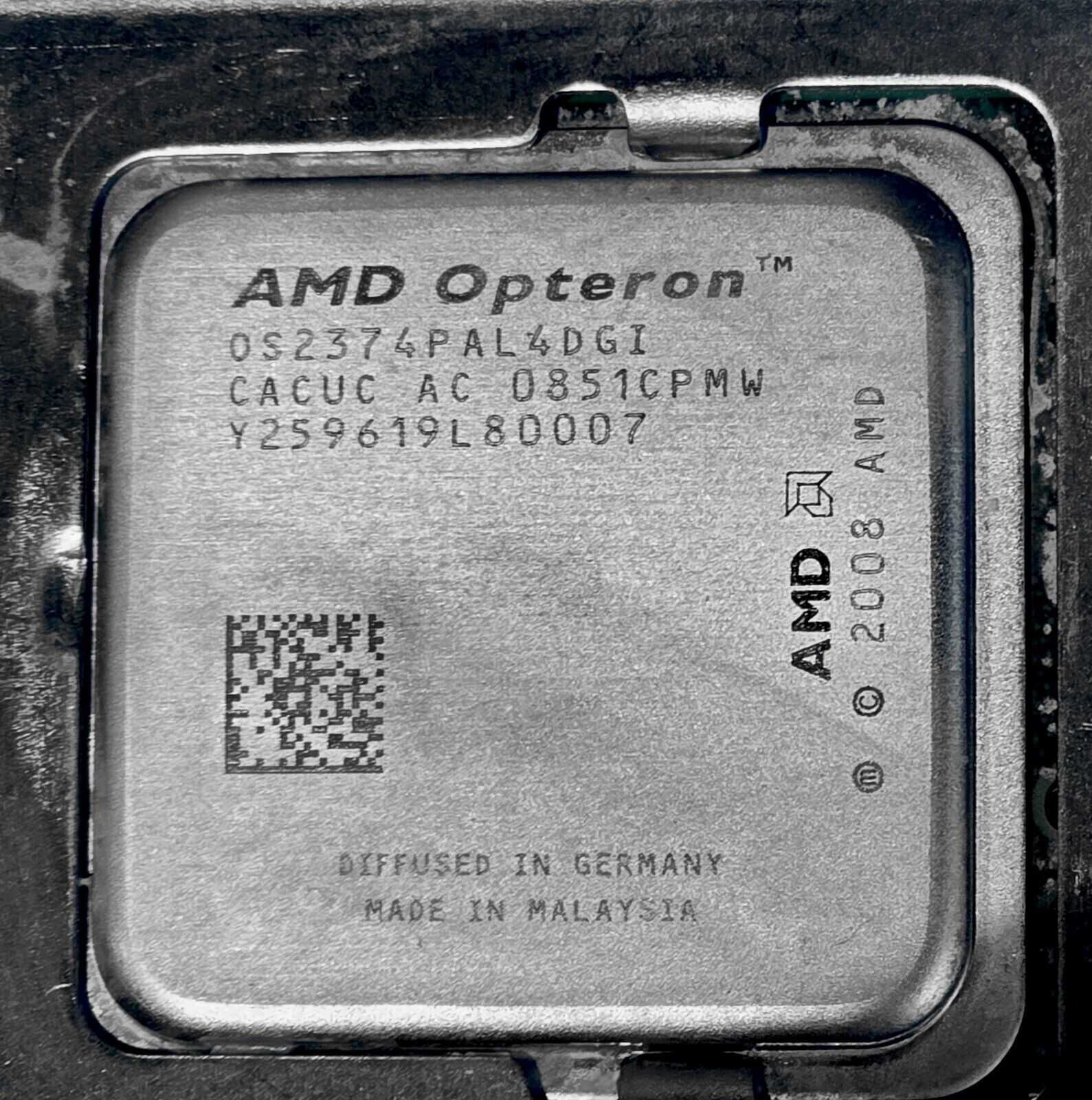

Supports up to two Six-Core / Quad-Core AMD Opteron™ 2000 Series processors
HT3.0 Link support
Chipset
nVidia MCP55 Pro
System Memory
Memory Capacity
Eight 240-pin DIMM sockets
Supports up to 64 GB DDR2 800/667/533 MHz memory
Single or Dual (recommended) channel memory support
For Quad CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type
DDR2 800/667/533MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
512MB, 1GB, 2GB, 4GB, 8GB
Memory Voltage
1.8V only
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Infiniband Support
4x DDR (20Gb/s) Infiniband
SATA
nVidia MCP55 Pro SATA2 3.0Gbps Controller
2 SATAII Ports
IPMI
Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Network Controllers
Intel® 82571EB Dual-port Gigabit Ethernet Controller
Super I/O
Winbond 83627HF
VGA
ATI ES1000 Graphics Controller
System BIOS
BIOS Type
8Mb Flash EEPROM with AMI® BIOS
SST 49LF080A BIOS Chip
BIOS Features
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 2.0
USB Keyboard Support
SMBIOS 2.3
WE SHIP WORLD WIDE!
Additional information
| Weight | 13 lbs |
|---|---|
| Dimensions | 24.00 × 16.00 × 6.00 in |
| Brand | |
| FORM FACTOR | Rack Mountable |
| TYPE | Server |
| PROCESSOR MANUFACTURER | AMD |
| NUMBER OF PROCESSORS | 2 |
| MAXIMUM RAM CAPACITY | 64gb |
| RAM SIZE | 16 GB |
| MODEL | SBA-7121M-T1 |
| MPN | |
| UNIT QUANTITY | 1 |
| PROCESSOR TYPE | Opteron |
| MEMORY TYPE | DDR2 800/667/533MHz buffered (registered) ECC SDRAM 72-bit, 240-p |
| Condition | |
| Condition Description |
