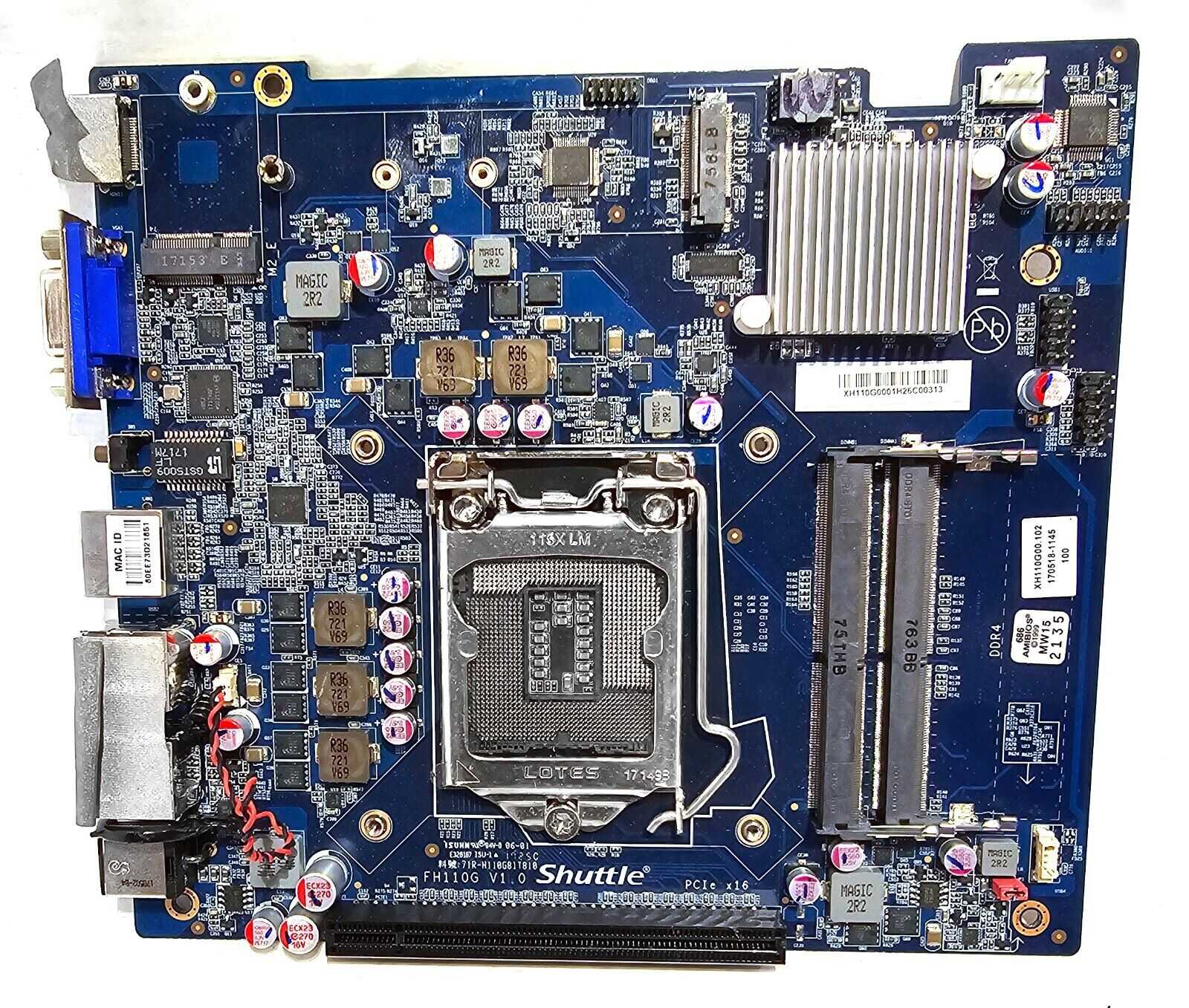

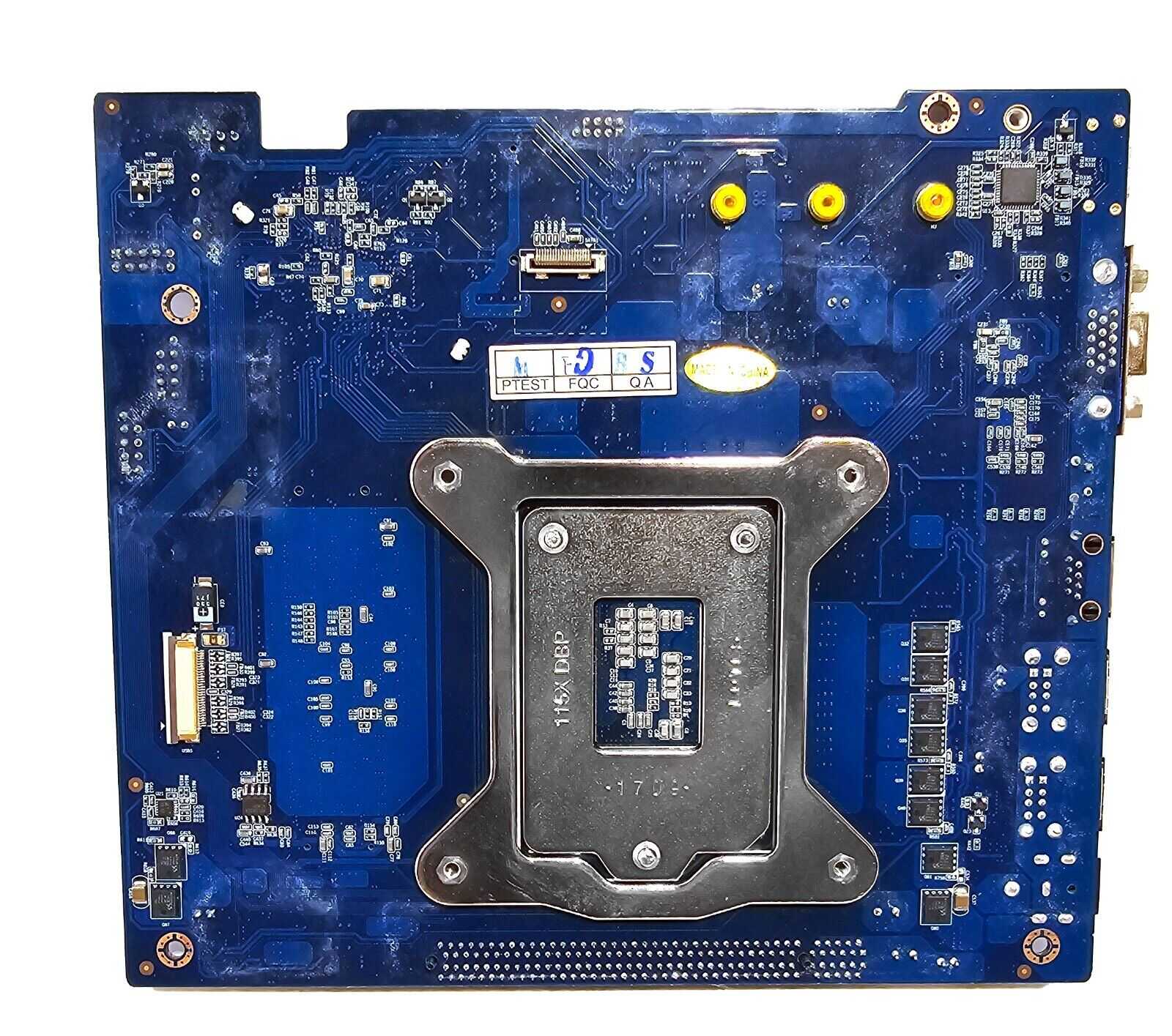

SHUTTLE Motherboard XH110, XH110G00.102

ZOMBIE COMPONENTS

SHUTTLE Motherboard XH110, XH110G00.102

SHUTTLE Motherboard XH110, XH110G00.102

FORM FACTOR1.3L chassis

PROCESSORSupport Intel Sandy Bridge / Ivy Bridge 65W CPU

CHIPSETIntel H61

MEMORY2 x 204 pin DDR3 SODIMM slots,8GB per DIMM (Max 16GB)
Dual Channel DDR3 1333 Mhz

VIDEO OUTPUTDVI-I + HDMI dual display

AUDIORealtek ALC662 channel High Definition Audio

ETHERNETRealtek 8111E X2
IEEE 802.3u 100Base-T specification revision 1.0
100Mb/s and 1Gb/s operation
Support Wake-On-LAN function

STORAGE INTERFACE3.0Gb/s bandwidth SATA II

ONBOARD CONNECTORS(2) SATA connectors
(1) SATA power connector
(1) LVDS connector
(1) LPC header
(1) 4pin fan connector
(1) 3pin fan connector
(1) Clear CMOS header

FRONT PANEL(2) USB 2.0 ports
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
(1) SD Card reader

BACK PANEL(2) RJ45 Gigabit LAN port
(1) DVI-I port
(1) HDMI port
(2) USB 3.0 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External power on header
(1) DC in
(1) Kensington lock
(2) Wireless Antenna fixture

DRIVE BAYS(1) 2.5″ HDD / SSD bay

DIMENSIONS190(L) x 165(W) x 43(H) mm

POWER90W Power Adapter
Input:100- 240V AC
Output: 19V 4.74A DC

ACCESSORIESXPC Multilanguage Quick User Guide
XPC DVD Driver (XP32 / 64 bit and Win7 32/ 64 bit)
VESA mount
VESA mount quick installation guide
1* Power cord
1* SATA cable
Screws
Optional 802.11b/g/n WLAN module

EXPANSION SLOT(1) Full size Mini-PCIE socket (m-SATA support)

WE SHIP WORLD WIDE!

Weight	3 lbs
Dimensions	12 × 12 × 7 in
Brand	Shuttle
COMPATIBLE CPU BRAND	Intel
NUMBER OF MEMORY SLOTS	2
MODEL	XH11O
MPN	XH110G00.102
Condition	Used
Condition Description	*** 60 DAY MONEY BACK GUARANTEE ***
