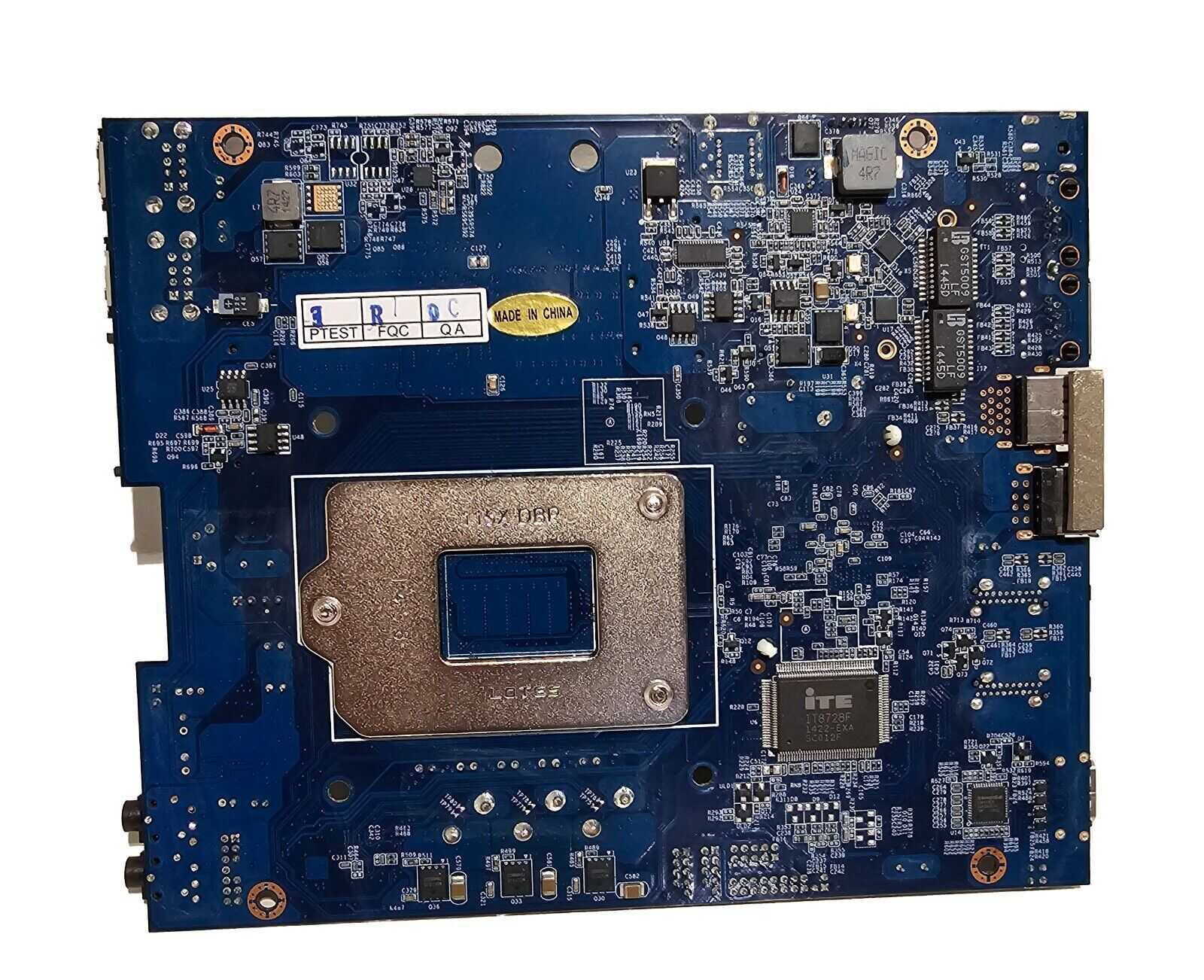

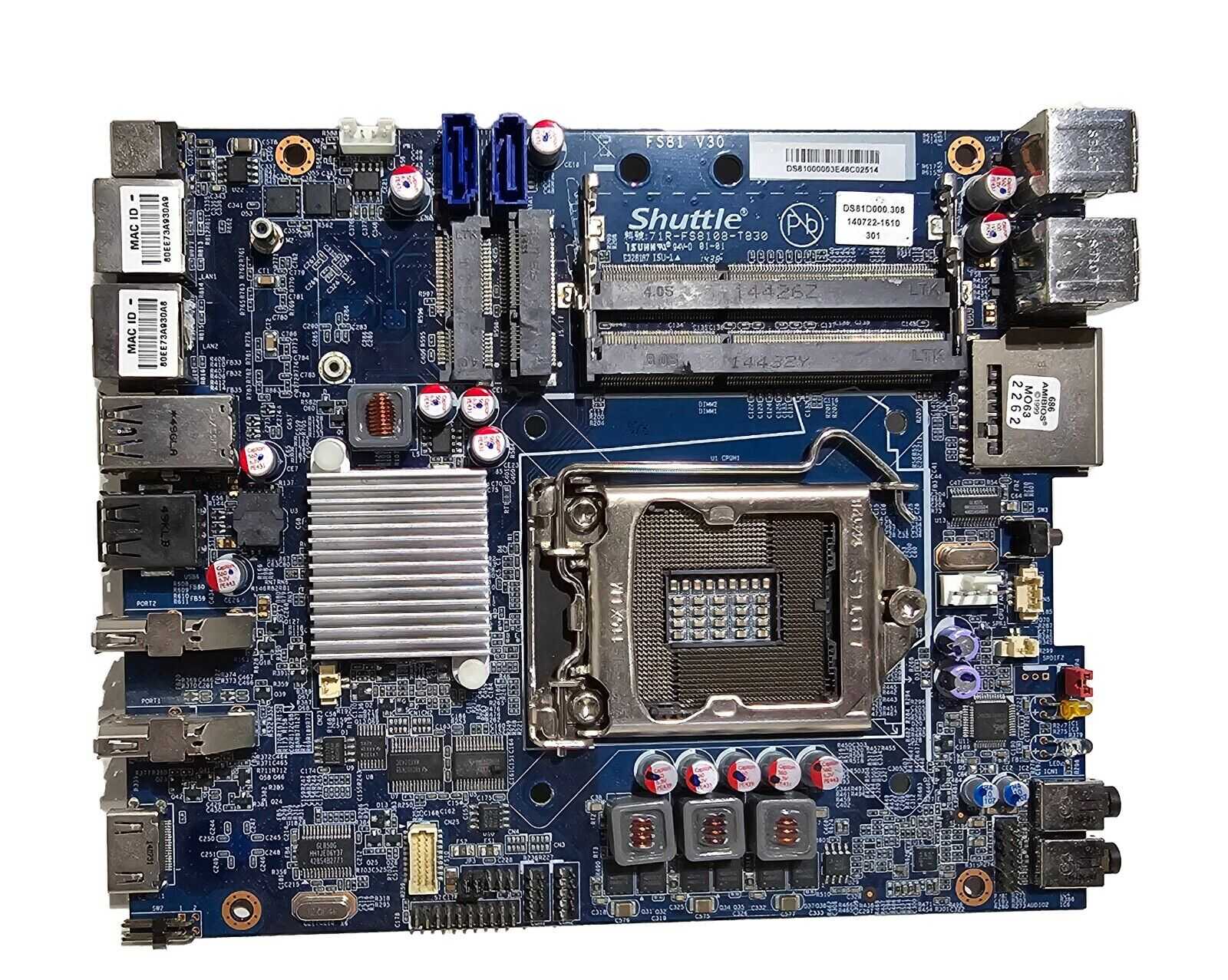

SHUTTLE Motherboard DS81, DS81D000.308

Shuttle DS81. Chassis type: Net-top, Product type: Mini PC barebone. Motherboard chipset: Intel® H81, Processor socket: LGA 1150 (Socket H3). Supported memory types: DDR3-SDRAM, Number of memory slots: 2, Maximum internal memory: 16 GB. Storage drive interface: Serial ATA. Ethernet LAN (RJ-45) ports: 2. Cooling type: Active. Power supply: 90 W
ITEM
DESCRIPTION

Supplier
Shuttle

Prod_id
DS81

GTIN(EAN/UPC)
0811686006534|811686006534

Category
PC/Workstation Barebones

Model
DS81

Built-in processor: No

Processor family: Intel

Processor lithography: 22 nm

Memory

Memory slots type: SO-DIMM

Number of memory slots: 2

Maximum internal memory: 16 GB

Supported memory clock speeds: 1333,1600 MHz

Supported memory types: DDR3-SDRAM

Memory channels: Dual-channel

Storage

Storage drive sizes supported: 2.5″

Storage drive interface: Serial ATA

Number of storage drives supported: 1

Card reader integrated: Yes

Compatible memory cards: SD, SDHC, SDXC

Network

Ethernet LAN: Yes

Networking features: Gigabit Ethernet

LAN controller: Realtek 8111G

Ports & interfaces

USB 2.0 ports quantity: 6

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 2

DisplayPorts quantity: 2

Microphone in: Yes

Headphone outputs: 1

Serial ports quantity: 2

Expansion slots

Mini PCI Express slots: 1

Performance

Motherboard chipset: Intel® H81

Processor socket: LGA 1150 (Socket H3)

Number of processors supported: 1

Compatible processor series: Intel® Pentium®

Audio system: Realtek ALC 662-VC

Certificates

Certification: FCC, CE, BSMI, C-Tick, CB, BSMI, ETL

Software

Compatible operating systems: Misrosoft Windows 8, Windows 8.1, Windows 7,rnLinux

Operating system installed: No

Power

Power supply type: AC/DC

Power supply: 90 W

Weight & dimensions

Width: 190 mm

Depth: 165 mm

Height: 43 mm

Weight: 1.3 kg

Other features

Power requirements: AC 100-240@50/60Hz

Power LED: Yes

DC input voltage: 19 V

WE SHIP WORLD WIDE!

Weight	3 lbs
Dimensions	12 × 12 × 7 in
Brand	Shuttle
COMPATIBLE CPU BRAND	Intel
NUMBER OF MEMORY SLOTS	2
MODEL	DS81
MPN	DS81D000.308
Condition	Used
Condition Description	*** 60 DAY MONEY BACK GUARANTEE ***
UPC	0811686006534
