Ixia Load Module Test & Diagnosis Service
Zombie Components performs comprehensive functional testing of Ixia load modules across
these chassis platforms: Optixia X16, XM, XG12, and XGS (IxOS 5.6-9.15). Testing runs on a fully automated
proprietary test and data-acquisition system built in-house. Our methodology is built on these data-capture
elements: the module’s EEPROM identity record; the chassis bring-up and enumeration log; a multi-hour
live-traffic soak at line rate on every active port; the full per-port statistics log sampled every 5 seconds;
the chassis event log for the test window; and the on-card thermal sensors. The method is the same at every port
speed – each module family gets the complete field set its hardware exposes.
We certify the results. A module that fails receives an engineering failure analysis
with board-level fault localization and repair recommendations.

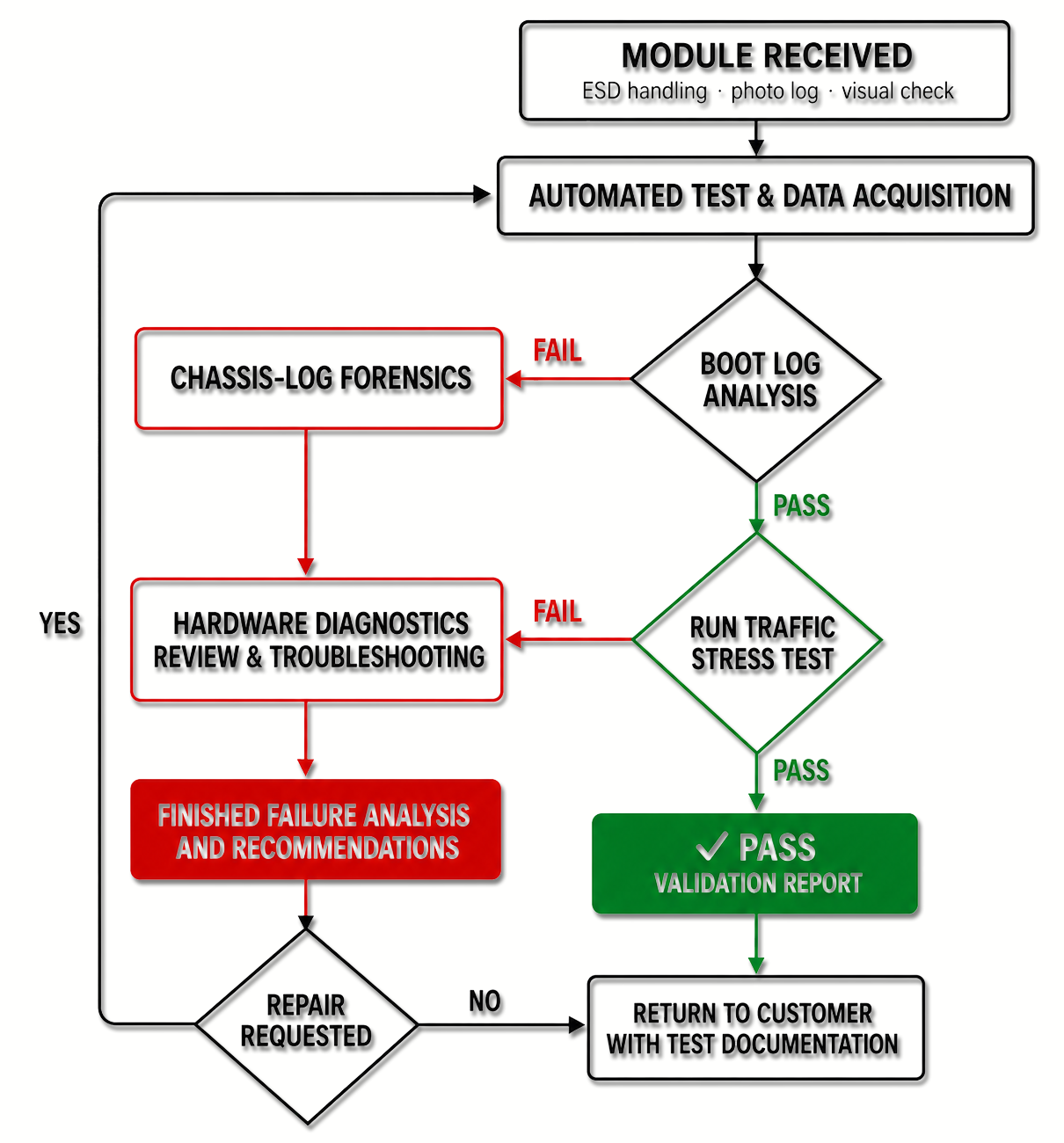

In-process testing
Every module follows this path. Each step is recorded in the deliverable.
Sample documentation is attached to this listing

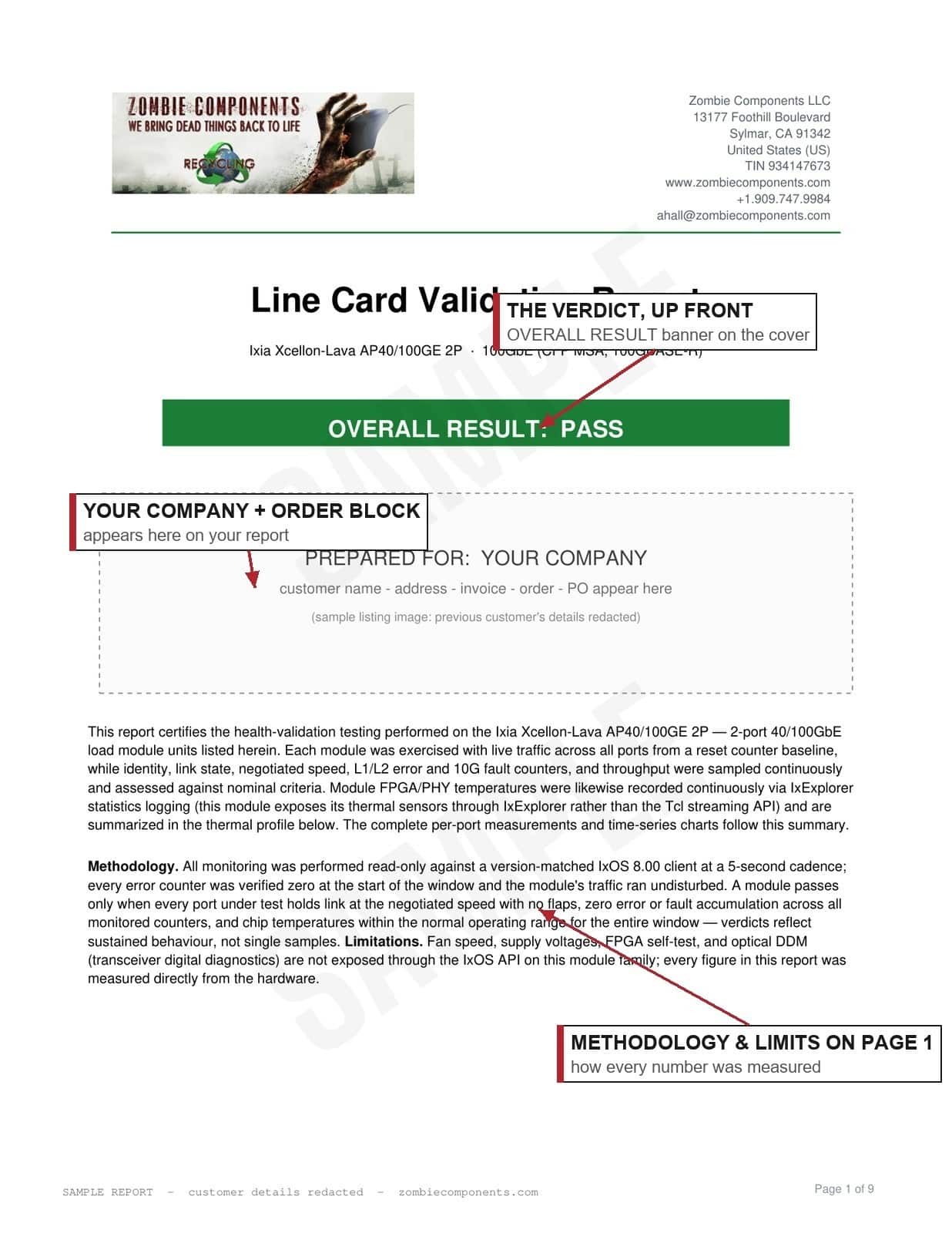

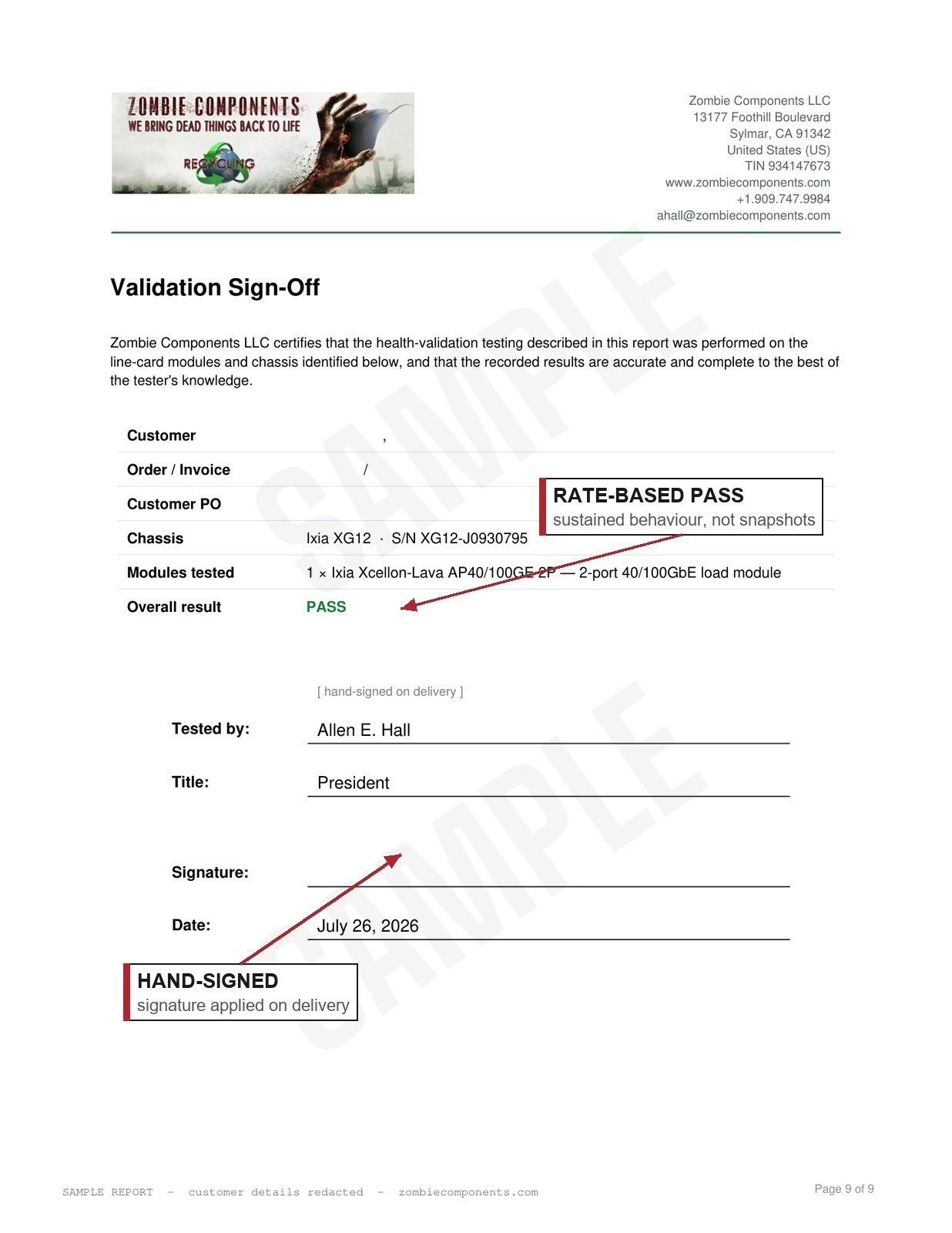

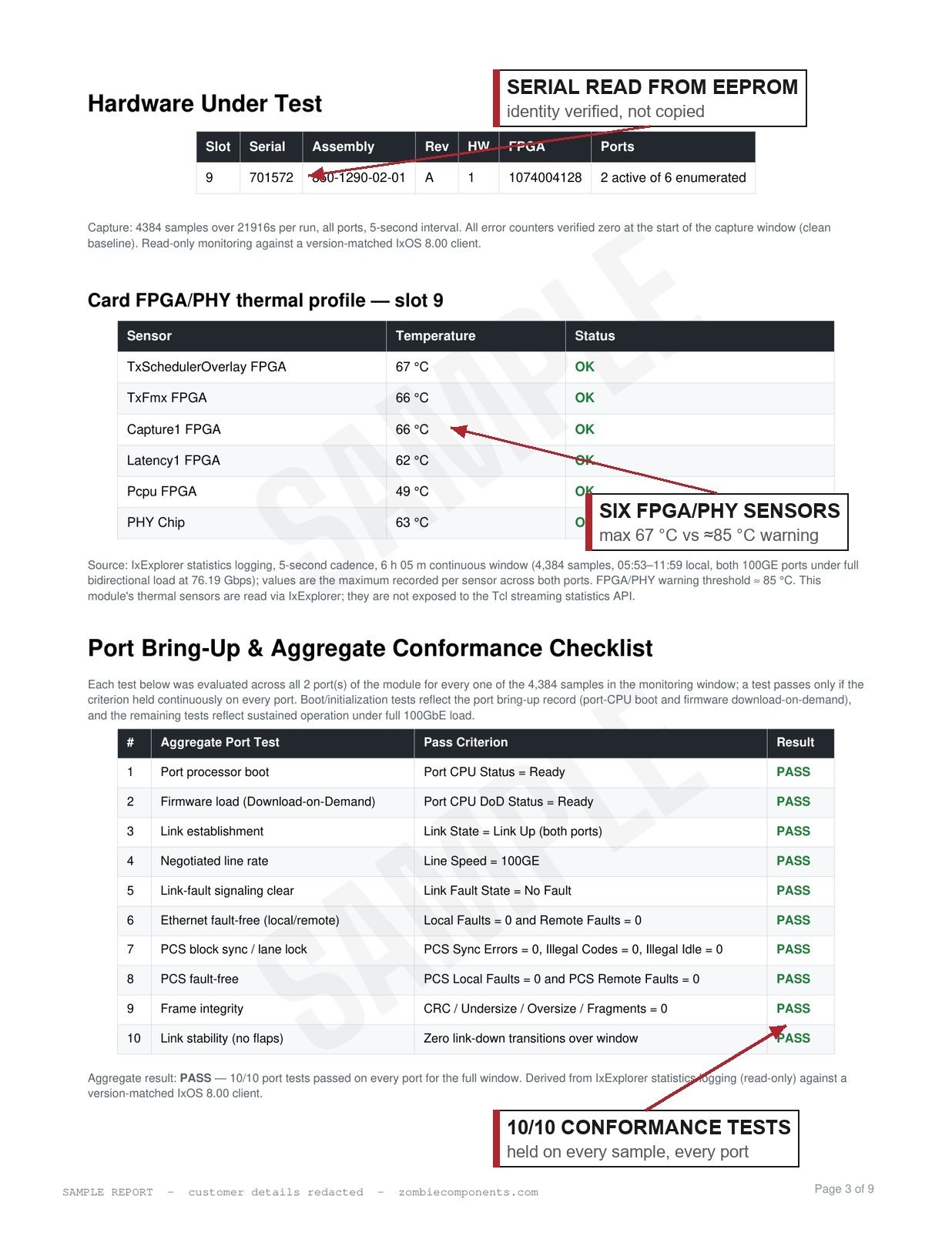

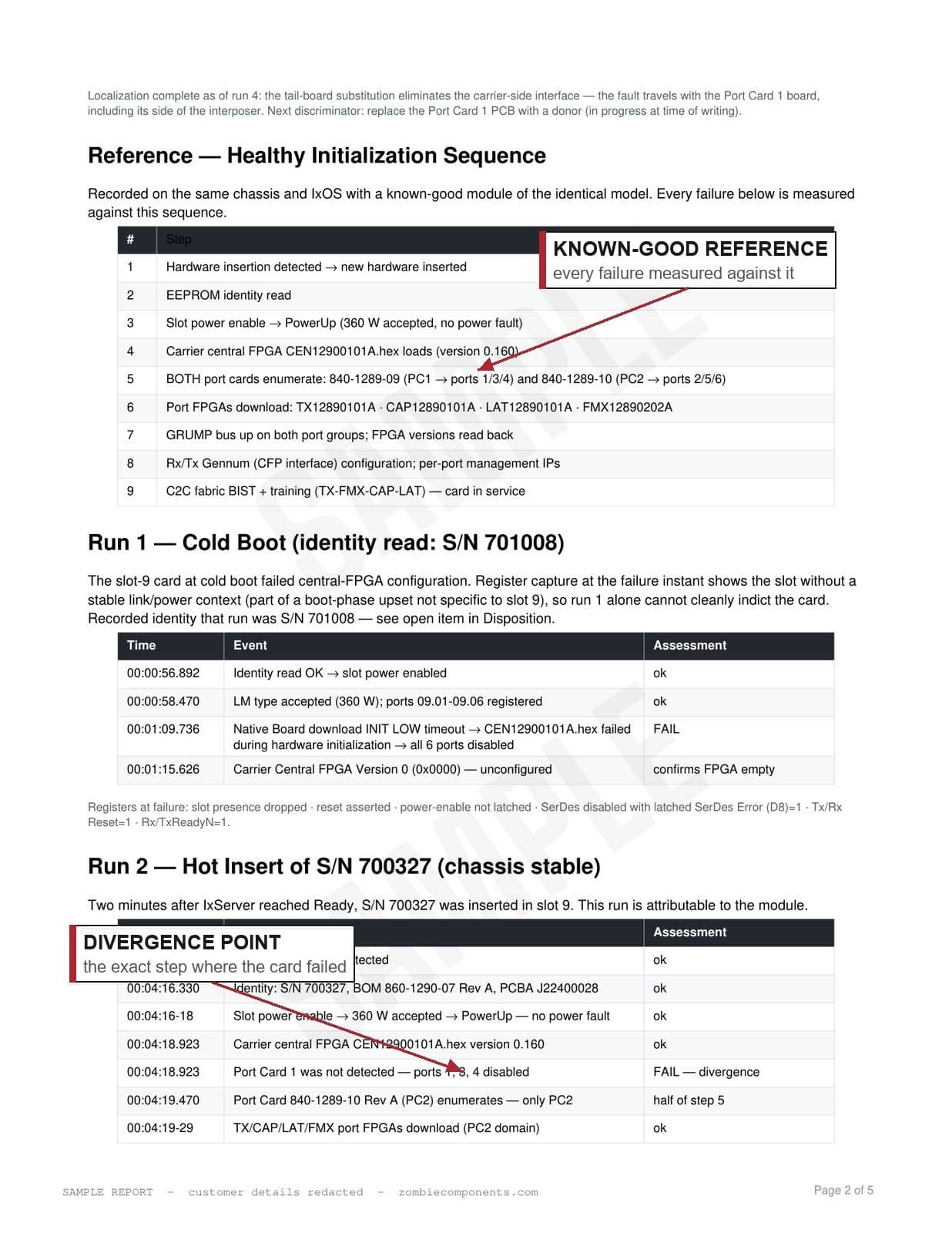

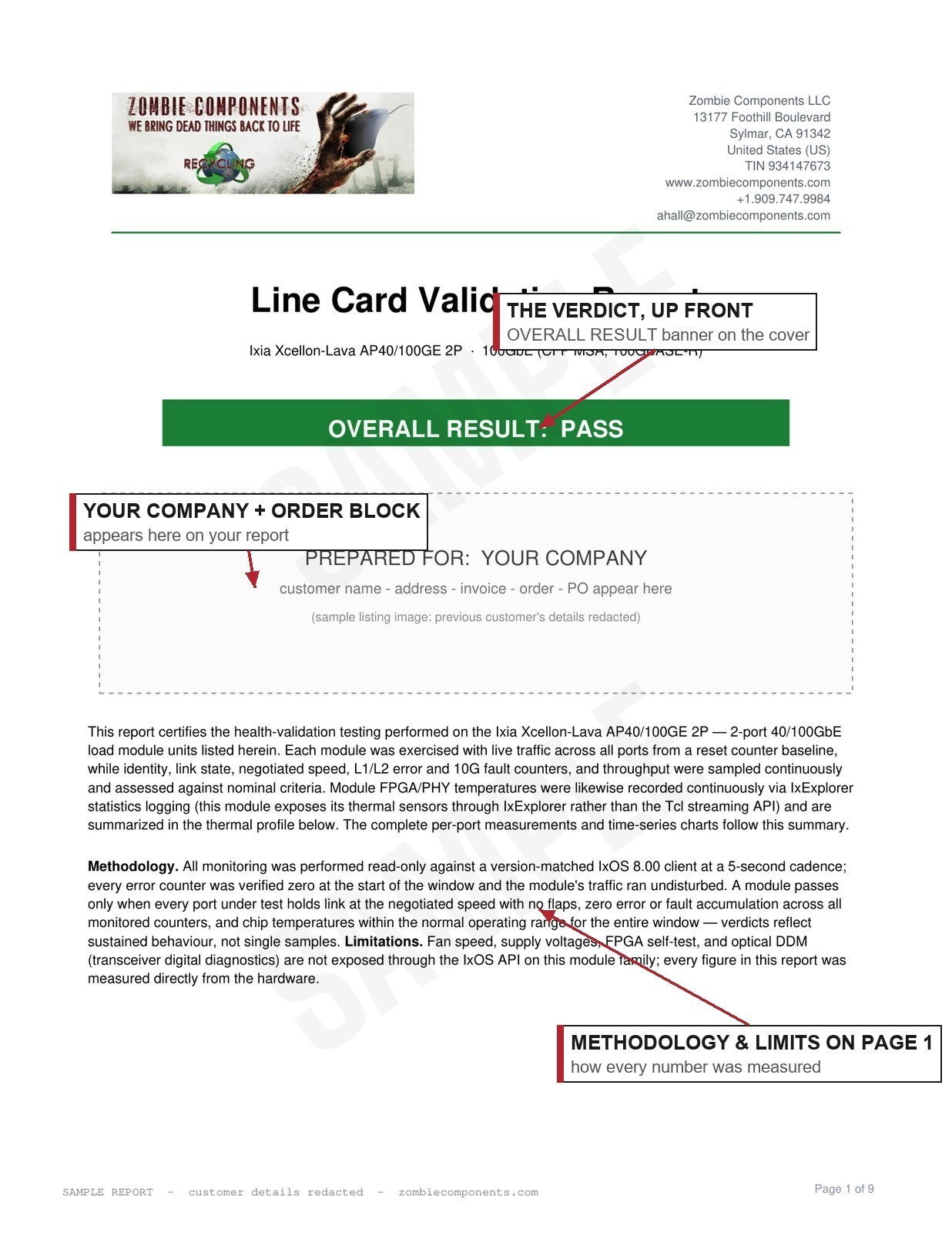

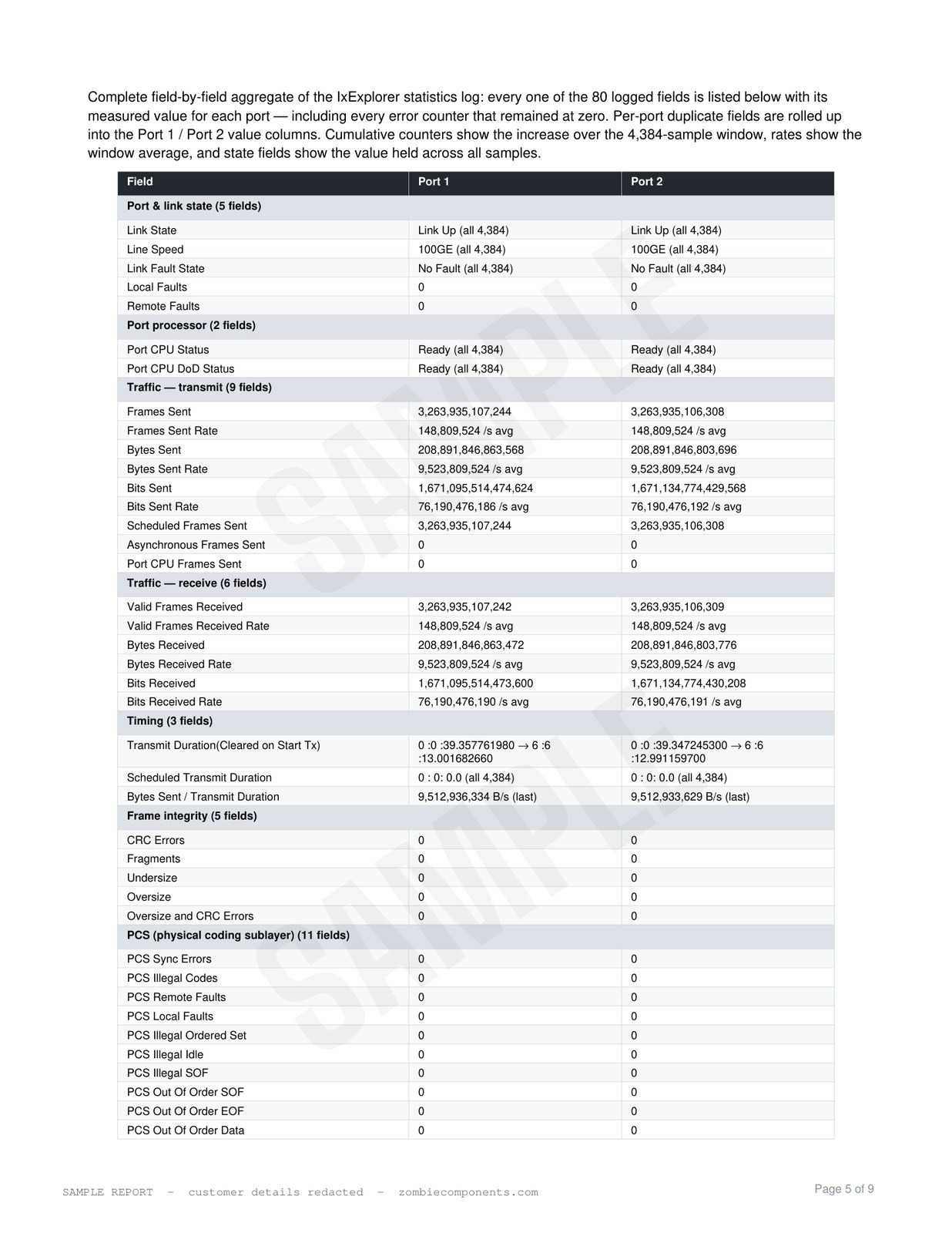

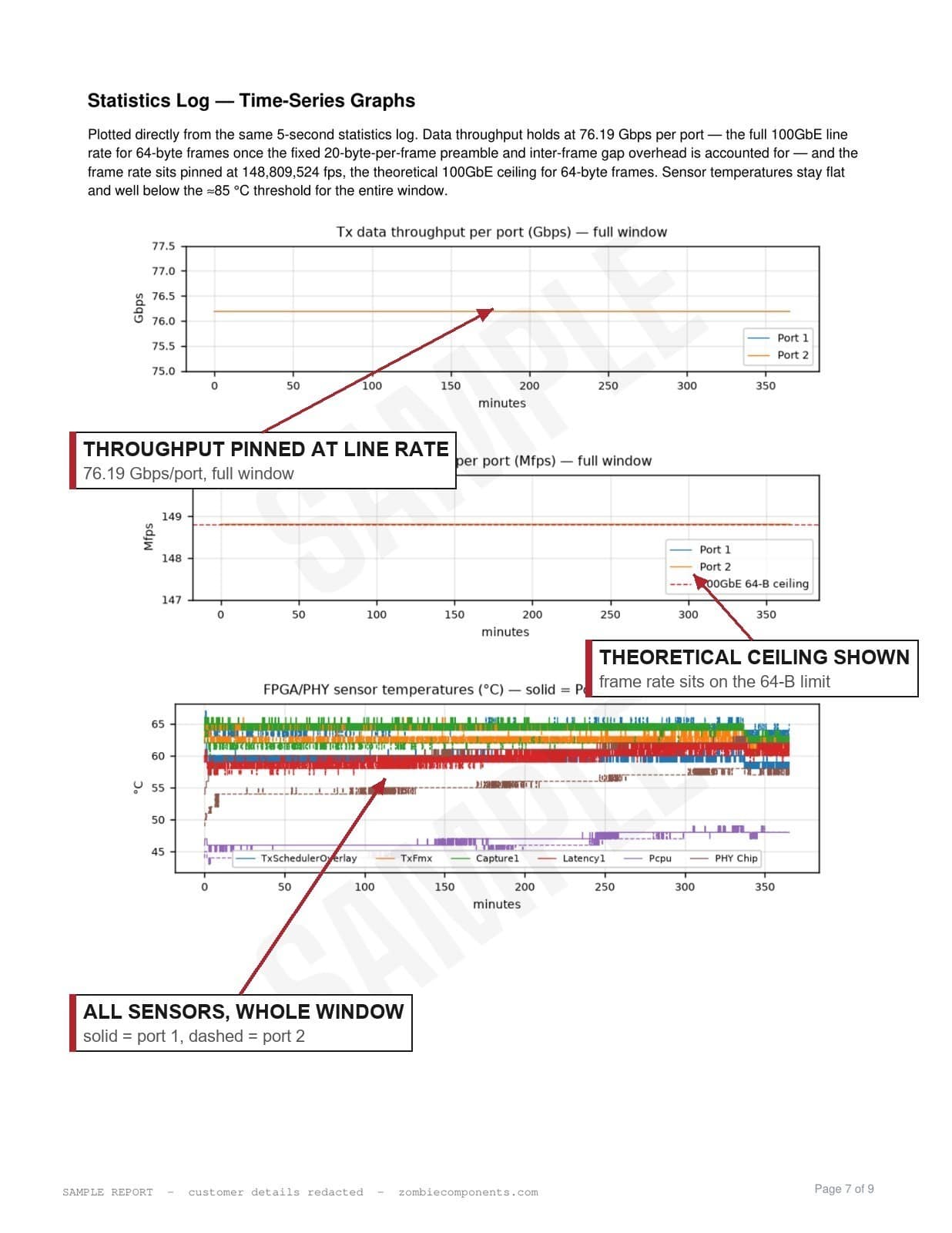

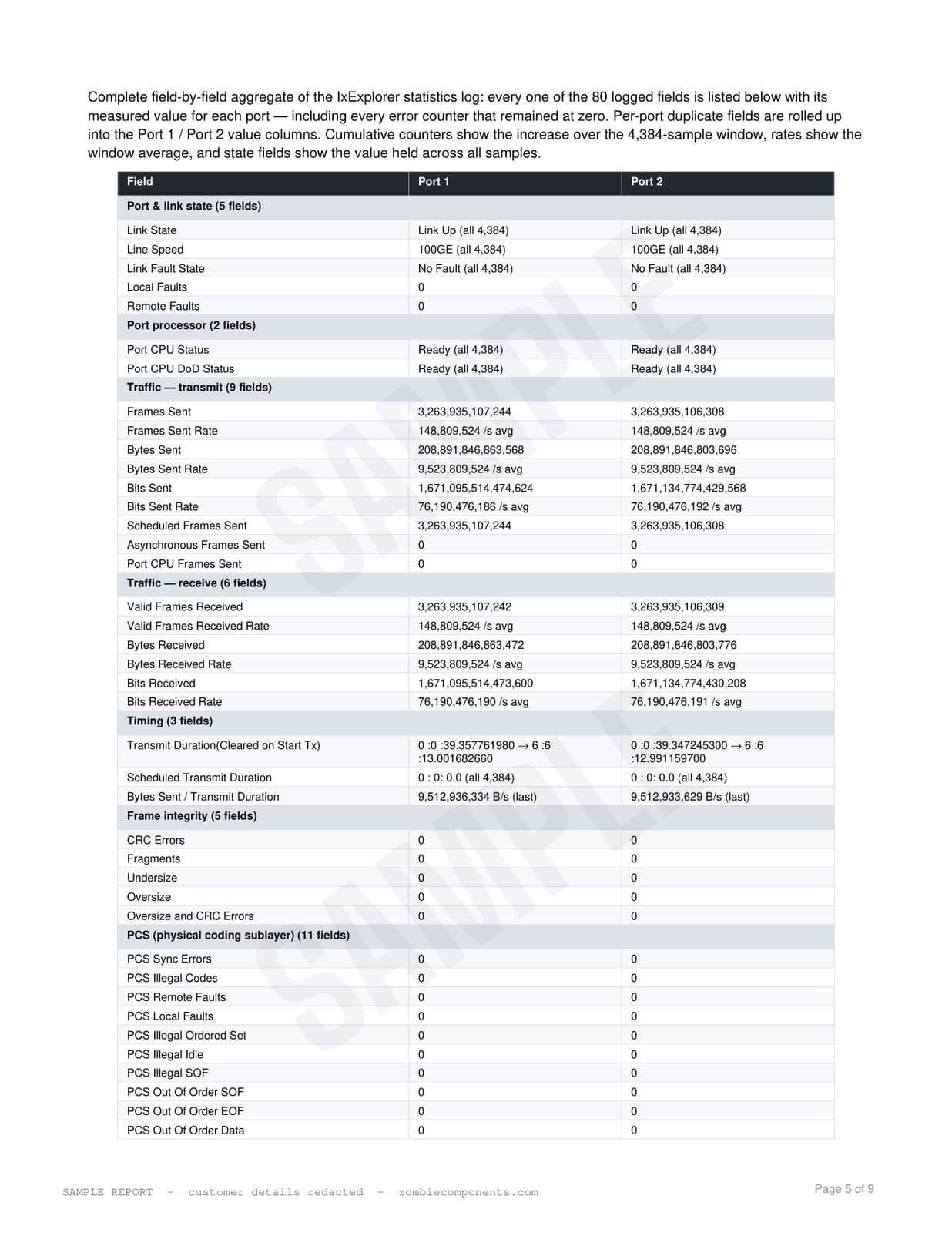

Pages from a delivered validation report and from a delivered engineering
failure analysis are attached as listing photos, annotated to show what each section reports. Customer details
are redacted. Use them to see exactly what you receive before you buy.
failure analysis are attached as listing photos, annotated to show what each section reports. Customer details
are redacted. Use them to see exactly what you receive before you buy.
Covered models and testing cost
Find your part number below, select that Group in the listing dropdown, and purchase.
One module per purchase. Model not listed? Message us the part number first.
| Group | Part Number | Model / Description | Testing | Lifecycle Note |
|---|---|---|---|---|
| 1 | 944-0006 | AFM1000SP-01 | $150 | EOL 11/5/2017 |
| 1 | 944-0020 | ALM1000T8 | $150 | EOL 11/05/2017 |
| 1 | 944-0011 | CPM1000T8 | $150 | EOL 10/19/2014 |
| 1 | LM1000GBIC | $150 | EOL 12/01/2011 | |
| 1 | LM1000GBIC-1 | $150 | EOL 03/31/2010 | |
| 1 | LM1000GBIC-2 | $150 | EOL 03/31/2010 | |
| 1 | LM1000GBIC-3 | $150 | EOL 03/31/2010 | |
| 1 | LM1000GBIC-P1 | $150 | EOL 03/31/2010 | |
| 1 | LM1000SFP4 | $150 | EOL 07/01/2010 | |
| 1 | LM1000SFPS4 | $150 | EOL 12/01/2011 | |
| 1 | LM1000SFPS4-256 | $150 | EOL 07/01/2010 | |
| 1 | 944-0065 | LM1000STX2 | $150 | EOL 11/05/2017 |
| 1 | 944-0046 | LM1000STX4 | $150 | EOL 11/05/2017 |
| 1 | 944-0016 | LM1000STXR4, Gigabit Ethernet, 4 Port Dual-PHY | $150 | EOL 11/05/2017 |
| 1 | 944-0017 | LM1000STXS2 | $150 | EOL 11/05/2017 |
| 1 | 944-0018 | LM1000STXS4 | $150 | EOL 05/25/2015 |
| 1 | 944-0019 | LM1000STXS4-256 | $150 | EOL 02/25/2022 |
| 1 | LM1000SX | $150 | EOL 03/31/2010 | |
| 1 | LM1000SX3 | $150 | EOL 03/31/2010 | |
| 1 | LM1000T-5 | $150 | EOL 12/01/2011 | |
| 1 | LM1000TX4 | $150 | EOL 07/01/2010 | |
| 1 | LM1000TXS4 | $150 | EOL 12/01/2011 | |
| 1 | LM1000TXS4-256 | $150 | EOL 07/01/2010 | |
| 1 | LM1000TXS4-L | $150 | EOL 09/30/2010 | |
| 1 | LM100FX | $150 | EOL 12/01/2011 | |
| 1 | LM100FXSM | $150 | EOL 12/01/2011 | |
| 1 | LM100TX | $150 | EOL 12/01/2011 | |
| 1 | LM100TX2 | $150 | EOL 12/31/2009 | |
| 1 | LM100TX3 | $150 | EOL 12/31/2009 | |
| 1 | 944-0045 | LM100TX8 | $150 | EOL 11/05/2017 |
| 1 | 944-0014 | LM100TXS2 | $150 | EOL 01/01/2018 |
| 1 | 944-0015 | LM100TXS8 | $150 | EOL 03/31/2019 |
| 1 | LM10GE221F | $150 | EOL 07/01/2010 | |
| 1 | LM10GE223F | $150 | EOL 07/01/2010 | |
| 1 | LM10GE223M | $150 | EOL 07/01/2010 | |
| 1 | LM10GE224F | $150 | EOL 06/01/2011 | |
| 1 | LM10GE224M | $150 | EOL 07/01/2010 | |
| 1 | LM10GE500F1 | $150 | EOL 07/01/2010 | |
| 1 | LM10GE500F1B | $150 | EOL 07/01/2010 | |
| 1 | LM10GE500M1B | $150 | EOL 07/01/2010 | |
| 1 | LM10GE700F1 | $150 | EOL 12/01/2011 | |
| 1 | LM10GE700F1B | $150 | EOL 06/01/2011 | |
| 1 | LM10GE700F1B-P | $150 | EOL 06/01/2011 | |
| 1 | LM10GE700F1-P | $150 | EOL 12/01/2011 | |
| 1 | LM10GE700M1 | $150 | EOL 06/01/2011 | |
| 1 | LM10GE700M1B | $150 | EOL 06/01/2011 | |
| 1 | LM10GE700M1BGP | $150 | EOL 07/01/2010 | |
| 1 | LM10GE700M2B | $150 | EOL 06/01/2011 | |
| 1 | LM10GE700P3F1B | $150 | EOL 07/01/2010 | |
| 1 | LM10GE700R1B | $150 | EOL 07/01/2010 | |
| 1 | LM10GUEF | $150 | EOL 07/01/2010 | |
| 1 | LM10GUEF-FEC | $150 | EOL 12/01/2011 | |
| 1 | LM10GUEF-P | $150 | EOL 07/01/2010 | |
| 1 | LM10GULF | $150 | EOL 07/01/2010 | |
| 1 | LM10GULF-P | $150 | EOL 12/01/2011 | |
| 1 | LM10GUPF-XFP | $150 | EOL 12/01/2011 | |
| 1 | 945-0004 | LM622MR | $150 | EOL 11/05/2017 |
| 1 | 946-0001 | LM622MR-512 | $150 | EOL 06/30/2020 |
| 1 | LMOC12130 | $150 | EOL 07/01/2010 | |
| 1 | LMOC12131 | $150 | EOL 07/01/2010 | |
| 1 | LMOC12c | $150 | EOL 07/01/2010 | |
| 1 | LMOC12cSM | $150 | EOL 07/01/2010 | |
| 1 | LMOC192101 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192111 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192111R | $150 | EOL 07/01/2010 | |
| 1 | LMOC192112 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192141 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192142 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192168 | $150 | EOL 06/01/2011 | |
| 1 | LMOC192311 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192312 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192368 | $150 | EOL 06/01/2011 | |
| 1 | LMOC192411 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192412 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192468 | $150 | EOL 06/01/2011 | |
| 1 | LMOC192611 | $150 | EOL 07/01/2010 | |
| 1 | LMOC192711 | $150 | EOL 07/01/2010 | |
| 1 | LMOC48112 | $150 | EOL 07/01/2010 | |
| 1 | LMOC48311 | $150 | EOL 06/01/2011 | |
| 1 | LMOC48312 | $150 | EOL 07/01/2010 | |
| 1 | LMOC48312F | $150 | EOL 07/01/2010 | |
| 1 | LMOC48411 | $150 | EOL 06/01/2011 | |
| 1 | LMOC48411M | $150 | EOL 07/01/2010 | |
| 1 | LMOC48C | $150 | EOL 12/01/2011 | |
| 1 | LMOC48C3 | $150 | EOL 12/01/2011 | |
| 1 | LMOC48VAR | $150 | EOL 07/01/2010 | |
| 1 | 944-0022 | LSM10G1-01 | $150 | EOL 02/25/2022 |
| 1 | 944-0024 | LSM10GL1-01 | $150 | EOL 05/14/2015 |
| 1 | 944-0034 | LSM10GMS1-01 | $150 | EOL 03/31/2019 |
| 1 | 944-1038 | LSM10GR1-01 | $150 | EOL 1/1/2018)(CHINAPL |
| 1 | LSM10GXL6-01 | $150 | EOL 08/06/2012 | |
| 1 | 944-0003 | LSM10GXL6-02 | $150 | EOL 07/20/2014 |
| 1 | MSM10G1-01 | $150 | EOL 02/25/2022 | |
| 1 | 944-0012 | MSM10G1-02 | $150 | EOL 02/25/2022 |
| 1 | 945-0003 | MSM2.5G1-01 | $150 | EOL 06/30/2020 |
| 1 | 944-0026 | PLM1000T4-PD | $150 | EOL 06/30/2017 |
| 2 | 944-0013 | ASM1000XMV12X-01 | $300 | EOL 02/10/2015 |
| 2 | 944-0058 | ASM1000XMV12XRTP-01 | $300 | EOL 01/01/2018 |
| 2 | 944-1082 | EIM10G4S | $300 | EOL 02/15/2022 |
| 2 | 944-1081 | EIM1G4S | $300 | EOL 02/15/2022 |
| 2 | 944-1083 | EIM40G2Q | $300 | EOL 02/15/2022 |
| 2 | 944-0021 | ELM1000ST2 | $300 | EOL 11/17/2017 |
| 2 | 950-0001 | FCMGXM4S-01 | $300 | EOL 12/27/2019 |
| 2 | 950-0002 | FCMGXM8S-01 | $300 | EOL 05/04/2022 |
| 2 | 944-0070 | HSE100GETSP1-01 | $300 | EOL 11/05/2017 |
| 2 | 944-0091 | HSE40/100GETSP1-01 | $300 | EOL 12/20/2019 |
| 2 | 944-0092 | HSE40GEQSFP1-01 | $300 | EOL 12/20/2019 |
| 2 | 944-0069 | HSE40GETSP1-01 | $300 | EOL 11/05/2017 |
| 2 | 944-0090 | Ixia NGY-NP2-01, 2-port SFP+ Interface, 1GB RAM | $300 | EOL 03/31/23 |
| 2 | 944-0025 | LSM1000POE4-02 | $300 | EOL 06/30/2017 |
| 2 | 944-0001 | LSM1000XMS12-01 | $300 | EOL 08/25/2015 |
| 2 | 944-1050 | LSM1000XMSP12 | $300 | EOL 11/06/2020 |
| 2 | 944-0002 | LSM1000XMSR12-01 | $300 | EOL 08/25/2015 |
| 2 | 944-0032 | LSM1000XMV12-01 | $300 | EOL 04/05/2015 |
| 2 | 944-0008 | LSM1000XMV16-01 | $300 | EOL 04/15/2015 |
| 2 | 944-0028 | LSM1000XMV4-01 | $300 | EOL 04/15/2015 |
| 2 | 944-0030 | LSM1000XMV8-01 | $300 | EOL 04/05/2015 |
| 2 | 944-1131 | LSM1000XMVAE16 GbE Load Module, 16-Port Dual-PHY (RJ45 and SFP) 10/100/1000 Mbps | $300 | EOL 03/31/23 |
| 2 | 944-1130 | LSM1000XMVAE8 GbE LOAD MODULE, 8-Port Dual-PHY (RJ45 and SFP) 10/100/1000 Mbps | $300 | EOL 03/31/23 |
| 2 | 944-0097 | LSM1000XMVDC12 | $300 | EOL 03/31/23 |
| 2 | 944-0098 | LSM1000XMVDC16 | $300 | EOL 04/30/24 |
| 2 | 944-1072 | LSM1000XMVDC16NG – Fusion Enabled | $300 | EOL 04/30/2024 |
| 2 | 944-1072 | LSM1000XMVDC16NG-02 Fusion 1GbE, 16-port LM – Fusion Enabled | $300 | EOL 03/31/23 |
| 2 | 944-0095 | LSM1000XMVDC4 | $300 | EOL 03/31/23 |
| 2 | 944-1095 | LSM1000XMVDC4NG – Fusion Enabled | $300 | EOL 03/31/23 |
| 2 | 944-0096 | LSM1000XMVDC8 | $300 | EOL 03/31/23 |
| 2 | 944-0033 | LSM1000XMVR12-01 | $300 | EOL 12/30/2019 |
| 2 | 944-0010 | LSM1000XMVR16-01 | $300 | EOL 03/31/2023 |
| 2 | 944-0029 | LSM1000XMVR4-01 | $300 | EOL 12/30/2019 |
| 2 | 944-0031 | LSM1000XMVR8-01 | $300 | EOL 12/30/2019 |
| 2 | 944-0074 | LSM10GXM2GBT-02 | $300 | EOL 12/27/2019 |
| 2 | 944-1096 | LSM10GXM2NG-01 NGY – Fusion Enabled | $300 | EOL 12/27/2019 |
| 2 | 944-0054 | LSM10GXM2S-01 | $300 | EOL 03/31/2023 |
| 2 | 944-1077 | LSM10GXM2SNG,2-PORT FUSION 10GE SFP+ MODULE | $300 | EOL 01/31/2021 |
| 2 | 944-0048 | LSM10GXM2XP-01 | $300 | EOL 12/27/2019 |
| 2 | 944-0004 | LSM10GXM3-01 | $300 | EOL 01/12/2015 |
| 2 | 944-0039 | LSM10GXM4-01 | $300 | EOL 02/01/2015 |
| 2 | 944-0076 | LSM10GXM4GBT-02 | $300 | EOL 12/27/2019 |
| 2 | 944-1071 | LSM10GXM4NG-01 NGY Fusion Enabled | $300 | EOL 12/27/2019 |
| 2 | 944-0050 | LSM10GXM4S-01 | $300 | EOL 03/31/2023 |
| 2 | 944-1076 | LSM10GXM4SNG,4-PORT FUSION 10GE SFP+ MODULE | $300 | EOL 03/31/23 |
| 2 | 944-0059 | LSM10GXM4XP-01 | $300 | EOL 12/27/2019 |
| 2 | 944-0040 | LSM10GXM8-01 | $300 | EOL 02/01/2015 |
| 2 | 944-0078 | LSM10GXM8GBT-02 | $300 | EOL 03/31/2023 |
| 2 | 944-1070 | LSM10GXM8NG-01 NGY Fusion Enabled | $300 | EOL 12/27/2019 |
| 2 | 944-0051 | LSM10GXM8S-01 | $300 | EOL 04/30/2024 |
| 2 | 944-1075 | LSM10GXM8SNG,8-PORT FUSION 10GE SFP+ MODULE | $300 | EOL 03/31/2023 |
| 2 | 944-0060 | LSM10GXM8XP-01 | $300 | EOL 12/27/2019 |
| 2 | 944-0049 | LSM10GXMR2-01 | $300 | EOL 12/27/2019 |
| 2 | 944-0075 | LSM10GXMR2GBT-02 | $300 | EOL 12/27/2019 |
| 2 | 944-0055 | LSM10GXMR2S-01 | $300 | EOL 11/10/2021 |
| 2 | 944-0005 | LSM10GXMR3-01 | $300 | EOL 01/12/2015 |
| 2 | 944-0043 | LSM10GXMR4-01 | $300 | EOL 12/27/2019 |
| 2 | 944-0077 | LSM10GXMR4GBT-02 | $300 | EOL 12/27/2019 |
| 2 | 944-0052 | LSM10GXMR4S-01 | $300 | EOL 11/10/2021 |
| 2 | 944-0044 | LSM10GXMR8-01 | $300 | EOL 12/27/2019 |
| 2 | 944-0079 | LSM10GXMR8GBT-02 | $300 | EOL 03/03/2019 |
| 2 | 944-0053 | LSM10GXMR8S-01 | $300 | EOL 11/10/2021 |
| 2 | 944-0089 | NGY-NP4-01 | $300 | EOL 03/31/23 |
| 2 | 944-0084 | NGY-NP8-01 | $300 | EOL 03/31/2023 |
| 2 | 960-0518 | XAir2 XM Module. For XGS2-SD (940-0010) chassis | $300 | |
| 2 | 944-1062 | Xcellon-Flex AP10/4016SQ 10GbE SFP+/ 40GE QSFP+ | $300 | |
| 2 | 944-1060 | Xcellon-FlexAP10G16S 10GbE SFP+ | $300 | EOL 04/30/24 |
| 2 | 944-1061 | Xcellon-FlexFE10G16S 10GbE SFP+ | $300 | EOL 04/30/24 |
| 2 | 944-1065 | Xcellon-FlexFE40G4Q 40GE QSFP+ | $300 | EOL 10/09/2023 |
| 2 | 944-1067 | Xcellon-Lava AP40/100GE2P 40/100 Gigabit Ethernet CFP load module, 2-ports | $300 | |
| 2 | 944-1074 | Xcellon-Lava AP40/100GE2P-NG FUSION 40/100GE CFP 2-ports, load module | $300 | EOL 03/31/2023 |
| 2 | 944-1068 | Xcellon-LavaAP40/100GE2RP 40/100 Gigabit Ethernet, Reduced Performance load module | $300 | |
| 2 | 944-1073 | Xcellon-Ultra NG (FUSION) | $300 | EOL 09/30/2021 |
| 2 | 944-0083 | Xcellon-Ultra NP-01 | $300 | EOL 04/30/2024 |
| 2 | 944-0082 | Xcellon-Ultra XP-01 | $300 | EOL 10/20/2015 |
| 2 | 944-1080 | Xdensity XDM10G32S | $300 | EOL 12/16/2019 |
| 2 | 944-1098 | XDENSITY,XDM10G8S,10GBE,8-PORTS,SFP+,LOAD MODULE | $300 | EOL 12/16/2019 |
| 3 | 944-1236 | CloudStorm CS25GE8Q28, 25GE 8-port SFP28 Fanout Load Module | $500 | |
| 3 | 944-1252 | CloudStorm-XP CSXP100GE2Q28ALL,100GE 2-port, All speeds enabled, Load Module | $500 | |
| 3 | 944-1253 | CloudStorm-XP CSXP100GE2Q28NGALL,100GE 2-port, All speeds enabled, Fusion Load Module | $500 | |
| 3 | 944-1250 | CloudStorm-XP CSXP10GE8Q28, 10GE 8-port SFP+ Fanout Load Module | $500 | |
| 3 | 944-1251 | CloudStorm-XP CSXP10GE8Q28NG, 10GE 8-port SFP+ Fanout Load Module, Fusion Load Module | $500 | |
| 3 | 944-1232 | CS100GE2Q28 – CloudStorm 100GE 2-port QSFP28 Load Module | $500 | |
| 3 | 944-1234 | CS100GE2Q28ALL – CloudStorm 100 GigE 2-port QSFP28 with all speeds enabled | $500 | |
| 3 | 944-1231 | CS100GE2Q28NG – CloudStorm 100GE 2-port QSFP28 Fusion Load Module | $500 | |
| 3 | 944-1233 | CS100GE2Q28NGALL – CloudStorm 100 GigE 2-port QSFP28 Fusion with all speeds enabled | $500 | |
| 3 | 944-1240 | CS10GE8Q28 – CloudStorm 10 GigE 8-port SFP+ Fanout | $500 | |
| 3 | 944-1239 | CS10GE8Q28NG – CloudStorm 10 GigE 8-port SFP+ Fusion Load Module | $500 | |
| 3 | 944-1235 | CS25GE8Q28NG – CloudStorm 25 GigE 8-port SFP28 Fusion Load Module | $500 | |
| 3 | 944-1238 | CS40GE2Q28 – CloudStorm 40GigE 2-port QSFP+ | $500 | |
| 3 | 944-1237 | CS40GE2Q28NG – CloudStorm 40GigE 2-port QSFP+ Fusion Load Module | $500 | |
| 3 | 944-1242 | DCS100GE2Q28ALL,100GE 2-port, All speeds enabled, Load Module (944-1242) | $500 | |
| 3 | 944-1147 | IXIA NOVUS-R100GE8Q28+FAN, 8-port, QSFP28 100GE reduced load module | $500 | |
| 3 | 944-1203 | IXIA PerfectStorm 1GE 8-port Fusion (PS1GE8NG) | $500 | |
| 3 | 944-1157 | Ixia, NOVUS-W50GE8Q28, 8-port, QSFP28 1x50GE with KP4 FEC | $500 | |
| 3 | 944-1107 | Ixia, Xcellon-Multis XMR10GE32SFP+FAN 10-Gigabit Ethernet, Reduced load module | $500 | |
| 3 | 944-1142 | NOVUS10/1GE16DP, 16-port, SFP+/10GBASE-T Dual-PHY 10GE/1GE/100M load module | $500 | |
| 3 | 944-1141 | NOVUS10/1GE32S, 32-port, SFP+ 10GE/1GE/100M full feature and performance load module | $500 | |
| 3 | 944-1143 | NOVUS10/1GE8DP, 8-port enablement on the 16-port SFP+/10GBASE-T Dual-PHY 10GE/1GE/100M load module 944-1142 | $500 | |
| 3 | 944-1148 | NOVUS10/5/2.5/1/100M16DP, 5-speed,16-port, SFP+/10GBASE-T Dual-PHY full scale and performance load module | $500 | |
| 3 | 944-1154 | NOVUS10/5/2.5/1/100M16DP-R, 5-speed,16-port, SFP+/10GBASE-T Dual-PHY reduced scale and performance load module | $500 | |
| 3 | 944-1149 | NOVUS10/5/2.5/1/100M8DP, 5-speed, 8-port, SFP+/10GBASE-T Dual-PHY full scale and performance load module | $500 | |
| 3 | 944-1155 | NOVUS10/5/2.5/1/100M8DP-R, 5-speed,8-port, SFP+/10GBASE-T Dual-PHY reduced scale and performance load module | $500 | |
| 3 | 944-1165 | NOVUS100GE4Q28+FAN, 4-port enablement on the NOVUS100GE8Q28+FAN load module (944-1140), 1-slot with 4-ports, L2-3 load module with complete protocol coverage, and full scale and performance | $500 | |
| 3 | 944-1140 | NOVUS100GE8Q28+FAN, 8-port, QSFP28 100GE load module | $500 | |
| 3 | 944-1146 | NOVUS1GE16DP, 16-port 1GE/100M SFP+/1000BASE-T Dual-PHY load module | $500 | |
| 3 | 944-1156 | NOVUS-M100GE8Q28+FAN, 8-port, QSFP28 100GE mid-range scale and performance, L2-3 load module | $500 | |
| 3 | 944-1162 | NOVUS-NP10/1GE16DP, 16-port, SFP+/10GBASE-T Dual-PHY 10GE/1GE/100M load module | $500 | |
| 3 | 944-1163 | NOVUS-NP10/1GE8DP, 8-port enablement on the 16-port SFP+/10GBASE-T Dual-PHY 10GE/1GE/100M NP load module | $500 | |
| 3 | 944-1164 | NOVUS-S 10/25GE8SFP28, 8-port, SFP28 10GE/25GE load module, 1-slot with 8-ports adaptor based SFP28 physical interface. (944-1164) | $500 | |
| 3 | 944-1206 | PerfectStorm 100GE 1-port Load Module, CXP | $500 | |
| 3 | 944-1202 | PerfectStorm 100GE Fusion 1-port Load Module, CXP | $500 | |
| 3 | 944-1208 | PerfectStorm 10GE 2-port Load Module, SFP+ (PS10GE2) | $500 | |
| 3 | 944-1207 | PerfectStorm 10GE 4-port Load Module, SFP+ (PS10GE4) | $500 | |
| 3 | 944-1204 | PerfectStorm 10GE 8-port (PS10GE8) | $500 | |
| 3 | 944-1200 | PerfectStorm 10GE Fusion 8-port (PS10GE8NG) | $500 | |
| 3 | 944-1205 | PerfectStorm 40GE 2-port (PS40GE2) | $500 | |
| 3 | 944-1201 | PerfectStorm 40GE Fusion 2-port (PS40GE2NG) | $500 | |
| 3 | 944-1114 | Xcellon-Multis Reduced XMR40GE12QSFP+ 40-Gigabit Ethernet | $500 | |
| 3 | 944-1115 | Xcellon-Multis Reduced XMR40GE6QSFP+ 40-Gigabit Ethernet | $500 | |
| 3 | 944-1105 | Xcellon-Multis XM10/40GE12QSFP+FAN 40-Gigabit Ethernet, native QSFP | $500 | |
| 3 | 944-1109 | Xcellon-Multis XM10/40GE6QSFP+FAN 40-Gigabit Ethernet, native QSFP | $500 | |
| 3 | 944-1110 | Xcellon-Multis XM100GE4CFP4 100GE CFP4, 4-port, single rate (Phase 1 HW) | $500 | EOL 12/31/2015 |
| 3 | 944-1111 | Xcellon-Multis XM100GE4CFP4+ENH 100GE CFP4, 4-port enhanced load module with Ethernet FEC | $500 | |
| 3 | 944-1100 | Xcellon-Multis XM100GE4CXP 100-Gigabit Ethernet, 4-ports | $500 | EOL 04/30/2024 |
| 3 | 944-1101 | Xcellon-Multis XM100GE4CXP+FAN 100/40-Gigabit Ethernet, 4-ports 100GE, 12-ports 40GE | $500 | |
| 3 | 944-1116 | Xcellon-Multis XM100GE4QSFP28, 100GE QSFP28, 4-port, single rate (Phase 1 HW) | $500 | EOL 12/31/2015 |
| 3 | 944-1117 | Xcellon-Multis XM100GE4QSFP28+ENH 100GE QSFP28, 4-port Enhanced load module with Ethernet FEC | $500 | |
| 3 | 944-1102 | Xcellon-Multis XM40GE12QSFP+FAN 40-Gigabit Ethernet | $500 | EOL 03/01/2021 |
| 3 | 944-1108 | Xcellon-Multis XMR10GE16SFP+FAN 10-Gigabit Ethernet, Reduced load module | $500 | |
| 3 | 944-1132 | XMAVB10/40GE6QSFP+FAN 40-GIGABIT ETHERNET LOAD MODULE | $500 |
Captured statistics – sample per-port field set
Sample field set from the report attached to this listing, logged continuously for the whole
window. These are sample fields – the actual output fields vary by module, and every family gets the complete set
its hardware exposes.
Link & port state
Link State · Line Speed · Link Fault State · Port CPU Status · Port CPU DoD Status
Traffic counters & measured rates
Frames Sent · Frames Sent Rate · Valid Frames Received · Valid Frames Received Rate · Bytes Sent · Bytes Sent Rate · Bytes Received · Bytes Received Rate · Bits Sent · Bits Sent Rate · Bits Received · Bits Received Rate · Scheduled Frames Sent · Asynchronous Frames Sent · Port CPU Frames Sent
Transmit timing
Transmit Duration(Cleared on Start Tx) · Scheduled Transmit Duration · Bytes Sent / Transmit Duration
Error & integrity counters
CRC Errors · Oversize and CRC Errors · Fragments · Undersize · Oversize · IPv4 Checksum Errors · UDP Checksum Errors · TCP Checksum Errors
Rate faults & PCS layer
Local Faults · Remote Faults · PCS Sync Errors · PCS Illegal Codes · PCS Local Faults · PCS Remote Faults · PCS Illegal Ordered Set · PCS Illegal Idle · PCS Illegal SOF · PCS Out Of Order SOF · PCS Out Of Order EOF · PCS Out Of Order Data · PCS Out Of Order Ordered Set
Flow control & pause
Flow Control Frames Received · Pause End Frames · Pause Overwrite · Protocol Server Vlan Dropped Frames
Protocol engine
ProtocolServer Transmit · ProtocolServer Receive · Transmit Arp Request · Transmit Arp Reply · Receive Arp Request · Receive Arp Reply · Transmit Ping Request · Transmit Ping Reply · Receive Ping Request · Receive Ping Reply · Transmit Neighbor Solicitations · Transmit Neighbor Advertisements · Receive Neighbor Solicitations · Receive Neighbor Advertisements · IPv4 Packets Received · UDP Packets Received · TCP Packets Received · Vlan Tagged Frames
Capture & user-defined stats
Capture Trigger (UDS 3) · Capture Filter (UDS 4) · User Defined Stat 1 · User Defined Stat 2 · User Defined Stat 5 · User Defined Stat 6 · User Defined Stat Byte Count 1 · User Defined Stat Byte Count 2
FPGA / PHY thermal sensors
TxSchedulerOverlay Fpga Temperature(C) · TxFmx Fpga Temperature(C) · Capture1 Fpga Temperature(C) · Latency1 Fpga Temperature(C) · Pcpu Fpga Temperature(C) · PHY Chip Temperature(C)
Methodology
| 1 | Correct tooling. Each card is driven by the IxOS client generation it shipped for. |
| 2 | Clean baseline, traffic undisturbed. Counters cleared without stopping the port; every error counter verified zero at window start. |
| 3 | Measured rates, not counter diffs. Rates come from IxServer’s computed rate statistics; counter-differenced rates drift past the physical ceiling and are treated as a methodology bug. |
| 4 | Sustained-behaviour verdicts. PASS requires link held at negotiated speed, zero flaps, zero error/fault accumulation, temperatures in range – for the entire window. |
| 5 | Physical-layer attribution. CRC on copper media is attributed to cabling, not the module; ports idle all window report IDLE, never FAIL. |
Process & terms
| 1 | Select your module’s Group in the dropdown and purchase. Ship the module in ESD-safe packaging (address provided after checkout). Insure it in transit. |
| 2 | Bench time is typically [EDIT: 3-5] business days after arrival. You receive the PDF by eBay message / email; the module ships back [EDIT: state return-shipping terms]. |
| 3 | Price is per module, set by the Group selected. Failed modules receive the engineering failure analysis with repair recommendations; the price is the same either way. |
| 4 | Testing is non-destructive and read-only. Modules with pre-existing physical damage are tested at owner’s risk. No configurations or data are retained from your hardware. |
| 5 | Service listing – no returns; turnaround counts bench time, not calendar time from purchase. |
Sample documentation
Pages from a delivered validation report and a delivered engineering failure analysis.
Customer details are redacted; the red callouts mark what each section reports. Your report carries your company
and order details, and its filename carries your module’s serial number.
Cover certification
The verdict is stated on page 1. The banner reports PASS or FAIL for the module as a whole, above your company and order block, with the methodology and stated limitations set out before any measurement is shown.
Hardware under test, thermal profile and conformance checklist
Identity is read from the module’s EEPROM, not copied from paperwork: serial, assembly, revision and port count. The on-card sensors are reported against the manufacturer warning threshold, and each conformance test states its pass criterion and the result held across every sample on every port.
Full-field statistics aggregate
Every logged field gets its own row, per port, for the whole window. Error counters that read zero are printed explicitly rather than summarized away, so “no errors” is a measurement you can check line by line instead of a claim.
Time-series graphs
Throughput and frame rate plotted against the physical line-rate ceiling for the port, plus every thermal sensor across the entire soak. A module that only behaves for the first few minutes has nowhere to hide in a full-window plot.
Validation sign-off
The certification page: chassis, module tested, overall result, and a hand signature applied on delivery. This is the page you forward to your customer or attach to your own resale listing.
Engineering failure analysis
What a failed module receives instead. The bring-up sequence is compared step by step against a known-good module of the same type to establish the exact divergence point, with register-level evidence, board-level fault localization, and repair recommendations. Included at no extra charge.
Zombie Components LLC · 13177 Foothill Boulevard, Sylmar, CA 91342, United States ·
TIN 934147673 · www.zombiecomponents.com · +1.909.747.9984 · ahall@zombiecomponents.com
TIN 934147673 · www.zombiecomponents.com · +1.909.747.9984 · ahall@zombiecomponents.com
Additional information
| Weight | 20.0000 lbs |
|---|---|
| Dimensions | 24 × 18 × 6 in |
| Brand | |
| MODEL | Ixia Load Module Test Service |
| PRODUCT | Network testing |
| MPN | |
| COUNTRY OF ORIGIN | United States |
| Condition | |
| Pricing Group | Group 1, Group 2, Group 3 |
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Related products
LAN/WAN & Protocol Analyzers
Ixia Optixia Xm-12 Windows 7 With Ixos 6.70 + Ixnetwork + Ixrouter Permanent
$3,799.99
LAN/WAN & Protocol Analyzers
Ixia Optixia Xm-12 With Ixos 6.90 & 6.70 + Ixload + Ixnetwork + Analyzer
$3,799.99
LAN/WAN & Protocol Analyzers
Ixia K2 hse100getsp1-01 100GB/S Wire Speed Ethernet / IP Test Module
$3,999.99
Reviews
There are no reviews yet.
