Description
| Zombie Components LLC | www.zombiecomponents.com |

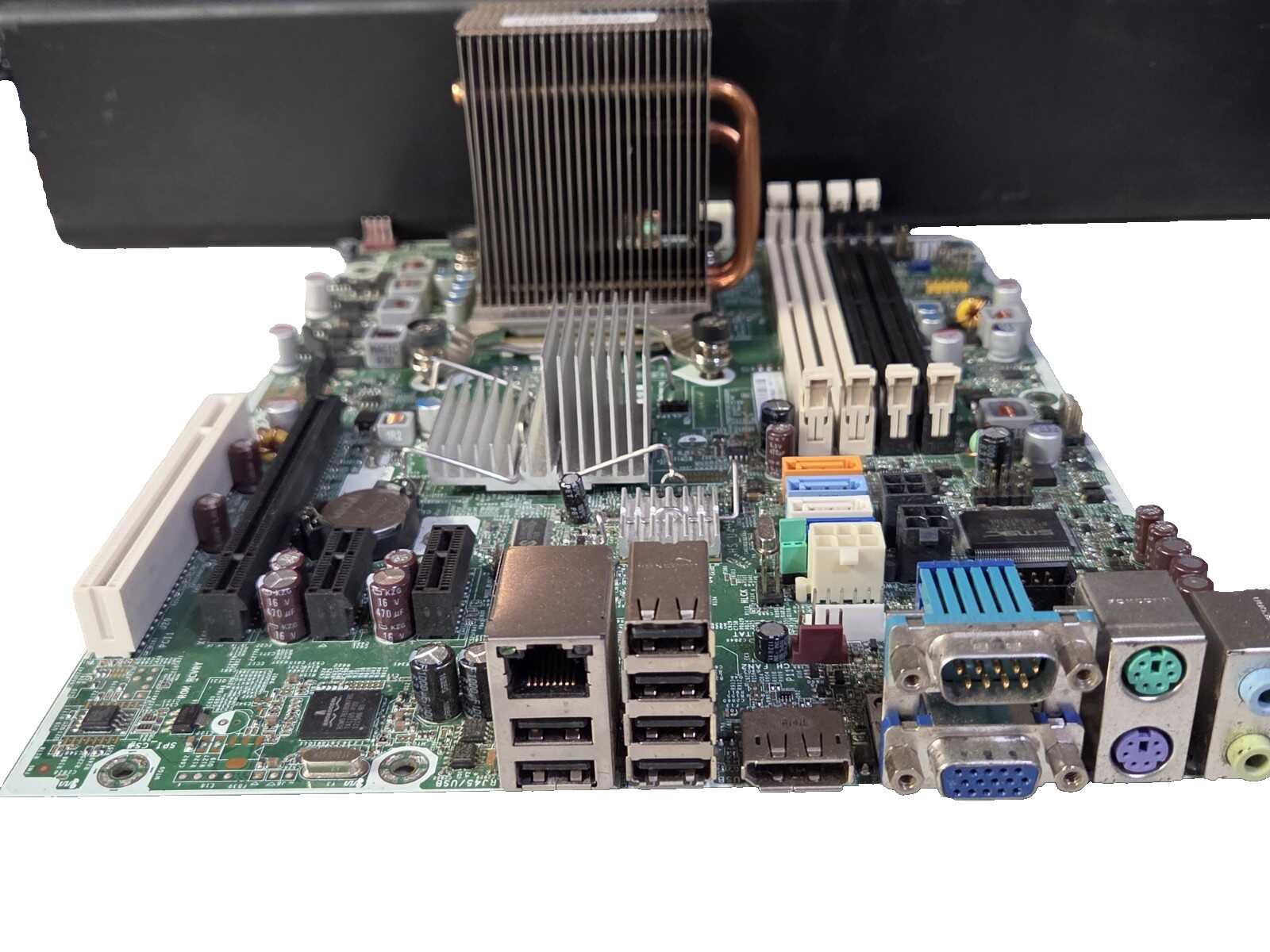

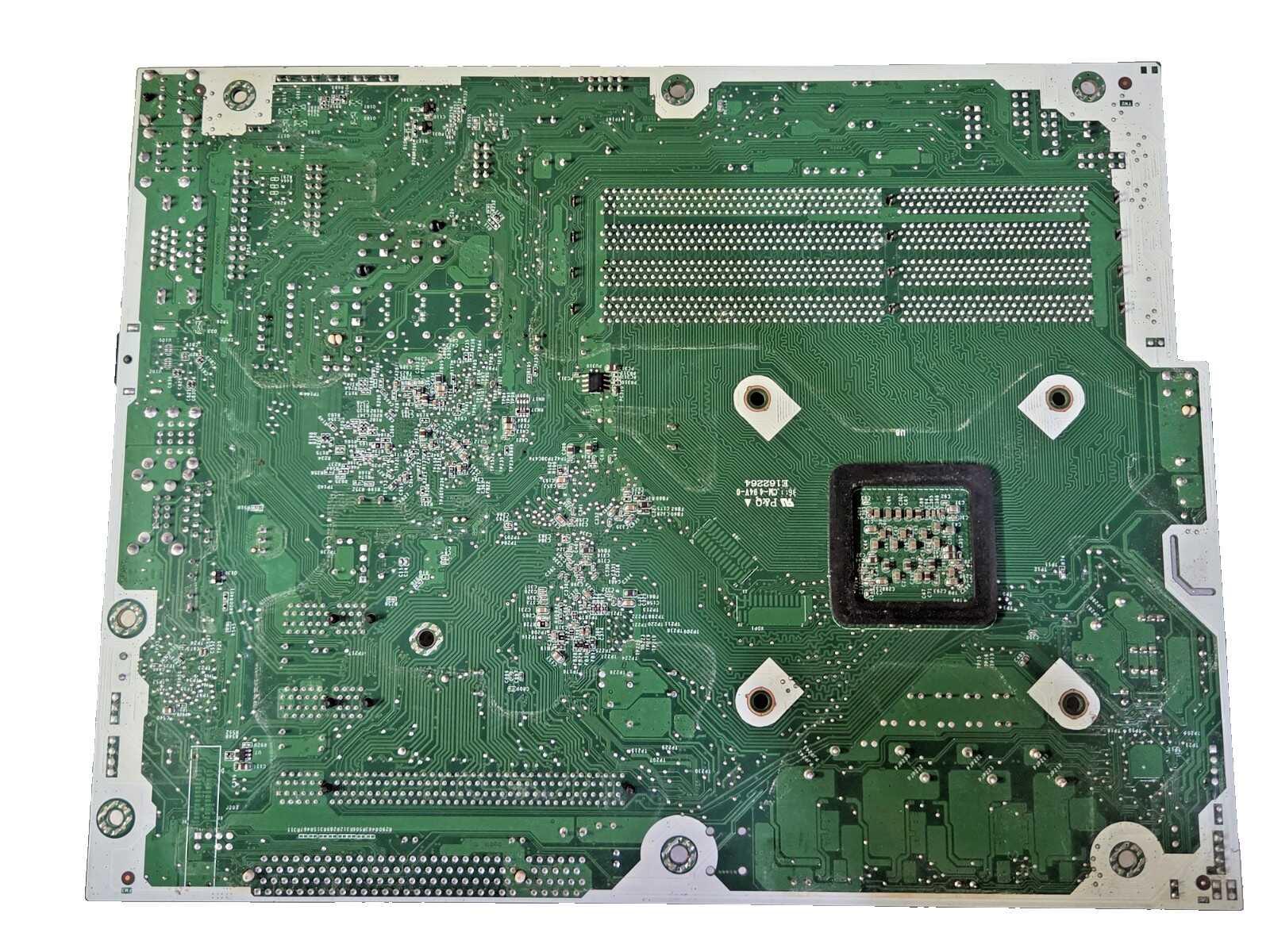

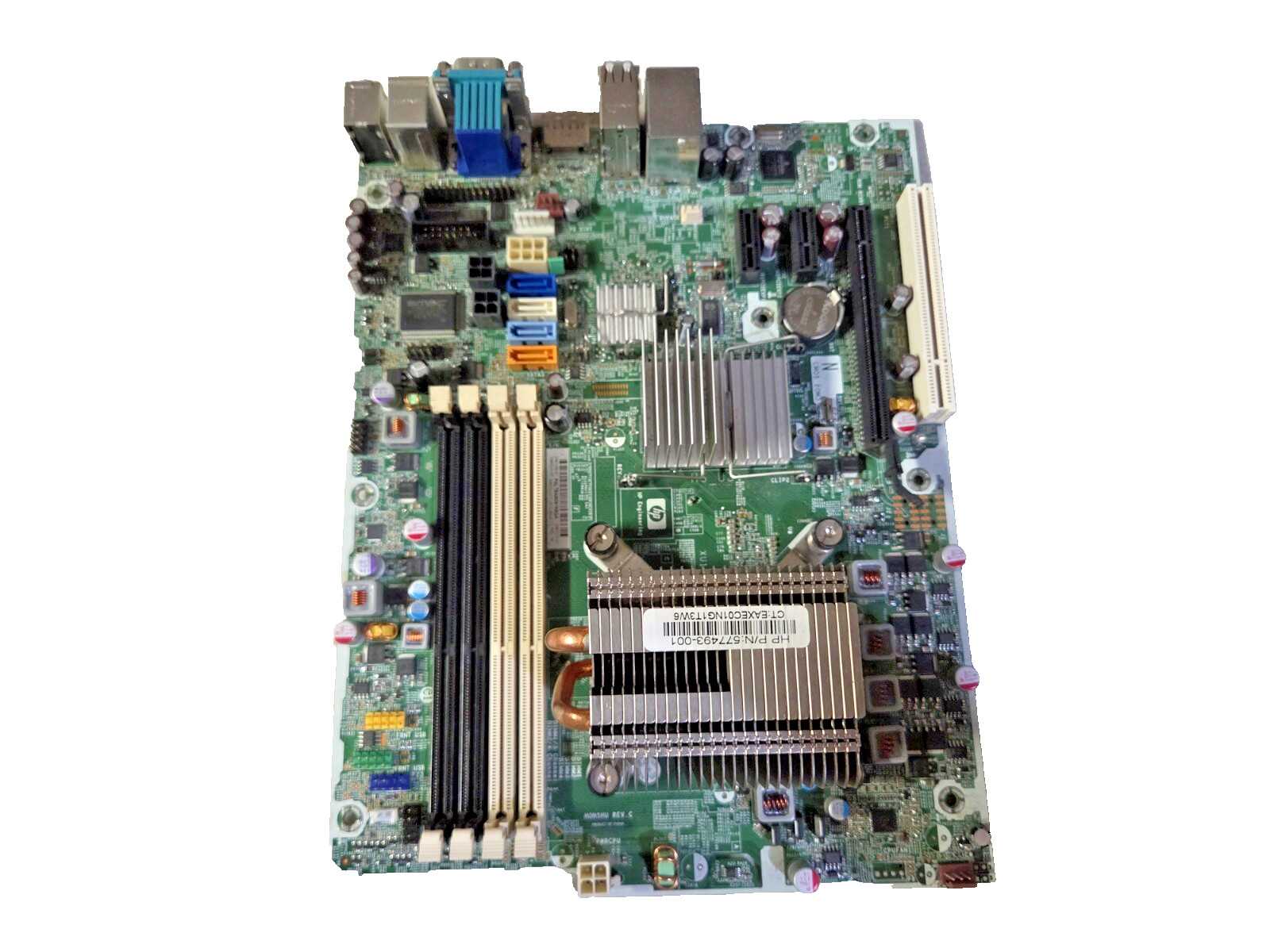

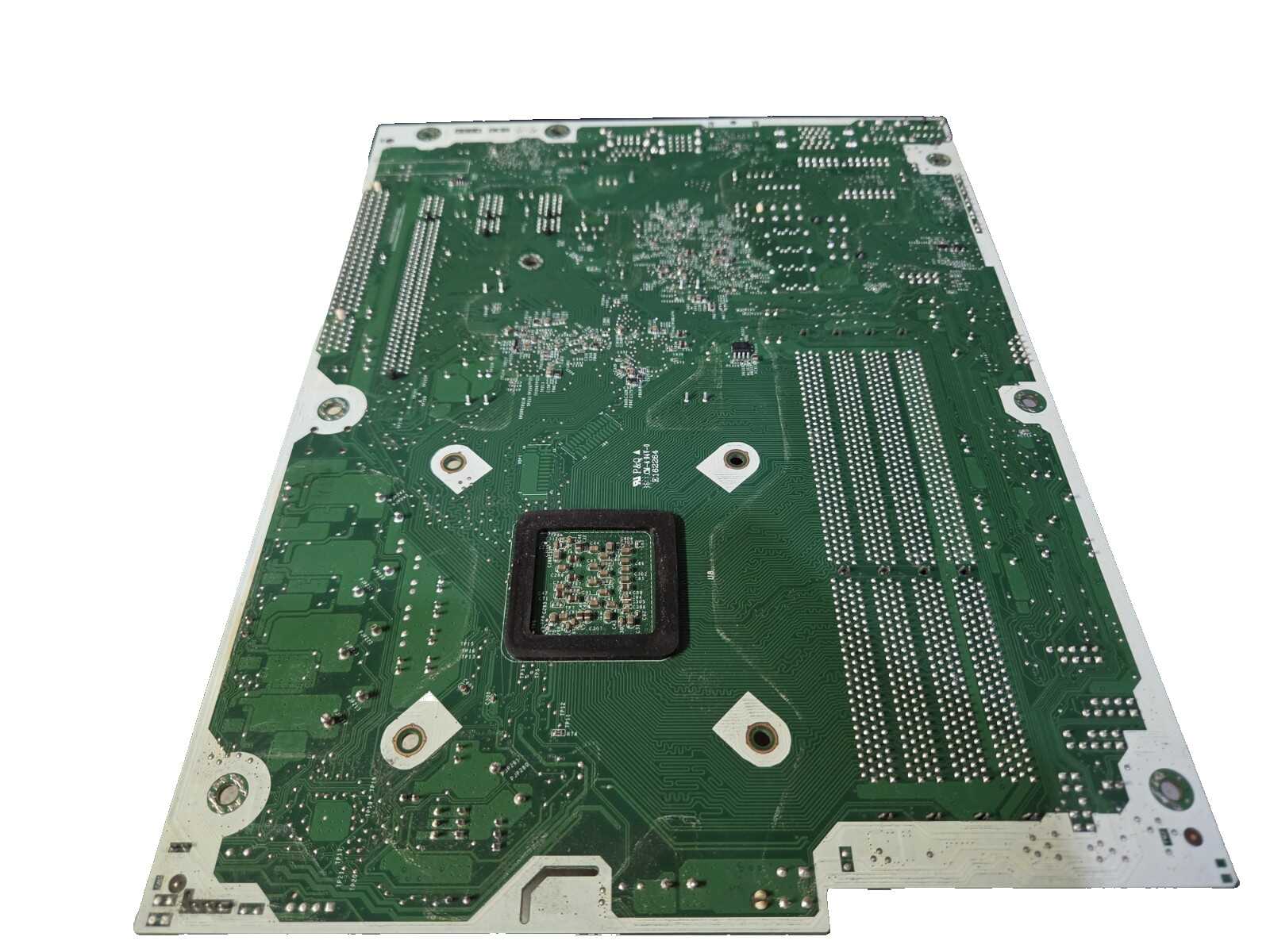

HP Compaq 6005 Pro Small Form Factor system board, HP spare part number 531966-001, assembly 503335-001, board silkscreen HONSHU REV.C, board serial PALTBABD61N9QA. Socket AM3 with an AMD Athlon II X2 B26 dual core 3.2 GHz processor installed and the OEM HP passive heatsink, HP part number 577493-001, fitted. This is the factory processor configuration for this board. Board only, see the Not included section.
60 Day Money Back Guarantee.
| Parameter | Value |
| Manufacturer | HP |
| Model | Compaq 6005 Pro Small Form Factor system board |
| HP spare part number | 531966-001 |
| HP assembly number | 503335-001 |

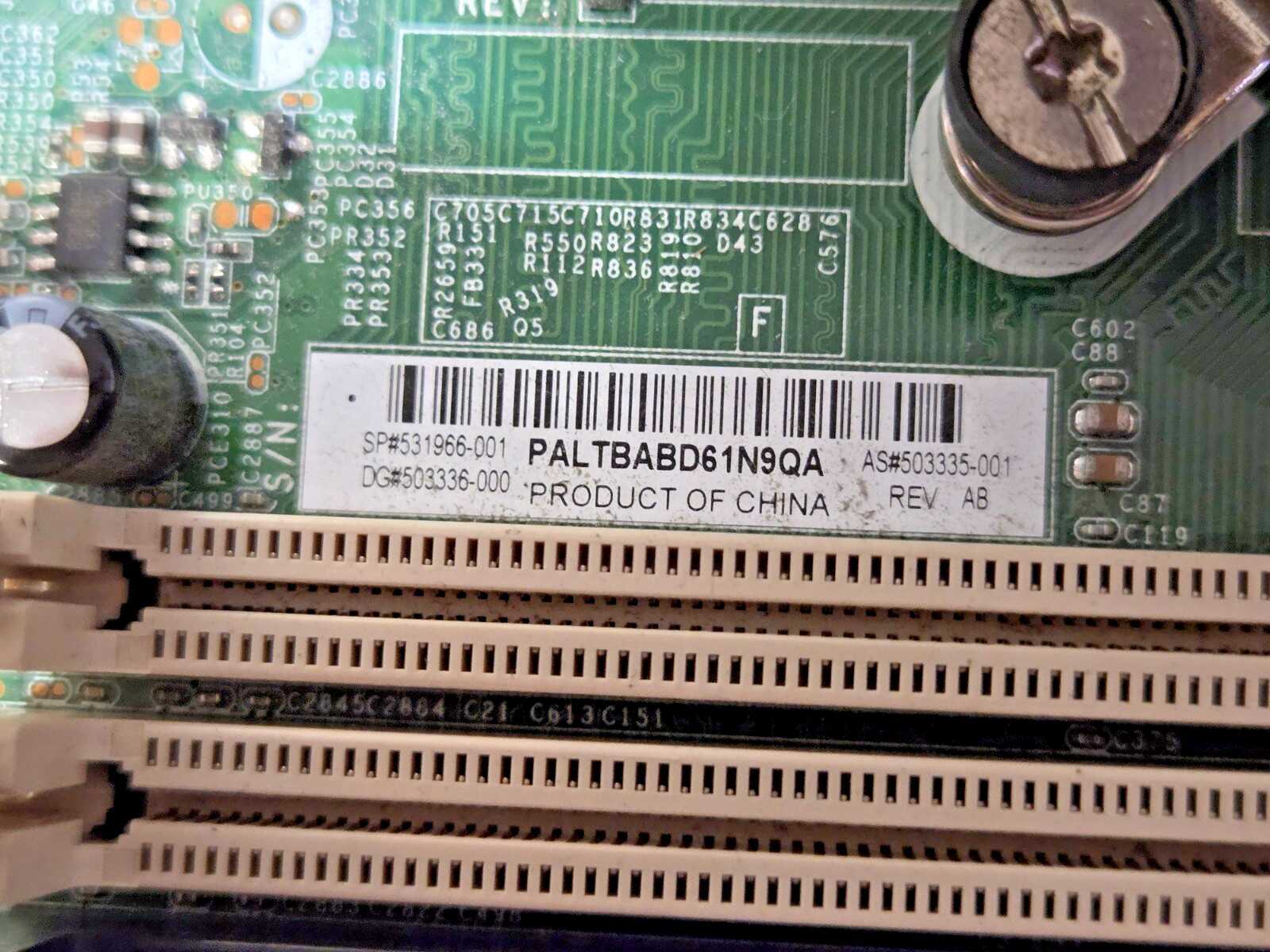

| HP drawing number | 503336-000, board revision AB, silkscreen HONSHU REV.C |
| Board serial number | PALTBABD61N9QA |
| Chipset | AMD 785G with integrated ATI Radeon HD 4200 graphics, DirectX 10.1 |
| CPU socket | AM3, 938 pin PGA |
| Memory | four 240 pin DDR3 non ECC unbuffered DIMM slots, dual channel, PC3-10600 DDR3-1333, 16 GB maximum |
| Form factor | DTX, HP 6005 Pro SFF mounting pattern |
| Expansion slots as fitted | one PCI, two PCIe x1, one PCIe x16 |
| Storage | four SATA ports |
| Rear I/O | RJ-45 network, six USB Type A, DisplayPort, DE-9 serial, VGA, two PS/2, three analog audio jacks |
| Power connectors | 6 pin main and 4 pin CPU, HP proprietary, not standard ATX Processor |
| Manufacturer | AMD |
| Model | Athlon II X2 B26 |
| Order part number | ADXB26OCK23GM |
| Marking line | WAEKC AE 1150PNS, lot 9B05314L10393 |
| Cores and threads | 2 and 2 |
| Clock | 2 GHz, no turbo, locked multiplier |
| Cache | L1 2 x 64 KB instruction plus 2 x 64 KB data, L2 2 x 1 MB, no L3 |
| Core | Regor, K10, 45 nm |
| Socket | AM3, also compatible with AM2+ |
| HyperTransport | 2000 MHz 16 bit link, 4.0 GT/s |
| Memory controller | integrated dual channel, DDR2 and DDR3 |
| TDP | 65 W |
| Maximum operating temperature | 74 C |
| Features | AMD64, AMD-V, SSE4a, Cool’n’Quiet 3.0, CoolCore, EVP Marked DIFFUSED IN GERMANY, MADE IN MALAYSIA |
HP Compaq 6005 Pro SFF system board, spare part 531966-001

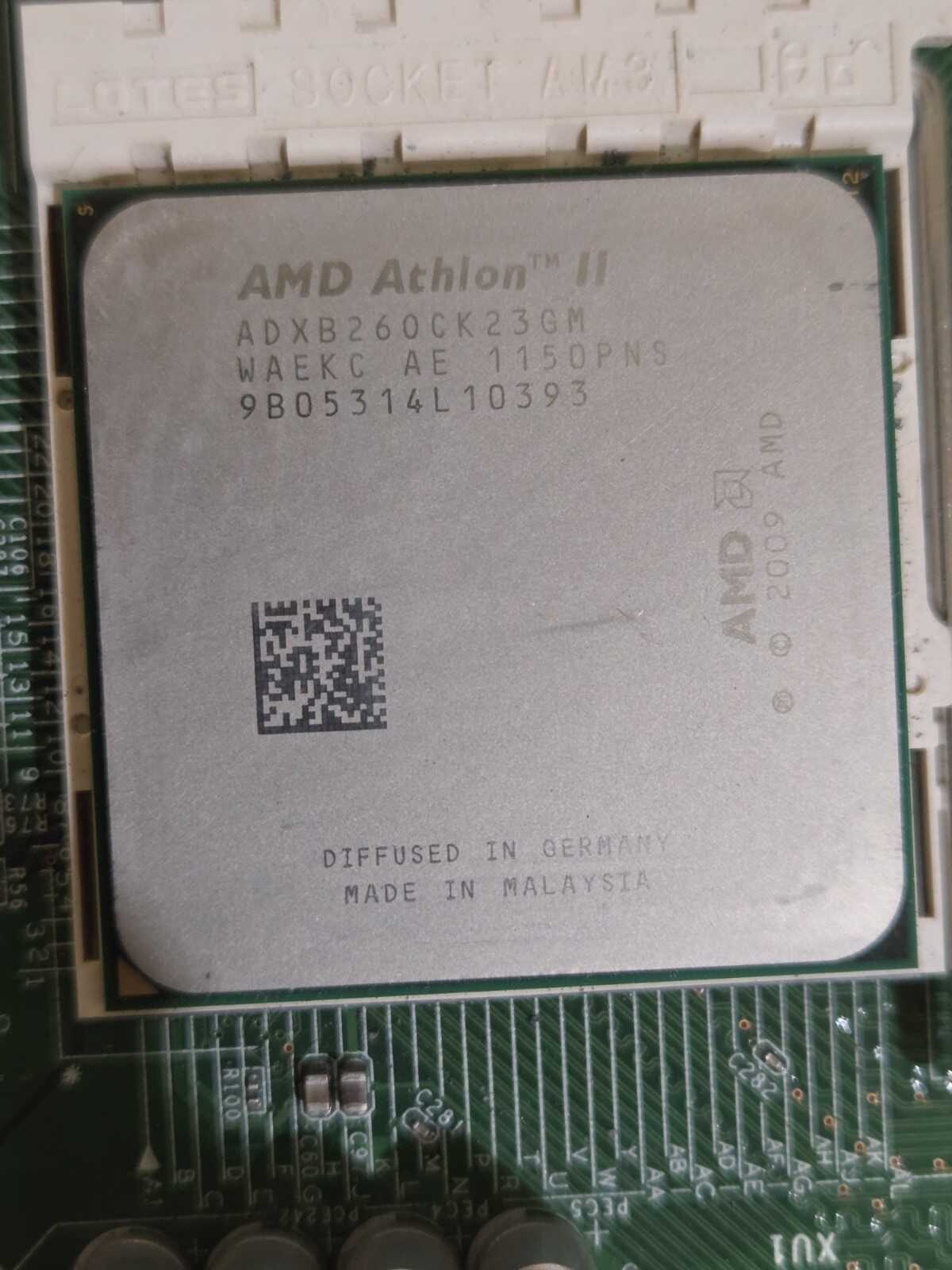

AMD Athlon II X2 B26 processor, installed in the AM3 socket

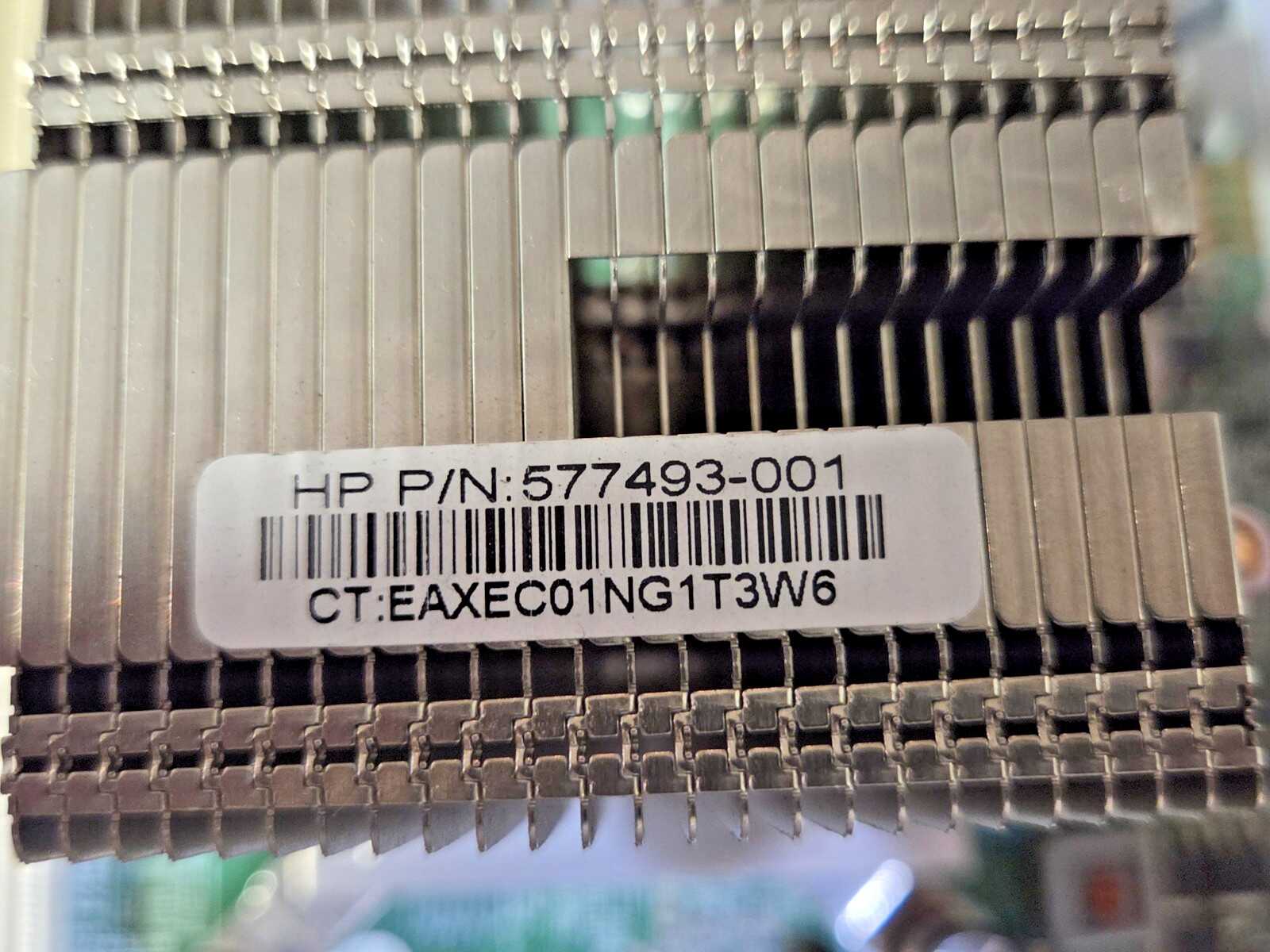

OEM passive CPU heatsink, HP part 577493-001, with retention hardware
Both chipset heatsinks with wire clips
CMOS coin cell battery, installed
Not included:
Rear I/O shield
Memory
CPU fan, air duct, or chassis fan
Chassis, power supply, drives, cables, expansion cards
Thermal compound
Operating system, license, recovery media, or documentation
This is an HP OEM board, not a retail board. It fits the HP Compaq 6005 Pro Small Form Factor chassis. It is DTX form factor with the HP SFF standoff pattern and an HP specific rear I/O layout, so it does not drop into a standard ATX or microATX case, and no I/O shield is supplied.
Power: requires an HP 6005 Pro SFF power supply or an equivalent adapter. The main connector is 6 pin and the CPU connector is 4 pin. A standard ATX 24 pin supply will not connect directly.
Memory: DDR3 non ECC unbuffered DIMMs, PC3-10600 DDR3-1333, up to 16 GB across four slots. DDR2 will not fit the AM3 socket board.
Processor: the installed Athlon II X2 B26 is a standard AM3 PGA part and can be removed.
Cooling: the supplied heatsink is passive and was designed to work inside the 6005 Pro SFF chassis with its fan and duct. Neither the fan nor the duct is included. Provide airflow.
BIOS: no BIOS password or asset lock check was performed. Buyers who need a confirmed clear BIOS should ask before purchase.
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Shipping weight: 6 lb, item plus packing.
Ships in an antistatic bag, boxed with foam and void fill. Not a freight item.
Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.
We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.
International shipments may be delayed or cancelled due to EAR and ITAR export compliance requirements. The vast majority of our items need no export license and ship under EAR99 and other exemptions; items that require a license are indicated in the listing.
This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.
All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.
If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
We do not keep or share your information anywhere. Your information resides only on eBay and is available to us only for a limited time while we interact with you on an inquiry, order, or return, per eBay usage policies.
Additional information
| Weight | 4.0000 lbs |
|---|---|
| Dimensions | 14 × 14 × 6 in |
| Brand | |
| FORM FACTOR | Sff |
| SOCKET TYPE | Socket AM3 |
| COMPATIBLE CPU BRAND | AMD |
| UNIT TYPE | Unit |
| EXPANSION SLOTS | PCI Express x16 |
| MPN | |
| MOST SUITABLE FOR | Casual Computing |
| MEMORY TYPE | DDR3 SDRAM |
| COUNTRY OF ORIGIN | China |
| Condition | |
| Condition Description |
