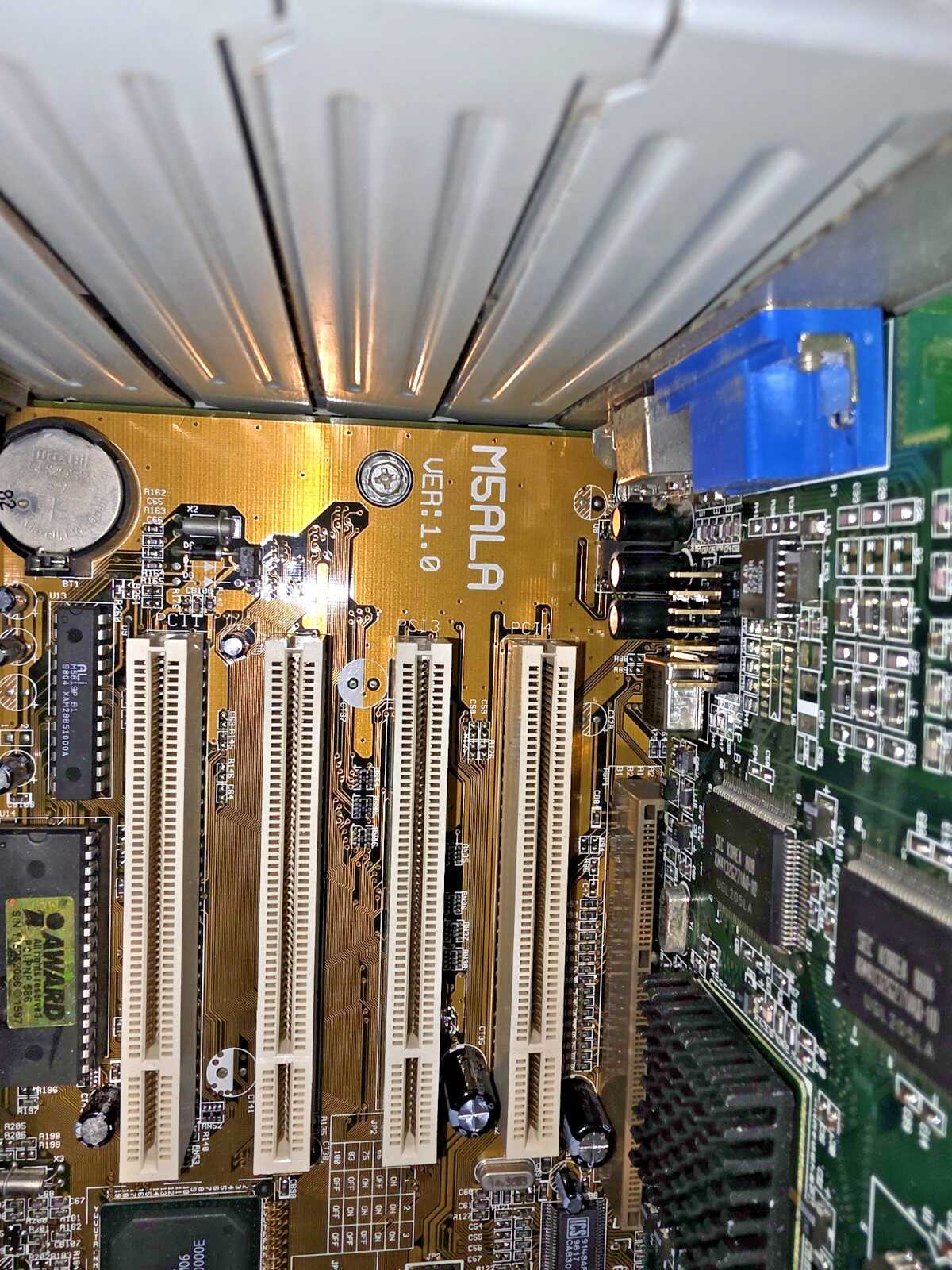

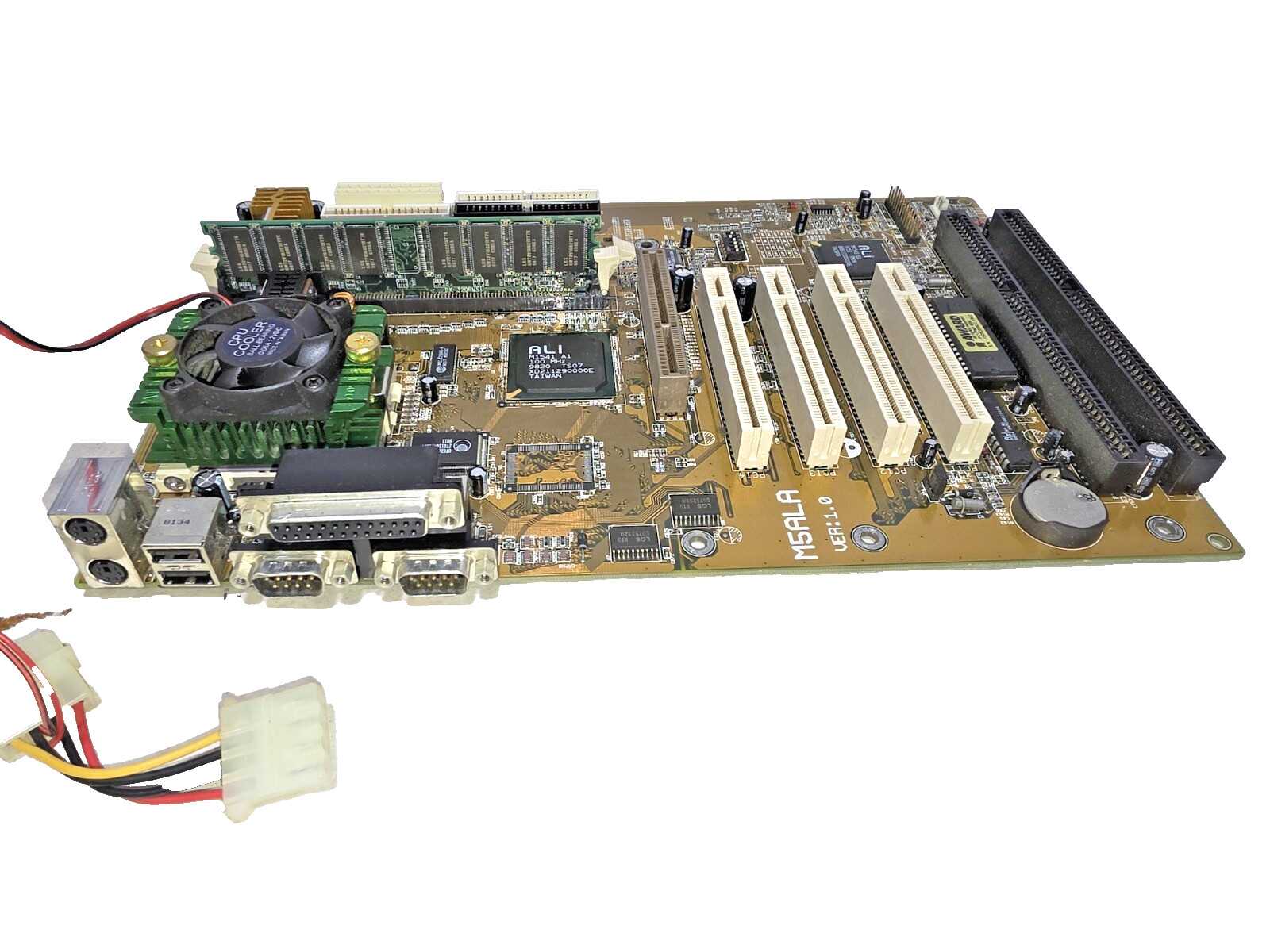

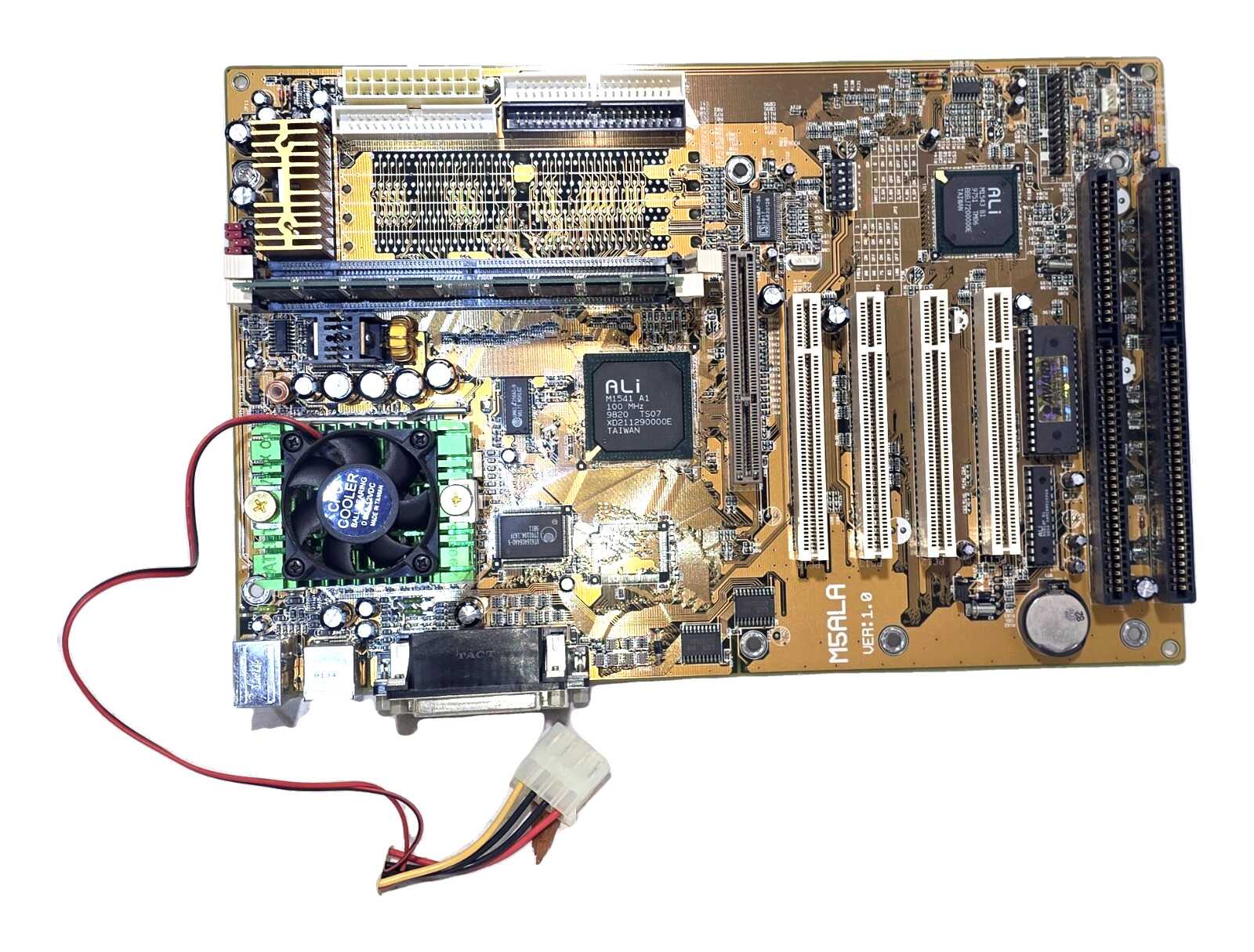

Biostar M5ALA Ver 1.0 Super Socket 7 ATX motherboard built on the ALi Aladdin V
chipset, M1541 northbridge and M1543 southbridge. An AMD-K6-2/300AFR processor
is installed in the Socket 7 ZIF with its heatsink and fan, and one 32 MB PC100

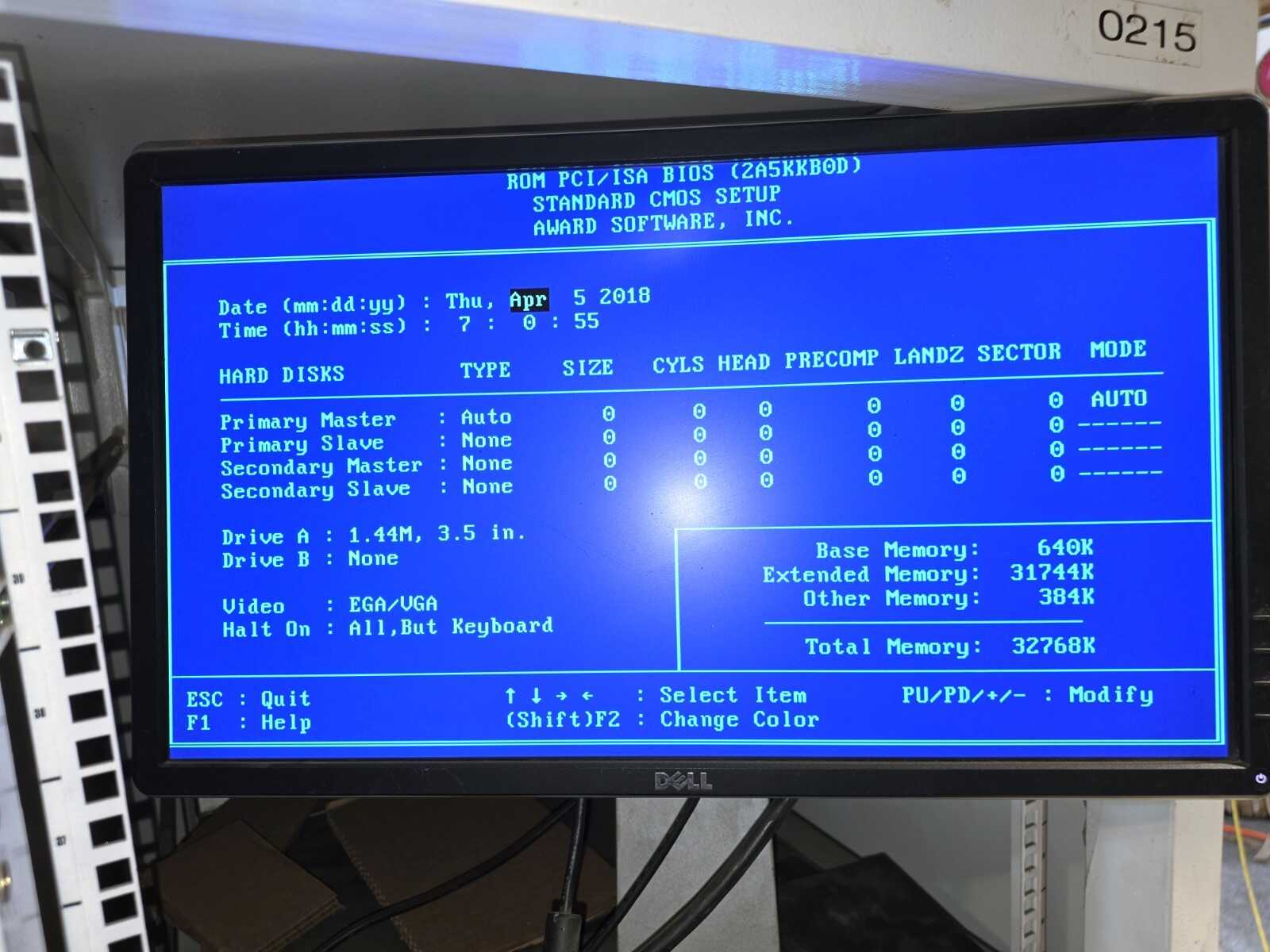

SDRAM DIMM is fitted. The board was photographed running its own Award BIOS
Standard CMOS Setup, BIOS ID 2A5KKB0D, reporting 640K base memory, 31744K
extended memory and 32768K total, which matches the memory installed. Sold as a
board level assembly. This is not a complete computer.
60 Day Money Back Guarantee. POST to Award BIOS Standard CMOS Setup only.
- Powers on and reaches BIOS Setup with a correct memory count.

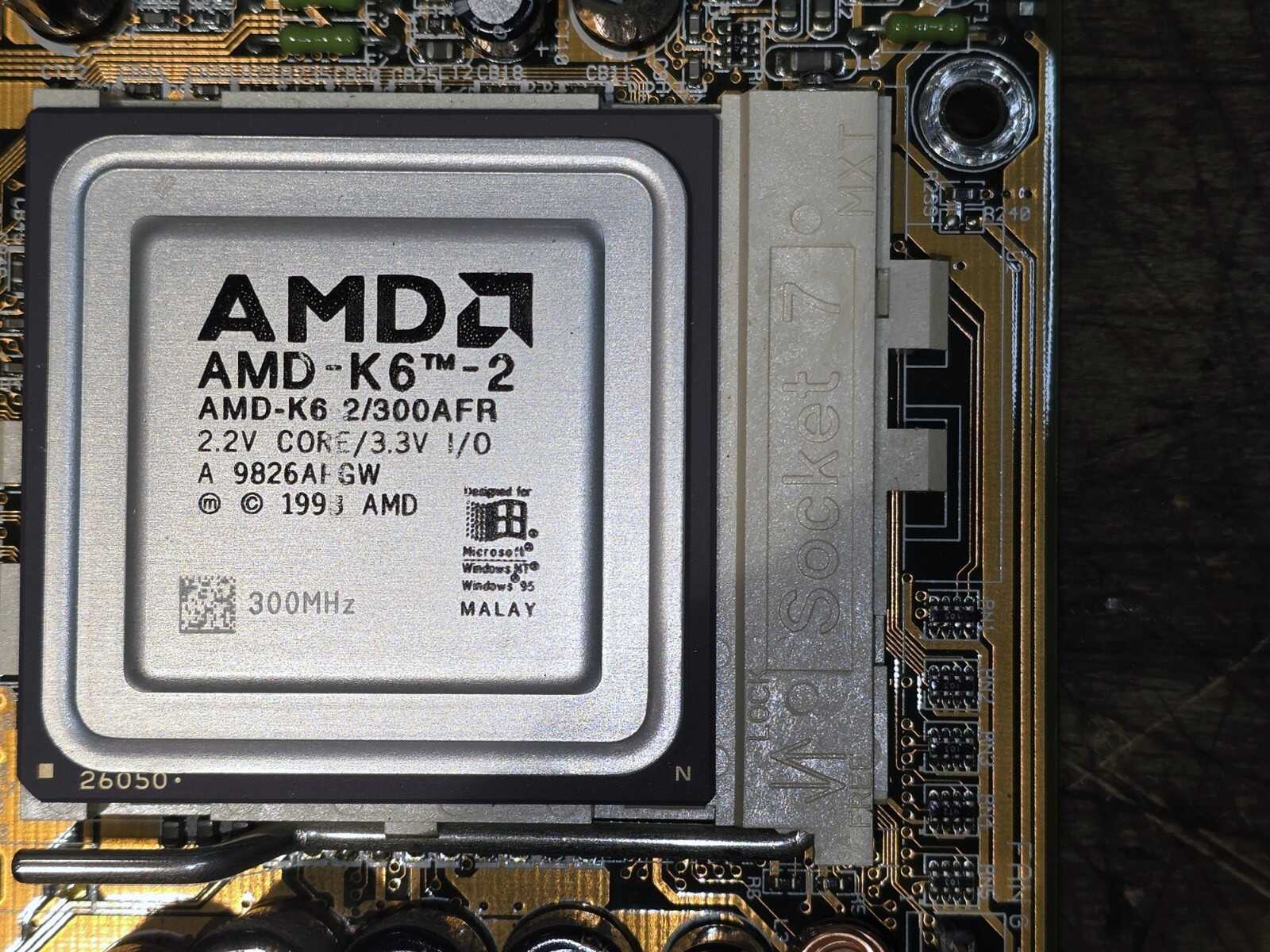

- AMD-K6-2/300AFR installed, all markings legible, no bent pins visible.
- CPU heatsink and fan present with a Molex adapter lead.

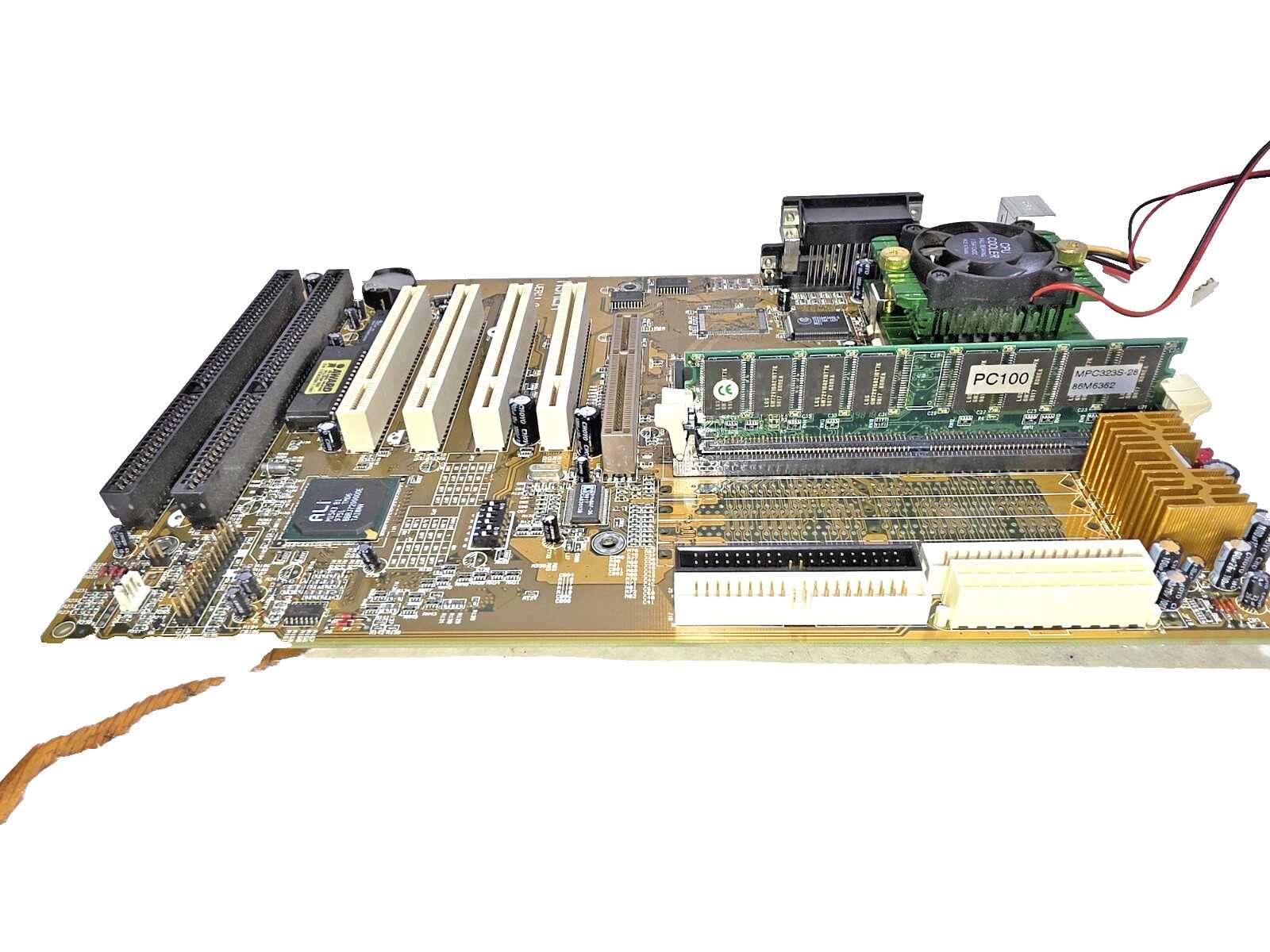

- 32 MB PC100 SDRAM DIMM included.
- CR2032 battery fitted, no leakage or corrosion at BT1.
- All expansion slots present and undamaged: 1 AGP, 4 PCI, 2 ISA.
- Full rear I/O intact: 2x PS/2, 2x USB, 2x DB-9 serial, 1x DB-25 parallel.
- BIOS EPROM present in its socket, not pulled.
- Electrolytics stand straight, no bulging or venting seen.
- Socket 7 ZIF lever intact and worked, CPU was removed and refitted for photos.
- 100 MHz FSB jumper table printed on the board, so it is a Super Socket 7 board.
- Able to take K6-2 and K6-III class parts.
| Parameter | Value |
| MPN | M5ALA |
| Brand | Biostar |
| Board revision | VER:1.0 |
| Form factor | ATX, 300 x 200 mm, 11.8 x 7.9 in |
| Chipset | ALi Aladdin V, M1541 A1 northbridge marked 100 MHz, M1543 B1 southbridge |
| CPU socket | Socket 7 ZIF, 321 pin |
| Processor installed | AMD-K6-2/300AFR, 300 MHz, 2.2 V core and 3.3 V I/O, 32 KB instruction and 32 KB data L1 cache, MMX and 3DNow, date code 9826 |
| CPU support | Intel Pentium and Pentium MMX, AMD K5, K6, K6-2, Cyrix 6×86, 6x86L, MII, IDT C6 |
| Host bus speeds | 66, 75, 83 and 100 MHz, selected at jumper JP2, table printed on the board |
| L2 cache | 512 KB onboard |
| Memory | four banks, two 72-pin SIMM banks and two 168-pin DIMM banks, EDO and SDRAM, 128 MB maximum |
| Memory installed | one 32 MB PC100 SDRAM DIMM, module label MPC323S-28 |
| Memory counted at POST | 32768K total |
| Expansion slots | one AGP 3.3 V, four PCI 32-bit, two ISA 16-bit |
| Storage interfaces | two IDE 40-pin at ATA-33, one floppy 34-pin |
| Rear I/O | PS/2 keyboard, PS/2 mouse, two USB 1.1, two serial DB-9, one parallel DB-25 |
| Power input | 20-pin ATX |
| BIOS | Award PCI/PNP, on-screen ID 2A5KKB0D, EPROM in a socket |
| Real time clock | ALi M5819P with a CR2032 coin cell |
| Year of design | 1998 |
| Quantity | 1 |
Biostar M5ALA Ver 1.0 motherboard
AMD-K6-2/300AFR processor installed in the Socket 7 ZIF
CPU heatsink with 12 VDC ball bearing fan and mounting screws
Fan power lead with 4-pin Molex pass-through adapter
One 32 MB PC100 SDRAM DIMM
CR2032 clock battery installed
Not included:
Chassis, power supply, drive bays, standoffs and mounting hardware
Rear I/O shield plate for the case
Drives, IDE and floppy cables, front panel cables, power cords
Video card, sound card and any other expansion card
Additional memory modules and SIMMs
Keyboard, mouse, monitor
Driver disks, manual and operating system
Requires a 20-pin ATX power supply. Requires a video card; there is no onboard
video. The AGP slot is 3.3 V keyed, so AGP 1x and 2x cards fit, and later cards
that are keyed for 1.5 V only will not seat. Memory is EDO or SDRAM to a 128 MB
total across the two SIMM banks and the two DIMM banks. Host bus speed is set by
jumper JP2 using the table printed next to the slots, with 66, 75, 83 and 100 MHz
available; the installed K6-2/300 runs 3x at 100 MHz or 4.5x at 66 MHz. IDE
channels run at ATA-33. The board uses standard ATX mounting holes and a standard
ATX rear I/O cutout. The Award BIOS revision flashed on this board is not stated,
so support for later K6-III and K6-2+ parts is not claimed.
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Box 15 x 15 x 7 in, ship weight 4 lb. Ships double boxed, board bagged in antistatic
and suspended in foam, cooler secured. Ships from Sylmar, California.
