ZOMBIE COMPONENTS

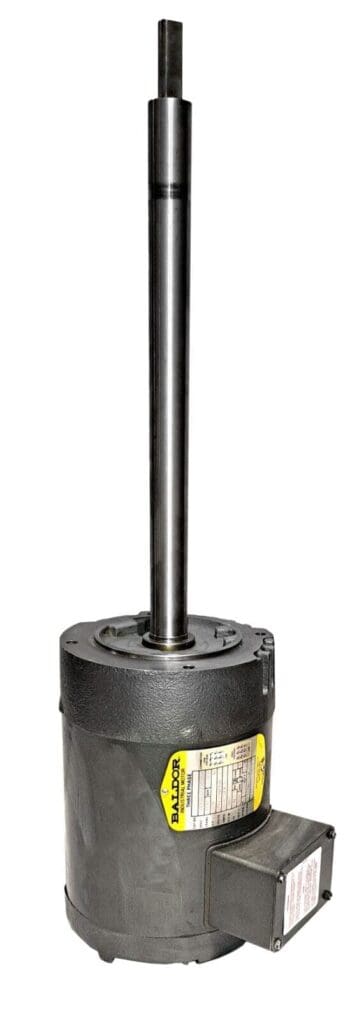

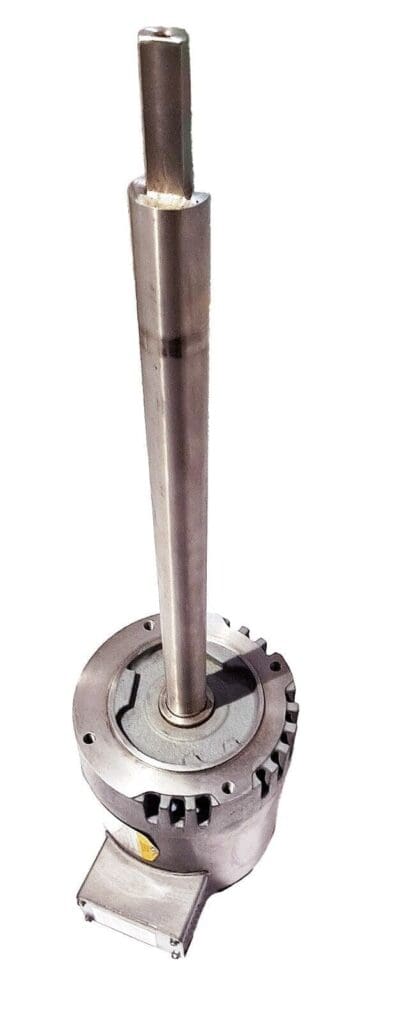

BALDOR 35K315-86 3/4HP, 1725RPM, 3PH, 60HZ, 56CZ, DP, F1291 SHAFT 1.35 x 15.75
BALDOR 35K315-86 3/4HP, 1725RPM, 3PH, 60HZ, 56CZ, DP, F1291 SHAFT 1.35 x 15.75

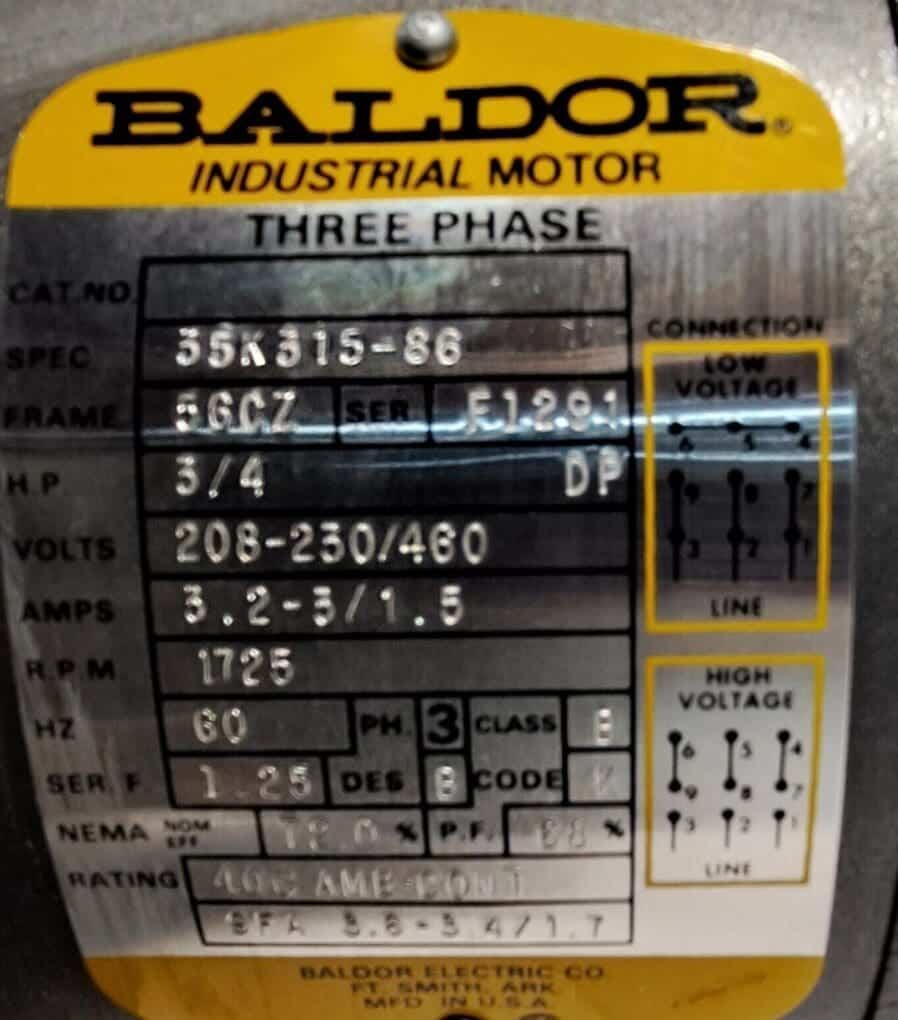

40°C AMBIENT CONTINUOUS
SFA 3.6-3.4/1.7
WE SHIP WORLD WIDE!
Additional information
| Weight | 42 lbs |
|---|---|
| Dimensions | 28 × 12 × 10 in |
| AC FREQUENCY RATING | 60 Hz |
| AC PHASE | Three Phase |
| ACTUAL RATED INPUT VOLTAGE | 208-230/460 |
| BASE RPM | 1725 |
| Brand | |
| Condition | |
| Condition Description | |
| CURRENT TYPE | AC |
| CUSTOM BUNDLE | No |
| ENCLOSURE TYPE | DP |
| INSULATION CLASS | B (Max 266�F) |
| MODEL | 35K315-86 |
| MOUNTING TYPE | Face-Mounted |
| MPN | |
| NEMA DESIGN LETTER | K |
| NEMA FRAME SUFFIX | 56CZ |
| NOMINAL RATED INPUT VOLTAGE | 208 V,220 V,230 V,460 V |
| PROTECTION AGAINST LIQUIDS | Dripping Water |
| SERVICE FACTOR | 1.25 |
| SHAFT DIAMETER | 1.350 |
| SHAFT TYPE | "D" Profile |
| COUNTRY/REGION OF MANUFACTURE | United States |
| RATED LOAD (HP) | 3/4 |
