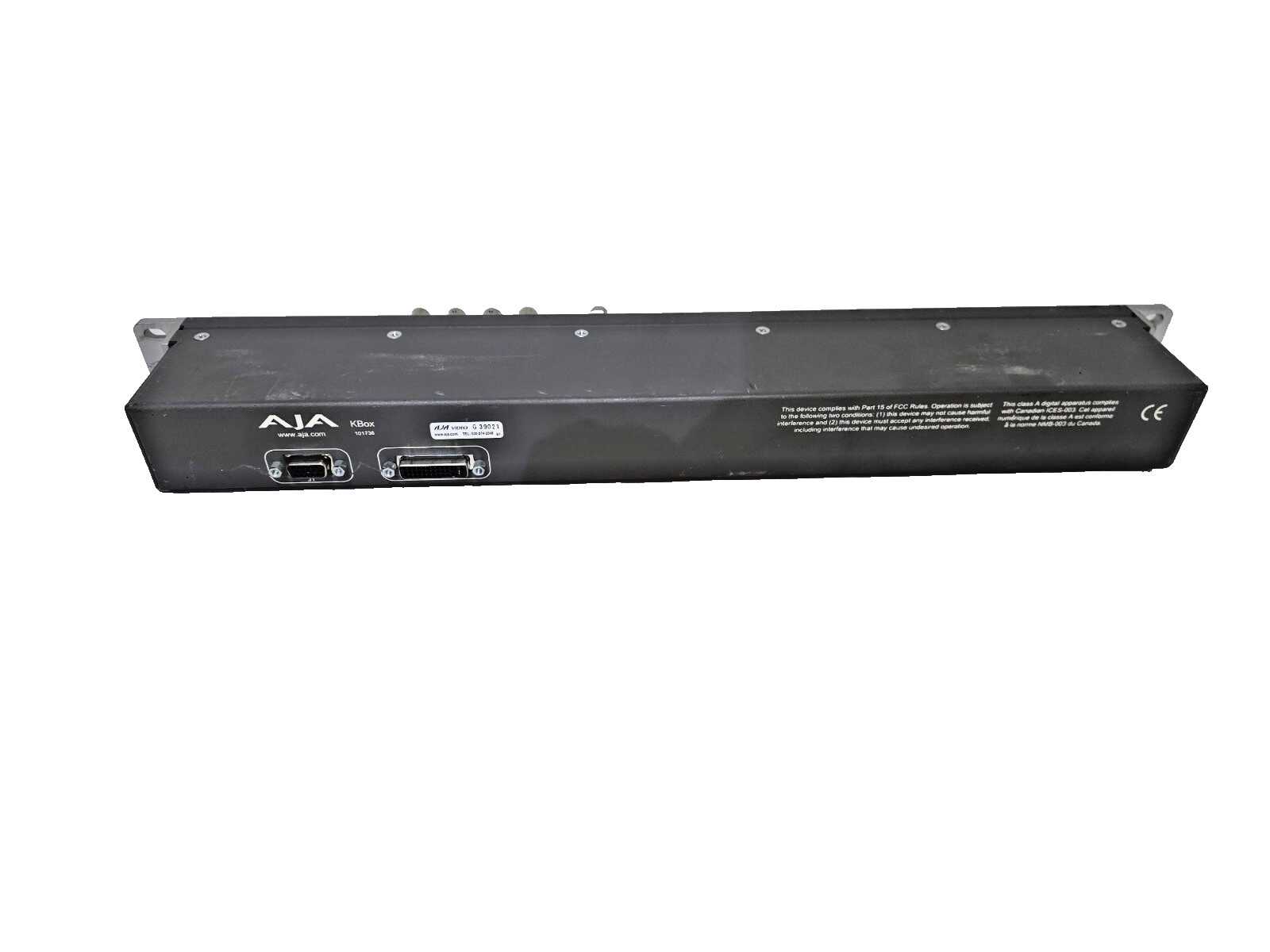

AJA KBox, manufacturer part number 101736. A 19 inch rackmount breakout panel, 1RU, that brings the audio and video connections of an AJA KONA 2 capture card out to a rack panel instead of a cable harness. One end of the chassis carries the two host connectors, J1 (HD15) and J2 (multi pin). The opposite end carries the production I/O: eight channels of AES/EBU audio on XLR, AES on BNC, SDI, a genlock reference loop, component and composite video monitor outputs, RCA analog audio monitoring, and an RS-422 machine control port. Rack ears are fitted on both sides. Photographed as received.
60 Day Money Back Guarantee.
| Parameter | Value |
| MPN | 101736 |
| Brand | AJA Video Systems |
| Model | KBox |
| Chassis label | AJA VIDEO G 39021, B1 |
| Form factor | 19 inch rackmount, 1RU, rack ears fitted both sides |

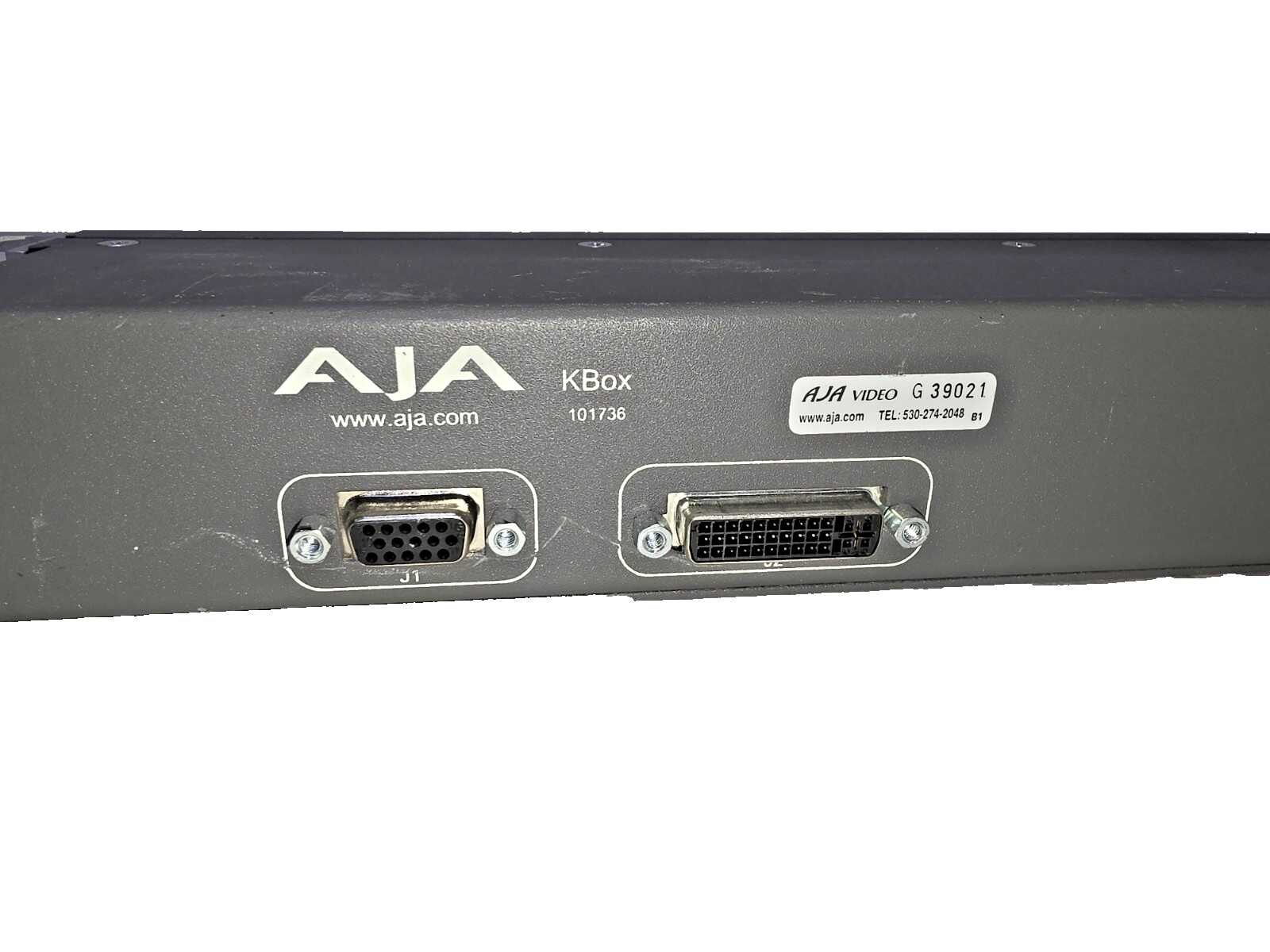

| Host connection | two cables to an AJA KONA 2 card, at J1 (HD15 female) and J2 (multi pin, DVI form factor, female) |

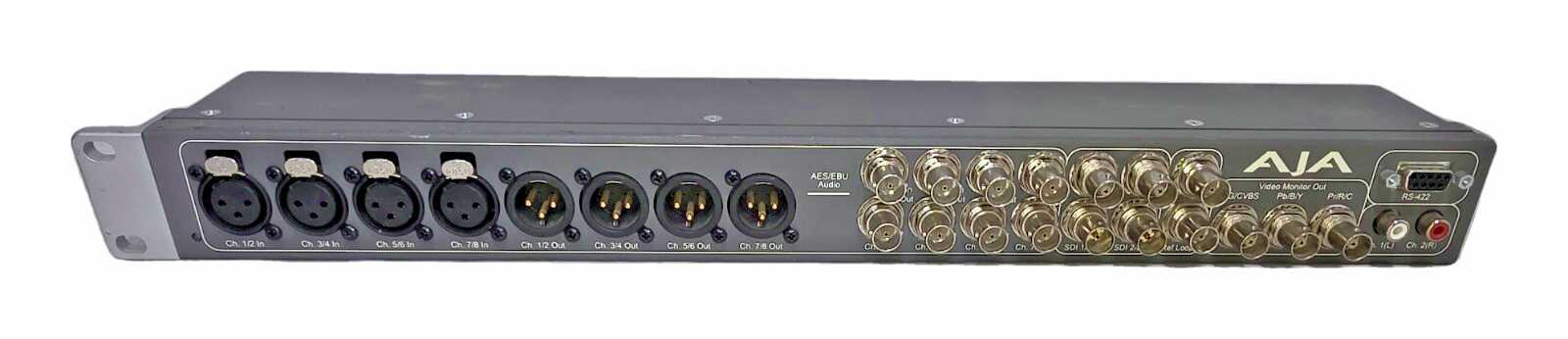

| AES/EBU audio in | 8 channels on 4 XLR female, marked Ch. 1/2 In, Ch. 3/4 In, Ch. 5/6 In, Ch. 7/8 In |
| AES/EBU audio out | 8 channels on 4 XLR male, marked Ch. 1/2 Out, Ch. 3/4 Out, Ch. 5/6 Out, Ch. 7/8 Out |
| AES on BNC | In and Out |
| SDI | SDI 1 and SDI 2 BNC, plus SDI In/Out BNC |
| Reference | genlock Ref Loop, looping BNC pair |
| Video Monitor Out | 3 BNC, marked G/CVBS, Pb/B/Y, Pr/R/C |
| Analog audio monitoring | 2 RCA, Ch. 1(L) and Ch. 2(R) |
| Machine control | RS-422 on DE-9 |
| Power | no AC inlet or DC jack on the chassis; the unit is fed through the host card cabling |
| Regulatory markings | FCC Part 15 Class A, Canadian ICES-003 Class A, CE |
| Weight | 6 lb |
AJA KBox chassis, MPN 101736, with both rack ears fitted, exactly as pictured.
Not included:
Interface cables to the KONA 2 card (HD15 and multi pin). AJA KONA 2 card. Rack screws. Manual, driver media, or software. No other accessories.
Built as the breakout box for the AJA KONA 2 capture card. It requires a KONA 2 card and the matching AJA two cable set, neither of which is included here. The KBox is not the breakout box for KONA 3 (K3-Box) or for KONA LH, LHe and LSe (KL-Box). Confirm your card and your cable set before buying.
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Ships double boxed from Sylmar, California. Outer box 28 x 12 x 10 in, about 8 lb with packing material.
Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.
We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.
International shipments may be delayed or cancelled due to EAR and ITAR export compliance requirements. The vast majority of our items need no export license and ship under EAR99 and other exemptions; items that require a license are indicated in the listing.
This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.
All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.
If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
We do not keep or share your information anywhere. Your information resides only on eBay and is available to us only for a limited time while we interact with you on an inquiry, order, or return, per eBay usage policies.
