Evertz HD9650 HD Graticule Generator

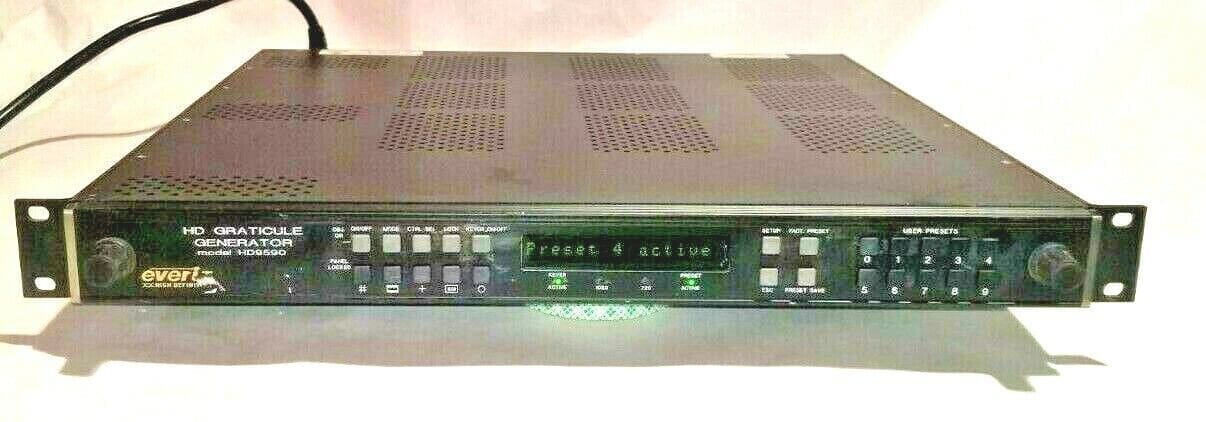

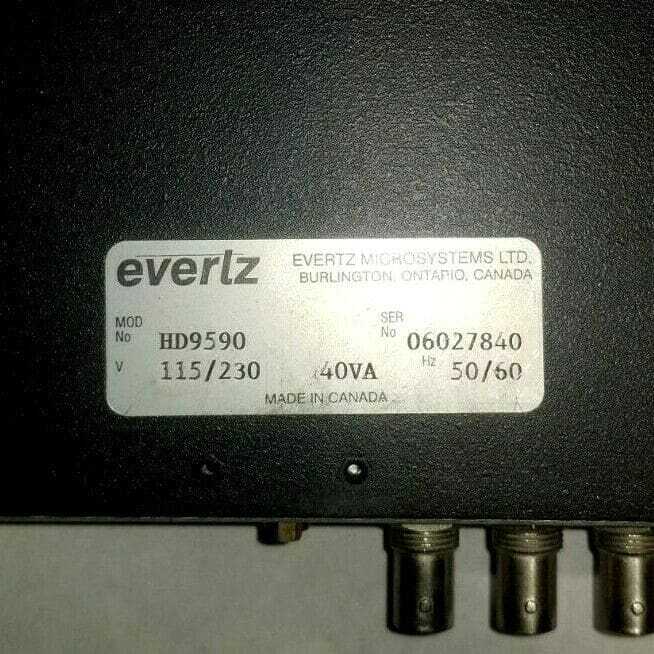

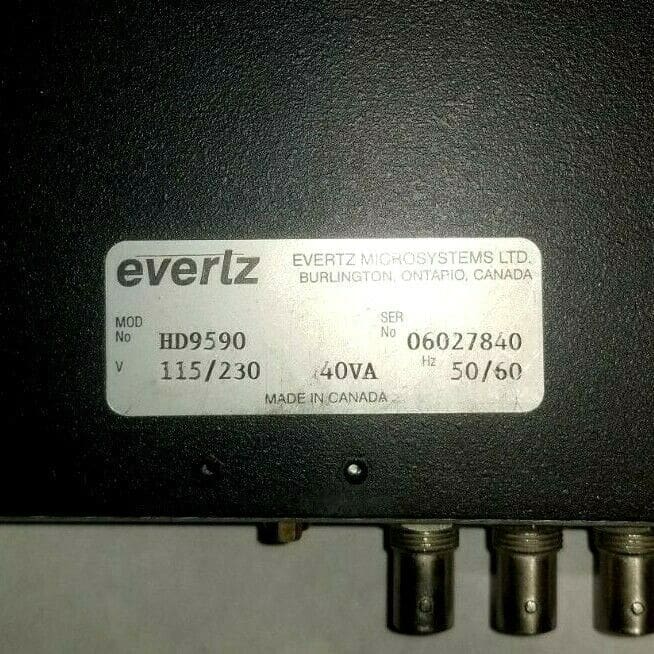

Evertz HD9650 HD Graticule GeneratorThe HD9590 Graticule Generator is an easy to use, one rack unit, multi format digital video graticule generator that keys various alignment markers over a high definition video picture. These alignment markers facilitate film transfer, post production and quality control measurements relating to picture location for various film aspect ratios, safe action and title areas as well as picture center.

All of the functions of the HD9590 Graticule Generator are available from the front panel or one of two remote control panels. Choose from the many factory programmed presets or define your own. The HD9590 allows for multiple user defined presets that can be re-called and re-defined at any time.

Features:

Keys graticule markers directly into SMPTE 292M serial digital video
Two rectangular boxes that can be independently resized, reshaped and moved anywhere on the raster
A grid consisting of horizontal and vertical line pairs that can be positioned independently or in pairs anywhere on the raster
Programmable horizontal and vertical hard matte
Adjustable mask starting line in vertical blanking interval
Two user programmable cross markers positionable anywhere on the raster
Circle creation for aspect ratio
Automatic creation of aspect ratios for matte, box and circle objects

On screen aspect ratio display
Automatic centering control for all objects
Single button keyer On/Off control
Adjustable object brightness (white level)
Front panel lock-out control
Easy to operate control panel menu system gives access to advanced object control features for the most demanding application, while limiting normal day to day use to just a few preset buttons
Factory presets allow quick setup to common object placements on the raster
Ten user-definable presets with individual write protection
Optional rack mount or desktop remote control unit

Specifications:
Serial Video Input:

Standards:

SMPTE 292M
SMPTE 274M: 1080i/60, 1080i/59.94, 1080i/50, 1080p/24(sF), 1080p/23.98(sF), 1080p/25sF
SMPTE 296M: 720p/60, 720p/59.94

Connector:
BNC input per IEC 169-8

Impedeance:
75 Ù

Signal Level:
800mV +/- 10%

Equalization:

Automatic 100m @ 1.5Gb/s with Belden 1694
(or equivalent)

Serial Video Output:

Number of Outputs:
4

Standards:
Same as input

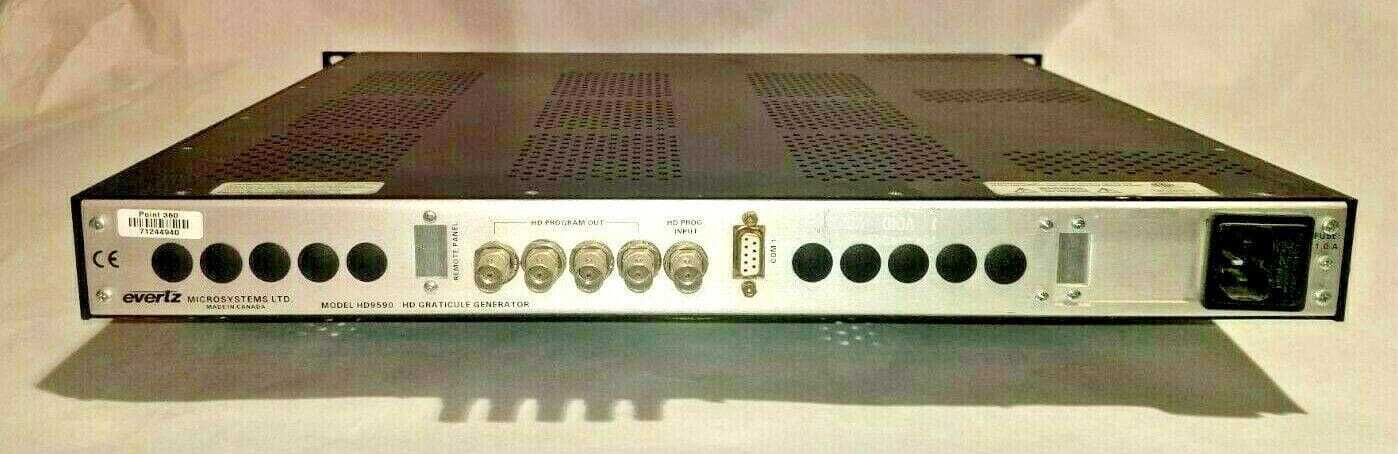

Connectors:
4 BNC's per IEC 169-8

Impedeance:
75 Ù

Signal Level:
800mV nominal

DC Offset:
0V +/-0.5V

Rise and Fall Time:
200ps nominal

Overshoot:
< 10% of amplitude

Wideband Jitter:

< 0.2UI

Electrical:

Power:
Auto ranging 100-240 VAC 50/60 Hz, 30 VA

Safety:

ETL listed
Complies with EU Safety directive

EM/RFI:

Complies with FCC Part 15 Class A
EU EMC Directive

Physical:

Dimensions:

19″W x 1.75″H x 18.75″D
(483mm W x 45mm H x 477mm D

Weight:

8 lbs. (3.5kg)

Ordering Information:

HD9590:

HD SDI Graticule Generator

:
