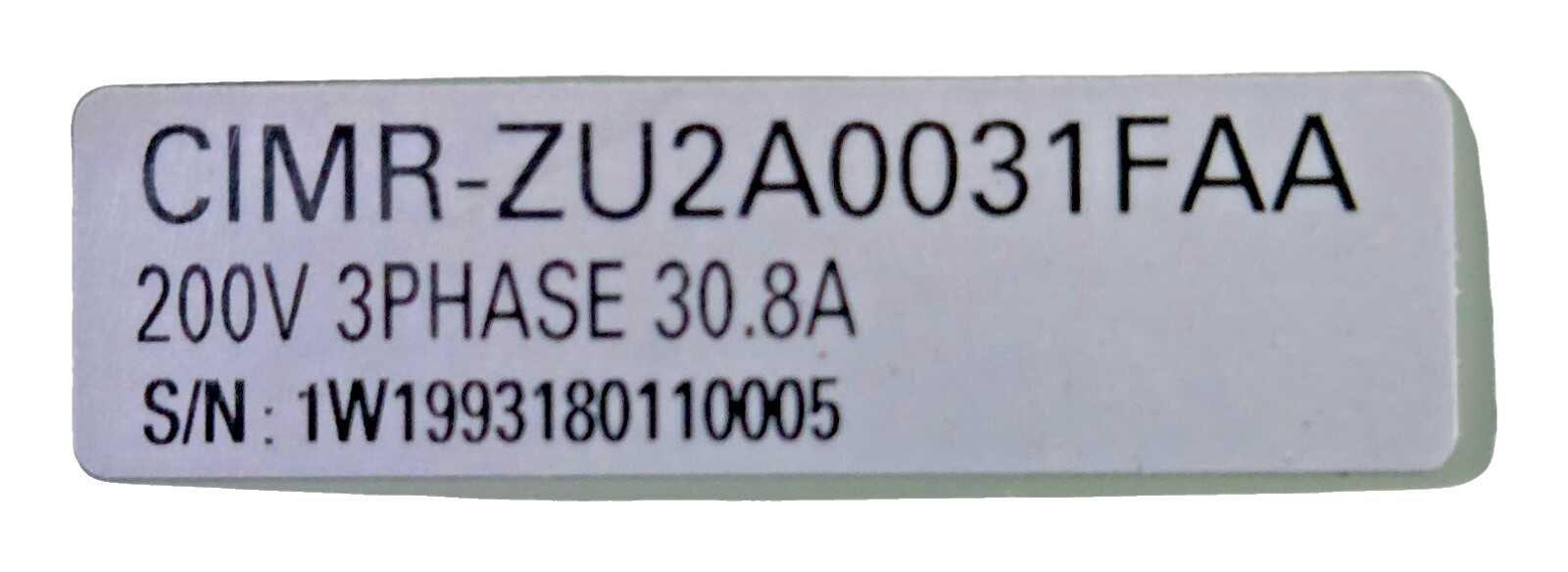

Yaskawa Z1000 CIMR-ZU2A0031FAA VFD 10 HP 200-240V 3PH 30.8A HVAC Drive NEMA 1

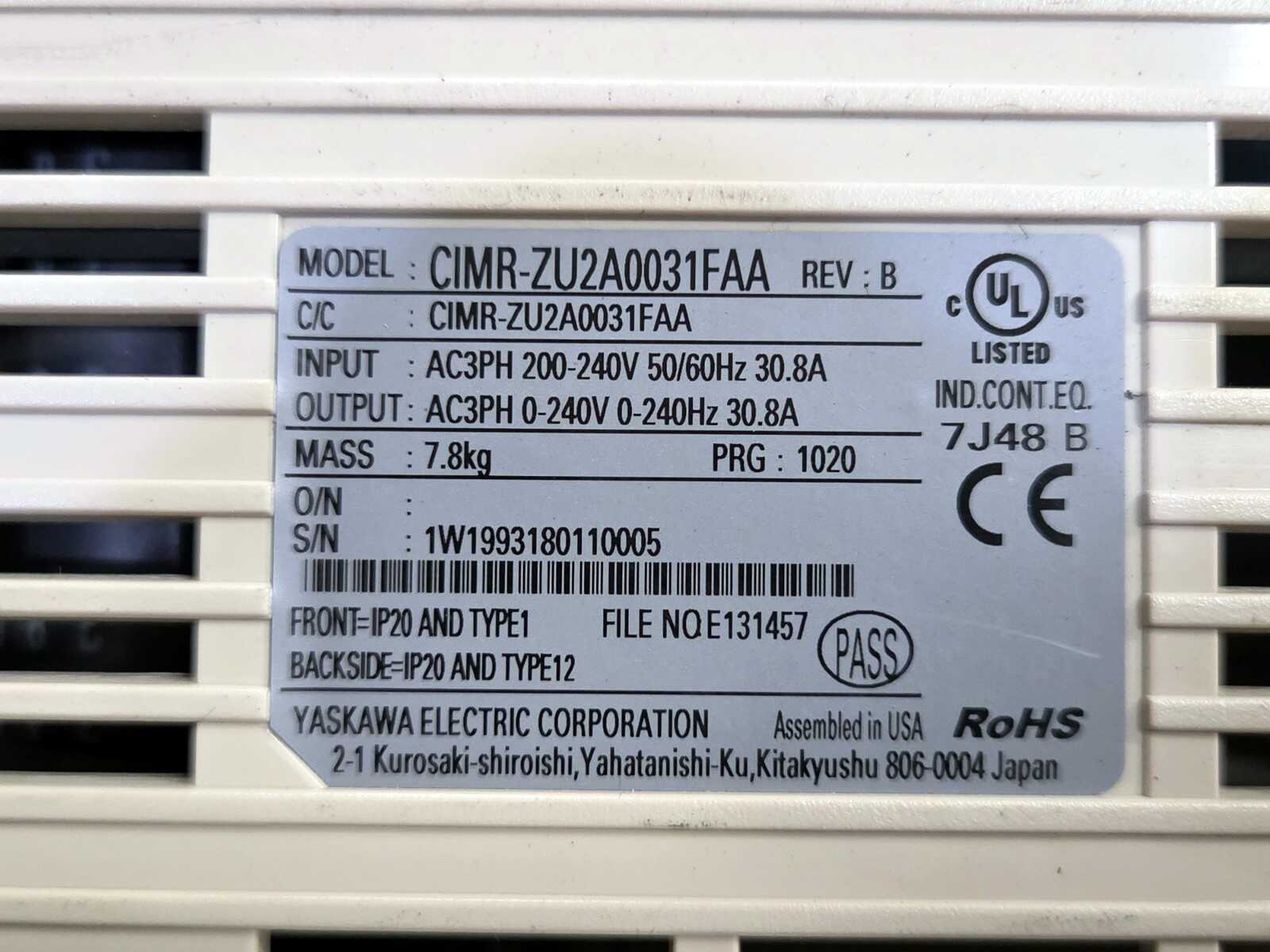

Yaskawa Z1000 series variable frequency drive, model CIMR-ZU2A0031FAA, rated 10 HP at 200 to 240 VAC three phase with 30.8 A output. The Z1000 is Yaskawa’s HVAC and building automation drive for fans, pumps and cooling towers. This unit is a Frame 2 NEMA Type 1 build with the JVOP-183 LCD digital operator installed, providing a Hand, Off and Auto interface. Nameplate revision B, drive software PRG 1020, assembled in USA. Sold as a single drive. Multiple units are available; the unit shipped may carry a different serial number than the one photographed.

One Yaskawa CIMR-ZU2A0031FAA drive

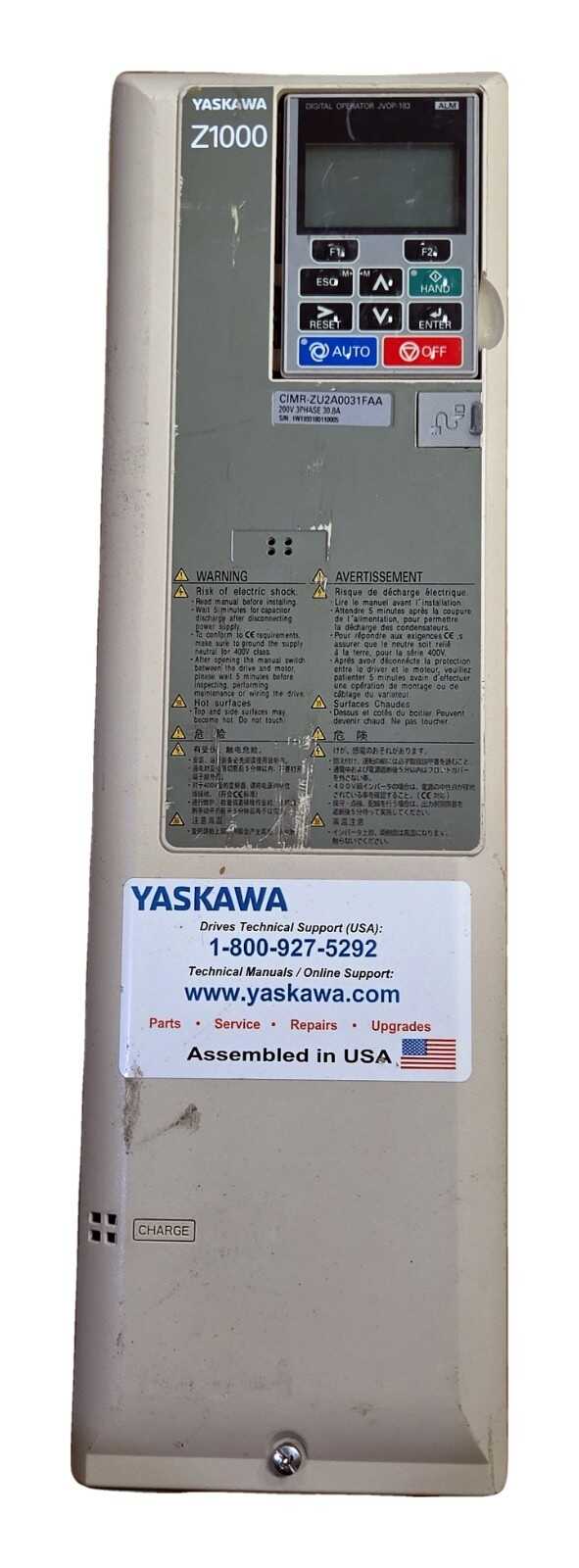

JVOP-183 LCD digital operator, installed

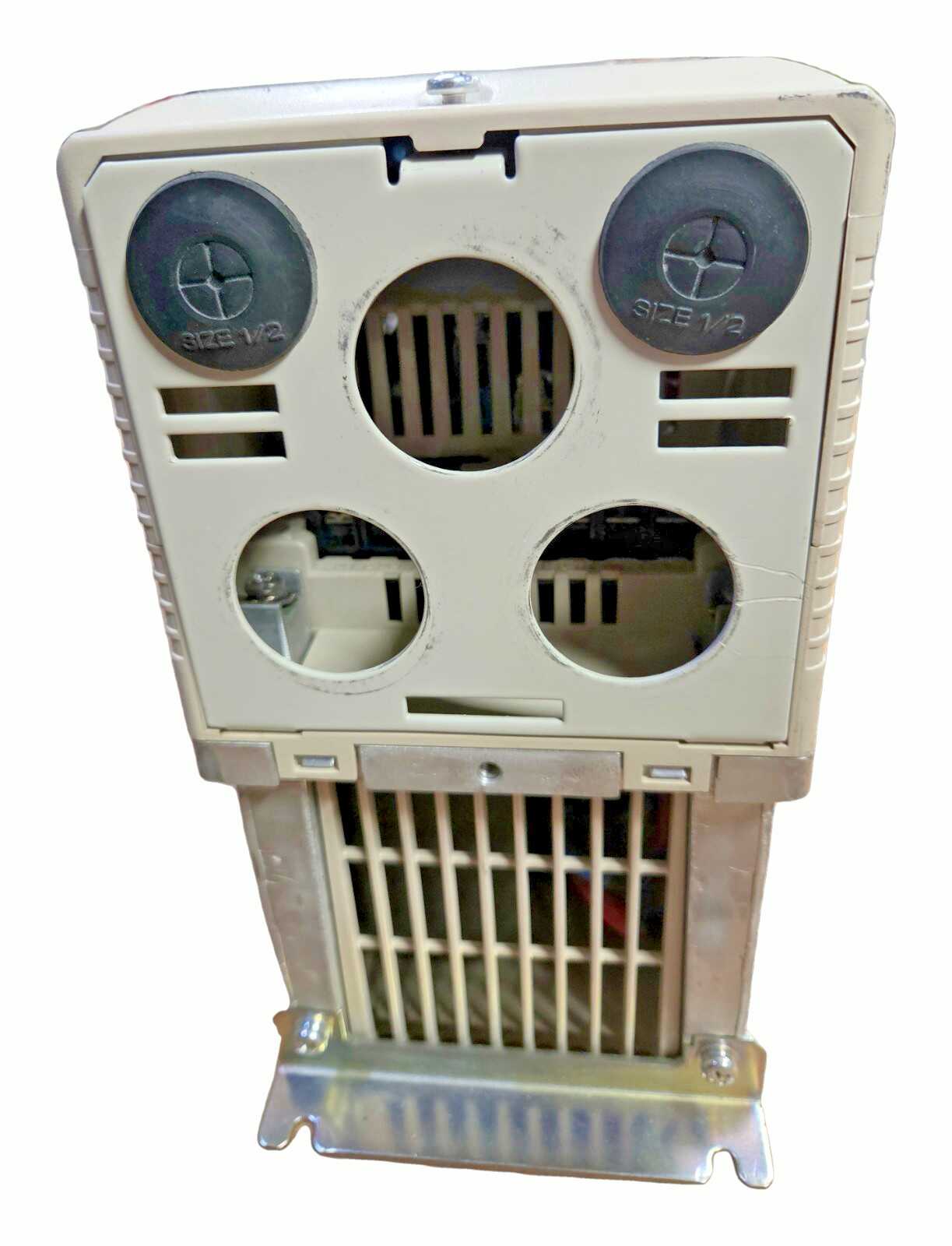

NEMA Type 1 conduit entry plate with two 1/2 in knockout plugs
Top and bottom mounting brackets, installed
Front cover and terminal cover

Not included:
Manuals, software or programming cable
Motor, line reactor, bypass or external enclosure
Field wiring, conduit fittings, mounting hardware
Communication option cards
Original packaging

Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.

Ships in an 18 x 18 x 10 in box at approximately 25 lb, packed with the keypad and heatsink protected. Ground service, ships from Sylmar, California.
