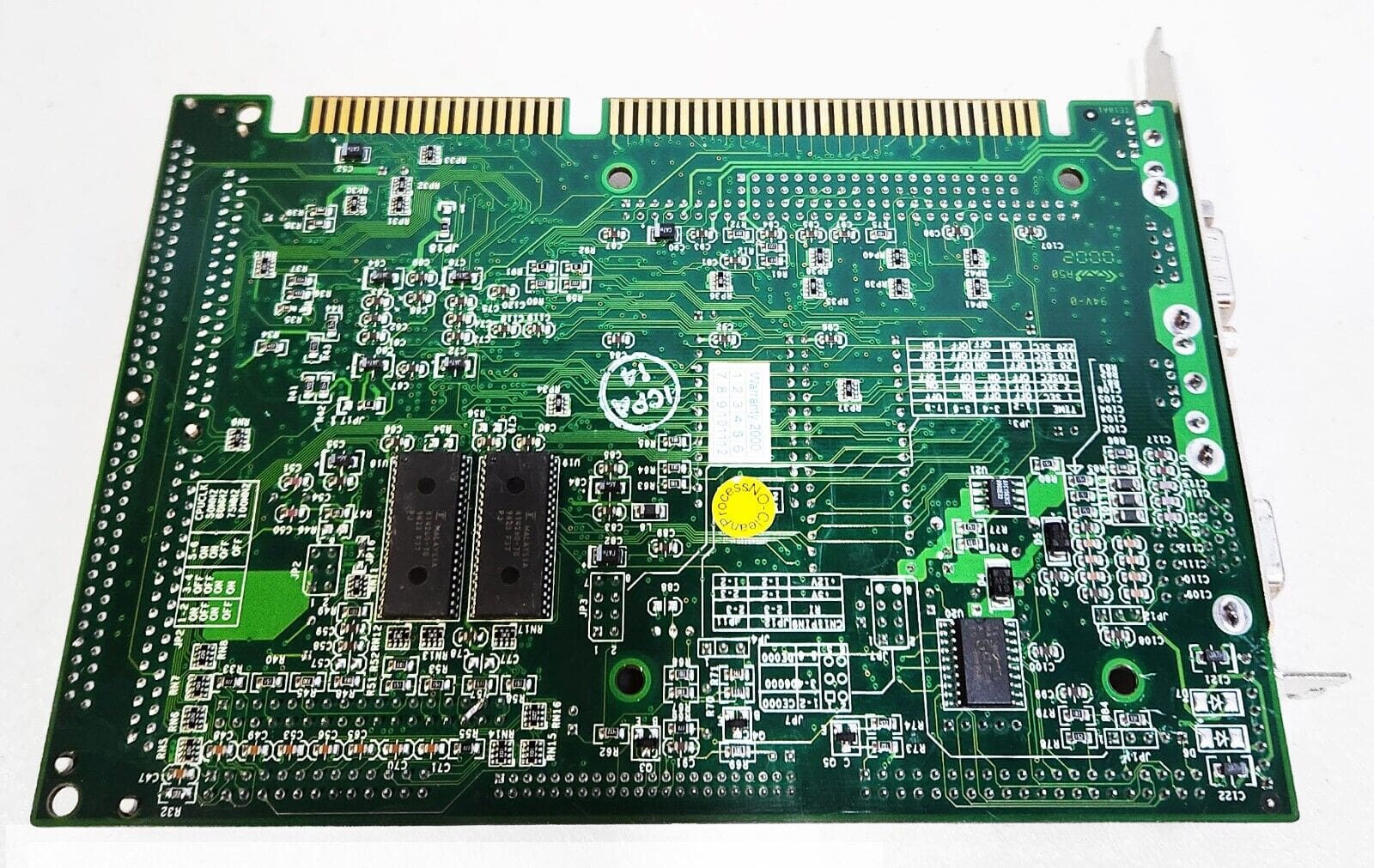

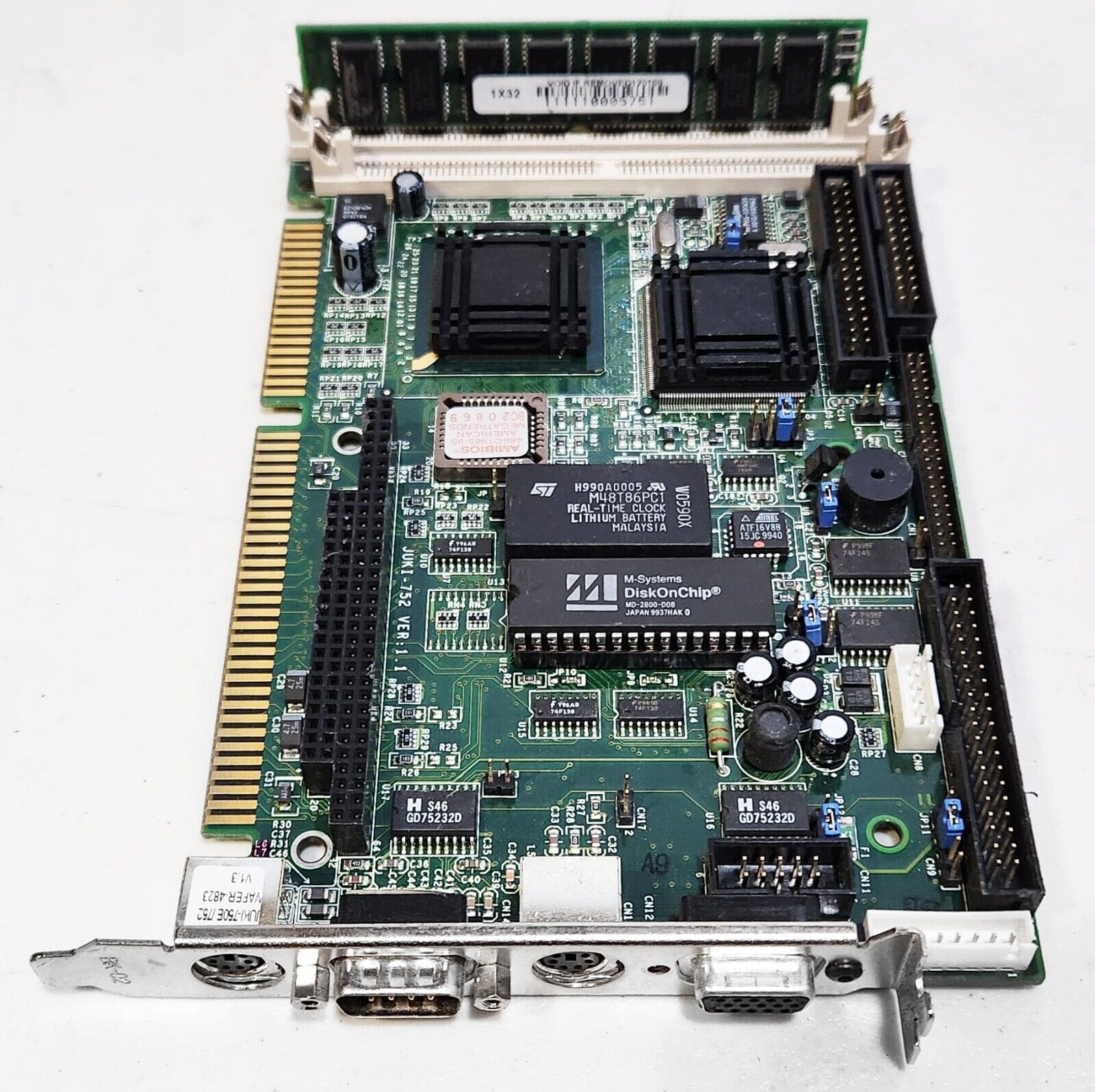

VECTRA JUKI-752 VER:1.1 w/ JUKI-750E/752 WAFER-4823 VER 1.3 & 4MB KINGSTON RAM

ZOMBIE COMPONENTS

VECTRA JUKI-752 VER:1.1 w/ JUKI-750E/752 WAFER-4823 VER 1.3 & 4MB KINGSTON RAM

VECTRA JUKI-752 VER:1.1 w/ JUKI-750E/752 WAFER-4823 VER 1.3 & 4MB KINGSTON RAM
The WAFER-4823 DX4-100 with LCD/CRT &Ethernet Single Board Computer. WAFER-4823 is a stand alone board with PC/104 connector, which comes equipped with ACC Maple Chipset (includes DX4-100 CPU) and advanced high-performance multi-mode I/O, LCD Controller and Ethernet function, designed for the system manufacturers, integrators, or VARs to provide all the performance, reliability, and quality at a reasonable price. An advanced high performance super I/O function is supported by the Maple chipset. The on-chip UARTs are compatible with theNS16C550. The parallel port and IDE interface are compatible with IBM PC/AT and XT architecture's, as well as EPP and ECP. The LCD/CRT controller TOPRO TP6508 can provide the LCD and CRT display at the same time. The LCD interface connector is a44-pin 2.0mm pitch type. The most outstanding feature in the WAFER-4823 is the built-in PC/104 expansion bus. Based on the PC/104 bus, you can easily install over thousands of PC/104 modules from hundreds vendors in the world. The WAFER-4823 has external power connector that can let it connects to power supply directly. It is very suitable for your standalone applications.
