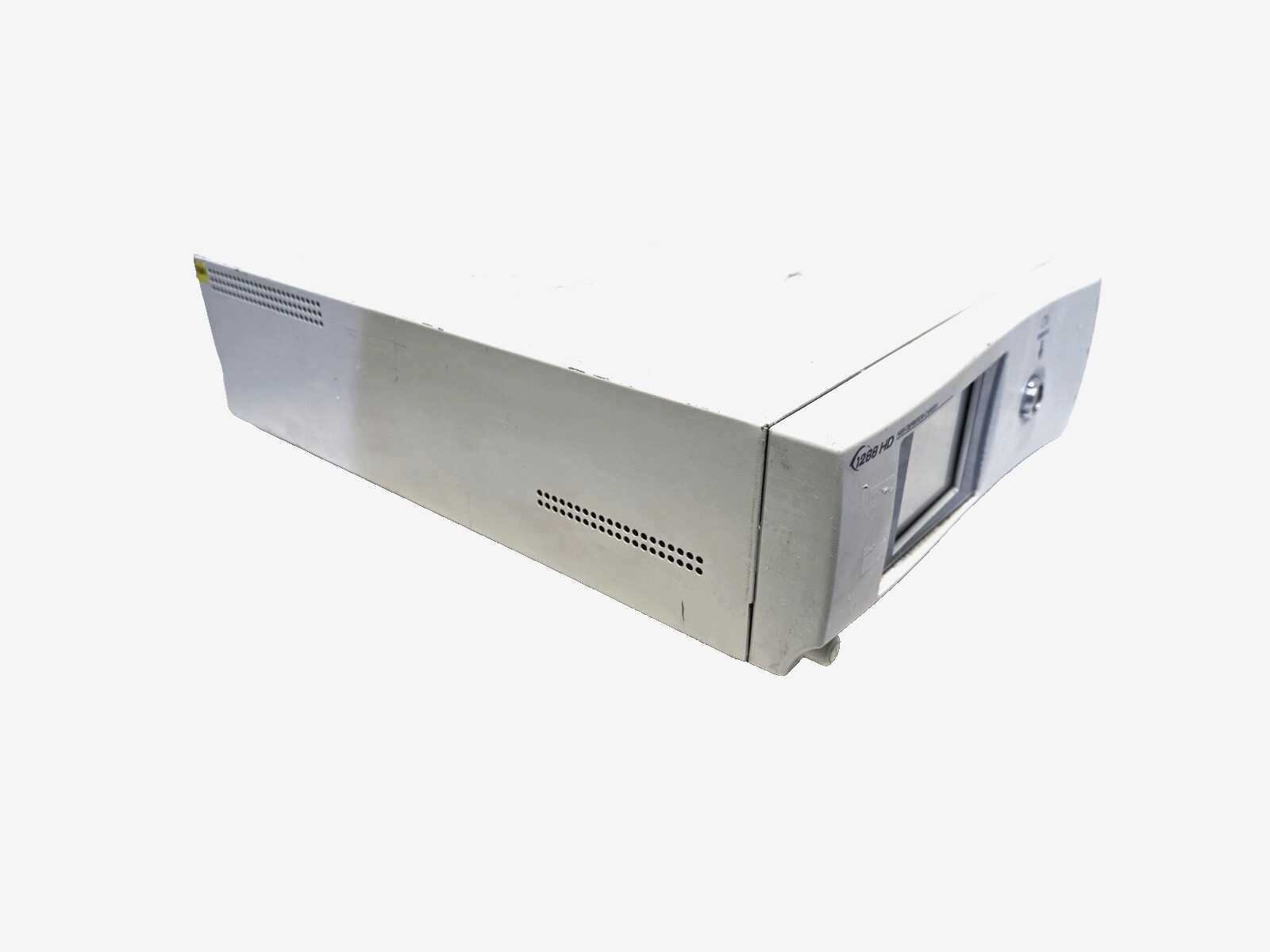

Stryker 1288 HD endoscopic camera control unit, the console for the Stryker 1288 HD three
chip high definition surgical camera system. Front LCD touchscreen with specialty presets,

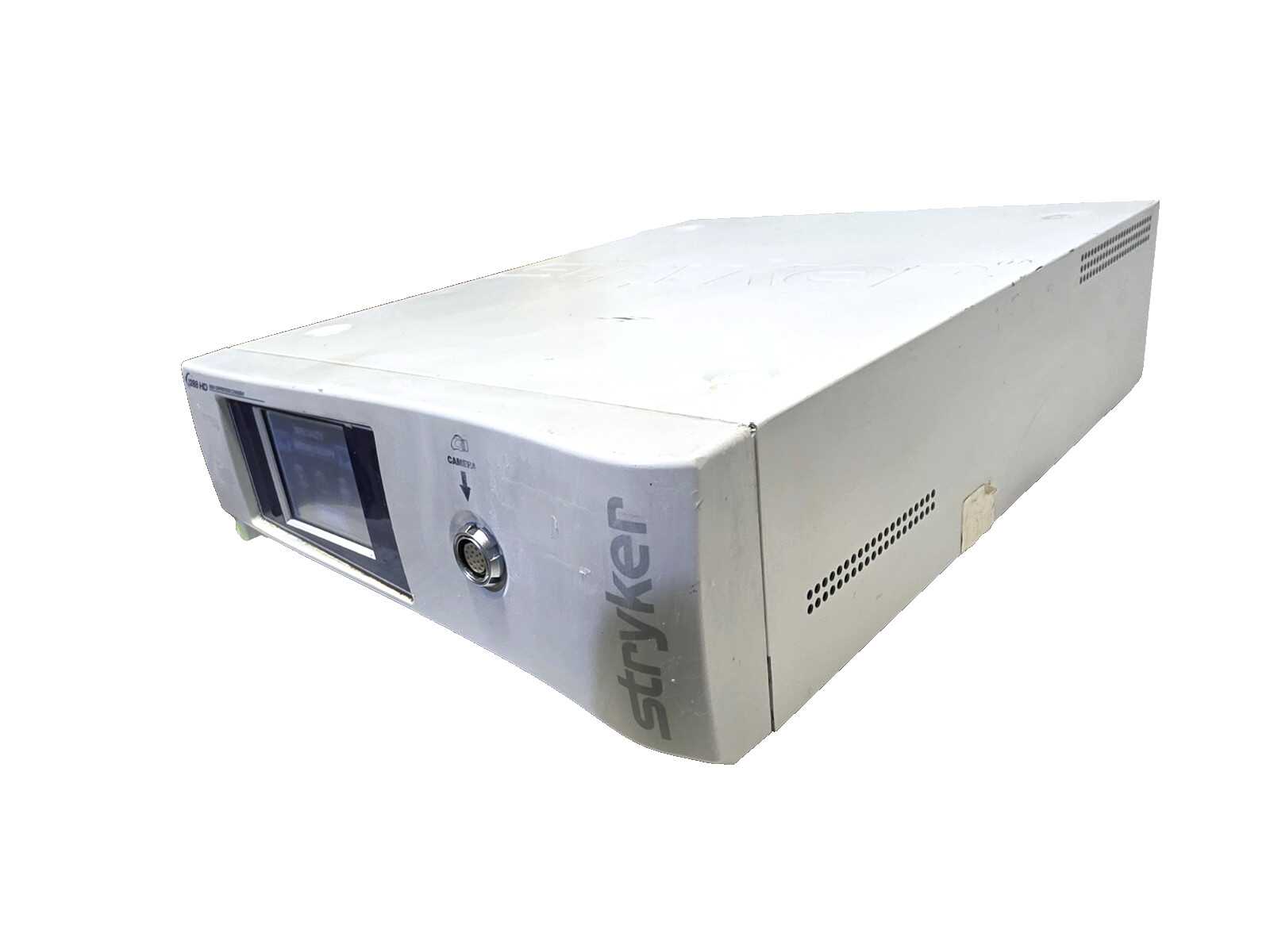

white balance, still capture and video controls, and a front panel camera head receptacle.

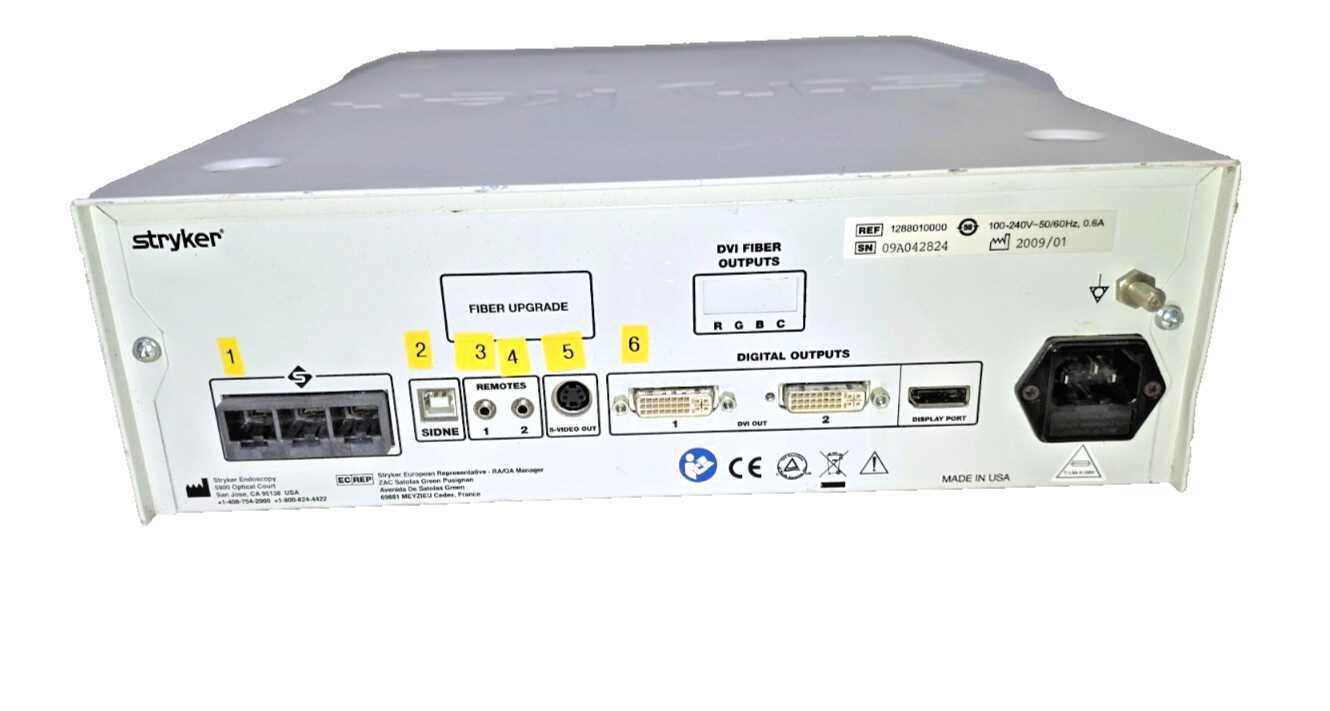

Rear panel carries two DVI-I digital outputs, DisplayPort, S-Video, SIDNE control, two
remote jacks and a Stryker SFB connector block. This unit is REF 1288010000, serial
09A042824, built 2009/01, Made in USA. Console only.

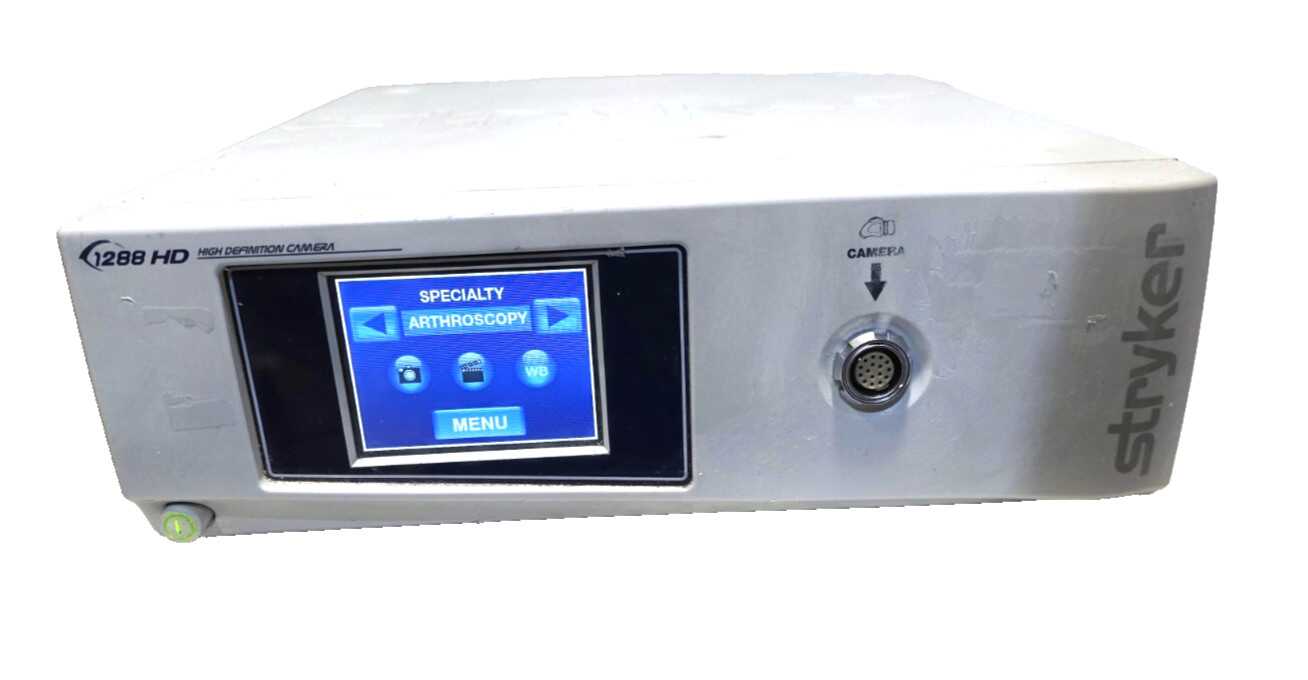

60 Day Money Back Guarantee. Powers on, front LCD touchscreen lit and showing SPECIALTY / ARTHROSCOPY menu, green power LED lit.
- Unit powers up and the touchscreen UI is live on the front panel.
- Rear ID plate fully legible: REF, SN and date of manufacture all readable.
- Complete rear I/O: two DVI-I, DisplayPort, S-Video, SIDNE USB B, two remote jacks, SFB block.
- Front camera head receptacle clean, no visible bent or recessed pins.
- Made in USA, 2009/01 build.
| Parameter | Value |
| MPN | 1288010000 |
| Brand | Stryker |
| Model | 1288 HD |
| Serial | 09A042824 |
| Date of manufacture | 2009/01 |
| Imager | three 1/3 inch progressive scan CCDs |
| Resolution | 1920 x 1080p |
| Output formats | 1280 x 1024, 720p, 1080p |
| Specialty settings | nine |
| Enhancement | 16 switchable levels |
| Shutter | 1/60 to 1/10000 sec, automatic |
| Minimum illumination | 1.5 lux |
| Digital video outputs | two DVI-I 29 pin (DVI/RGBHV), one DisplayPort |
| Analog video output | one S-Video, 4 pin mini DIN |
| Control ports | SIDNE (USB type B), two remote jacks, three position Stryker SFB block |
| Fiber option | DVI fiber output bay present, not populated on this unit |
| Power | 100 to 240 V, 50/60 Hz, 0.6 A |
| Fuse | T 1.6 A H 250 V |
| Dimensions | 5 in W x 4.0 in H x 15.25 in D |
| Weight | 13 lb |
| Origin | Made in USA |
Stryker 1288 HD camera control unit, serial 09A042824, console only.
Not included:
Camera head. Coupler. Power cord. DVI, DisplayPort or S-Video cables. Remote or footswitch
cables. SFB or SIDNE cables. Manual, software, packaging.
Accepts Stryker 1288 series camera heads including 1288-210-105, 1288-710-105, 1288-310-130
and 1288-610-122, used with the 1288-020-122 C-mount coupler. DVI-I outputs drive HD surgical
or computer monitors directly, or analog SXGA through a DVI-I to VGA adapter. DisplayPort and
S-Video outputs are available for alternate displays and recorders. Requires a standard IEC
C13 power cord, 100 to 240 V. A camera head and coupler are required for image capture and
are not included. The DVI fiber output option is not installed on this unit.
