Description
Siemens P1X42MC250AT Panel Board Interior with 15 Two-Pole 30A Breakers
What You Get:
- Panel Interior: Siemens P1X42MC250AT
- Breakers Included: 15x Siemens B230/BL230 2-pole 30-amp bolt-on breakers
- Configuration: 30 of 42 circuit spaces filled (71% populated)
- Includes panel key
Panel Specifications:

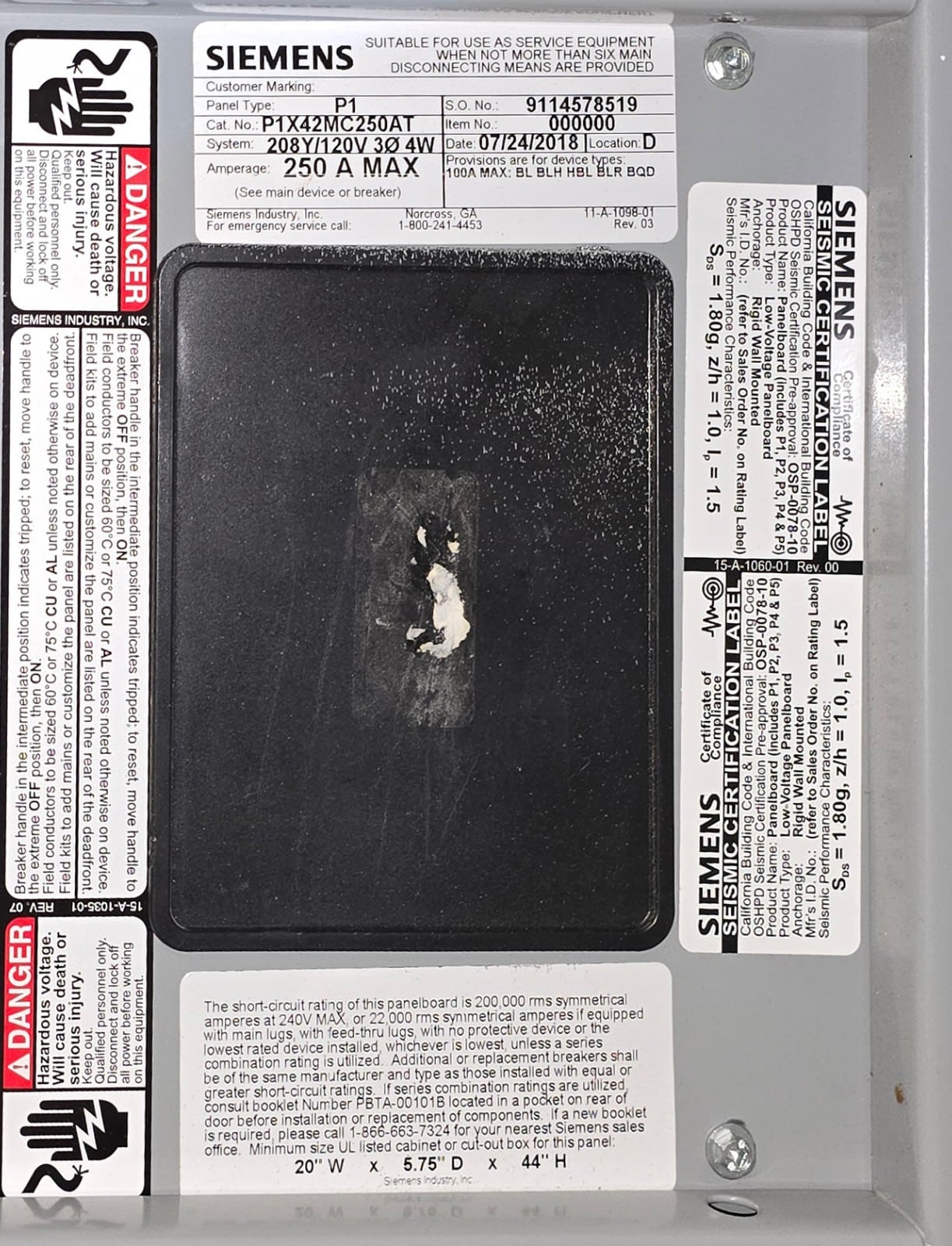

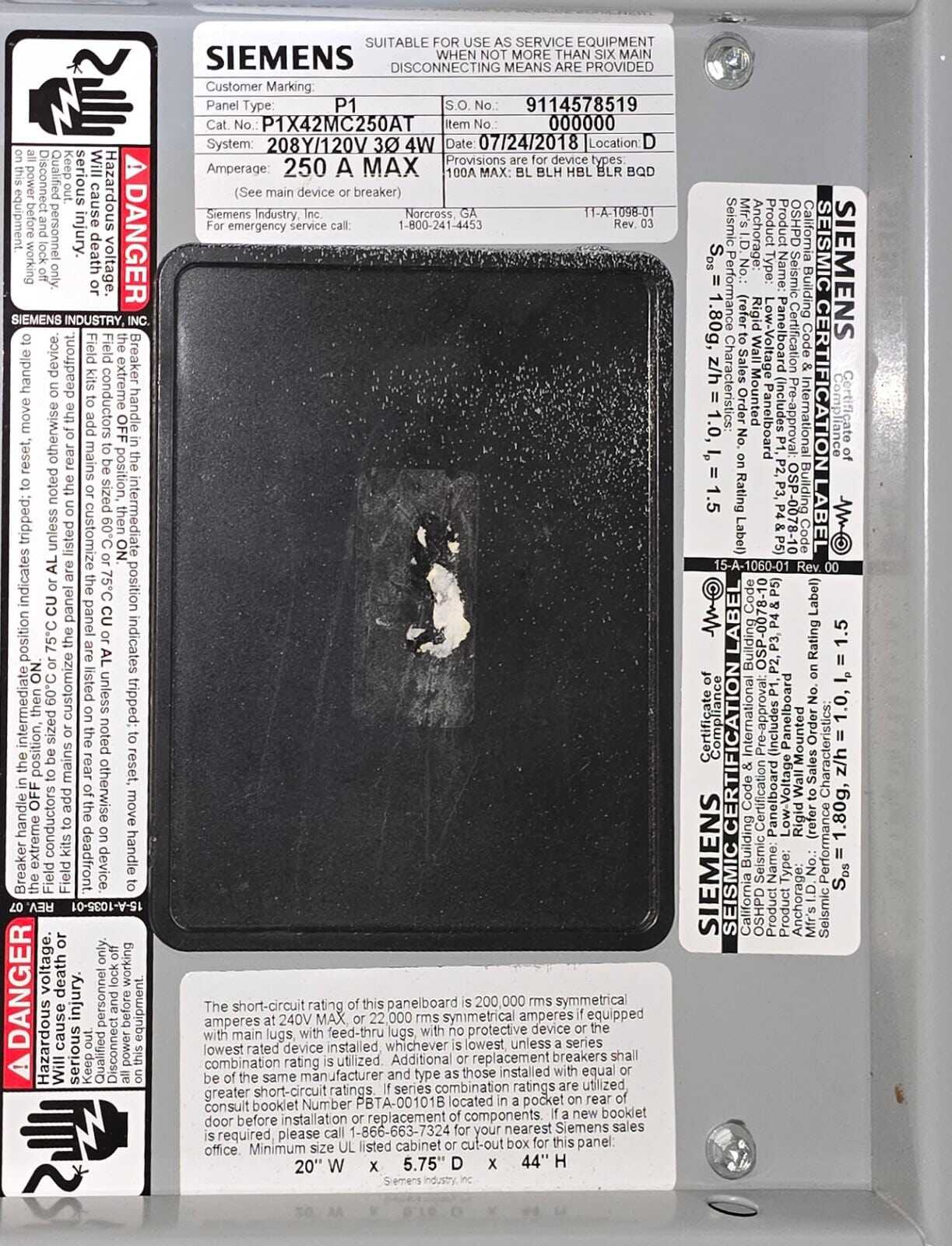

- Model: P1X42MC250AT
- Rating: 250 Amp bus, 208Y/120V, 3-phase, 4-wire
- Circuits: 42 total circuit spaces
- Bus Material: Tin-plated aluminum main bus

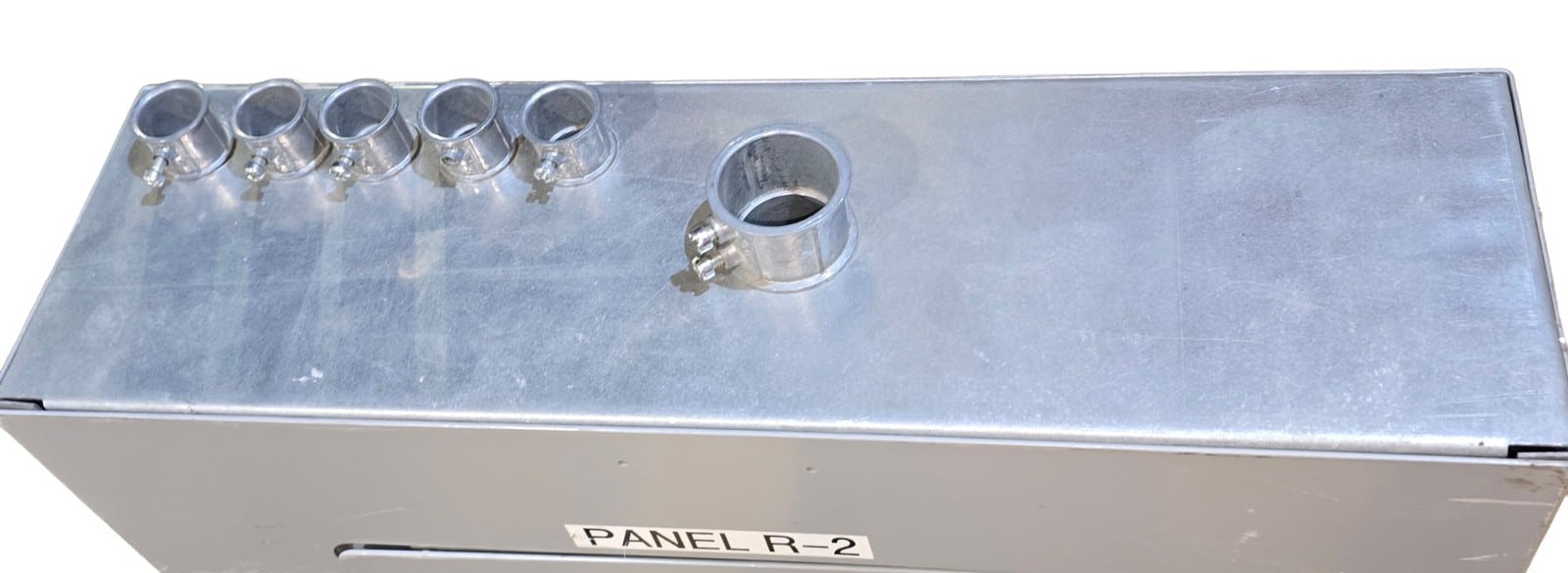

- Mounting: Top or bottom feed capable
- Breaker Type: Accepts BL, BLH, HBL bolt-on breakers

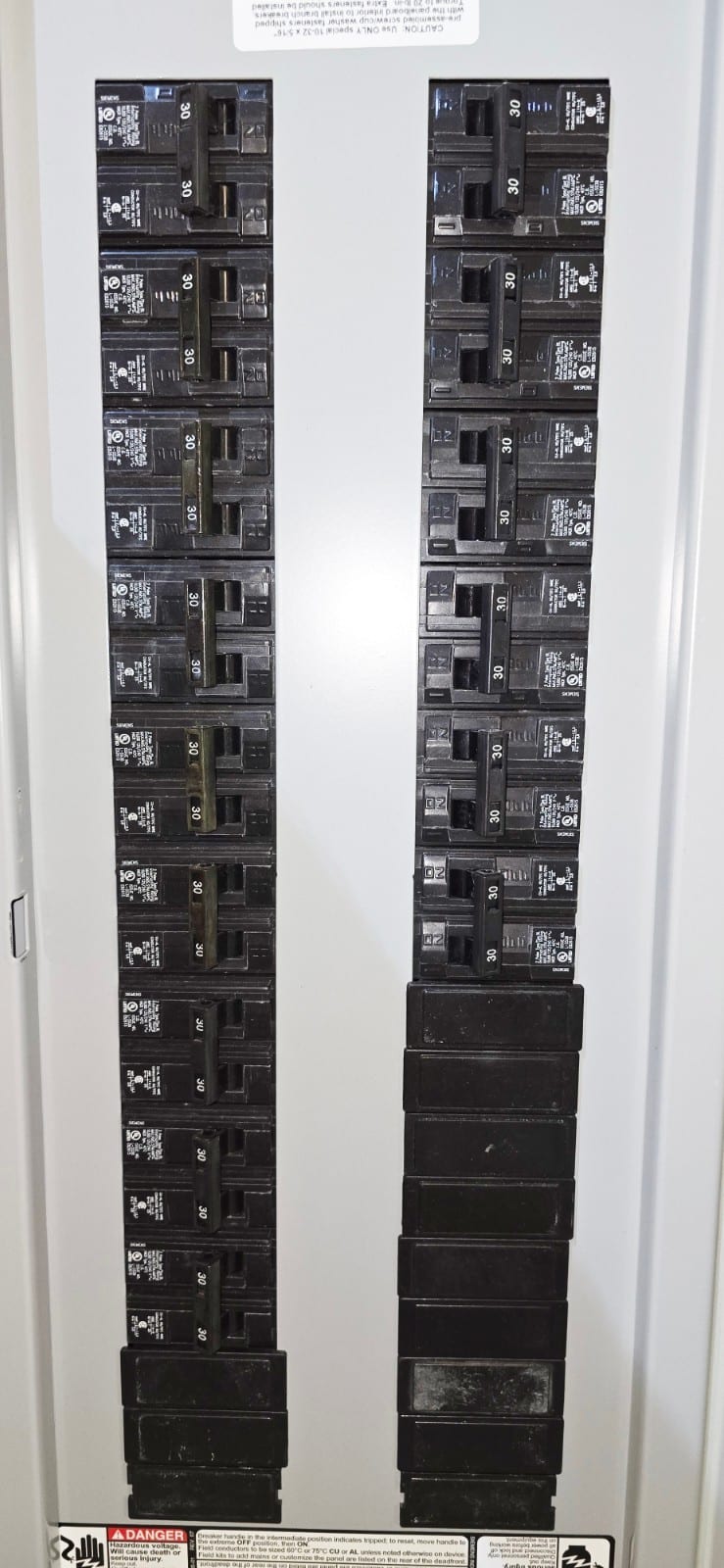

Included Breakers:
- Quantity: 15 breakers (occupying 30 circuit spaces)
- Type: Siemens B230/BL230
- Configuration: 2-pole, 30 amp, 120/240V
- Interrupting Rating: 10kAIC
- Connection: Bolt-on type
Condition:
- CONFIGURED BUT NEVER INSTALLED
- All breakers tested and operational
- Panel bus in good condition
- Ready for installation
Additional information
| Weight | 90.0000 lbs |
|---|---|
| Dimensions | 48 × 24 × 8 in |
| MOUNTING STYLE | Panel |
| NUMBER OF GANGS | 42 |
| MAXIMUM AMPERAGE | 250 A |
| Color | Gray |
| NUMBER OF PHASES | 3 |
| CURRENT RATING | 250 A MAX |
| MATERIAL | Metal |
| MPN | |
| ITEM LENGTH | 44 IN |
| ORIENTATION | Vertical |
| NUMBER OF SPACES | 42 |
| SUITABLE FOR | Interior |
| Brand | |
| TYPE | Main Breaker Panel |
| CURRENT TYPE | AC |
| VOLTAGE | 208Y / 120V 3Ø 4W |
| ITEM HEIGHT | 44 in |
| NUMBER OF POLES | 3 |
| NUMBER OF CIRCUITS | 42 |
| BOX SHAPE | Rectangular |
| APPLICATION | Industrial |
| ITEM WIDTH | 20 in |
| Condition | |
| Condition Description | never installed … no wires run. *** 60 day money back guarantee *** |
