Description

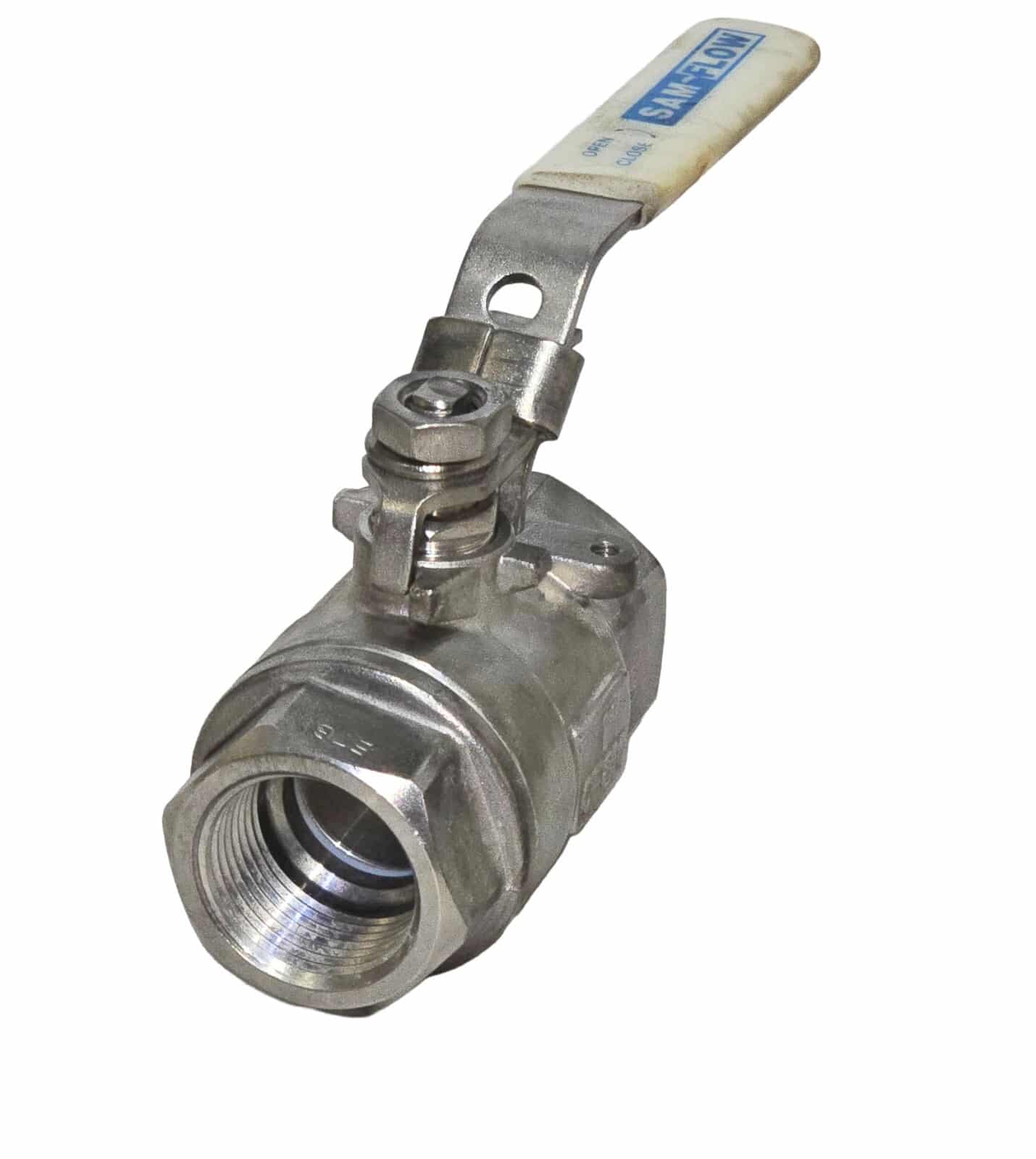

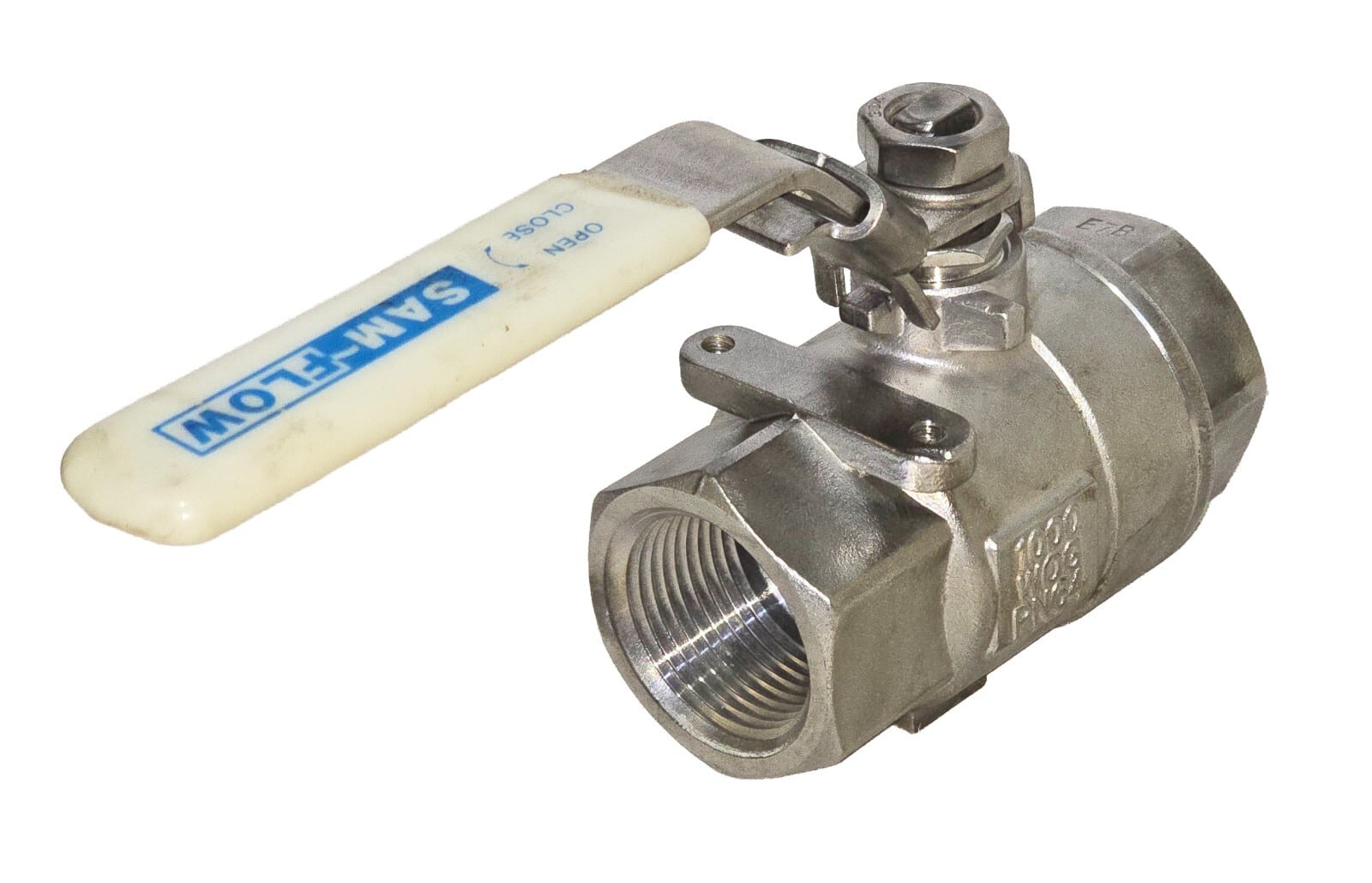

Sam-Flow 1″ Stainless Steel Ball Valve 1000 WOG CF8M PN64
2 Piece Female Screwed Ball Valve
1000 W.O.G.
Design : ASME B16.34, API608
Wall thickness : 100% ASME B16.34, GB12224
Full Port
With Iso Mounting Pad
Blow-out-proof Stem
Pressure balance hole in ball slot
Body: S.S.
Temperature: -20 F to 450 F (-29 C to 232 C)
Ends : threaded BSP, NPT MPT ANSI B2.1, BS21/2779, DIN 259, DIN 2999,ISO 228
Inspection & Testing: API 598 API6D
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 7.00 × 7.00 × 7.00 in |
| Brand | |
| TYPE | Ball Valve |
| SHAPE | Inline |
| HOUSING MATERIAL | Stainless Steel |
| WOG RATING | 1000 psi |
| CONNECTION SIZE | 1" |
| MATERIAL | Stainless steel |
| VALVE OPERATION | Manual |
| OPERATION | Manual |
| DIAMETER | 1 in |
| MPN | |
| Condition | |
| Condition Description |
