| Zombie Components LLC | www.zombiecomponents.com |

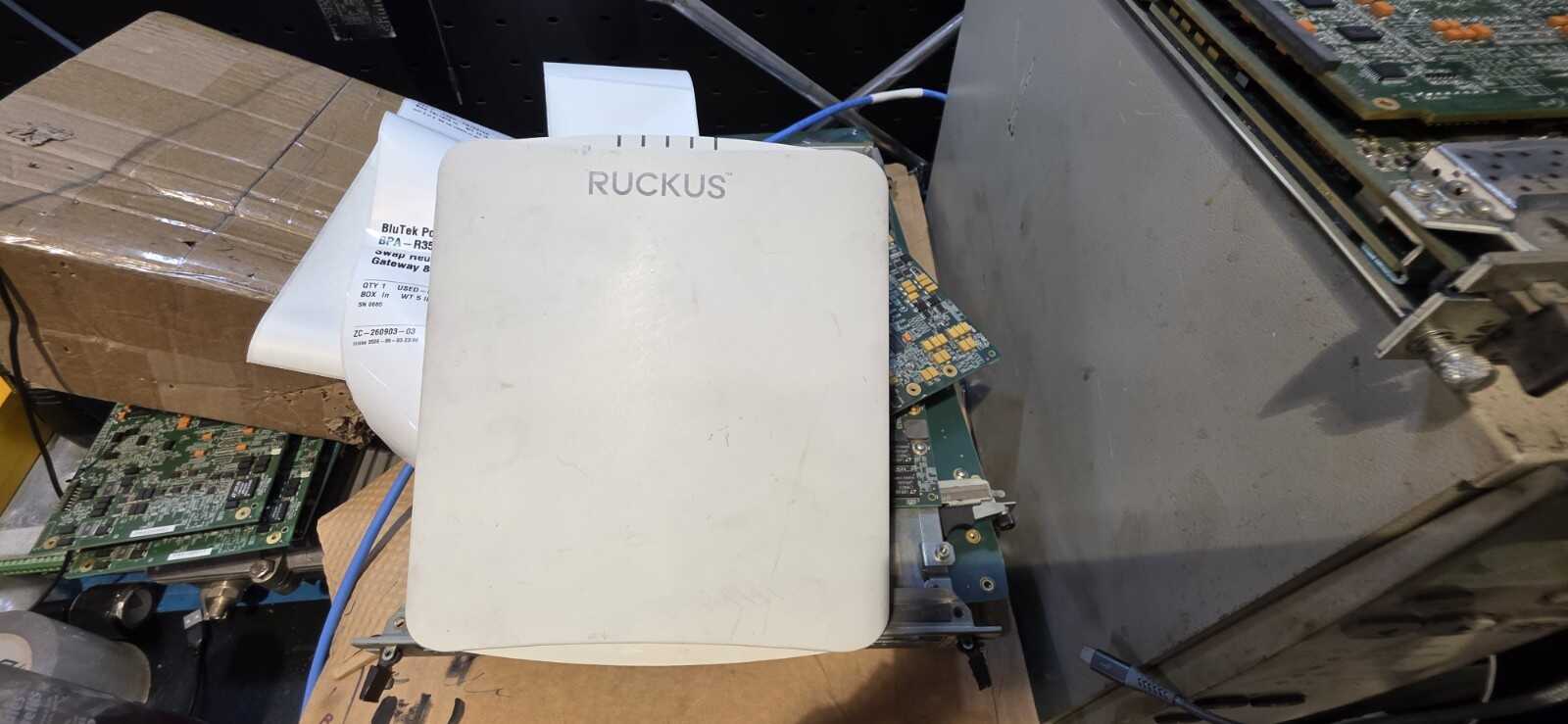

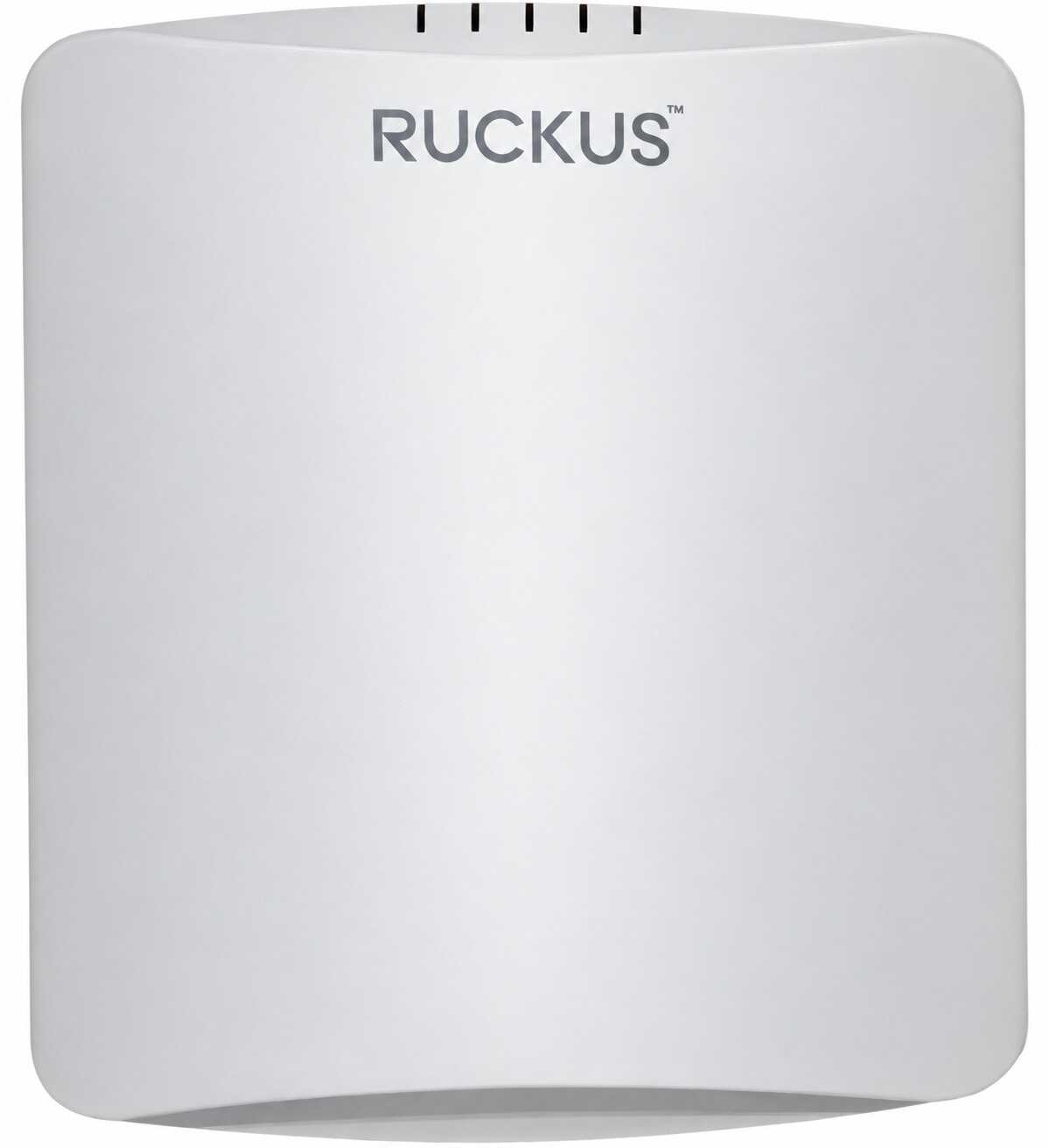

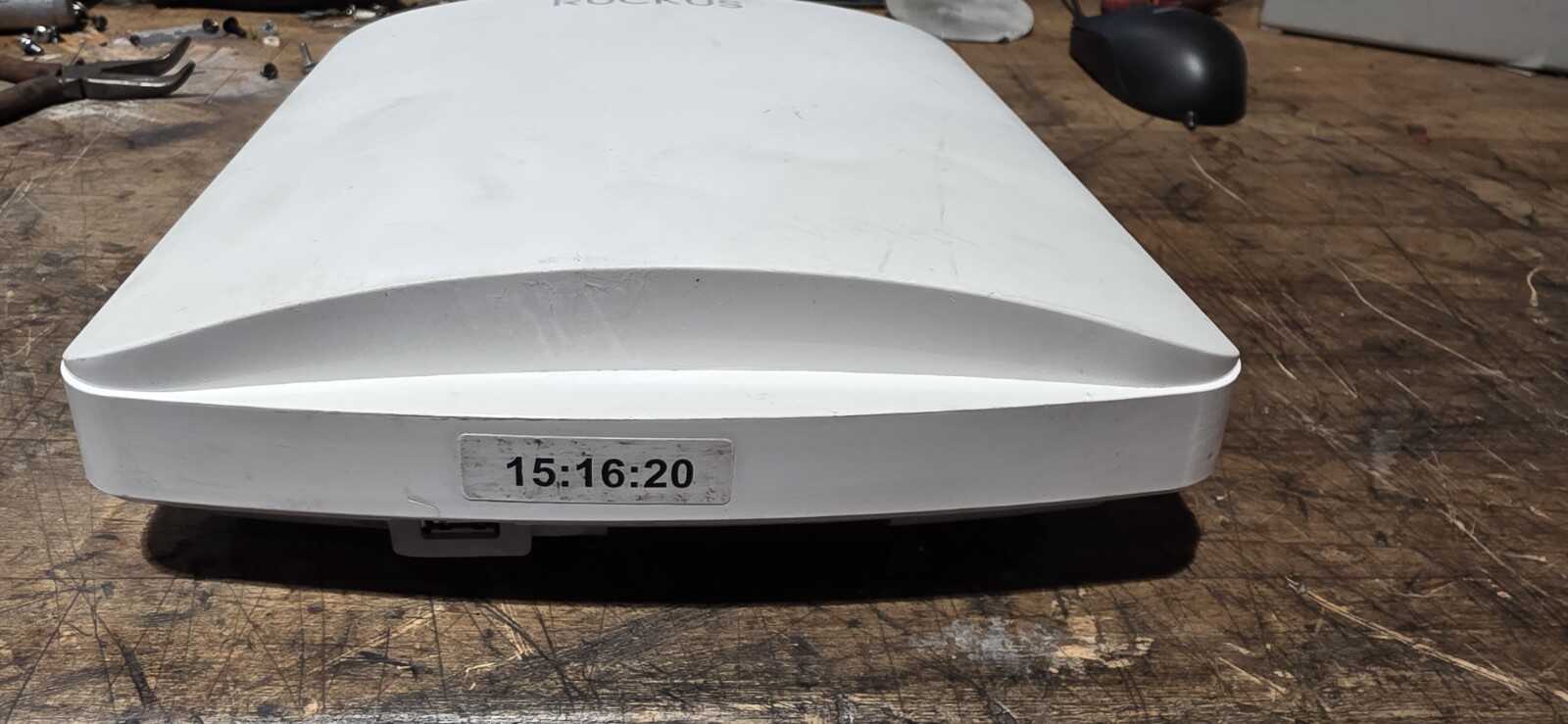

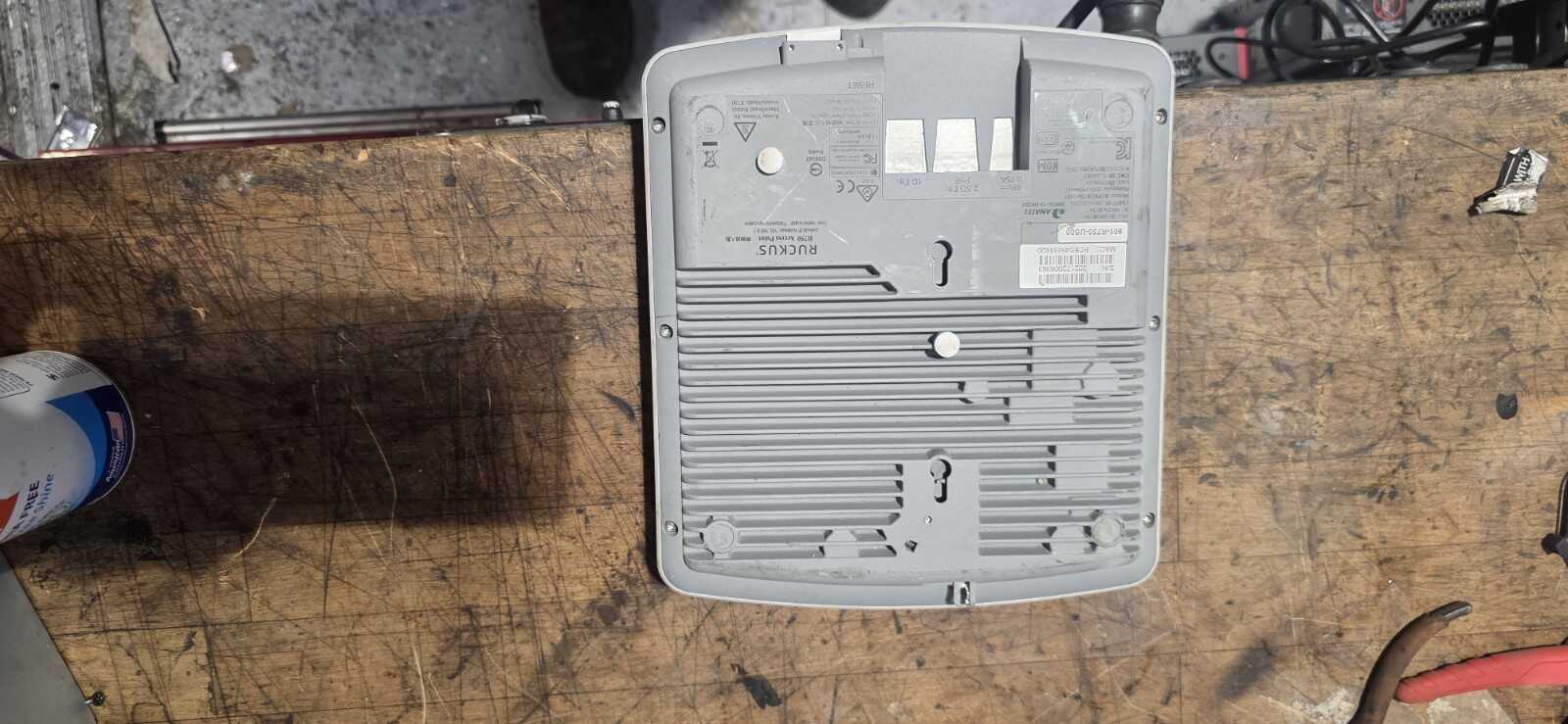

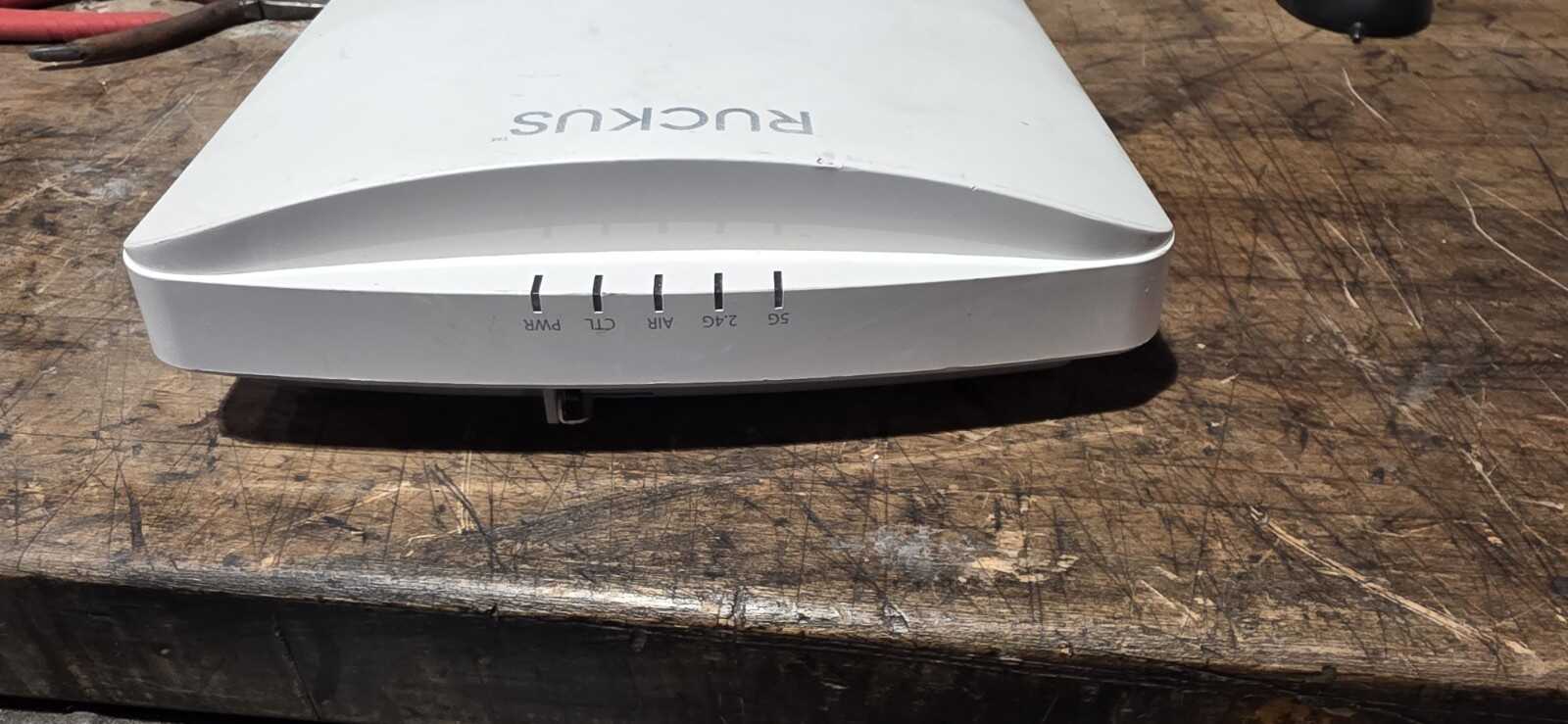

Ruckus R750 indoor access point, US SKU 901-R750-US00. Dual band, dual concurrent Wi-Fi 6
(802.11ax) with 4×4:4 streams on both 2.4 GHz and 5 GHz, BeamFlex+ adaptive antennas, onboard BLE
and Zigbee radios, and a 2.5 GbE PoE uplink. Built for high client density: up to 1024 concurrent
clients and 31 SSIDs per AP. This is the unit sold in the photos, serial 302172006363,
MAC FC5C45151620. Multiple units available.
60 Day Money Back Guarantee.
| Parameter | Value |
| MPN | 901-R750-US00 |
| Brand | Ruckus (CommScope) |
| Model | R750 Access Point |

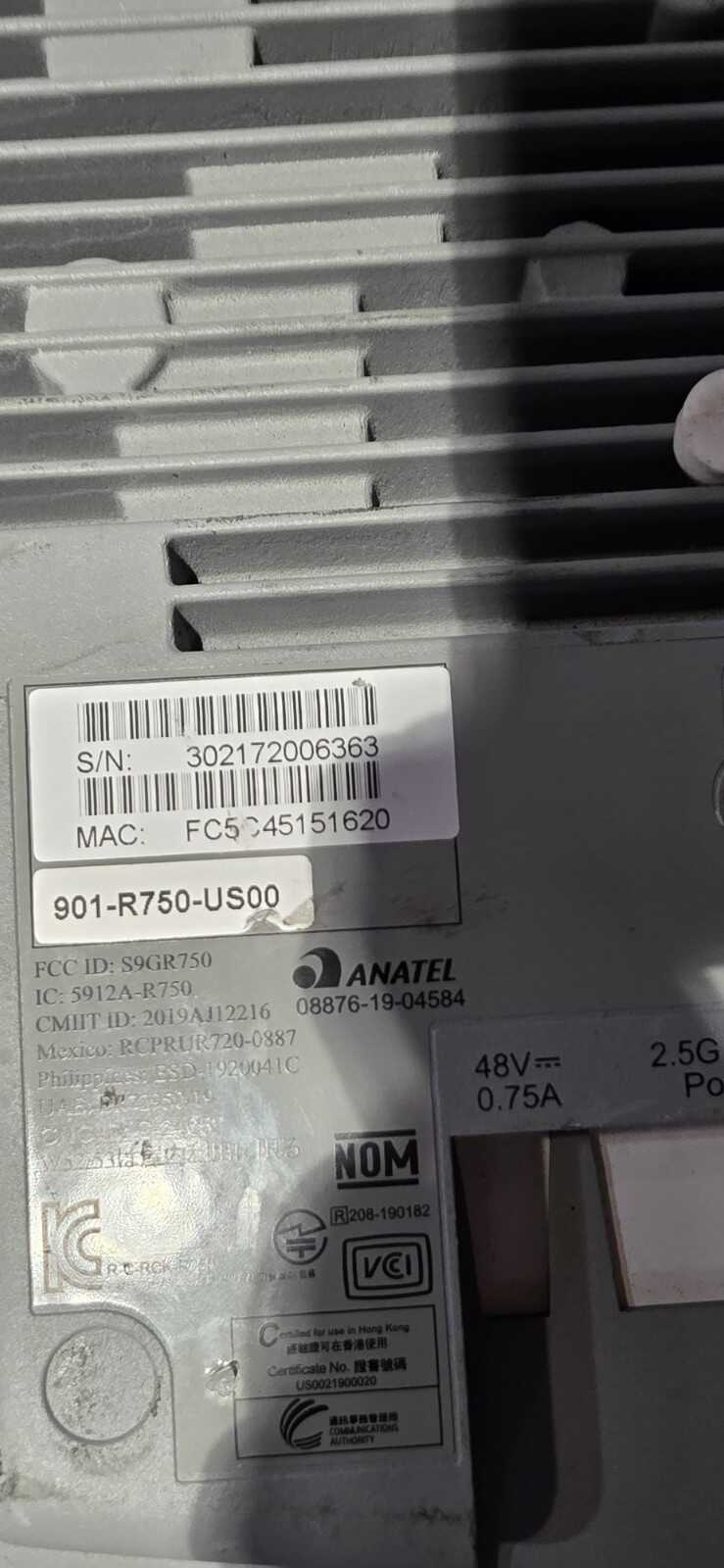

| Serial | 302172006363 |
| MAC | FC5C45151620 |
| Standard | Wi-Fi 6, 802.11ax, backward compatible with 802.11a/b/g/n/ac |
| Radios | 4×4:4 on 2.4 GHz and 4×4:4 on 5 GHz, 8 spatial streams total |
| Peak PHY rate | 1148 Mbps at 2.4 GHz, 2400 Mbps at 5 GHz, 3548 Mbps combined OFDMA and MU-MIMO, uplink and downlink |
| Capacity | up to 1024 concurrent clients, up to 31 SSIDs per AP |
| Antennas | BeamFlex+ adaptive array, over 4000 patterns, up to 3 dBi |
| IoT | integrated BLE and Zigbee radios |

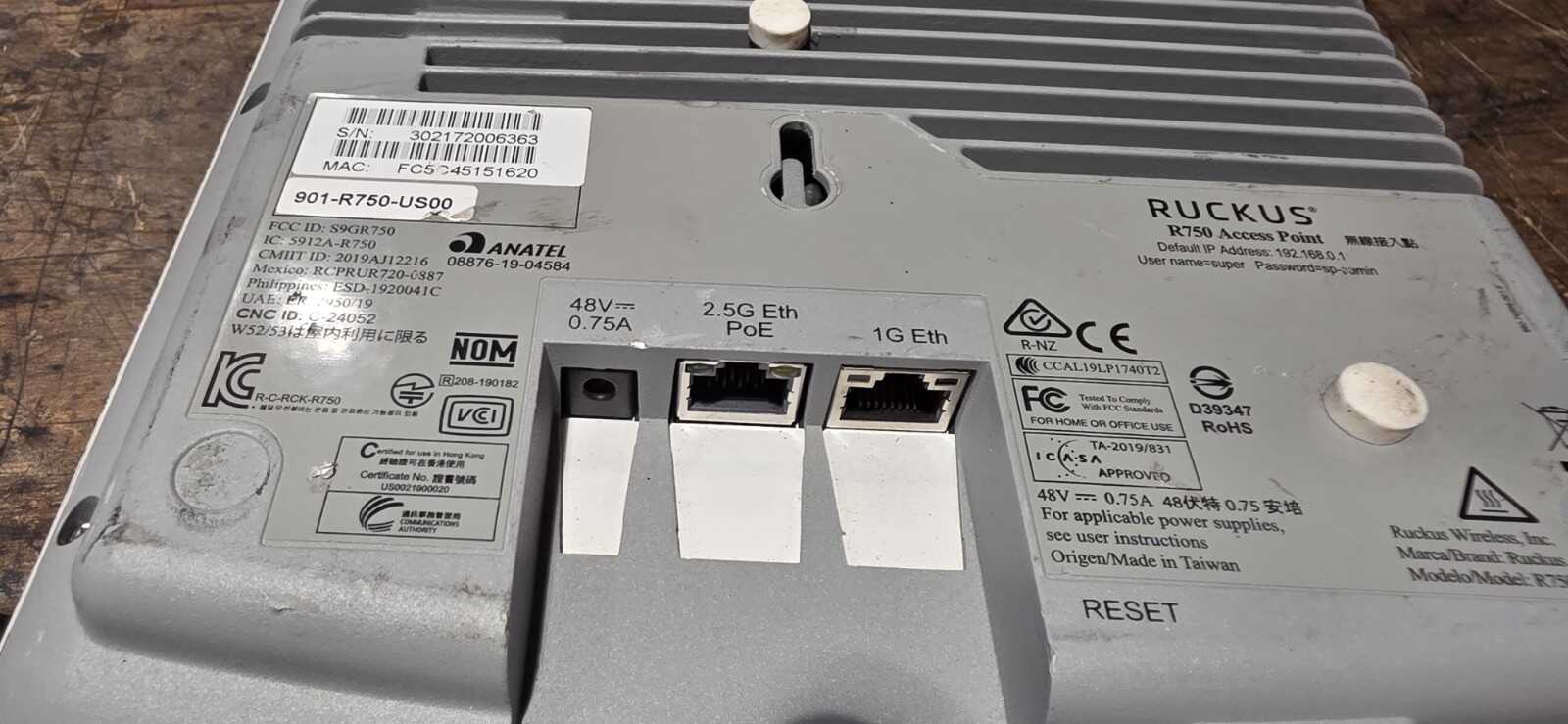

| Ports | one 2.5 GbE RJ45 with PoE input, one 1 GbE RJ45, one USB 2.0 Type A, RESET button |
| Power | 3at PoE+ for full functionality, 802.3af supported with reduced functionality, 802.3bt supported; DC input 48 V 0.75 A as marked on the housing |
| Power draw | 34 W on 802.3at, 12.54 W on 802.3af, 22.69 W on DC |
| Environment | 0 to 50 C operating, humidity to 95 percent non-condensing |
| Dimensions | 3 x 8.1 x 2.4 in (23.5 x 20.6 x 6.2 cm) |
| Weight | 23 lb (1.01 kg) Default management address 192.168.0.1, default credentials super / sp-admin as printed on the unit |
| Regulatory | FCC ID S9GR750, IC 5912A-R750, CE, RoHS. Made in Taiwan |
Ruckus R750 access point, quantity one
Not included:
Mounting bracket, mounting hardware and ceiling clips
Power supply, PoE injector and power cord
Ethernet cable
Controller, licenses, software, documentation or original packaging
Requires 802.3at PoE+ for full functionality; 802.3af will power the AP with reduced functionality.
A 48 V 0.75 A DC supply can be used in place of PoE. Manageable by RUCKUS SmartZone, ZoneDirector,
Unleashed, RUCKUS Cloud or standalone, depending on the firmware image loaded. Ruckus support
entitlement and any active service contract do not transfer with a secondhand unit. Buyer is
responsible for confirming their controller version supports the R750.
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Boxed and shipped from Sylmar, California. Item is 9.3 x 8.1 x 2.4 in; ships in a
13 x 12 x 7 in box at 4 lb with packing. Ships within one business day of cleared payment.
