Retsch DM400 Disc Mill 2017 Laboratory Sample Preparation Mill 20.744.0002

Retsch DM400 Disc Mill 2017 Laboratory Sample Preparation Mill 20.744.0002

Name: Retsch DM400 Disc Mill 2017 Laboratory Sample Preparation Mill 20.744.0002
Brand: Retsch
SKU: 127728103770_2ADB
Price: 13499.99 USD
Availability: InStock

$13,499.99

1 in stock

SKU: 127728103770_2ADB Category: Grinding Machines Brand: Retsch

Description

ZOMBIE COMPONENTS

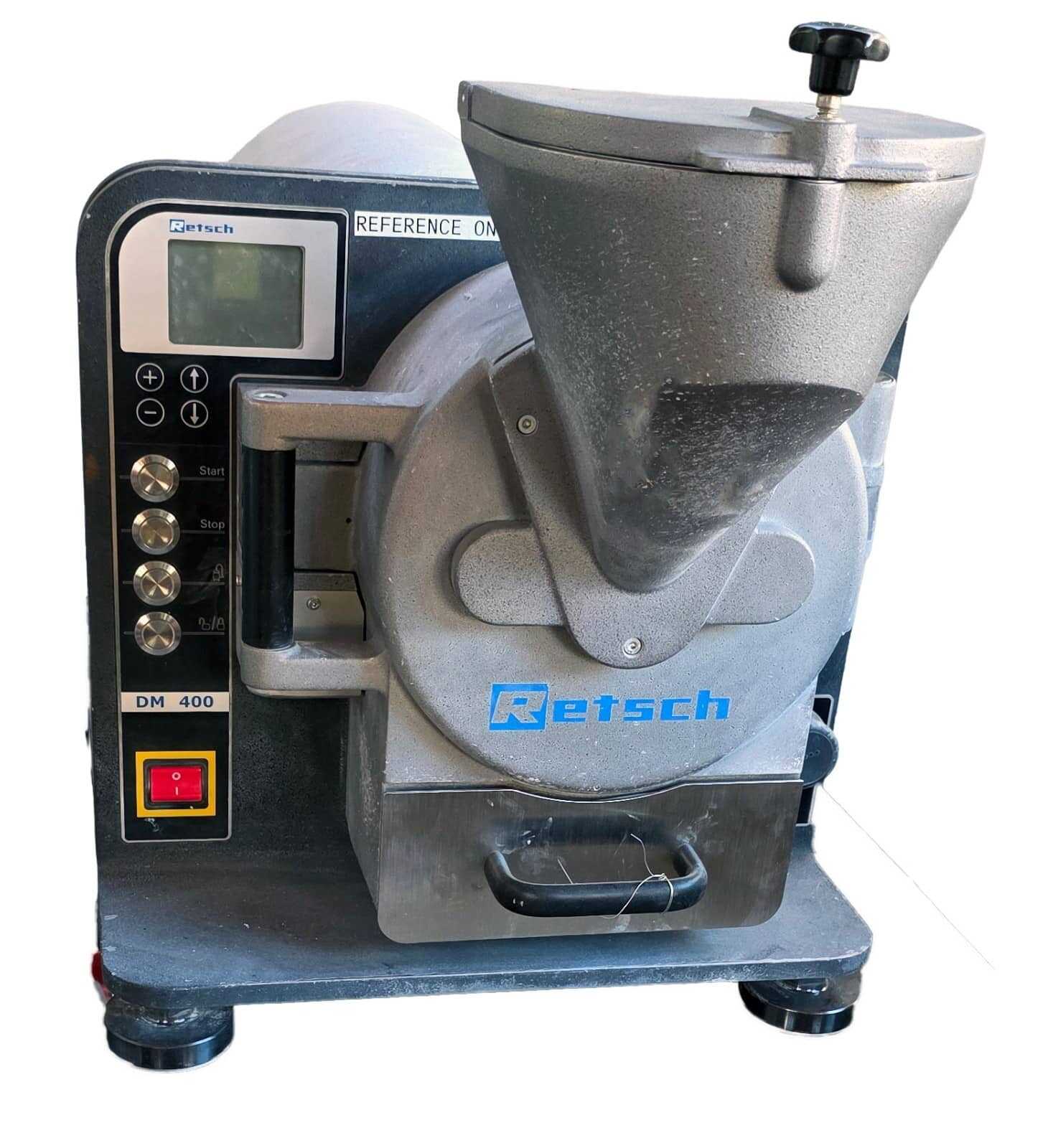

Retsch DM400 Disc Mill 2017 Laboratory Sample Preparation Mill
20.744.0002

Retsch DM 400 Disc Mill for batch or continuous fine grinding of hard, brittle to medium-hard solids. Accepts feed up to 20 mm, delivers final fineness from approx. 0.05 to 12 mm depending on material and gap setting, with throughput up to 150 kg/h. Part Number: 20.744.0002

Year: 2017

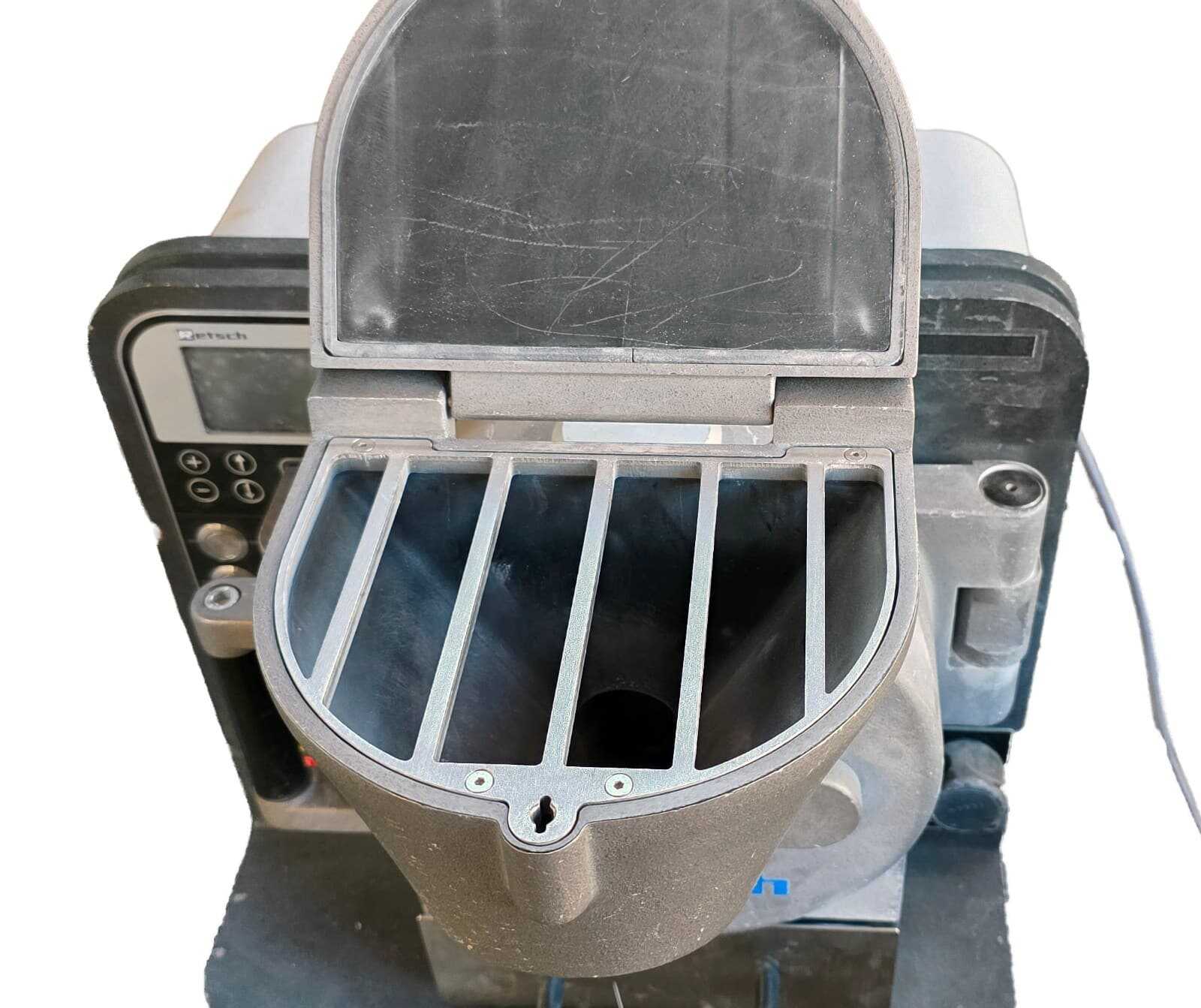

The DM 400 uses two coarsely toothed grinding discs operating in a dustproof grinding chamber. Material is fed through the lockable hopper into the center of the upright grinding disc and is reduced by compression and shear stress before exiting through the adjustable gap between the discs. The grinding gap is set from the control panel in 0.05 mm increments and displayed on the screen.
Key Specifications

Maximum feed size: 20 mm edge length

Final fineness: approximately 12 mm down to 0.05 mm, depending on gap setting and material

Throughput: approximately 20 to 150 kg/h depending on outlet gap, bulk density, and grindability of the sample

Minimum feed quantity: 20 to 30 ml

Batch collection container volume: 2 L

Maximum timed grinding duration: 60 minutes

Dimensions: 52 x 105 x 63 cm (W x D x H)

Weight: 228 kg net without grinding discs, 246 kg with tungsten carbide grinding discs

Operating noise: 68.9 dB(A) measured with sand sample material

Power input: 1830 W

Power supply: Three-phase supply network only

Features

Disc mill for batch or continuous operation

Motor-driven gap adjustment with digital readout in 0.05 mm steps

Dustproof grinding chamber with optional dust extraction connection

Safety interlocks prevent startup if the grinding chamber is open or if the sample material container is missing

Restart protection after power interruption

Reverse operation capability to help extend grinding-disc life when wear is one-sided

Thermal circuit breaker integrated in the main switch

Typical Applications
Sample preparation for:

mining and metallurgy

geology and mineralogy

glass and ceramics

hard, brittle to medium-hard solids

Condition
Used industrial/laboratory equipment. Removed from service. Cosmetic wear consistent with normal use, including scuffs, dust, and handling marks. Please review all photos carefully for condition and included components.
Includes

Retsch DM 400 Disc Mill

Components and accessories shown in the photos only

Shipping
Buyer to arrange freight due to size and weight. Local pickup is also available.
Search Terms
Retsch DM400, Disc Mill, sample preparation mill, laboratory disc mill, analytical sample prep, mineral sample grinding, geology lab mill
Item specifics
Brand: Retsch

Model: DM 400

Type: Disc Mill

Year: 2017

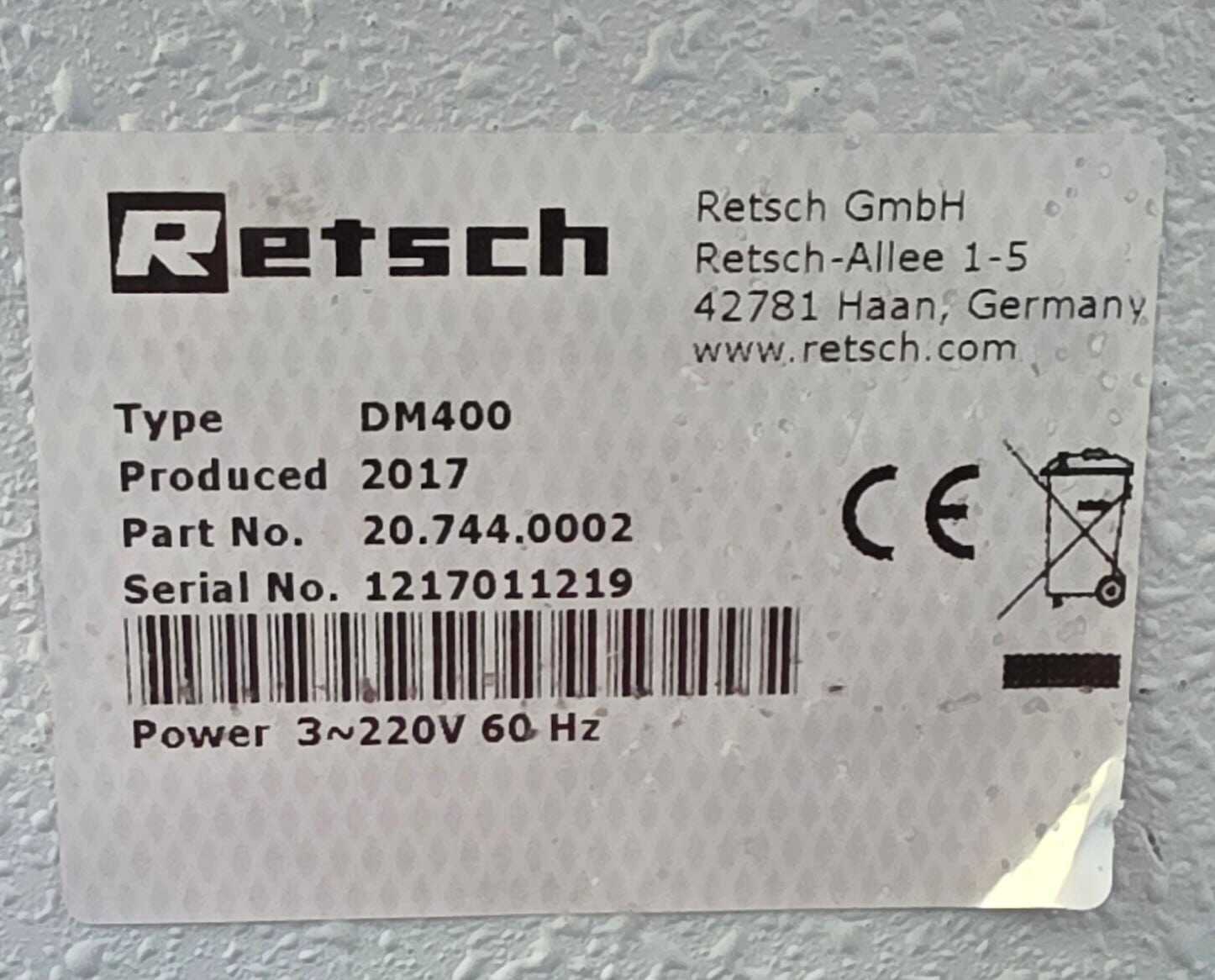

Part Number: 20.744.0002

Feed Size: Up to 20 mm

Final Fineness: 0.05 mm to 12 mm

Throughput: 20 to 150 kg/h

Container Volume: 2 L

Power: 1830 W

Power Requirement: Three-phase

Dimensions: 52 x 105 x 63 cm

Weight: 228 kg net
