| Parameter | Value |

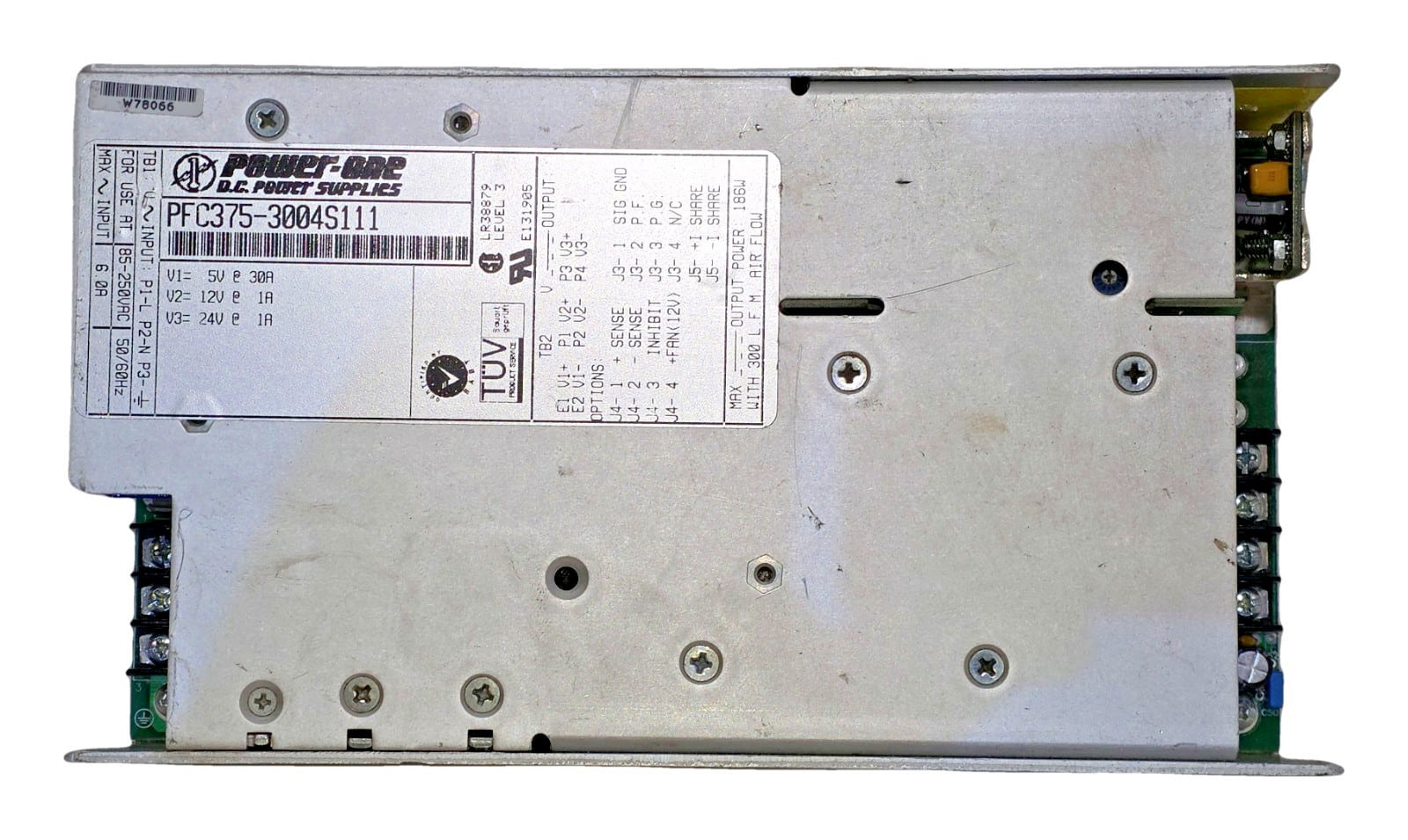

| Manufacturer part number | PFC375-3004S111 |
| Topology | open-frame AC-DC switcher with active power factor correction |

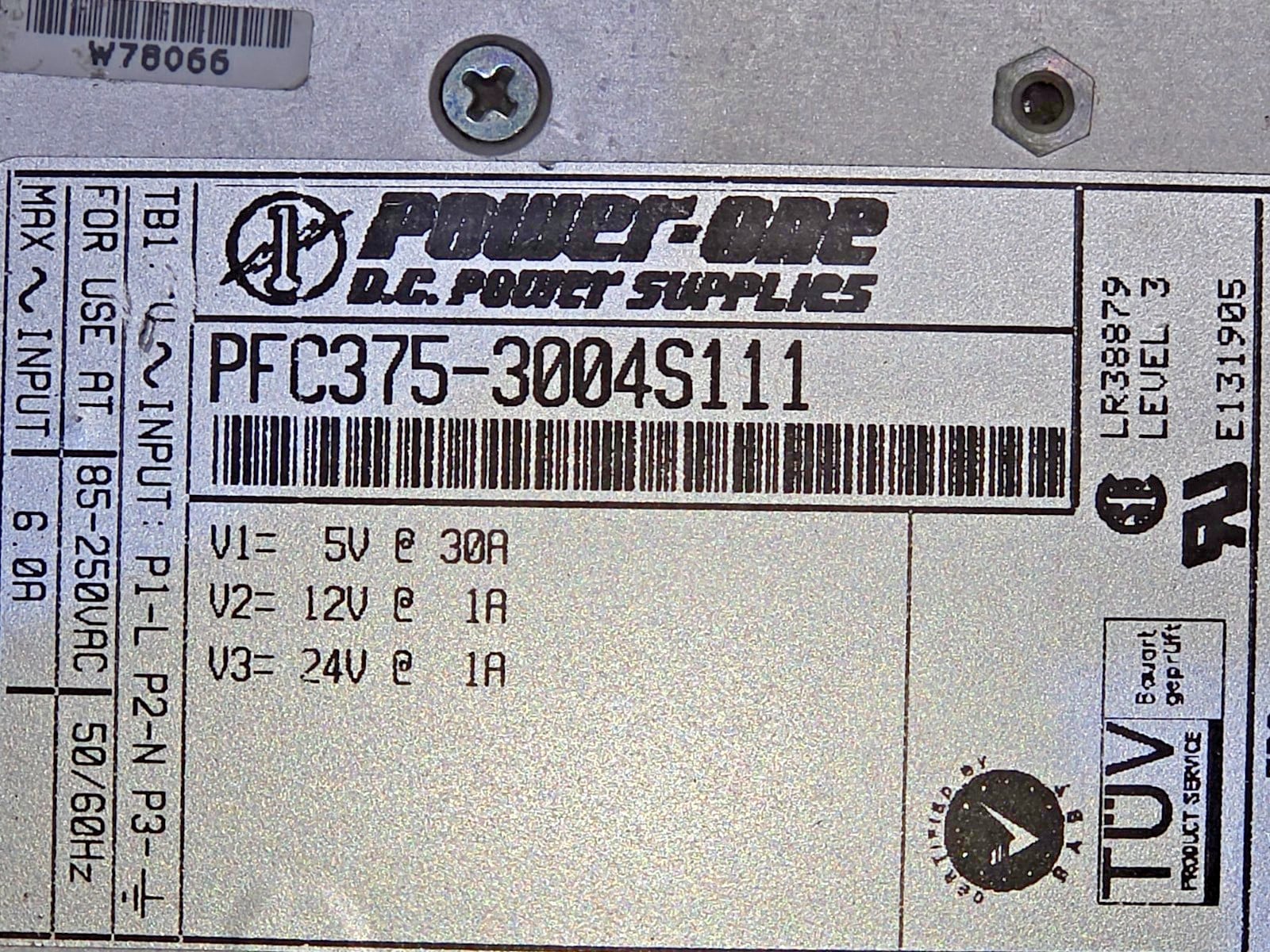

| AC input, per nameplate | 85 to 250 VAC, 50/60 Hz, 6.0 A max |
| AC input connection | TB1 terminal block, P1 line, P2 neutral, P3 earth |
| Output V1 | 5 VDC at 30 A |
| Output V2 | 12 VDC at 1 A |
| Output V3 | 24 VDC at 1 A |
| Combined nameplate output | approximately 186 W |
| Series frame rating | 375 W maximum, model dependent on output configuration |
| Series footprint | approximately 9.0 x 5.0 x 2.5 inches |
| Series cooling | full rated output with 300 LFM forced air |
| Series features | remote sense, power fail signal, logic level inhibit, DC power good, main channel current sharing |
| Agency markings on plate | UL file E131905, CSA file LR38879 Level 3, TUV Bauart geprueft, CE mark per series documentation |
| Unit identifier on chassis barcode label | W78066 |
[Included]
Not included:

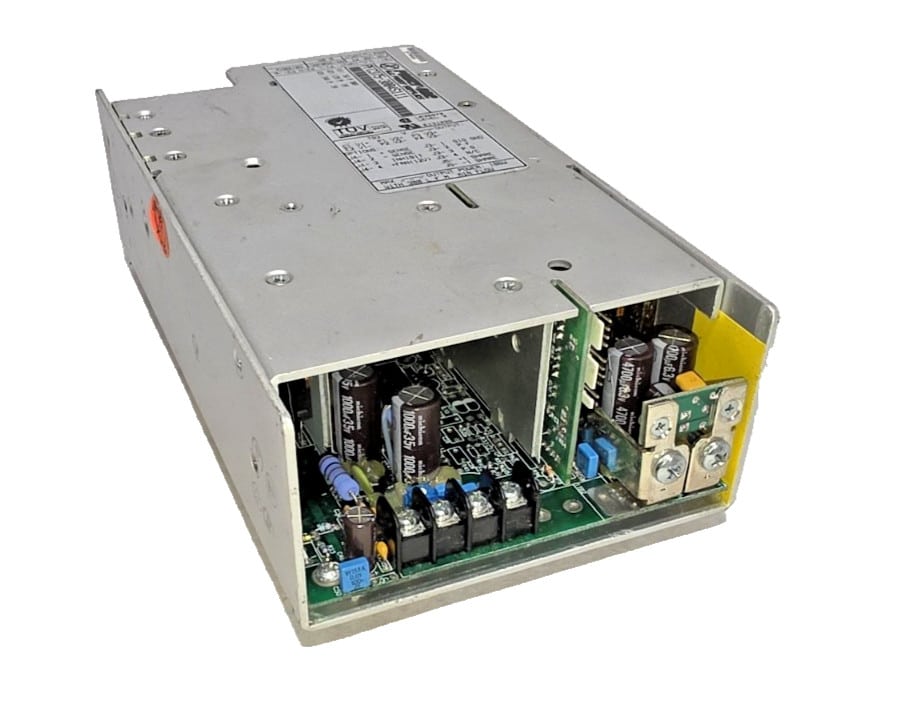

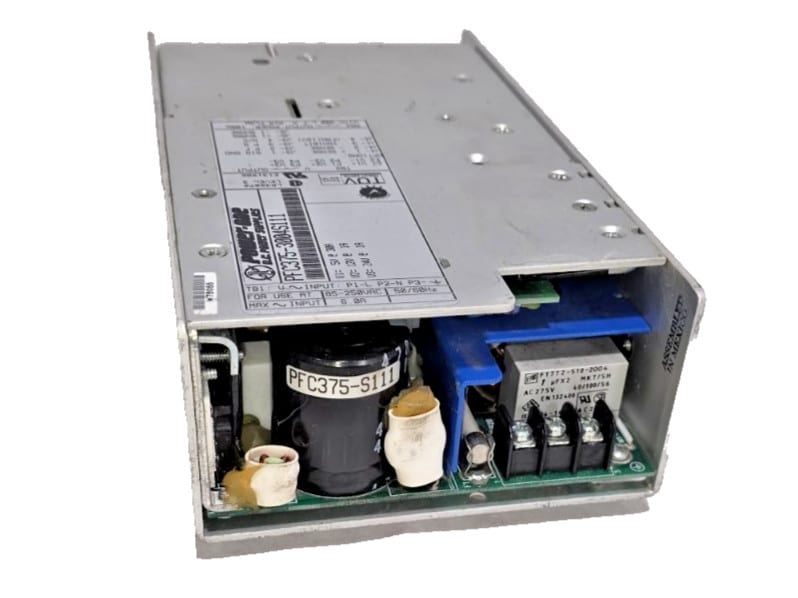

This is an open-frame OEM assembly, not a bench or desktop supply. It requires installation in an enclosure with forced-air cooling and field wiring to the AC terminal block and DC output terminals. Nameplate AC range is 85 to 250 VAC, so it runs on both 120 V and 230 V mains without a range switch. Confirm the output terminal and signal connector pinout against the PFC375 series datasheet before wiring; the S111 suffix denotes a factory option or OEM build variant and pinout details for that variant are not published.
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.
We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.
International shipments may be delayed or cancelled due to EAR and ITAR export compliance requirements. The vast majority of our items need no export license and ship under EAR99 and other exemptions; items that require a license are indicated in the listing.
This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.
All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.
If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
We do not keep or share your information anywhere. Your information resides only on eBay and is available to us only for a limited time while we interact with you on an inquiry, order, or return, per eBay usage policies.
Additional information
| Weight | 8.0000 lbs |
|---|---|
| Dimensions | 20 × 8 × 6 in |
| NOMINAL VOLTAGE RATING (DC) | 24 V |
| Brand | |
| OUTPUT VOLTAGE RATING (AC) | 24 V |
| TYPE | power supply |
| EFFICIENCY | 85% |
| OUTPUT VOLTAGE RATING (DC) | 24 V |
| Color | Silver |
| MPN | |
| CONSTRUCTION TYPE | Enclosed |
| PROTECTION PROPERTIES | Overvoltage Protection,Overload Protection,Overcurrent Protection |
| INSTALLATION AREA | Indoor |
| Condition | |
| Condition Description |
