Portwell PCOM-B219VG SBC Motherboard (R).PCOM-B219VG-VI-3612QE with MOQ

ZOMBIE COMPONENTS

Portwell PCOM-B219VG SBC MOTHERBOARD (R).PCOM-B219VG-VI-3612QE with MOQ

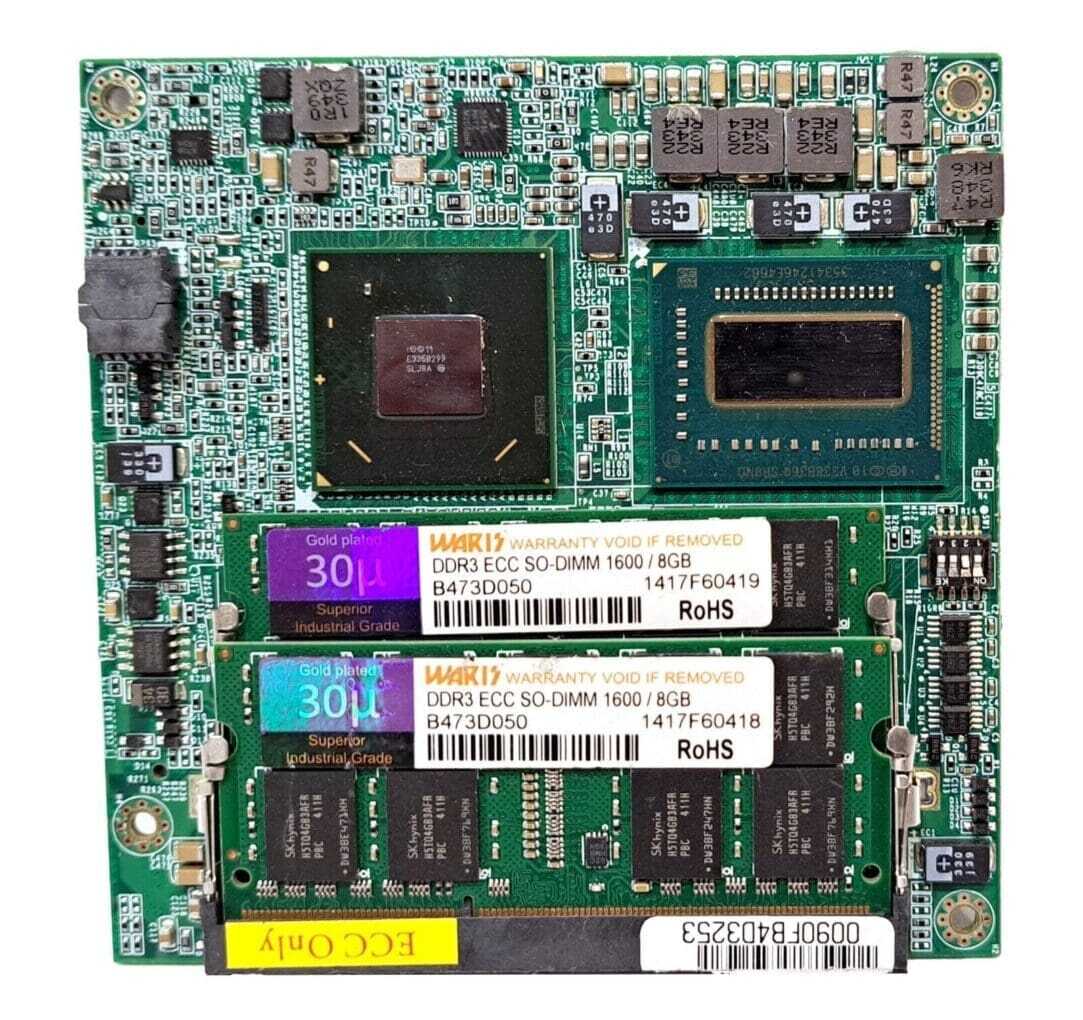

Portwell PCOM-B219VG SBC MOTHERBOARD (R).PCOM-B219VG-VI-3612QE with MOQ with 16 GB Ram + Intel Core i7-3612QE
Intel Core i7-3612QE 2.1GHz based Type 6 COM Express module, Intel QM77, DDR3 ECC, LAN 82579LM, 8xUSB 2.0, 4xUSB 3.0, 1xPCIe x16, 7xPCIe x1
Form Factor: COM Express CPU ModuleProcessor Installed: Intel Core i7-3612QESocket: CPU onboardChipset: Intel QM77Memory Type: DDR3 1333, DDR3 1600Total Ethernet: 1COM Total: 2System Architecture
Form Factor:COM Express CPU ModuleSupported Types of Motherboards:COM Express Type 6CPU
Processor Installed:Intel Core i7-3612QESocket:CPU onboardFrequency:2.1 GHzNumber of CPU:1Cooling
Type:FanlessChipset
Chipset:Intel QM77Memory
Memory Type:DDR3 1333, DDR3 1600Socket Type:2xSODIMM 204pinAssembly:RemovableMaximum Memory:16 GBECC:YesGraphic
Graphic Controller:Intel HD Graphics 4000Interfaces:DisplayPort, DVI, LVDS, HDMI, VGANetwork Adapter
Controller Type:Intel 82579LM 10/100/1000MbpsTotal Ethernet:110/100/1000 Mbit/s:1Interfaces
COM Total:2USB 2.0:4USB 3.0:4Digital Input-Output
Channels of DIO:8Extension Slots
Total:8PCI Express x1:7PCI Express x16:1Storage Controllers
SATA 2 Channels:2SATA 3 Channels:2Audio
Audio Controller:Intel HD AudioAudio Type:Built-in ChipsetWatchdog
Hardware:YesSystem Monitoring
Sensor Controller:Built-in ChipsetISMM Supported Functions:YesSystem Power Input
Input Voltage DC:12 … 12 VOperating Conditions
Temperature:-40 … 85 °CHumidity:5 … 95 % (non-condensing)Dimensions and weight
Width:95 mmLength:95 mm
