NSN 3110-00-003-9367 Timken HM804848 Tapered Roller Bearing Cone NOS Mil-Surplus

NSN 3110-00-003-9367 Timken HM804848 Tapered Roller Bearing Cone NOS Mil-Surplus

Name: NSN 3110-00-003-9367 Timken HM804848 Tapered Roller Bearing Cone NOS Mil-Surplus
Brand: Timken
SKU: 127915003658_7173
Price: 49.99 USD
Availability: InStock

$49.99

26 in stock

SKU: 127915003658_7173 Category: Ball & Roller Bearings Brand: Timken

Description

ZOMBIE COMPONENTS

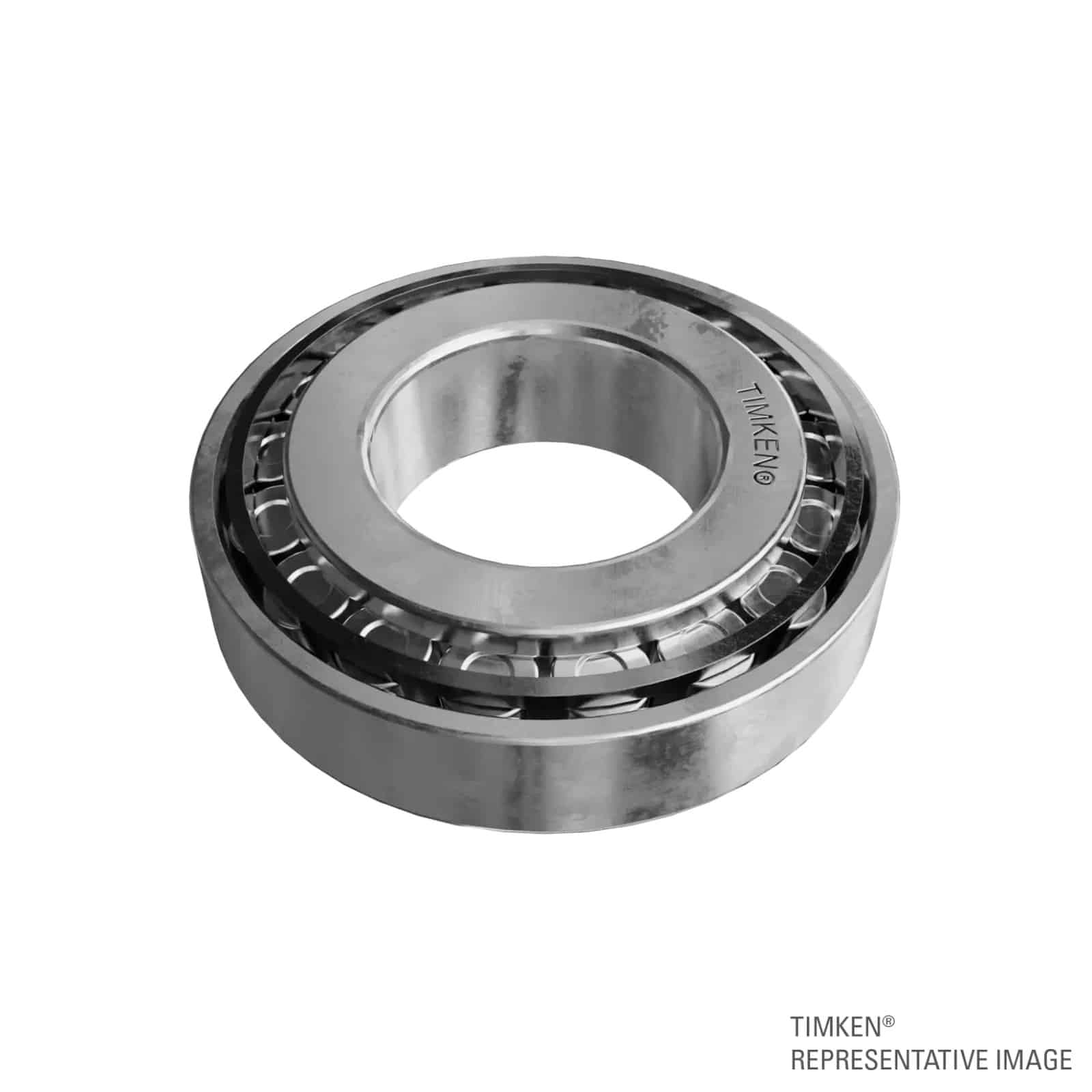

NSN 3110-00-003-9367 Timken HM804848 Tapered Roller Bearing Cone
NOS Mil-Surplus

NSN 3110-00-003-9367 Timken HM804848 Tapered Roller Bearing Cone

Offered for sale is a genuine New Old Stock (NOS) military surplus tapered roller bearing cone, preserved in original military packaging. These bearings were packaged and stored under military preservation standards and remain unused.

This listing is for one (1) bearing cone. Multiple units are available.

Specifications

NSN: 3110-00-003-9367

Manufacturer Part Number: HM804848

Bearing Type: Tapered Roller Bearing Cone

Matching Cup/Race: HM804810 or HM804811

Bore Diameter: 1.9060 in (48.412 mm)

Cone Width: 1.1563 in (29.37 mm)

Bearing Series: HM804800

Military Preserved Packaging

New Old Stock (NOS)

Made in USA

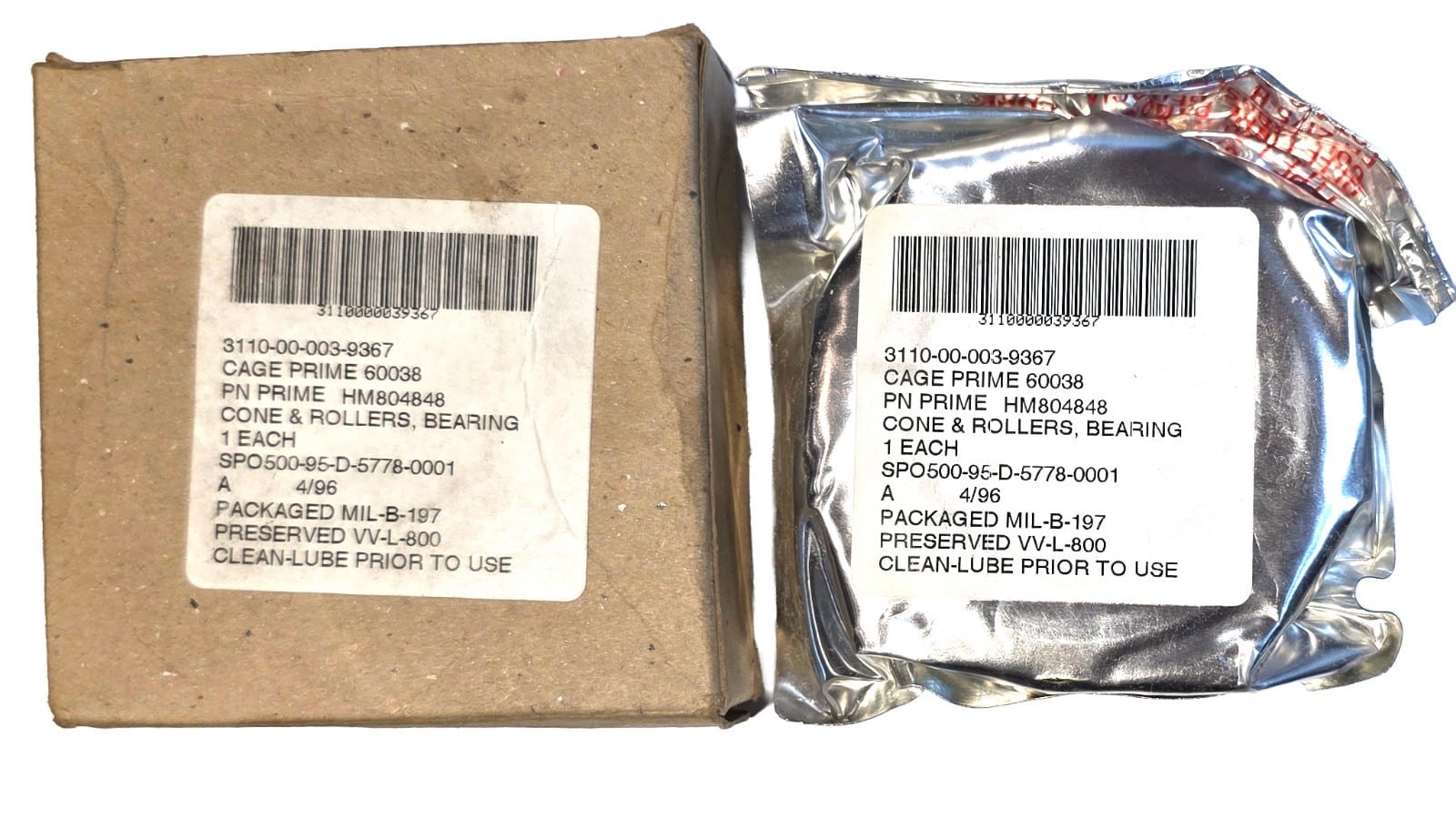

Military Preservation

Each bearing is packaged in accordance with military preservation requirements and marked:

MIL-B-197

Preserved with VV-L-800 protective coating

These bearings have remained sealed in long-term storage and were acquired as surplus from government inventory.

Applications

The HM804848 tapered roller bearing cone is commonly used in:

Heavy industrial equipment

Military ground support equipment

Trailers and axle assemblies

Agricultural equipment

Gearboxes and power transmission systems

Specialty vehicle wheel hubs

Buyer is responsible for verifying compatibility with their application.

Condition

New old stock

Unused

Original military packaging

Packaging may show minor shelf wear from long-term storage

Bearing remains preserved and protected

Included

One (1) HM804848 Tapered Roller Bearing Cone

Original military preservation packaging

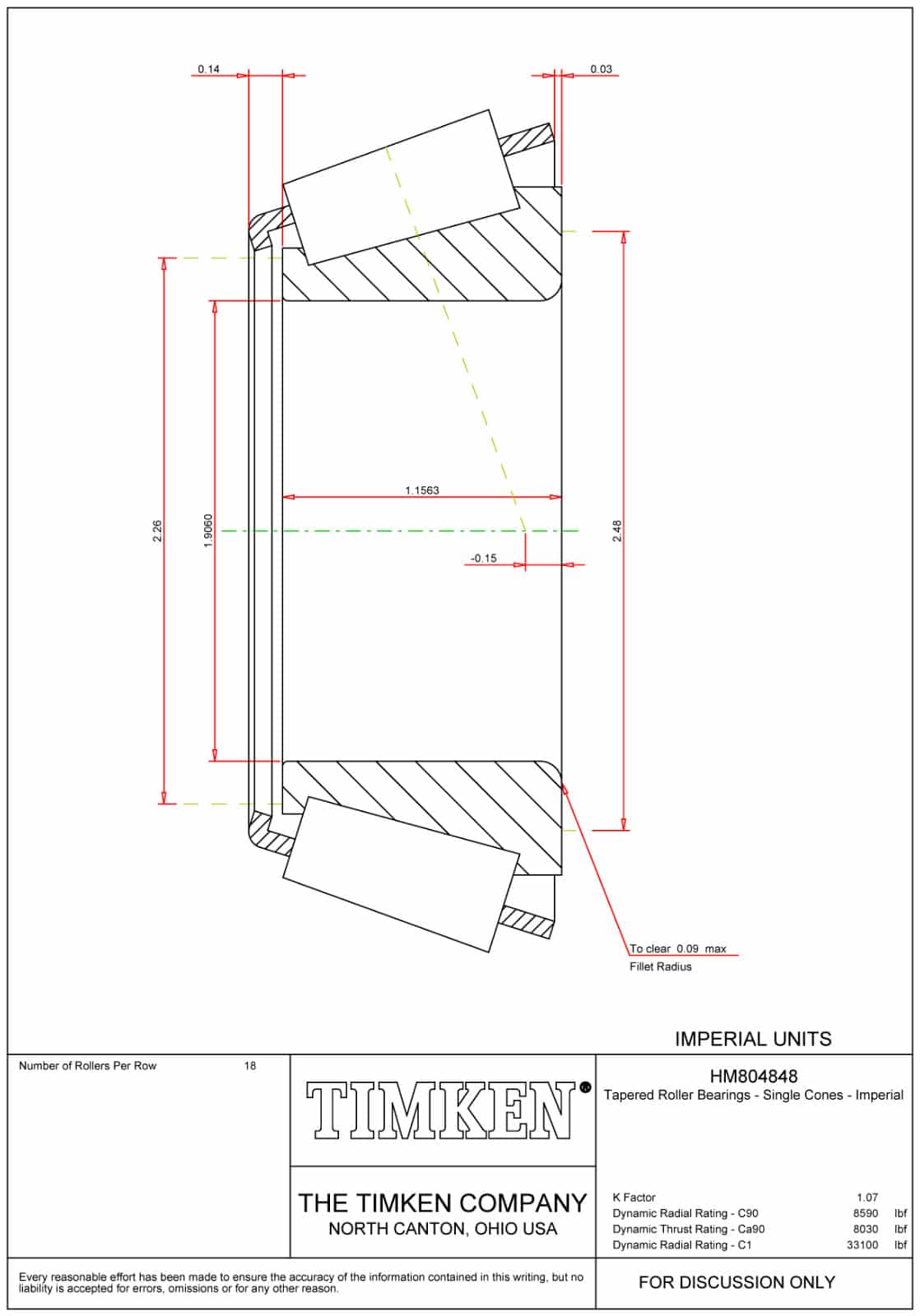

Key Dimensions
Series

HM804800

Cone Part Number

HM804848

Bore (d)

1.9060 in48.412 mm

Dynamic Radial Load Rating – 90M Revs (C90) 1
8590 lbf38200 N

Dynamic Radial Load Rating – 1M Revs (C1) 2
33100 lbf147000 N

C1 – Dynamic Radial Rating (Two-Row, 1 million revolutions)3
57700 lbf257000 N

Dynamic Radial Load Rating 2-Row – 90M Revs (C90-2row) 4
15000 lbf66600 N

K Factor 5
1.07

Other Dimensions
Inner Ring Width (B)

1.1563 in29.37 mm

Max Shaft Fillet Radius6
0.09 in2.300 mm

Shaft Backing Shoulder Diameter – Frontface (da)

2.26 in57 mm

Shaft Backing Shoulder Diameter – Backface (db)

2.48 in63 mm

Cage Location Relative to Frontface (Ab)

0.14 in3.6 mm

Cage Location Relative to Backface (Aa)

0.03 in0.8 mm

Effective Center Location7
-0.15 in-3.8 mm

Weight

2.2 lb1.00 Kg

Ratings
Static Radial Load Rating (C0)

35400 lbf157000 N

Ca90 – Dynamic Thrust Rating (90 million revolutions)8
8030 lbf35700 N

Factors
Geometry Factor (Cg)9
0.102

1 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values.
2 Based on 1 x 106 revolutions L10 life, for the ISO life calculation method.
3 Based on 1 x 106 revolutions L10 life, for the ISO life calculation method.
4 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values for a single-row, C90(2) is the two-row radial value.
5 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
6 These maximum fillet radii will be cleared by the bearing corners.
7 Negative value indicates effective center inside cone backface.
8 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values for a single-row, C90(2) is the two-row radial value.
9 Geometry constant for Lubrication Life Adjustment Factor a3l.

60-Day Return Policy for buyer confidence.

Keywords: HM804848, HM804810, HM804811, Timken Bearing, Tapered Roller Bearing, Military Surplus Bearing, NSN 3110-00-003-9367, NOS Bearing, Industrial Bearing, Ground Support Equipment, Axle Bearing, USA Made Bearing.
