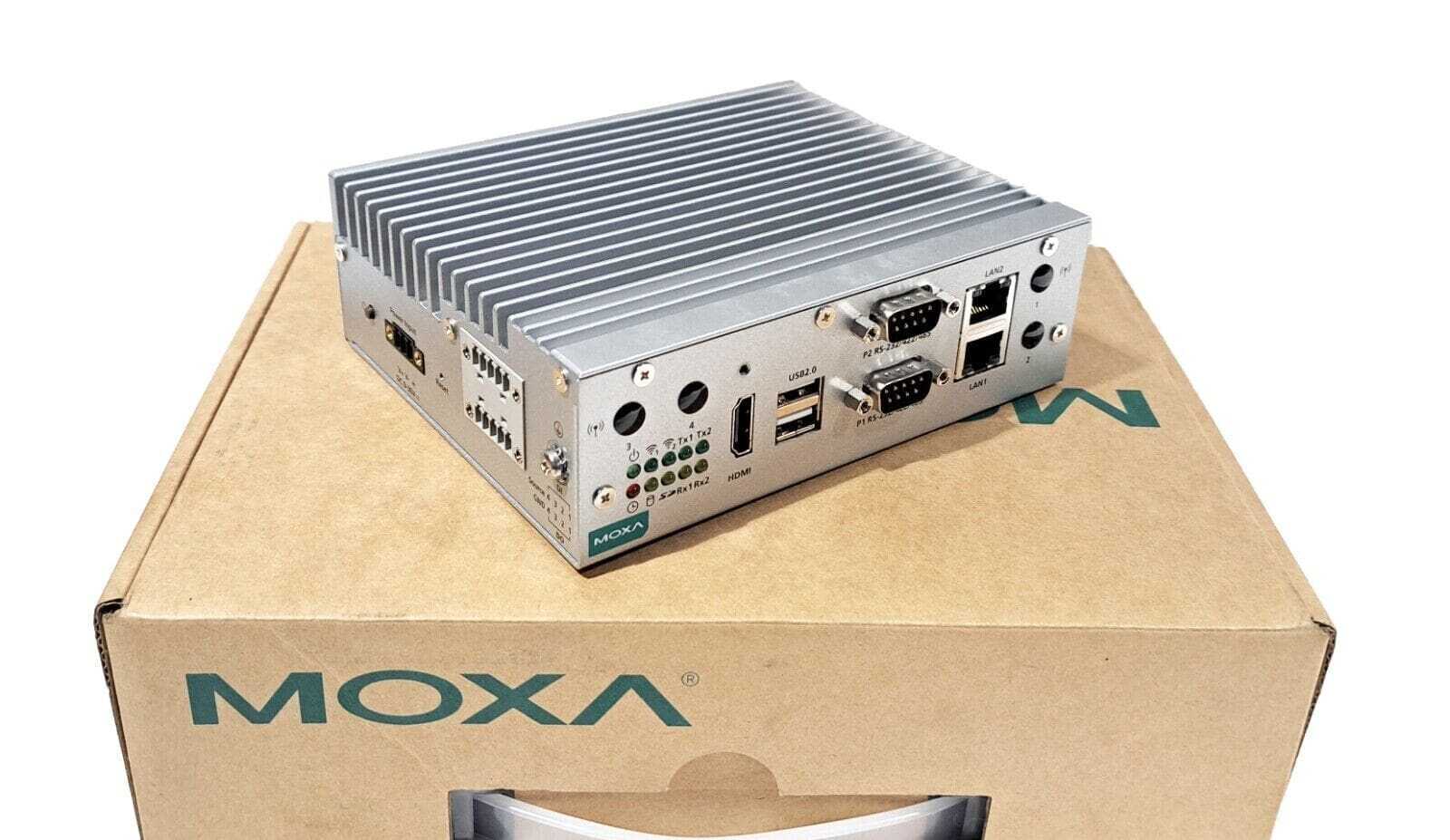

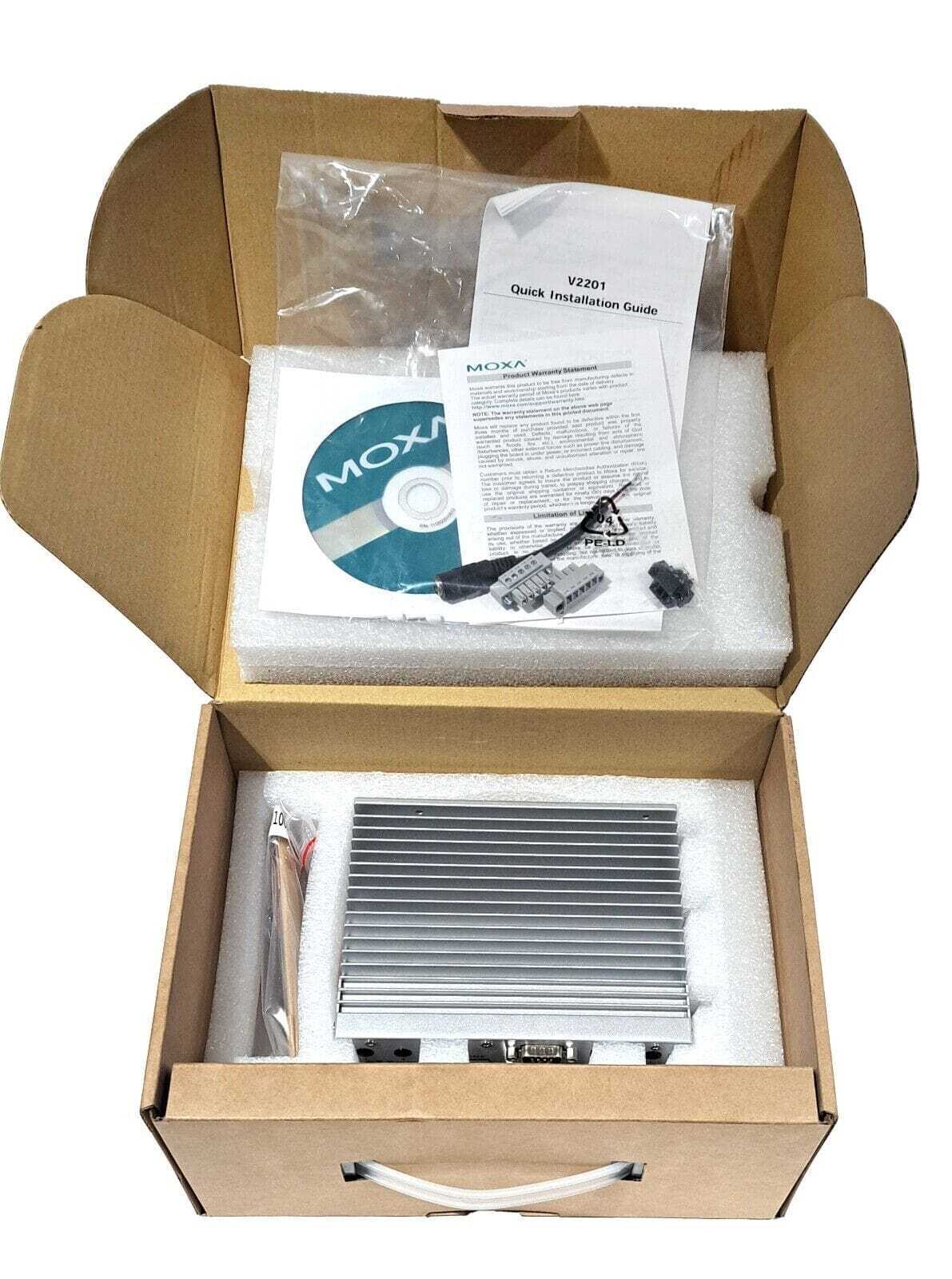

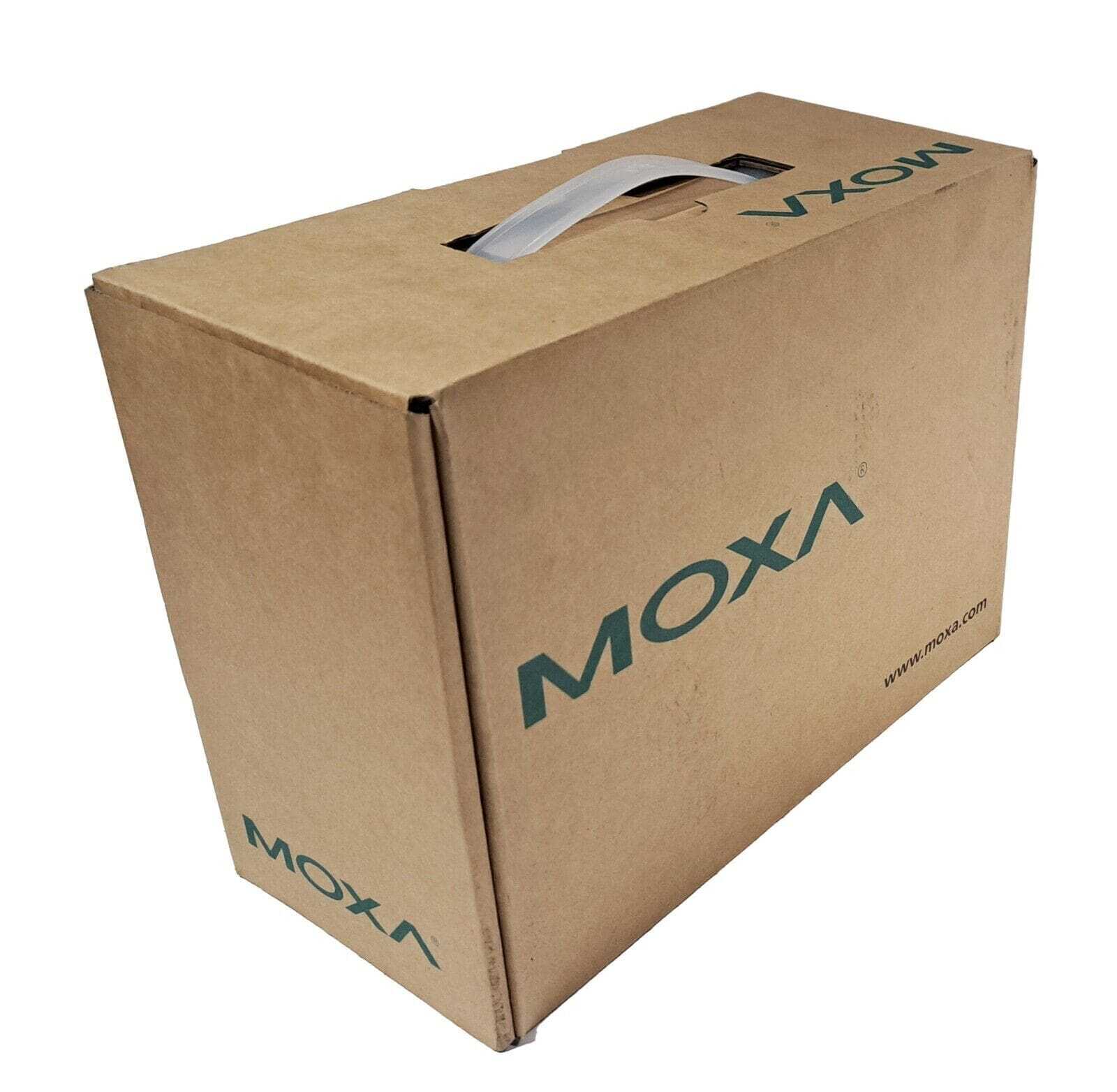

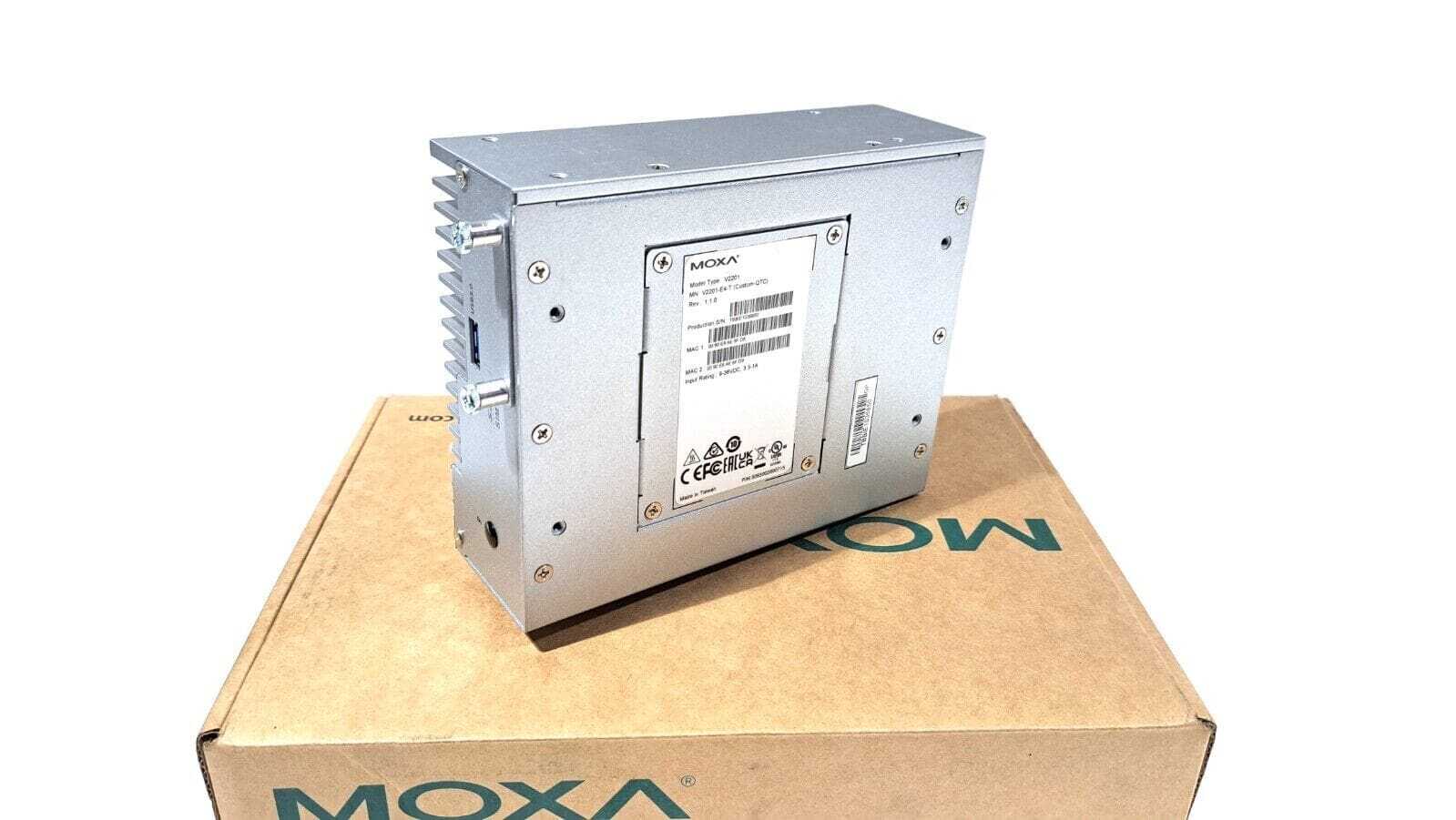

MOXA V2201-E4-T ULTRA-COMPACT EMBEDDED COMPUTER

MOXA V2201-E4-T ULTRA-COMPACT EMBEDDED COMPUTER

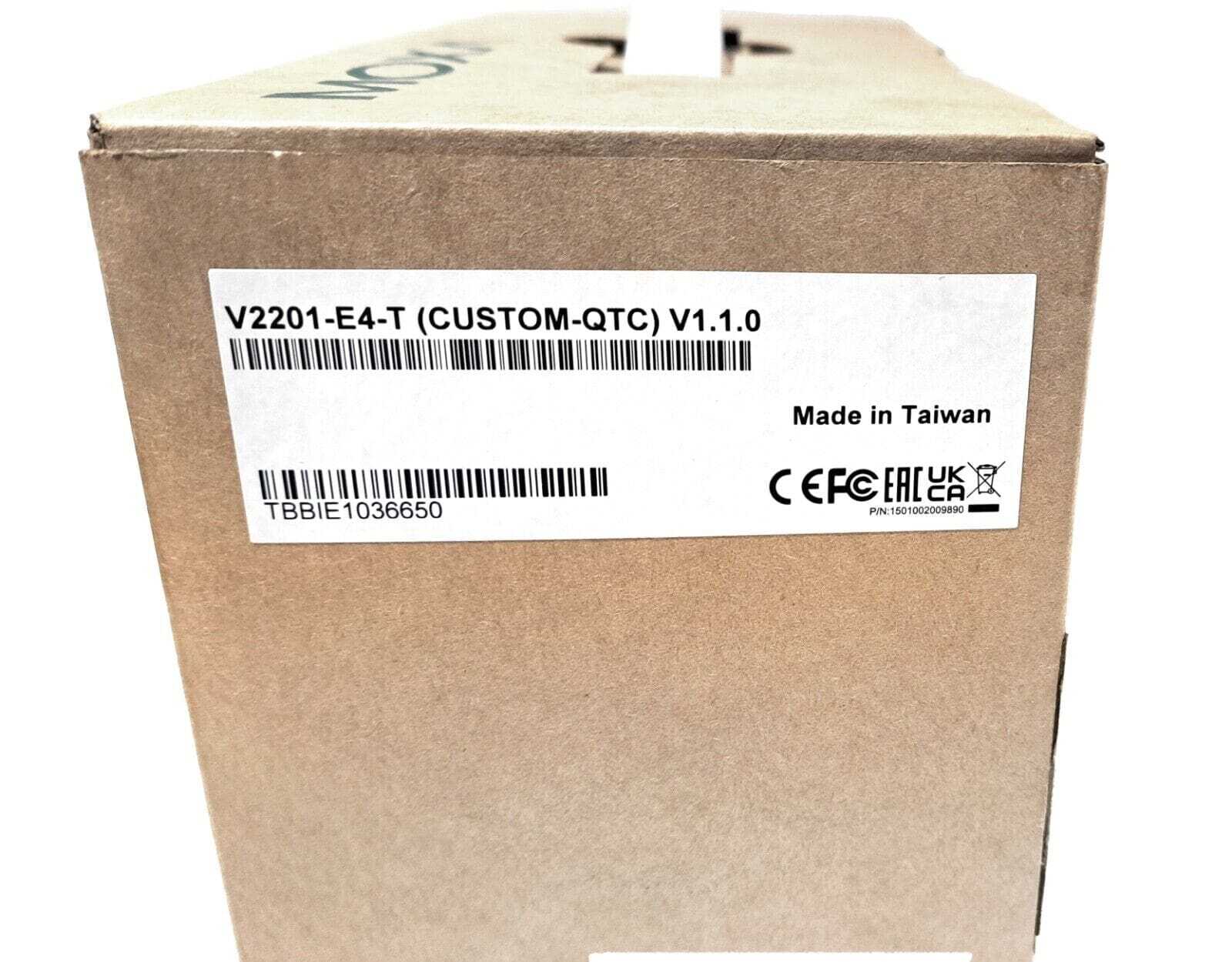

V2201-E4-T (CUSTOM-QTC) V1.1.0

V2201-E4-T
x86 embedded computer with Intel Atom® E3845, 1 HDMI port, 2 Ethernet ports, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD slot, 1 uSIM slot, 1 Wi-Fi Mini PCIe slot, 1 3G/LTE Mini PCIe slot, -40 to 70°C operating temperature
Computer
CPU
Intel Atom® Processor E3845 (2M Cache, 1.91 GHz)

System Memory Pre-installed
4 GB DDR3L

System Memory Slot
SODIMM DDR3/DDR3L slot x 1

Supported OS
Windows Embedded Standard 7 (WS7E) 64-bit
Windows 10 Embedded IoT Enterprise 2016 LTSB Entry 64-bit
Windows 10 Embedded IoT Enterprise 2019 LTSC Entry 64-bit
Windows 10 Embedded IoT Enterprise 2021 LTSC Entry 64-bit
Linux Debian 9 OS image (Kernel 4.9)
Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers

Storage Slot
mSATA slots x 1
SD 3.0 (SDHC/SDXC) socket x 1

Computer Interface
Ethernet Ports
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

Serial Ports
RS-232/422/485 ports x 2, software selectable (DB9 male)

USB 2.0
USB 2.0 hosts x 2, type-A connectors

USB 3.0
USB 3.0 hosts x 1, type-A connectors

Digital Input
DIs x 4

Digital Output
DOs x 4

Expansion Slots
mPCIe slots x 2

Video Output
HDMI x 1, HDMI connector (type A)

Wi-Fi Antenna Connector
RP-SMA x 2

Cellular Antenna Connector
SMA x 2

Number of SIMs
1

SIM Format
Mini

GPS Antenna Connector
SMA x 1

Digital Inputs
Isolation
3K VDC

Connector
Screw-fastened Euroblock terminal

Dry Contact
On: short to GND
Off: open

I/O Mode
DI

Sensor Type
Dry contact
Wet contact (NPN or PNP)

Wet Contact (DI to COM)
On: 10 to 30 VDC
Off: 0 to 3 VDC

Digital Outputs
Connector
Screw-fastened Euroblock terminal

Current Rating
200 mA per channel

I/O Type
Sink

Voltage
24 to 30 VDC

LED Indicators
System
SD slots x 1
Power x 1
Storage x 1
Programmable x 1

Wireless Signal Strength
Cellular/Wi-Fi x 2

LAN
1 per port (10/100/1000 Mbps)

Serial
2 per port (Tx, Rx)

Serial Interface
Baudrate
50 bps to 115.2 kbps

Flow Control
RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

Isolation
N/A

Parity
None, Even, Odd, Space, Mark

Stop Bits
1, 1.5, 2

Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422
Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w
Data+, Data-, GND

RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND

Power Parameters
Input Voltage
9 to 36 VDC

Power Connector
Terminal block (for DC models)

Power Consumption (Max.)
2000 mA @ 9 VDC

Power Consumption
18 W (max.)

Physical Characteristics
Housing
Aluminum

IP Rating
IP30

Dimensions (with ears)
178 x 52.5 x 120.2 mm (7.01 x 2.07 x 4.73 in)

Dimensions (without ears)
150 x 48.8 x 120.2 mm (5.91 x 1.92 x 4.73 in)

Weight
940 g (2.09 lb)

Installation
Wall mounting

Environmental Limits
Operating Temperature
-40 to 70°C (-40 to 158°F)

Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
5 to 95% (non-condensing)

Standards and Certifications
EMC
EN 55032/35
EN 61000-6-2/-6-4

EMI
CISPR 32, FCC Part 15B Class A

EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Safety
EN 60950-1
UL 508
UL 60950-1

Shock
IEC 60068-2-27

Vibration
IEC 60068-2-64

Declaration
Green Product
RoHS, CRoHS, WEEE

MTBF
Time
408,275 hrs

Standards
Telcordia (Bellcore), GB

WE SHIP WORLD WIDE!

Weight	4 lbs
Dimensions	11 × 8 × 5 in
Brand	MOXA
MPN	V2201-E4-T (CUSTOM-QTC) V1.1.0
MODEL	V2201
Condition Description	*** 60 DAY MONEY BACK GUARANTEE ***
Condition	New – Open box
