Microscan Microhawk MV-20 7213-1050-0120

ZOMBIE COMPONENTS

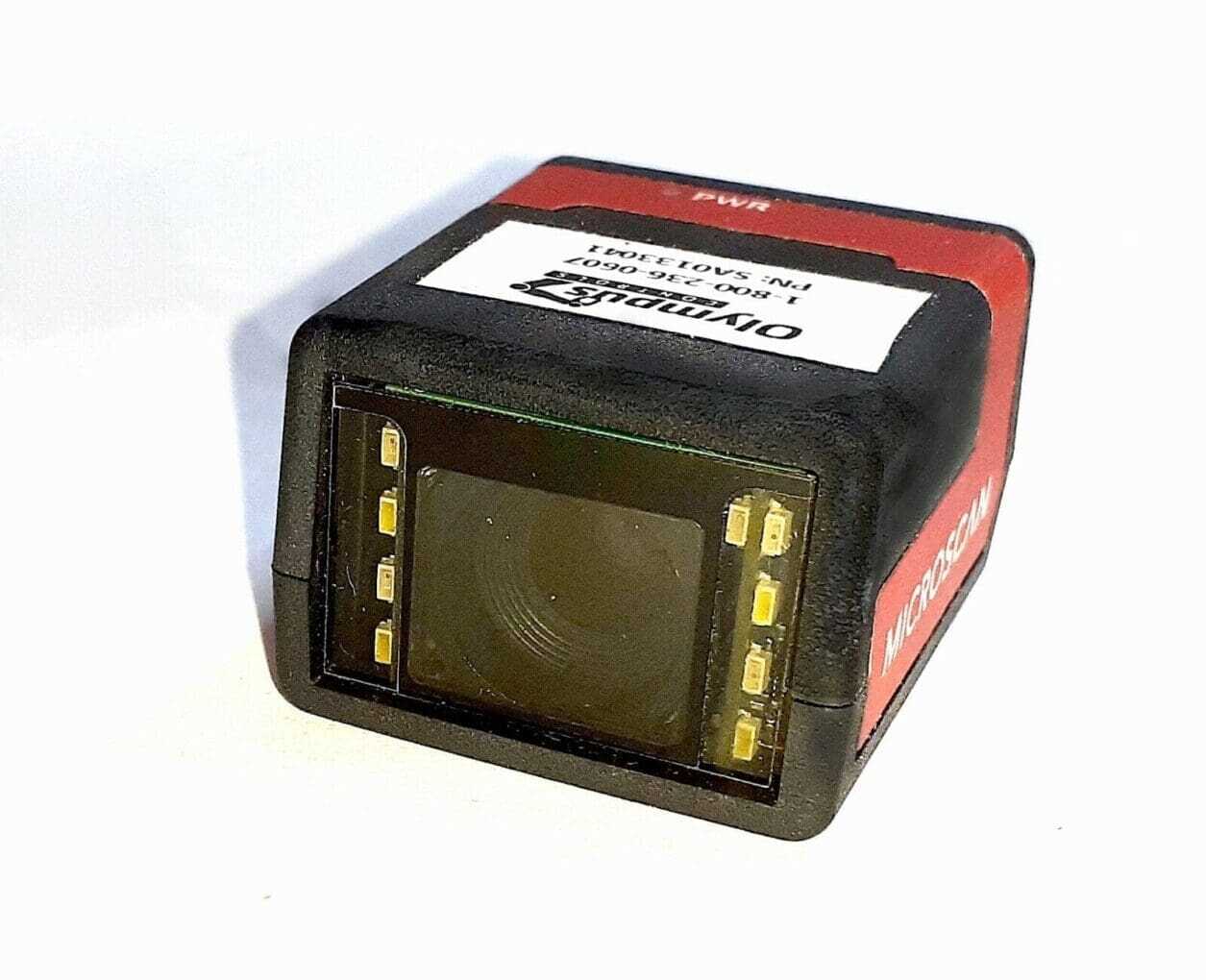

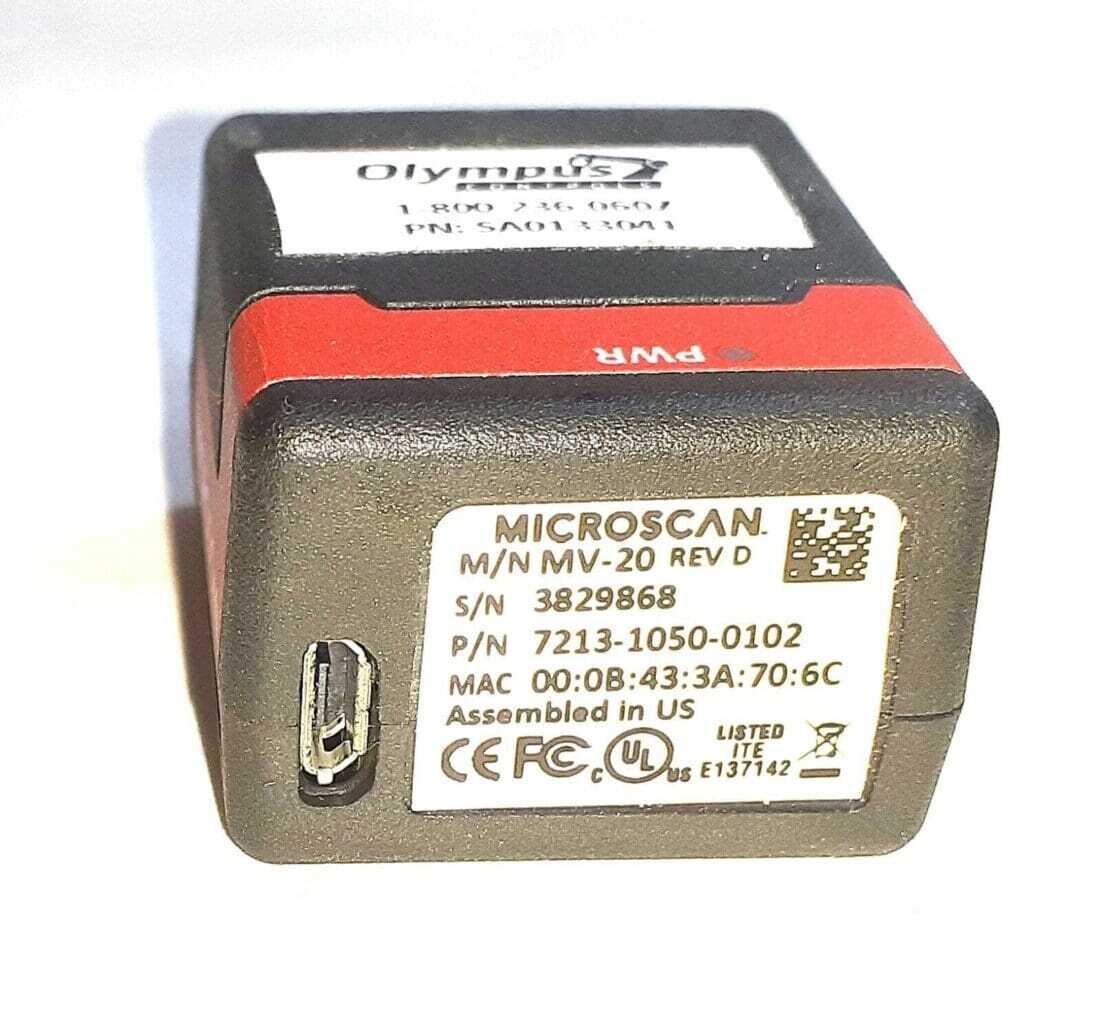

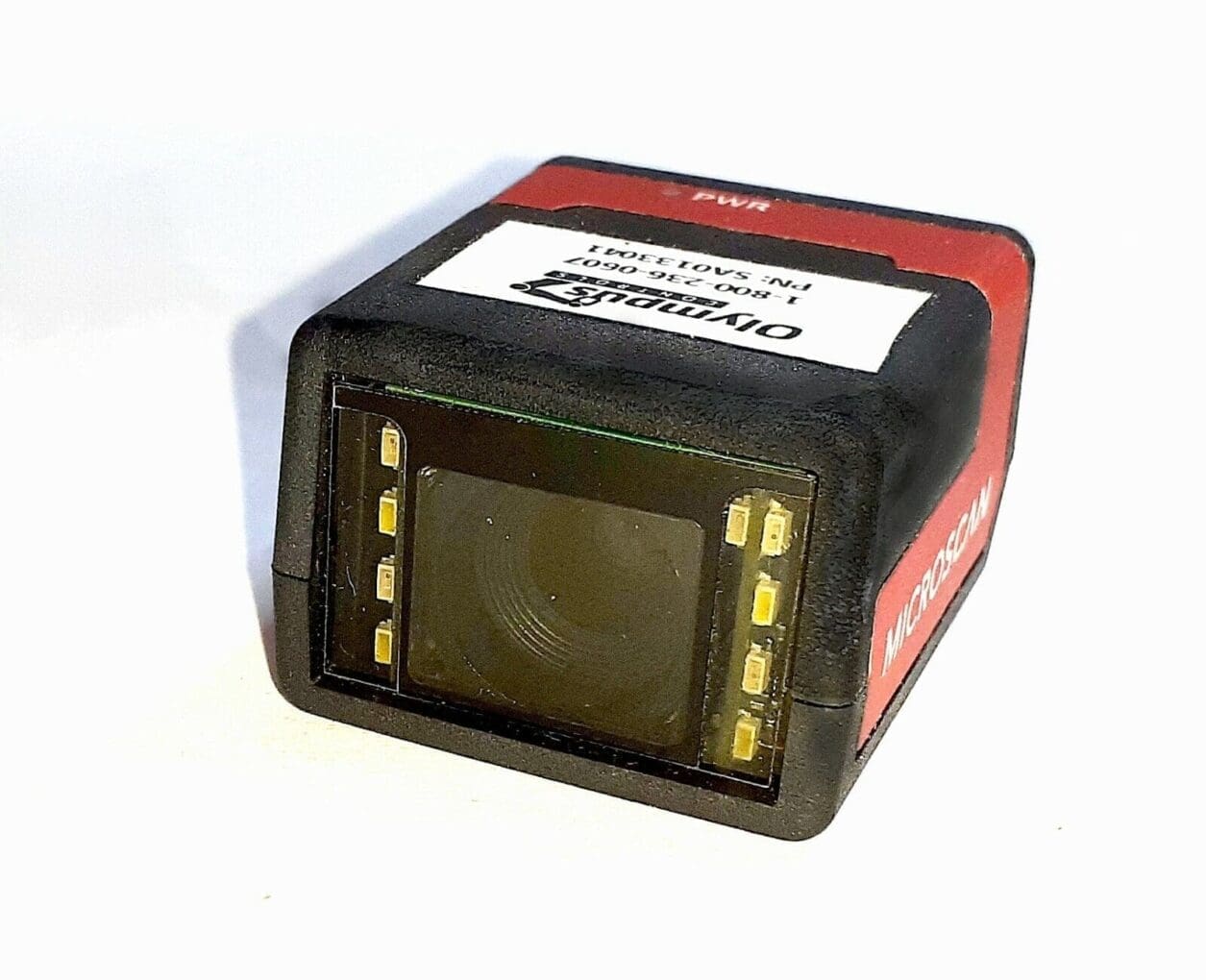

Microscan MicroHAWK MV-20 7213-1050-0120

MicroHAWK®  MV Smart Cameras
MicroHAWK redefines imaging technology as a single, omni-capable platform for any automation task. With the scalability to accomplish simple to advanced machine vision in one, MicroHAWK offers the breadth of Microscan software and hardware options on the smallest smart camera suite ever developed. The MicroHAWK MV series consists of three industrial-rated miniature smart cameras with unrivaled flexibility, ease of use, and universal application potential.

MV-20

SOFTWARE

AutoVISION
Sensor, AutoVISION,  Visionscape

SPEED

400 MHz

OPTICS

Fixed: Standard Density (5.2 mm), High- Density (8.0 mm), UHD (16.0
mm)

FOCUS

Fixed: Factory Set to 50, 102, 190 or 300 mm (SD, HD); 64 or 400 mm
(UHD)

SENSOR (CMOS)

WVGA
(Mono)
0.34 MP (752 x 480),
4.51 x
2.88 mm, 6 μm pixel
size

SXGA
(Mono)
1.2 MP (1280 x
960),
4.80 x
3.60 mm,
3.75 μm pixel size

QSXGA
(Color) 5 MP
(2592 x 1944),
4.536 x
3.402 mm,
1.75 μm pixel size

EXPOSURE TIME

50 μsec
– 66,667
μsec

66 μsec
– 58,825
μsec

66 μsec –
66,667
μsec

SHUTTER

Global

Rolling

FRAME RATE

52

40

5

FTP IMAGE STORAGE

Yes

PASSIVE POE

N/A

CONNECTIVITY

USB 2.0 High Speed,
Ethernet over USB

CONNECTOR

Micro-B USB

ENCLOSURE

IP40, Plastic

CABLE

N/A

ILLUMINATION

Inner LEDs: 4 White and 4
Red



Outer LEDs: N/A

DISCRETE I/O

N/A

ELECTRICAL

5 VDC ± 5 %,
350 mA at 5 VDC (typ.)

DIMENSIONS

24 mm x 34 mm x 39 mm

WEIGHT

26 g

INDICATORS

Power LED, Target LEDs,
Inspection Passed Green Flash

:

Shipping
​​​​​​​
