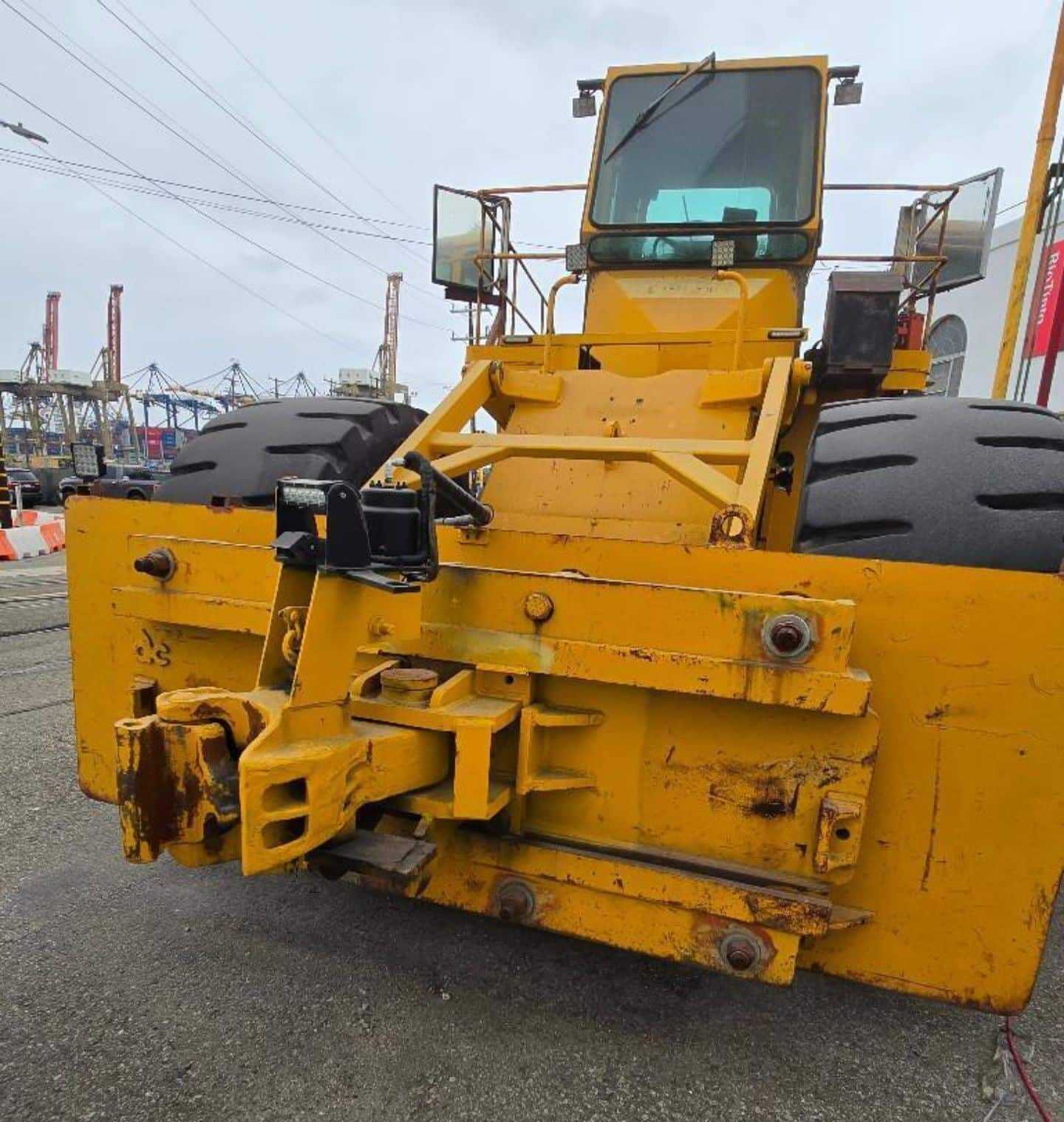

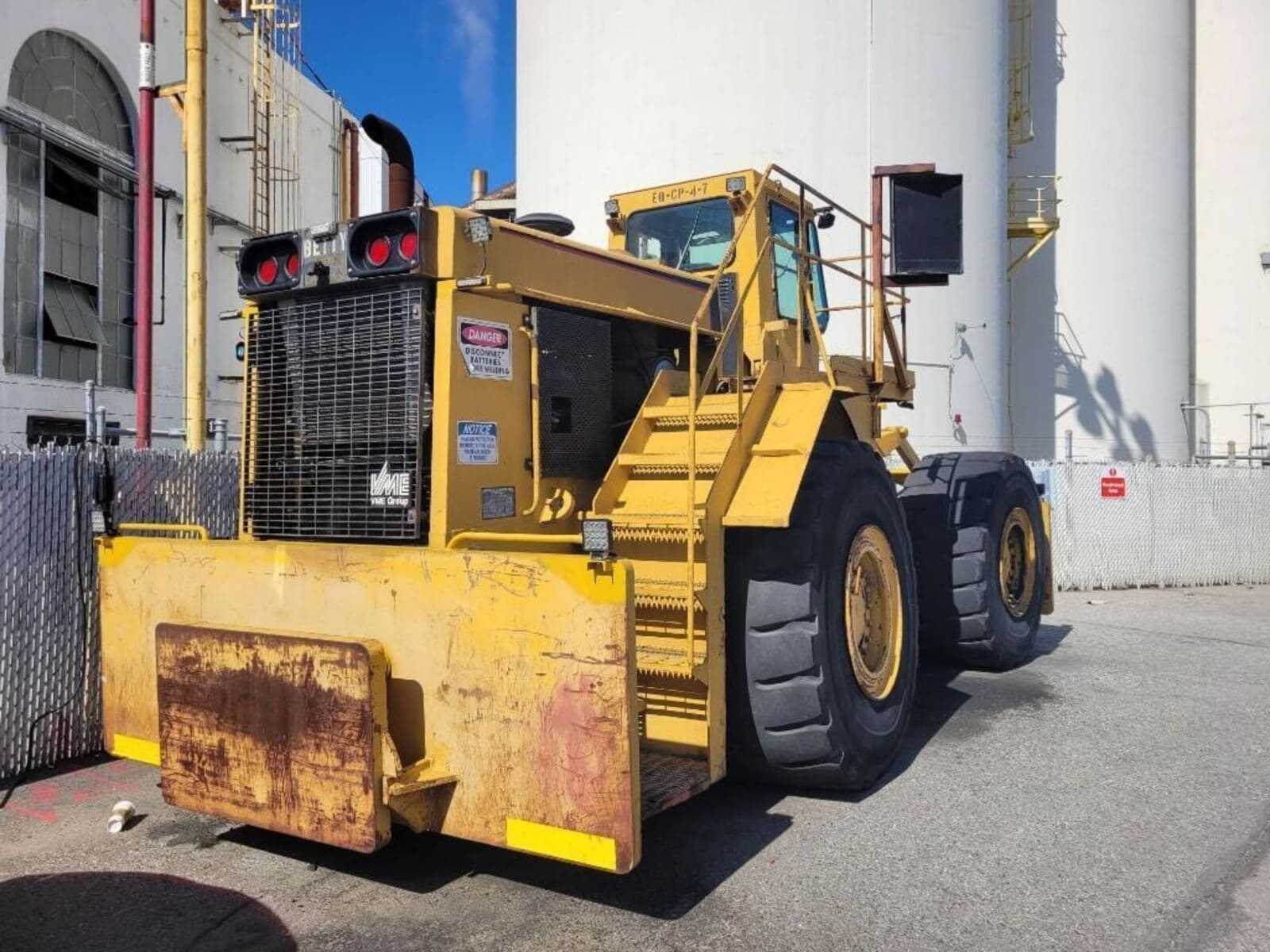

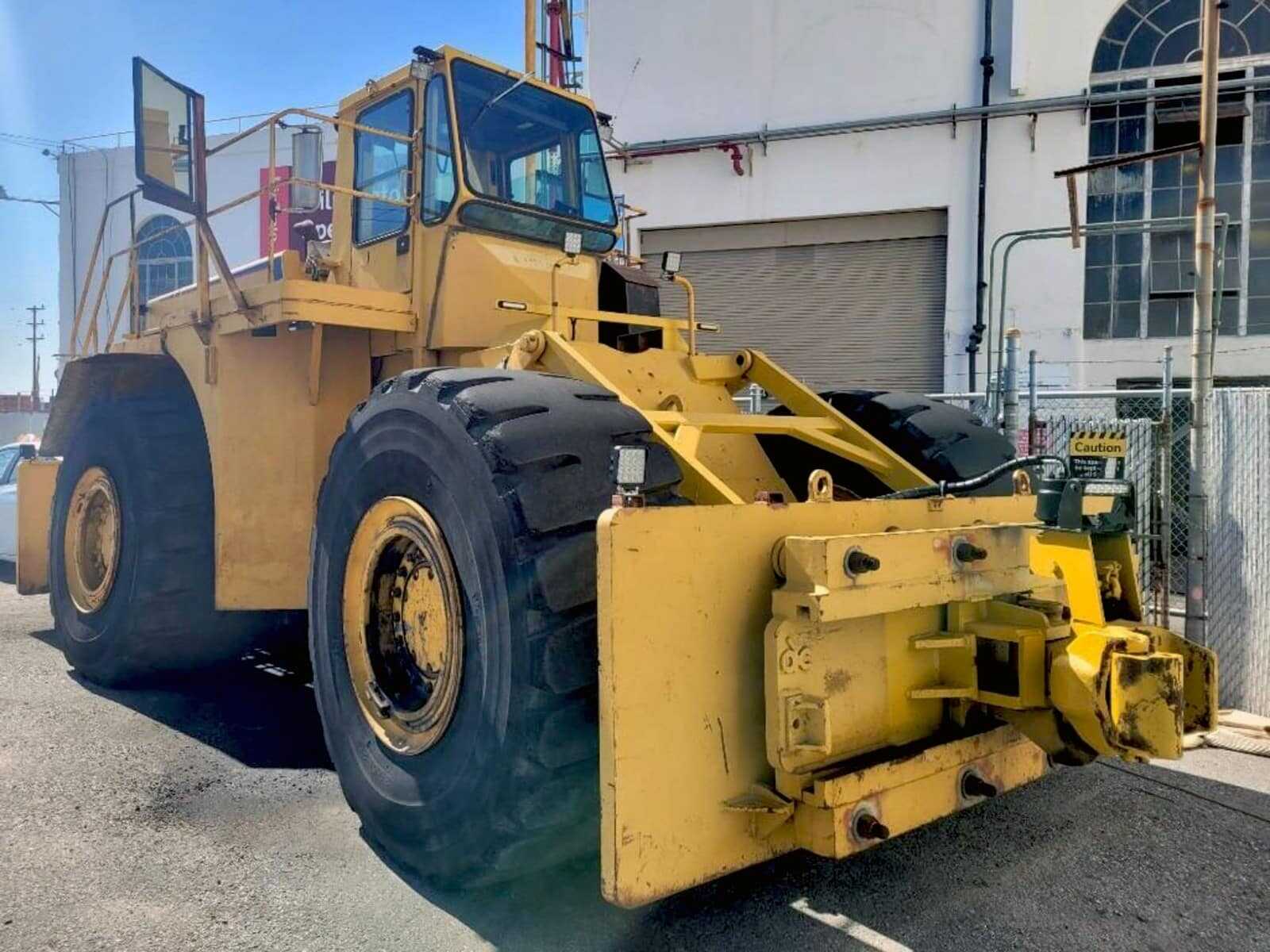

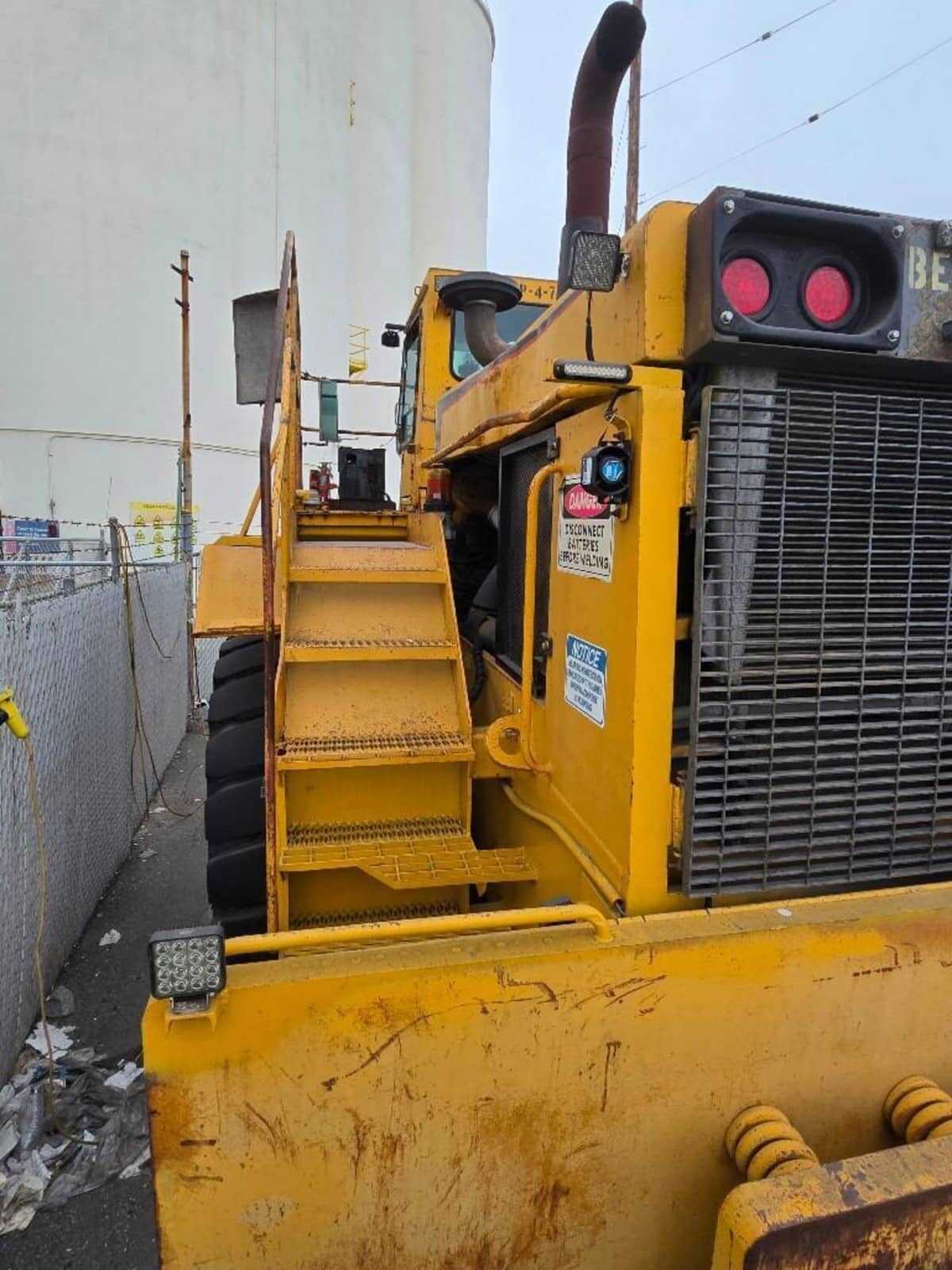

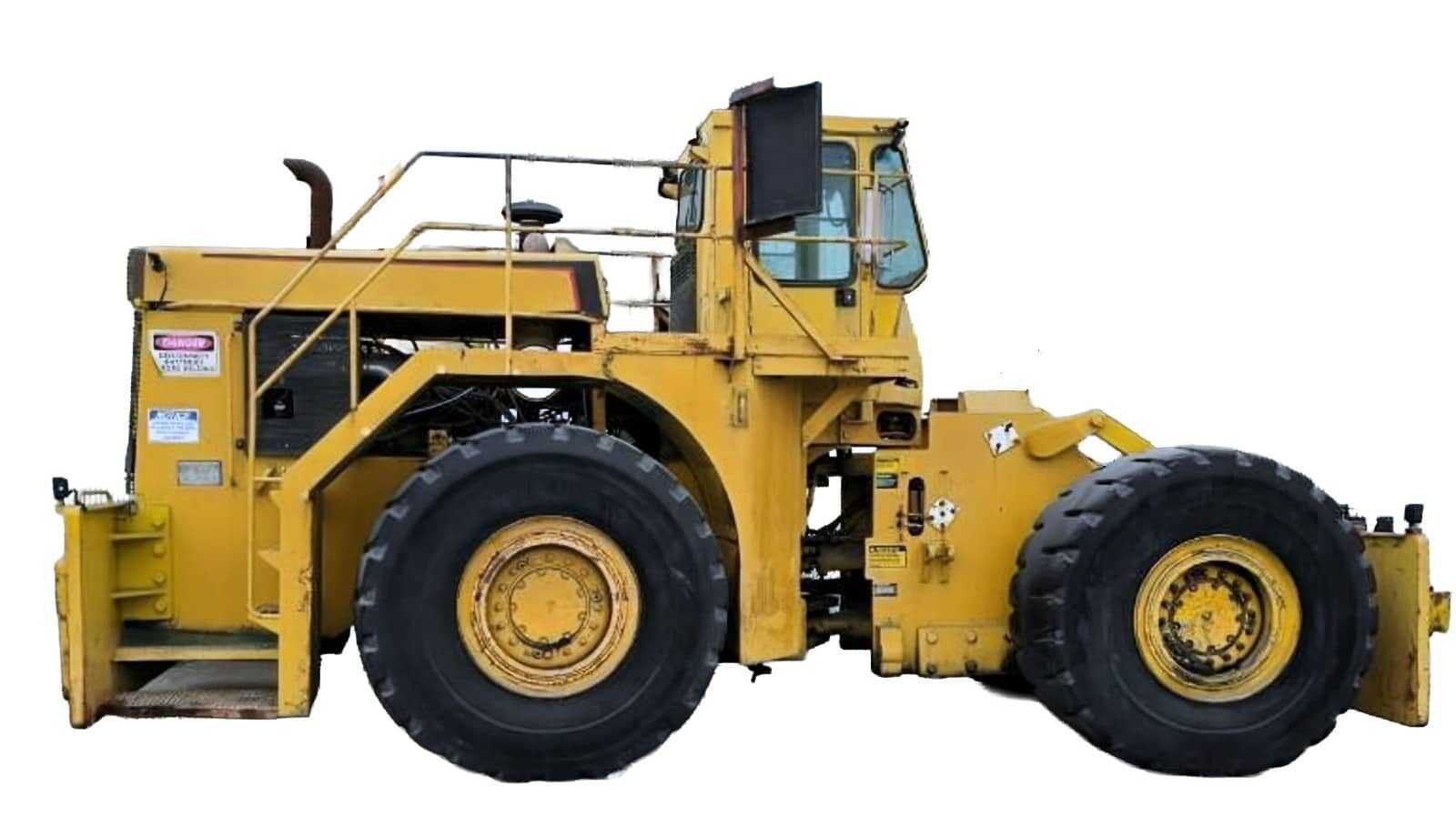

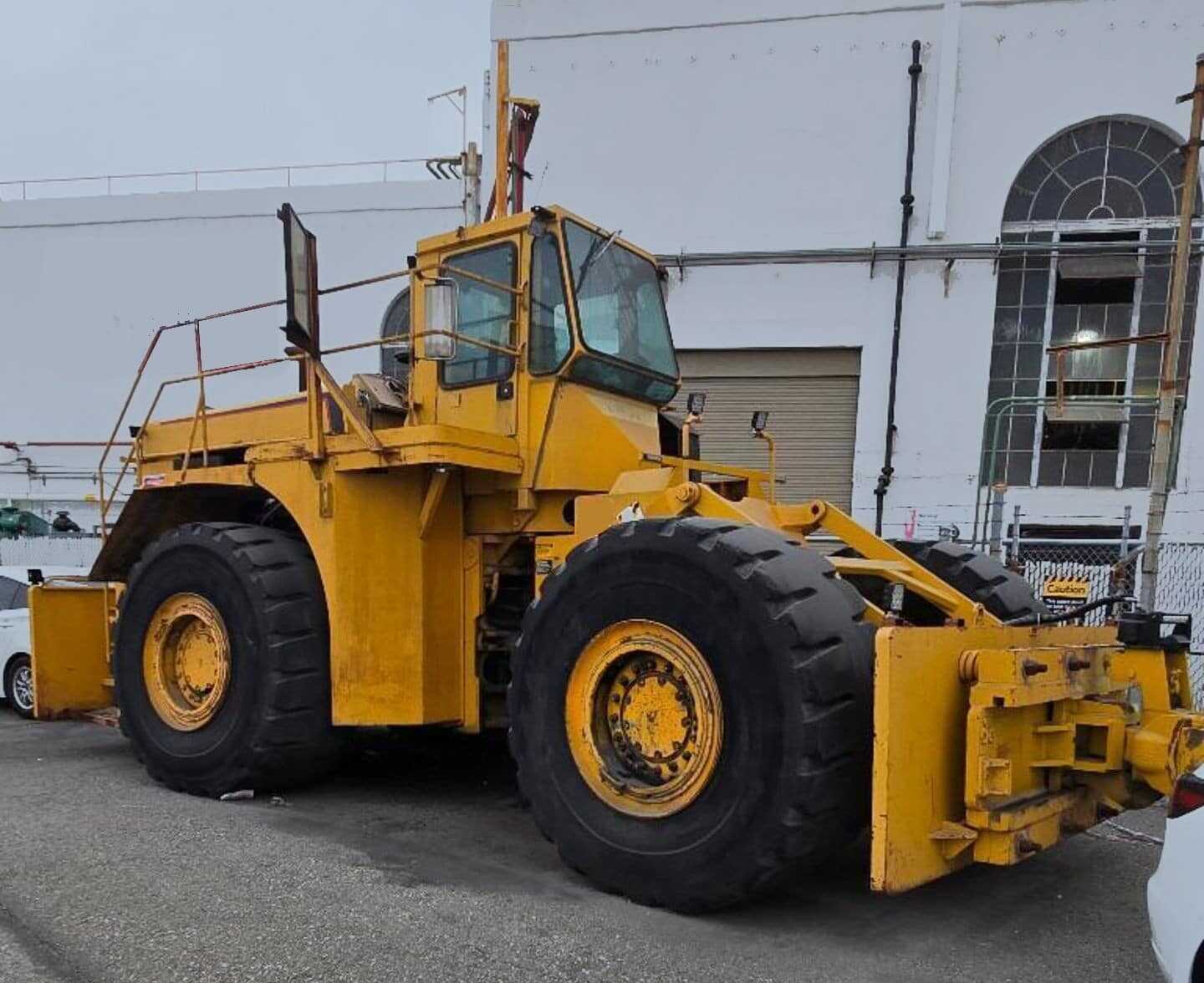

Michigan M-280C Heavy-Duty Wheel Pusher Railcar Mover – Running Condition

ZOMBIE COMPONENTS

Michigan M-280C Heavy-Duty Wheel Pusher Railcar Mover – Running
Condition

Michigan M-280C Heavy-Duty Wheel Pusher Railcar Mover – Running Condition

INDUSTRIAL RAILROAD EQUIPMENT

Product ID: 819A161CAC
Machine Type: Michigan M-280C Wheel Loader/Dozer converted to Rail Service
Condition: Used – Running/Operational



OVERVIEW:

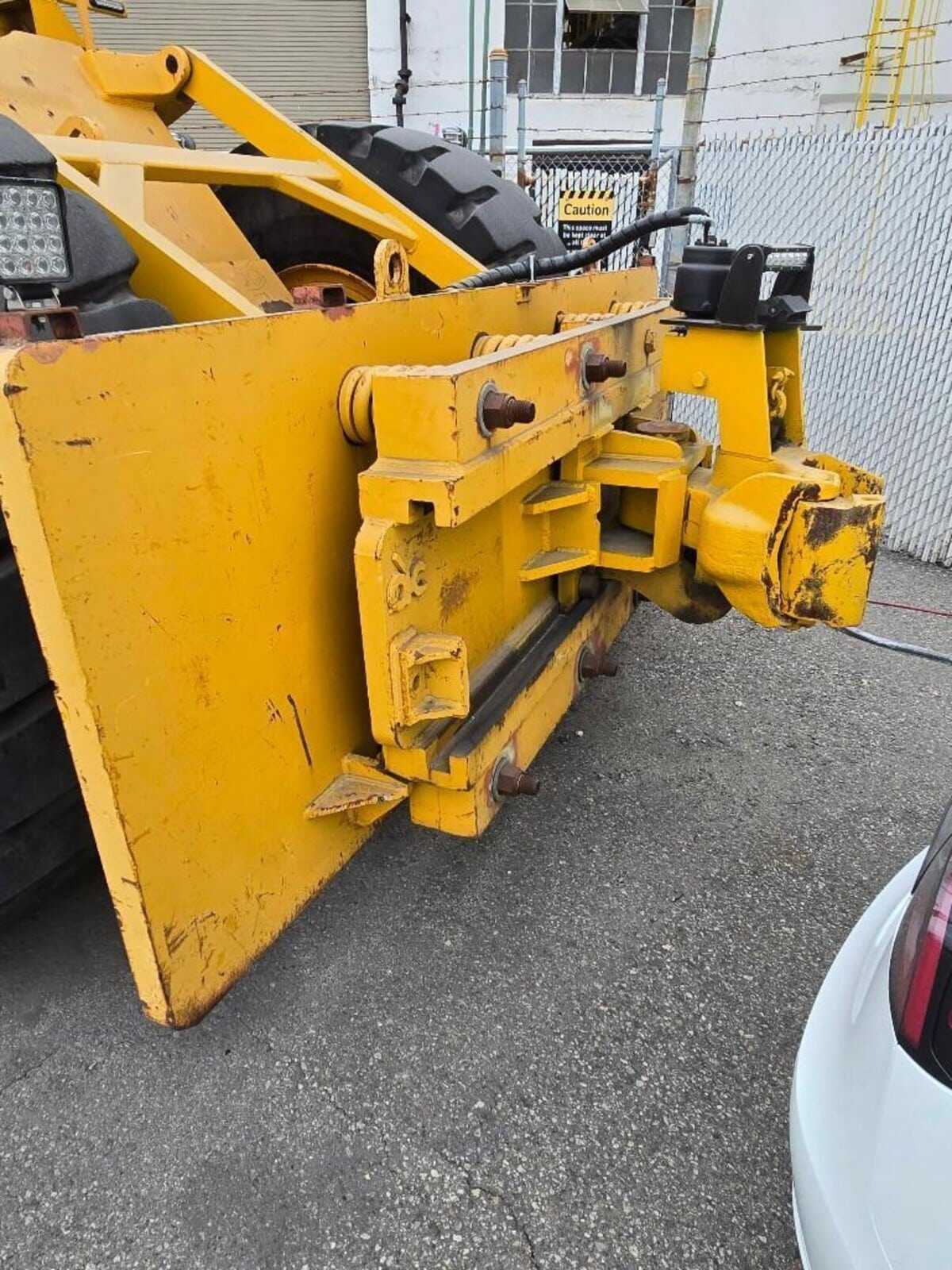

Heavy-duty Michigan M-280C Wheel Pusher configured for railroad/railcar moving operations. This robust 28-ton machine provides serious pushing and pulling power for industrial rail operations, maintenance facilities, and rail yards. Currently in RUNNING CONDITION and ready for work. Train pusher blade can be swapped with earthmoving blade.



KEY SPECIFICATIONS:

Model: Michigan 280C

Operating Weight: Approximately 56,000 LBS

Engine Power: 302 HP

Primary Function: Railcar moving/pushing on rail

Rail Equipment: Equipped with rail wheels and coupling system

Tires: Large industrial pneumatic tires visible in photo

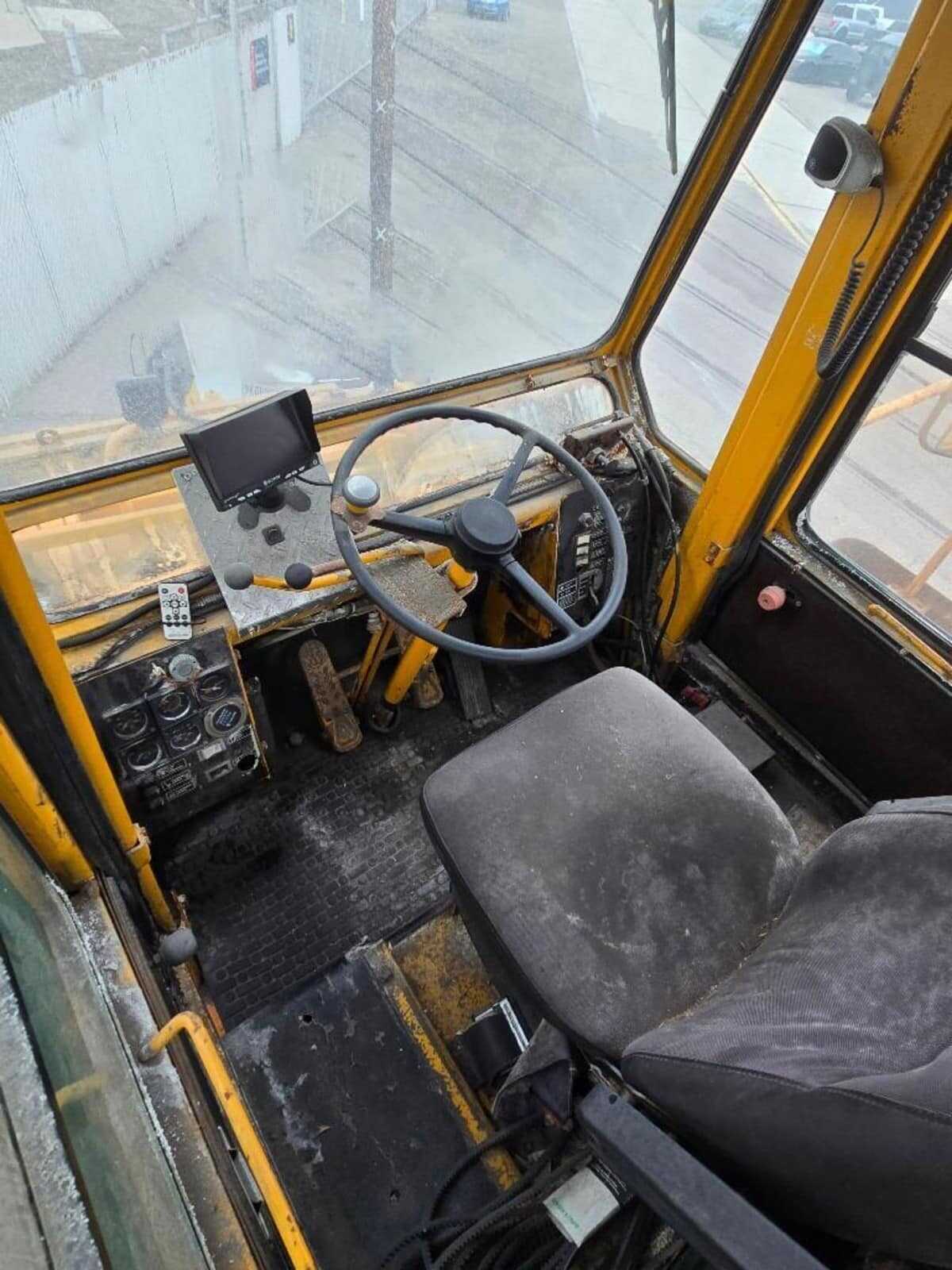

Cab: Enclosed operator cab with visibility for rail operations



APPLICATIONS:

✓ Industrial plant rail switching
✓ Rail yard car spotting
✓ Maintenance-of-way operations
✓ Loading/unloading facility car positioning
✓ Short-line railroad operations
✓ Manufacturing facility rail service



Powertrain

Engine

Cummins NTA 855C335 turbo-aftercooled inline-6 diesel

Net power: 225 kW (302 hp) @ 2100 rpm

Max engine rating: 250 kW (335 hp) @ 2100 rpm

Peak torque: 1363 N·m (1005 lbf·ft) @ 1400 rpm

Displacement: 14.0 L (855 in³)

Driveline

Clark single-stage torque converter

Clark countershaft powershift transmission with modulation

Limited-slip front differential, no-spin rear

Torque multiplication: 3.05:1

Travel speeds (forward/reverse):
1st 6.1 km/h (3.8 mph)
2nd 10.8 km/h (6.7 mph)
3rd 18.5 km/h (11.5 mph)
4th 31.5 km/h (19.6 mph)

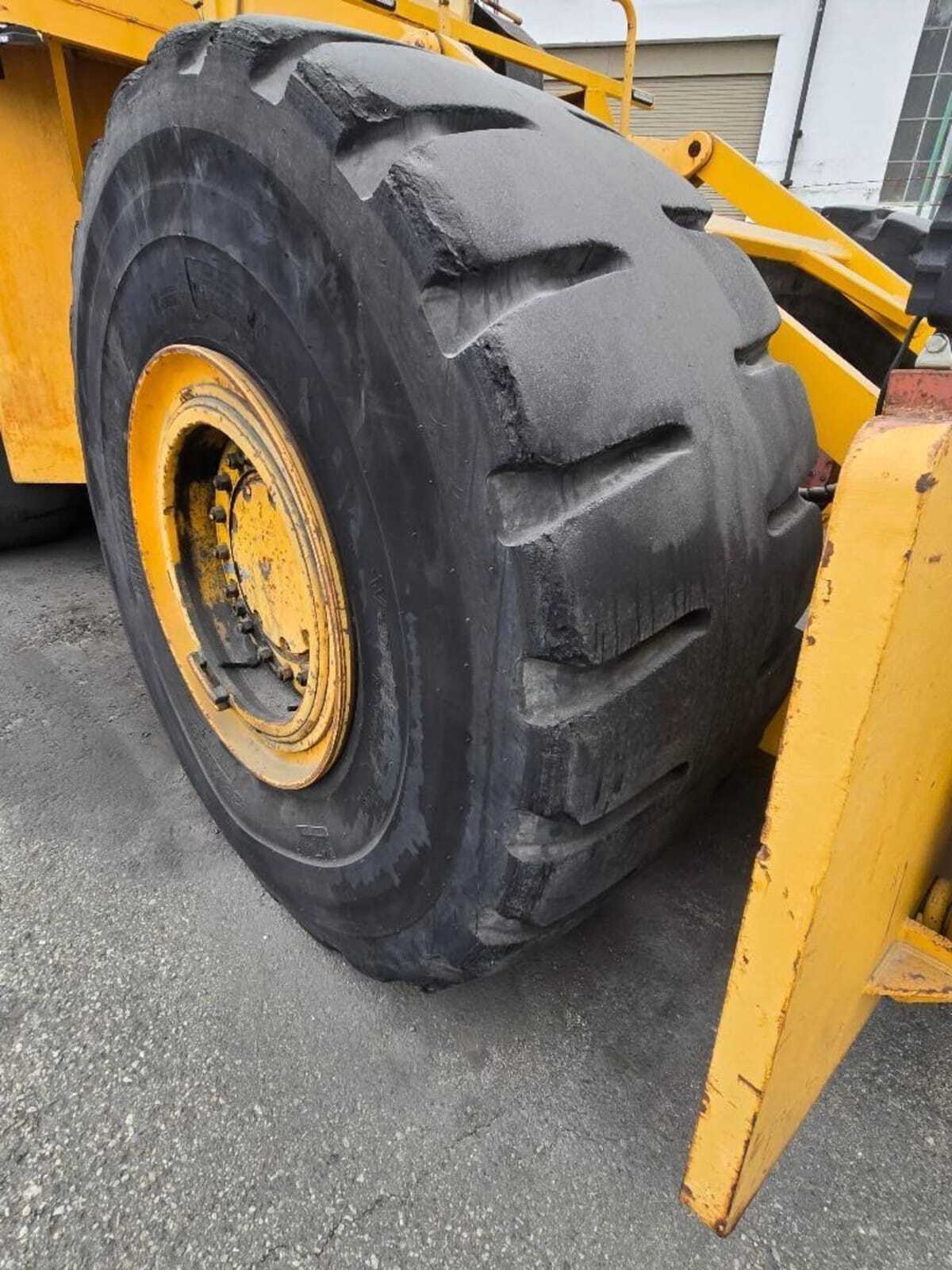

Tires

29.5-29 (22PR) L-3 class, providing high footprint area and traction on paved or compacted yard surfaces.



Brakes and electrical



Service brakes: 4-wheel dry disc, air-over-hydraulic, self-adjusting

Parking brake: spring-on air-off dry disc at front differential input

Electrical: 24 V system, 100 A alternator



Fluid capacities



Fuel: 548.9 L (145 gal)

Hydraulic reservoir: 416.4 L (110 gal)

Cooling system: 79.5 L (21 gal)

Crankcase: 41.6 L (11 gal)

Torque converter/transmission: 73.8 L (19.5 gal)

Front differential: 48.3 L (12.75 gal)

Rear differential: 32.6 L (8.6 gal)



Dimensions (typical transport configuration)



Length: 27 ft 7 in (8.41 m)

Width: 13 ft 4 in (4.06 m)

Height: 12 ft 6 in (3.81 m)



BUYER TO ARRANGE TRANSPORTATION FROM LOS ANGELES PORT FACILITIES AREA

:

Shipping

Also please note that we may take up to 3 business days to ship from the time you paid for your order. Also, please keep in mind that weekends are not counted. So, if you place an order Friday night, we may not get it out until the following Wednesday (worst case scenario) though we ship as soon as we can. We also reserve the right to change the method of shipping selected at the time of purchase to an equivalent or better delivery service that best fits the item being delivered.

If you need a faster service, please tell us so we can adjust our priorities but please don't expect expedited service unless you ask us to do so first as our commitment is 3 days if you have not specifically asked for faster shipping.

We ship worldwide .. Some items may take up to 5 days to palletize and ship

Please note that the us mail (USPS) may not be an acceptable choice for international shipping due to package size and weight restrictions and export documentation requirements. If you chose USPS for your international shipment, you may be told you have to select FedEx or UPS or even DHL at a higher price due to the restrictions when using USPS. If you have a question on this, please confirm your shipping choice with us before placing your order.

Export Compliance Notice:
Our products are subject to U.S. export regulations governed by the Export Administration Regulations (EAR), under the oversight of the Bureau of Industry and Security (BIS) and the U.S. Census Bureau. We do not ship to locations in Country Group E. Please note that it may take up to 30 days to determine the Export Control Classification Number (ECCN) for our products. If an export license is required, the licensing process may take an additional 30-90 days.

To comply with U.S. Department of Commerce and U.S. Department of State export control laws, we require a written statement detailing the ultimate end user, the intended end use of each product, and the buyer's agreement to adhere to the EAR. You will receive an email with the necessary documentation to complete your order. Please be aware that your order cannot be processed until all required information is provided.

Returns

Unless indicated as “Sold as is no returns”, you will have either 30 or 60 days to return your purchase, for any reason, if you are not 100% satisfied with your purchase. You can return the product for a full refund or exchange the product for another item, be it similar or not. The period of 30 or 60 days is listed for each item on the items listing page.

Any product you return must be in the same condition you received it and in the original packaging. All items are guaranteed to be “as described”. Any item you feel is not as described in the listing; you can return it at our expense for a full refund regardless if the item is listed “as is no returns”.

Warranty

Unless indicated as “Sold as is no returns”, you will have either 30 or 60 days to return your purchase for a warranty claim at our expense for a full refund, a repair or a replacement. Some higher value items we will warranty beyond ebays 60 day maximum limit for normal listing. If you are interested in extending your warranty, ask us at the time of your purchase.

Data Privacy

We do not keep or share your information anywhere. Your information resides only on ebay and is only available to us for a limited time while we are interacting with you on an inquiry, order or a return, per ebays usage policies.

QUALITY CONTROL

Electronics in general, where possible items are tested. The value of an item greatly contributes to the amount or effort put into testing. It just isn't possible to test many low value items due to the time required and the expenses associated with it. Items that are not specifically tested in detail are visually inspected and reviewed for their operational status. When purchasing recycled items, it is reasonable to have varying quality and occasional failures. Just remember you are covered with a money back guarantee on most items. We want you to be happy above all other considerations.

Appliance parts. Used items are cleaned, clear plastics are hand polished to reduce visible scuffs or scratches. Paint chips are sometimes but not always repaired. Lime and rust deposits are removed to the best of our ability. Some minor repairs may be performed. Any exceptional wear will be noted in our description. We do our best to restore any used item but the final condition of the restoration is subjective to one's opinion. If you take issue with the items' condition, we promise to work with you to resolve this. Note that stock photos are often used and are not the exact item being sold. If you would like to request a different or an actual photo of an item you are interested in, please submit a request before buying.

ATTENTION PLEASE!
WHAT YOU SEE IS WHAT YOU GET… What is included in this listing will be shown in the pictures. If you do not see an accessory  in the pictures and it is not specifically listed as included in the condition description or the listing description, the accessory is not included. Please read the descriptions completely for exceptions on this.

GENERAL REFUND POLICY:  You are covered with a full money back guarantee for at least 30 days or longer as specified in the listing, unless an item is indicated as “Sold as is – no returns”.  We go beyond that by promising that if you are dissatisfied for any reason and if we cannot fix this with you, we will give you 100% of your purchase price back as a cash refund. This will include the original shipping costs if your dissatisfaction  is due to an issue with the item you bought being “Not as described”.

ALL WE ASK IS THAT YOU CONTACT US FIRST AND GIVE US A CHANCE TO WORK THINGS OUT WITH YOU. PLEASE DO NOT LEAVE NEGATIVE FEEDBACK IF YOU HAVE NOT FIRST CONTACTED US TO FIX WHATEVER ISSUE YOU HAVE.

WE SHIP WORLD WIDE!

Michigan M-280C Heavy-Duty Wheel Pusher Railcar Mover – Running Condition

INDUSTRIAL RAILROAD EQUIPMENT

Product ID: 819A161CAC
Machine Type: Michigan M-280C Wheel Loader/Dozer converted to Rail Service
Condition: Used – Running/Operational



OVERVIEW:

Heavy-duty Michigan M-280C Wheel Pusher configured for railroad/railcar moving operations. This robust 28-ton machine provides serious pushing and pulling power for industrial rail operations, maintenance facilities, and rail yards. Currently in RUNNING CONDITION and ready for work. Train pusher blade can be swapped with earthmoving blade.



KEY SPECIFICATIONS:

Model: Michigan 280C

Operating Weight: Approximately 56,000 LBS

Engine Power: 302 HP

Primary Function: Railcar moving/pushing on rail

Rail Equipment: Equipped with rail wheels and coupling system

Tires: Large industrial pneumatic tires visible in photo

Cab: Enclosed operator cab with visibility for rail operations



APPLICATIONS:

✓ Industrial plant rail switching
✓ Rail yard car spotting
✓ Maintenance-of-way operations
✓ Loading/unloading facility car positioning
✓ Short-line railroad operations
✓ Manufacturing facility rail service



Powertrain

Engine

Cummins NTA 855C335 turbo-aftercooled inline-6 diesel

Net power: 225 kW (302 hp) @ 2100 rpm

Max engine rating: 250 kW (335 hp) @ 2100 rpm

Peak torque: 1363 N·m (1005 lbf·ft) @ 1400 rpm

Displacement: 14.0 L (855 in³)

Driveline

Clark single-stage torque converter

Clark countershaft powershift transmission with modulation

Limited-slip front differential, no-spin rear

Torque multiplication: 3.05:1

Travel speeds (forward/reverse):
1st 6.1 km/h (3.8 mph)
2nd 10.8 km/h (6.7 mph)
3rd 18.5 km/h (11.5 mph)
4th 31.5 km/h (19.6 mph)



Tires

29.5-29 (22PR) L-3 class, providing high footprint area and traction on paved or compacted yard surfaces.



Brakes and electrical



Service brakes: 4-wheel dry disc, air-over-hydraulic, self-adjusting

Parking brake: spring-on air-off dry disc at front differential input

Electrical: 24 V system, 100 A alternator



Fluid capacities



Fuel: 548.9 L (145 gal)

Hydraulic reservoir: 416.4 L (110 gal)

Cooling system: 79.5 L (21 gal)

Crankcase: 41.6 L (11 gal)

Torque converter/transmission: 73.8 L (19.5 gal)

Front differential: 48.3 L (12.75 gal)

Rear differential: 32.6 L (8.6 gal)



Dimensions (typical transport configuration)



Length: 27 ft 7 in (8.41 m)

Width: 13 ft 4 in (4.06 m)

Height: 12 ft 6 in (3.81 m)



BUYER TO ARRANGE TRANSPORTATION FROM LOS ANGELES PORT FACILITIES AREA

MODEL YEAR	1985
NET HORSEPOWER (HP)	302
MODEL	M-280C

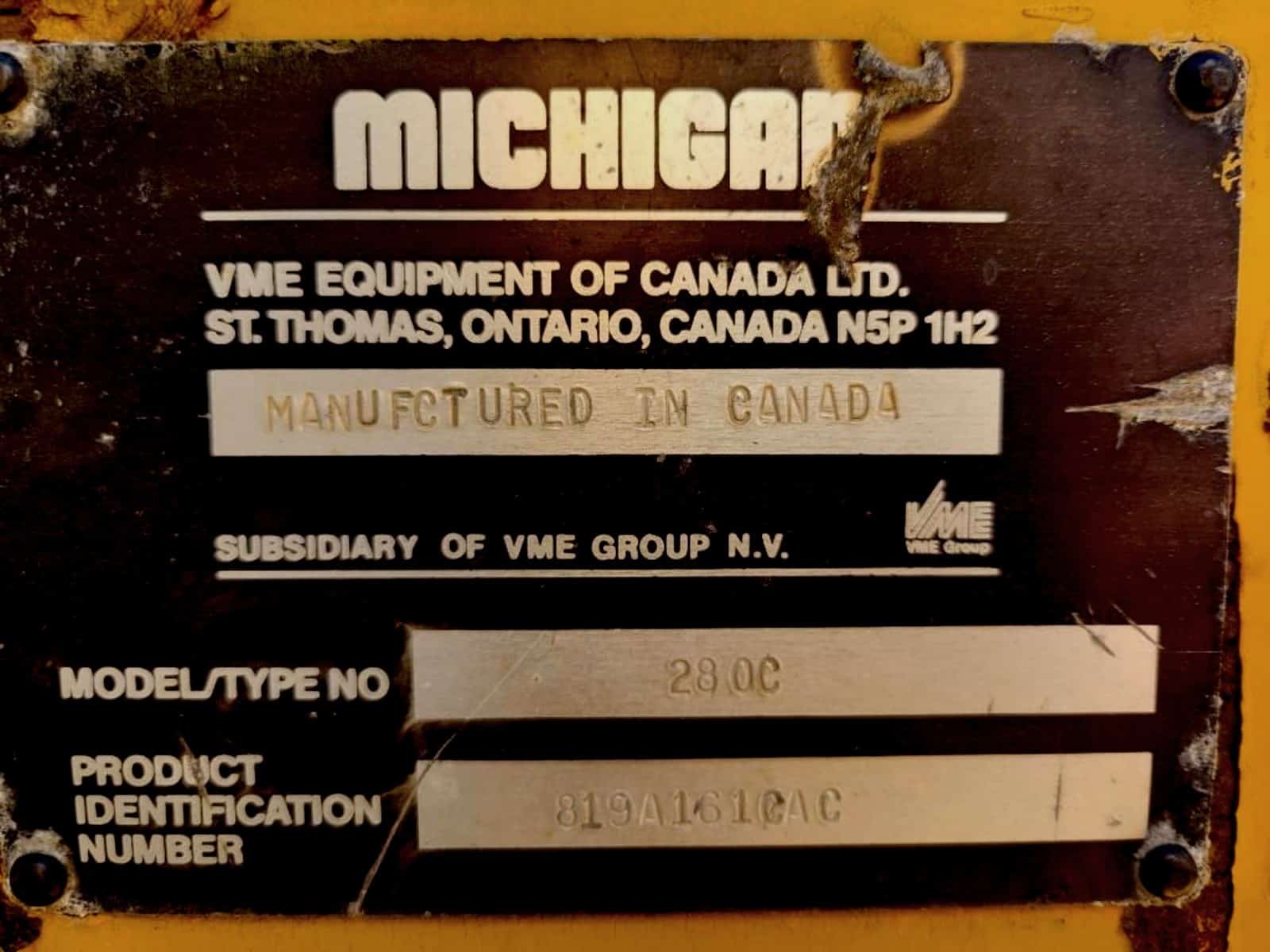

MAKE	Michigan
MPN	M-280C
EQUIPMENT TYPE	PUSHER
OPERATING WEIGHT	Over 50,000 lbs
COUNTRY OF ORIGIN	Canada
SERIAL NUMBER	819A161CAC
Condition	Used
Condition Description	30 DAY MONEY BACK GUARANTEE … ENGINE RUNS
