Description

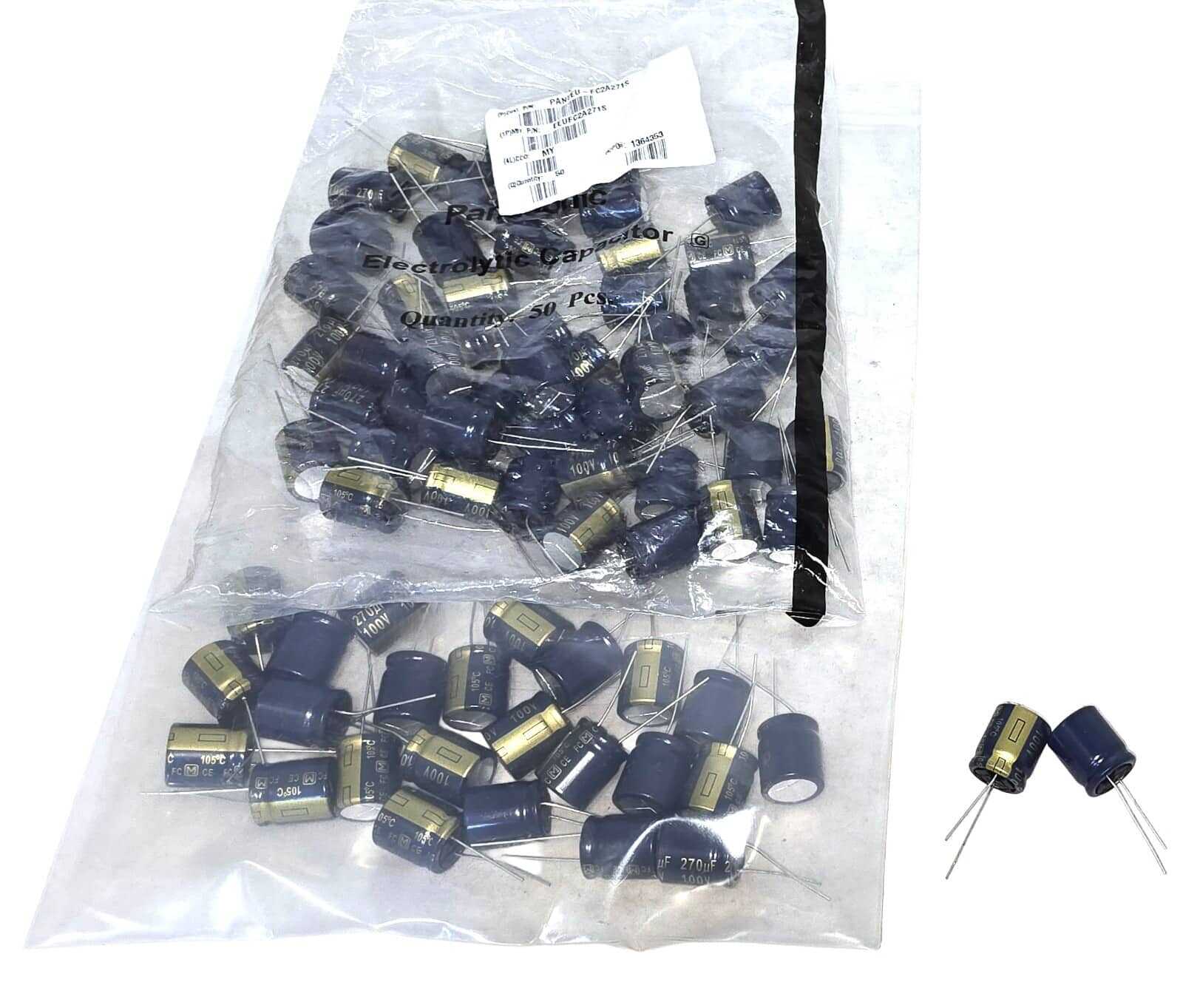

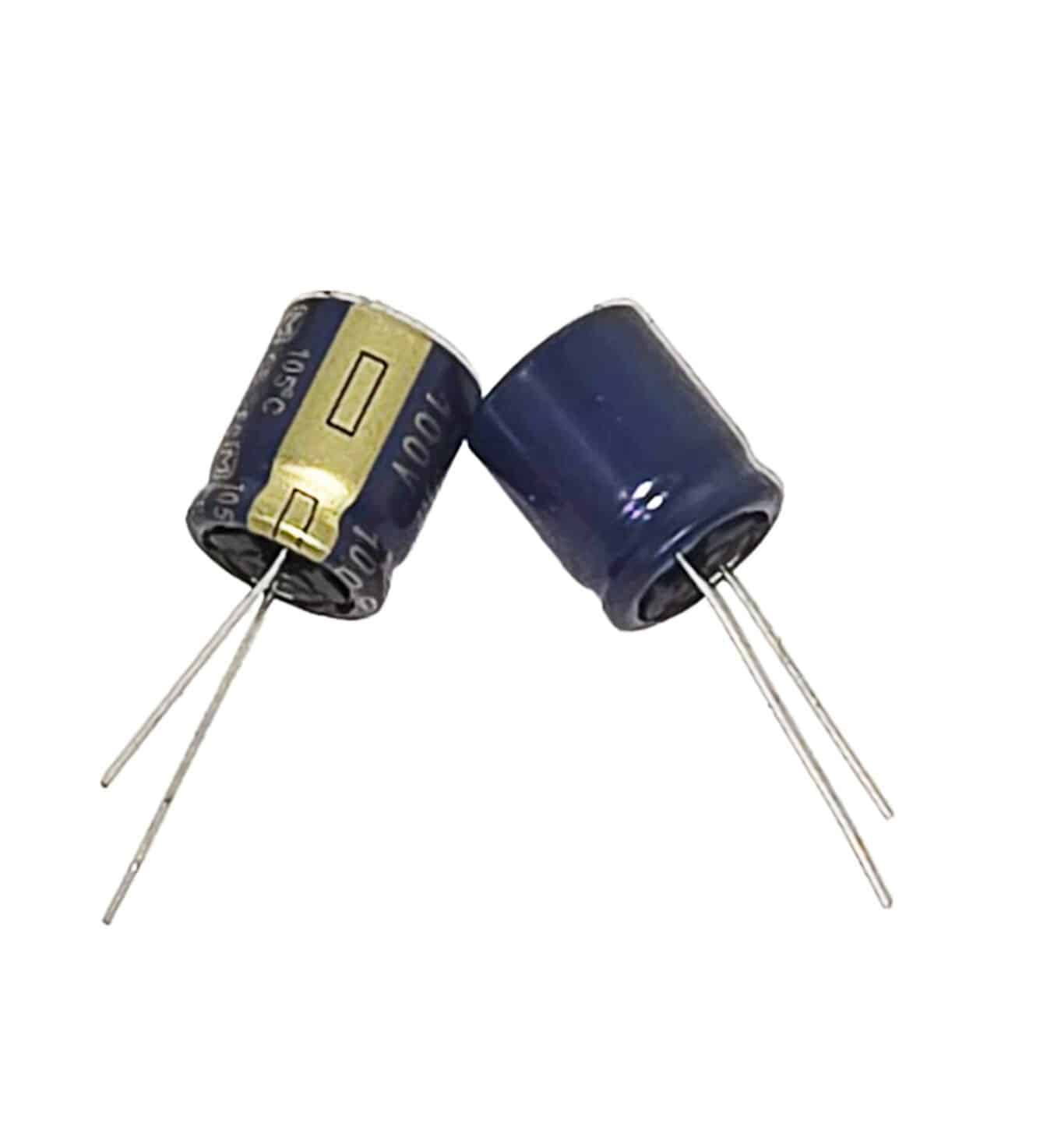

LOT OF 75 EACH Panasonic Electronic Components EEU-FC2A271S 270 µF 100 V Aluminum Electrolytic Capacitors Radial
|
Category
|
Capacitors
Aluminum Electrolytic Capacitors
|
|
|
Mfr
|
Panasonic Electronic Components
|
|
|
Series
|
FC
|
|
|
Part Status
|
Active
|
|
|
Capacitance
|
270 µF
|
|
|
Tolerance
|
±20%
|
|
|
Voltage – Rated
|
100 V
|
|
|
ESR (Equivalent Series Resistance)
|
–
|
|
|
Lifetime @ Temp.
|
5000 Hrs @ 105°C
|
|
|
Operating Temperature
|
-55°C ~ 105°C
|
|
|
Polarization
|
Polar
|
|
|
Ratings
|
AEC-Q200
|
|
|
Applications
|
Automotive
|
|
|
Ripple Current @ Low Frequency
|
799.5 mA @ 120 Hz
|
|
|
Ripple Current @ High Frequency
|
1.23 A @ 100 kHz
|
|
|
Impedance
|
80 mOhms
|
|
|
Lead Spacing
|
0.295″ (7.50mm)
|
|
|
Size / Dimension
|
0.709″ Dia (18.00mm)
|
|
|
Height – Seated (Max)
|
0.866″ (22.00mm)
|
|
|
Surface Mount Land Size
|
–
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
Radial, Can
|
|
|
Base Product Number
|
EEU-FC
|
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8.00 × 8.00 × 8.00 in |
| Brand | |
| MPN | |
| Condition | |
| Condition Description | |
| MAXIMUM OPERATING VOLTAGE | 100 V |
