Lot of 4 Each Moxa V2201-E4-T Ultra-Compact Embedded Computer Parts Only

ZOMBIE COMPONENTS

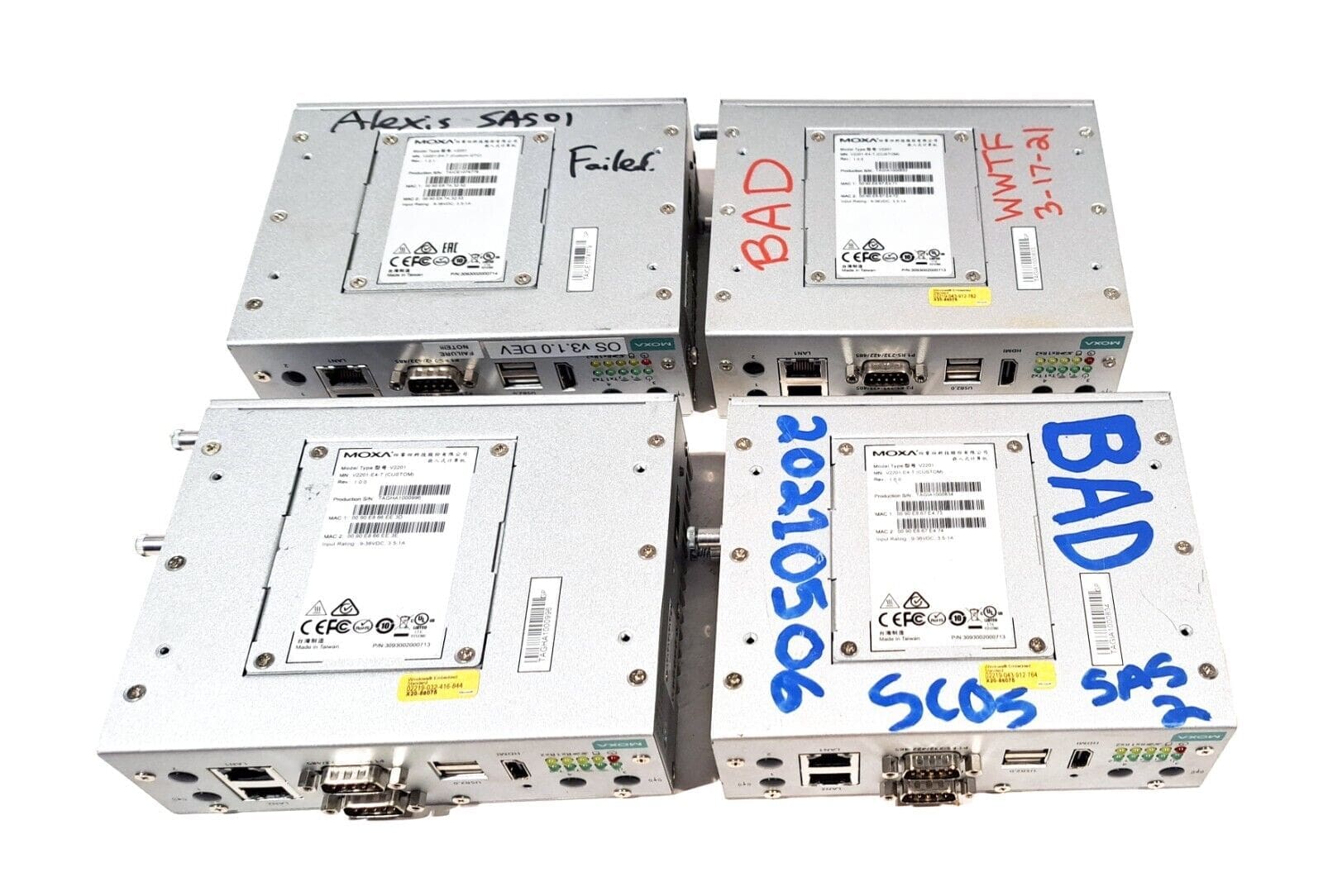

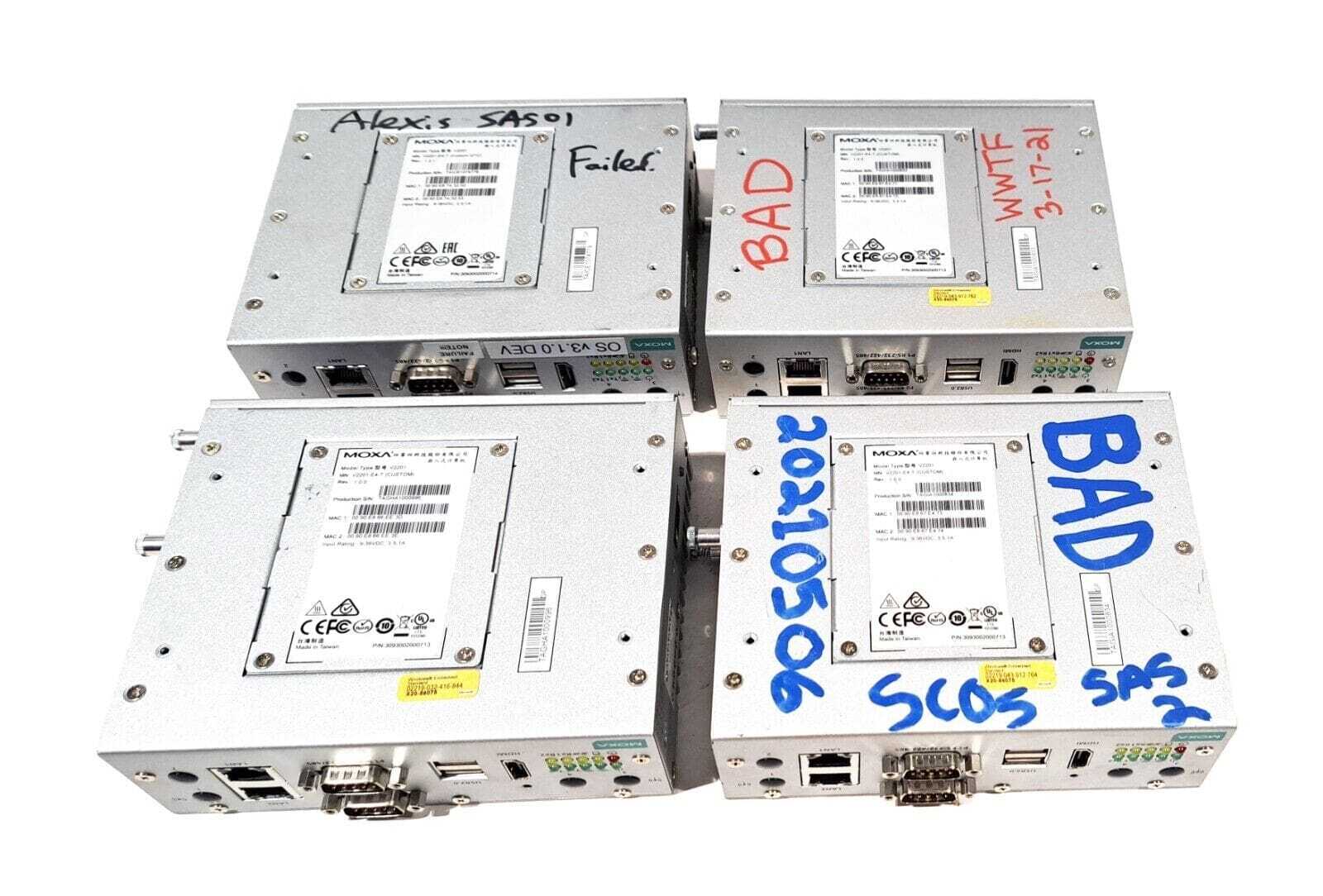

LOT OF 4 EACH MOXA V2201-E4-T ULTRA-COMPACT EMBEDDED COMPUTER PARTS ONLY

USED **UNKOWN CONDITION ** FOR PARTS ONLY
MOXA V2201-E4-T ULTRA-COMPACT EMBEDDED COMPUTER V2201-E4-T (CUSTOM-QTC) V1.1.0
used for engineering development
Description
Features and Benefits
Intel Atom E3800 Series processor with three performance options
Dual mini-PCIe sockets for wireless modules, supports Wi-Fi, 3G, LTE, and GPS
-40 to 85°C system operating temperature (-40 to 70°C with LTE module installed)
Variety of interfaces: 2 serial ports, 2 Ethernet LAN ports, 4 DIs, 4 DOs, SD, USB, HDMI, wireless
EN 61000-6-2 and EN 61000-6-4 certification ; meets EMC standard for heavy industry
The V2201 Series ultra-compact x86 embedded computer is based on the Intel Atom E3800 Series processor, features the most reliable I/O design to maximize connectivity, and supports dual wireless modules, making it suitable for a diverse range of communication applications. The computer’s thermal design ensures reliable system operation in temperatures ranging from -40 to 85°C (-40 to 70°C with a special purpose Moxa wireless module installed). The V2201 Series supports ?Moxa Hardware Monitoring? for device I/O status monitoring and alerts, system temperature monitoring and alerts, and system power management. Monitoring system status closely makes it easier to recover from errors and provides the most reliable platform for your applications.
Applications
Remote Terminal Unit (RTU)
Data acquisition
M2M communication (smart gateway)
Digital signage
Factory automation
In-vehicle monitor/data logger (transportation)
Programmable router
Energy usage optimization
Predictive maintenance
Asset management
V2201-E4-T

x86 embedded computer with Intel Atom® E3845, 1 HDMI port, 2 Ethernet ports, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD slot, 1 uSIM slot, 1 Wi-Fi Mini PCIe slot, 1 3G/LTE Mini PCIe slot, -40 to 70°C operating temperature

Computer
CPU
Intel Atom® Processor E3845 (2M Cache, 1.91 GHz)

System Memory Pre-installed
4 GB DDR3L

System Memory Slot
SODIMM DDR3/DDR3L slot x 1

Supported OS
Windows Embedded Standard 7 (WS7E) 64-bit
Windows 10 Embedded IoT Enterprise 2016 LTSB Entry 64-bit
Windows 10 Embedded IoT Enterprise 2019 LTSC Entry 64-bit
Windows 10 Embedded IoT Enterprise 2021 LTSC Entry 64-bit
Linux Debian 9 OS image (Kernel 4.9)
Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers

Storage Slot
mSATA slots x 1
SD 3.0 (SDHC/SDXC) socket x 1

Computer Interface
Ethernet Ports
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

Serial Ports
RS-232/422/485 ports x 2, software selectable (DB9 male)

USB 2.0
USB 2.0 hosts x 2, type-A connectors

USB 3.0
USB 3.0 hosts x 1, type-A connectors

Digital Input
DIs x 4

Digital Output
DOs x 4

Expansion Slots
mPCIe slots x 2

Video Output
HDMI x 1, HDMI connector (type A)

Wi-Fi Antenna Connector
RP-SMA x 2

Cellular Antenna Connector
SMA x 2

Number of SIMs
1

SIM Format
Mini

GPS Antenna Connector
SMA x 1

Digital Inputs
Isolation
3K VDC

Connector
Screw-fastened Euroblock terminal

Dry Contact
On: short to GND
Off: open

I/O Mode
DI

Sensor Type
Dry contact
Wet contact (NPN or PNP)

Wet Contact (DI to COM)
On: 10 to 30 VDC
Off: 0 to 3 VDC

Digital Outputs
Connector
Screw-fastened Euroblock terminal

Current Rating
200 mA per channel

I/O Type
Sink

Voltage
24 to 30 VDC

LED Indicators
System
SD slots x 1
Power x 1
Storage x 1
Programmable x 1

Wireless Signal Strength
Cellular/Wi-Fi x 2

LAN
1 per port (10/100/1000 Mbps)

Serial
2 per port (Tx, Rx)

Serial Interface
Baudrate
50 bps to 115.2 kbps

Flow Control
RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

Isolation
N/A

Parity
None, Even, Odd, Space, Mark

Stop Bits
1, 1.5, 2

Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422
Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w
Data+, Data-, GND

RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND

Power Parameters
Input Voltage
9 to 36 VDC

Power Connector
Terminal block (for DC models)

Power Consumption (Max.)
2000 mA @ 9 VDC

Power Consumption
18 W (max.)

Physical Characteristics
Housing
Aluminum

IP Rating
IP30

Dimensions (with ears)
178 x 52.5 x 120.2 mm (7.01 x 2.07 x 4.73 in)

Dimensions (without ears)
150 x 48.8 x 120.2 mm (5.91 x 1.92 x 4.73 in)

Weight
940 g (2.09 lb)

Installation
Wall mounting

Environmental Limits
Operating Temperature
-40 to 70°C (-40 to 158°F)

Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
5 to 95% (non-condensing)

Standards and Certifications
EMC
EN 55032/35
EN 61000-6-2/-6-4

EMI
CISPR 32, FCC Part 15B Class A

EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Safety
EN 60950-1
UL 508
UL 60950-1

Shock
IEC 60068-2-27

Vibration
IEC 60068-2-64

Declaration
Green Product
RoHS, CRoHS, WEEE

MTBF
Time
408,275 hrs

Standards
Telcordia (Bellcore), GB

WE SHIP WORLD WIDE!

Weight	11 lbs
Dimensions	10 × 10 × 10 in
Brand	MOXA
MPN	V2201-E4-T (CUSTOM-QTC) V1.1.0
MODEL	V2201
Condition Description	SOLD AS IS NO RETURNS
Condition	For parts or not working
TYPE	ULTRA-COMPACT EMBEDDED COMPUTER
