Kremlin Rexson 112G 04-220FT Flowmax 4:1 Pneumatic Paint Pump 8.8L/min 348psi

ZOMBIE COMPONENTS

Kremlin Rexson 112G 04-220FT Flowmax 4:1 Pneumatic Paint Pump 8.8L/min 348psi

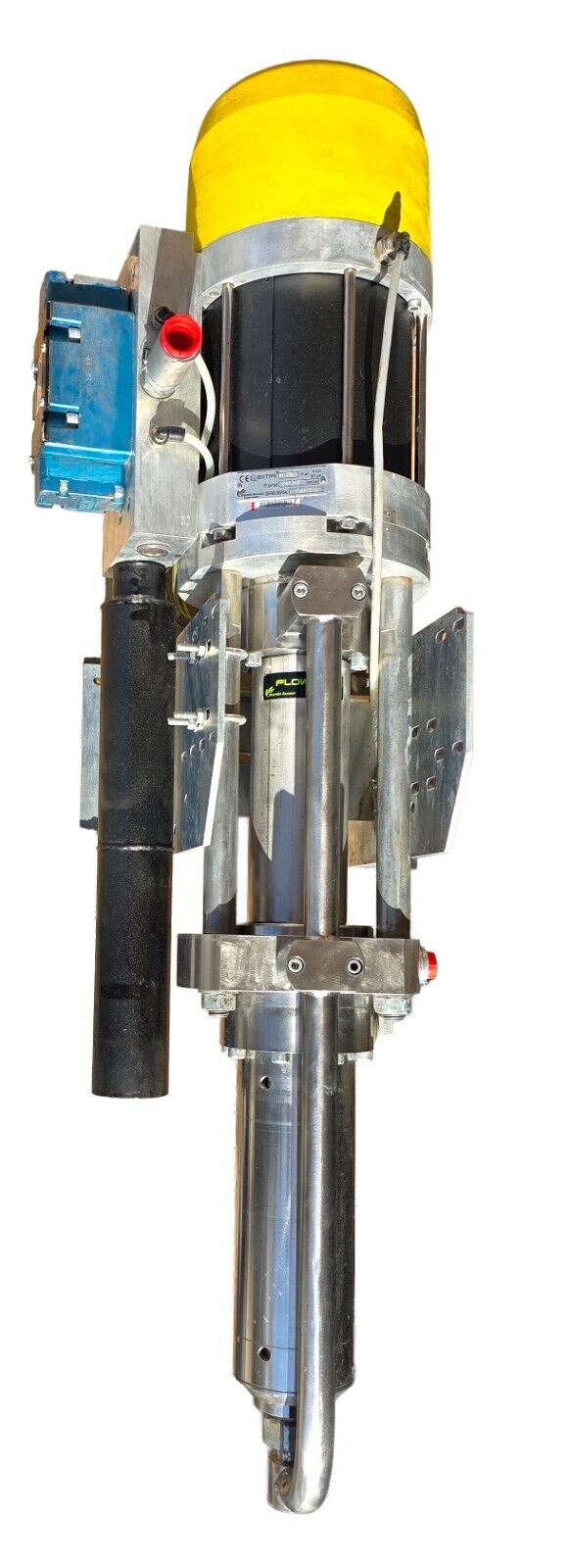

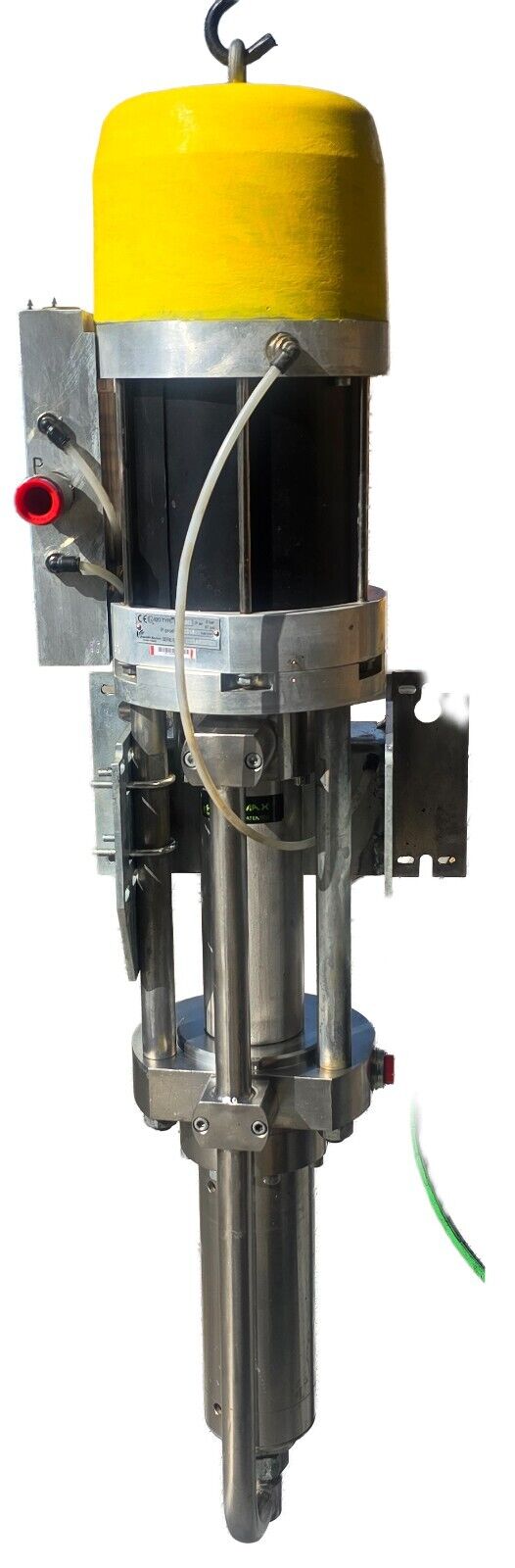

The Kremlin Rexson 112G 04-220FT is a heavy-duty Flowmax® pneumatic paint pump designed for high-volume, low-pressure circulation and supply of solvent-based and waterborne coatings. It uses a sealed Flowmax bellows system to isolate the fluid from the air motor, making it ideal for moisture-sensitive or reactive coatings like 2K polyurethanes.
This model features a 4:1 pressure ratio, hardened stainless steel wetted parts, and delivers up to 2.33 GPM (8.8 L/min) at 20 cycles per minute. Designed for long-life operation with minimal maintenance, it is suited for demanding industrial and finishing applications.
Unit is new surplus, unused, and in excellent condition. Wall mount configuration.
Specifications:

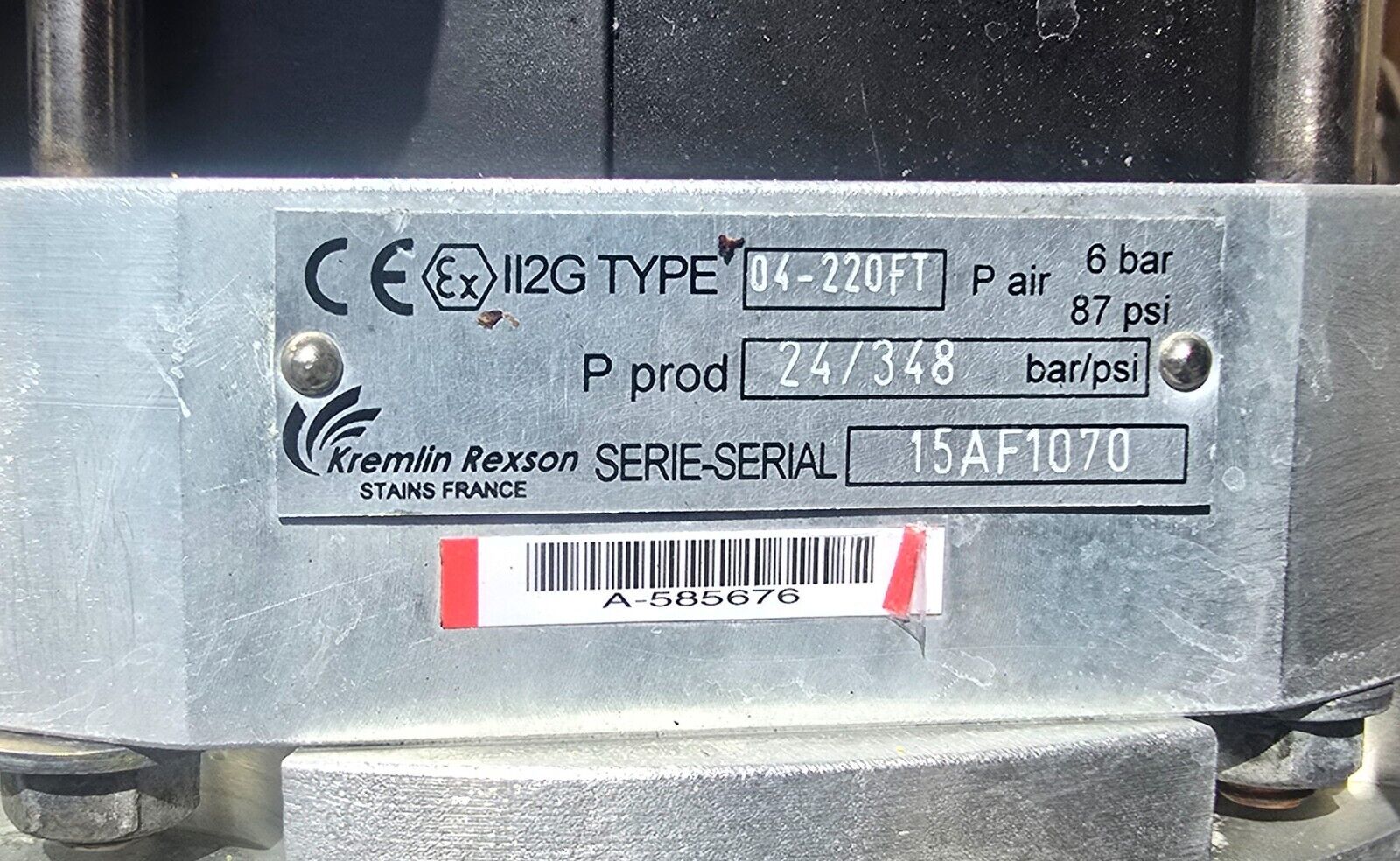

Model: 112G 04-220FT

Pump Type: Pneumatic reciprocating piston

Air Motor: 1000-4T, automatic reversing

Pressure Ratio: 4:1

Max Air Input Pressure: 87 PSI (6 bar)

Max Fluid Pressure: 348 PSI (24 bar)

Flow Rate: 2.33 GPM (8.8 L/min) at 20 cycles/min

Displacement per Cycle: ~15.4 oz (440 cc)

Wetted Materials: Stainless steel with hard chrome plating; tungsten carbide valves

Seals: Polyethylene Flowmax bellows (no contact between fluid and air motor)

Fluid Compatibility: Solvent or waterborne coatings, varnish, primers, adhesives

Air Inlet: 3/4″ BSP female

Fluid Inlet: 1″ BSP female

Fluid Outlet: 3/4″ NPS female

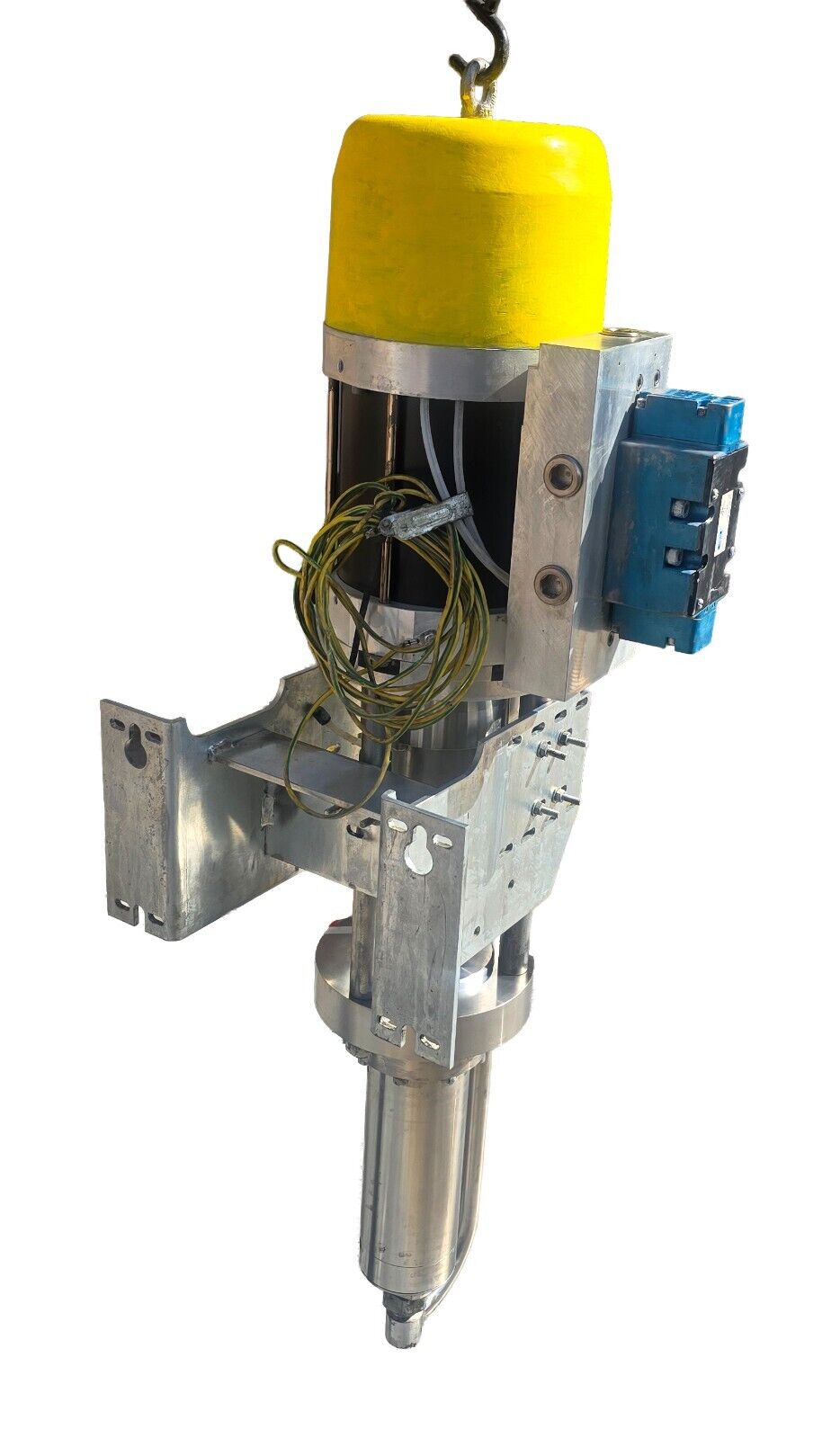

Mounting: Wall mount (included); optional cart or stand available

Dimensions: Approx. 43″ H × 16″ D

Weight: ~132 lbs (60 kg)

Condition: Used
