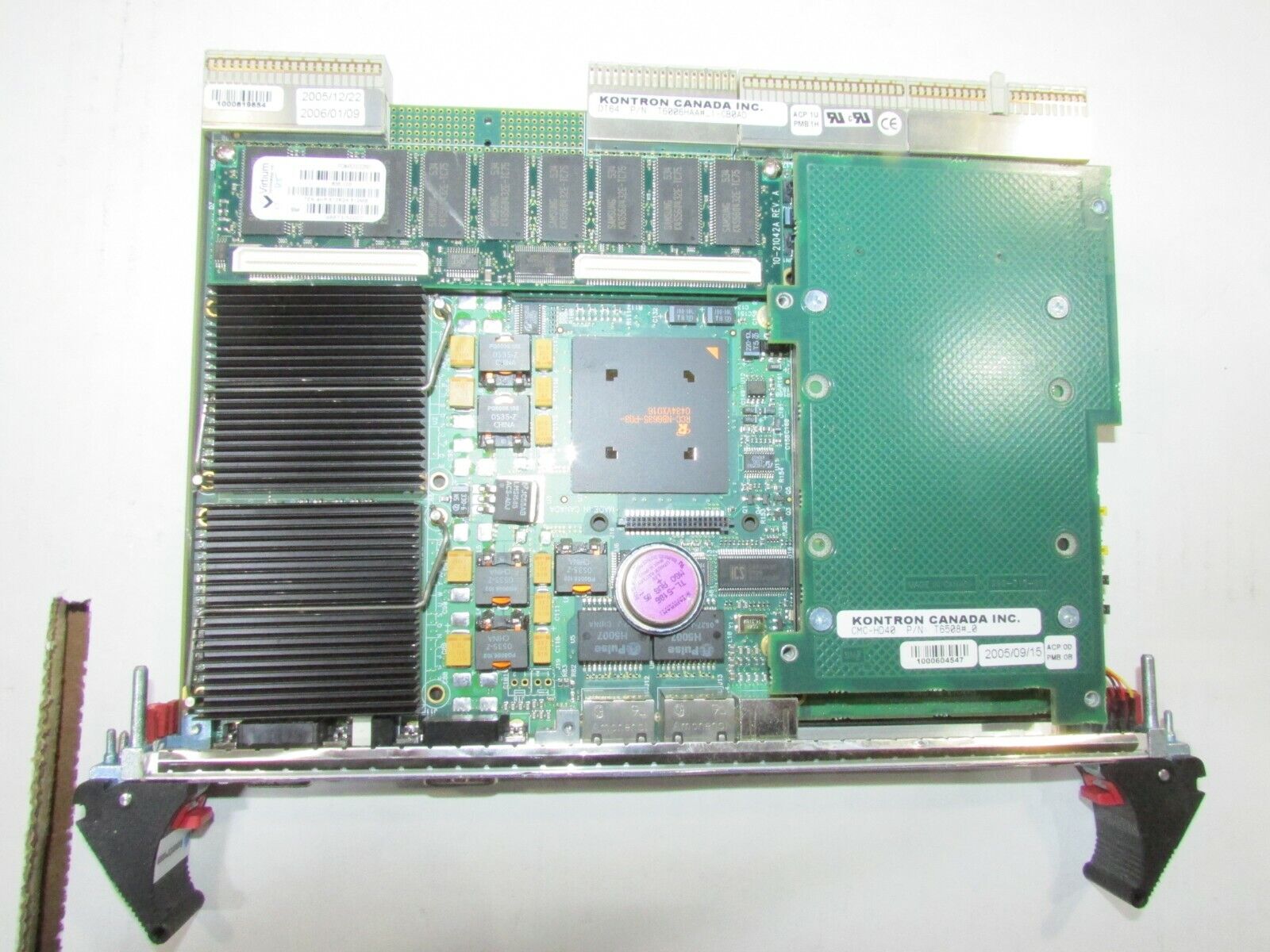

Kontron cPCI-DT64 – 6U Compact PCI 64 Bit DUAL PENTIUM III 66Mhz + 1 GB RAM

ZOMBIE COMPONENTS

Kontron cPCI-DT64 – 6U Compact PCI 64 Bit DUAL PENTIUM III 66Mhz + 1 GB RAM

Kontron cPCI-DT64 – 6U Compact PCI 64 Bit 66Mhz PCI System, Peripheral Processor, Dual Pentium III Processors, Gigabit Ethernet and 1GB RSDRAM
Features
Dual Pentium III Processors
ServerWorks ServerSet III LE Chipset
Up to 4 GB RSDRAM
Two 10Base-T/100Base-Tx/1000Base-T Ethernet Connectors
Hot-Swappable
PMC Expansion Slot
IPMI Support

Description
The Kontron Applicom cPCI-DT64 is a high-density, CompactPCI, system/peripheral board for mission critical industrial, military and communications applications such as core routers, wireless basestations, media and VoIP gateways.
The cPCI-DT64 breaks new ground with standard onboard features including dual Intel Pentium III processors at speeds up to 1.26 GHz, ServerWorks LE chipset, 64-bit/66 MHz PCI bus and 2 Gigabit Ethernet ports.
The high-performance ServerWorks LE chipset provides both 133 MHz front side bus and PC133 memory support.
Software support is provided for Windows 2003 Server, Windows 2000, WIndows XP, Linux, VxWorks and other operating systems.
Used in conjunction with Kontron's latest generation of XL-VHDS or XL-PSB packed switched backplane platforms, the cPCI-DT64 provides an integrated PICMG 2.16 platform for high-density, best-ofclass server solutions.
In addition, a Kontron mezzanine drives an additional PCI segment and supports an EIDE hard drive in both 8 HP or 4 HP form factor.
The full set of features that accompany the cPCI-DT64 can be used to develop a wide range of solutions, particularly for the growing needs of the datacom and CTI server communities.
Available with up to 4 GB RSDRAM in dualslot (8HP) and 2 GB in single-slot (4HP) boards, front or rear I/O configuration, 64-bit/66 MHz PMC expansion slot with PMC I/O Module (PIM) support and SCSI support, the cPCI-DT64 is a highperformance engine that will power the most demanding applications.
