Ixia XG12 12-Slot Modular Chassis With Permanent License Ixos 6.91 + More

ZOMBIE COMPONENTSTHE LARGEST IXIA RESELLER ONLINE

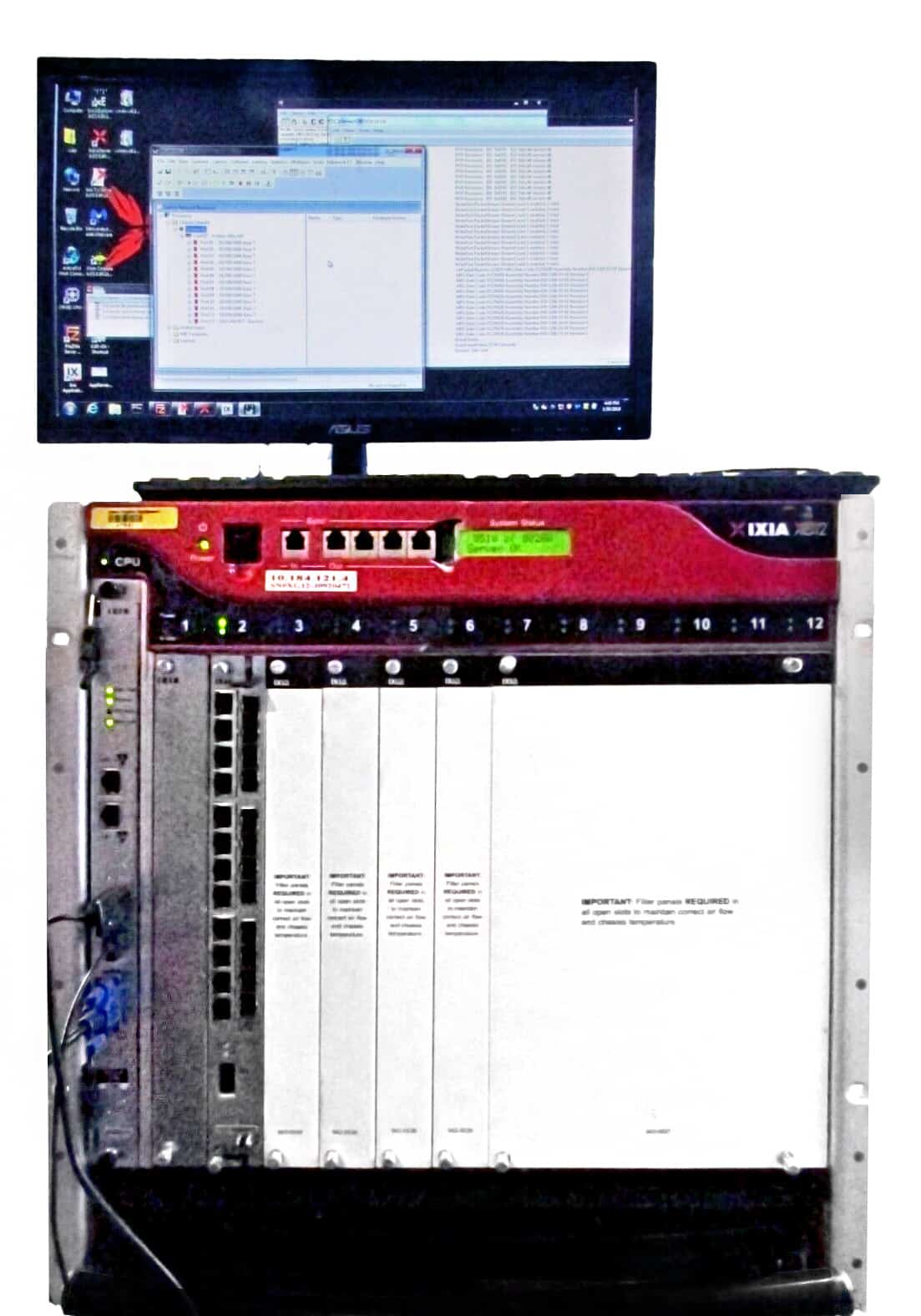

IXIA OPTIXIA XG12 12-SLOT MODULAR CHASSIS WITH PERMANENT LICENSE

RUNNING ON WINDOWS 7 WITH IxOS 6.90.1150.14 GA

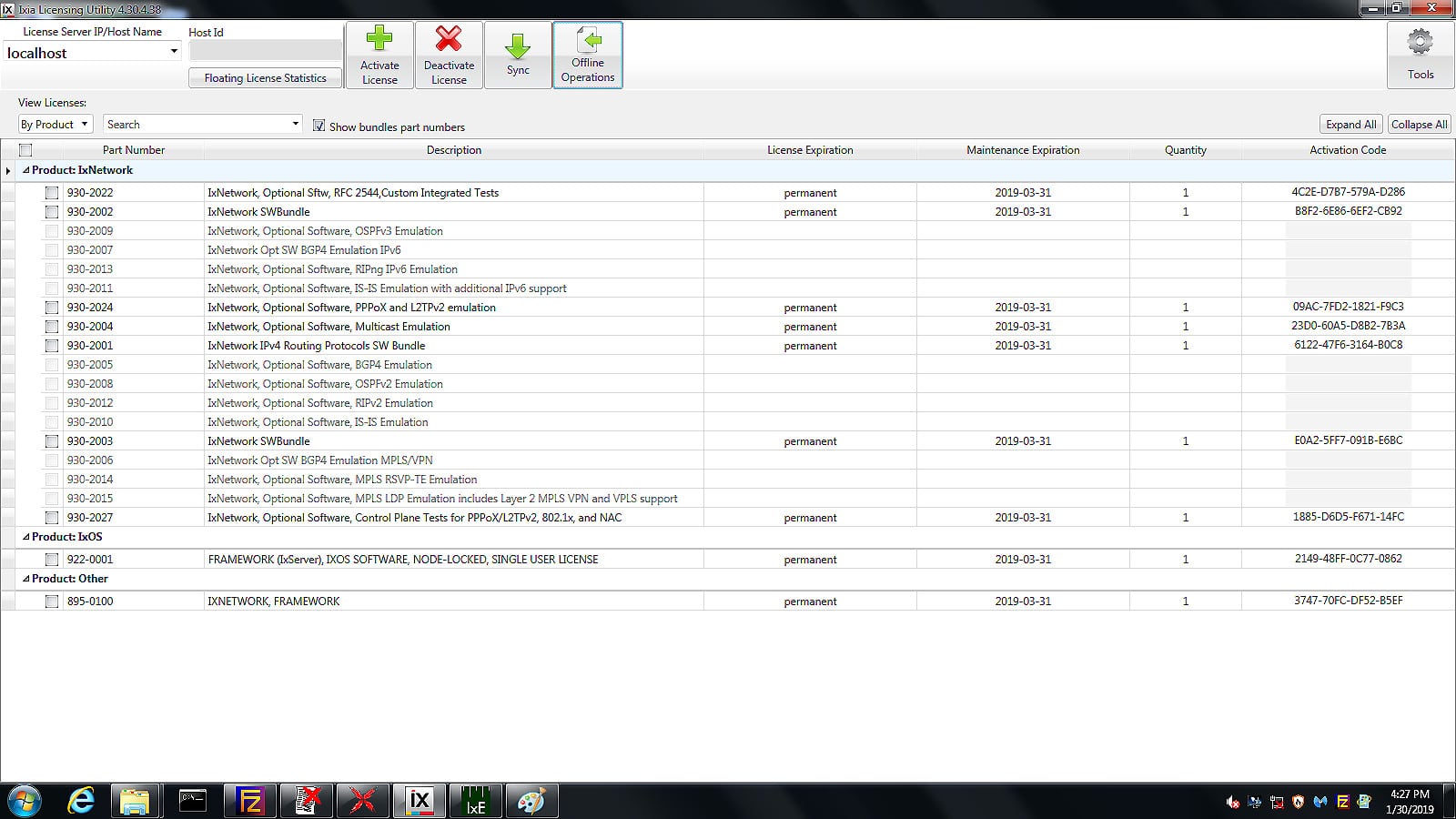

PERMANENT LICENCE SOFTWARE INCLUDED:
930-2022 IxNetwork, Optional Sftw, RFC 2544,Custom Integrated Tests
930-2002 IxNetwork SWBundle
930-2009 IxNetwork, Optional Software, OSPFv3 Emulation
930-2007 IxNetwork Opt SW BGP4 Emulation IPv6
930-2013 IxNetwcrk, Optional Software, RIPng IPv6 Emulation
930-2011 lxNetwork, Optional Software, IS-IS Emulation with additional IPv6 support
930-2024 IxNetwork, Optional Software, PPPoX and L2TPv2 emulation
930-2004 IxNetwork, Optional Software, Multicast Emulation
930-2001 IxNetwork IPv4 Routing Protocols – SW ,Bundle
930-2005 IxNetwork, Optional Software, BGP4 Emulation
930-2008 IxNetwork, Optional Software, OSPFv2 Emulation
930-2012 IxNetwork, Optional Software, RIPv2 Emulation
930-2010 IxNetwcrk, Optional Software, IS-IS Emulation
930-2003 IxNetwork SWBundle
930-2006 IxNetwork Opt SW BGP4 Emulation MPLSN PN
930-2014 IxNetwork, Optional Software, MPLS RSVP-TE Emulation
930-2015 IxNetwork, Optional Software, MPLS LDP Emulation includes Layer 2 MPLS VPN and VPLS support
930-2027 IxNetwork, Optional Software, Control Plane Tests for PPPoX/L2TPv2, 802,lx, and NAC
922-0001 FRAMEWORK (lxServer), IXOS SOFTWARE, NODE-LOCKED, SINGLE USER LICENSE
895-0100 IXNETWORK, FRAMEWORK
INCLUDES
Part NumberDescription
941-0017

XG12, 12-Slot Chassis Frame Module

942-0031

XG12, 12-Slot Chassis Fan Module

942-0032

XG12, 12-Slot Chassis Power Supply Module

942-0033

XG12, 12-Slot Chassis Processor Module

Supported Modules
The modules that are supported on the XG12 are listed in the following table.
Supported ModulesFamilyModuleFunction
XM Form Factor (XMFF) load modules

Xcellon-Flex™ High density 10GbE products

Xcellon-FlexAP10G16S 10 Gigabit Ethernet LAN Load Module, L2-7 Accelerated Performance, a 1-slot module with 16-ports of SFP+ interfaces
Xcellon-FlexFE10G16S 10 Gigabit Ethernet LAN Load Module, L2-3 Full Emulation Performance, a 1-slot module with 16-ports of SFP+ interfaces

Xdensity™ Ultra-high density 10GbE

Xdensity, XDM10G32S, Ultra-high density, 10-Gigabit Ethernet load module with 32-ports of SFP+ interfaces and L2-3 data plane support

Xcellon-Flex™ High density 10GbE and 40 GE products

Xcellon-FlexAP10/4016SQ 10/40 Gigabit Ethernet Accelerated Performance Load Module, 16-Ports of SFP+ interfaces and 4-ports of QSFP 40 GE interfaces with full performance L1-7 support
Xcellon-FlexFE40G4Q 40 Gigabit Ethernet Full Emulation Load Module, 4-ports of QSFP 40 GE with L1-3 support

K2 Higher Speed Ethernet product line

HSE40GETSP1-01, 40-Gigabit Ethernet Load Module, 1-port, 2-slots, with the CFP MSA interface
HSE100GETSP1-01, 100- Gigabit Ethernet Load Module, 1-port, 2-slots, with the CFP MSA interface
HSE40/100GETSP1-01 Dual-Speed, 1-port, 2-slots, with CFP MSA interface
HSE40/100GETSPR1-01, Dual Speed, 40 and 100-Gigabit Data Plane Ethernet Load Module, 1-port, 2-slots, with the CFP MSA interface
HSE40GEQSFP1-01, 40-Gigabit Ethernet Load Module, 1-port, 1-slot with the QSFP+ pluggable interface for multimode fiber, 850nm, or QSFP+ copper cables

Xcellon Ultra™ High Performance Application Test product line

Xcellon-Ultra NP-01, Application Network Processor Load Module, 1-10G XFP port and/or 12-Ports of Dual-PHY (SFP fiber and RJ45 copper) 10/100/1000 Mbps

NGY High Density 10 Gigabit Ethernet product line

LSM10GXMR2/4/8-port, reduced performance, load modules with the XFP interface
LSM10GXM2/4/8XP-port, Extra performance, load modules with the XFP interface
LSM10GXM2S/4S/8S-port, Extra performance, load modules with the SFP+ interface
LSM10GXM2S/4S/8S-port, reduced performance, load modules with the SFP+ interface
LSM10GXM2GBT/4GBT/8GBT-port, Extra performance, load modules with the 10GBASE-T interface
LSM10GXM2GBT/4GBT/8GBT-port, reduced performance, load modules with the 10GBASE-T interface

Fibre Channel load module products

FCMGXM4S-01, 4-Port Fibre Channel Load Module, with 2Gbps, 4Gbps, and 8Gbps support, SFP+ interface
FCMGXM8S-01, 8-Port Fibre Channel Load Module, with 2Gbps, 4Gbps, and 8Gbps support, SFP+ interface

ImpairNet Load module products

ImpairNet EIM1G4S Gigabit Ethernet LAN Impairment module, 1-slot with 4-ports of SFP interfaces
ImpairNet EIM10G4S 10 Gigabit Ethernet LAN Impairment module, 1-slot with 4-ports of SFP+ interfaces

Voice Quality module

VQM0001, Resource module, for real time quality of voice measurement. Must purchased with VQM0001-B1, Solution Bundle, Resource module with IXLOAD-PESQ and IXLOAD-AUDIO-CODECS software license

NGY NP High Density 10GbE Application Test product line

NGY-NP8-01, 10 Gigabit Application Network Processor Load Module, 8-Port LAN/WAN, SFP+ interface
NGY-NP4-01, 10 Gigabit Application Network Processor Load Module, 4-Port LAN/WAN, SFP+ interface
NGY-NP2-01, 10 Gigabit Application Network Processor Load Module, 2-Port LAN/WAN, SFP+ interface

High Density Gigabit Ethernet product line

LSM1000XMVDC 4/8/12/16-port, full performance, load modules with dual-phy SFP fiber and 10/100/1000Mbps RJ45 copper
LSM1000XMVR4/8/12/16-port, reduced performance, load modules with dual-phy SFP fiber and 10/100/1000Mbps RJ45 copper
LSM1000XMSP12-01, Gigabit Ethernet, Load Module, 12-Ports Dual-PHY (SFP fiber and RJ45 copper) 10/100/1000 Mbps

Standard Form Factor (SFF) load modules for XG12 chassis
Requires 944-0007 Adapter Card for XM Chassis installations

Gigabit Ethernet TX, TXS, STX and STXS products

LM100TX8, 100MB Ethernet Load Module, 8-Port 10/100Mbps, L2-3 data plane support only
LM100TXS8, 10/100Mbps Ethernet Load Module, 8-Port RJ45, 64MB Port CPU memory
LM100TXS2, 10/100Mbps Ethernet Load Module, 2-Port RJ45, 64MB Port CPU memory
LM1000STX4, Gigabit Ethernet Load Module, 4-Port Dual-PHY (RJ45 and SFP) 10/100/1000 Mbps, L2-3 data plane support only
LM1000STX2, Gigabit Ethernet Load Module, 2-Port Dual-PHY (RJ45 and SFP) 10/100/1000 Mbps, L2-3 data plane support only
LM1000STXS2, Gigabit Ethernet Load Module, 2-Port Dual-PHY (RJ45 and SFP) 10/100/1000 MbpsLM1000STXS4-256, Gigabit Ethernet Load Module, 4-Port Dual-PHY (RJ45 and SFP) 10/100/1000 Mbps

10 Gigabit Ethernet LSM products

LSM10G1-01, 10 Gigabit Ethernet Load Module, 1-Port, Full L2-7 support, requires interface adapter module
Interchangeable interface adapter modules for SFP+, 10GBASE-T, XENPAK, X2, and CX4 interfaces for the LSM10G1-01

Application and Encryption Test product line

AFM (Auxiliary Function Module): AFM1000SP-0
ALM (Application Load Module): ALM1000T8
ELM (Encryption Load Module): ELM1000ST2
Gigabit Ethernet Content Processing Module (CPM), 8-port RJ-45 10/100/1000 Ethernet

10-Gigabit UNIPHY and MacSec products

MSM10G1- 10 Gigabit Ethernet OC192 Load Module, 1-port Multi Services Module with an XFP interface, supports 10GE LAN/WAN and optional OC-192c POS
LSM10GMS1-01, 10 Gigabit Ethernet Load Module, 1-Port, LAN/WAN, Full performance and supports 802.1ae Media Access Control Security (MacSec) L2 security, including GCM/AES128

Packet over SONET and ATM products

MSM2.5G1-01, OC48 Load Module, 1-Port 2.5G Multi Service Module supporting OC48c, Supports POS, Full L2-7 support
LM622MR, OC3/OC12 ATM/POS, Load Module, 2-port ATM/Packet over SONET (POS); Full L2-7 Support. Supports 622 and 155 Mbps data rates
LM622MR-512, OC3/OC12 ATM/POS, Load Module, 2-port ATM/Packet over SONET (POS), Full L2-7 Support. Supports 622 and 155 Mbps data rates, 512MB Port CPU memory
OC3OC12PHY, OC3/OC12 ATM/POS Adapter, Dual-SC optical connector, Single-port OC-3/OC-12 PHY 1310nm Multimode; For the LM622MR or LM622MR-512) load modules

Power over Ethernet (IEEE802.3af)

PLM1000T4-PD (20W), Gigabit Ethernet Load Module, 4-Port PoE, supports 10/100/1000 Mbps Ethernet, and emulates up to 4 powered devices
LSM1000POE4-02 (30W), Gigabit Ethernet Load Module, 4-Port PoE, supports 10/100/1000 Mbps Ethernet, and emulates up to 4 powered devices

ATTENTION PLEASE!

IXIA CLIENT SOFTWARE: The software provided on all Ixia items is the server software only. The server software has ixserver and ixplorer as the only desktop applications. The server application licensed features are accessed through various Ixia client applications that interact with the chassis server.

You can download the Ixia client applications if you have online access with Ixia. These client applications are typically free from Ixia but you will need an Ixia logon account.  We offer a selection of these applications to our customers at no charge but the selection is incomplete.  We do not sell these with the servers as a package. Client application needs are the buyers responsibility, we do not guarantee that we will have all your needs though we will try to assist you if we can. We only guarantee the server applications as itemized in the listings.

In a single user environment you can set the client side GUI interface on a external PC or you can set them up on an application server when using a chassis in a multi-user environment to access and configure all the sub-license features included in a listing. Multiple chassis can be accessed in the client applications environment which allows you to use the licensed features of several chassis all at once in one interface.

WHAT YOU SEE IS WHAT YOU GET… What is included in this listing will be shown in the pictures. If you do not see an accessory  in the pictures and it is not specifically listed as included in the condition description or the listing description, the accessory is not included. Please read the descriptions completely for exceptions on this.

GENERAL REFUND POLICY:  You are covered with a full money back guarantee for at least 30 days or longer as specified in the listing, unless an item is indicated as “Sold as is – no returns”.  We go beyond that by promising that if you are dissatisfied for any reason and if we cannot fix this with you, we will give you 100% of your purchase price back as a cash refund. This will include the original shipping costs if your dissatisfaction ​​​​​​​ is due to an issue with the item you bought being “Not as described”.
​​​​​​​
ALL WE ASK IS THAT YOU CONTACT US FIRST AND GIVE US A CHANCE TO WORK THINGS OUT WITH YOU. PLEASE DO NOT LEAVE NEGATIVE FEEDBACK IF YOU HAVE NOT FIRST CONTACTED US TO FIX WHATEVER ISSUE YOU HAVE.

WE SHIP WORLD WIDE!

Weight	125.0000 lbs
Dimensions	25 × 25 × 22 in
Brand	Ixia
Condition	Seller refurbished
Condition Description	REPAIRED, REFURBISHED… 90 DAY WARRANTY *** DOES NOT INCLUDE LOAD MODULE IN MACHINE AS PICTURED***
MPN	XG12
