Description
INCLUDES
703651
Product
PartNumber
Feature
ValidThru
1
IxOS-NL
922-0001
FRAMEWORK (IxServer): IXOS SOFTWARE: NODE-LOCKED: S
permanent
3
IxNetwork-FL
930-3900
IxNetwork: Floating Base Software: Layer 2-
permanent
4
930-3921
IxNetwork: FL TC DUT CLI Interface
permanent
5
930-3922
IxNetwork: FL TC DUT SNMP Interface
permanent
6
930-3923
IxNetwork: FL TC DUT SYSLOG Interface
permanent
14
IxNetwork
895-0100
IXNETWORK: FRAMEWORK
permanent
15
930-2004
IxNetwork: Optional Software: Multicast Emulation
permanent
16
930-2005
IxNetwork: Optional Software: BGP4 Emulation
permanent
17
930-2007
IxRouter/IxNetwork: BGP4 w/IPv6 support
permanent
18
930-2008
IxNetwork: Optional Software: OSPFv2 Emulation
permanent
19
930-2009
IxNetwork: Optional Software: OSPFv3 Emulation
permanent
20
930-2010
xNetwork: Optional Software: IS-IS Emulation
permanent
21
930-2011
IxNetwork: Optional Software: IS-IS Emulation with
permanent
22
930-2012
IxNetwork: Optional Software: RIPv2 Emulation
permanent
23
930-2013
IxNetwork: Optional Software: RIPng IPv6 Emulation
permanent
24
930-2022
IxNetwork: Optional Sftw: RFC 2544:Custom Integrate
permanent
25
930-2035
IxNetwork: Optional Software: LACP IEEE 802.3ad Pro
permanent
38
IxLoad
895-0301
FRAMEWORK: IxLoad
permanent
39
925-3052
IxLoad HTTP-FTP: Optional Software: Layer 4-7 Perfo
permanent
40
925-3053
IxLoad DHCP-DNS-LDAP-Telnet: Optional Software: Lay
permanent
41
925-3054
IxLoad ADVNET-DHCP: Optional Software: Layer 4-7 Pe
permanent
42
925-3055
IxLoad Impairment: Optional Software: Layer 4-7 Per
permanent
43
925-3142
IXLOAD-Application-Replay: Highly capture/replay fu
permanent
55
Analyzer – Chassis components
932-0101
Analyzer Server: Base Software: Chassis Component:
permanent

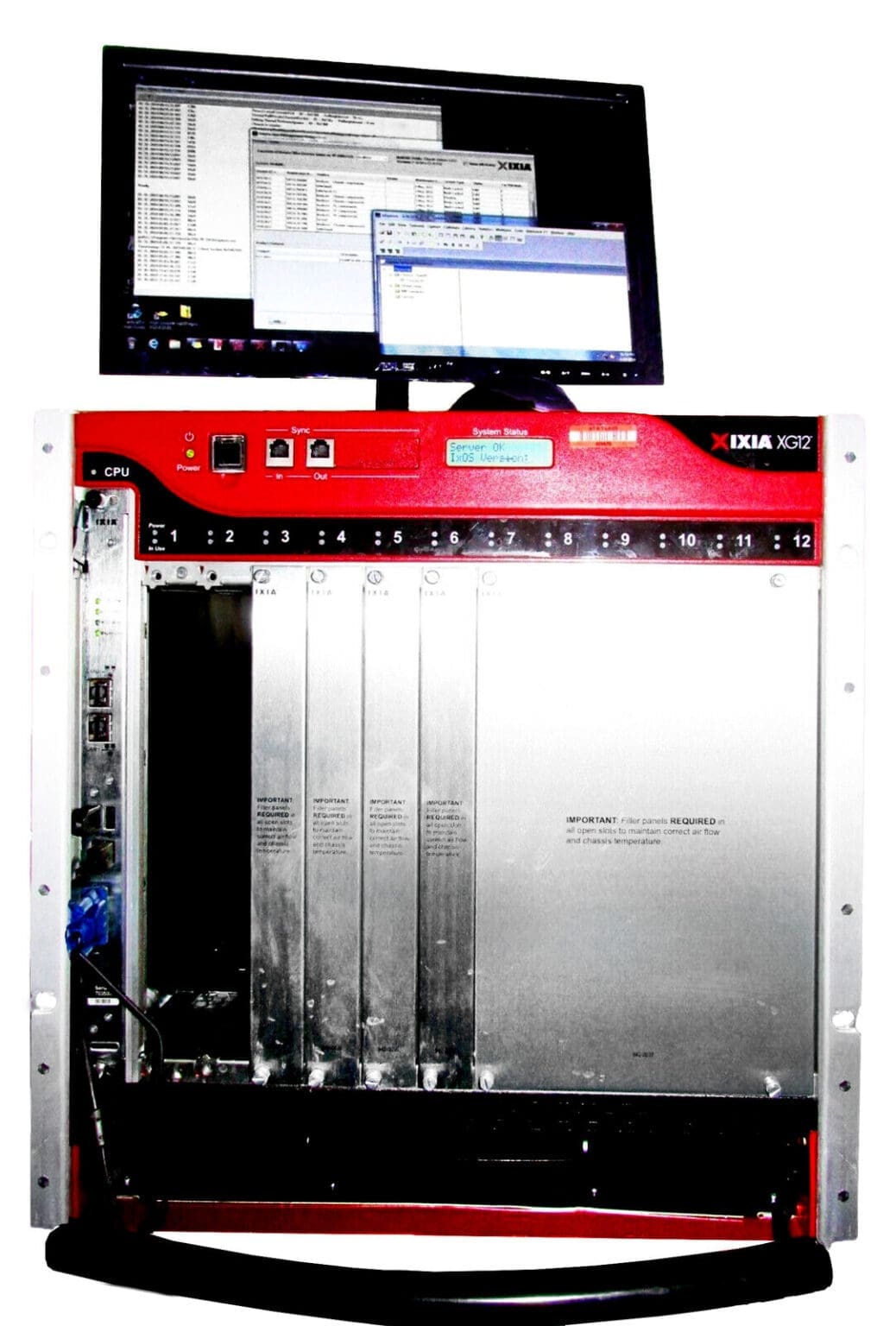

Part Number
Description
941-0017
XG12, 12-Slot Chassis Frame Module
942-0031
XG12, 12-Slot Chassis Fan Module
942-0032
XG12, 12-Slot Chassis Power Supply Module
942-0033
XG12, 12-Slot Chassis Processor Module
Supported Modules
The modules that are supported on the XG12 are listed in the following table.
Supported Modules
Family
Module
Function
XM Form Factor (XMFF) load modules
Xcellon-Flex™ High density 10GbE products
Xcellon-FlexAP10G16S 10 Gigabit Ethernet LAN Load Module, L2-7 Accelerated Performance, a 1-slot module with 16-ports of SFP+ interfaces
Xcellon-FlexFE10G16S 10 Gigabit Ethernet LAN Load Module, L2-3 Full Emulation Performance, a 1-slot module with 16-ports of SFP+ interfaces
Xdensity™ Ultra-high density 10GbE
Xdensity, XDM10G32S, Ultra-high density, 10-Gigabit Ethernet load module with 32-ports of SFP+ interfaces and L2-3 data plane support
Xcellon-Flex™ High density 10GbE and 40 GE products
Xcellon-FlexAP10/4016SQ 10/40 Gigabit Ethernet Accelerated Performance Load Module, 16-Ports of SFP+ interfaces and 4-ports of QSFP 40 GE interfaces with full performance L1-7 support
Xcellon-FlexFE40G4Q 40 Gigabit Ethernet Full Emulation Load Module, 4-ports of QSFP 40 GE with L1-3 support
K2 Higher Speed Ethernet product line
HSE40GETSP1-01, 40-Gigabit Ethernet Load Module, 1-port, 2-slots, with the CFP MSA interface
HSE100GETSP1-01, 100- Gigabit Ethernet Load Module, 1-port, 2-slots, with the CFP MSA interface
HSE40/100GETSP1-01 Dual-Speed, 1-port, 2-slots, with CFP MSA interface
HSE40/100GETSPR1-01, Dual Speed, 40 and 100-Gigabit Data Plane Ethernet Load Module, 1-port, 2-slots, with the CFP MSA interface
HSE40GEQSFP1-01, 40-Gigabit Ethernet Load Module, 1-port, 1-slot with the QSFP+ pluggable interface for multimode fiber, 850nm, or QSFP+ copper cables
Xcellon Ultra™ High Performance Application Test product line
Xcellon-Ultra NP-01, Application Network Processor Load Module, 1-10G XFP port and/or 12-Ports of Dual-PHY (SFP fiber and RJ45 copper) 10/100/1000 Mbps
NGY High Density 10 Gigabit Ethernet product line
LSM10GXMR2/4/8-port, reduced performance, load modules with the XFP interface
LSM10GXM2/4/8XP-port, Extra performance, load modules with the XFP interface
LSM10GXM2S/4S/8S-port, Extra performance, load modules with the SFP+ interface
LSM10GXM2S/4S/8S-port, reduced performance, load modules with the SFP+ interface
LSM10GXM2GBT/4GBT/8GBT-port, Extra performance, load modules with the 10GBASE-T interface
LSM10GXM2GBT/4GBT/8GBT-port, reduced performance, load modules with the 10GBASE-T interface
Fibre Channel load module products
FCMGXM4S-01, 4-Port Fibre Channel Load Module, with 2Gbps, 4Gbps, and 8Gbps support, SFP+ interface
FCMGXM8S-01, 8-Port Fibre Channel Load Module, with 2Gbps, 4Gbps, and 8Gbps support, SFP+ interface
ImpairNet Load module products
ImpairNet EIM1G4S Gigabit Ethernet LAN Impairment module, 1-slot with 4-ports of SFP interfaces
ImpairNet EIM10G4S 10 Gigabit Ethernet LAN Impairment module, 1-slot with 4-ports of SFP+ interfaces
Voice Quality module
VQM0001, Resource module, for real time quality of voice measurement. Must purchased with VQM0001-B1, Solution Bundle, Resource module with IXLOAD-PESQ and IXLOAD-AUDIO-CODECS software license
NGY NP High Density 10GbE Application Test product line
NGY-NP8-01, 10 Gigabit Application Network Processor Load Module, 8-Port LAN/WAN, SFP+ interface
NGY-NP4-01, 10 Gigabit Application Network Processor Load Module, 4-Port LAN/WAN, SFP+ interface
NGY-NP2-01, 10 Gigabit Application Network Processor Load Module, 2-Port LAN/WAN, SFP+ interface
High Density Gigabit Ethernet product line
LSM1000XMVDC 4/8/12/16-port, full performance, load modules with dual-phy SFP fiber and 10/100/1000Mbps RJ45 copper
LSM1000XMVR4/8/12/16-port, reduced performance, load modules with dual-phy SFP fiber and 10/100/1000Mbps RJ45 copper
LSM1000XMSP12-01, Gigabit Ethernet, Load Module, 12-Ports Dual-PHY (SFP fiber and RJ45 copper) 10/100/1000 Mbps
Standard Form Factor (SFF) load modules for XG12 chassis
Requires 944-0007 Adapter Card for XM Chassis installations
Gigabit Ethernet TX, TXS, STX and STXS products
LM100TX8, 100MB Ethernet Load Module, 8-Port 10/100Mbps, L2-3 data plane support only
LM100TXS8, 10/100Mbps Ethernet Load Module, 8-Port RJ45, 64MB Port CPU memory
LM100TXS2, 10/100Mbps Ethernet Load Module, 2-Port RJ45, 64MB Port CPU memory
LM1000STX4, Gigabit Ethernet Load Module, 4-Port Dual-PHY (RJ45 and SFP) 10/100/1000 Mbps, L2-3 data plane support only
LM1000STX2, Gigabit Ethernet Load Module, 2-Port Dual-PHY (RJ45 and SFP) 10/100/1000 Mbps, L2-3 data plane support only
LM1000STXS2, Gigabit Ethernet Load Module, 2-Port Dual-PHY (RJ45 and SFP) 10/100/1000 MbpsLM1000STXS4-256, Gigabit Ethernet Load Module, 4-Port Dual-PHY (RJ45 and SFP) 10/100/1000 Mbps
10 Gigabit Ethernet LSM products
LSM10G1-01, 10 Gigabit Ethernet Load Module, 1-Port, Full L2-7 support, requires interface adapter module
Interchangeable interface adapter modules for SFP+, 10GBASE-T, XENPAK, X2, and CX4 interfaces for the LSM10G1-01
Application and Encryption Test product line
AFM (Auxiliary Function Module): AFM1000SP-0
ALM (Application Load Module): ALM1000T8
ELM (Encryption Load Module): ELM1000ST2
Gigabit Ethernet Content Processing Module (CPM), 8-port RJ-45 10/100/1000 Ethernet
10-Gigabit UNIPHY and MacSec products
MSM10G1- 10 Gigabit Ethernet OC192 Load Module, 1-port Multi Services Module with an XFP interface, supports 10GE LAN/WAN and optional OC-192c POS
LSM10GMS1-01, 10 Gigabit Ethernet Load Module, 1-Port, LAN/WAN, Full performance and supports 802.1ae Media Access Control Security (MacSec) L2 security, including GCM/AES128
Packet over SONET and ATM products
MSM2.5G1-01, OC48 Load Module, 1-Port 2.5G Multi Service Module supporting OC48c, Supports POS, Full L2-7 support
LM622MR, OC3/OC12 ATM/POS, Load Module, 2-port ATM/Packet over SONET (POS); Full L2-7 Support. Supports 622 and 155 Mbps data rates
LM622MR-512, OC3/OC12 ATM/POS, Load Module, 2-port ATM/Packet over SONET (POS), Full L2-7 Support. Supports 622 and 155 Mbps data rates, 512MB Port CPU memory
OC3OC12PHY, OC3/OC12 ATM/POS Adapter, Dual-SC optical connector, Single-port OC-3/OC-12 PHY 1310nm Multimode; For the LM622MR or LM622MR-512) load modules
Power over Ethernet (IEEE802.3af)
PLM1000T4-PD (20W), Gigabit Ethernet Load Module, 4-Port PoE, supports 10/100/1000 Mbps Ethernet, and emulates up to 4 powered devices
LSM1000POE4-02 (30W), Gigabit Ethernet Load Module, 4-Port PoE, supports 10/100/1000 Mbps Ethernet, and emulates up to 4 powered devices
ATTENTION PLEASE!

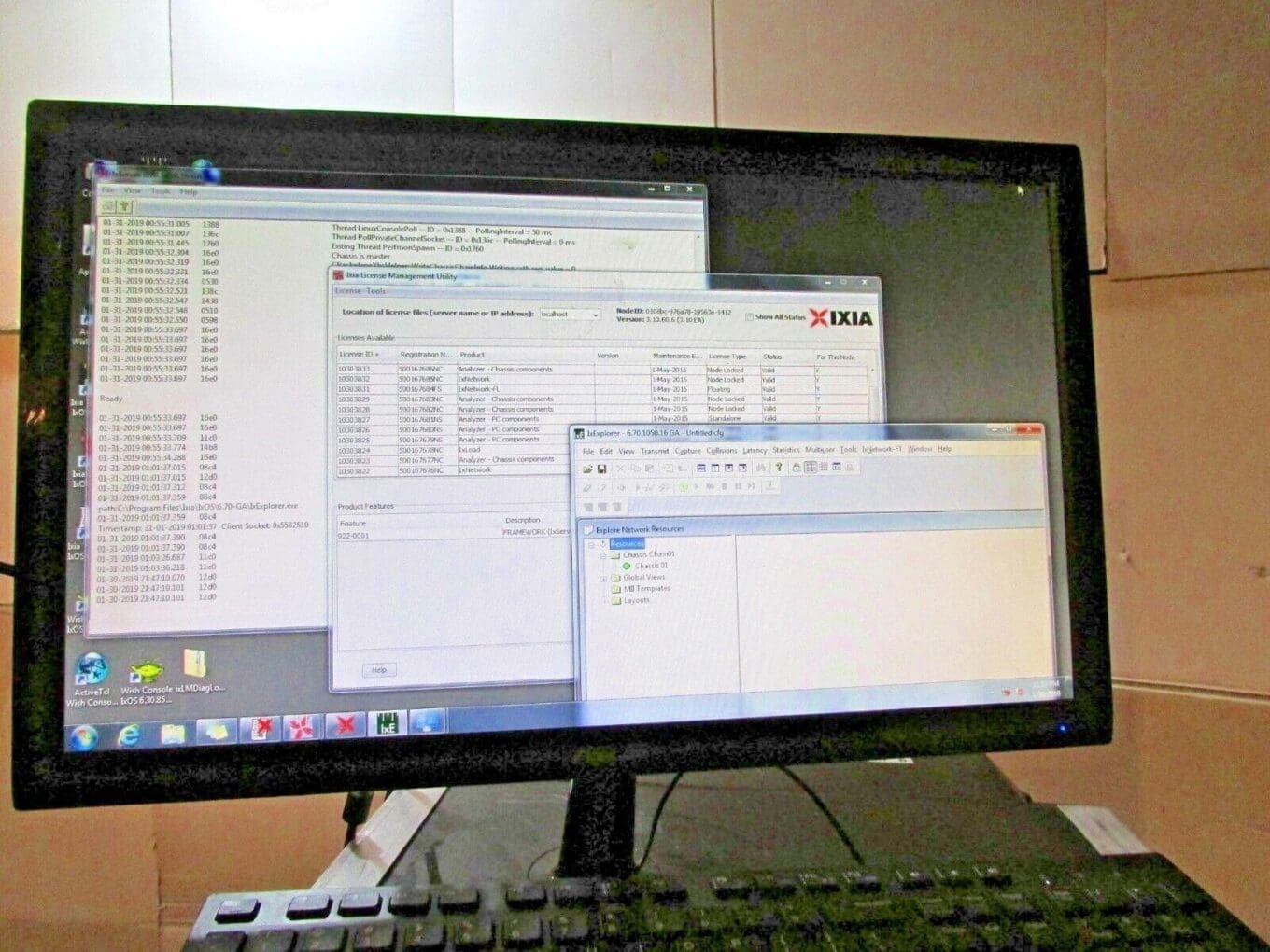

IXIA CLIENT SOFTWARE: The software provided on all Ixia items is the server software only. The server software has ixserver and ixplorer as the only desktop applications. The server application licensed features are accessed through various Ixia client applications that interact with the chassis server.
You can download the Ixia client applications if you have online access with Ixia. These client applications are typically free from Ixia but you will need an Ixia logon account. We offer a selection of these applications to our customers at no charge but the selection is incomplete. We do not sell these with the servers as a package. Client application needs are the buyers responsibility, we do not guarantee that we will have all your needs though we will try to assist you if we can. We only guarantee the server applications as itemized in the listings.
In a single user environment you can set the client side GUI interface on a external PC or you can set them up on an application server when using a chassis in a multi-user environment to access and configure all the sub-license features included in a listing. Multiple chassis can be accessed in the client applications environment which allows you to use the licensed features of several chassis all at once in one interface.
WHAT YOU SEE IS WHAT YOU GET… What is included in this listing will be shown in the pictures. If you do not see an accessory in the pictures and it is not specifically listed as included in the condition description or the listing description, the accessory is not included. Please read the descriptions completely for exceptions on this.
GENERAL REFUND POLICY: You are covered with a full money back guarantee for at least 30 days or longer as specified in the listing, unless an item is indicated as “Sold as is – no returns”. We go beyond that by promising that if you are dissatisfied for any reason and if we cannot fix this with you, we will give you 100% of your purchase price back as a cash refund. This will include the original shipping costs if your dissatisfaction is due to an issue with the item you bought being “Not as described”.
ALL WE ASK IS THAT YOU CONTACT US FIRST AND GIVE US A CHANCE TO WORK THINGS OUT WITH YOU. PLEASE DO NOT LEAVE NEGATIVE FEEDBACK IF YOU HAVE NOT FIRST CONTACTED US TO FIX WHATEVER ISSUE YOU HAVE.
WE SHIP WORLD WIDE!
