IXIA Xdensity XDM10G8S, Ultra-high density, 10-Gigabit Ethernet load module

Ixia Xdensity xdm10g8s, Ultra-High Density, 10-Gigabit Ethernet Load Module

Name: Ixia Xdensity xdm10g8s, Ultra-High Density, 10-Gigabit Ethernet Load Module
Brand: Ixia
SKU: 123764923379_586E
Price: 3299.99 USD
Availability: InStock

$3,299.99

New – Open box Ixia Xdensity xdm10g8s, Ultra-High Density, 10-Gigabit Ethernet Load Module new but not in original box – COMES WITH TEST REPORTS ON MODULE 60 DAY FULL WARRANTY

7 in stock

SKU: 123764923379_586E Category: LAN/WAN & Protocol Analyzers Brand: Ixia

Description

ZOMBIE COMPONENTSTHE LARGEST IXIA RESELLER ONLINE

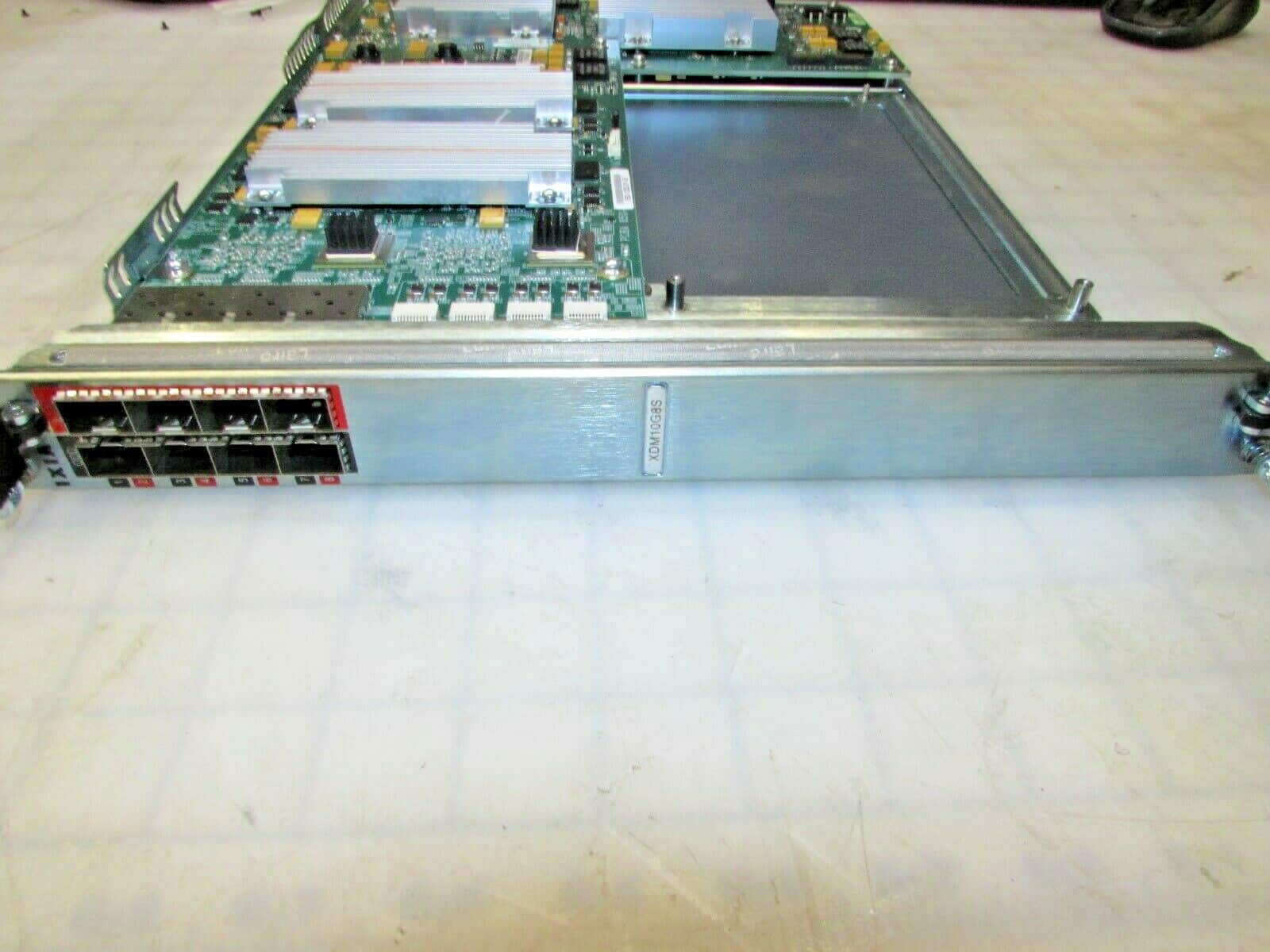

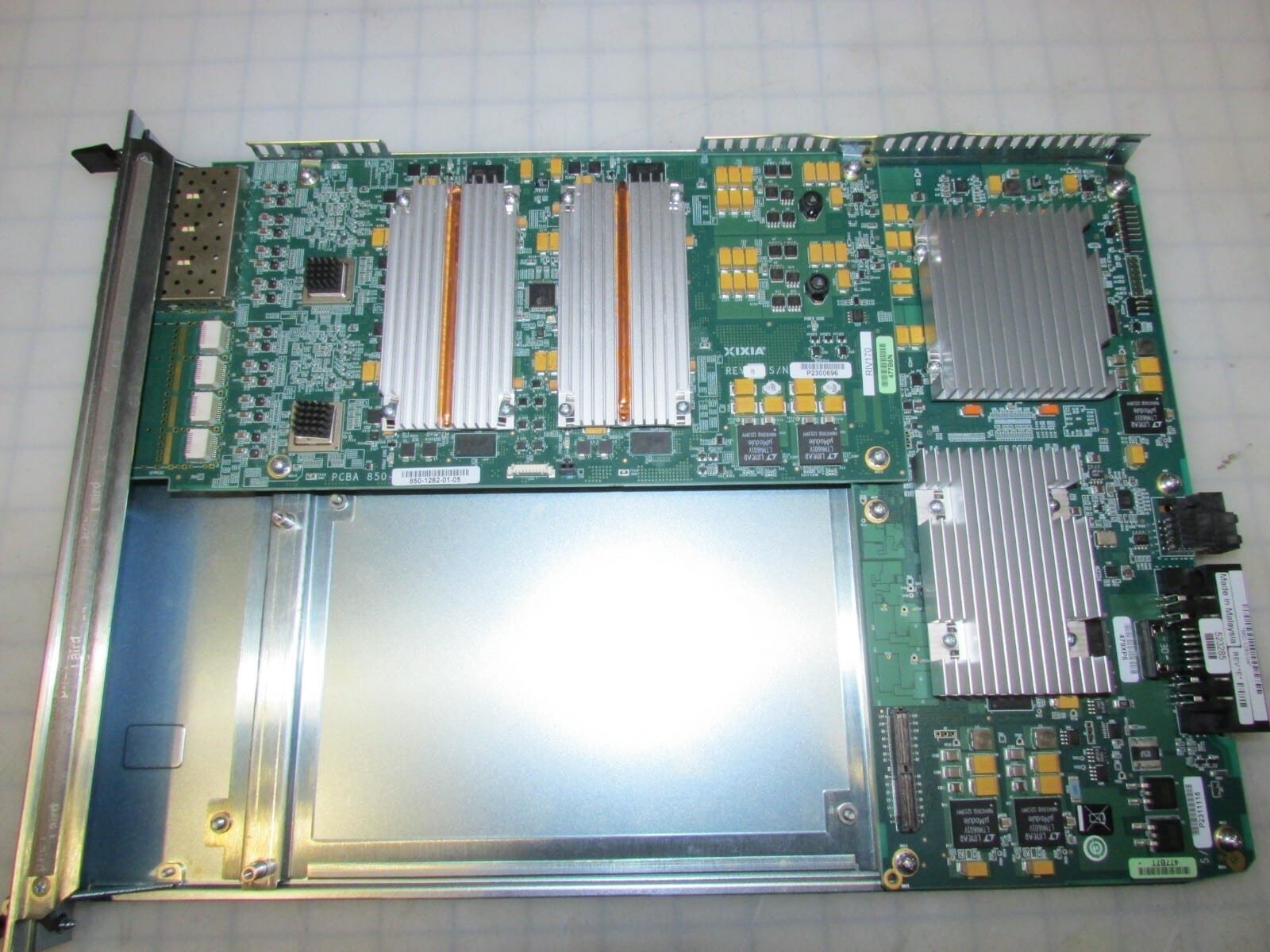

IXIA Xdensity XDM10G8S, Ultra-high density, 10-Gigabit Ethernet
load module

Xdensity is a 8 port load module with 10GE density per port. Each slot in this load module consists of 8 ports that can scale up to 96 ports in a single XM12 or XG12 chassis. The high

scalability feature of Xdensity load module provides test solutions for high density 10GE converged data center switches and routers.

The key features of Xdensity load module are mentioned as follows:

An optimum solution for testing high density network switches that requires higher per port levels of L23 protocol emulation scale and performance. The XDM10G8S offers up to 4 times higher protocol performance per port compared to the XDM10G32S.

Energy-efficient solution for 10GE test environments

8-ports of 10GE in a single-slot load module

96-ports of 10GE SFP+ interfaces in a single 10U rackmount chassis:

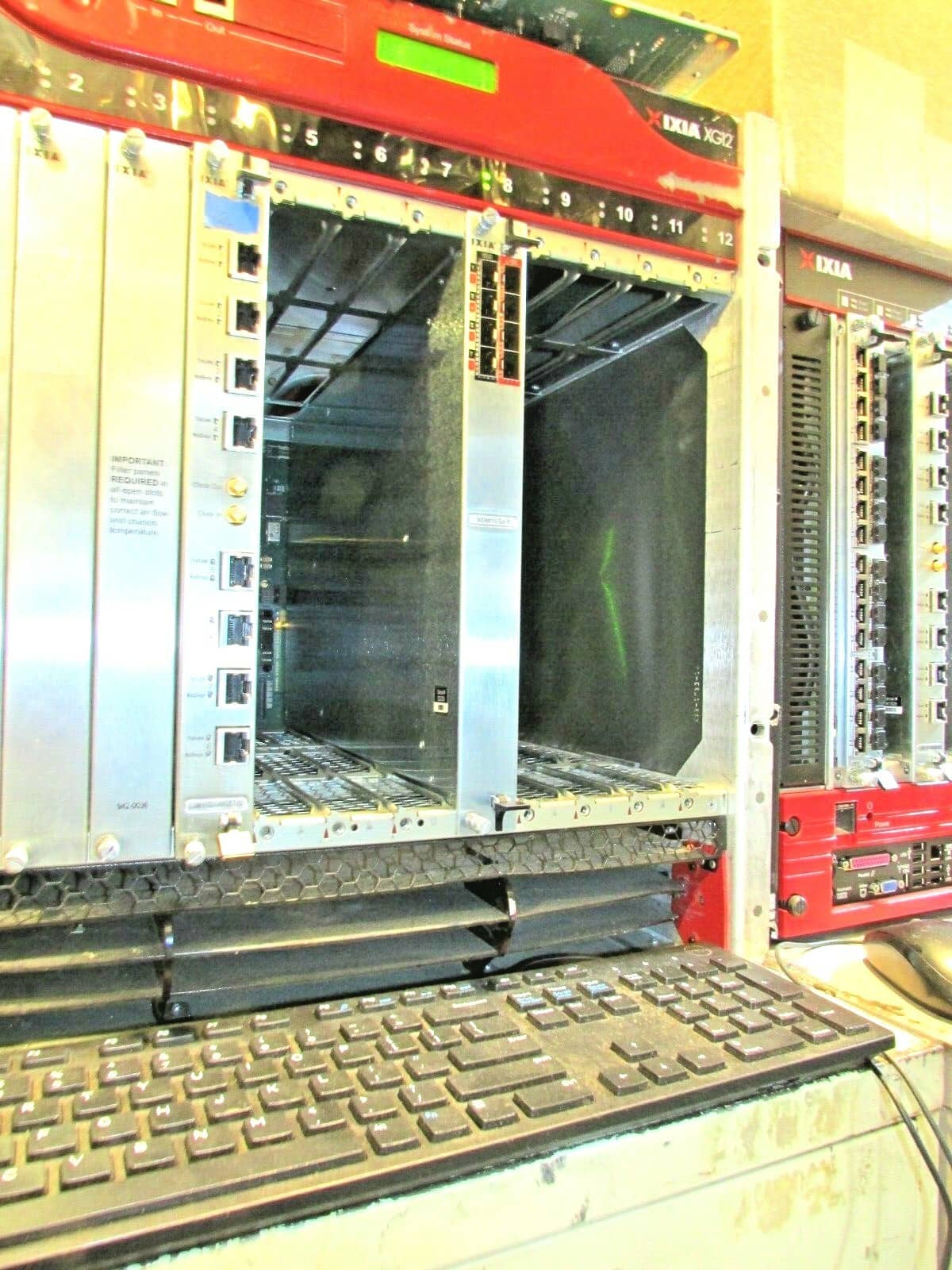

Compatible with Ixia's XM2, XM12, and XG12 chassis

Support for host protocol emulation to test layer 3 devices: ARP, NDP, IPv4, IPv6, IGMP, MLD, and DHCPv4/v6 (client and server)

A targeted set of routing and bridging protocols are supported per port that can be configured with any mix of supported protocols required: BFD, BGPv4/v6, CFM, EIGRP, ISISv4/v6, ISIS-DCE, LDP, Link OAM, OSPFv2, OSPFv3, PIM- SM/SSM-v4/v6, RIP, RIPng, STP/RSTP/MSTP, RSVP-TE

Built with multicore processor technology

Compatible with Ixia's XM2 and XM12 chassis

Compatible with Ixia's XG12 chassis

X d e n s i t y L o a d M o d u l e S p e c i f i c a t i o n s

F e a t u r e

X d e n s i t y 3 2 p o r t

X d e n s i t y 8 p o r t

Load Modules

XDM10G32S

XDM10G8S

Number of ports per mod- ule

Number of chassis slots per module

XM12 High Performance (4000W): 384ports

Maximum ports per chassis

10GESFP+

XM2 Desktop: 64-ports 10GESFP+

10GESFP+

XM2 Desktop: 64-ports 10GESFP+

XG12: 384 ports

SFP+ transceiver support

Multi-core processor tech- nology

Yes

Frame Size

Minimum Frame Size at Line

Minimum Frame Size at

10GBASE-SR/SW (multimode fiber)

10GBASE-LR/LW (single mode fiber)

10GBASE-CR (passive, copper twinaxial)

F e a t u r e

X d e n s i t y 3 2 p o r t

X d e n s i t y 8 p o r t

Rate: 64

Line Rate: 64

Minimum Frame Size – may not be at Line Rate: 64

Maximum Frame Size: P0: 9216B

others 2500B

Interface protocols

IEEE8002.3ae10GE LAN

Host protocol emu- lationsupport

ARP, NDP, IPv4, IPv6, IGMP,

MLD and DHCPv4/v6 (Cli- ent+Server)

ARP, NDP, IPv4, IPv6, IGMP, MLD and DHCPv4/v6 (Client+Server)

Routing protocol emulation support

BFD, BGPv4/v6, CFM, EIGRP, ISISv4/v6, ISIS- DCE, LDP, Link OAM, OSPFv2, OSPFv3, PIM- SM/SSM-v4/v6, RIP, RIPng, STP/RSTP/MSTP, RSVP-TE

Performance benchmark tests

RFC 2544, RFC 2889, RFC

3819

RFC 2544, RFC 2889, RFC

3819

Number of transmit flows per port (sequential values)

Billions

Number of transmit flows per port (non-sequential values)

Millions

User-Defined Fields (UDF)

Counter, Value List, and Nes- ted Counter UDFs

Counter, Value List, and Nested Counter UDFs

Transmit engine

Wire-speed packet gen- eration with timestamps, sequence numbers, data integrity signature, and packet group signatures

User defined field features

Fixed, increment or decre- ment by userdefined step, value list, and nested UDF

Data field pattern per stream

Random, increment (word/- byte), decrement (word/- byte)

Frame length controls

Fixed, uniform random, auto, increment by user- defined step, dynamic frame

Fixed, uniform random, auto, increment by user- defined step, dynamic

F e a t u r e

X d e n s i t y 3 2 p o r t

X d e n s i t y 8 p o r t

rate change, and frame size change on the fly

frame rate change, and frame size change on the fly

Error generation

CRC good, bad

IPv4, UDP, TCP, ICMP,

ICMPv6, IGMP checksum

Hardware checksum gen- eration and verification

Receive engine

Wire-speed packet filtering, data integrity, real-time latency, and sequence check- ing for each packet group

Wire-speed packet filtering, data integrity, real-time latency, and sequence checking for each packet group

Trackable receive flows

8K per port

Filters

48-bit source/destination address, 2×128-bit user- definable pattern and offset, frame length range, CRC error, data integrity error, sequence checking error, IP/TCP/ UDP checksum error

48-bit source/destination address, 2×128-bit user- definable pattern and off- set, frame length range, CRC error, data integrity error, sequence checking error, IP/TCP/UDP check- sum error

Statistics and rates (counter size: 64 bits)

Link state, line speed, frames sent, valid frames received, bytes sen- t/received, fragments, undersize, oversize, CRC errors, VLAN tagged frames, 6 userdefined stats (UDS), data integrity frames, data integrity errors, sequence checking frames, and sequence checking errors

Intrinsic latency adjust- ment

Ability to remove inherent latency from any MSA-com- pliant 10GE SFP+ trans- ceivers without factory support

Transmit line clock adjust- ment

Ability to adjust the parts per million (ppm) line fre- quency over a range of +/- 100 ppm

Operating temperature range

41°F to 104°F (5°C to 40°C),

ambient air temperature

41°F to 104°F (5°C to

40°C), ambient air tem-

F e a t u r e

X d e n s i t y 3 2 p o r t

X d e n s i t y 8 p o r t

perature

Load module dimensions

15.95'' (L) x 12.00'' (W) x

1.28'' (H) 405mm (L) x

305mm (W) x 33mm (H)

15.95'' (L) x 12.00'' (W) x

1.28'' (H) 405mm (L) x

305mm (W) x 33mm (H)

Load module weights

Module only: 7.1 lbs. (3.2 kg)

Shipping weight: 9.4 lbs. (4.3 kg)

Module only: 7.1 lbs. (3.2 kg)

Shipping weight: 9.4 lbs. (4.3 kg)

Tranceiver Type

SFP+

Direct Attach Copper

Yes

LED

ppm Adjust range

+/-100ppm

ppm Adjust port/card

Card

Trigger out

External Clock In(Fre- quence)

External Clock Out

Ambient Operating Tem- perature Range (C)

5-40

Timestamp – Resolution

20ns

Timestamp – High Res- olution

Timestamp – End of Frame Instrumentation

Timestamp – Floating Intru- mentation

IEEE802.3x Flow control

WAN

Streams per port

Number of streams in Advanced Scheduler Mode (Data Center Mode)

Transicevier Intrinsic Latency Calibration

F e a t u r e

X d e n s i t y 3 2 p o r t

X d e n s i t y 8 p o r t

Intrinsic Latency

Yes

Data Integrity

Yes

Auto Instrumentation

Yes

Preamble – Changeable Con- tent

Preamble – Byte Count Mode

Preamble – SFD Detect Mode

Yes

Preamble – Cisco CDL Mode
