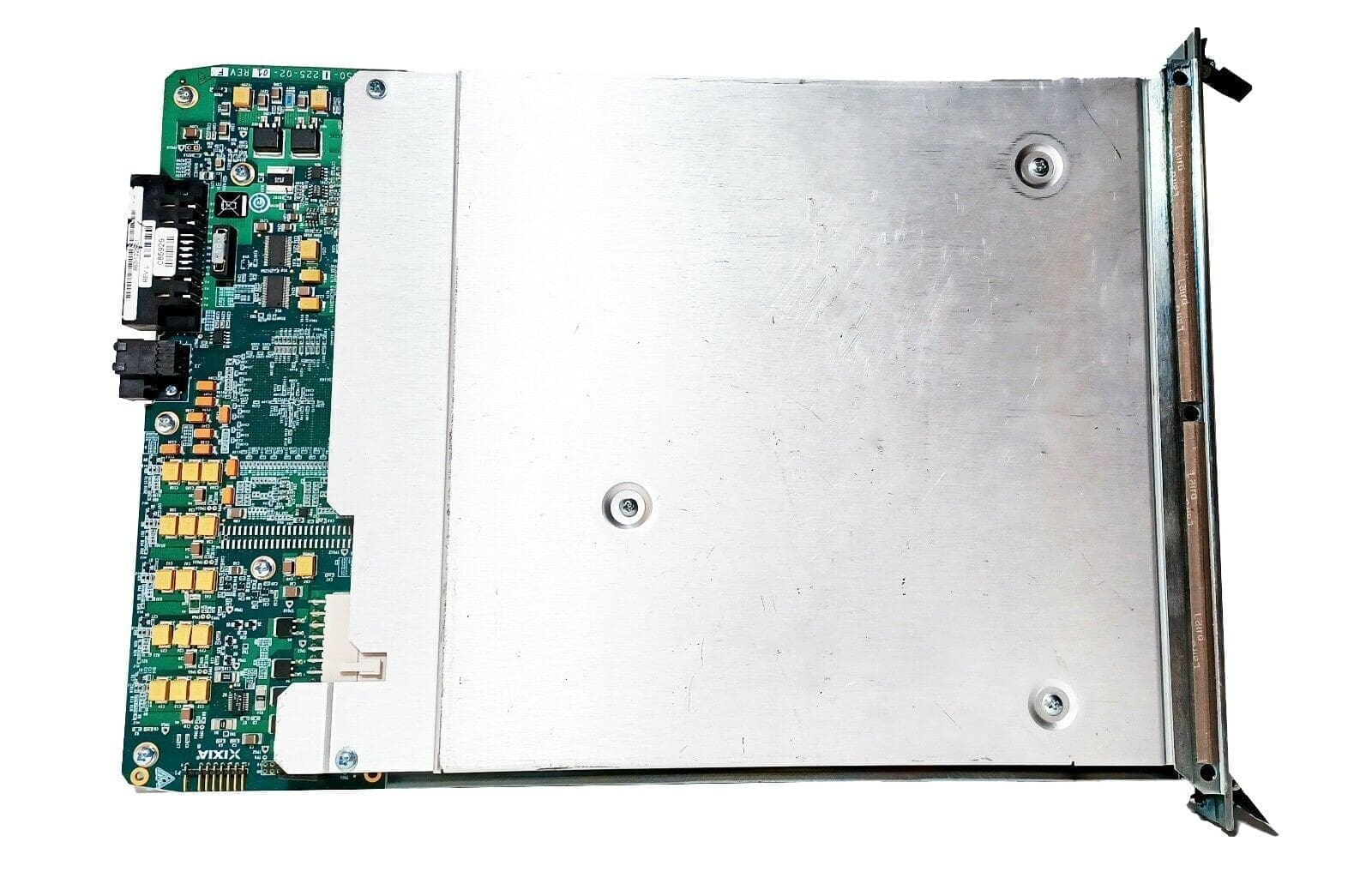

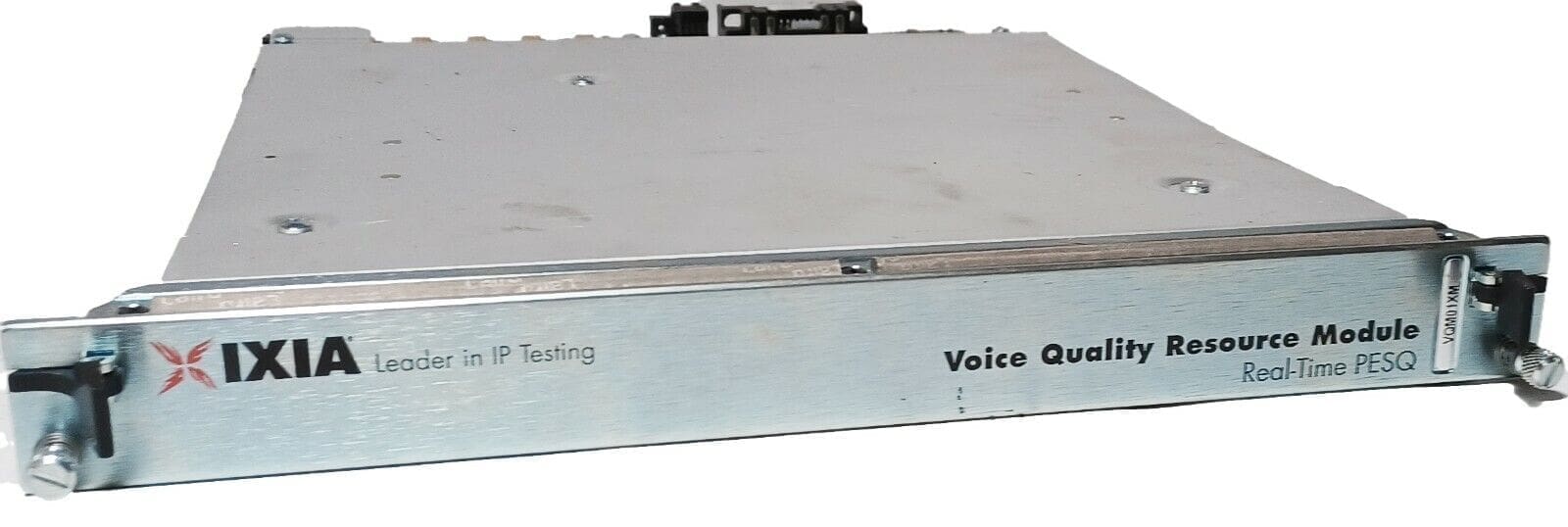

IXIA VQM01XM Voice Quality Resource Module Real Time PESQ

Real-Time, Full-Reference Quality of Voice Measurement
PESQ (perceptual evaluation of speech quality) is an objective quality of voice measurement method that predicts
the results of subjective listening tests, and is defined by ITU-T standard P.862. It is a full-reference method of
comparing the received audio signal (degraded) to the reference signal (as injected into the system). The PESQ
algorithm requires high processing power to access audio signals and perform in depth signal analyzes.
Ixia’s VQM0001 is an XM form factor resource module with enough processing and memory capabilities to
measure PESQ on up to 300 RTP streams.
The VQM0001 analyzes RTP audio streams from one or more application load module ports in the same chassis.
Multiple resource modules can also be mounted in the same chassis and used in a single test.
The VQM0001
module has no external interfaces — it communicates with the application load module through the chassis
backplane.
The VQM0001 enables PESQ measurement using IxLoad VoIP Peer RTP over any VoIP signaling protocol used
to establish peer-to-peer calls.
Specifications

Feature

Details

Module

VQM0001

Performances

300 RTP streams analyzed real time

Codec support

G.711Alaw and mLaw
G.723.1 1.5kbps and 6.3kbps
G.726 16kbps, 24kbps, 32kbps and 40kbps G.729A,
B and AB
AMR-NB

Statistics

Instantaneous PESQ LE (listening effort) and LQ (listening
quality):
Min, Avg, Max – the minimum, average and maximum
values per all streams tacking in consideration only the last calculated
value
Overall PESQ LE and LQ:
Min, Avg, Max – the minimum, average and maximum
values per all streams from the beginning of test execution
Overall P.56 Active Level, Activity Factor, Peak
Level and Noise Level
Min, Avg, Max – the minimum, average and maximum
values per all streams from the beginning of test execution
PESQ distribution; LE and LQ
distributions:
No. of Channels with PESQ between -5 and 1 No.
of Channels with PESQ between 1 and 2 No. of Channels with PESQ between 2 and
3 No. of Channels with PESQ between 3 and 4 No. of Channels with PESQ between
4 and 4.5 PESQ LE and LQ per stream
Current: the last value of PESQ since the start
of the call
Min, Avg, Max – the minimum, average and maximum
values per call since the start of the call.

Operating Temperature Range

41°F to 86°F (5°C to 30°C), ambient air1



1 When used in an XM2
or XM12 chassis



ATTENTION PLEASE!

IXIA CLIENT SOFTWARE: The software provided on all Ixia items is the server software only. The server software has ixserver and ixplorer as the only desktop applications. The server application licensed features are accessed through various Ixia client applications that interact with the chassis server.

You can download the Ixia client applications if you have online access with Ixia. These client applications are typically free from Ixia but you will need an Ixia logon account.  We offer a selection of these applications to our customers at no charge but the selection is incomplete.  We do not sell these with the servers as a package. Client application needs are the buyers responsibility, we do not guarantee that we will have all your needs though we will try to assist you if we can. We only guarantee the server applications as itemized in the listings.

In a single user environment you can set the client side GUI interface on a external PC or you can set them up on an application server when using a chassis in a multi-user environment to access and configure all the sub-license features included in a listing. Multiple chassis can be accessed in the client applications environment which allows you to use the licensed features of several chassis all at once in one interface.

WHAT YOU SEE IS WHAT YOU GET… What is included in this listing will be shown in the pictures. If you do not see an accessory  in the pictures and it is not specifically listed as included in the condition description or the listing description, the accessory is not included. Please read the descriptions completely for exceptions on this.

GENERAL REFUND POLICY:  You are covered with a full money back guarantee for at least 30 days or longer as specified in the listing, unless an item is indicated as “Sold as is – no returns”.  We go beyond that by promising that if you are dissatisfied for any reason and if we cannot fix this with you, we will give you 100% of your purchase price back as a cash refund. This will include the original shipping costs if your dissatisfaction ​​​​​​​ is due to an issue with the item you bought being “Not as described”.
​​​​​​​
ALL WE ASK IS THAT YOU CONTACT US FIRST AND GIVE US A CHANCE TO WORK THINGS OUT WITH YOU. PLEASE DO NOT LEAVE NEGATIVE FEEDBACK IF YOU HAVE NOT FIRST CONTACTED US TO FIX WHATEVER ISSUE YOU HAVE.

WE SHIP WORLD WIDE!

Weight	13.0000 lbs
Dimensions	20 × 14 × 6 in
Brand	Ixia
Condition	Used
Condition Description	*** 60 DAY MONEY BACK GUARANTEE ***
MODEL	IXIA VQM01XM
MPN	VQM01XM
