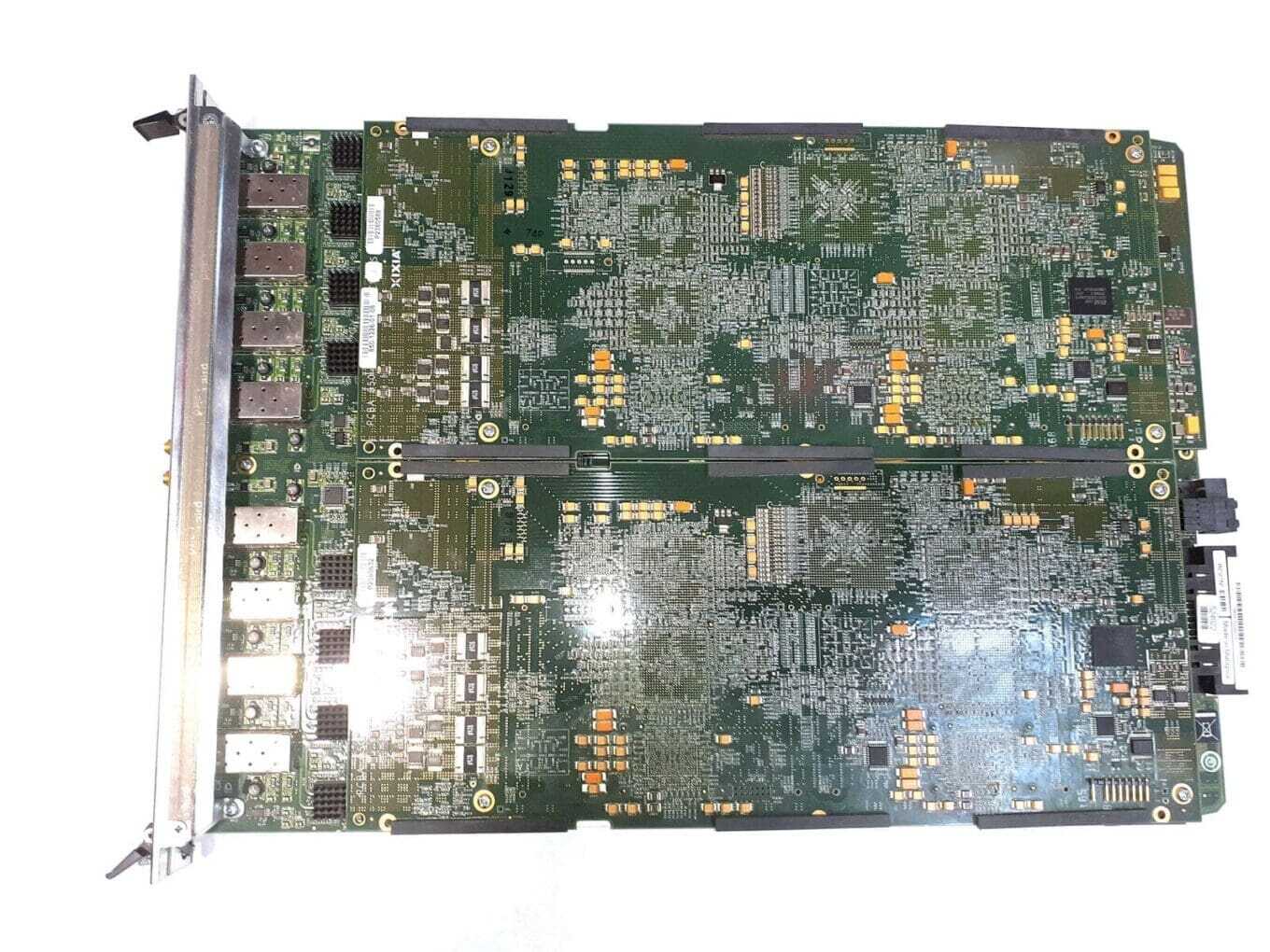

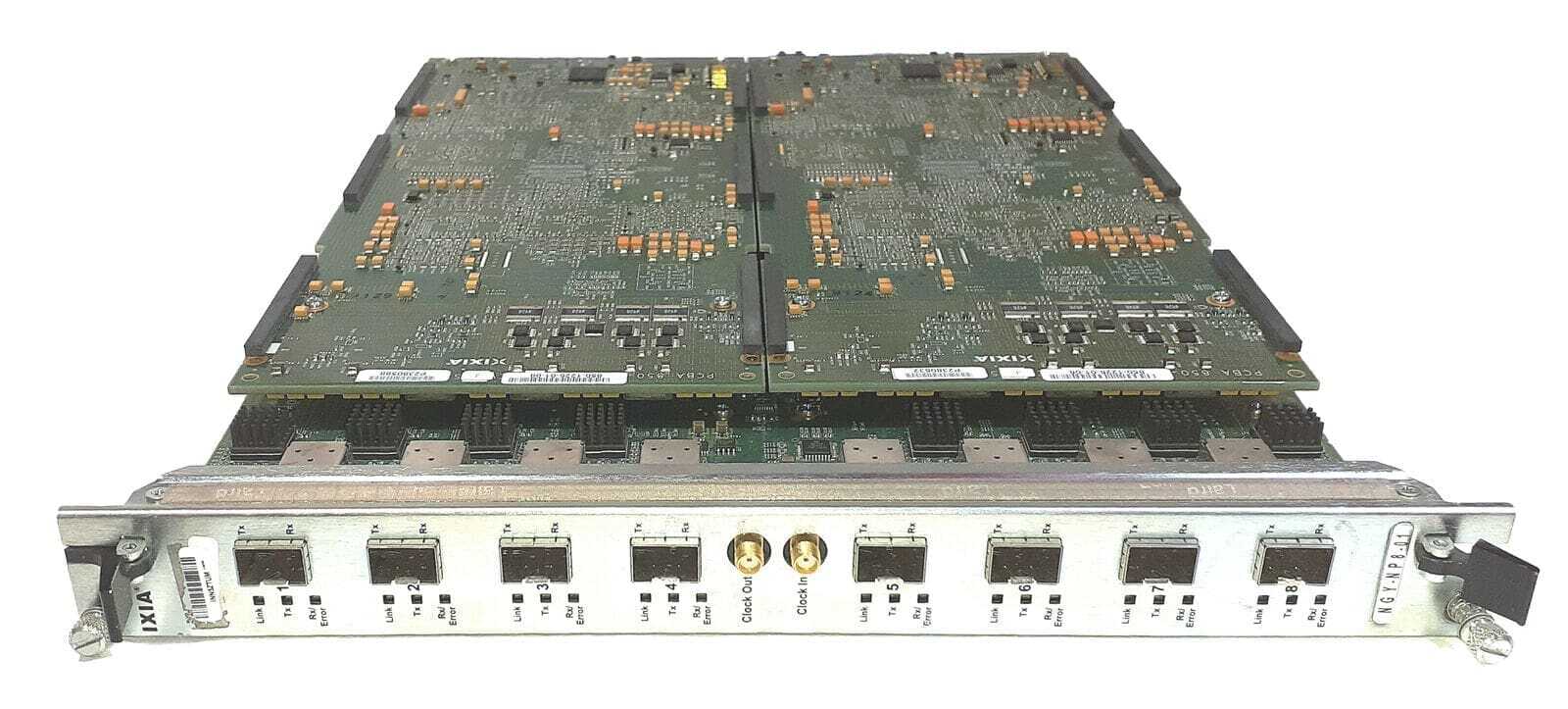

IXIA OPTIXIA NGY-NP8-01, 10 GIGABIT APPLICATION NETWORK PROCESSOR
LOAD MODULE

NGY-NP8-01



Ixia's NGY-NP family of load modules is the industry’s highest performing density application traffic generation solution. It offers complete layer 2-7 packet generation, and routing and application testing functionality in a single load module. NGY-NP combines the CPU processing and Ixia’s unique NP (network processor) architecture to create a scalable, high-performance application traffic generation platform, emulating up to 40Gbps of data traffic. Each 10GbE port uses multiple network processors, a powerful RISC processor running Linux, and a complete TCP/IP stack – all of which are optimized for layer 4-7 testing. Each test port also supports wire-speed layer 2-3 traffic generation and analysis, and high-performance routing/bridging protocol emulation in conjunction with true layer 4-7 application subscriber emulation and traffic generation. NGY-NP is available in 2-port, 4-port and 8-port configurations offering a wider range of price points, interfaces densities, and performance capabilities. A single twelve slot XGS12 chassis can generate up to 480Gbps of stateful traffic in a single test system.

• Extensive support for layer 4-7 protocols including DHCPv4, DHCPv6-PD, PPPoE, IPSec, VLANs, 802.1q, and 802.1p.

• True user emulation with multiple applications per subscriber.

• Realistically simulates dynamic network interface setup and teardown behavior linked with subscriber emulation.

• Advanced network attachment support to test with any network topology.

• Sets up 802.1x and EAPoUDP sessions and carries out authentication and access control.

• Transmits high-performance multiplay traffic over authenticated sessions for performance benchmarking, while performing web-based HTTP session authentication and running HTTP performance scalability tests.

• HTTP, SSL, FTP, peer-to-peer, RTSP, RTP, SMTP, POP3, IMAP, CIFS, Radius, SSH, Radius, Telnet, DNS, DHCP, LDAP, DDoS,

• vulnerability attacks and application replay for true replay of application flows.

'• VoIP, SIP, SCCP (Skinny), H.248, SIP, and MGCP.

'• IPTV, video on demand, streaming video, RTSP, RTP, IGMP, and MLD



APPLICATION TRAFFIC CAPABILITIES

APPLICATION FEATURE

DETAILS





Network Protocols

Extensive support for layer 4-7 protocols including DHCPv4, DHCPv6- PD, PPPoE, IPsec, VLANs, 802.1q, and 802.1p. Unique MAC addresses, flexible IP and VLAN mapping, traffic to network associations are available for complex scenarios.





Dynamic Subscriber Behavior

True user emulation with multiple applications per subscriber. Realistically simulates dynamic network interface setup and tear-down behavior linked with subscriber emulation. Advanced network attachment support to test with any network topology.





Layer 2-3 Authentication and Access Control

Sets up 802.1x and EAPoUDP sessions and carries out authentication and access control. Transmits high-performance multiplay traffic over authenticated sessions for performance benchmarking, while performing web-based HTTP session authentication and running HTTP performance scalability tests.





Data Protocol Emulation

HTTP, SSL, FTP, peer-to-peer, RTSP, RTP, SMTP, POP3, IMAP,
CIFS, Radius, SSH, Radius, Telnet, DNS, DHCP, LDAP, DDoS, vulnerability attacks and application replay for true replay of application flows.





Voice Protocol Testing

VoIP, SIP, SCCP (Skinny), H.248, SIP, and MGCP.





Video Protocol Testing

IPTV, video on demand, streaming video, RTSP, RTP, IGMP, and MLD.





APPLICATION PERFORMANCEi

NGY-NP load modules provide the industry’s highest performance in real-world application emulation.

METRIC

NGY-NP8

NGY-NP4

NGY-NP2





L2/3 Throughput

160Gbps

80Gbps

40Gbps





L7 Throughput

40Gbps

20Gbps

10Gbps





Connections/sec

400,000

252,000

125,000





Concurrent Connections

3,200,000

1,600,000

800,000





FLEXIBLE PACKET GENERATION

Each Ixia 10 gigabit Ethernet test port is capable of generating precisely controlled network traffic at wire speed using Ixia’s IxExplorer test application. Millions of packet flows, with fully customizable packet header fields, can be configured on each port. Flexible header control is available for Ethernet, IPv4/v6, IPX, ARP, TCP, UDP, VLANs, QinQ, MPLS, GRE, and many others. Payload contents can also be customized with incrementing, decrementing, fixed, random, or user-defined information. Frame sizes can be fixed, varied according to a pattern, or randomly assigned across a weighted range. Rate control can be flexibly defined in frames per second, bits per second, percentage of line rate, or inter-packet gap  time.

REAL-TIME LATENCY

Packets representing different traffic profiles can be associated with packet group Identifiers (PGIDs). The receiving port measures the minimum, maximum, and average latency in real time for the packets belonging to different groups. Measurable latencies include:
·    Instantaneous latency and inter-arrival time where each packet is associated with one PGID
·    Latency bins, where PGIDs can be associated with a latency range
·    Latency over time, where multiple PGIDs can be placed in “time buckets” with fixed durations
·    First and last time stamps, where each PGID can store the timestamps of first and last received packets

TRANSMIT SCHEDULER

There are two modes of transmission are available – packet stream and advanced stream scheduler:
·    Packet Stream Scheduler. In packet stream scheduler mode, the transmit engine allows configuration of up to 4000 unique sequential stream groupings on each port. Multiple streams can be defined in sequence, each containing multiple packet flows defined by unique characteristics. After transmission of the first stream, control is passed to the next defined stream in the sequence. After reaching the last stream in the sequence, transmission may either cease, or control may be passed on to any other stream in the sequence. Therefore, multiple streams are cycled through, representing different traffic profiles to simulate real network traffic.
·    Advanced Stream Scheduler. In advanced stream scheduler mode, the transmission of stream groupings is interleaved per port. For example, assume a port is configured with three streams. If stream 1 is defined with IP packets at 20% of line rate, stream 2 is defined with TCP packets at 50% of line rate, and stream 3 is defined with MPLS packets at 30% of line rate, data on the port will be transmitted at an aggregate utilization of 100% with interleaved IP, TCP, and MPLS packets.

EXTENSIVE STATISTICS

·    Real-time 64-bit frame counts and rates
·    Spreadsheet presentation format for convenient manipulation of statistics counters

·    Eight QoS counters (supporting 802.1p, DSCP, and IPv4 TOS measurements)
·    PRBS mode per-PGID statistics:
o PRBS Bits Received
o PRBS Errored Bits
·    PRBS BERT user-defined statistics with trigger condition
·    Extended statistics for ARP, ICMP, and DHCP
·    Transmit stream statistics for frame counts and rate
·    External logging to file for statistics and alerts
·    Audible and visual alerts with user-definable thresholds

DATA CAPTURE

Each port is equipped with 512 MB of capture memory, capable of storing tens of thousands of packets in real time. The capture buffer can be configured to store packets based on user-defined trigger and filter conditions. Decodes for IPv4, IPv6, UDP, ARP, BGP-4, IS-IS, OSPF, TCP, DHCP, IPX, RIP, IGMP,
CISCO ISL, VLAN, and MPLS are provided.

DATA INTEGRITY

As packets traverse through networks, IP header contents may change resulting in the recalculation of packet CRC values. To validate device performance, the data integrity function of GbE ports allows packet payload contents to be verified with a unique CRC that is independent of the packet CRC. This ensures that the payload is not disturbed as the device changes header fields. In addition to the data integrity check, NGY-NP offers PRBS testing, which detects errors within encapsulated Ethernet frames and provides errored-bit identification and bit error rate (BERT) calculations.

SEQUENCE AND DUPLICATE PACKET CHECKING

Sequence numbers can be inserted at a user-defined offset in the payload of each transmitted packet. Upon receipt of the packets by the device under test (DUT), out-of-sequence errors or duplicated packets are reported in real time at wire-speed rates. The user can define a sequence error threshold to distinguish between small versus big errors, and the receive port can measure the amount of small, big, reversed, and total errors. Alternatively, the user can use the duplicate packet detection mode to observe that multiple packets with the same sequence number are received and analyzed.

TCL API

Ixia's GbE ports are supported by a comprehensive Tcl application programming interface (API). This API allows users to develop custom scripts, and integrate the modules into automated test environments.

APPLICATION SUPPORT

·    IxExplorer: Layer 2-3 wire-speed traffic generation and analysis including FCoE.
·    IxAutomate: Automated test environment for layer 2-3 data and control plane testing, includes RFC- based test suites.
·    IxNetwork: Integrated layer 2-3 data/control plane performance and functional testing. Data Center Ethernet (FCoE, IxSAN)  Routing/bridging emulation includes: BGP4/4+, OSPFv2/v3, IS-ISv4/v6, RIP/RIPng, RSVP-TE, LDP, L2 MPLS VPNs, L3 MPLS VPNs, VPLS, IGMPv1/v2/v3, MLDv1/v2, PIM-SMv4/v6, STP, RSTP, EIGRP, and MSTP.
·    IxLoad: Layer 4-7 performance testing.
·    IxSAN: Stateful FCoE emulation of storage devices including emulation of initiators and targets.
·    Tcl API: Custom user script development for layer 2-7 testing.
SPECIFICATIONS

LOAD MODULE

NGY-NP8, NGY-NP4, AND NGY-NP2



Connector Type

SFP+ for 10GbE port



Number of Ports

8 / 4 / 2



Maximum Ports per Chassis:
– XGS12-HS or XGS12-SD or XM12
– XGS2-HS or XGS2-SD or XM2

96 / 48 / 24ii
16 / 8 / 4



Layer 2-3 Routing Protocol and Emulation

Yes



Layer 4–7 Application Traffic Testing

Yes



Capture Buffer per Port

512 MB



Number of Transmit Flows per Port (sequential values)

Billions



Number of Transmit Flows per Port (arbitrary values)

1 Million



Number of Trackable Receive Flows per Port

1 Million



Number of Stream Definitions per Port

512 in packet stream mode (sequential) or advanced stream (interleaved) modes. Each stream definition can generate millions of unique traffic flows



LOAD MODULE

NGY-NP8, NGY-NP4, AND NGY-NP2



Transmit Engine

Wire-speed packet generation with timestamps, sequence numbers, data integrity signature, and packet group signatures



Receive Engine

Wire-speed packet filtering, capturing, real-time latency for each packet group, data integrity, and sequence checking



User Defined Field (UDF) Features

Fixed, increment or decrement by user-defined step, value lists, range lists, cascade, random, and chained



Table UDF Feature

Comprehensive packet editing function for emulating large numbers of sophisticated flows. Up to 1 million table UDF entries are supported on the NGY-NP.



Filters

48-bit source/destination address, 2×128-bit user-definable pattern and offset, frame length range, CRC error, data integrity error, sequence checking error (small, big, reverse)



Data Field (per stream)

Fixed, increment (byte/word), decrement (byte/word), random, repeating, user-specified up to 13K bytes



Statistics and Rates: Counter Size: 64-Bit

Link state, line speed, frames sent, valid frames received, bytes sent/received, fragments, undersize, oversize, CRC errors, VLAN tagged frames, 6 user-defined stats, capture trigger (UDS 3), capture filter (UDS 4), user-defined stat 5, user-defined stat 6, 8 QoS counters, data integrity frames, data integrity errors, sequence checking frames, sequence checking errors, ARP, and ping requests and replies



Error Generation

CRC (Good/Bad/None), Undersize, Oversize



Packet Flow Statistics

Real-time statistics to track up to 1 million packet flows on the NGY-NP with throughput and latency measurements.



Latency Measurements

20ns resolution



IPv4, IPv6, UDP, TCP

Hardware checksum generation



Frame Length Controls

Fixed, random, weighted random, or increment by user- defined step, random, weighted random



Operating Temperature Range

41°F to 86°F (5°C to 30°C)
